MERCEDES-BENZ E350 4MATIC WAGON 2007 S211 Owner's Manual

170 Controls in detailControl systemThe following settings and submenus are
available in the
Settings
menu:
Resetting all settings
You can reset all the functions of all sub-
menus to the factory settings.

Press the reset button in the instru-
ment cluster (
page 152) for approxi-
mately 3 seconds.
In the multifunction display you will see
the request to press the reset button
again to confirm.

Press the reset button again.The functions of all the submenus will
reset to factory settings.
Submenus in the Settings menu

Press buttonj.
In the multifunction display you see the
collection of the submenus.

Press buttonç.
The selection marker moves to the next
submenu.
The submenus are arranged by hierarchy.
Scroll down with buttonç, scroll up
with buttonæ.
With the selection marker on the desired
submenu, use the buttonj to access
the individual functions within that sub-
menu. Once within the submenu, you can
use the buttonj to move to the next
function or the buttonk t o m o v e t o t h e
previous function within that submenu.
The settings themselves are made with
buttonæ orç.
Function
Page
Resetting all settings
170
Submenus in the Settings menu
170
Instrument cluster submenu
172
Time/date submenu
174
Lighting submenu
176
Vehicle submenu
180
Convenience submenu
181
i
The settings you have changed will not be re-
set unless you confirm the action by pressing the
reset button a second time. After approximately
5seconds, the
Settings
menu reappears in the
multifunction display.
For safety reasons, the Headlamp mode
func-
tion in the
Lighting
submenu is not reset while
driving.

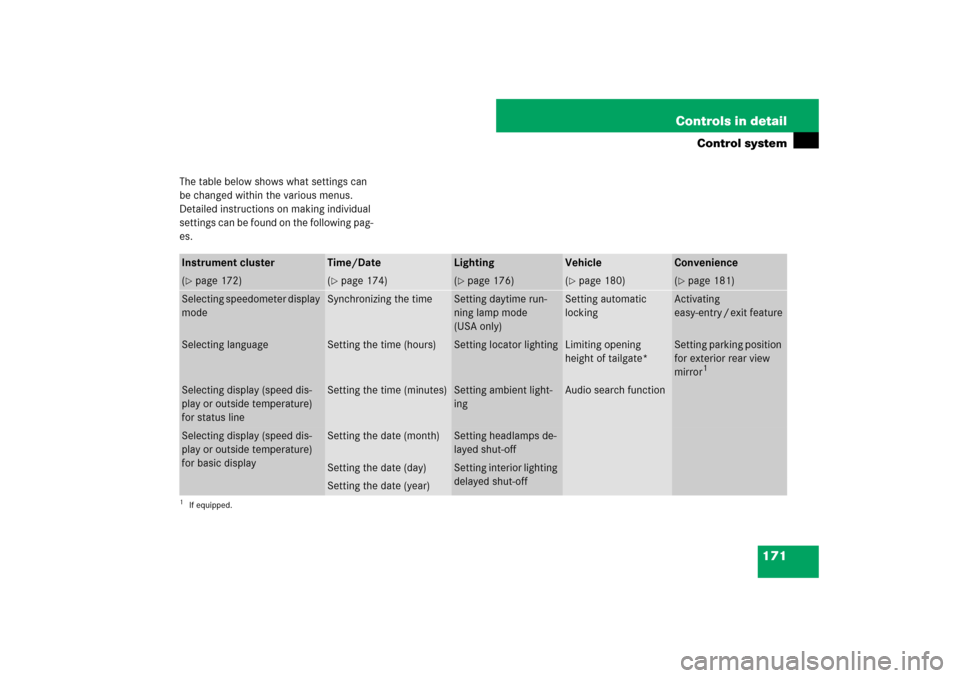

171 Controls in detail
Control system
The table below shows what settings can
be changed within the various menus.
Detailed instructions on making individual
settings can be found on the following pag-
es.Instrument cluster
Time/Date
Lighting
Vehicle
Convenience
(page 172)
(page 174)
(page 176)
(page 180)
(page 181)
Selecting speedometer display
mode
Synchronizing the time
Setting daytime run-
ning lamp mode
(USA only)
Setting automatic
locking
Activating
easy-entry / exit feature
Selecting language
Setting the time (hours)
Setting locator lighting
Limiting opening
height of tailgate*
Setting parking position
for exterior rear view
mirror
1
1If equipped.Selecting display (speed dis-
play or outside temperature)
for status line
Setting the time (minutes)
Setting ambient light-
ing
Audio search function
Selecting display (speed dis-
play or outside temperature)
for basic display
Setting the date (month)
Setting headlamps de-
layed shut-off
Setting the date (day)
Setting interior lighting
delayed shut-off
Setting the date (year)

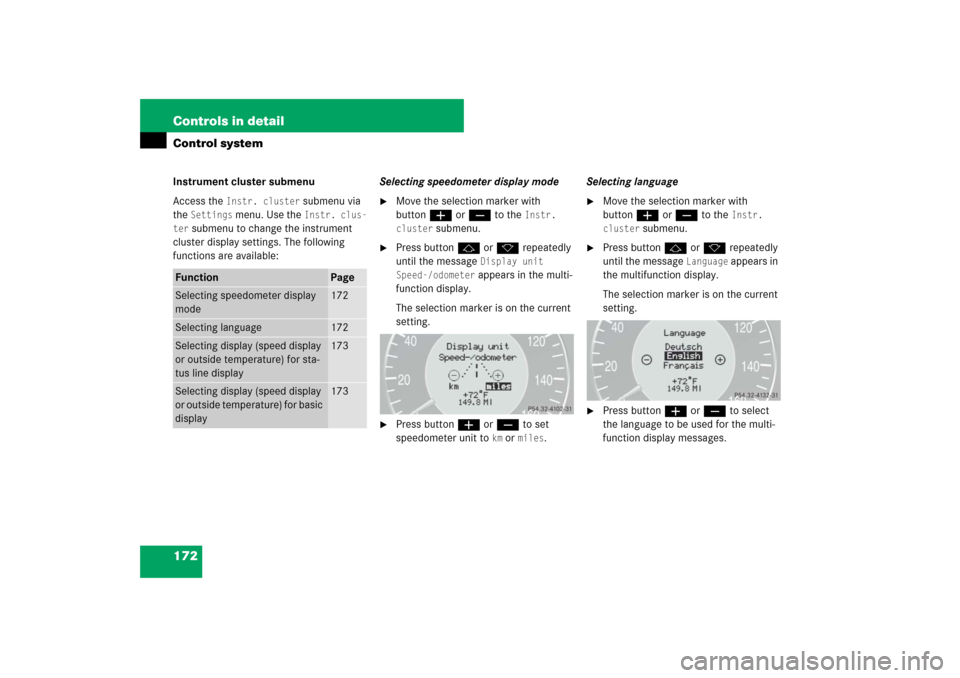

172 Controls in detailControl systemInstrument cluster submenu
Access the
Instr. cluster
submenu via
the
Settings
menu. Use the
Instr. clus-
ter
submenu to change the instrument
cluster display settings. The following
functions are available:Selecting speedometer display mode

Move the selection marker with
buttonæ orç to the
Instr.
cluster
submenu.

Press buttonj ork repeatedly
until the message
Display unit
Speed-/odometer appears in the multi-
function display.
The selection marker is on the current
setting.

Press button æ or ç to set
speedometer unit to
km or
miles
.Selecting language

Move the selection marker with
buttonæ orç to the
Instr.
cluster
submenu.

Press buttonj ork repeatedly
until the message
Language
appears in
the multifunction display.
The selection marker is on the current
setting.

Press buttonæ orç to select
the language to be used for the multi-
function display messages.
Function
Page
Selecting speedometer display
mode
172
Selecting language
172
Selecting display (speed display
or outside temperature) for sta-
tus line display
173
Selecting display (speed display
or outside temperature) for basic
display
173

173 Controls in detail
Control system
Available languages:

German


English


French


Italian


Spanish


Dutch


Danish


Swedish


Portuguese


Turkish


RussianSelecting display (speed display or out-
side temperature) for status line display

Move the selection marker with
buttonæ orç to the
Instr.
cluster
submenu.

Press buttonj ork repeatedly
until the message
Status line dis-
play
appears in the multifunction dis-
play.
The selection marker is on the current
setting.

Press buttonæ orç to select
the status line to
Speed
or
Outside
temp.
.Selecting display (speed display or out-
side temperature) for basic display

Move the selection marker with
buttonæ orç to the
Instr.
cluster
submenu.

Press buttonj ork repeatedly
until the message
Basic display
ap-
pears in the multifunction display.
The selection marker is on the current
setting.

Press buttonæ orç to select
the display permanently shown in the
multifunction display.
i
Russian is available for Canada vehicles
only.
i
You will see the status indicator when you
have called up a different display from the stan-
dard display.

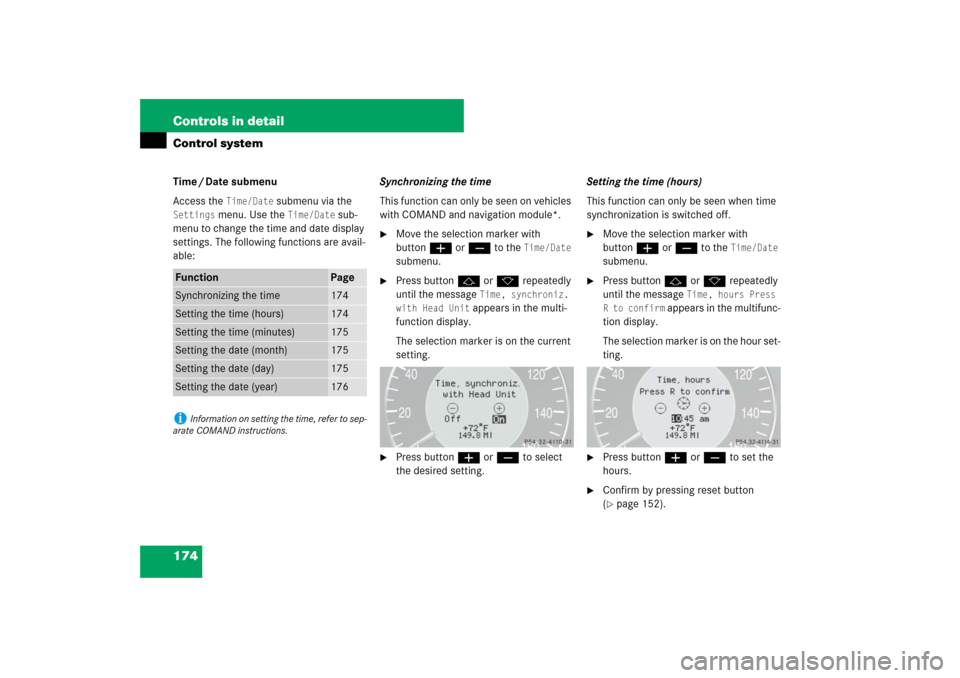

174 Controls in detailControl systemTime / Date submenu
Access the
Time/Date
submenu via the
Settings
menu. Use the
Time/Date
sub-
menu to change the time and date display
settings. The following functions are avail-
able:Synchronizing the time
This function can only be seen on vehicles
with COMAND and navigation module*.

Move the selection marker with
buttonæ orç to the
Time/Date

submenu.

Press buttonj ork repeatedly
until the message
Time, synchroniz.
with Head Unit appears in the multi-
function display.
The selection marker is on the current
setting.

Press buttonæ orç to select
the desired setting.Setting the time (hours)
This function can only be seen when time
synchronization is switched off.

Move the selection marker with
buttonæ orç to the
Time/Date

submenu.

Press buttonj ork repeatedly
until the message
Time, hours Press
R to confirm
appears in the multifunc-
tion display.
The selection marker is on the hour set-
ting.

Press buttonæ orç to set the
hours.

Confirm by pressing reset button
(page 152).
Function
Page
Synchronizing the time
174
Setting the time (hours)
174
Setting the time (minutes)
175
Setting the date (month)
175
Setting the date (day)
175
Setting the date (year)
176
i
Information on setting the time, refer to sep-
arate COMAND instructions.

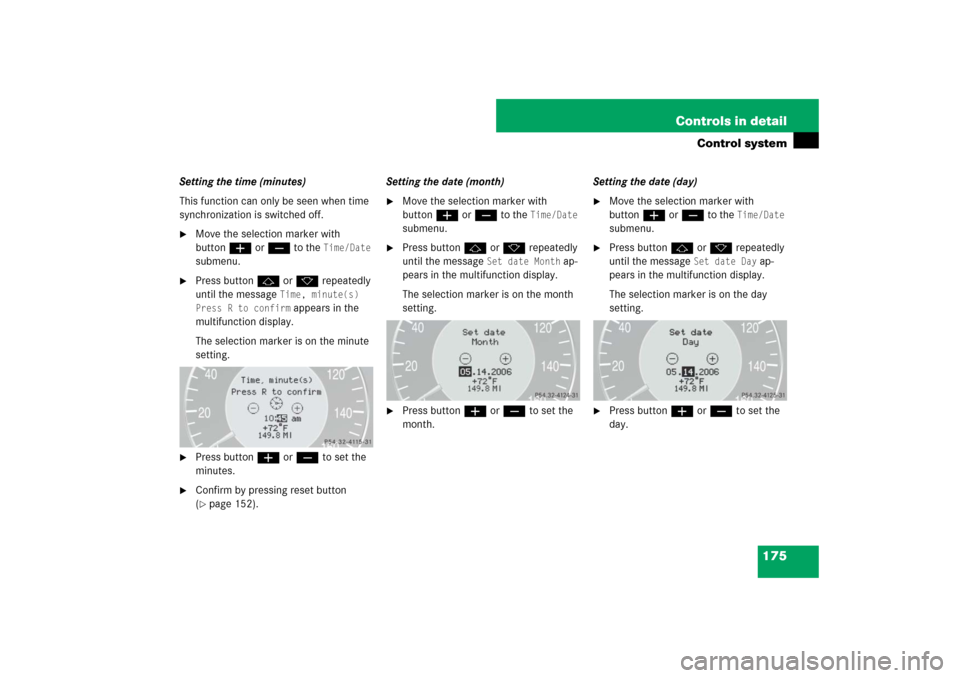

175 Controls in detail
Control system
Setting the time (minutes)
This function can only be seen when time
synchronization is switched off.
Move the selection marker with
buttonæ orç to the
Time/Date

submenu.

Press buttonj ork repeatedly
until the message
Time, minute(s)
Press R to confirm appears in the
multifunction display.
The selection marker is on the minute
setting.

Press buttonæ orç to set the
minutes.

Confirm by pressing reset button
(page 152).Setting the date (month)

Move the selection marker with
buttonæ orç to the
Time/Date

submenu.

Press buttonj ork repeatedly
until the message
Set date Month
ap-
pears in the multifunction display.
The selection marker is on the month
setting.

Press buttonæ orç to set the
month.Setting the date (day)

Move the selection marker with
buttonæ orç to the
Time/Date

submenu.

Press buttonj ork repeatedly
until the message
Set date Day
ap-
pears in the multifunction display.
The selection marker is on the day
setting.

Press buttonæ orç to set the
day.

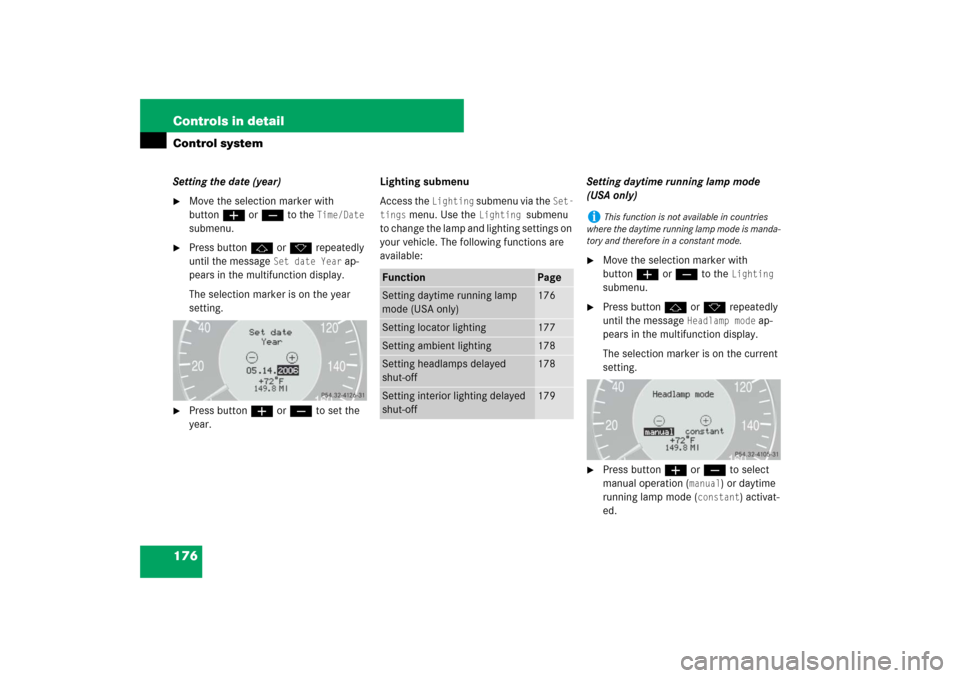

176 Controls in detailControl systemSetting the date (year)
Move the selection marker with
buttonæ orç to the
Time/Date

submenu.

Press buttonj ork repeatedly
until the message
Set date Year
ap-
pears in the multifunction display.
The selection marker is on the year
setting.

Press buttonæ orç to set the
year.Lighting submenu
Access the
Lighting
submenu via the
Set-
tings
menu. Use the
Lighting
submenu
to change the lamp and lighting settings on
your vehicle. The following functions are
available:Setting daytime running lamp mode
(USA only)

Move the selection marker with
buttonæ orç to the
Lighting

submenu.

Press buttonj ork repeatedly
until the message
Headlamp mode
ap-
pears in the multifunction display.
The selection marker is on the current
setting.

Press buttonæ orç to select
manual operation (
manual
) or daytime
running lamp mode (
constant
) activat-
ed.
Function
Page
Setting daytime running lamp
mode (USA only)
176
Setting locator lighting
177
Setting ambient lighting
178
Setting headlamps delayed
shut-off
178
Setting interior lighting delayed
shut-off
179
i
This function is not available in countries
where the daytime running lamp mode is manda-
tory and therefore in a constant mode.

177 Controls in detail
Control system
With daytime running lamp mode activated
and the exterior lamp switch in
positionM orU, the low beam
headlamps are switched on when the en-
gine is running.
In low ambient light conditions the follow-
ing lamps will switch on additionally:

Parking lamps


Tail lamps


License plate lamps


Side marker lamps
For more information on the daytime run-
ning lamp mode, see “Lighting”
(
page 141).Setting locator lighting
With the locator lighting feature activated
and the exterior lamp switch in
positionU, the following lamps will
switch on during darkness when the vehi-
cle is unlocked using button Πon the
SmartKey or SmartKey with
KEYLESS-GO*:


Parking lamps


Tail lamps


License plate lamps


Side marker lamps


Front fog lamps
The locator lighting switches off when the
driver’s door is opened.
If you do not open a door after unlocking
the vehicle with the SmartKey, the lamps
will switch off automatically after approxi-
mately 40 seconds.

Move the selection marker with
buttonæ orç to the
Lighting

submenu.
i
For safety reasons, resetting the
Lighting

submenu to factory settings while driving
(
page 170) will not deactivate the daytime
running lamp mode.
The following message appears in the multifunc-
tion display:
Lighting - Cannot be com-
pletely reset to factory settings
while driving.


178 Controls in detailControl system

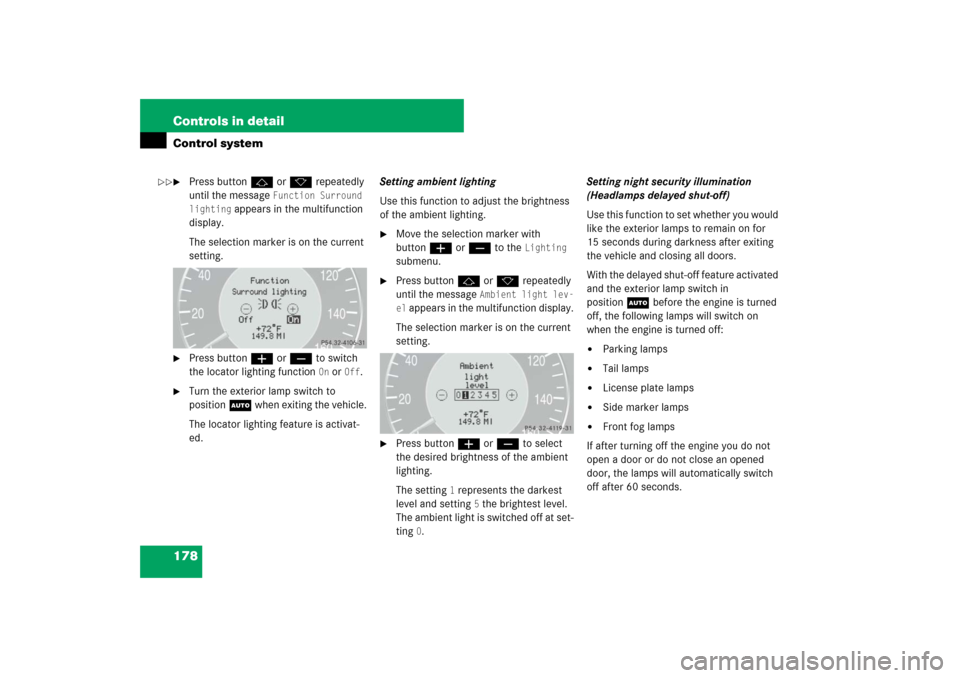

Press buttonj ork repeatedly
until the message
Function Surround
lighting
appears in the multifunction
display.
The selection marker is on the current
setting.

Press buttonæ orç to switch
the locator lighting function
On or
Off
.

Turn the exterior lamp switch to
positionU when exiting the vehicle.
The locator lighting feature is activat-
ed.Setting ambient lighting
Use this function to adjust the brightness
of the ambient lighting.

Move the selection marker with
buttonæ orç to the
Lighting

submenu.

Press buttonj ork repeatedly
until the message
Ambient light lev-
el
appears in the multifunction display.
The selection marker is on the current
setting.

Press buttonæ orç to select
the desired brightness of the ambient
lighting.
The setting
1 represents the darkest
level and setting
5 the brightest level.
The ambient light is switched off at set-
ting
0.Setting night security illumination
(Headlamps delayed shut-off)
Use this function to set whether you would
like the exterior lamps to remain on for
15 seconds during darkness after exiting
the vehicle and closing all doors.
With the delayed shut-off feature activated
and the exterior lamp switch in
positionU before the engine is turned
off, the following lamps will switch on
when the engine is turned off:


Parking lamps


Tail lamps


License plate lamps


Side marker lamps


Front fog lamps
If after turning off the engine you do not
open a door or do not close an opened
door, the lamps will automatically switch
off after 60 seconds.

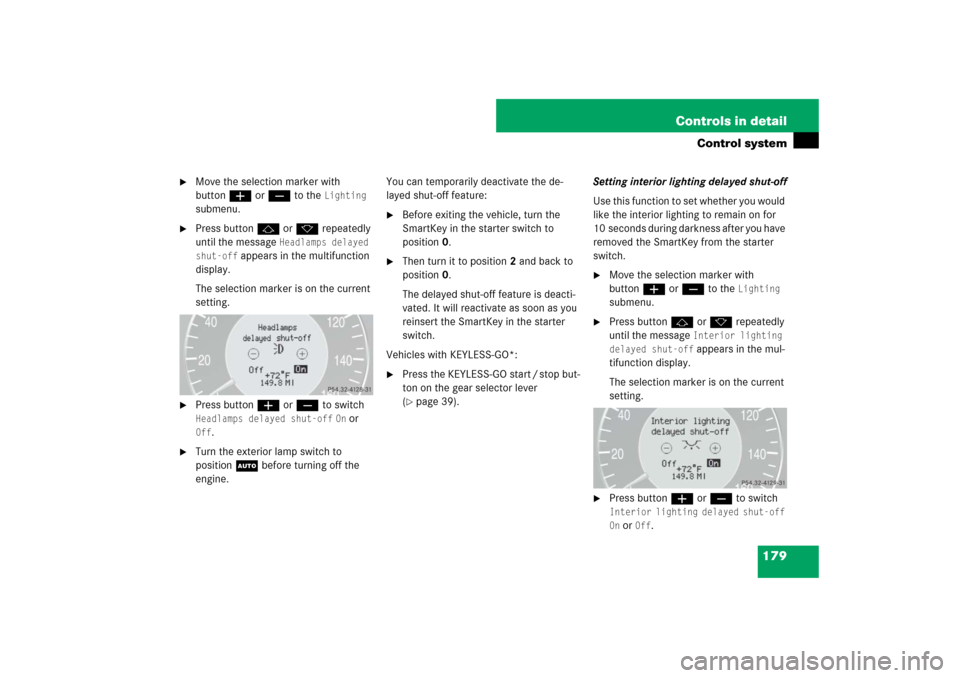

179 Controls in detail
Control system

Move the selection marker with
buttonæ orç to the
Lighting
submenu.

Press buttonj ork repeatedly
until the message
Headlamps delayed
shut-off
appears in the multifunction
display.
The selection marker is on the current
setting.

Press buttonæ orç to switch Headlamps delayed shut-off
On or
Off
.

Turn the exterior lamp switch to
positionU before turning off the
engine.You can temporarily deactivate the de-
layed shut-off feature:

Before exiting the vehicle, turn the
SmartKey in the starter switch to
position0.

Then turn it to position2 and back to
position0.
The delayed shut-off feature is deacti-
vated. It will reactivate as soon as you
reinsert the SmartKey in the starter
switch.
Vehicles with KEYLESS-GO*:

Press the KEYLESS-GO start / stop but-
ton on the gear selector lever
(page 39).Setting interior lighting delayed shut-off
Use this function to set whether you would
like the interior lighting to remain on for
10 seconds during darkness after you have
removed the SmartKey from the starter
switch.

Move the selection marker with
buttonæ orç to the
Lighting
submenu.

Press buttonj ork repeatedly
until the message
Interior lighting
delayed shut-off appears in the mul-
tifunction display.
The selection marker is on the current
setting.

Press buttonæ orç to switch Interior lighting delayed shut-off

On or
Off
.
