300 Controls in detailUseful featuresGarage door opener
The integrated remote control is capable of
operating up to three separately controlled
devices. It provides a convenient way to re-
place up to three hand-held remote con-
trols used to operate devices such as
garage door openers, gate openers, or oth-
er devices compatible with HomeLink
® or
some other systems.
Before the integrated remote control can
be used, it must be programmed to the ga-
rage door opener, gate operator or other
device you wish to operate. See the follow-
ing instructions for programming informa-
tion.
Interior rear view mirror with integrated re-
mote control1Indicator lamp
2 3 4Signal transmitter button
Needed for programming (not part of vehi-
cle equipment):
5Hand-held remote control of ga-
rage door opener, gate operator
or other device
6Hand-held remote control but-
ton
Warning!
G
Before programming the integrated remote
control to a garage door opener or gate
operator, make sure people and objects are
out of the way of the device to prevent po-
tential harm or damage. When programming
a garage door opener, the door moves up or
down. When programming a gate operator,
the gate opens or closes.
Do not use the integrated remote control
with any garage door opener that lacks
safety stop and reverse features as required
by U.S. federal safety standards (this
includes any garage door opener model
manufactured before April 1, 1982).
A garage door that cannot detect an object
- signaling the door to stop and reverse -
does not meet current U.S. federal safety
standards.

301 Controls in detail
Useful features
Programming the integrated remote
control
Step 1:
Switch on the ignition (
page 37).Step 2:

If you have previously programmed a
signal transmitter button and wish to
retain its programming, proceed to
step 3.
If you are programming the integrated
remote control for the first time, press
and hold the two outer signal transmit-
ter buttons2 and4 and release
them only when the indicator lamp1
begins to flash after approximately
20 seconds (do not hold the button for
longer than 30 seconds). This proce-
dure erases any previous settings for
all three channels and initializes the
memory.
If you later wish to program a second
and/or third hand-held transmitter to
the remaining two signal transmitter
buttons, do not repeat this step and be-
gin directly with step 3.Step 3:

Hold the end of hand-held remote
control5 of the device you wish to
train approximately 2 to 5 in
(5 to12 cm) away from the signal trans-
mitter button (2, 3 or4) to be pro-
grammed, while keeping the indicator
lamp1 in view.
Step 4:

Using both hands, simultaneously
press hand-held remote control
button6 and the desired signal trans-
mitter button (2, 3 or4). Do not
release the buttons until step 5 is com-
pleted.
Indicator lamp1 will flash, first slowly
and then rapidly.
When programming a garage door opener,
park vehicle outside the garage.
Do not run the engine while programming
the integrated remote control. Inhalation of
exhaust gas is hazardous to your health. All
exhaust gas contains carbon
monoxide (CO), and inhaling it can cause
unconsciousness and possible death.
i
The indicator lamp
1
flashes immediately
the first time the signal transmitter button is pro-
grammed. If this button has already been pro-
grammed, the indicator lamp will only start
flashing after 20 seconds.


302 Controls in detailUseful featuresStep 5:
After indicator lamp1 changes from a
slow to a rapidly flashing light, release
the hand-held remote control button
and the signal transmitter button.
Step 6:

Press and hold the just-trained signal
transmitter button (2, 3 or4) and
observe the indicator lamp1.
If indicator lamp1 stays on
constantly, programming is complete
and your device should activate when
the respective signal transmitter
button (2, 3 or4) is pressed and re-
leased.
Step 7:

To program the remaining two signal
transmitter buttons, repeat the steps
above starting with step 3.Rolling code programming
To train a garage door opener (or other
rolling code devices) with the rolling code
feature, follow these instructions after
completing the “Programming” portion
(steps 1 through 6) of this text. (A second
person may make the following training
procedures quicker and easier.)
Step 8:

Locate “training” button on the garage
door opener motor head unit.
Exact location and color of the button
may vary by garage door opener brand.
Depending on manufacturer, the
“training” button may also be referred
to as “learn”or “smart” button. If there
is difficulty locating the transmitting
button, refer to the garage door opener
Operator’s Manual. Step 9:

Press the “training” button on the ga-
rage door opener motor head unit.
The “training light” is activated.
You have 30 seconds to initiate the follow-
ing two steps.
Step 10:

Return to the vehicle and firmly press,
hold for 2 seconds and release the pro-
grammed signal transmitter button
(2, 3 or4).
Step 11:

Press, hold for 2 seconds and release
same signal transmitter button a sec-
ond time to complete the training pro-
cess.
i
If indicator lamp1 flashes rapidly for about
2 seconds and then turns to a constant light,
continue with programming steps 8 through 12
as your garage door opener may be equipped
with the “rolling code” feature.
i
Some garage door openers (or other rolling
code equipped devices) may require you to
press, hold for 2 seconds and release the same
signal transmitter button a third time to com-
plete the training process.


303 Controls in detail
Useful features
Step 12:
Confirm the garage door operation by
pressing the programmed signal trans-
mitter button (2, 3 or4).
Step 13:

To program the remaining two signal
transmitter buttons, repeat the steps
above starting with step 3.
Gate operator/Canadian programming
Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission
which may not be long enough for the
integrated signal transmitter to pick up the
signal during programming. Similar to this
Canadian law, some U.S. gate operators
are designed to “time-out” in the same
manner.
If you live in Canada or if you are having
difficulties programming a gate operator
(regardless of where you live) by using the
programming procedures, replace step 4
with the following:Step 4:

Press and hold the signal transmitter
button (2, 3 or4). Do not release
this button until it has been successful-
ly trained.

While still holding down the signal
transmitter button (2, 3 or4),
“cycle” your hand-held remote control
button6 as follows: Press and hold
button6 for 2 seconds, then release
it for 2 seconds, and again press and
hold it for 2 seconds. Repeat this se-
quence on the hand-held remote con-
trol until the frequency signal has been
learned. Upon successful training, indi-
cator lamp1 will flash slowly and then
rapidly after several seconds.

Proceed with programming step 5 and
step 6 to complete.Reprogramming a single signal trans-
mitter button
To program a device using a signal trans-
mitter button previously trained, follow
these steps:

Switch on the ignition (
page 37).

Press and hold the desired signal
transmitter button (2, 3 or4).
Do not release the button.

Indicator lamp1 will begin to flash af-
ter 20 seconds. Without releasing the
signal transmitter button, proceed with
programming starting with step 3.
i
Upon completion of programming the inte-
grated remote control, make sure you retain the
hand-held remote control that came with the ga-
rage door opener, gate operator or other device.
You may need it for use in other vehicles, for fu-
ture programming of an integrated remote con-
trol, or simply for continued use as a hand-held
remote control to operate the respective device
in other situations.

304 Controls in detailUseful featuresOperation of integrated remote control
Switch on the ignition (
page 37).

Select and press the appropriate inte-
grated signal transmitter button (2,
3 or4) to activate the remote con-
trolled device.
The integrated remote control trans-
mitter continues to send the signal as
long as the button is pressed – up to
20 seconds.
Erasing the integrated remote control
memory

Switch on the ignition (
page 37).

Simultaneously press and hold outer
signal transmitter buttons2 and 4,
for approximately 20 seconds, until
indicator lamp1 flashes rapidly. Do
not hold for longer than 30 seconds.
The codes of all three channels are
erased.Programming tips
If you are having difficulty programming
the integrated remote control, here are
some helpful tips:


Check the frequency of hand-held re-
mote control5 (typically located on
the reverse side of the remote). The in-
tegrated remote control is compatible
with radio-frequency devices operating
between 280-390 MHz.


Put a new battery in hand-held remote
control5. This will increase the likeli-
hood of the hand-held remote control
sending a faster and more accurate sig-
nal to the integrated remote control.


While performing step 3, hold
hand-held remote control5 at differ-
ent lengths and angles from the signal
transmitter button (2, 3 or4) you
are programming. Attempt varying an-
gles at the distance of 2 to 5 inches
(5 to 12 cm) away or the same angle at
varying distances.


If another hand-held remote control is
available for the same device, try the
programming steps again using that
other hand-held remote control. Make
sure new batteries are in the hand-held
remote control before beginning the
procedure.


Straighten the antenna wire from the
garage door opener assembly. This
may help improve transmitting and/or
receiving signals.
i
If you sell your vehicle, erase the codes of all
three channels.
i
Certain types of garage door openers are in-
compatible with the integrated remote control. If
you should experience further difficulties with
programming the integrated remote control,
contact an authorized Mercedes-Benz Center, or
call Mercedes-Benz Customer Assistance Cen-
ter (in the USA only) at 1-800-FOR-MERCedes, or
Customer Service (in Canada) at
1-800-387-0100.

305 Controls in detail
Useful features
i
USA only:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
i
Canada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.

306

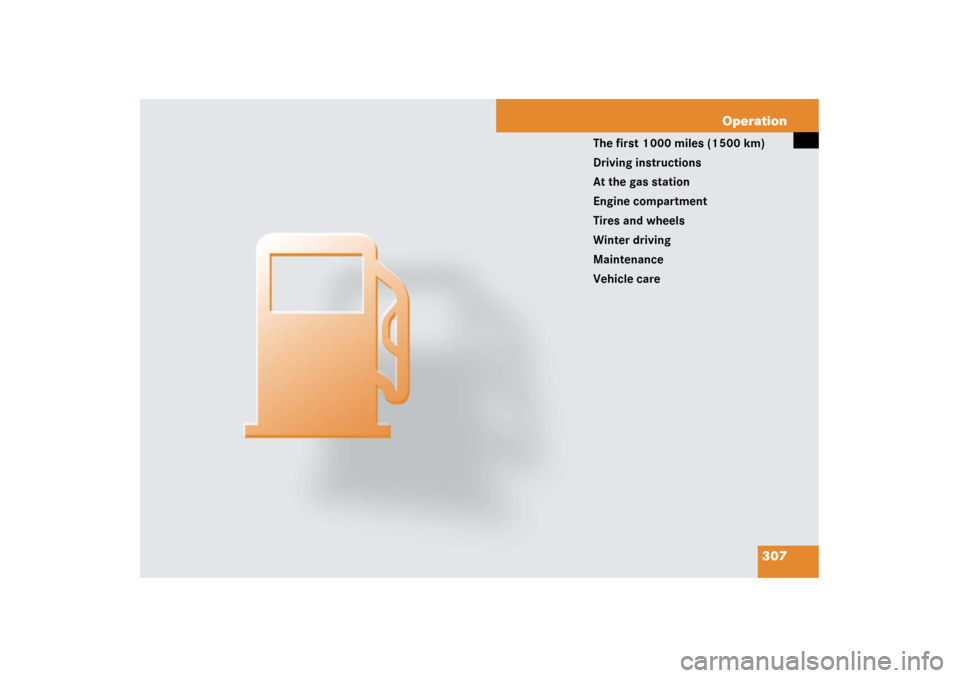

307 Operation
The first 1 000 miles (1 500 km)
Driving instructions
At the gas station
Engine compartment
Tires and wheels
Winter driving
Maintenance
Vehicle care

308 OperationIn the “Operation” section you will find de-
tailed information on operating, maintain-
ing and caring for your vehicle.The first 1 000 miles (1 500 km)
The more cautiously you treat your vehicle
during the break-in period, the more satis-
fied you will be with its performance later
on.

Drive your vehicle during the first
1 000 miles (1 500 km) at varying but
moderate vehicle and engine speeds.


During this period, avoid heavy loads
(full throttle driving) and excessive en-
gine speeds (no more than
2/3 of
maximum rpm in each gear).


Avoid accelerating by kickdown.


Do not attempt to slow the vehicle
down by shifting to a lower gear using
the gear selector lever.


Select positions3, 2 or1 only when
driving at moderate speeds (for hill
driving).


SelectC as the preferred shift program
(page 193) for the first 1 000 miles
(1 500 km). After 1 000 miles (1 500 km) you may
gradually increase vehicle and engine
speeds to the permissible maximum.
All of the above instructions, as may apply
to your vehicle type, also apply when driv-
ing the first 1 000 miles (1 500 km) after
the engine or the rear differential has been
replaced.
!
Additional instructions for AMG vehicles:


During the first 1 000 miles (1 500 km), do
not exceed a speed of 85 mph (140 km/h).


During this period, avoid engine speeds
above 4 500 rpm in each gear.
i
Always obey applicable speed limits.

309 Operation
Driving instructions
Driving instructions
Drive sensibly – save fuel
Fuel consumption, to a great extent, de-
pends on driving habits and operating con-
ditions.
To save fuel you should:

Keep tires at the recommended infla-
tion pressures.


Remove unnecessary loads.


Remove roof rack when not in use.


Allow engine to warm up under low
load use.


Avoid frequent acceleration and decel-
eration.


Have all maintenance work performed
at the intervals specified in the
Maintenance Booklet and as required
by the Maintenance System. Contact
an authorized Mercedes-Benz Center.
Fuel consumption is also increased by
driving in cold weather, in stop-and-go
traffic, on short trips and in hilly area.
Drinking and driving
Pedals
Warning!
G
Drinking and driving and/or taking drugs
and driving are very dangerous combina-
tions. Even a small amount of alcohol or
drugs can affect your reflexes, perceptions
and judgment.
The possibility of a serious or even fatal ac-
cident are greatly increased when you drink
or take drugs and drive.
Do not drink or take drugs and drive or allow
anyone to drive who has been drinking or
taking drugs.
Warning!
G
Make sure that absolutely no objects are ob-
structing the pedals’ range of movement.
Keep the driver’s footwell clear of all obsta-
cles. If there are any floormats or carpets in
the footwell, make sure that the pedals still
have sufficient clearance.
