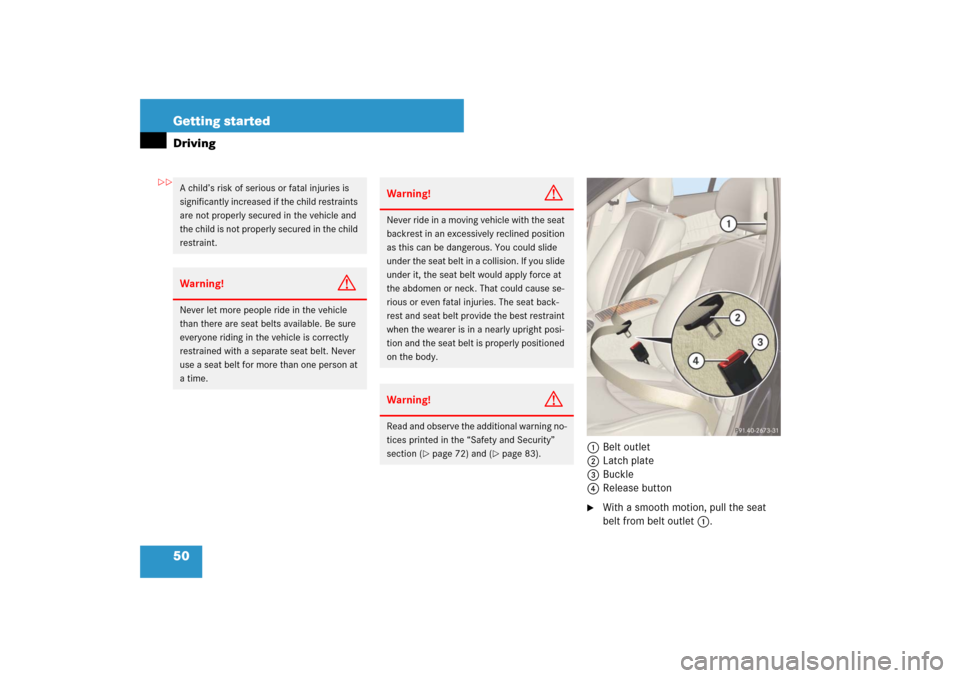

50 Getting startedDriving
1Belt outlet
2Latch plate
3Buckle
4Release button
With a smooth motion, pull the seat
belt from belt outlet1.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly
restrained with a separate seat belt. Never
use a seat belt for more than one person at
a time.
Warning!
G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the seat belt would apply force at
the abdomen or neck. That could cause se-
rious or even fatal injuries. The seat back-
rest and seat belt provide the best restraint
when the wearer is in a nearly upright posi-
tion and the seat belt is properly positioned
on the body.Warning!
G
Read and observe the additional warning no-
tices printed in the “Safety and Security”
section (
page 72) and (
page 83).


51 Getting started
Driving

Place the shoulder portion of the seat
belt across the top of your shoulder
and the lap portion across your hips.

Push latch plate2 into buckle3 until
it clicks.

If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.
Belt outlet height adjustment
1Release button

Press release button1 and move the
seat belt height adjuster upward or
downward.Proper use of seat belts


Do not twist the seat belt when fasten-
ing.


Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the seat belt under
your arm.


Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.


Place the seat backrest in a nearly
upright position.


Never use a seat belt for more than one
person at a time.


Do not fasten a seat belt around a
person and another object at the same
time. When using a seat belt to secure
infant restraint or toddler restraint or
children in booster seats, always follow
the child seat manufacturer’s instruc-
tions.


Check your seat belt periodically
during travel to make sure that it is
properly positioned.


Make sure that the seat belt is always
fitted snugly. Take special care of this
when wearing loose clothing. Warning!
G
Do not pass seat belts over sharp edges.
They could tear.
Do not allow the seat belt to get caught in
the door or in the seat adjustment mecha-
nism. This could damage the seat belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the seat belts.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
Damaged seat belts or seat belts that were
highly stressed in an accident must be re-
placed. Contact an authorized
Mercedes-Benz Center.

52 Getting startedDrivingStarting the engine Automatic transmission
Gearshift pattern for automatic
transmissionPPark position with gear selector lever
lock
RReverse gear
NNeutral
DDrive position
For more information, see the “Controls in
detail” section (
page 187). Starting with the SmartKey
For information on turning off the engine
with the SmartKey, see “Turning off en-
gine” (
page 63).

Make sure the gear selector lever is set
to P.

Do not depress the accelerator.

Turn the SmartKey in the starter switch
to position3 and hold until the engine
starts (
page 38).
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide (CO), and inhaling it can cause un-
consciousness and possible death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive only with at least one win-
dow fully open.
i
You can also use the “touch-start” function.
Turn the SmartKey to position3 (
page 38) and
release it again immediately. The engine then
starts automatically.

53 Getting started
Driving
Starting with KEYLESS-GO*
You can start your vehicle without the
SmartKey in the starter switch using the
KEYLESS-GO start/stop button on the
gear selector lever.
For information on turning off the engine
with KEYLESS-GO, see “Turning off with
KEYLESS-GO*” (
page 64).
The SmartKey with KEYLESS-GO must be
located in the vehicle.
KEYLESS-GO start/stop button1USA only
2Canada only
Make sure the gear selector lever is set
toP.

Depress the brake pedal during the
starting procedure. Do not depress ac-
celerator.
The gear selector lever lock is released.

Press KEYLESS-GO start/stop button
once.
The engine starts if the SmartKey with
KEYLESS-GO is in the vehicle.Starting difficulties
If the SmartKey is left in starter switch
position0 for an extended period of time,
it can no longer be turned in the switch. In
this case, the steering is locked.

To unlock remove SmartKey from the
starter switch and reinsert.
If the engine does not start as described,
carry out the following steps:

If you are starting the engine with the
SmartKey, turn SmartKey in starter
switch to position0 and repeat starting
procedure.

If you are starting the engine with
KEYLESS-GO: Close any doors that
may be open to allow for better detec-
tion of the SmartKey with
KEYLESS-GO.
Or:
Start the engine with the SmartKey as
radio signals from another source may
be interfering with the SmartKey with
KEYLESS-GO.
Warning!
G
As long as the SmartKey with KEYLESS-GO
is in your vehicle, the vehicle can be started.
Therefore, never leave children unattended
in the vehicle, as they could otherwise acci-
dentally start the engine.
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle.


54 Getting startedDriving
Repeat the starting procedure
(page 52). Remember that extended
starting attempts can drain the battery.

Get a jump start (
page 466).
If the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.

Notify an authorized Mercedes-Benz
Center.
Parking brake
1Release handle
2Parking brake pedal

Release the parking brake by pulling on
release handle1.
The warning lamp ; (USA only) or
3 (Canada only) in the instrument
cluster goes out.
Warning!
G
Engaging the parking brake while the vehicle
is in motion can cause the rear wheels to
lock up. You could lose control of the vehicle
and cause an accident. In addition, the vehi-
cle’s brake lights do not light up when the
parking brake is engaged.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or the SmartKey with
KEYLESS-GO* from the starter switch, take
it with you, and lock the vehicle. Do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Children
could release the parking brake, which
could result in an accident and/or serious
personal injury.


55 Getting started
Driving
Driving
Depress the brake pedal.

Move the gear selector lever to
positionDorR.

Release the brake pedal.

Carefully depress the accelerator
pedal.After a cold start, the automatic transmis-
sion shifts at a higher engine revolution.
This allows the catalytic converter to reach
its operating temperature earlier.
For more information on driving, see “Driv-
ing instructions” (
page 309).
i
Wait for the gear selection process to com-
plete before setting the vehicle in motion.
i
Once the vehicle is in motion, the automatic
central locking system engages and the locking
knobs drop down.
The automatic door lock feature can be deacti-
vated (page 180).
You can open a locked door from the inside.
Open door only when conditions are safe to do
so.
!
If you hear a warning signal and the mes-
sage Release parking brake
appears in the
multifunction display when driving off, you have
forgotten to release the parking brake.
Release the parking brake (
page 62).
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.
Warning!
G
It is dangerous to shift the gear selector le-
ver out ofP orN if the engine speed is high-
er than idle speed. If your foot is not firmly
on the brake pedal, the vehicle could accel-
erate quickly forward or in reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.!
Simultaneously depressing the accelerator
pedal and applying the brakes reduces engine
performance and causes premature brake and
drivetrain wear.

56 Getting startedDrivingSwitching on headlamps
Low beam headlamps
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.Exterior lamp switch1Off
2Low beam headlamps on
Turn the exterior lamp switch to
positionB.
The low beam headlamps and the low
beam headlamp indicator lampB in
the instrument cluster come on
(page 141).High beam
The combination switch is located on the
left of the steering column.
Combination switch1High beam
2High beam flasher
Push the combination switch in direc-
tion of arrow1.
The high beam headlamps and the high
beam headlamp indicator lampA in
the instrument cluster come on
(page 26).
For more information on headlamps, see
“Lighting” (
page 141).
Turn signals
The combination switch is located on the
left of the steering column.Combination switch1Turn signals, right
2Turn signals, left
Press the combination switch in direc-
tion of arrow1 or2.
The corresponding turn signal indicator
lamp L or K in the instrument
cluster flashes.

57 Getting started
Driving
The combination switch resets automati-
cally after major steering wheel move-
ments.
Windshield wipers
The combination switch is located on the
left of the steering column.Combination switch1Switching on windshield wipers
2Single wipe
Wiping with windshield washer fluid
Switch on the ignition (
page 37).
i
To signal minor directional changes such as
changing lanes, press combination switch only
to point of resistance and release. The corre-
sponding turn signals will flash three times.
!
Do not operate the windshield wipers when
the windshield is dry. Dust that accumulates on
a windshield might scratch the glass and/or
damage the wiper blades when wiping occurs on
a dry windshield. If it is necessary to operate the
windshield wipers in dry weather conditions, al-
ways operate the windshield wipers with wind-
shield washer fluid (
page 59).
!
If anything blocks the windshield wipers
(leaves, snow, etc.), switch them off immediate-
ly.


For safety reasons, stop the vehicle in a safe
location and

remove SmartKey from starter switch
or


turn off the engine by pressing the
KEYLESS-GO* start/stop button and
open the driver’s door (with the driver’s
door open, starter switch is in
position0, same as with SmartKey re-
moved from starter switch)
before attempting to remove any blockage.


Remove blockage.


Turn the windshield wipers on again.


58 Getting startedDrivingSwitching on/off windshield wipers
Turn the combination switch to the de-
sired position depending on the inten-
sity of the rain.
MWindshield wipers off
USlow intermittent wiping
Rain sensor operation with low
sensitivity.
VFast intermittent wiping
Rain sensor operation with high
sensitivity.
uSlow continuous wiping
tFast continuous wipingIntermittent wiping
Only switch on intermittent wiping under
wet weather conditions or in the presence
of precipitation.

Turn the combination switch to
positionU or V.
The wipers move across the wind-
shield. Afterward, the wiping intervals
are determined by the wetness of the
windshield.After the initial wipe, pauses between
wipes are automatically controlled by the
rain sensor.
Single wipe

Press the combination switch briefly in
direction of arrow2 (
page 57) to
the resistance point.
The windshield wipers wipe one time
without washer fluid.
If windshield wipers fail to function at all in com-
bination switch positionU or V,

set the combination switch to the next high-
er wiper speed


have the windshield wipers checked at the
nearest authorized Mercedes-Benz Center.
i
When the windshield wipers are switched on
and you brake the vehicle to a stop, the time in-
terval between wiper operations is increased.
!
Do not leave windshield wipers in
intermittent setting when the vehicle is taken to
an automatic car wash or during windshield
cleaning. Windshield wipers will operate in the
presence of water sprayed on the windshield,
and windshield wipers may be damaged as a re-
sult.
!
If you have set intermittent wiping, dirt on
the surface of the rain sensor or optical effects
may cause the windshield wipers to wipe in an
undesired fashion. This could then damage the
windshield wiper blades or scratch the windows.
You should therefore switch off the windshield
wipers when weather conditions are dry.
i
Intermittent wiping is interrupted when the
vehicle is at a standstill and a door is opened.
This protects persons getting into or out of the
vehicle from being sprayed.
Intermittent wiping will be continued when


all doors are closed
and


the gear selector lever is in positionD or R
or


the wiper setting is changed using the com-
bination switch


59 Getting started
Driving
Wiping with windshield washer fluid
Push the combination switch in direc-
tion of arrow2 (
page 57) past the
resistance point.
The windshield wipers operate with
washer fluid.
For information on filling up the windshield
washer reservoir, see “Windshield/rear
window washer system and headlamp
cleaning system*” (
page 331).
Rear window wiper/washer
The combination switch is located on the
left of the steering column.Combination switch1Rear window wiper switch
2Wiping rear window with washer fluid
3Intermittent wiping
4Rear window wiper off
5Wiping rear window with washer fluid
Switch on the ignition (
page 37).Activating intermittent wipe

Turn rear window wiper switch1 to
position3.
Deactivating intermittent wipe

Turn rear window wiper switch1 to
position4.
Wiping with windshield washer fluid

Turn and hold rear window wiper
switch1 to position2 or 5 until the
rear window is clean.
The rear window wiper operates with
washer fluid.
For information on filling up the windshield
washer reservoir, see “Windshield/rear
window washer system and headlamp
cleaning system*” (
page 331).
i
To prevent smears on the windshield or
noisy/chattering wiper blades, wipe with wind-
shield washer fluid every now and then even
when it is raining.
i
The rear window wiper engages
automatically if the gear selector lever is moved
to positionR with the windshield wipers
switched on.
