Notes on breaking-in a new vehicle
To preser vethe engine during thefirs t
1, 000 miles (1,500 km):
RDrive at varying road speeds and engine
speeds.
RDo not drive fasterthan 85 mph (140 km/h).
ROnly brief lyallow the engine toreach a maxi‐
mum engine speed of 4,500 rpm
(4,500 1/min) only brief ly.
RMercedes-AMG E 43 4MATIC: Drive in drive
program Cor E.
RMercedes‑AMG E 63 4MATIC and
Mercedes‑AMG E 63 S 4MATIC: Drive in
drive program C.
RChange up before theta ch ome ter needle is
Ô ofthewa yto there d area of theta ch ome‐
te r.
RDo not shi ftdown a gear manually in order to
brake.
RAv oid overstra ining theve hicle, e.g. driving at
full thro ttle.
RDo not depress the accelera tor pedal be yond
th e pressure point (kickdown).
ROnly increase the engine speed gradually and
accelera tetheve hicle tofull speed af ter
1, 000 miles (1,500 km).
This also applies when the engine or parts of the
driv etra in ha vebeen replaced.
Please also obser vethefo llowing running-in
no tes:
RIn cer tain driving and driving saf etysy stems,
th e sensors adjust automatically while a cer‐
ta in dis tance is being driven af terth eve hicle
has been delivered or af terre pairs.
Full sys‐
te m ef fecti

veness is not achie ved until the
end of this teach-in process.
RBrake linings, brake discs and tires that are
either new or ha vebeen replaced only ach‐
ie ve optimum braking ef fect and grip af ter
se veral hundred kilom eters of driving. Com‐
pensate forth ere duced braking ef fect by
applying greaterfo rc eto the brake pedal.
Note s onthere ar axle locking dif fere ntial
The rear axle locking dif fere ntial is only
av ailable for the
Merc edes‑AMG E 63 4MATIC and
Mercedes‑AMG E 63 S 4MATIC models.
Changing the oil at there ar axle prolongs the
service life of the dif fere ntial.
Ha ve the oil change car ried out at a qualified
specialist workshop:
RAf ter a breaking-in period of 2000 miles
(3000 km).
REvery 30000 miles (50000 km) or thre e
ye ars.
Operation of the ECO start/s top function
The engine is switched off au tomatical ly:
RIf yo u brake theve hicle toast andstill in
transmission position hori.
RIf all vehicle conditions for an au tomatic
engine stop are met.
The è symbol appears in the multifunction
display when theve hicle is stationar y.
Driving 13

The engine isrestar ted automatically if:
RYo ure lease the brake pedal with the trans‐
mission in position hwhen the HOLD func‐
tion is not active.
RYo u shift from transmission position j.
RYou enga getransmission position hork.
RYoudepr essthe accelerator pedal.
RMercedes-AMG E 43 4MATIC: Youswit chto
drive program S+.
RMercedes-AMG E 63 4MATIC: Youswit chto
drive prog ram Sor S+.
RMercedes-AMG E 63 S 4MATIC: Youswit ch
to drive prog ram S, S+ orRACE .
RYou permanently act ivate manual gearshift‐
ing.
RYo upull the left-hand steering wheel gear‐
shift paddle.
RYo uch ange theve hicle le vel.
RAn automatic engine start is necessar y.
If th e engine was switched off bythe ECO start/
st op function and you lea vetheve hicle, a warn‐ ing
tone sounds. The Vehicle Operational Switch
the Ignition Off Before Exiting displaymessage
also appears in the multifunction displa y.
If yo udo not swit choff the ignition, the ignition
is automatically switched off af ter one minute.
AMG Performance exhaust sy stem
Fu nction of the AMG Performance exhaust
sy stem
The AMG Performance exhaust sy stem is
only available for the
Merc edes‑AMG E 63 4MATIC and
Mercedes‑AMG E 63 S 4MATIC models.
Changing the position of theex haust gasflap
allo wsyouto select thevo lume of the AMG Per‐
fo rm ance exhaust sy stem.
Operating the AMG Performance exhaust
sy stem
#Press button 1.
If indicator lamp 2lights up, the loudest
setting is selected.
14 Driving

Function of theDY NA MIC SELECT switch
This section descri besthe function of the
DY NA MIC SELECT switch for the
Merc edes‑AMG E 43 4MATIC model.
Use theDY NA MIC SELECT switch tochange
between thefo llowing drive prog rams:
RI (Individual): individual settings
RE (Economy):particularly economical driving
st yle
RC (Comfort): comfortable and economical
driving style
RS (Sport): sporty driving style
RS+ (Sport Plus): particularlysporty driving
st yle
Depending on the drive program selected, the
fo llowing vehicle characteristics will change:
RDrive sy stem
-Engine and transmission management
-Dis tance Pilot DISTRONIC
RSuspension
RSt eering
RAv ailability of the ECO start/ stop function
% You can also change thefo llowing vehicle
ch aracteristics using the buttons in the cen‐
te r console:
RECO start/ stop function
RSuspension
RManual gearshifting
Fu nction of theDY NA MIC SELECT switch
This section descri besthe function of the
DY NA MIC SELECT switch for the
Merc edes‑AMG E 63 4MATIC and
Mercedes‑AMG E 63 S 4MATIC models.
Use theDY NA MIC SELECT switch tochange
between thefo llowing drive prog rams:
RI (Individual): individual settings
RC (Comfort):comfortable and economical
driving style
RS (Sport): sporty driving style
RS+ (Sport Plus): particularlysporty driving
st yle
RMercedes-AMG E 63 S 4MATIC: RACE:
ex treme lysporty driving
Depending on the drive program selected, the
fo llowing vehicle characteristics will change:
RDrive (engine management)
RTransmission management
RESP®
RSuspension
RPo sition of theex haust gasflaps
RSt eering
RAv ailability of the ECO start/ stop function
RDriver assis tance sy stems
RAv ailability of gliding mode
% You can also change thefo llowing vehicle
ch aracteristics using the buttons in the cen‐
te r console:
RPo sition of theex haust gasflaps
RECO start/ stop function
RESP®
RSuspension
16
DYNA MIC SELECT switch

Manualgearshifting
&
WARNING Risk of skidding and of an
accident due toshifting down on slippery
ro ad sur faces
If yo u shift downonslipp eryroad sur faces to
inc rease the engine braking ef fect, the drive
wheels may lose traction.
#Do not shift down on slippery road sur‐
fa ces toinc rease the engine braking
ef fect.
#To activate/deacti vate:press button 1.
If indica tor lamp 2is lit, manual gearshift‐
ing is activated. The cur rent gear is displa yed
in the multifunction displa y.
% Mercedes‑AMG E 63 4MATIC and
Mercedes‑AMG E 63 S 4MATIC:
Toperma‐
nently shift thege ars in drive program I
yo urself using thesteering wheel gearshift paddles, select setting
M(Manual) forth e
transmission.
* NO
TEDama getothe engine due toshift‐
ing up too late
The automatic transmission does not shift up
ev en when the limiting speed of the engine is
re ached.
The fuel supply is inter rupte d in order topre‐
ve nt the engine from overrev ving.
#Shift up before the engine speed rea‐
ch es there d area in theta ch ome ter.
18
Automatic transmission

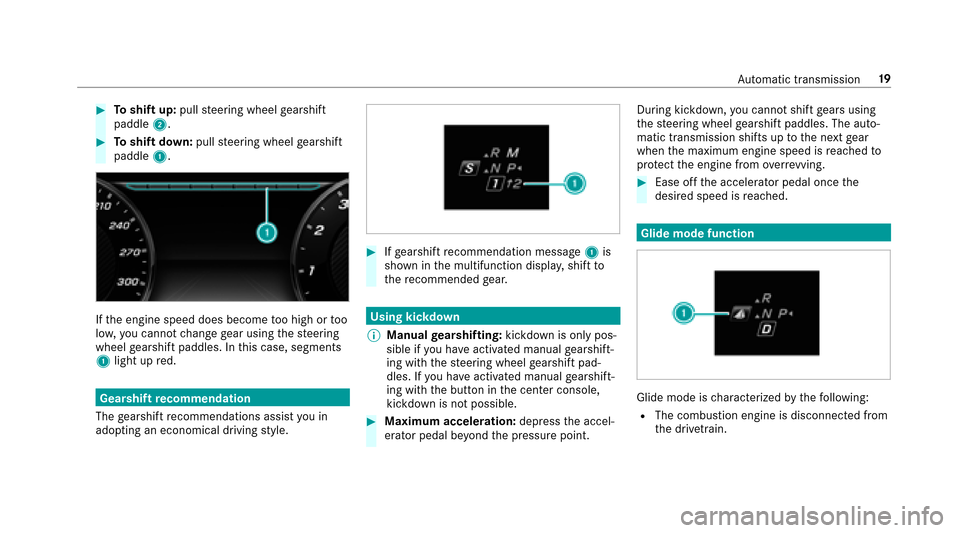

#Toshift up: pullsteering wheel gearshift
paddle 2.
#Toshift down: pullsteering wheel gearshift
paddle 1.
Ifth e engine speed does become too high or too
lo w, you cannot change gear using thesteering
wheel gearshift paddles. In this case, segments
1 light up red.
Gearshift recommendation
The gearshift recommendations assist youin
adopting an economical drivingst yle.
#If ge arshift recommendation message 1is
shown in the multifunction displa y,shift to
th ere commended gear.
Using kickdow n
% Manual gearshifting: kickdown is only pos‐
sible if you ha veactivated manual gearshift‐
ing with thesteering wheel gearshift pad‐
dles. If you ha veactivated manual gearshift‐
ing with the button in the center console,
kickdown is not possible.
#Maximum acceleration: depressthe accel‐
erator pedal be yond the pressure point. During kickdown,
you cannot shift gears using
th esteering wheel gearshift paddles. The auto‐
matic transmission shifts up tothe next gear
when the maximum engine speed is reached to
pr otect the engine from overrev ving.
#Ease off the accelera tor pedal once the
desired speed is reached.
Glide mode function
Glide mode is characterized bythefo llowing:
RThe combustion engine is disconnected from
th e driv etra in.
Au tomatic transmission 19

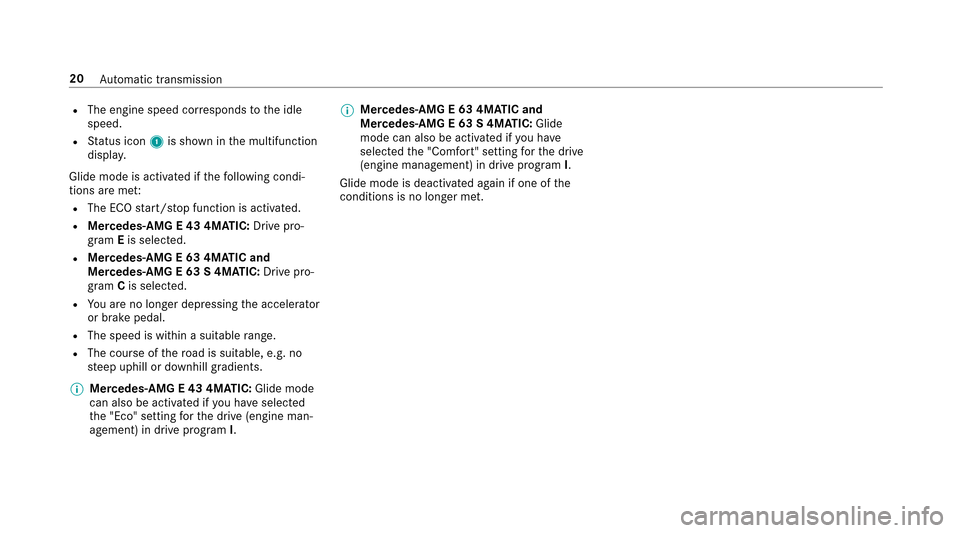

RThe engine speed corresponds tothe idle
speed.
RSt atus icon 1is shown in the multifunction
displa y.
Glide mode is activated if thefo llowing condi‐
tions are me t:
RThe ECOstart/ stop function is activated.
RMercedes-AMG E 43 4MATIC: Drive pro‐
gram Eis selected.
RMercedes‑AMG E 63 4MATIC and
Mercedes‑AMG E 63 S 4MATIC: Drive pro‐
gram Cis selected.
RYo u are no longe r depressingthe accelera tor
or brake pedal.
RThe speed is within a suitable range.
RThe cours e ofthero ad is suitable, e.g. no
st eep uphill or downhill gradients.
% Mercedes-AMG E 43 4MATIC: Glide mode
can also be activated if you ha veselected
th e "Eco" setting forth e drive (engine man‐
agement) in drive program I.%
Mercedes‑AMG E 63 4MATIC and
Mercedes‑AMG E 63 S 4MATIC:
Glide
mode can also be activated if you ha ve
selected the "Comfort" setting forth e drive
(engine management) in drive program I.
Glide mode is deactivated again if one of the
conditions is no longer met.
20 Automatic transmission

Functions of ESP®(Electronic Stability Pro‐
gr am)
&
WARNING Risk of skidding if ESP®is
malfunctioning
If ESP
®is malfunctioning, ESP®cannot car ry
out vehicle stabilization. In addition, other
driving saf etysy stems are switched off.
#Drive on carefull y.
#Have ESP®checked at a qualified spe‐
cialist workshop.
Yo u can select between thefo llowing modes of
ESP®:
RESP®on
RSPO RThandling mode on
RESP®off
Characteristics when ESP
®is activated
ESP
®monitors and impr oves driving stability and
traction, particular lyin thefo llowing situations:
RWhen pulling away on wet or slippe ryroads.
RWhen braking.
RIn stro ng sidewinds when you are driving
fast erthan 43 mph (70 km/h).
ESP
®can stabilize theve hicle byinter vening in
th efo llowing ways:
ROne or more wheels are braked.
RThe engine output is adap ted according to
th e situation.
ESP
®is activated everytime the engine is star‐
te d, rega rdless of whe ther ESP®wa s in SPORT
handling mode or was deactivated before the
engine was switched off.
ESP
®is inter vening if the ESP®÷ warning
lamp flashes in the instrument clus ter:
RDo not deacti vate ESP®.
ROnly depress the accelera tor pedal as far as
is necessar y.
RAdapt your drivin gst yle to suit the cur rent
ro ad and weather conditions. Cha
racteristics of activated SPORT handling
mode
& WARNING Risk of skidding due toincor‐
re ct application of SPORT handling mode
When you activate SPORT handling mode,
th ere is an increased risk of skidding and
having an accident.
#Only activate SPORT handling mode in
th e circums tances described as follo ws .
Select SPORT handling mode when theve hicle's
ow nov ersteering and under steering characteris‐
tics are desired, forex ample when driving on
specially designated roads.
Only a highly qu alified and experienced driver
should drive in SPORT handling mode or with
ESP
®switched off.
If SPORT handling mode is activated and one or
more wheels start tospin, the÷ ESP
®warn‐
ing lamp in the instrument clus terflashes. ESP®
th en only stabilizes theve hicle toa limited
deg ree.
Driving and driving saf etysy stems 21

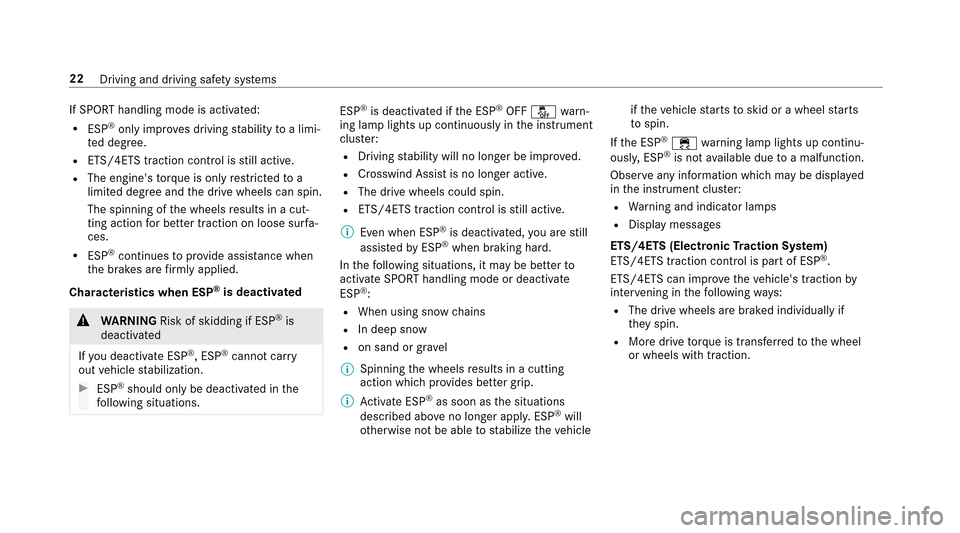

If SPORT handling mode is activated:
RESP®only improves driving stability toa limi‐
te d deg ree.
RETS/4ETS traction control is still active.
RThe engine's torque is on lyrestricted toa
limited degree and the drive wheels can spin.
The spinning of the wheels results in a cut‐
ting action for better traction on loose sur fa‐
ces.
RESP®continues toprov ide assis tance when
th e brakes are firm lyapplied.
Cha racteristics when ESP
®is deactivated
&
WARNING Risk of skidding if ESP®is
deactivated
If yo u deactivate ESP
®, ESP®cannot car ry
out vehicle stabilization.
#ESP®should only be deactivated in the
fo llowing situations.
ESP®is deactivated if the ESP®OFF å warn‐
ing lamp lights up continuously in the instrument
clus ter:
RDriving stability will no longe r be improved.
RCrosswind Assist is no longer active.
RThe drive wheels could spin.
RETS/4ETS traction control is still active.
% Even when ESP
®is deactivated, you are still
assis tedby ESP®when braking hard .
In thefo llowing situations, it may be better to
activate SPO RThandling mode or deactivate
ESP
®:
RWhen using snow chains
RIn deep snow
Ron sand or gr avel
% Spinning the wheels results in a cutting
action which pr ovides better grip.
% Activate ESP
®as soon as the situations
described abo veno longer apply. ESP®will
ot herwise not be able tostabilize theve hicle if
th eve hicle starts toskid or a wheel starts
to spin.
If th e ESP
®÷ warning lamp lights up continu‐
ousl y,ESP®is not available due toa malfunction.
Observ e any information which may be displa yed
in the instrument clus ter:
RWa rning and indicator lamps
RDisplay messages
ETS/4ETS (Electronic Traction Sy stem)
ETS/4ETS traction control is pa rtof ESP
®.
ETS/4ETS can impr oveth eve hicle's traction by
inter vening in thefo llowing ways:
RThe drive wheels are braked individually if
they spin.
RMore drive torque is transferred tothe wheel
or wheels with traction.
22 Driving and driving saf etysy stems

Activating RACE STAR T
You can act ivate RACE START under thefo llow‐
ing conditions:
RThe doors, the hood and the trunk lid are
closed.
RThe engine is running and the transmission
and engine are at operating temp erature.
RThe steering wheel is in thest ra ight-ahead
position.
RThe vehicle is on le vel ground.
RThe vehicle is stationar y,the brake pedal is
depressed (left foot ) and the parking brake is
re leased.
RThe transmission is in position h.
ROne ofthe drive prog rams S,S+ orRACE is
selected (→page 16).
#Pull and hold bo thsteering wheel gearshift
paddles.
If all activation conditions are fulfilled, the
RACE START Confirm: Paddl eUP Cancel:
Paddl eDOWN messag eappear sin the multi‐
function displa y.
#Release bo thsteering wheel gearshift pad‐
dles.
% Ifth e activation conditions are not fulfilled,
RACE START cannot be acti vated. The RACE
START Not Possible See Operator's Manual
message appears on the multifunction dis‐
pla y.
#To cancel: pullthe left steering wheel gear‐
shift paddle.
The RACE START Canceled message appears
on the multifunction displa y.
or
#To confirm: pulltheright steering wheel
ge arshift paddle.
The RACE START Available Depress gas
pedal. message appears on the multifunction
displa y.
#Rapidly depress the accelerator pedal full y.
The engine speed increases.
#The RACE START Release brake to start mes‐
sage appears in the multifunction displa y.
% Inthis phase you can adjust RACE START
depending on thero ad conditions: You can va
ry the engine speed bypulling on one of
th esteering wheel gearshift paddles. The
segments in the multifunction display flic ke r
ra pidly.
% Ifth e brake pedal is not released af ter a
short while, RACE START is canceled. The
RACE START Canceled messageappears on
th e multifunction displa y.
#Take your foot off the brake, but keep the
accelerator pedal depressed.
The vehicle pulls away at maximum accelera‐
tion. The RACE START Active message
appears in the multifunction displa y.
RACE START is deacti vated when theve hicle rea‐
ch es a speed of appr oximately 31mp h
(50 km/h).
RACE START is deacti vated immediately if you
re lease the accelerator pedal during RACE
ST ART or if any of the activation conditions are
no longer fulfilled. The RACE START Not Possi-
ble See Operator's Manual orRACE START Can-
celed message appears in the multifunction dis‐
pla y.
24
Driving and driving safe ty systems

theve hicle body and the tires or underneath
th eve hicle.
#Make sure no one is underneath the
ve hicle or in the immediate vicinity of
th e wheel ar ches when youlowe rth e
ve hicle.
&
WARNING Risk of entrapment from vehi‐
cle lo wering
Ve hicles with AIR BODY CONT ROL or
le ve l control sy stem: When you unload lug‐
ga ge or lea vetheve hicle, theve hicle firs t
ri ses slightly and then returns tothe set le vel
shortly af terw ards.
Yo u or an yone else in the vicinity of the
wheel ar ches or the underbody could thus
become trapped.
The vehicle can also be lo wered af ter being
loc ked.
#When leaving theve hicle, make sure
th at nobody is in the vicinity of the
wheel ar ches or the underbody.
Re quirementsRThe vehicle's engine must be switched on.
RThe vehicle must not be moving fasterthan
50 mph(8 0 km/h).
Ra ising theve hicle
#Press button 1.
The vehicle is raised by1 in (25 mm) com‐
pared tothe normal le vel. Yo
ur selection issave d.
The vehicle is lo wered again in thefo llowing sit‐
uations:
RWhen driving fasterthan 75 mph
(120 km/h).
RWhen driving between 50 mph (80 km/h)
and 75mph(120 km/h) for app roxima tely
th re e minutes.
RAf ter selecting a drive program using the
DY NA MIC SELECT switch.
The vehicle is adjus tedto the height of the last
active drive prog ram.
Lo weri ngtheve hicle
#Press button 1.
The vehicle is adjus tedto the height of the
last active drive prog ram.
Driving and driving saf etysy stems 29
