ContentsReplacing bulbs ................................. 359
Bulbs ............................................ 359
Replacing bulbs for front lamps.... 361
Replacing bulbs for rear lamps ..... 363
Replacing wiper blades ...................... 364
Removing wiper blades ................ 364
Installing wiper blades.................. 365
Flat tire .............................................. 366
Preparing the vehicle.................... 366
Sealing tires with TIREFIT
(E 55 AMG) ................................... 366
Mounting the spare wheel ............ 370
Batteries ............................................ 375
Disconnecting the battery ............ 376
Removing the battery ................... 377
Charging and reinstalling
the battery.................................... 377
Reconnecting the battery ............. 377
Jump starting ..................................... 378
Towing the vehicle ............................. 381
Installing towing eye bolt.............. 384
Fuses ................................................. 385
Fuse box in passenger
compartment................................ 385
Technical data................................. 387
Spare parts service ............................ 388
Warranty coverage............................. 389
Loss of Service and Warranty
Information Booklet ..................... 389
Identification labels ........................... 390
Layout of poly-V-belt drive ................. 391
E 320 / E 500 ............................... 391
E 55 AMG ..................................... 391
Engine................................................ 392
Rims and tires.................................... 394
Same size tires ............................. 394
Mixed size tires
(E 55 AMG only) ........................... 396
Minispare wheel ........................... 396
Electrical system ............................... 397
Main dimensions ............................... 398
Weights.............................................. 399Fuels, coolants, lubricants etc. .......... 400
Capacities .................................... 400
Engine oils ................................... 403
Engine oil additives ...................... 403
Air conditioning refrigerant .......... 403
Brake fluid.................................... 403
Premium unleaded gasoline ......... 404
Fuel requirements ........................ 404
Gasoline additives ........................ 404
Coolants ...................................... 405
Windshield and headlamp
washer system ............................. 407
Consumer information ....................... 408
Uniform tire quality grading ......... 408
Technical terms............................... 411Index................................................. 417
Page 204 of 442
204 Controls in detailSliding / pop-up roof*Synchronizing the sliding / pop-up roof
The sliding / pop-up roof must be resyn-
chronized each time
after the battery has been disconnect-
ed
the sliding / pop-up roof has been
closed manually (
page 358)
the sliding / pop-up roof does not open
smoothly
a malfunctionSynchronizing
Remove the fuse from the main fuse
box (
page 385).
Replace the fuse in the main fuse box.
Switch on the ignition.
Press and hold the switch in
direction3 until the sliding/pop-up
roof is fully raised at the rear.
Hold the switch for approximately one
second.
The sliding/pop-up roof is synchro-
nized.
Page 209 of 442
209 Controls in detail
Panorama sliding / pop-up roof*
Closing the panorama sliding / pop-up
roof with KEYLESS-GO*
The power windows (
page 197) will also
be closed when the panorama
sliding / pop-up roof is operated with
KEYLESS-GO.
Press and hold lock button at driver’s
door (
page 54) until the side win-
dows and the panorama
sliding / pop-up roof are closed.Synchronizing the panorama
sliding / pop-up roof
It is necessary to resynchronize the pan-
orama sliding / pop-up roof after
voltage supply interruption due to a
disconnected or discharged battery
the roof has been closed manually
the roof has been opened with an
abrupt movement
a malfunction.
Remove the fuse from the main fuse
box (
page 385).
Replace the fuse in the main fuse box.
Switch on ignition.
Press the switch in direction2
(page 206).

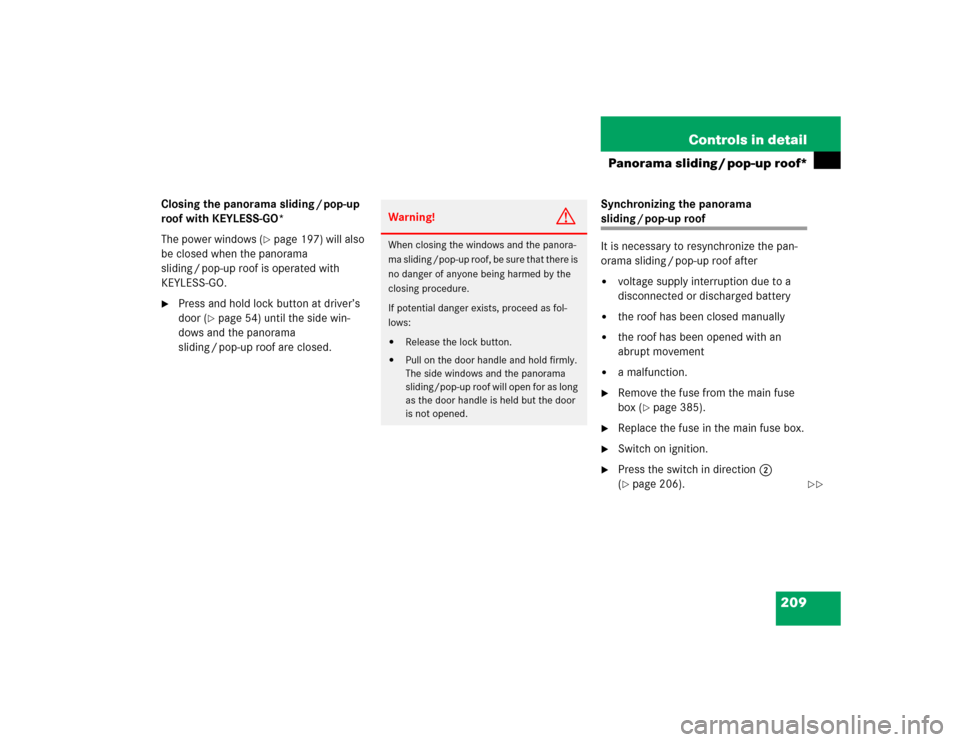

Warning!
G
When closing the windows and the panora-
ma sliding /pop-up roof, be sure that there is
no danger of anyone being harmed by the
closing procedure.
If potential danger exists, proceed as fol-
lows:
Release the lock button.
Pull on the door handle and hold firmly.
The side windows and the panorama
sliding/pop-up roof will open for as long
as the door handle is held but the door
is not opened.
Page 352 of 442
352 Practical hintsWhere will I find ...?Install luggage box

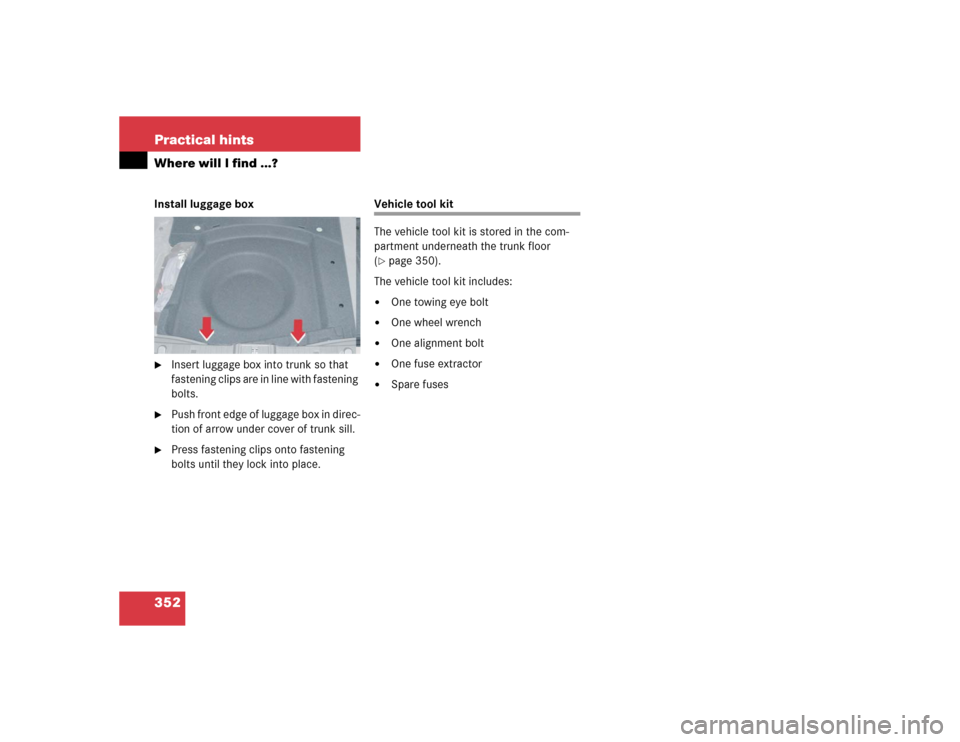

Insert luggage box into trunk so that
fastening clips are in line with fastening
bolts.
Push front edge of luggage box in direc-
tion of arrow under cover of trunk sill.
Press fastening clips onto fastening
bolts until they lock into place.
Vehicle tool kit
The vehicle tool kit is stored in the com-
partment underneath the trunk floor
(page 350).
The vehicle tool kit includes:
One towing eye bolt
One wheel wrench
One alignment bolt
One fuse extractor
Spare fuses
Page 385 of 442
385 Practical hintsFuses
Fuses
Fuse box in passenger compartment

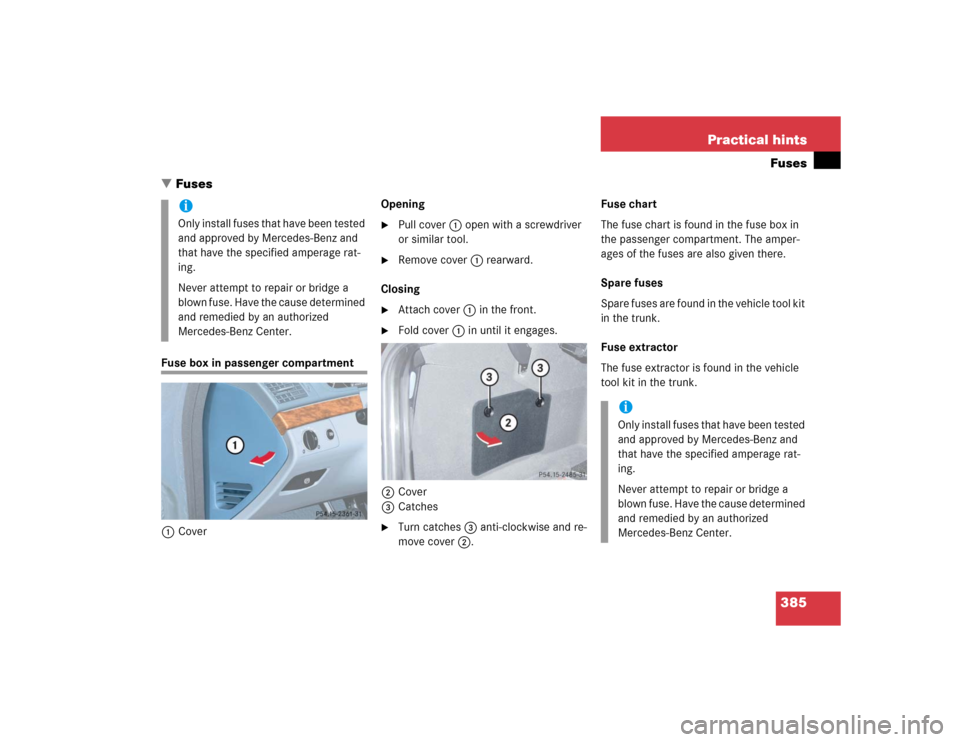

1CoverOpening
Pull cover1 open with a screwdriver
or similar tool.
Remove cover1 rearward.
Closing
Attach cover1 in the front.
Fold cover1 in until it engages.
2Cover
3Catches
Turn catches3 anti-clockwise and re-
move cover2.Fuse chart
The fuse chart is found in the fuse box in
the passenger compartment. The amper-
ages of the fuses are also given there.
Spare fuses
Spare fuses are found in the vehicle tool kit
in the trunk.
Fuse extractor
The fuse extractor is found in the vehicle
tool kit in the trunk.
iOnly install fuses that have been tested
and approved by Mercedes-Benz and
that have the specified amperage rat-
ing.
Never attempt to repair or bridge a
blown fuse. Have the cause determined
and remedied by an authorized
Mercedes-Benz Center.
iOnly install fuses that have been tested
and approved by Mercedes-Benz and
that have the specified amperage rat-
ing.
Never attempt to repair or bridge a
blown fuse. Have the cause determined
and remedied by an authorized
Mercedes-Benz Center.
Page 425 of 442
425 Index
Flexible Service System (FSS) 297, 412
Fog lamp, rear 122
Fog lamps, front 122
Messages in display 337
Replacing bulbs 359
Switching on 122
Following distance in Distronic* 221
Four wheel electronic traction system
(4MATIC) with ESP 82
4MATIC 82
Front airbags 61
Front lamps 359
Messages in display 338
Replacing bulbs 361
Switching on 119
Front seat head restraints
Power seat 109
removing and installing 109
Front seats
Heater* 113
FSS (Flexible Service System) 297, 412
Fuel 279
Fuel tank reserve warning lamp 315
Premium unleaded gasoline 279Fuel consumption statistics
After start 153
Since last reset 154
Fuel filler flap 278
Locking 278
Unlocking 278
Fuel reserve tank
Message in display 335
Fuel tank
Filler flap 278
Fuels, coolants, lubricants etc. 400
Fully closing (Express-close) the slid-
ing/pop-up roof 202
Fully opening (Express-open) the slid-
ing/pop-up roof 202
Functions (control system) 133
Resetting 139
Fuse chart 385
Fuses 385
Fuse chart 385
Fuse extractor 385
Spare fuses 385G
Garage door opener 27, 258
Erasing the integrated remote
control 263
Integrated remote control 259
Rolling code programming 261
Gasoline see Fuel 279
Gear range 413
Automatic transmission 160
Limiting 160
Shifting into optimal 159
Gear range limit
Canceling 159
Gear selector lever
Position 161
Global
Locking 89
Locking with KEYLESS-GO* 94
Unlocking 89
Unlocking with KEYLESS-GO* 94
Global Positioning System (GPS) 413
Glove box 242
Closing 242
Opening 242
Good visibility 168
Page 431 of 442
431 Index
Opening and closing
Panorama sliding/pop-up roof with
SmartKey 208
Opening from the inside
Trunk 99
Opening the trunk from the outside 97
Operating
CD player 135
Radio 134
Safety 16
Telephone* 155
Vehicle outside the USA and
Canada 13
Operating safety 16
Operation
Garage door opener 262
Integrated remote control 262
Operator’s Manual 10
Ornamental moldings 304
Outside temperature indicator 128
Overdue service 297
Overhead control panel 27
Garage door opener 258
Overspeed range 414P
Paintwork 303
Panic alarm 73
Panic button on SmartKey 73
Panorama sliding/pop-up roof
Opening and closing with
SmartKey 208
Panorama sliding/pop-up roof* 205
Parcel net in front passenger
footwell 242
Parking 51
Parking brake 45, 51
Engaging 51
Message in display 327
Releasing 45
Parking lamps 359
Replacing the bulbs 362
Switching on 119
Parking position
Exterior rear view mirrors 118, 152,
169
Parktronic*
Malfunctioning 232
Sensor 305PASSENGER AIRBAG OFF indicator
lamp 317
Passenger compartment
Fuse box 385
Interior lighting 124
Interior rear view mirror 38
Passenger safety see Occupant
safety 56
Pedals 267
Phone book*
Loading 156
Quick search 156
Phone number*
Dialing 156
Redialing 157
Plastic and rubber parts
Cleaning 308
Pliers, universal (vehicle tool kit) 352
Poly-V-belt drive 414
Positions (Memory function)
Recalling from memory 117
Positions (Memory function*)
Storing into memory 117
Power assistance 268
Page 436 of 442
436 Index
Locking and unlocking 88
Loss of 91
Opening and closing the slid-
ing/pop-up roof* with 202
Opening and closing windows
with 199
Opening the panorama sliding/pop-up
roof* with SmartKey 208
positions in starter switch 31
Remote controls 88, 92
Restoring to factory setting 90, 94
Selective setting 89, 94
Starting the engine 44
Unlocking with 30
SmartKey with KEYLESS-GO* 91
Global locking and unlocking 94
Locking the vehicle 96
Loss of 96
Messages in display 335
Remote controls 91
Turning off the engine 53
Unlocking with 32
Smartkey-dependency memory
Settings 152Snow chains 296
Solar panel* 210
Spare fuses 385
Spare parts service 388
Spare wheel 350
Speed
Saving current 212
Speed settings
Cruise control 213
Distronic* 219, 220
Speedometer
Displays 216
Settings units 141
Speedometer display mode
Selecting 141
Split rear bench seat* 236
Sporty driving style 226
SRS 415
SRS indicator lamp 23, 56, 316
Standing lamps 119
Replacing bulbs 362
Standing water 274
Starter switch 31
Positions 31Starting difficulties 45
Starting position 31
Starting the engine 43
Steering column
Height adjustment 37
Length adjustment 37
Steering gear oil
Message in display 347
Steering wheel
Adjusting 37
Cleaning 308
Electrical adjustment 37
Stolen vehicle
Tracking services 258
Stopping
Panorama sliding/pop-up roof 207
Sliding/pop-up roof* 202
Windows 199
Storage compartments
Glove box 242
Storage space under armrest 244
Storing (Memory function*)
Positions into memory 117
