Parking and locking .............................. 51
Parking brake ................................. 51
Switching off headlamps................. 52
Turning off engine ........................... 52
Page 5 of 442
Contents
Control system .................................. 129
Multifunction display .................... 129
Multifunction steering wheel ........ 130
Menus .......................................... 132
Standard display menu ................ 134
AUDIO menu ................................ 134
NAVI* menu ................................. 136
Distronic* menu........................... 136
Malfunction memory menu .......... 137
Settings menu .............................. 138
Trip computer menu..................... 153
TEL menu* ................................... 155
Automatic transmission ..................... 158
One-touch gearshifting................. 159
Gear ranges ................................. 160
Gear selector lever position ......... 161
Steering wheel gearshift control
(Speedshift) E 55 AMG ................. 162
Program mode selector switch..... 164
Accelerator position ..................... 164
Manual shift program E 55 AMG .. 165
Emergency operation
(Limp Home Mode) ...................... 167Good visibility ..................................... 168
Rear view mirror ........................... 168
Windshield wipers ......................... 169
Headlamp cleaning system* ......... 170
Sun visors ..................................... 170
Rear window sunshade* ............... 172
Roller sunblind* in the rear doors . 172
Rear window defroster .................. 173
Climate control ................................... 174
Setting the temperature................ 178
Adjusting air distribution............... 178
Adjusting air volume ..................... 179
Defrosting ..................................... 179
Air recirculation mode .................. 180
Deactivating the climate
control system .............................. 181
Air conditioning............................. 182
Residual heat and ventilation* ...... 182Automatic climate control* ................ 184
Setting the temperature ............... 188
Adjusting air distribution .............. 189
Adjusting air volume ..................... 190
Maximum cooling MAX COOL ....... 190
Defrosting ..................................... 190
Air recirculation mode .................. 191
Charcoal filter ............................... 192
Deactivating the climate
control system .............................. 193
Air conditioning ............................ 194
Residual heat and ventilation ........ 194
Rear air conditioning..................... 195
Power windows .................................. 197
Opening and closing the windows 197
Synchronizing power windows ...... 200
Sliding / pop-up roof* ......................... 201
Opening and closing the
sliding / pop-up roof ...................... 201
Synchronizing the
sliding / pop-up roof ...................... 204
Page 21 of 442
21 At a glance

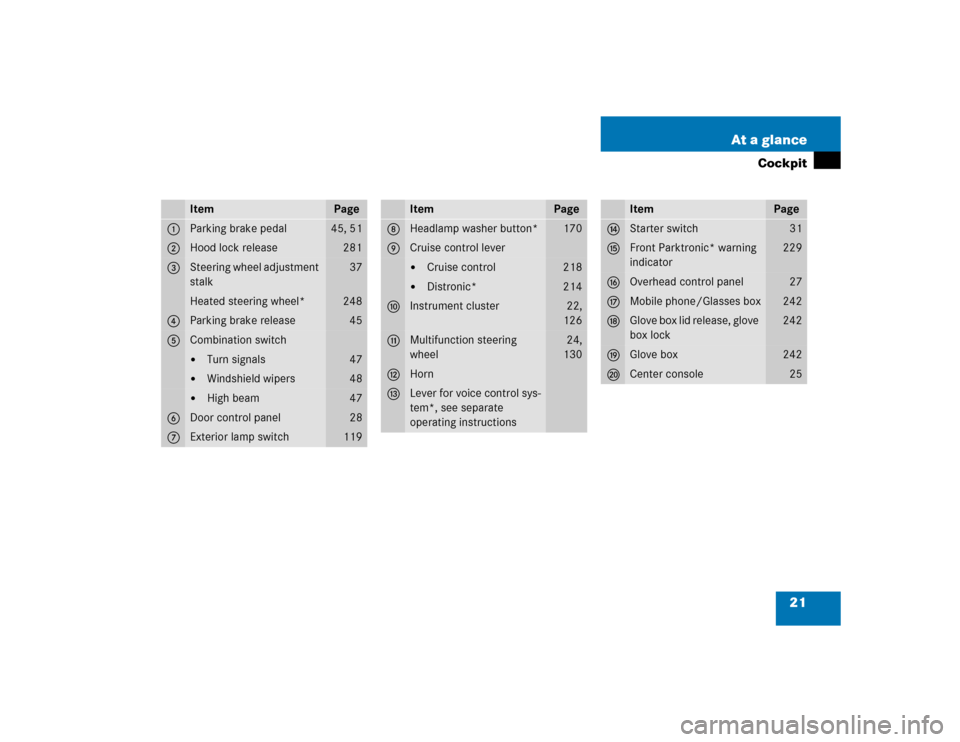

Cockpit
Item
Page
1
Parking brake pedal
45, 51
2
Hood lock release
281
3
Steering wheel adjustment
stalk
37
Heated steering wheel*
248
4
Parking brake release
45
5
Combination switch
Turn signals
47
Windshield wipers
48
High beam
47
6
Door control panel
28
7
Exterior lamp switch
119
Item
Page
8
Headlamp washer button*
170
9
Cruise control lever
Cruise control
218
Distronic*
214
a
Instrument cluster
22,
126
b
Multifunction steering
wheel
24,
130
c
Horn
d
Lever for voice control sys-
tem*, see separate
operating instructions
Item
Page
e
Starter switch
31
f
Front Parktronic* warning
indicator
229
g
Overhead control panel
27
h
Mobile phone/Glasses box
242
j
Glove box lid release, glove
box lock
242
k
Glove box
242
l
Center console
25
Page 48 of 442

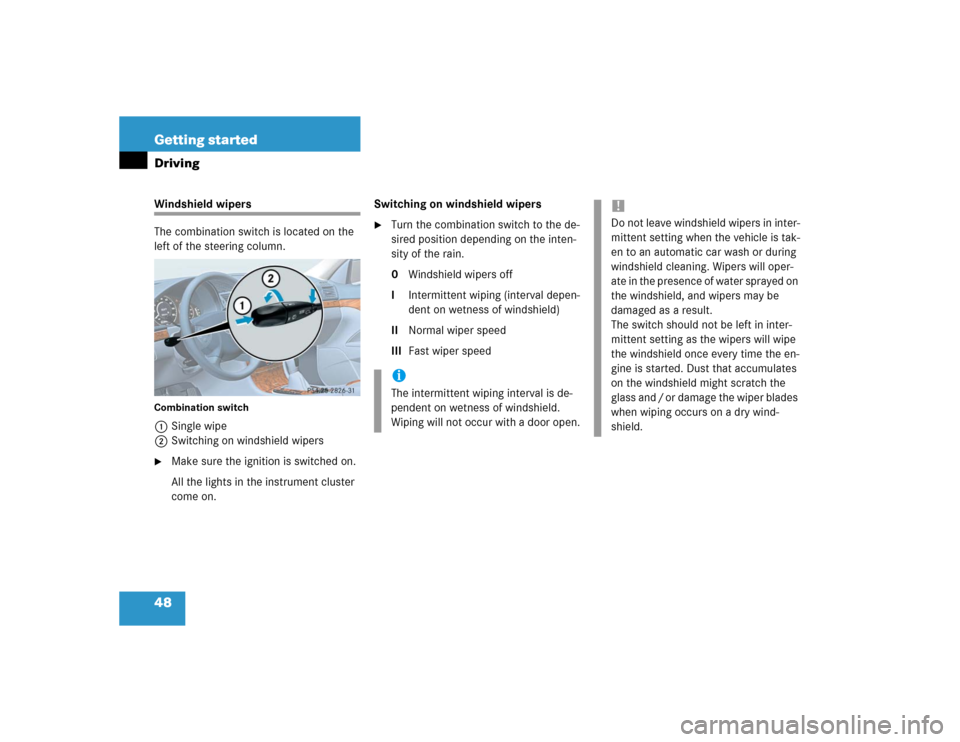

48 Getting startedDrivingWindshield wipers
The combination switch is located on the
left of the steering column.Combination switch1Single wipe
2Switching on windshield wipers
Make sure the ignition is switched on.
All the lights in the instrument cluster
come on.Switching on windshield wipers
Turn the combination switch to the de-
sired position depending on the inten-
sity of the rain.
0Windshield wipers off
IIntermittent wiping (interval depen-
dent on wetness of windshield)
IINormal wiper speed
IIIFast wiper speediThe intermittent wiping interval is de-
pendent on wetness of windshield.
Wiping will not occur with a door open.
!Do not leave windshield wipers in inter-
mittent setting when the vehicle is tak-
en to an automatic car wash or during
windshield cleaning. Wipers will oper-
ate in the presence of water sprayed on
the windshield, and wipers may be
damaged as a result.
The switch should not be left in inter-
mittent setting as the wipers will wipe
the windshield once every time the en-
gine is started. Dust that accumulates
on the windshield might scratch the
glass and / or damage the wiper blades
when wiping occurs on a dry wind-
shield.
Page 49 of 442
49 Getting started
Driving
Single wipe
Press switch briefly in the direction of
arrow1.
The windshield wipers wipe one time
without washer fluid.
Wiping with windshield washer fluid
Push switch in the direction of
arrow1 past the resistance point.
The windshield wipers operate with
washer fluid.
Information on filling up the washer reser-
voir can be found in the “Operation” sec-
tion (page 288).
!If anything blocks the windshield wip-
ers (leaves, snow, etc.), switch them off
immediately.
For safety reasons,
turn off the engine by turning
the SmartKey to position0 and
withdraw SmartKey from starter
switch
or
turn off the engine by pressing
the KEYLESS-GO* start/stop
button and open the driver’s
door (with the driver’s door
open, starter switch is in
position0, same as with
SmartKey removed from starter
switch)
before attempting to remove any
blockage.
Remove blockage.
Turn the windshield wipers on
again.
If windshield wipers fail to function at
all in switch positionI,
set the combination switch to the
next highest wiper speed
have the windshield wipers
checked at the nearest authorized
Mercedes-Benz Center

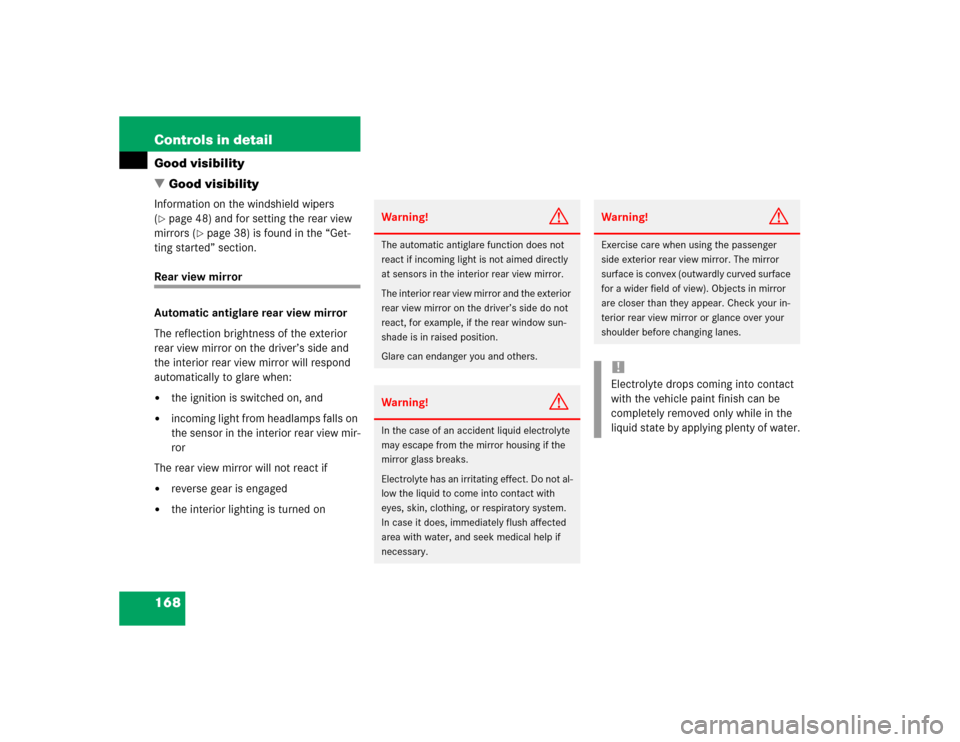

Page 168 of 442
168 Controls in detailGood visibility
Good visibilityInformation on the windshield wipers
(page 48) and for setting the rear view
mirrors (
page 38) is found in the “Get-
ting started” section.
Rear view mirror
Automatic antiglare rear view mirror
The reflection brightness of the exterior
rear view mirror on the driver’s side and
the interior rear view mirror will respond
automatically to glare when:
the ignition is switched on, and
incoming light from headlamps falls on
the sensor in the interior rear view mir-
ror
The rear view mirror will not react if
reverse gear is engaged
the interior lighting is turned on
Warning!
G
The automatic antiglare function does not
react if incoming light is not aimed directly
at sensors in the interior rear view mirror.
The interior rear view mirror and the exterior
rear view mirror on the driver’s side do not
react, for example, if the rear window sun-
shade is in raised position.
Glare can endanger you and others.Warning!
G
In the case of an accident liquid electrolyte
may escape from the mirror housing if the
mirror glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.
Warning!
G
Exercise care when using the passenger
side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
terior rear view mirror or glance over your
shoulder before changing lanes.!Electrolyte drops coming into contact
with the vehicle paint finish can be
completely removed only while in the
liquid state by applying plenty of water.
Page 169 of 442
169 Controls in detail
Good visibility
Activating exterior rear view mirror
parking position
Follow these steps to activate the mirror
parking position so that the passen-
ger-side exterior rear view mirror will be
turned downward to the stored position.
Make sure you have stored a parking
position for the passenger-side exterior
rear view mirror (
page 118).
Make sure the
Mirror adjustment
parking aid function in the
Conve-
nience
submenu of the control system
is switched on (
page 152).
Switch on ignition (if not already on).
Press button2 for the passenger-side
exterior rear view mirror.
Place the gear selector lever in reverse
gearR.
The passenger-side exterior rear view
mirror will be turned downward to the

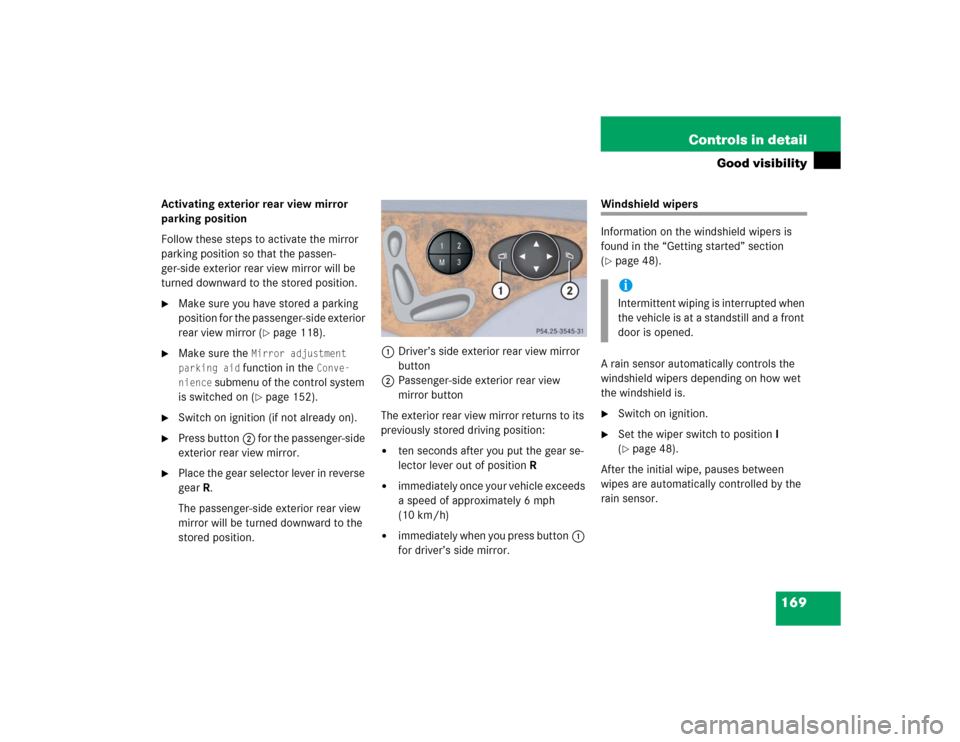

stored position.1Driver’s side exterior rear view mirror
button
2Passenger-side exterior rear view
mirror button
The exterior rear view mirror returns to its
previously stored driving position:
ten seconds after you put the gear se-
lector lever out of positionR
immediately once your vehicle exceeds
a speed of approximately 6 mph
(10 km/h)
immediately when you press button1
for driver’s side mirror.
Windshield wipers
Information on the windshield wipers is
found in the “Getting started” section
(page 48).
A rain sensor automatically controls the
windshield wipers depending on how wet
the windshield is.
Switch on ignition.
Set the wiper switch to positionI
(page 48).
After the initial wipe, pauses between
wipes are automatically controlled by the
rain sensor.
iIntermittent wiping is interrupted when
the vehicle is at a standstill and a front
door is opened.
Page 170 of 442
170 Controls in detailGood visibility
Headlamp cleaning system*

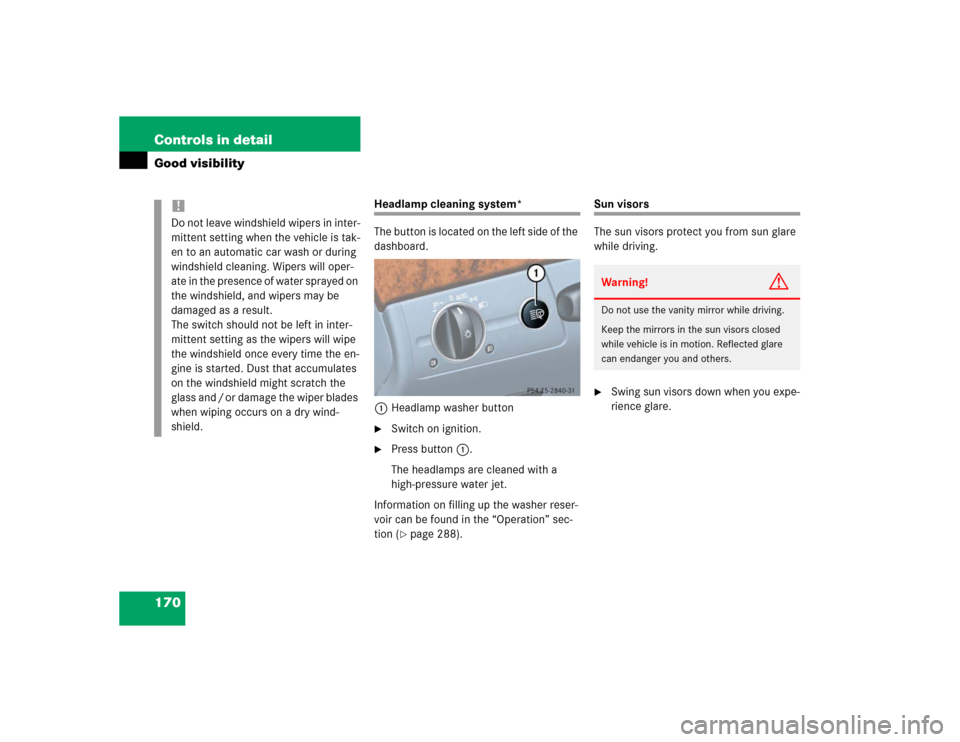

The button is located on the left side of the
dashboard.
1Headlamp washer button
Switch on ignition.
Press button1.
The headlamps are cleaned with a
high-pressure water jet.
Information on filling up the washer reser-
voir can be found in the “Operation” sec-
tion (page 288).
Sun visors
The sun visors protect you from sun glare
while driving.
Swing sun visors down when you expe-
rience glare.
!Do not leave windshield wipers in inter-
mittent setting when the vehicle is tak-
en to an automatic car wash or during
windshield cleaning. Wipers will oper-
ate in the presence of water sprayed on
the windshield, and wipers may be
damaged as a result.
The switch should not be left in inter-
mittent setting as the wipers will wipe
the windshield once every time the en-
gine is started. Dust that accumulates
on the windshield might scratch the
glass and / or damage the wiper blades
when wiping occurs on a dry wind-
shield.
Warning!
G
Do not use the vanity mirror while driving.
Keep the mirrors in the sun visors closed
while vehicle is in motion. Reflected glare
can endanger you and others.
Page 179 of 442
179 Controls in detail
Climate control
Adjusting center air vents:
The thumbwheels for left2 and right6
center air vents are automatically posi-
tioned for optimum interior airflow. In this
position, center air vent4 and adjustable
left and right center vents3 and5 are
fully opened.
Heating:
Only in manual mode is it possible to lower
the temperature in the headroom by regu-
lating the cold-airflow using
thumbwheel7 (
page 174).Windshield fogged on the outside
Switch the windshield wipers on
(page 48).
Press the Ubutton.
The indicator lamp on the button
comes on.
Adjusting air volume
Adjusting manually
Five blower speeds are available.
Press to decrease orQ to in-
crease air volume to the desired level.
The
Auto
display disappears and the
automatic mode is switched off. The
selected blower speed is shown in the
display.Adjusting automatically
Press the U button.
The air volume is adjusted automatical-
ly.
Defrosting
Activating
Press buttonP.
The indicator lamp on the button
comes on.
or
Switch off air recirculation, if selected.
Press buttonO.
The indicator lamp on the button goes
out.iThese settings should only be selected
for a short time.
Page 189 of 442
189 Controls in detail
Automatic climate control*
Increasing
Push top of temperature control rocker
switch3 and / or5.
The automatic climate control system
will correspondingly adjust the interior
air temperature.
Decreasing
Push bottom of temperature control
rocker switch3 and / or5.
The automatic climate control system
will correspondingly adjust the interior
air temperature.
Heating:
Only in manual air distribution mode is it
possible to lower the temperature in the
headroom by adding outside air using
thumbwheel7 (
page 184) in the dash-
board.
Adjusting air distribution
Use the air distribution controls1 and7
(page 176) to separately adjust the air
distribution on each side of the passenger
compartment. The following symbols are
found on the controls:Adjusting manually
Press left or rightU.
The indicator lamp in theU button
goes out.
Turn air distribution controls on each
side of the passenger compartment to
the desired symbol.
Adjusting automatically
Press left or rightU button again.
The indicator lamp in theU button
illuminates. The air distribution is ad-
justed automatically.
Windshield fogged on the outside
Switch the windshield wipers on.
Press the left or rightU button.

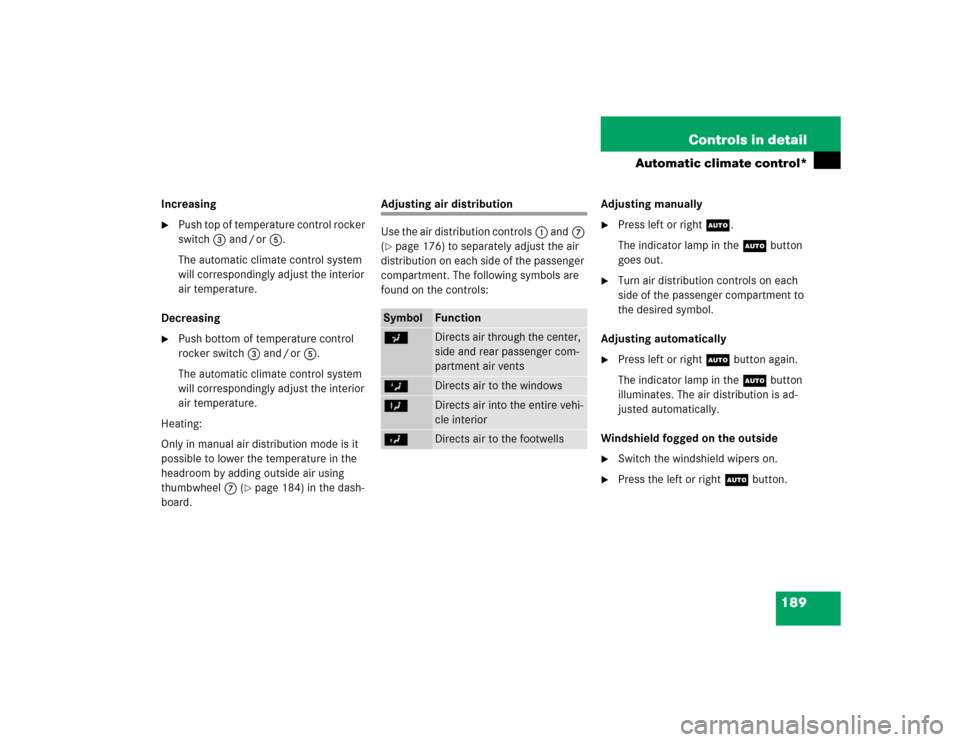

Symbol
Function
a
Directs air through the center,
side and rear passenger com-
partment air vents
Z
Directs air to the windows
X
Directs air into the entire vehi-
cle interior
Y
Directs air to the footwells
