rear seat operation MERCEDES-BENZ E500 2005 W211 Owner's Manual

ContentsSafety and Security........................... 59
Occupant safety................................... 60
Air bags ......................................... 61
Seat belts ....................................... 67
Children in the vehicle .................... 71
Blocking of rear door window
operation ........................................ 83
Panic alarm .......................................... 84
Activating ....................................... 84
Deactivating ................................... 84
Driving safety systems ......................... 85
ABS ................................................ 85
BAS ................................................ 87
ESP ................................................. 87
SBC brake system .......................... 90
Four wheel electronic traction
system (4MATIC) with the ESP ....... 93
Anti-theft systems................................ 94
Immobilizer..................................... 94
Anti-theft alarm system .................. 94
Tow-away alarm ............................. 95
Controls in detail............................... 97
Locking and unlocking ......................... 98
SmartKey ....................................... 98
SmartKey with KEYLESS-GO* ...... 102
Opening the doors from
the inside ..................................... 109
Opening the trunk ........................ 110
Closing the trunk.......................... 112
Trunk lid emergency release ........ 117
Automatic central locking ............ 118
Locking and unlocking from
the inside ..................................... 119
Seats ................................................. 121
Easy-entry/exit feature ................ 121
Removing and installing front
seat head restraints ..................... 123
Rear seat head restraints ............. 124
Drive - Dynamic seat* with
multicontour features................... 126
Seat heating* ............................... 127
Seat ventilation* .......................... 128Memory function ............................... 130
Storing positions into memory ..... 131
Recalling positions from memory . 131
Storing exterior rear view mirror
parking position ........................... 132
Lighting ............................................. 133
Exterior lamp switch .................... 133
Combination switch ..................... 137
Hazard warning flasher ................ 138
Interior lighting in the front .......... 139
Door entry lamps ......................... 140
Interior lighting in the rear ........... 141
Trunk lamp ................................... 141
Instrument cluster ............................. 142
Instrument cluster illumination .... 142
Coolant temperature indicator ..... 143
Trip odometer .............................. 143
Tachometer .................................. 144
Outside temperature indicator ..... 144

ContentsPanorama roof with power tilt/
sliding panel*..................................... 226
Opening and closing the roller
sunblinds for the panorama
roof with power tilt/sliding panel . 226
Opening and closing the panorama
roof with power tilt/sliding panel . 227
Synchronizing the panorama
roof with power tilt/sliding panel . 229
Solar panel* ................................. 230
Driving systems ................................. 231
Cruise control............................... 231
Distronic*..................................... 235
Airmatic DC (Dual Control)* ......... 247
Parktronic system
(Parking assist)* ........................... 250
Loading .............................................. 254
Roof rack* .................................... 254
Ski sack* ...................................... 254
Split rear bench seat* .................. 257
Expanding the cargo area* ........... 259
Loading instructions ..................... 260
Cargo tie-down rings* .................. 261Useful features .................................. 262
Storage compartments ................ 262
Cup holders.................................. 265
Ashtrays ....................................... 268
Cigarette lighter ........................... 269
12-V socket* ................................ 269
Heated steering wheel* ............... 270
Telephone* .................................. 270
Tele Aid* ...................................... 271
Garage door opener ..................... 279
Operation......................................... 285
The first 1000 miles (1500 km) ......... 286
Driving instructions ........................... 287
Drive sensibly – save fuel............. 287
Drinking and driving ..................... 287
Pedals .......................................... 287
Power assistance ......................... 288
Brakes.......................................... 288
Driving off .................................... 290
Parking......................................... 290
Tires ............................................. 290
Hydroplaning................................ 291
Tire traction ................................. 292
Tire speed rating .......................... 292
Winter driving instructions ........... 294
Standing water............................. 295
Passenger compartment .............. 295
Driving abroad ............................. 295
Control and operation of radio
transmitter ................................... 295
Catalytic converter
(Gasoline engine) ......................... 296
Oxidation catalyst (Diesel engine) 297
Emission control .......................... 297
Coolant temperature.................... 298

70 Safety and SecurityOccupant safety
Emergency tensioning device (ETD),
seat belt force limiter
The seat belts for the front and rear outer
seats are equipped with emergency ten-
sioning devices and belt force limiters.
The ETD is designed to activate in the fol-
lowing cases:

in frontal or rear-end impacts exceed-
ing a preset severity level


in certain vehicle rollovers


if the restraint systems are operational
and functioning correctly, see
1indicator lamp (
page 60)

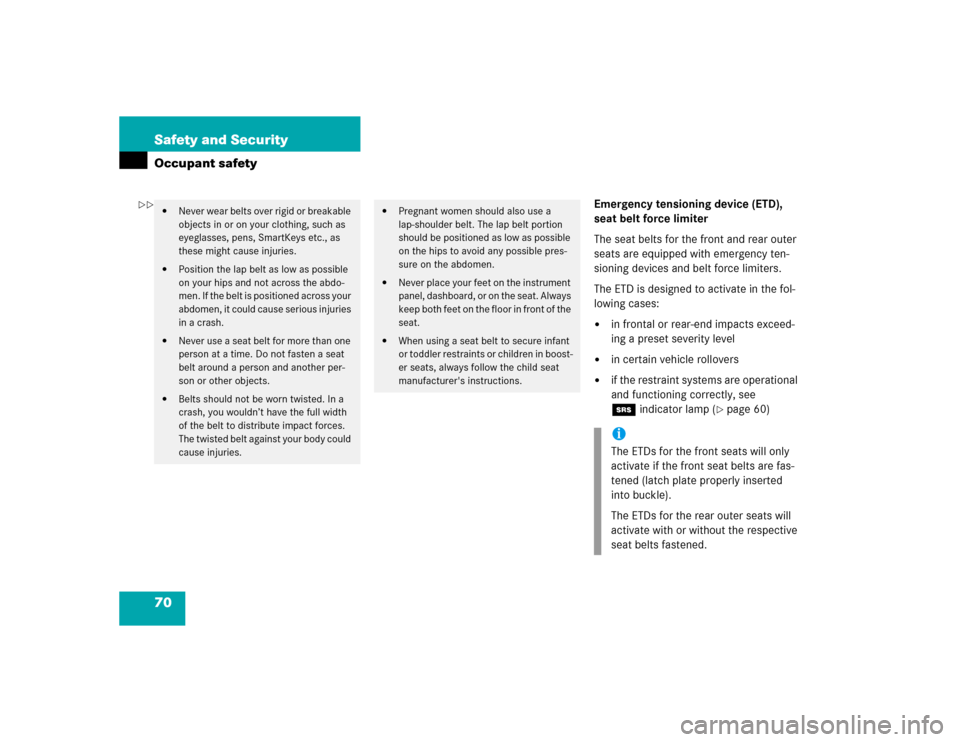

Never wear belts over rigid or breakable
objects in or on your clothing, such as
eyeglasses, pens, SmartKeys etc., as
these might cause injuries.


Position the lap belt as low as possible
on your hips and not across the abdo-
men. If the belt is positioned across your
abdomen, it could cause serious injuries
in a crash.


Never use a seat belt for more than one
person at a time. Do not fasten a seat
belt around a person and another per-
son or other objects.


Belts should not be worn twisted. In a
crash, you wouldn’t have the full width
of the belt to distribute impact forces.
The twisted belt against your body could
cause injuries.


Pregnant women should also use a
lap-shoulder belt. The lap belt portion
should be positioned as low as possible
on the hips to avoid any possible pres-
sure on the abdomen.


Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.


When using a seat belt to secure infant
or toddler restraints or children in boost-
er seats, always follow the child seat
manufacturer's instructions.
iThe ETDs for the front seats will only
activate if the front seat belts are fas-
tened (latch plate properly inserted
into buckle).
The ETDs for the rear outer seats will
activate with or without the respective
seat belts fastened.


83 Safety and Security
Occupant safety

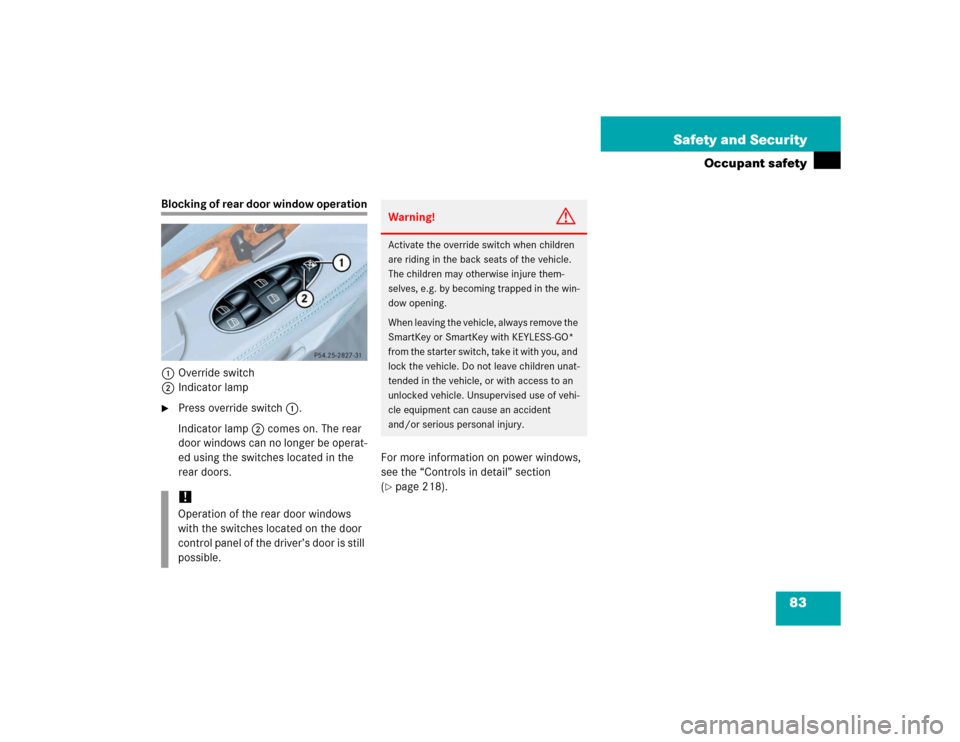

Blocking of rear door window operation
1Override switch
2Indicator lamp
Press override switch1.
Indicator lamp2 comes on. The rear
door windows can no longer be operat-
ed using the switches located in the
rear doors.For more information on power windows,
see the “Controls in detail” section
(
page 218).
!Operation of the rear door windows
with the switches located on the door
control panel of the driver’s door is still
possible.
Warning!
G
Activate the override switch when children
are riding in the back seats of the vehicle.
The children may otherwise injure them-
selves, e.g. by becoming trapped in the win-
dow opening.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment can cause an accident
and/or serious personal injury.

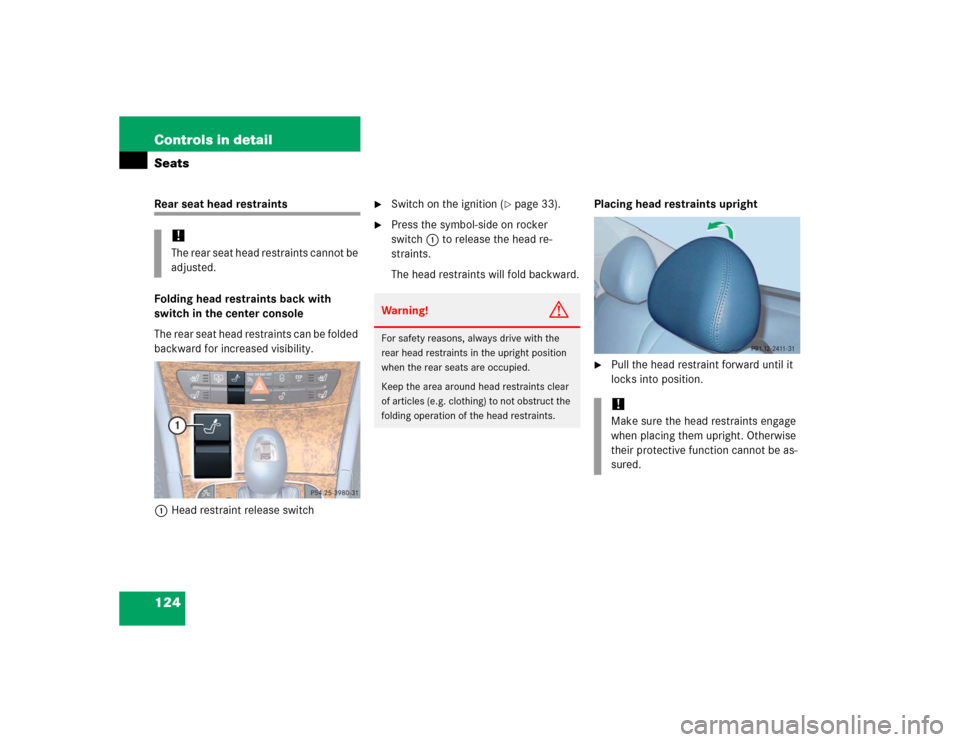

124 Controls in detailSeatsRear seat head restraints
Folding head restraints back with
switch in the center console
The rear seat head restraints can be folded
backward for increased visibility.
1Head restraint release switch

Switch on the ignition (
page 33).

Press the symbol-side on rocker
switch1to release the head re-
straints.
The head restraints will fold backward.Placing head restraints upright

Pull the head restraint forward until it
locks into position.
!The rear seat head restraints cannot be
adjusted.
Warning!
G
For safety reasons, always drive with the
rear head restraints in the upright position
when the rear seats are occupied.
Keep the area around head restraints clear
of articles (e.g. clothing) to not obstruct the
folding operation of the head restraints.
!Make sure the head restraints engage
when placing them upright. Otherwise
their protective function cannot be as-
sured.

316 OperationTires and wheelsPlacard (Example B)
1Load limit information on the Vehicle
Tire Information placard
The placard showing the load limit informa-
tion is located on the driver’s door B-pillar.
If your vehicle is equipped with the Vehicle
Tire Information placard (Example B),
locate the heading “Vehicle Capacity
Weight” on this placard. The combined
weight of all occupants, cargo/luggage
and trailer tongue (if applicable) should
never exceed the weight listed next to
vehicle capacity weight.Seating capacity
The seating capacity gives you important
information on the number of occupants
that can be in the vehicle. Observe front
and rear seating capacity. Your vehicle is
equipped with either placard Example A or
placard Example B located on the driver's
door B-pillar (
page 315).
Placard (Example A)1Seating capacityPlacard (Example B)1Seating capacity
iData shown on placard examples is for
illustration purposes only. Seating data
is specific to each vehicle and may vary
from data shown in the illustrations
below. Refer to placard on vehicle for
actual data specific to your vehicle.

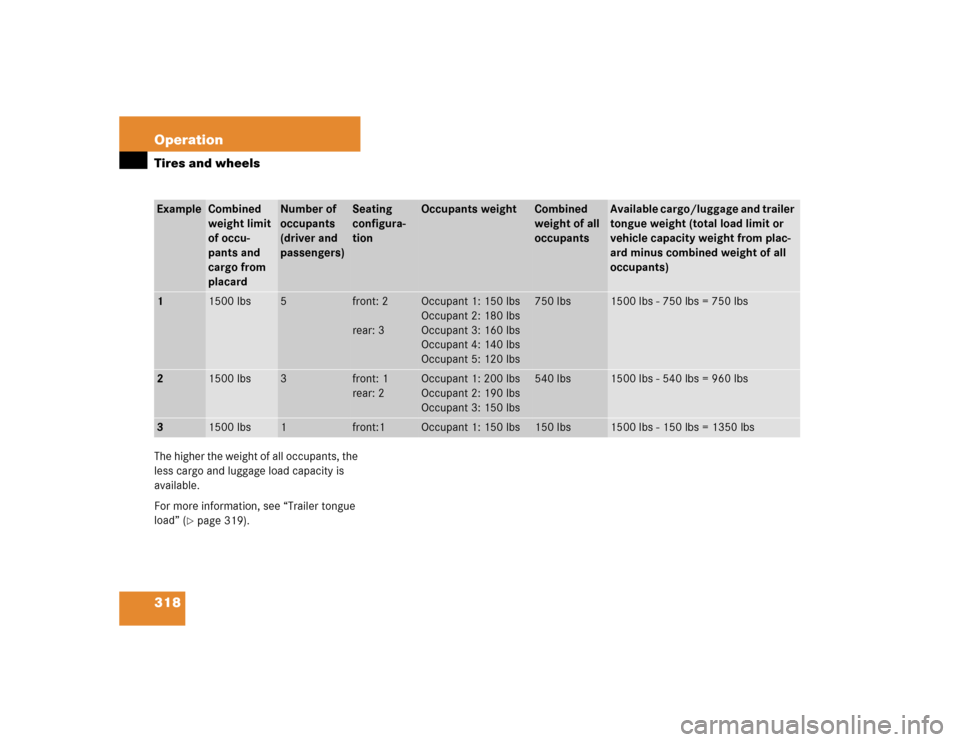

318 OperationTires and wheelsThe higher the weight of all occupants, the
less cargo and luggage load capacity is
available.
For more information, see “Trailer tongue
load” (
page 319).
Example
Combined
weight limit
of occu-
pants and
cargo from
placard
Number of
occupants
(driver and
passengers)
Seating
configura-
tion
Occupants weight
Combined
weight of all
occupants
Available cargo/luggage and trailer
tongue weight (total load limit or
vehicle capacity weight from plac-
ard minus combined weight of all
occupants)
1
1500 lbs
5
front: 2
rear: 3
Occupant 1: 150 lbs
Occupant 2: 180 lbs
Occupant 3: 160 lbs
Occupant 4: 140 lbs
Occupant 5: 120 lbs
750 lbs
1500 lbs - 750 lbs = 750 lbs
2
1500 lbs
3
front: 1
rear: 2
Occupant 1: 200 lbs
Occupant 2: 190 lbs
Occupant 3: 150 lbs
540 lbs
1500 lbs - 540 lbs = 960 lbs
3
1500 lbs
1
front:1
Occupant 1: 150 lbs
150 lbs
1500 lbs - 150 lbs = 1350 lbs

337 Operation
Tires and wheels
Tire and loading terminology
Accessory weight
The combined weight (in excess of those
standard items which may be replaced) of
automatic transmission, power steering,
power brakes, power windows, power
seats, radio, and heater, to the extent that
these items are available as
factory-installed equipment (whether
installed or not).
Air pressure
The amount of air inside the tire pressing
outward on each square inch of the tire.
Air pressure is expressed in pounds per
square inch (psi), or kilopascal (kPa) or
bars.
Aspect ratio
Dimensional relationship between tire
section height and section width
expressed in percentage.Bar
Another metric unit for air pressure. There
are 14.5038 pounds per square inch (psi)
to 1 bar; there are 100 kilopascals (kPa)
to 1 bar.
Bead
The tire bead contains steel wires wrapped
by steel cords that hold the tire onto the
rim.
Cold tire inflation pressure
Tire inflation pressure when your vehicle
has been sitting for at least three hours or
driven no more than one mile (1.6 km).
Curb weight
The weight of a motor vehicle with stan-
dard equipment including the maximum
capacity of fuel, oil, and coolant, and, if so
equipped, air conditioning and additional
optional equipment, but without passen-
gers and cargo.DOT (D
epartment o
f T
ransportation)
A tire branding symbol which denotes the
tire meets requirements of the
U.S. Department of Transportation.
GAWR (G
ross A
xle W
eight R
ating)
The GAWR is the maximum permissible
axle weight. The gross vehicle weight on
each axle must never exceed the GAWR for
the front and rear axle indicated on the
certification label located on the driver's
door B-pillar.
GVW (G
ross V
ehicle W
eight)
The GVW comprises the weight of the
vehicle including fuel, tools, spare wheel,
installed accessories, passengers and
cargo and, if applicable, trailer tongue
load. The GWV must never exceed the
GWVR indicated on the certification label
located on the driver's door B-pillar.

353 Operation
Vehicle care
Light alloy wheels
Mercedes-Benz approved Wheel Care
should be used for regular cleaning of the
light alloy wheels.
If possible, clean wheels once a week with
Mercedes-Benz approved Wheel Care, us-
ing a soft bristle brush and a strong spray
of water.
Follow the instructions on the container.
Instrument cluster
Use a gentle dishwashing detergent or
mild detergent for delicate fabrics as a
washing solution. Wipe with a cloth moist-
ened in a lukewarm solution. Do not use
scouring agents.Steering wheel and gear selector lever
Wipe with a damp cloth and dry thoroughly
or clean with Mercedes-Benz approved
Leather Care.
Cup holder
Use a gentle dishwashing detergent or
mild detergent for delicate fabrics as a
washing solution. Wipe with a cloth moist-
ened in lukewarm solution. Do not use
scouring agents.
Hard plastic trim items
Pour Mercedes-Benz approved Interior
Care onto a soft, lint-free cloth and apply
with light pressure.
Headliner and shelf below rear window
Clean with a soft bristle brush, or use a
dry-shampoo cleaner in case of excessive
dirt.Seat belts
The webbing must not be treated with
chemical cleaning agents. Use only clear,
lukewarm water and soap. Do not dry the
webbing at temperatures above 176°F
(80°C) or in direct sunlight.
iOnly use acid-free cleaning materials.
Acid could lead to corrosion.
Warning!
G
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.

481 Index
Checking
Coolant level 308
Oil level 301, 304
Tire inflation pressure 301
Vehicle lighting 301
Child safety 71
Airbags 62
Infant and child restraint systems 67,
71
LATCH child seat anchors 81
Child safety switch see Blocking of rear
window operation 83
Cigarette lighter 269
Cleaning
Headlamps 186, 350
Light alloy wheels 351
Parktronic* system sensor 351
side markers 350
tail lamps 350
turn signal lenses 350
Windshield 52
Wood trims 354
Cleaning tires 313Clock 160
Closing
Glove box 262
Panorama sliding/pop-up roof 227
Roller sunblinds 226
Side windows 219
Sliding/pop-up roof* 223
Trunk
Vehicle with KEYLESS-GO* 115,
116
Trunk lid 112
Windows 218
Closing the trunk lid 115, 116
Cockpit 22, 471
Cockpit management and data system
(COMAND) 472
Cold tire inflation pressure 337
Collapsible tire 457
Tire inflation pressure 429
COMAND 472
COMAND* see separate operating instruc-
tionsCombination switch 137
Turn signals 51
Windshield wipers 51
Control system 145, 472
AUDIO menu 150
Convenience submenu 167
Display digital speedometer 150
Distronic* menu 152
Functions 149
Instrument cluster submenu 157,
159
Lighting submenu 162
Menus 148, 149
Multifunction display 145
Multifunction steering wheel 146
Selecting radio system 150
Selecting satellite radio* system 151
Settings menu 154
Standard display menu 150
Submenus 147, 149
TEL* menu 171
Trip computer menu 170
Vehicle status message memory
menu 153
Vehicle submenu 166
