MERCEDES-BENZ EQC SUV 2022 Owners Manual

*
N
NO
OTE

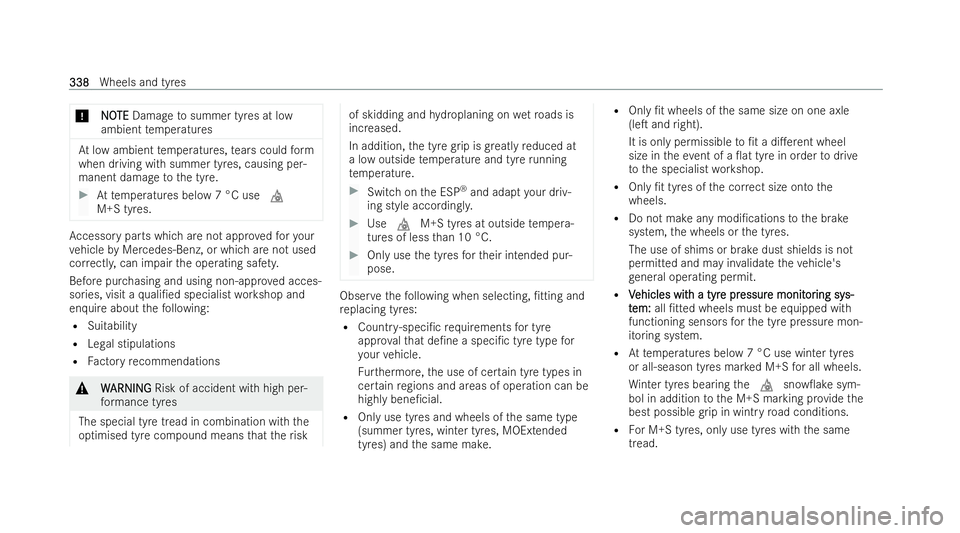

TE Damage tosummer tyres at low
ambient temp eratures At
low ambient temp eratures, tears could form
when driving with summer tyres, causing per-
manent damage tothe tyre. #
Attemp eratures below 7 °C use i
M+S tyres. Ac
cessory parts which are not appr oved foryo ur
ve hicle byMercedes-Benz, or which are not used
cor rectl y,can impair the operating saf ety.
Before purchasing and using non-appro ved acces-
sories, visit a quali/ed specialist workshop and
enquire about thefo llowing:
R Suitability
R Legal stipulations
R Factory recommendations &
W
WARNING
ARNING Risk of accident with high per-
fo rm ance tyres
The special tyre tread in combination with the
optimised tyre compound means that therisk of skidding and
hydroplaning on wetro ads is
increased.
In addition, the tyre grip is greatly reduced at
a low outside temp erature and tyre running
te mp erature. #
Switch on the ESP ®
and adapt your driv-
ing style accordingl y. #
Use i M+S tyres at outside temp era-
tures of less than 10 °C. #
Only use the tyres forth eir intended pur-
pose. Obser
vethefo llowing when selecting, /tting and
re placing tyres:
R Countr y-speci/c requ irements for tyre
appr oval that de/ne a speci/c tyre type for
yo ur vehicle.
Fu rthermore, the use of cer tain tyre types in
cer tain regions and areas of operation can be
high lybene/cial.
R Only use tyres and wheels of the same type
(summer tyres, winter tyres, MOExtended
tyres) and the same make. R
Only /t wheels of the same size on one axle
(leT and right).
It is only permissible to/t a di.e rent wheel
size in the event of a 0at tyre in order todrive
to the specialist workshop.
R Only /t tyres of the cor rect size onto the
wheels.
R Do not make any modi/cations tothe brake
system, the wheels or the tyres.
The use of shims or brake dust shields is not
permitted and may in validate theve hicle's
ge neral ope rating permit.
R V
V ehicles wit ehicles wit h a tyr
h a tyre pr
e pressur
essur e monit
e monit or
oring sy
ing sy s-
s-
t
t em:
em: all /t tedwheels must be equipped with
functioning sensors forth e tyre pressure mon-
itoring system.
R Attemp eratures below 7 °C use winter tyres
or all-season tyres mar ked M+S for all wheels.
Wi nter tyres bea ring thei snow0ake sym-
bol in addition tothe M+S marking provide the
best possible grip in wintry road conditions.
R For M+S tyres, only use tyres with the same
tread. 338
338
Wheels and tyres

R

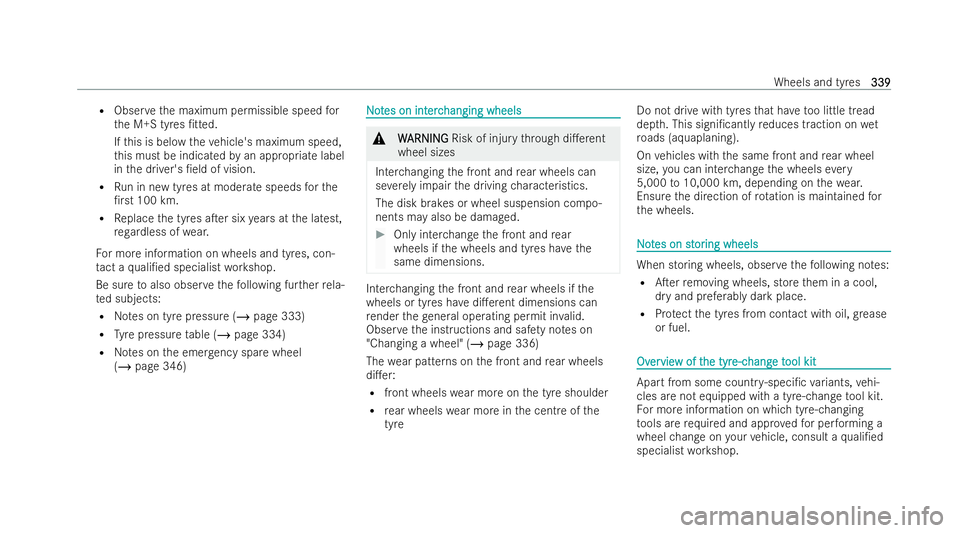

Obser vethe maximum permissible speed for
th e M+S tyres /t ted.
If th is is below theve hicle's maximum speed,
th is must be indicated byan appropriate label
in the driver's /eld of vision.
R Run in new tyres at moderate speeds forthe
/r st 100 km.
R Replace the tyres aTer six years at the latest,
re ga rdless of wear.
Fo r more information on wheels and tyres, con-
ta ct a quali/ed specialist workshop.
Be sure toalso obser vethefo llowing fur ther rela-
te d subjects:
R Notes on tyre pressure (/ page 333)
R Tyre pressure table (/ page 334)
R Notes on the emer gency spa rewheel
(/ page 346) N
No
ot
tes on int
es on int erc
erchanging wheels
hanging wheels &
W
WARNING
ARNING Risk of injury thro ugh di.erent
wheel sizes
Inter changing the front and rear wheels can
se verely impair the driving characteristics.
The disk brakes or wheel suspension compo-
nents may also be damaged. #
Only inter change the front and rear
wheels if the wheels and tyres ha vethe
same dimensions. Inter
changing the front and rear wheels if the
wheels or tyres ha vedi.erent dimensions can
re nder thege neral ope rating permit in valid.
Obser vethe inst ructions and saf ety no tes on
"Changing a wheel" (/ page 336)
The wear patterns on the front and rear wheels
di.er:
R front wheels wear more on the tyre shoulder
R rear wheels wear more in the centre of the
tyre Do not drive with tyres
that ha vetoo little tread
dep th. This signi/cantly reduces traction on wet
ro ads (aquaplaning).
On vehicles with the same front and rear wheel
size, you can inter change the wheels every
5,000 to10,000 km, depending on thewe ar.
Ensu rethe direction of rotation is maintained for
th e wheels. N
No
ot
tes on st
es on st or
oring wheels
ing wheels When storing wheels, obser
vethefo llowing no tes:
R ATer removing wheels, store them in a cool,
dry and preferably dark place.
R Protect the tyres from contact with oil, grease
or fuel. Ov
Ov
er
ervie
vie w of t
w of t he tyr
he tyr e-c
e-chang
hang e t
e tool kit
ool kit Apart from some count
ry-speci/c variants, vehi-
cles are not equipped with a tyre-change tool kit.
Fo r more information on which tyre-changing
to ols are requ ired and appr ovedfo r per form ing a
wheel change on your vehicle, consult a quali/ed
specialist workshop. Wheels and tyres
339
339

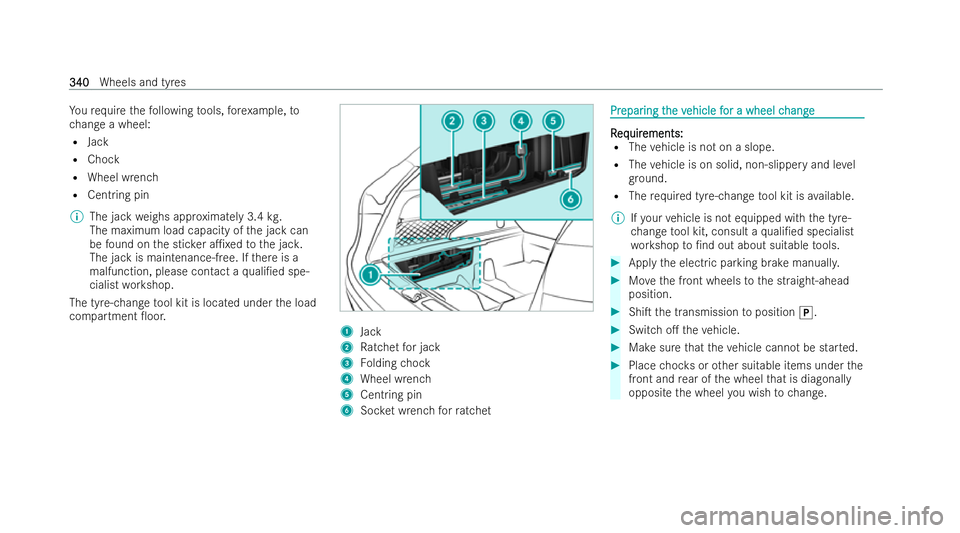

Yo
ure qu ire thefo llowing tools, fore xamp le,to
ch ange a wheel:
R Jack
R Chock
R Wheel wrench
R Centring pin
% The jack weighs appr oximately 3.4 kg.
The maximum load capacity of the jack can
be found on the stic ker a1xed tothe jac k.
The jack is maintenance-free. If there is a
malfunction, please contact a quali/ed spe-
cialist workshop.
The tyre-change tool kit is located under the load
compartment 0oor. 1
Jack
2 Ratchet for jack
3 Folding chock
4 Wheel wrench
5 Centring pin
6 Socket wrench forra tchet Pr
Pr
epar
epar ing t
ing the v
he vehicle f
ehicle f or a wheel c
or a wheel c hange
hange R R
eq eq uir
uir ements:
ements:
R The vehicle is not on a slope.
R The vehicle is on solid, non-slippery and le vel
gr ound.
R The requ ired tyre-change tool kit is available.
% Ifyo ur vehicle is not equipped with the tyre-
ch ange tool kit, consult a quali/ed specialist
wo rkshop to/nd out about sui table tools. #
Apply the electric parking brake manuall y. #
Movethe front wheels tothe straight-ahead
position. #
ShiT the transmission toposition j. #
Switch o. theve hicle. #
Make sure that theve hicle cann otbe star ted. #
Place choc ks orother suitable items under the
front and rear of the wheel that is diagonal ly
opposite the wheel you wish tochange. 340
340
Wheels and tyres

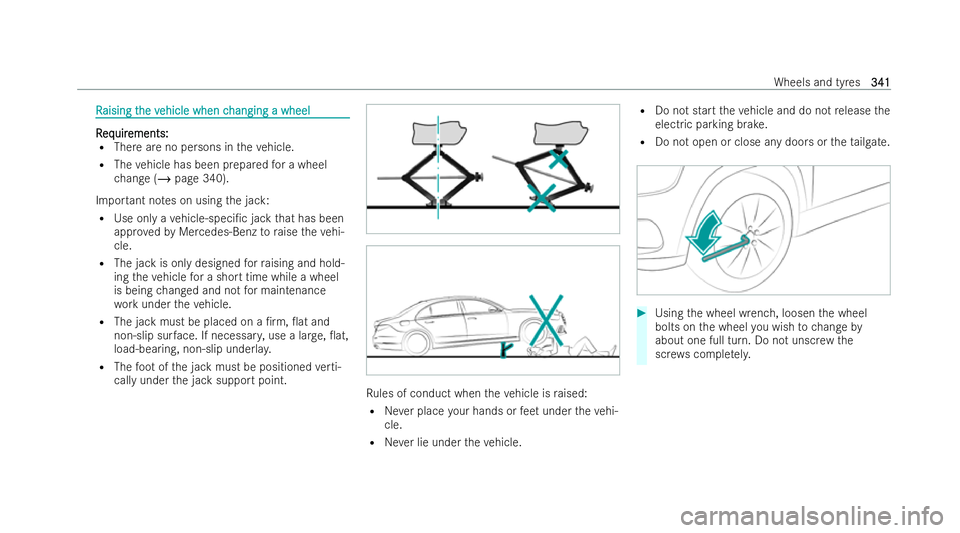

R
R
aising t
aising t he v
he vehicle when c
ehicle when c hanging a wheel
hanging a wheel R R
eq eq uir
uir ements:
ements:
R There are no persons in theve hicle.
R The vehicle has been prepared for a wheel
ch ange (/ page 340).
Impor tant no tes on using the jack:
R Use only a vehicle-speci/c jack that has been
appr ovedby Mercedes-Benz toraise theve hi-
cle.
R The jack is only designed forra ising and hold-
ing theve hicle for a short time while a wheel
is being changed and not for maintenance
wo rkunder theve hicle.
R The jack must be placed on a /rm, 0at and
non-slip sur face. If necessar y,use a lar ge, 0at,
load-bearing, non-slip underla y.
R The foot ofthe jack must be positioned verti-
cally under the jack support point. Ru
les of conduct when theve hicle is raised:
R Never place your hands or feet under theve hi-
cle.
R Never lie under theve hicle. R
Do not start theve hicle and do not release the
electric parking brake.
R Do not open or close any doors or theta ilgate. #
Using the wheel wrench, loosen the wheel
bolts on the wheel you wish tochange by
about one full turn. Do not unscr ewthe
scr ews comple tely. Wheels and tyres
341
341

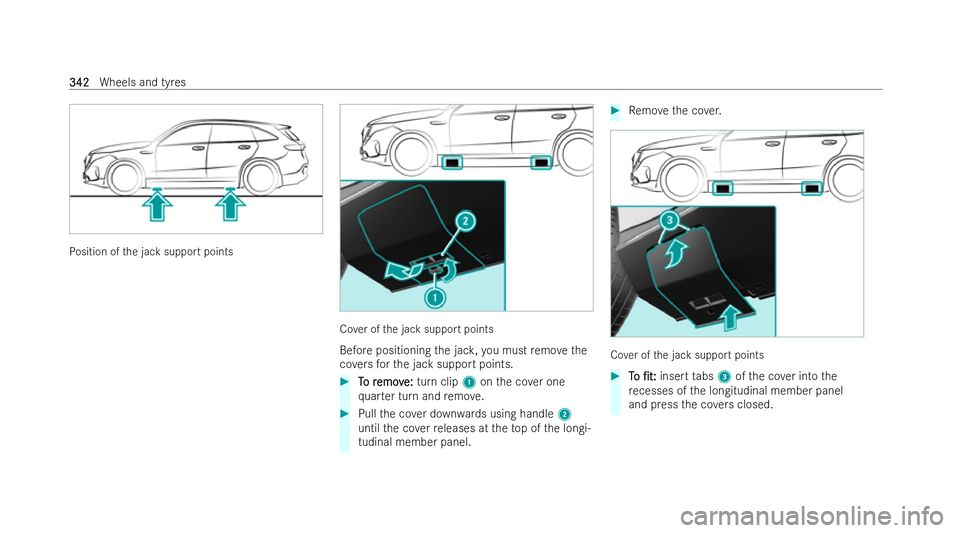

Po
sition of the jack support points Co
ver of the jack support points
Before positioning the jac k,you must remo vethe
co vers forth e jack support points. #
T
T o r
o r emov
emov e:
e: turn clip 1onthe co ver one
qu arter turn and remo ve. #
Pull the co ver down wards using handle 2
until the co verre leases at theto p of the longi-
tudinal member panel. #
Remo vethe co ver. Co
ver of the jack support points #
T
To
o /t:
/t: insert tabs 3 ofthe co ver into the
re cesses of the longitudinal member panel
and press the co vers closed. 342
342
Wheels and tyres

#

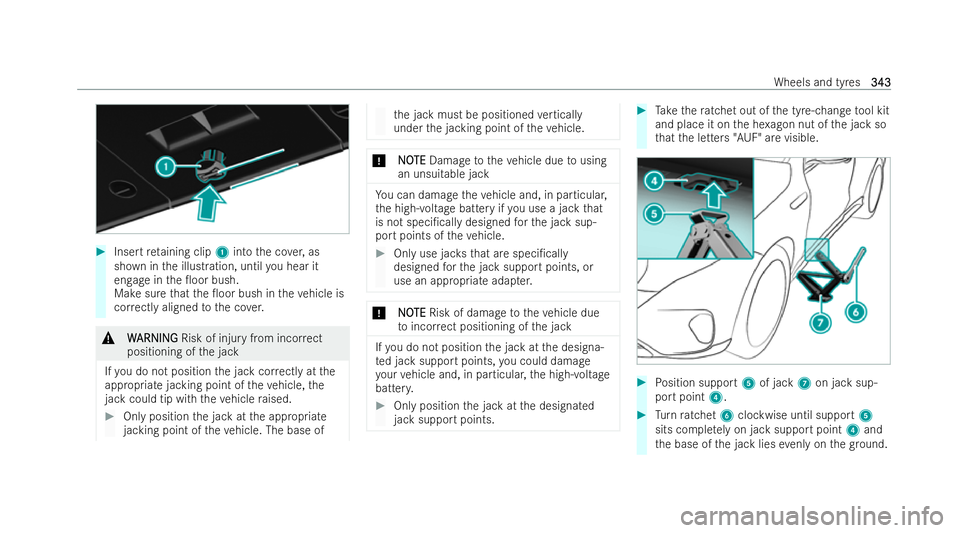

Insert retaining clip 1into the co ver,as
shown in the illust ration, until you hear it
engage in the 0oor bush.
Make sure that the 0oor bush in theve hicle is
cor rectly aligned tothe co ver. &
W
W ARNI NG
ARNI NGRisk of injury from inco rrect
positioning of the jack
If yo u do not position the jack cor rectly at the
appropriate jacking point of theve hicle, the
jack could tip wi th theve hicle raised. #
Only position the jack at the appropriate
jacking point of theve hicle. The base of th
e jack must be positioned vertically
under the jacking point of theve hicle. *
N
NOOTE
TE Damage totheve hicle due tousing
an unsuitable jack Yo
u can damage theve hicle and, in particular,
th e high-voltage battery if you use a jack that
is not speci/cal lydesigned forth e jack sup-
port points of theve hicle. #
Only use jac ksthat are speci/cal ly
designed forth e jack support points, or
use an appropriate adap ter. *
N
NO
OTE
TE Risk of damage totheve hicle due
to incor rect positioning of the jack If
yo u do not position the jack at the designa-
te d jack support points, you could damage
yo ur vehicle and, in particular, the high-voltage
batter y. #
Only position the jack at the designated
jack support points. #
Take thera tchet out of the tyre-change tool kit
and place it on the he xagon nut of the jack so
th at the letters "AUF" are visible. #
Position support 5of jack 7on jack sup-
port point 4. #
Turn ratchet 6clockwise until support 5
sits comple tely on jack support point 4and
th e base of the jack lies evenly on thegr ound. Wheels and tyres
343
343

#

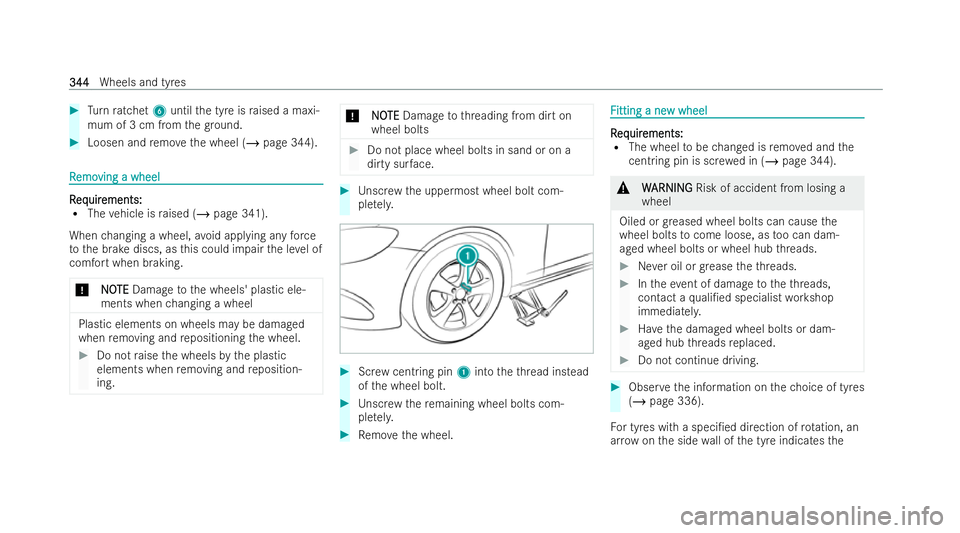

Turn ratchet 6until the tyre is raised a maxi-
mum of 3 cm from thegr ound. #
Loosen and remo vethe wheel (/ page 344). R
R
emo
emo ving a wheel
ving a wheel R
R
eq
eq uir
uir ements:
ements:
R The vehicle is raised (/ page 341).
When changing a wheel, avoid applying any force
to the brake discs, as this could impair the le vel of
comfort when braking.
* NO NOTE TEDamage tothe wheels' plastic ele-
ments when changing a wheel Plastic elements on wheels may be damaged
when removing and repositioning the wheel. #
Do not raise the wheels bythe plastic
elements when removing and reposition-
ing. *
N
NOOTE
TE Damage tothre ading from dirt on
wheel bolts #
Do not place wheel bolts in sand or on a
dirty sur face. #
Unscr ewthe uppermost wheel bolt com-
ple tely. #
Screw cent ring pin 1into theth re ad ins tead
of the wheel bolt. #
Unscr ewthere maining wheel bolts com-
ple tely. #
Remo vethe wheel. F F
itting a ne
itting a ne w wheel
w wheel R
R
eq
eq uir
uir ements:
ements:
R The wheel tobe changed is remo ved and the
cent ring pin is sc rewe d in (/ page 344). &
W
WARNING
ARNING Risk of accident from losing a
wheel
Oiled or greased wheel bolts can cause the
wheel bolts tocome loose, as too can dam-
aged wheel bolts or wheel hub thre ads. #
Never oil or grease theth re ads. #
Intheev ent of damage totheth re ads,
contact a quali/ed specialist workshop
immediatel y. #
Have the damaged wheel bolts or dam-
aged hub thre ads replaced. #
Do not continue driving. #
Obser vethe information on thech oice of tyres
(/ page 336).

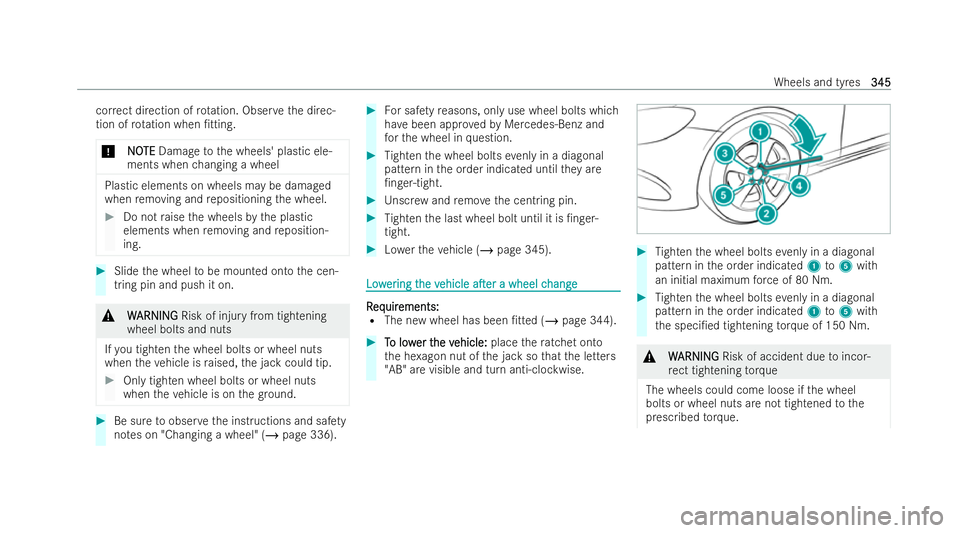

Fo r tyres with a speci/ed direction of rotation, an
ar ro w on the side wall of the tyre indicates the344
344
Wheels and tyres

cor
rect direction of rotation. Obser vethe direc-
tion of rotation when /tting.
* N
NOOTE
TE Damage tothe wheels' plastic ele-
ments when changing a wheel Plastic elements on wheels may be damaged
when removing and repositioning the wheel. #
Do not raise the wheels bythe plastic
elements when removing and reposition-
ing. #
Slide the wheel tobe mounted onto the cen-
tring pin and push it on. &
W
W ARNING
ARNING Risk of injury from tightening
wheel bolts and nuts
If yo u tighten the wheel bolts or wheel nuts
when theve hicle is raised, the jack could tip. #
Only tighten wheel bolts or wheel nuts
when theve hicle is on thegr ound. #
Be sure toobser vethe inst ructions and saf ety
no tes on "Changing a wheel" (/ page 336). #
For saf etyre asons, only use wheel bolts which
ha ve been appr oved byMercedes-Benz and
fo rth e wheel in question. #
Tighten the wheel bolts evenly in a diagonal
pattern in the order indicated until they are
/nger-tight. #
Unscr ewand remo vethe centring pin. #
Tighten the last wheel bolt until it is /n ger-
tight. #
Lowe rth eve hicle (/ page 345). Low Low
er
ering t
ing t he v
he vehicle
ehicle aTer
aTera wheel c
a wheel c hange
hange R
R
eq
eq uir
uir ements:
ements:
R The new wheel has been /tted (/ page 344). #
T To low o low er t
er the v
he v ehicle:
ehicle: placethera tchet onto
th e he xagon nut of the jack so that the letters
"AB" are visible and turn anti-clockwise. #
Tighten the wheel bolts evenly in a diagonal
pattern in the order indicated 1to5 with
an initial maximum forc e of 80 Nm. #
Tighten the wheel bolts evenly in a diagonal
pattern in the order indicated 1to5 with
th e speci/ed tightening torque of 150 Nm. &
W
WARNING
ARNING Risk of accident due toincor-
re ct tightening torque
The wheels could come loose if the wheel
bolts or wheel nuts are not tightened tothe
prescribed torque. Wheels
and tyres
345
345

#

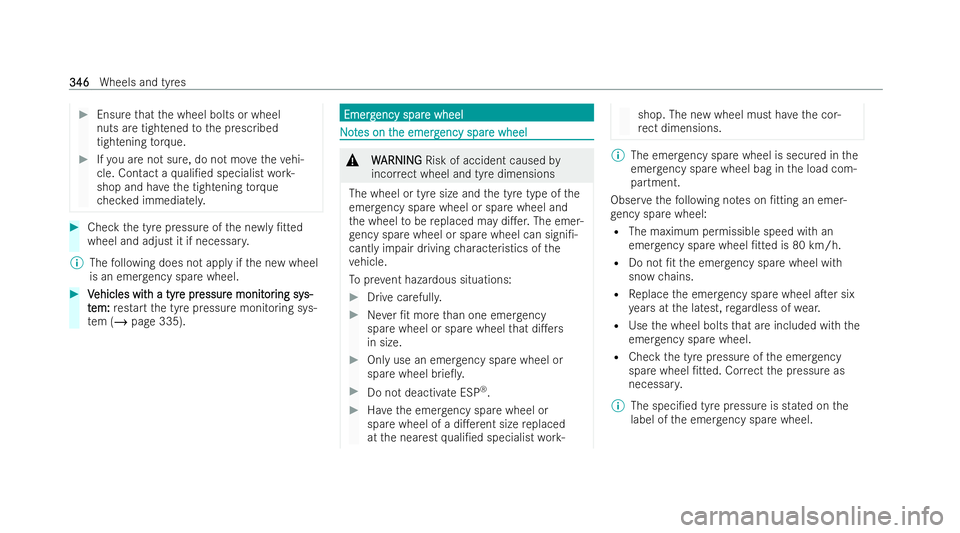

Ensure that the wheel bolts or wheel
nuts are tightened tothe prescribed
tightening torque. #
Ifyo u are not sure, do not mo vetheve hi-
cle. Con tact a quali/ed specialist work-
shop and ha vethe tightening torque
ch ecked immediatel y. #
Check the tyre pressure of the ne wly/tted
wheel and adjust it if necessar y.
% The following does not apply if the new wheel
is an emer gency spa rewheel. #
V
Vehicles wit
ehicles wit h a tyr
h a tyre pr
e pressur
essur e monit
e monit or
oring sy
ing sy s-
s-
t
t em:
em: restart the tyre pressure monitoring sys-
te m (/ page 335). Emerg
Emerg
ency spar
ency spar e wheel
e wheel N
No
ot
tes on t
es on t he emerg
he emerg ency spar
ency spar e wheel
e wheel &
W
WARNING
ARNING Risk of accident caused by
incor rect wheel and tyre dimensions
The wheel or tyre size and the tyre type of the
emer gency spa rewheel or spare wheel and
th e wheel tobe replaced may di.er. The emer-
ge ncy spa rewheel or spare wheel can signi/-
cantly impair driving characteristics of the
ve hicle.
To prev ent hazardous situations: #
Drive carefull y. #
Never /t more than one emer gency
spa rewheel or spare wheel that di.ers
in size. #
Only use an emer gency spa rewheel or
spare wheel brie0y. #
Do not deacti vate ESP ®
. #
Have the emer gency spa rewheel or
spare wheel of a di.erent size replaced
at the nearest quali/ed specialist work- shop. The new wheel must ha
vethe cor-
re ct dimensions. %
The emer gency spa rewheel is secured in the
emer gency spa rewheel bag in the load com-
partment.
Obser vethefo llowing no tes on /tting an emer-
ge ncy spa rewheel:
R The maximum permissible speed with an
emer gency spa rewheel /tted is 80 km/h.
R Do not /t the emer gency spa rewheel with
snow chains.
R Replace the emer gency spa rewheel aTer six
ye ars at the latest, rega rdless of wear.
R Use the wheel bolts that are included with the
emer gency spa rewheel.
R Check the tyre pressure of the emer gency
spa rewheel /tted. Cor rect the pressure as
necessar y.
% The speci/ed tyre pressure is stated on the
label of the emer gency spa rewheel. 346
346
Wheels and tyres

%
V
V ehicles wit
ehicles wit h a tyr
h a tyre pr
e pressur
essur e monit
e monit or
oring sy
ing sy s-
s-
t
t em:

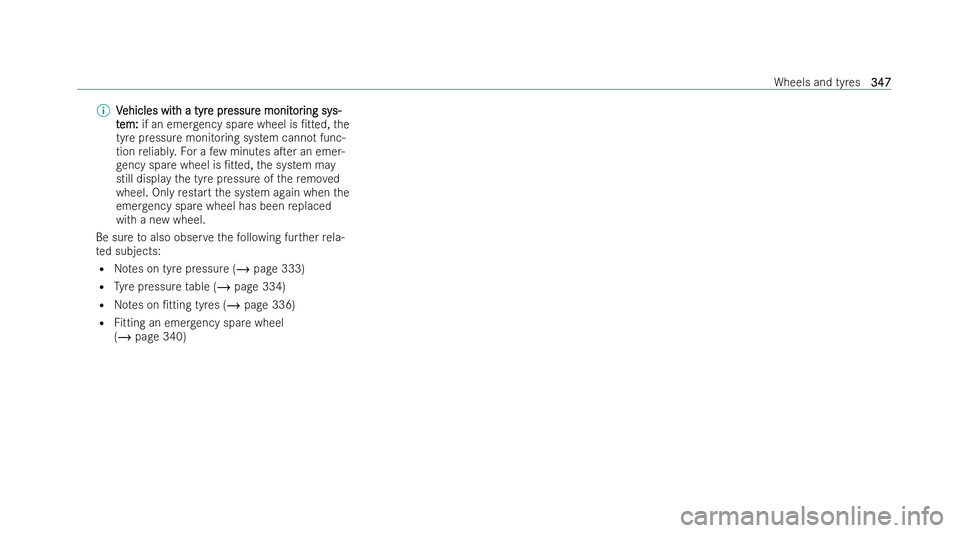

em: if an emer gency spa rewheel is /tted, the
tyre pressure monitoring system cannot func-
tion reliabl y.Fo r a few minutes aTer an emer-
ge ncy spa rewheel is /tted, the system may
still display the tyre pressure of there mo ved
wheel. Only restart the system again when the
emer gency spa rewheel has been replaced
with a new wheel.
Be sure toalso obser vethefo llowing fur ther rela-
te d subjects:
R Notes on tyre pressure (/ page 333)
R Tyre pressure table (/ page 334)
R Notes on /tting tyres (/ page 336)
R Fitting an emer gency spa rewheel
(/ page 340) Wheels and tyres
347
347
