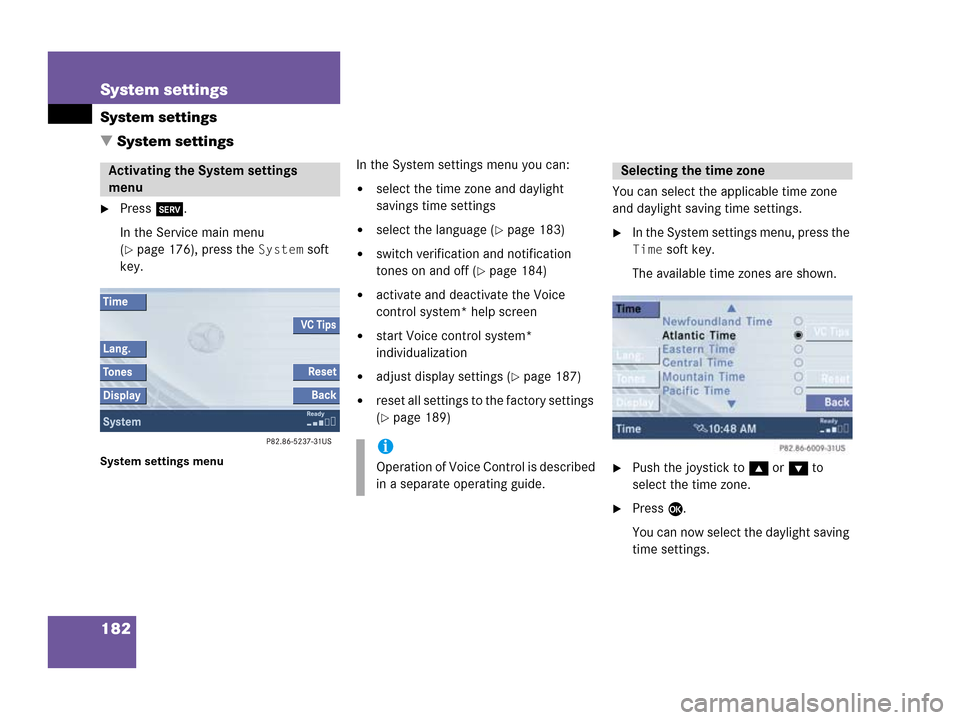

182 System settings
System settings

System settings
Press C.
In the Service main menu
(
page 176), press the System soft
key.
System settings menu
In the System settings menu you can:
select the time zone and daylight
savings time settings
select the language (page 183)
switch verification and notification
tones on and off (
page 184)
activate and deactivate the Voice
control system* help screen
start Voice control system*
individualization
adjust display settings (page 187)
reset all settings to the factory settings
(
page 189)You can select the applicable time zone
and daylight saving time settings.
In the System settings menu, press the
Time soft key.
The available time zones are shown.
Push the joystick to g or G to
select the time zone.
Press E.
You can now select the daylight saving
time settings.
Activating the System settings
menu
i
Operation of Voice Control is described
in a separate operating guide.
Selecting the time zone

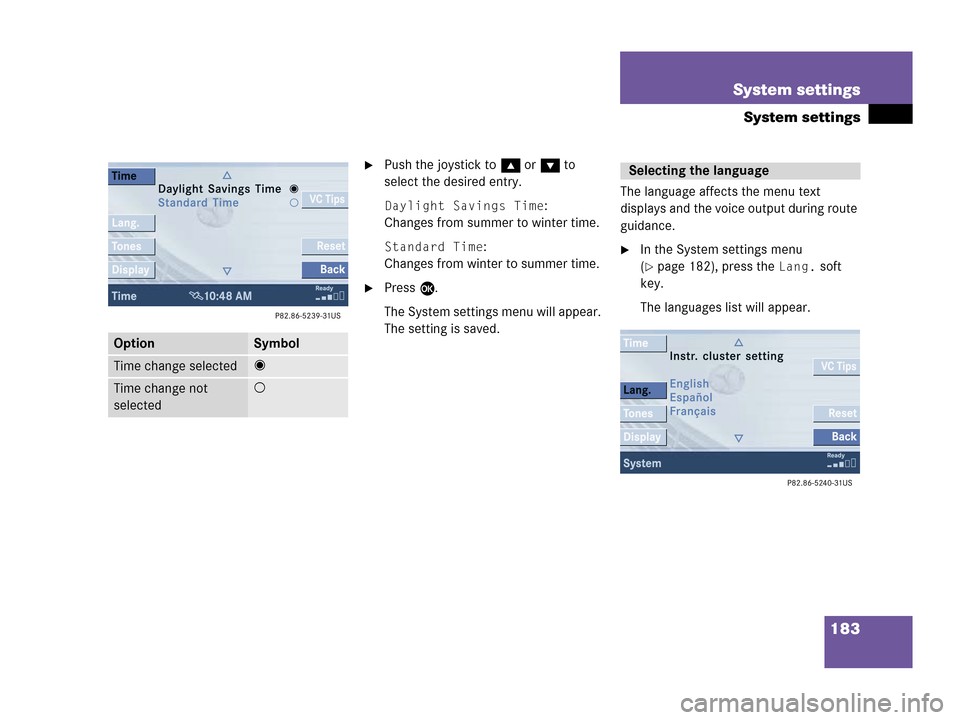

183 System settings
System settings
Push the joystick to g or G to
select the desired entry.
Daylight Savings Time:
Changes from summer to winter time.
Standard Time:
Changes from winter to summer time.
Press E.
The System settings menu will appear.
The setting is saved.The language affects the menu text
displays and the voice output during route
guidance.
In the System settings menu
(
page 182), press the Lang. soft
key.
The languages list will appear.
OptionSymbol
Time change selected_
Time change not
selected-
Selecting the language

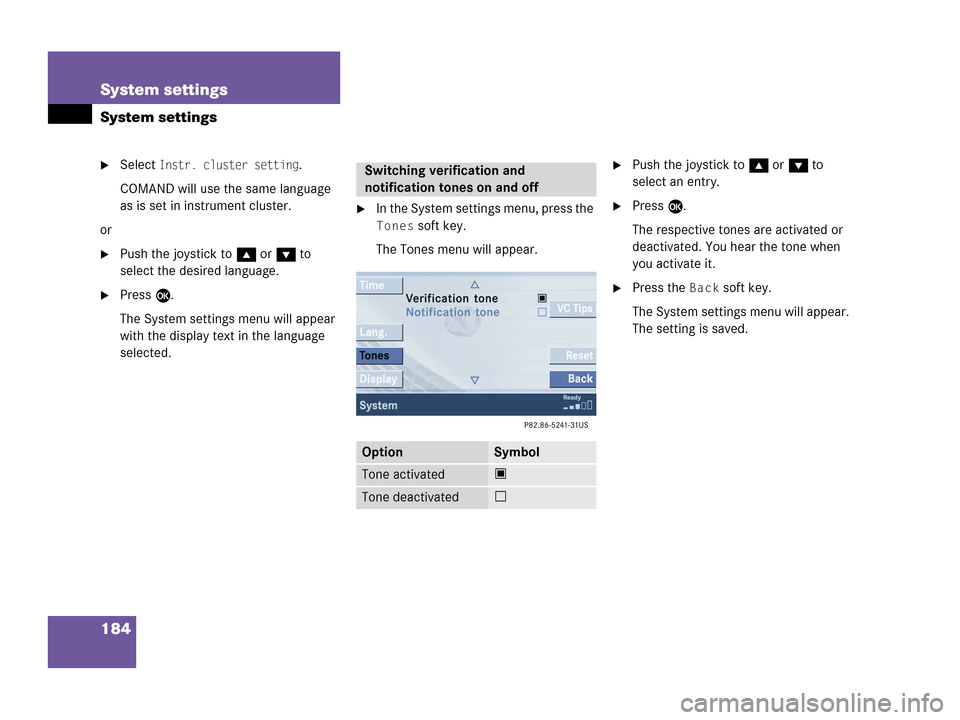

184 System settings
System settings
Select Instr. cluster setting.
COMAND will use the same language
as is set in instrument cluster.
or
Push the joystick to g or G to
select the desired language.
Press E.
The System settings menu will appear
with the display text in the language
selected.
In the System settings menu, press the
Tones soft key.
The Tones menu will appear.
Push the joystick to g or G to
select an entry.
Press E.
The respective tones are activated or
deactivated. You hear the tone when
you activate it.
Press the Back soft key.
The System settings menu will appear.
The setting is saved.
Switching verification and
notification tones on and off
OptionSymbol
Tone activatedQ
Tone deactivatedq

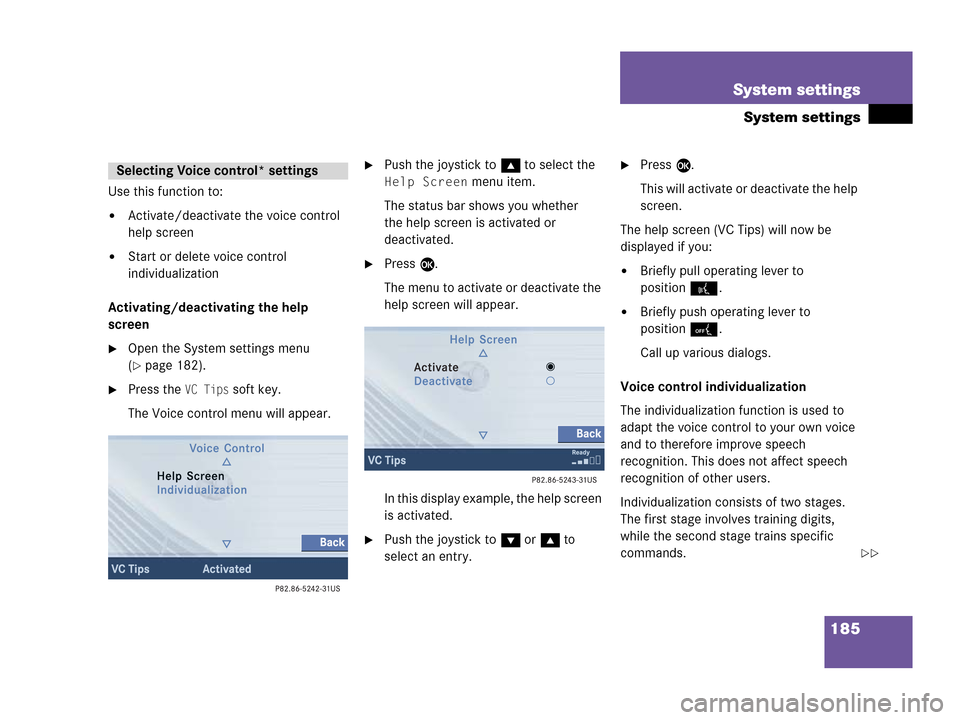

185 System settings
System settings
Use this function to:
Activate/deactivate the voice control
help screen
Start or delete voice control
individualization
Activating/deactivating the help
screen
Open the System settings menu
(
page 182).
Press the VC Tips soft key.
The Voice control menu will appear.
Push the joystick to g to select the
Help Screen menu item.
The status bar shows you whether
the help screen is activated or
deactivated.
Press E.
The menu to activate or deactivate the
help screen will appear.
In this display example, the help screen
is activated.
Push the joystick to G or g to
select an entry.
Press E.
This will activate or deactivate the help
screen.
The help screen (VC Tips) will now be
displayed if you:
Briefly pull operating lever to
position !.
Briefly push operating lever to
position 0.
Call up various dialogs.
Voice control individualization
The individualization function is used to
adapt the voice control to your own voice
and to therefore improve speech
recognition. This does not affect speech
recognition of other users.
Individualization consists of two stages.
The first stage involves training digits,
while the second stage trains specific
commands.
Selecting Voice control* settings

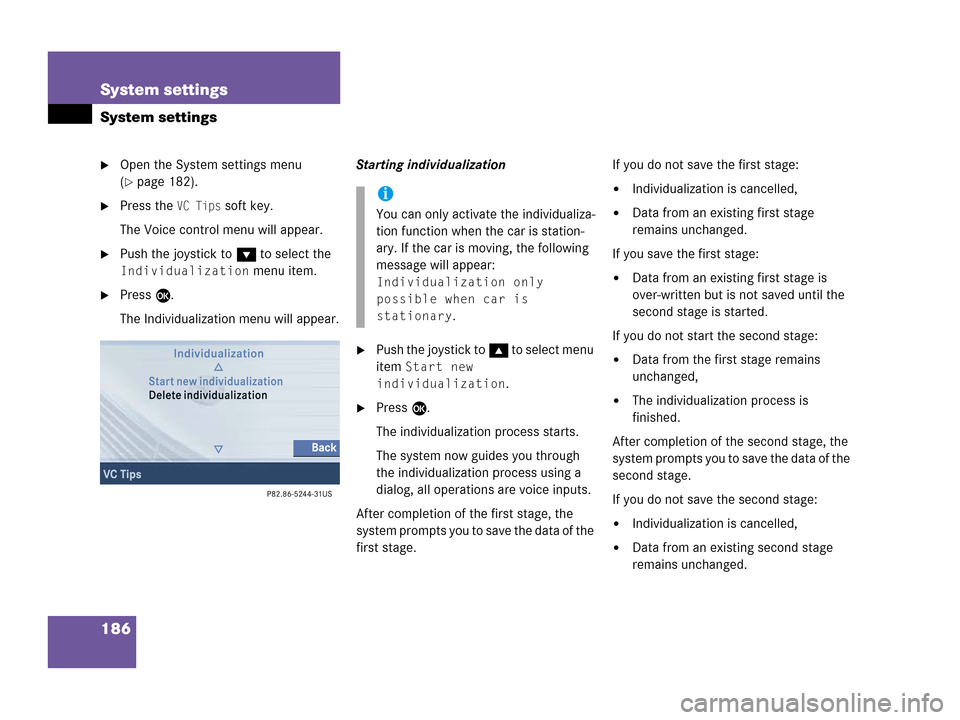

186 System settings
System settings
Open the System settings menu
(
page 182).
Press the VC Tips soft key.
The Voice control menu will appear.
Push the joystick to G to select the
Individualization menu item.
Press E.
The Individualization menu will appear.Starting individualization
Push the joystick to g t o s e l e c t m e n u
item
Start new
individualization
.
Press E.
The individualization process starts.
The system now guides you through
the individualization process using a
dialog, all operations are voice inputs.
After completion of the first stage, the
system prompts you to save the data of the
first stage.If you do not save the first stage:
Individualization is cancelled,
Data from an existing first stage
remains unchanged.
If you save the first stage:
Data from an existing first stage is
over-written but is not saved until the
second stage is started.
If you do not start the second stage:
Data from the first stage remains
unchanged,
The individualization process is
finished.
After completion of the second stage, the
system prompts you to save the data of the
second stage.
If you do not save the second stage:
Individualization is cancelled,
Data from an existing second stage
remains unchanged.
i
You can only activate the individualiza-
tion function when the car is station-
ary. If the car is moving, the following
message will appear:
Individualization only
possible when car is
stationary
.

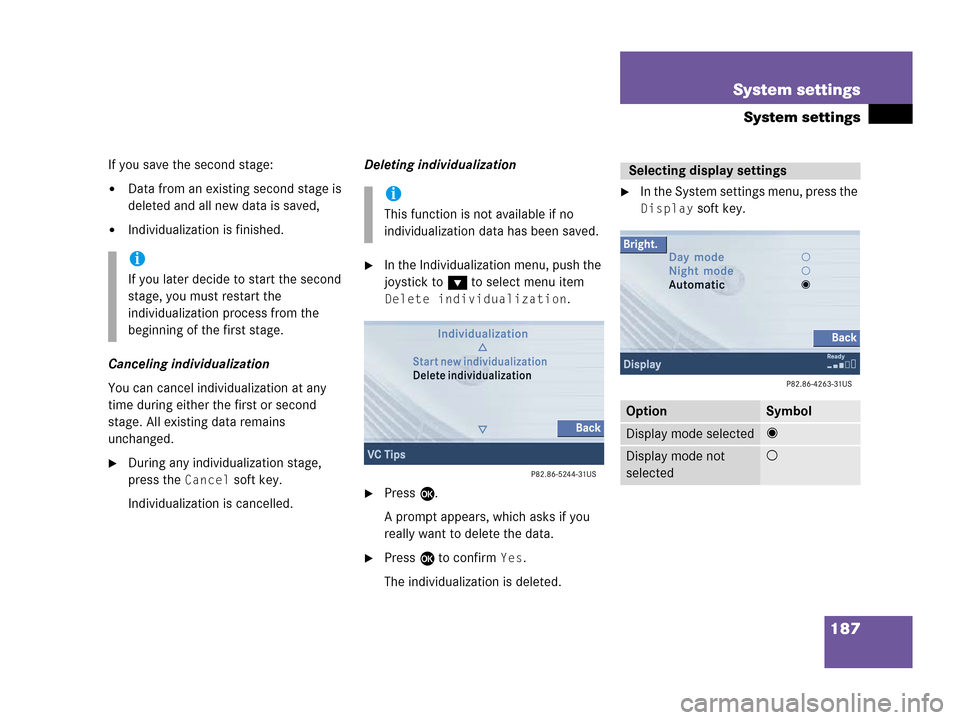

187 System settings
System settings
If you save the second stage:
Data from an existing second stage is
deleted and all new data is saved,
Individualization is finished.
Canceling individualization
You can cancel individualization at any
time during either the first or second
stage. All existing data remains
unchanged.
During any individualization stage,
press the
Cancel soft key.
Individualization is cancelled.Deleting individualization
In the Individualization menu, push the
joystick to G to select menu item
Delete individualization.
Press E.
A prompt appears, which asks if you
really want to delete the data.
Press E to confirm Yes.
The individualization is deleted.
In the System settings menu, press the
Display soft key.
i
If you later decide to start the second
stage, you must restart the
individualization process from the
beginning of the first stage.
i
This function is not available if no
individualization data has been saved.
Selecting display settings
OptionSymbol
Display mode selected_
Display mode not
selected-

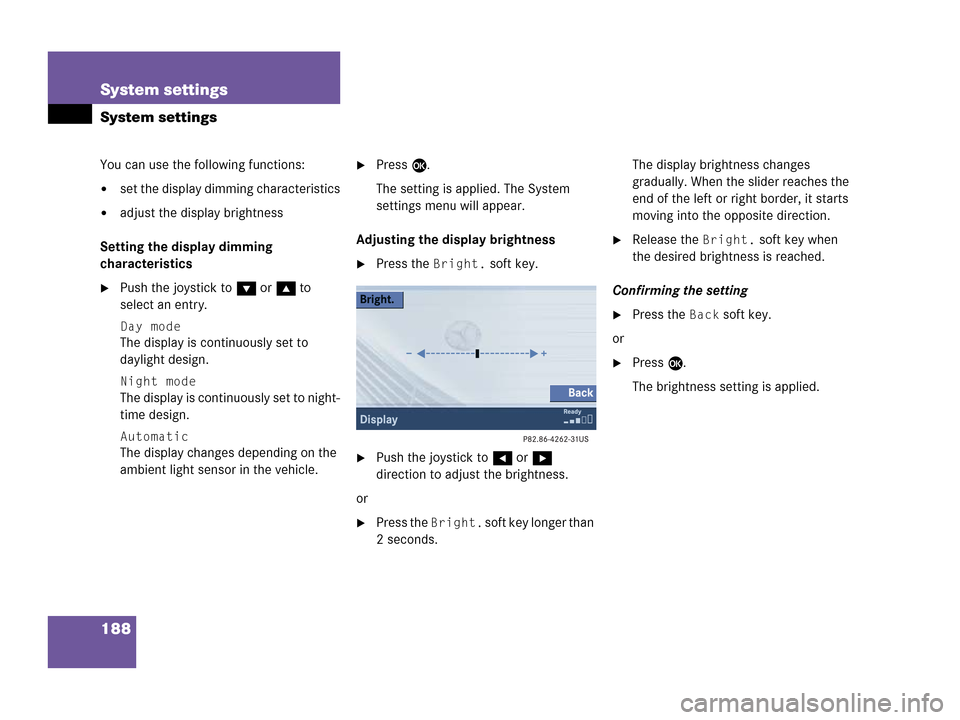

188 System settings
System settings
You can use the following functions:
set the display dimming characteristics
adjust the display brightness
Setting the display dimming
characteristics
Push the joystick to G or g to
select an entry.
Day mode
The display is continuously set to
daylight design.
Night mode
The display is continuously set to night-
time design.
Automatic
The display changes depending on the
ambient light sensor in the vehicle.
Press E.
The setting is applied. The System
settings menu will appear.
Adjusting the display brightness
Press the Bright. soft key.
Push the joystick to H or h
direction to adjust the brightness.
or
Press the Bright. soft key longer than
2 seconds.The display brightness changes
gradually. When the slider reaches the
end of the left or right border, it starts
moving into the opposite direction.
Release the Bright. soft key when
the desired brightness is reached.
Confirming the setting
Press the Back soft key.
or
Press E.
The brightness setting is applied.

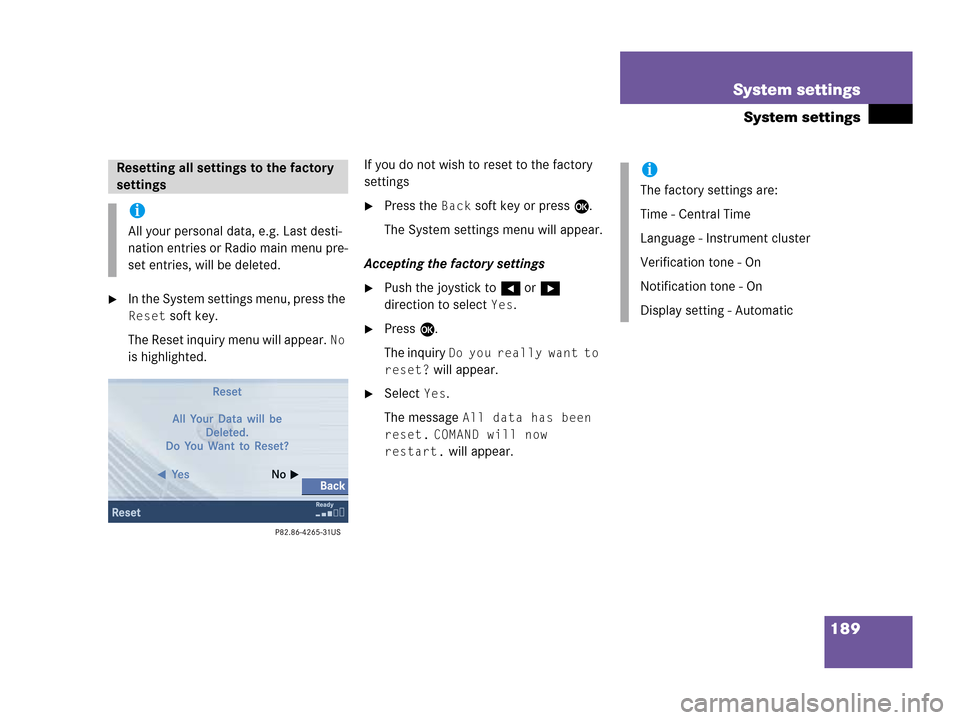

189 System settings
System settings
In the System settings menu, press the
Reset soft key.
The Reset inquiry menu will appear.
No
is highlighted.If you do not wish to reset to the factory
settings
Press the Back soft key or press E.
The System settings menu will appear.
Accepting the factory settings
Push the joystick to H or h
direction to select
Yes.
Press E.
The inquiry
Do you really want to
reset?
will appear.
Select Yes.
The message
All data has been
reset.
COMAND will now
restart.
will appear.
Resetting all settings to the factory
settings
i
All your personal data, e.g. Last desti-
nation entries or Radio main menu pre-
set entries, will be deleted.
i
The factory settings are:
Time - Central Time
Language - Instrument cluster
Verification tone - On
Notification tone - On
Display setting - Automatic

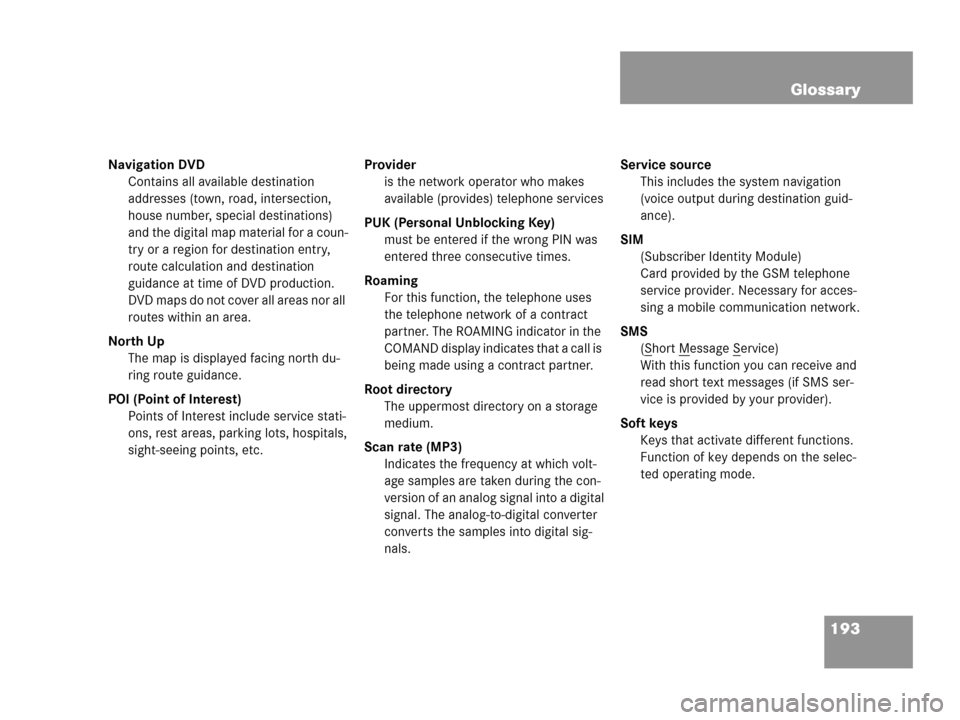

193 Glossary
Navigation DVD
Contains all available destination
addresses (town, road, intersection,
house number, special destinations)
and the digital map material for a coun-
try or a region for destination entry,
route calculation and destination
guidance at time of DVD production.
DVD maps do not cover all areas nor all
routes within an area.
North Up
The map is displayed facing north du-
ring route guidance.
POI (Point of Interest)
Points of Interest include service stati-
ons, rest areas, parking lots, hospitals,
sight-seeing points, etc.Provider
is the network operator who makes
available (provides) telephone services
PUK (Personal Unblocking Key)
must be entered if the wrong PIN was
entered three consecutive times.
Roaming
For this function, the telephone uses
the telephone network of a contract
partner. The ROAMING indicator in the
COMAND display indicates that a call is
being made using a contract partner.
Root directory
The uppermost directory on a storage
medium.
Scan rate (MP3)
Indicates the frequency at which volt-
age samples are taken during the con-
version of an analog signal into a digital
signal. The analog-to-digital converter
converts the samples into digital sig-
nals.Service source
This includes the system navigation
(voice output during destination guid-
ance).
SIM
(Subscriber Identity Module)
Card provided by the GSM telephone
service provider. Necessary for acces-
sing a mobile communication network.
SMS
(S
hort Message Service)
With this function you can receive and
read short text messages (if SMS ser-
vice is provided by your provider).
Soft keys
Keys that activate different functions.
Function of key depends on the selec-
ted operating mode.

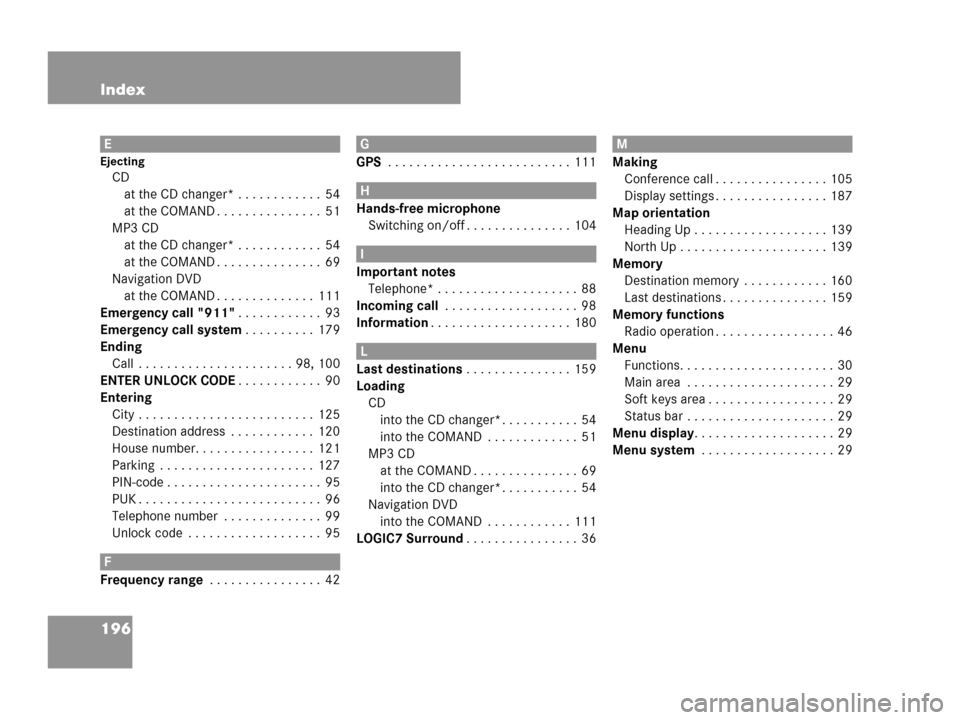

196 Index
E
Ejecting
CD
at the CD changer* . . . . . . . . . . . . 54
at the COMAND . . . . . . . . . . . . . . . 51
MP3 CD
at the CD changer* . . . . . . . . . . . . 54
at the COMAND . . . . . . . . . . . . . . . 69
Navigation DVD
at the COMAND . . . . . . . . . . . . . . 111
Emergency call "911". . . . . . . . . . . . 93
Emergency call system. . . . . . . . . . 179
Ending
Call . . . . . . . . . . . . . . . . . . . . . . 98, 100
ENTER UNLOCK CODE. . . . . . . . . . . . 90
Entering
City . . . . . . . . . . . . . . . . . . . . . . . . . 125
Destination address . . . . . . . . . . . . 120
House number. . . . . . . . . . . . . . . . . 121
Parking . . . . . . . . . . . . . . . . . . . . . . 127
PIN-code . . . . . . . . . . . . . . . . . . . . . . 95
PUK . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Telephone number . . . . . . . . . . . . . . 99
Unlock code . . . . . . . . . . . . . . . . . . . 95
F
Frequency range . . . . . . . . . . . . . . . . 42
G
GPS . . . . . . . . . . . . . . . . . . . . . . . . . . 111
H
Hands-free microphone
Switching on/off . . . . . . . . . . . . . . . 104
I
Important notes
Telephone* . . . . . . . . . . . . . . . . . . . . 88
Incoming call . . . . . . . . . . . . . . . . . . . 98
Information. . . . . . . . . . . . . . . . . . . . 180
L
Last destinations . . . . . . . . . . . . . . . 159
Loading
CD
into the CD changer* . . . . . . . . . . . 54
into the COMAND . . . . . . . . . . . . . 51
MP3 CD
at the COMAND . . . . . . . . . . . . . . . 69
into the CD changer* . . . . . . . . . . . 54
Navigation DVD
into the COMAND . . . . . . . . . . . . 111
LOGIC7 Surround. . . . . . . . . . . . . . . . 36
M
Making
Conference call . . . . . . . . . . . . . . . . 105
Display settings . . . . . . . . . . . . . . . . 187
Map orientation
Heading Up . . . . . . . . . . . . . . . . . . . 139
North Up . . . . . . . . . . . . . . . . . . . . . 139
Memory
Destination memory . . . . . . . . . . . . 160
Last destinations . . . . . . . . . . . . . . . 159
Memory functions
Radio operation . . . . . . . . . . . . . . . . . 46
Menu
Functions. . . . . . . . . . . . . . . . . . . . . . 30
Main area . . . . . . . . . . . . . . . . . . . . . 29
Soft keys area . . . . . . . . . . . . . . . . . . 29
Status bar . . . . . . . . . . . . . . . . . . . . . 29
Menu display. . . . . . . . . . . . . . . . . . . . 29
Menu system . . . . . . . . . . . . . . . . . . . 29
