101 Telephone*
Telephone operation
Making a conference call
TDMA, CDMA
When a first call is active a second call can
be placed to make a conference call.
During an active call:
Use the number keys 1 to 9 to en-
ter the telephone number of the party
that you would like to conference in.
Press k.
Dialing will begin. If the person called
answers the call, the call is active, the
formerly active call is put on hold.
Press k again to make all calls
active and have the conference call.
Ending a conference call
Press K.The phone book contains all entries
of the internal memory of the mobile
phone (TDMA, CDMA and GSM mobile
phone)
of the SIM card (GSM mobile phone)
Displaying the phone book
In the Telephone menu (page 92),
press the
Z soft key.
The phone book will appear.
The first entry found is at the top of the list
and highlighted. Entries marked with symbols have been
imported into the phone book from the in-
ternal memory of the mobile phone.
Usable phone number categories:
Symbol : Cell number
Symbol : Home number
Symbol : Work number
And additional categories:
Symbol : Fax number
Symbol : Pager number
Symbol : Main number
Phone bookPhone book
entryStatus bar shows
A phone numberUnknown
A name for a
phone numberThe phone number
Several numbersSeveral numbers

102 Telephone*
Telephone operation
You can select the following functions:
Changing the phone book display at
the COMAND
Selecting a phone book entry and
dialing the number (
page 102)
Changing the phone book display
Open the phone book (page 101).
Press the 123 soft key.
The display changes to numbers. The
status bar displays the name of the
marked entry.
or
Press the ABC soft key.
The display changes to names. The
status bar displays the number of the
marked entry.
Selecting a phone book entry and dia-
ling the number
Open the phone book (page 101).
The list of phone book entries with
names starting with a certain letter is
displayed.
Changing the initial letters
Push the joystick to H or h one or
several times.
With every push of the button the
display changes to the next possible
letter. At the end of the letter list
follows the category
Others.
Category
Others:
Here, all entries without names or with
names starting with a special character
(e.g. * or #) are put together.
Selecting an entry
Change the initial letter if required.
Push the joystick to G or g to
select a list entry.
Press the Detail soft key to see all
information about the entry.
Begin dialing
Press E.
or
Press k on the COMAND.
or
Presss on the multifunction
steering wheel.
or
Press the Send soft key.
i
If you hold one of the buttons, scrolling
is accelerated.

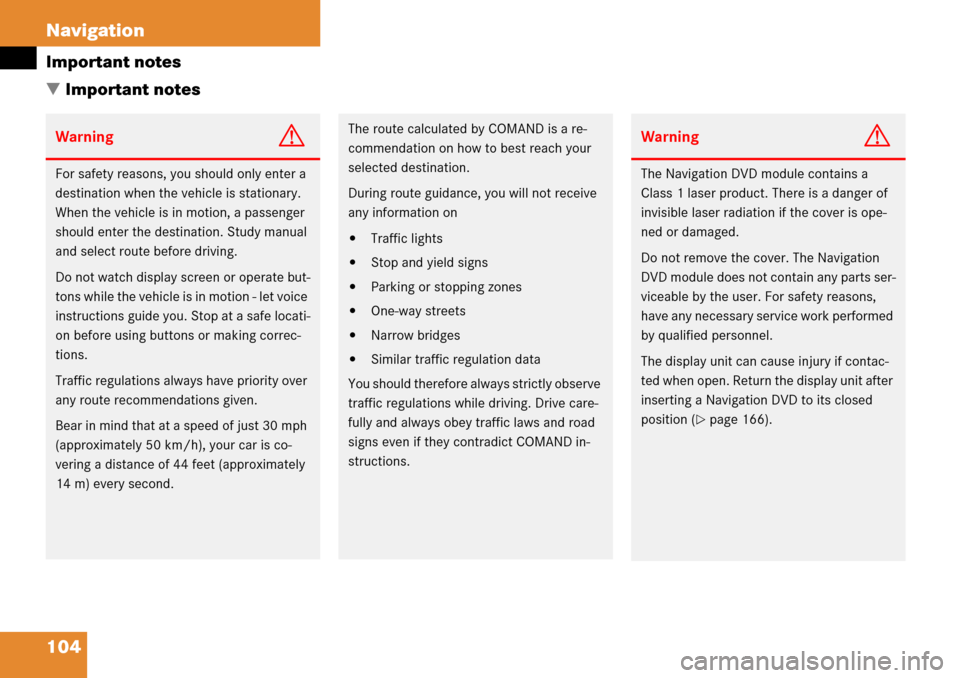

104 Navigation
Important notes

Important notes
WarningG
For safety reasons, you should only enter a
destination when the vehicle is stationary.
When the vehicle is in motion, a passenger
should enter the destination. Study manual
and select route before driving.
Do not watch display screen or operate but-
tons while the vehicle is in motion - let voice
instructions guide you. Stop at a safe locati-
on before using buttons or making correc-
tions.
Traffic regulations always have priority over
any route recommendations given.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your car is co-
vering a distance of 44 feet (approximately
14 m) every second.
The route calculated by COMAND is a re-
commendation on how to best reach your
selected destination.
During route guidance, you will not receive
any information on
Traffic lights
Stop and yield signs
Parking or stopping zones
One-way streets
Narrow bridges
Similar traffic regulation data
You should therefore always strictly observe
traffic regulations while driving. Drive care-
fully and always obey traffic laws and road
signs even if they contradict COMAND in-
structions.
WarningG
The Navigation DVD module contains a
Class 1 laser product. There is a danger of
invisible laser radiation if the cover is ope-
ned or damaged.
Do not remove the cover. The Navigation
DVD module does not contain any parts ser-
viceable by the user. For safety reasons,
have any necessary service work performed
by qualified personnel.
The display unit can cause injury if contac-
ted when open. Return the display unit after
inserting a Navigation DVD to its closed
position (
page 166).

105 Navigation
Important notes
COMAND calculates the route with the
help of data that is stored on the navigati-
on DVD.
Only use Mercedes-Benz navigation DVDs.
Using other navigation DVDs or CDs will
cause malfunctions and/or damage.
Because of changes in local traffic patterns
(e.g. road works) and/or incomplete data,
errors in calculation may occur.
As a result, the recommended route may
deviate from the ideal route. The data
stored on the DVD only reflects local con-
ditions at the time of DVD production. DVD
maps do not cover all areas nor all routes
within an area.
Loading/ejecting a DVD
DVDs are loaded and ejected at the DVD
Navigation slot. The DVD Navigation slot is
located behind the display unit.
Open the display unit to get access to
the DVD Navigation slot as described in
“Starting an update” (
page 167).
Navigation DVD!
GPS (Global Positioning System) sig-
nals received make it possible to deter-
mine the current vehicle position.
Deviations from the actual position
may occur
if the reception of GPS signals is
disturbed e.g. in parking garages
and tunnels
if road conditions are bad
depending on the vehicle’s conditi-
on
i
There are two l buttons. One is on
the display unit. The other is located
left of the DVD NAVIGATION slot
behind the display (
page 166).

109 Navigation
Navigation main menu
Destination memory
You can select destinations from the
Destination Memory (page 155).
Enter destination
Activates the Enter street menu
(
page 112).
Last destinations
You can select last destinations from
the
Last destinations memory
(
page 153).
Points of interest:
Brings you to the
Select point
category
menu (page 157).
POIs are e.g. gas stations, parking
facilities or airports.
Phone number:
You can select a POI by phone number.
Brings you to the
Enter POI phone
number
menu (page 161).
Today’s Plan:
You can select destinations from the
Today’s Plan list one after the other or
sort destinations as Bestway or Round
trip (
page 163).Available soft keys
Home soft key:
You can edit the home address and
start route guidance (
page 125).
Mode soft key:
You can edit the routing mode for the
next route guidance (
page 110).
Compass soft key:
You can display direction of travel,
altitude and steering angle of the
vehicle
(page 127).

111 Navigation
Navigation main menu
Press c.
The full view of the map appears. You
will see the vehicle’s current position.
Press any soft key.
The soft key displays will appear.
Press the Memory soft key.
The system saves the current position
as a destination in the
Last
destinations
memory
(
page 153).
Saving current locationi
Such destinations are marked in
the
Last destinations memory
with
_.
For permanent storage you can save
the destination in the regular
Destination memory (
page 154).

115 Navigation
Destination input
or
Press the List soft key.
The street list will appear. You can now
select a street.
Selecting a street
Select street list
Push the joystick to g or G to
select a street.
Available soft keys:
Press the Details soft key to see all
information about the street entry.
Use the Page V and Page v soft keys
to display the next or previous page.
Press the Back s o f t k e y t o r e t u r n t o t h e
previous menu.
Confirming a street (list)
Press E to confirm your selection.
The Enter house number menu will
appear.
Entering a house number
Enter house number menu
The first line shows the available house
number range.
i
You can enter an intersection instead
of the house number. You cannot enter
both.

117 Navigation
Destination input
The Start route guidance menu
(
page 129) will appear, if the entered
address information (street name and
house number) is unique in the
selected state or province.
or
Th e Ent er cit y menu will a pp ear if more
than 7 cities share the entered address
information (street name and house
number).
Confirming a city
Select city list
Push the joystick to g or G to
select a city.
Available soft keys:
Press the Details soft key to see all
information about the city entry.
Use the Page V and Page v soft keys
to display the next or previous page (if
available).
Press the Back s o f t k e y t o r e t u r n t o t h e
previous menu.
Press E to confirm your selection.
The Start route guidance menu
(
page 129) will appear.
Entering a cross street
You can enter a cross street with the
previously entered street.
In the Enter house number menu
(
page 115), press the Cross st
soft key.
Push the joystick to h, H, g or
G to select the characters. After each
selection, press
E.
Push the joystick to F or f to
select characters diagonally.
or
Press one of the number keys 1 to
9 and 0.
i
The status bar shows the number of
current matches.

118 Navigation
Destination input
Press the Delete soft key if
necessary.
The character last entered is deleted.
Back to the previous menu
Press the Back soft key.
Confirming a cross street (menu)
Press E longer than 2 seconds to
confirm your entry.
or
Select the ( symbol. Push the
joystick to
h, H, g or G to do
so.
Press E.
or
Press the List soft key.
The Select cross street list will appear.
You can now select a street.
Selecting a cross street
Push the joystick to g or G to
select a city.
Available soft keys:
Press the Details soft key to see all
information about the street entry.
Use the Page V and Page v soft keys
to display the next or previous page.
Press the Back soft key to return to the
previous menu.
i
For quicker input, COMAND offers
available characters from the character
set based on your selections and the
names of the streets stored on the
navigation DVD. The character
selected appears magnified.
Greyed out characters are not available
and cannot be selected.

121 Navigation
Destination input
or
Press the List soft key.
The city list will appear. You can now
select a city.
Selecting a city
Push the joystick to g or G to
select a city.Available soft keys:
Press the Details soft key to see all
information about the city entry.
Use the Page V and Page v soft keys
to display the next or previous page.
Press the Back s o f t k e y t o r e t u r n t o t h e
previous menu.
Press E to confirm your selection.
The Enter street menu will appear. You
can now enter a street.
Enter parking
The Start route guidance menu will appear
after entering a destination address.
Here you can select parking nearby.
Start route guidance menu
Press the Parking soft key.
The Parking lot selection map is
displayed.
or
The message
No parking near the
destination
will appear.
