cooling MERCEDES-BENZ G-Class 2013 W463 Owner's Manual
[x] Cancel search | Manufacturer: MERCEDES-BENZ, Model Year: 2013, Model line: G-Class, Model: MERCEDES-BENZ G-Class 2013 W463Pages: 364, PDF Size: 11.52 MB
Page 8 of 364
Cargo compartment cover
Installing/removing .......................267
Notes/how to use ......................... 267
Opening and closing ...................... 267
Overview ........................................ 267
Cargo compartment enlargement
Important safety notes
..................264
Cargo tie down rings .........................267
CD player/CD changer (on-board
computer) .......................................... 216
Center console Overview .......................................... 32
Upper section .................................. 32
Central locking
Automatic locking (on-board
computer) ...................................... 220
Locking/unlocking (SmartKey) ........ 68
Changing bulbs
Important safety notes .................. 108
Overview of bulb types ..................109
Reversing lamps ............................ 113
Side marker lamps .........................112
Turn signals (front) ......................... 111
Changing gears .................................. 148
Checklist After driving off-road ...................... 166
Before driving off-road ................... 165
Child-proof locks
Important safety notes .................... 59
Rear doors ....................................... 59
Children
In the vehicle ................................... 54
Restraint systems ............................ 54
Child seat
Automatic recognition ..................... 44
Automatic recognition/air bag
deactivation, self-test ......................46
LATCH-type (ISOFIX) child seat
anchors ............................................ 57
Special seat belt retractor ............... 56
Top Tether ....................................... 58
Troubleshooting ............................... 47
Chrome parts (cleaning
instructions) ...................................... 298
Cigarette lighter ................................ 270Climate control
Controlling automatically ............... 130
Cooling with air dehumidification ..124
Defrosting the windows ................. 132
Defrosting the windshield .............. 131
Dual-zone automatic climate
control ........................................... 119
Important safety notes .................. 118
Indicator lamp ................................ 129
Maximum cooling .......................... 132
Notes on using automatic climate
control ........................................... 120
Overview of systems ......................118
Problems with "cooling with air
dehumidification" ........................... 129
Problem with the rear window
defroster ........................................ 133
Refrigerant ..................................... 354
Setting the air distribution .............131
Setting the airflow ......................... 131
Setting the air vents ......................134
Setting the temperature ................ 131
Switching air-recirculation mode
on/off ............................................ 134
Switching on/off ........................... 121
Switching residual heat on/off ...... 134
Switching the rear window
defroster on/off ............................ 133
Switching the ZONE function on/
off .................................................. 131
Windshield defroster ......................133
Cockpit
Overview .......................................... 28
see Instrument cluster
COMAND
see separate operating instructions
Combination switch ..........................103
Consumption statistics (on-board
computer) .......................................... 213
Convenience opening feature see Side windows
Coolant (engine)
Checking the level ......................... 291
Display message ............................ 234
Filling capacity ............................... 356
Notes ............................................. 354
Temperature (on-board computer) . 222 6
Index
Page 9 of 364
Temperature gauge ........................ 209
Warning lamp .................................
256
Cooling
see Climate control
Cornering light function
Function/notes ............................. 104
Cruise control
Cruise control lever .......................170
Display message ............................ 242
Driving system ............................... 169
Function/notes ............................. 169
Selecting ........................................ 170
Cup holder
Center console .............................. 268
Important safety notes .................. 268
Rear compartment ......................... 268
Customer Assistance Center (CAC) ...24
Customer Relations Department .......24 D
Data see Technical data
Daytime running lamps
Display message ............................ 234
Switching on/off (on-board
computer) ...................................... 219
Switching on/off (switch) ................ 99
Delayed switch-off
Exterior lighting (on-board
computer) ...................................... 219
Interior lighting .............................. 220
Differential locks ............................... 201
Digital speedometer .........................213
Display (cleaning instructions) ........298
Display messages Calling up (on-board computer) ..... 225
Driving systems ............................. 238
Engine ............................................ 234
General notes ................................ 224
Hiding (on-board computer) ........... 224
Lights ............................................. 231
Safety systems .............................. 226
Service interval display .................. 293
SmartKey ....................................... 247
Tires ............................................... 242
Vehicle ........................................... 245Distance display (on-board
computer) ..........................................
218
Distance recorder see Trip odometer
Distance warning (warning lamp) ....258
DISTRONIC PLUS Activating ....................................... 179
Activation conditions .....................179
Cruise control lever .......................179
Deactivating ................................... 184
Display message ............................ 240
Displays in the multifunction
display ........................................... 182
Driving tips .................................... 184
Function/notes ............................. 177
Important safety notes .................. 177
Setting the specified minimum
distance ......................................... 183
wählen ........................................... 179
Warning lamp ................................. 258
Door control panel
Overview .......................................... 35
Doors
Automatic locking (on-board
computer) ...................................... 220
Automatic locking (switch) ............... 75
Central locking/unlocking
(SmartKey) ....................................... 68
Display message ............................ 246
Emergency locking ........................... 76
Emergency unlocking .......................75
Important safety notes .................... 73
Opening (from inside) ......................74
Overview .......................................... 73
Drinking and driving .........................159
Drive program Automatic ...................................... 150
Display ........................................... 146
Manual ........................................... 151
SETUP (on-board computer) .......... 222
Driving abroad
Symmetrical low beam .................... 98
Driving in mountainous terrain
Approach/departure angle ............ 167
Driving downhill ............................. 169
Gradient-climbing capability
(maximum) ..................................... 168 Index
7
Page 120 of 364

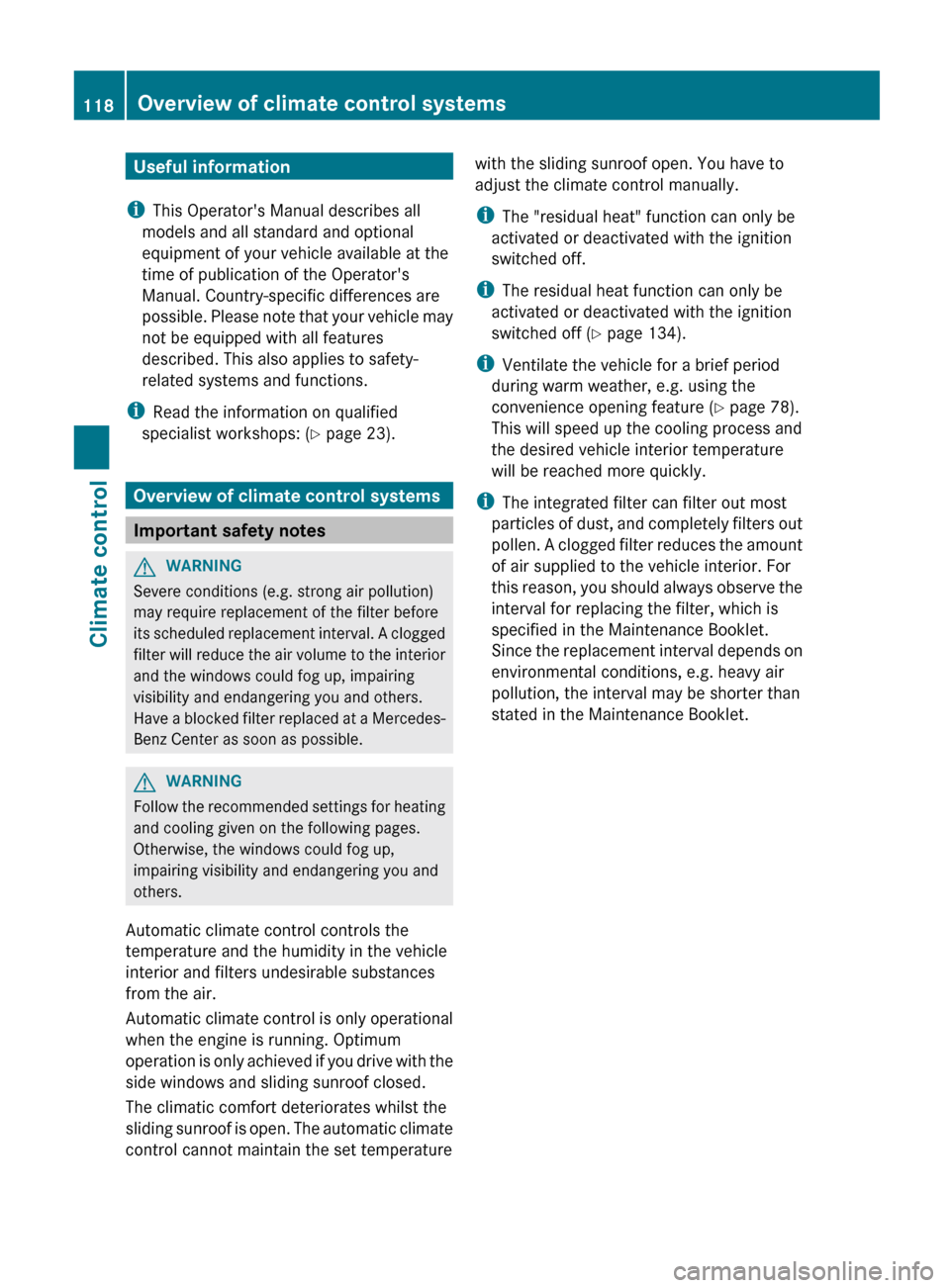

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible.
Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Read the information on qualified
specialist workshops: ( Y page 23).Overview of climate control systems
Important safety notes
G
WARNING
Severe conditions (e.g. strong air pollution)
may require replacement of the filter before
its
scheduled replacement interval. A clogged
filter will reduce the air volume to the interior
and the windows could fog up, impairing
visibility and endangering you and others.
Have a blocked filter replaced at a Mercedes-
Benz Center as soon as possible. G
WARNING
Follow the recommended settings for heating
and cooling given on the following pages.
Otherwise, the windows could fog up,
impairing visibility and endangering you and
others.
Automatic climate control controls the
temperature and the humidity in the vehicle
interior and filters undesirable substances
from the air.
Automatic
climate control is only operational
when the engine is running. Optimum
operation is only achieved if you drive with the
side windows and sliding sunroof closed.
The climatic comfort deteriorates whilst the
sliding sunroof is open. The automatic climate
control cannot maintain the set temperature with the sliding sunroof open. You have to
adjust the climate control manually.
i
The "residual heat" function can only be
activated or deactivated with the ignition
switched off.
i The residual heat function can only be
activated or deactivated with the ignition
switched off (Y page 134).
i Ventilate the vehicle for a brief period
during warm weather, e.g. using the
convenience opening feature ( Y page 78).
This will speed up the cooling process and
the desired vehicle interior temperature
will be reached more quickly.
i The integrated filter can filter out most
particles
of dust, and completely filters out
pollen. A clogged filter reduces the amount
of air supplied to the vehicle interior. For
this reason, you should always observe the
interval for replacing the filter, which is
specified in the Maintenance Booklet.
Since the replacement interval depends on
environmental conditions, e.g. heavy air
pollution, the interval may be shorter than
stated in the Maintenance Booklet. 118
Overview of climate control systems
Climate control
Page 121 of 364

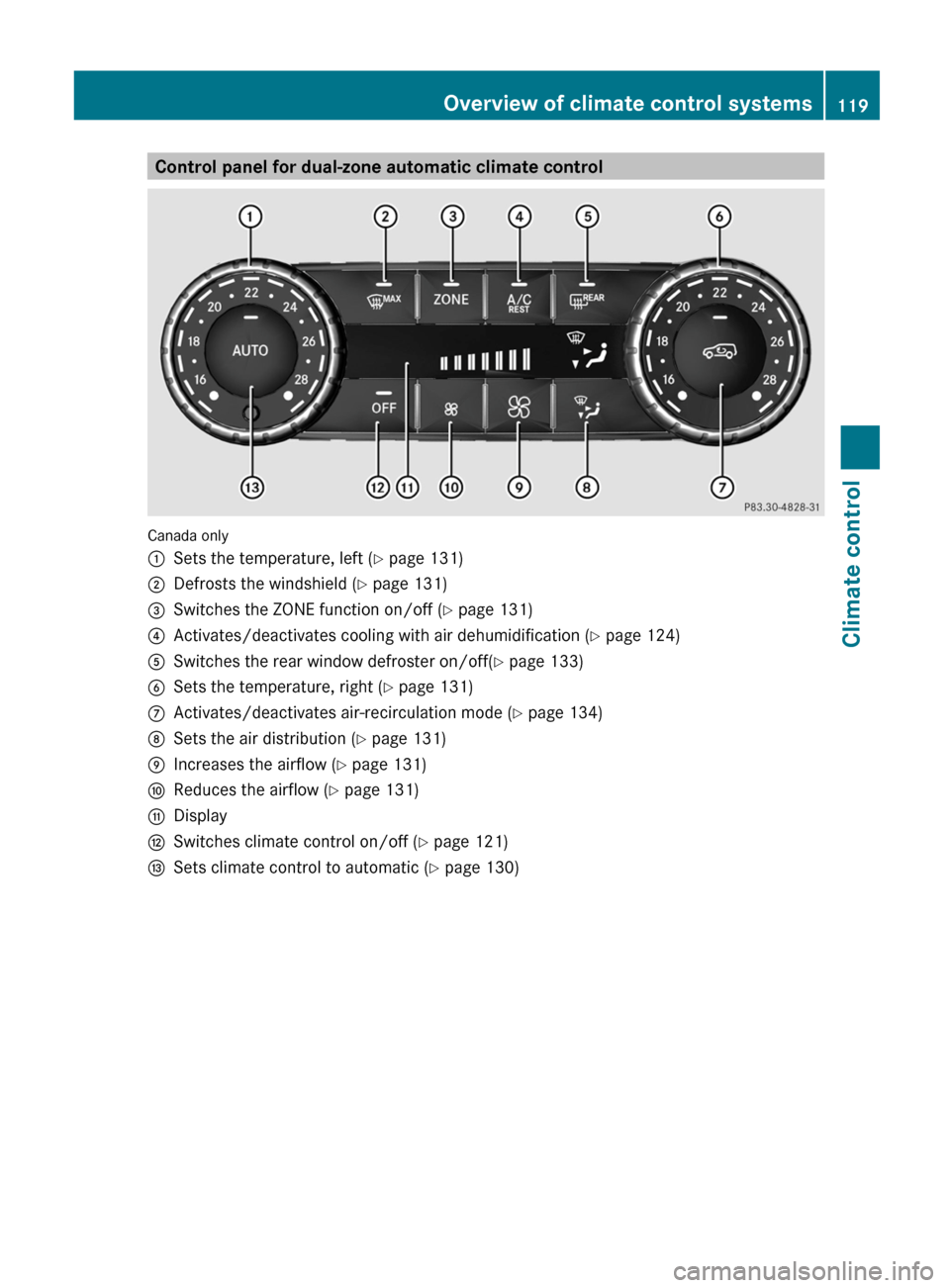

Control panel for dual-zone automatic climate control
Canada only
:
Sets the temperature, left ( Y page 131)
; Defrosts the windshield ( Y page 131)
= Switches the ZONE function on/off ( Y page 131)
? Activates/deactivates cooling with air dehumidification ( Y page 124)
A Switches the rear window defroster on/off( Y page 133)
B Sets the temperature, right ( Y page 131)
C Activates/deactivates air-recirculation mode (Y page 134)
D Sets the air distribution (Y page 131)
E Increases the airflow ( Y page 131)
F Reduces the airflow ( Y page 131)
G Display
H Switches climate control on/off ( Y page 121)
I Sets climate control to automatic (Y page 130) Overview of climate control systems
119Climate control Z
Page 122 of 364
USA only
:
Sets the temperature, left ( Y page 131)
; Defrosts the windshield ( Y page 131)
= Switches maximum cooling MAX COOL on/off ( Y page 132)
? Activates/deactivates cooling with air dehumidification ( Y page 124)
A Switches the rear window defroster on/off( Y page 133)
B Sets the temperature, right ( Y page 131)
C Activates/deactivates air-recirculation mode (Y page 134)
D Sets the air distribution (Y page 131)
E Increases the airflow ( Y page 131)
F Reduces the airflow ( Y page 131)
G Display
H Switches climate control on/off ( Y page 121)
I Sets climate control to automatic (Y page 130) Information about using automatic
climate control
The following contains notes and
recommendations on optimum use of
automatic climate control.

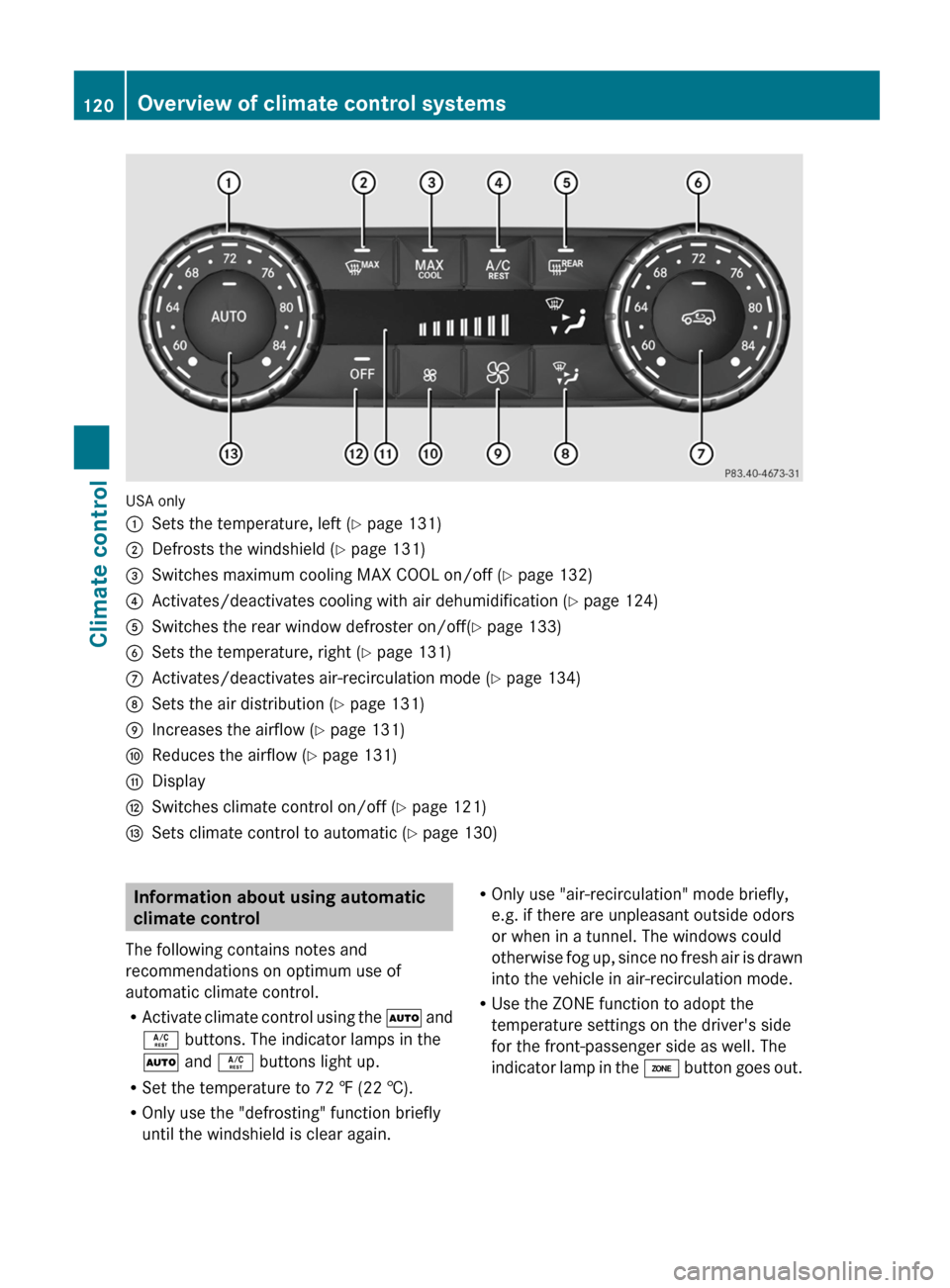

R Activate
climate control using the à and
Á buttons. The indicator lamps in the
à and Á buttons light up.
R Set the temperature to 72 ‡ (22 †).
R Only use the "defrosting" function briefly
until the windshield is clear again. R
Only use "air-recirculation" mode briefly,
e.g. if there are unpleasant outside odors
or when in a tunnel. The windows could
otherwise
fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
R Use the ZONE function to adopt the
temperature settings on the driver's side
for the front-passenger side as well. The
indicator lamp in the á button goes out.120
Overview of climate control systems
Climate control
Page 123 of 364
Operating the climate control systems

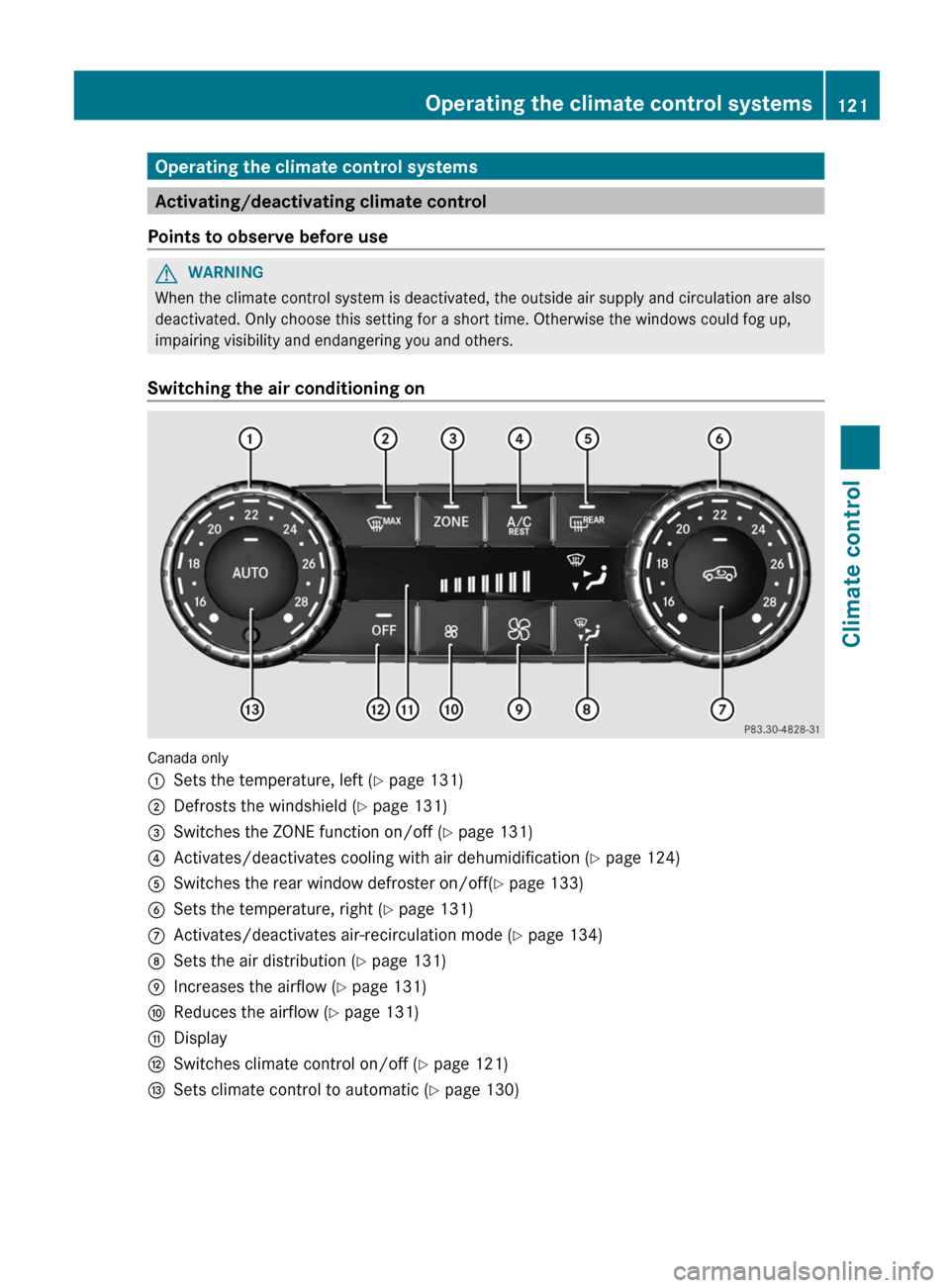

Activating/deactivating climate control
Points to observe before use G
WARNING
When the climate control system is deactivated, the outside air supply and circulation are also
deactivated. Only choose this setting for a short time. Otherwise the windows could fog up,
impairing visibility and endangering you and others.
Switching the air conditioning on Canada only
:
Sets the temperature, left ( Y page 131)
; Defrosts the windshield ( Y page 131)
= Switches the ZONE function on/off ( Y page 131)
? Activates/deactivates cooling with air dehumidification ( Y page 124)
A Switches the rear window defroster on/off( Y page 133)
B Sets the temperature, right ( Y page 131)
C Activates/deactivates air-recirculation mode (Y page 134)
D Sets the air distribution (Y page 131)
E Increases the airflow ( Y page 131)
F Reduces the airflow ( Y page 131)
G Display
H Switches climate control on/off ( Y page 121)
I Sets climate control to automatic (Y page 130) Operating the climate control systems
121Climate control Z
Page 124 of 364
X

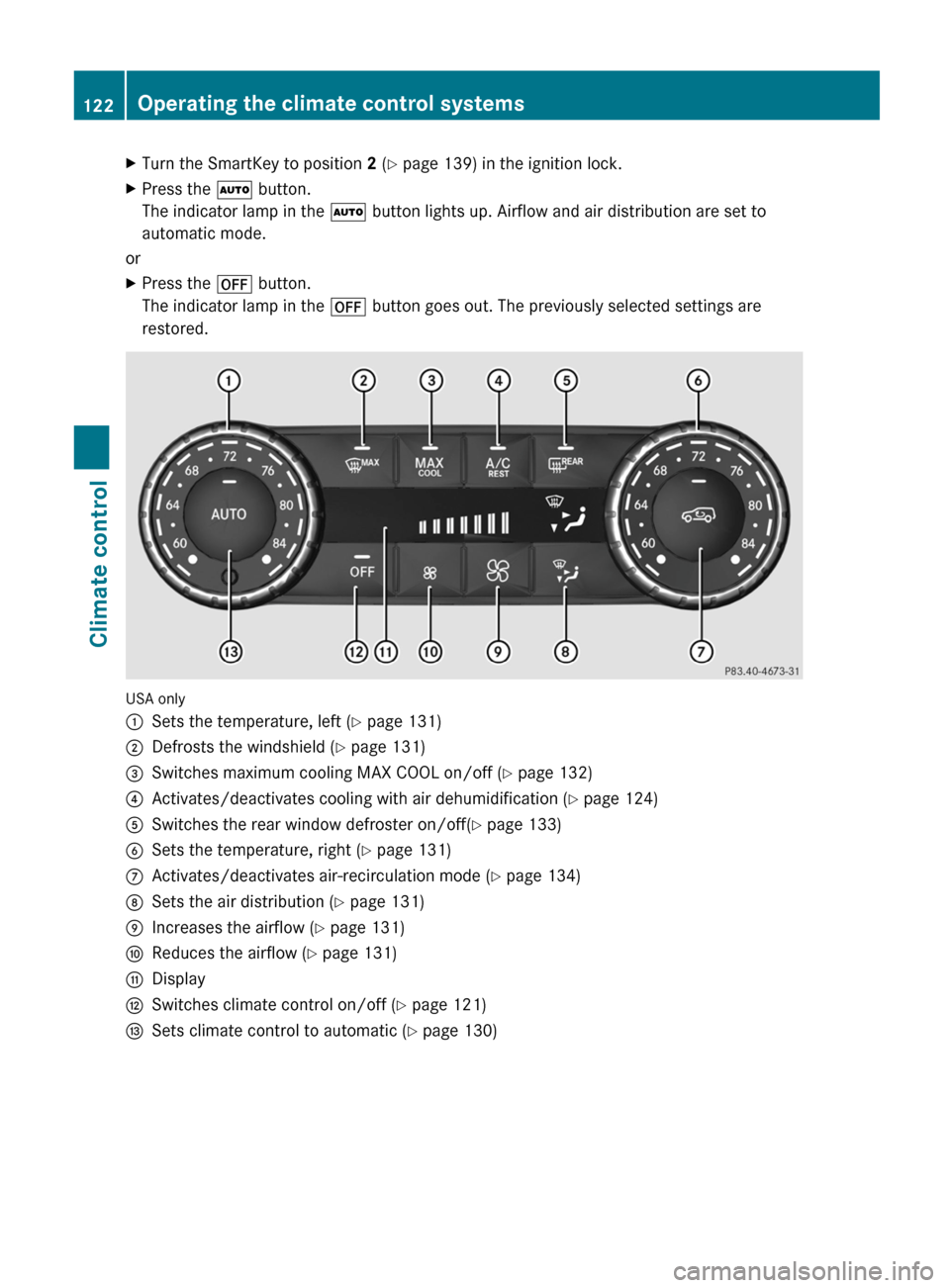

Turn the SmartKey to position 2 (Y page 139) in the ignition lock.
X Press the à button.
The indicator lamp in the à button lights up. Airflow and air distribution are set to
automatic mode.
or
X Press the ^ button.
The indicator lamp in the ^ button goes out. The previously selected settings are
restored. USA only
:
Sets the temperature, left ( Y page 131)
; Defrosts the windshield ( Y page 131)
= Switches maximum cooling MAX COOL on/off ( Y page 132)
? Activates/deactivates cooling with air dehumidification ( Y page 124)
A Switches the rear window defroster on/off( Y page 133)
B Sets the temperature, right ( Y page 131)
C Activates/deactivates air-recirculation mode (Y page 134)
D Sets the air distribution (Y page 131)
E Increases the airflow ( Y page 131)
F Reduces the airflow ( Y page 131)
G Display
H Switches climate control on/off ( Y page 121)
I Sets climate control to automatic (Y page 130)122
Operating the climate control systemsClimate control
Page 125 of 364
X

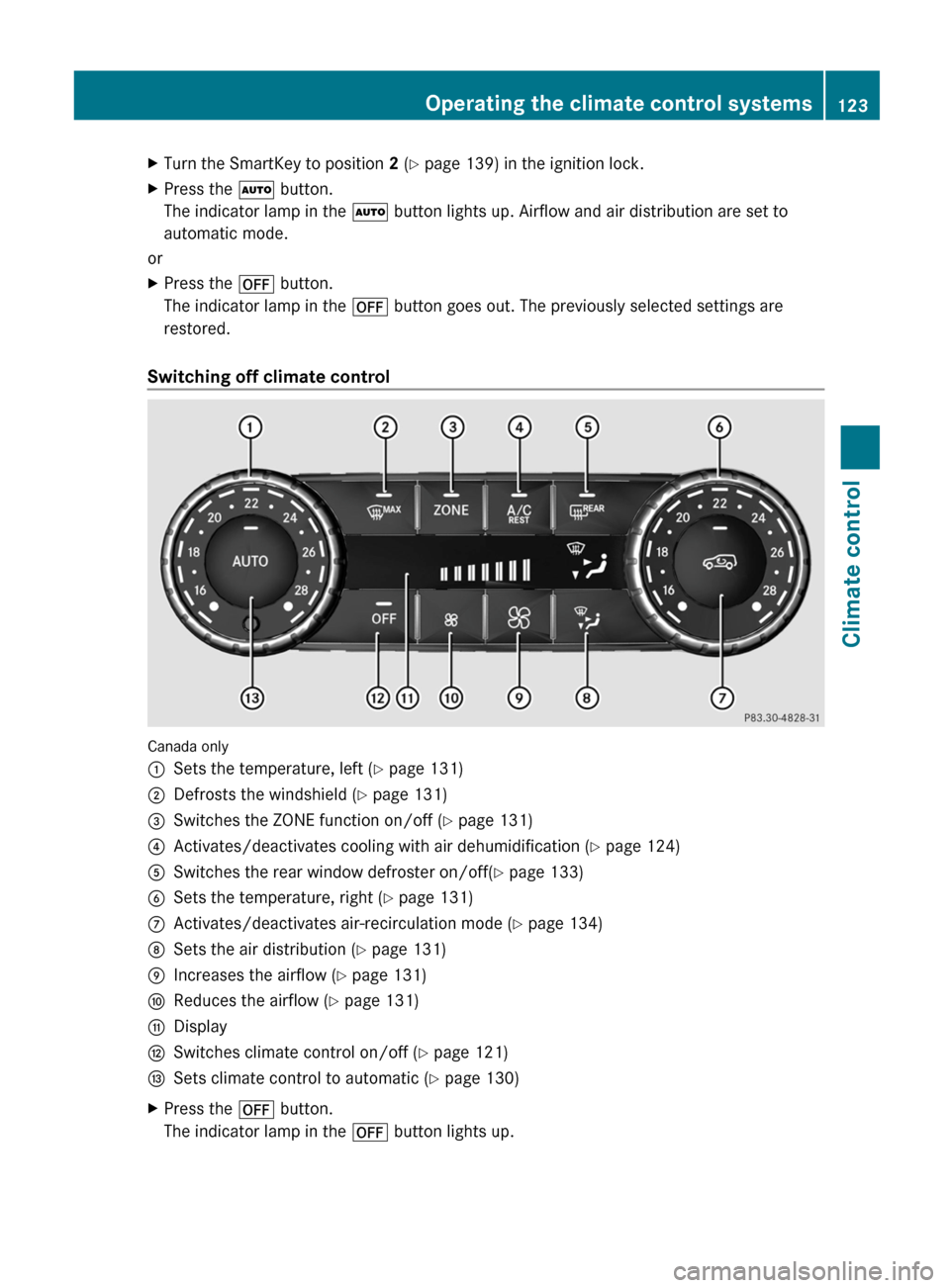

Turn the SmartKey to position 2 (Y page 139) in the ignition lock.
X Press the à button.
The indicator lamp in the à button lights up. Airflow and air distribution are set to
automatic mode.
or
X Press the ^ button.
The indicator lamp in the ^ button goes out. The previously selected settings are
restored.
Switching off climate control Canada only
:
Sets the temperature, left ( Y page 131)
; Defrosts the windshield ( Y page 131)
= Switches the ZONE function on/off ( Y page 131)
? Activates/deactivates cooling with air dehumidification ( Y page 124)
A Switches the rear window defroster on/off( Y page 133)
B Sets the temperature, right ( Y page 131)
C Activates/deactivates air-recirculation mode (Y page 134)
D Sets the air distribution (Y page 131)
E Increases the airflow ( Y page 131)
F Reduces the airflow ( Y page 131)
G Display
H Switches climate control on/off ( Y page 121)
I Sets climate control to automatic (Y page 130)
X Press the ^ button.
The indicator lamp in the ^ button lights up. Operating the climate control systems
123Climate control Z
Page 126 of 364

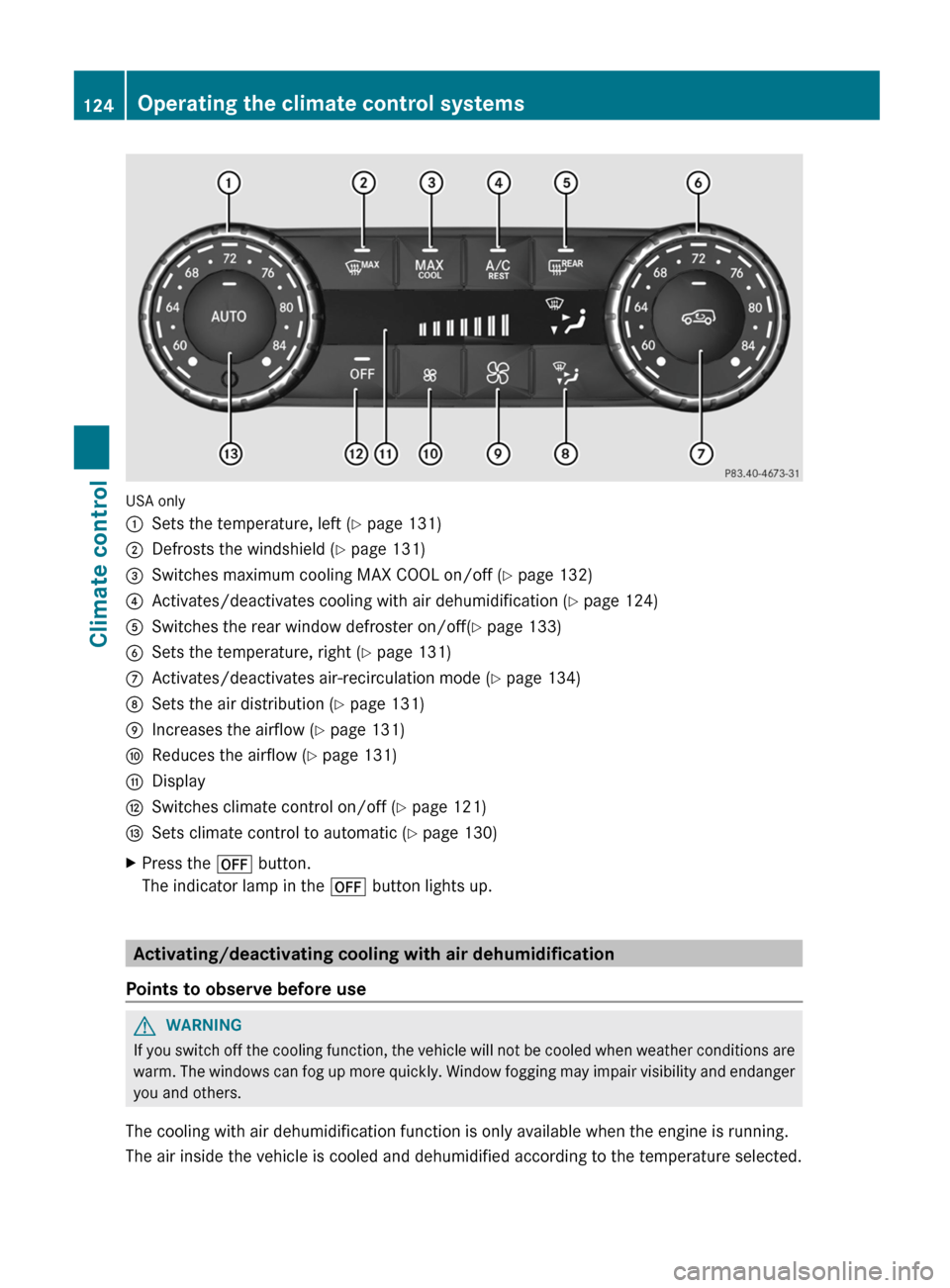

USA only
:
Sets the temperature, left ( Y page 131)
; Defrosts the windshield ( Y page 131)
= Switches maximum cooling MAX COOL on/off ( Y page 132)
? Activates/deactivates cooling with air dehumidification ( Y page 124)
A Switches the rear window defroster on/off( Y page 133)
B Sets the temperature, right ( Y page 131)
C Activates/deactivates air-recirculation mode (Y page 134)
D Sets the air distribution (Y page 131)
E Increases the airflow ( Y page 131)
F Reduces the airflow ( Y page 131)
G Display
H Switches climate control on/off ( Y page 121)
I Sets climate control to automatic (Y page 130)
X Press the ^ button.
The indicator lamp in the ^ button lights up.Activating/deactivating cooling with air dehumidification
Points to observe before use G
WARNING
If you switch off the cooling function, the vehicle will not be cooled when weather conditions are
warm. The windows can fog up more quickly. Window fogging may impair visibility and endanger
you and others.
The cooling with air dehumidification function is only available when the engine is running.
The air inside the vehicle is cooled and dehumidified according to the temperature selected. 124
Operating the climate control systems
Climate control
Page 127 of 364
Condensation may drip from the underside of the vehicle when it is in cooling mode. This is
normal and not a sign that there is a malfunction.
i
The cooling with air dehumidification function uses refrigerant R134a. This coolant does
not contain chlorofluorocarbons, and therefore does not damage the ozone layer.
Activating the cooling with air dehumidification function !
If the cooling with air dehumidification does not switch on, it is possible that the climate
control system has lost coolant.
Have the cooling with air dehumidification checked at a qualified specialist workshop. Canada only
:
Sets the temperature, left ( Y page 131)
; Defrosts the windshield ( Y page 131)
= Switches the ZONE function on/off ( Y page 131)
? Activates/deactivates cooling with air dehumidification ( Y page 124)
A Switches the rear window defroster on/off ( Y page 133)
B Sets the temperature, right ( Y page 131)
C Activates/deactivates air-recirculation mode (Y page 134)
D Sets the air distribution (Y page 131)
E Increases the airflow ( Y page 131)
F Reduces the airflow ( Y page 131)
G Display
H Switches climate control on/off ( Y page 121)
I Sets climate control to automatic (Y page 130)
X Press the Á button.
The indicator lamp in the Á button lights up. Operating the climate control systems
125Climate control Z
