Page 3 of 360
Contents
Introduction.......................................... 9
Product information ................................ 9
Operator’s Manual ............................... 10
Service and warranty information .. 10
Important notice for California
retail buyers and lessees of
Mercedes-Benz automobiles .......... 11
Maintenance .................................. 12
Roadside Assistance ...................... 12
Change of address or ownership.... 13
Operating your vehicle outside the
USA or Canada............................... 13
Where to find it .................................... 15
Symbols ............................................... 16
Operating safety .................................. 17
Proper use of the vehicle ............... 17
Problems with your vehicle .................. 18
Reporting safety defects...................... 19
Reporting safety defects ................ 19
At a glance.......................................... 21
Cockpit ................................................. 22
Instrument cluster ................................ 24
Multifunction steering wheel ................ 26
Center console ..................................... 27
Upper part ...................................... 27
Lower part ...................................... 28
Overhead control panel ........................ 29
Door control panel................................ 30Getting started................................... 31
Unlocking ............................................. 32
Unlocking with the SmartKey.......... 32
Adjusting .............................................. 34
Seats............................................... 34
Steering wheel ................................ 37
Mirrors ............................................ 38Driving .................................................. 40
Fastening the seat belt ................... 40
Starting the engine ......................... 43
Switching on headlamps ................. 46
Turn signals and high beam ............ 46
Windshield wipers ........................... 47
Rear window wiper/washer ............ 48
Problems while driving .................... 49
Parking and locking .............................. 50
Parking brake ................................. 50
Switching off headlamps................. 51
Turning off engine ........................... 51
Safety and Security........................... 53
Occupant safety ................................... 54
Airbags ........................................... 55
Seat belts ....................................... 60
Children in the vehicle .................... 63

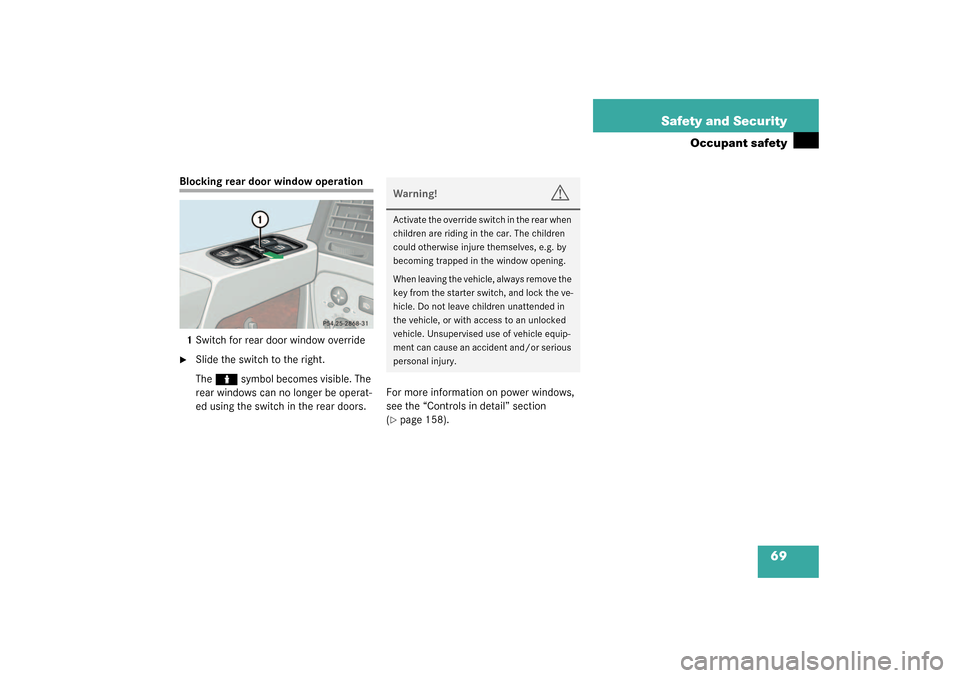

Blocking rear door window
operation ........................................ 69
Panic alarm .......................................... 70
Page 4 of 360
ContentsDriving and safety systems .................. 71
ABS ................................................ 71
BAS ................................................ 73
4-ETS .............................................. 74
EBB................................................. 75
ESP ................................................. 75
Anti-theft systems................................ 79
Immobilizer..................................... 79
Anti-theft alarm .............................. 79
Tow-away alarm ............................. 80Controls in detail............................... 83
Locking and unlocking ......................... 84
Keys ............................................... 84
Opening the doors from the inside . 87
Tailgate........................................... 87
Automatic central locking .............. 89
Locking and unlocking
from the inside ............................... 89
Seats.................................................... 91
Easy-entry/exit feature .................. 91
Removing and installing head
restraints ........................................ 92
Synchronizing head restraints and
the seat adjustment fore and aft .... 93Multicontour seat* ......................... 94
Heated seats .................................. 95
Memory function ................................. 97
Storing positions into memory ....... 98
Recalling positions from memory ... 98
Storing exterior rear view mirror
parking position ............................. 99
Lighting.............................................. 100
Exterior lamp switch..................... 100
Combination switch ..................... 103
Hazard warning flasher ................ 103
Interior lighting............................. 104
Rear interior lamps....................... 105
Cargo compartment lamps........... 106
Instrument cluster ............................. 108
Instrument cluster illumination .... 108
Coolant temperature display ........ 108
Trip odometer .............................. 109
Tachometer .................................. 109
Outside temperature indicator ..... 110
Control system .................................. 111
Multifunction display .................... 111
Multifunction steering wheel ........ 112
Menus .......................................... 114
Standard display menu ................ 116
AUDIO menu ................................ 116NAVI menu ................................... 118
Malfunction memory menu .......... 118
Settings menu .............................. 119
Trip computer menu..................... 130
TEL menu ..................................... 132
Automatic transmission ..................... 135
One-touch gearshifting ................ 136
Gear ranges ................................. 137
Gear selector lever position ......... 138
Accelerator position ..................... 139
Emergency operation
(Limp Home Mode) ...................... 140
Transfer case ..................................... 141
Gear range ................................... 141
Switching transfer case ............... 141
Differential locks ............................... 143
A few words about differentials
and differential locks ................... 144
Switching differential locks on
and off ......................................... 145
Good visibility .................................... 147
Rear view mirror .......................... 147
Headlamp cleaning system .......... 148
Sun visors .................................... 149

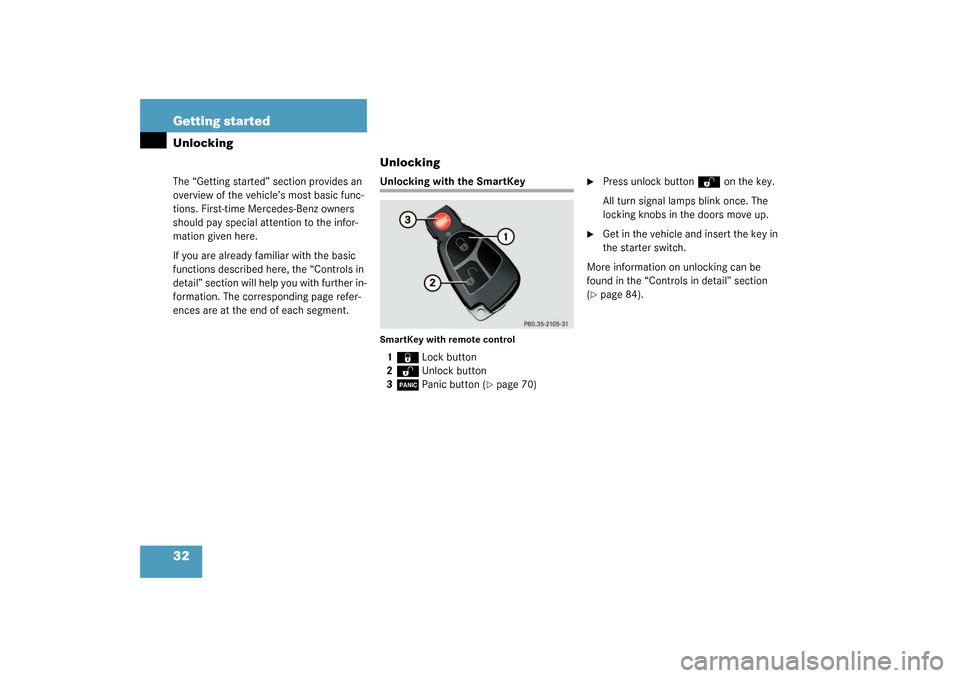

Page 32 of 360
32 Getting startedUnlockingThe “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will help you with further in-
formation. The corresponding page refer-
ences are at the end of each segment.
UnlockingUnlocking with the SmartKeySmartKey with remote control 1‹
Lock button
2
Œ
Unlock button
3
Â
Panic button (
page 70)
Press unlock button
Œ
on the key.
All turn signal lamps blink once. The
locking knobs in the doors move up.
Get in the vehicle and insert the key in
the starter switch.
More information on unlocking can be
found in the “Controls in detail” section
(
page 84).

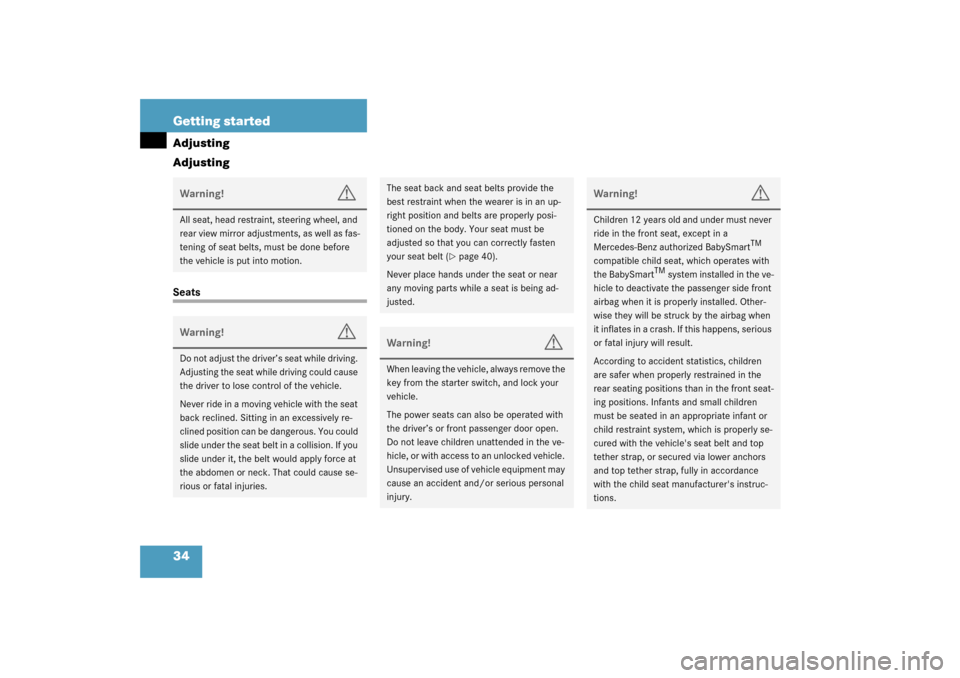

Page 34 of 360
34 Getting startedAdjusting
AdjustingSeatsWarning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back reclined. Sitting in an excessively re-
clined position can be dangerous. You could
slide under the seat belt in a collision. If you
slide under it, the belt would apply force at
the abdomen or neck. That could cause se-
rious or fatal injuries.
The seat back and seat belts provide the
best restraint when the wearer is in an up-
right position and belts are properly posi-
tioned on the body. Your seat must be
adjusted so that you can correctly fasten
your seat belt (
page 40).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch, and lock your
vehicle.
The power seats can also be operated with
the driver’s or front passenger door open.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Unsupervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger side front
airbag when it is properly installed. Other-
wise they will be struck by the airbag when
it inflates in a crash. If this happens, serious
or fatal injury will result.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must be seated in an appropriate infant or
child restraint system, which is properly se-
cured with the vehicle's seat belt and top
tether strap, or secured via lower anchors
and top tether strap, fully in accordance
with the child seat manufacturer's instruc-
tions.

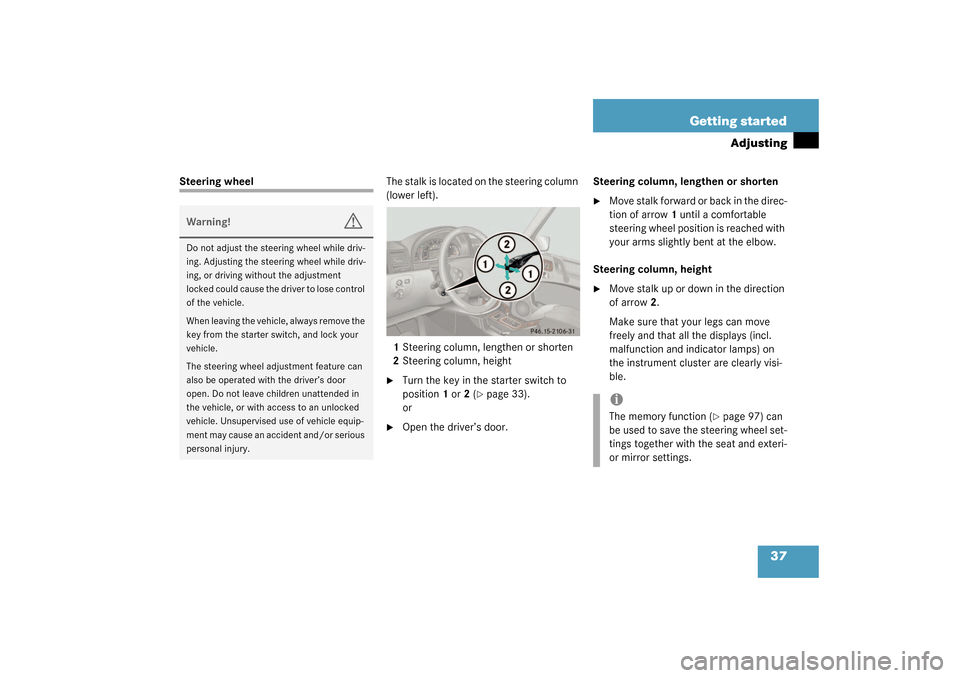

Page 37 of 360
37 Getting started
Adjusting
Steering wheelThe stalk is located on the steering column
(lower left).
1Steering column, lengthen or shorten
2Steering column, height
Turn the key in the starter switch to
position1 or2 (
page 33).
or
Open the driver’s door.Steering column, lengthen or shorten
Move stalk forward or back in the direc-
tion of arrow1 until a comfortable
steering wheel position is reached with
your arms slightly bent at the elbow.
Steering column, height
Move stalk up or down in the direction
of arrow2.
Make sure that your legs can move
freely and that all the displays (incl.
malfunction and indicator lamps) on
the instrument cluster are clearly visi-
ble.
Warning!
G
Do not adjust the steering wheel while driv-
ing. Adjusting the steering wheel while driv-
ing, or driving without the adjustment
locked could cause the driver to lose control
of the vehicle.
When leaving the vehicle, always remove the
key from the starter switch, and lock your
vehicle.
The steering wheel adjustment feature can
also be operated with the driver’s door
open. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.
iThe memory function (
page 97) can
be used to save the steering wheel set-
tings together with the seat and exteri-
or mirror settings.

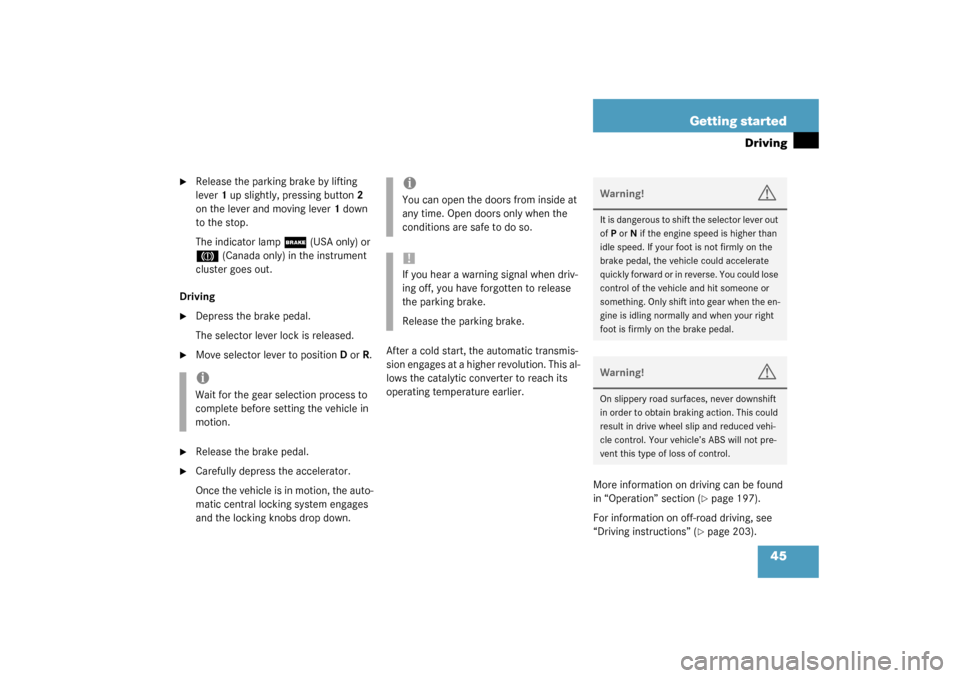

Page 45 of 360
45 Getting started
Driving
Release the parking brake by lifting
lever1 up slightly, pressing button2
on the lever and moving lever1 down
to the stop.
The indicator lamp
;
(USA only) or
3
(Canada only) in the instrument
cluster goes out.
Driving
Depress the brake pedal.
The selector lever lock is released.
Move selector lever to positionD orR.
Release the brake pedal.
Carefully depress the accelerator.
Once the vehicle is in motion, the auto-
matic central locking system engages
and the locking knobs drop down.After a cold start, the automatic transmis-
sion engages at a higher revolution. This al-
lows the catalytic converter to reach its
operating temperature earlier.
More information on driving can be found
in “Operation” section (
page 197).
For information on off-road driving, see
“Driving instructions” (
page 203).
iWait for the gear selection process to
complete before setting the vehicle in
motion.
iYou can open the doors from inside at
any time. Open doors only when the
conditions are safe to do so.!If you hear a warning signal when driv-
ing off, you have forgotten to release
the parking brake.
Release the parking brake.
Warning!
G
It is dangerous to shift the selector lever out
ofP or N if the engine speed is higher than
idle speed. If your foot is not firmly on the
brake pedal, the vehicle could accelerate
quickly forward or in reverse. You could lose
control of the vehicle and hit someone or
something. Only shift into gear when the en-
gine is idling normally and when your right
foot is firmly on the brake pedal.Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.

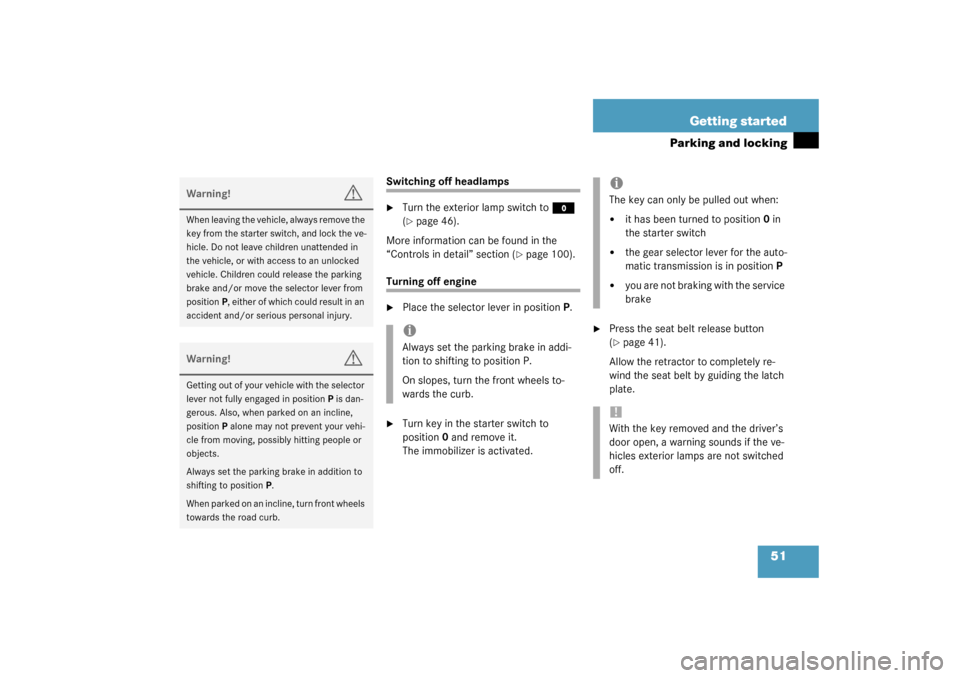

Page 51 of 360
51 Getting started
Parking and locking
Switching off headlamps
Turn the exterior lamp switch to
M
(
page 46).
More information can be found in the
“Controls in detail” section (
page 100).
Turning off engine
Place the selector lever in positionP.
Turn key in the starter switch to
position0 and remove it.
The immobilizer is activated.
Press the seat belt release button
(page 41).
Allow the retractor to completely re-
wind the seat belt by guiding the latch
plate.
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch, and lock the ve-
hicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Children could release the parking
brake and/or move the selector lever from
positionP, either of which could result in an
accident and/or serious personal injury.Warning!
G
Getting out of your vehicle with the selector
lever not fully engaged in positionP is dan-
gerous. Also, when parked on an incline,
positionP alone may not prevent your vehi-
cle from moving, possibly hitting people or
objects.
Always set the parking brake in addition to
shifting to positionP.
When parked on an incline, turn front wheels
towards the road curb.
iAlways set the parking brake in addi-
tion to shifting to position P.
On slopes, turn the front wheels to-
wards the curb.
iThe key can only be pulled out when:
it has been turned to position0 in
the starter switch
the gear selector lever for the auto-
matic transmission is in positionP
you are not braking with the service
brake
!With the key removed and the driver’s
door open, a warning sounds if the ve-
hicles exterior lamps are not switched
off.

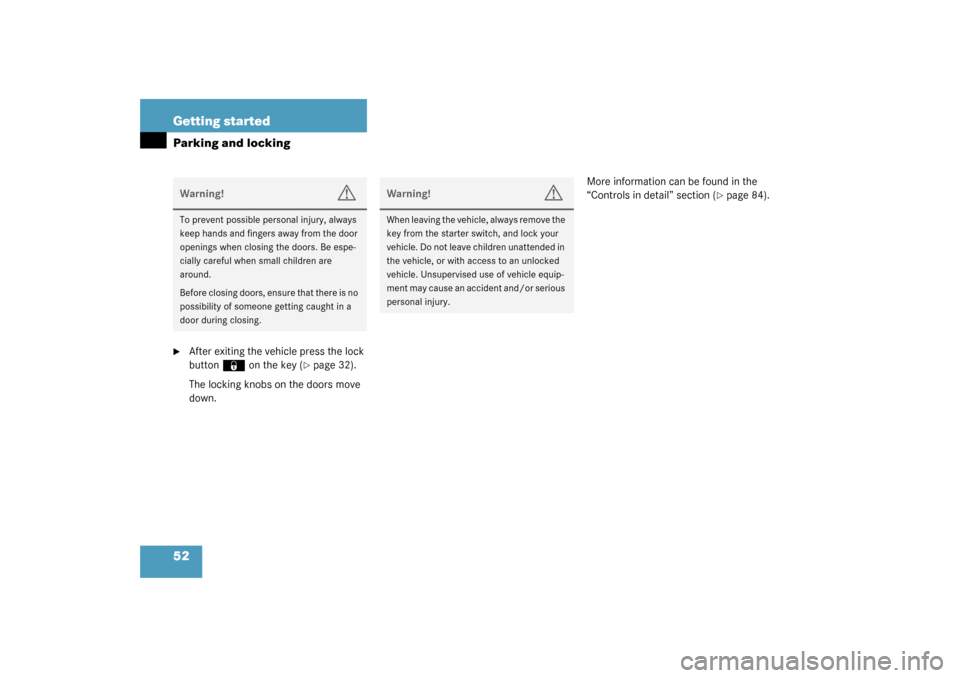

Page 52 of 360
52 Getting startedParking and locking
After exiting the vehicle press the lock
button
‹
on the key (
page 32).
The locking knobs on the doors move
down.More information can be found in the
“Controls in detail” section (
page 84).
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, ensure that there is no
possibility of someone getting caught in a
door during closing.
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch, and lock your
vehicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.
Page 69 of 360
69 Safety and Security
Occupant safety
Blocking rear door window operation
1Switch for rear door window override
Slide the switch to the right.
The
N
symbol becomes visible. The
rear windows can no longer be operat-
ed using the switch in the rear doors.For more information on power windows,
see the “Controls in detail” section
(
page 158).Warning!
G
Activate the override switch in the rear when
children are riding in the car. The children
could otherwise injure themselves, e.g. by
becoming trapped in the window opening.
When leaving the vehicle, always remove the
key from the starter switch, and lock the ve-
hicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment can cause an accident and/or serious
personal injury.
Page 79 of 360
79 Safety and Security
Anti-theft systems
Anti-theft systems
Immobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating
Removing the key from the starter switch
activates the immobilizer.
Deactivating
Inserting the key in the starter switch de-
activate the immobilizer.
Anti-theft alarm
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone:
opens a door
opens the tailgate
opens the hood
The alarm will stay on even if the activating
element (a door, for example) is immedi-
ately closed.
The alarm system will also be triggered
when
someone attempts to raise the vehicle
opening the vehicle with the mechani-
cal keyArming the alarm system
The alarm system is armed after locking
the vehicle with the SmartKey. The turn
signal lamps blink three times to indicate
that the alarm system is activated. A red
lamp in the tow-away alarm switch will
blink after approximately 10 seconds
when the alarm system is completely
armed (
page 27).
iIf the alarm stays on for more than
20 seconds, an emergency call is initi-
ated automatically by the Tele Aid sys-
tem (
page 183) provided Tele Aid
service was subscribed to and properly
activated, and that necessary cellular
service and GPS coverage are avail-
able.
