MERCEDES-BENZ G500 2008 W463 Owner's Manual

230 Controls in detail
Useful features
System self-check
Initially, after switching on the ignition,
malfunctions are detected and indicated
(the indicator lamps in the SOS button, the
Roadside Assistance button• and the
Information button ¡ stay on longer
than 10 seconds or do not come on). The
message
Tele Aid inoperative appears
in the multifunction display. Emergency calls
An emergency call is initiated auto-
matically following an accident in which
the emergency tensioning devices (ETDs)
or air bags deploy.
An emergency call can also be initiated
manually by opening the cover next to the
interior rear view mirror labeled SOS, then
briefly pressing the button located under
the cover. See (
page 231) for
instructions on initiating an emergency call
manually.
Once the emergency call is in progress, the
indicator lamp on the SOS button will
begin to flash. The message
Connecting
call
appears in the multifunction display.
When the connection is established, the
message
Call connected appears in the
multifunction display. All information
relevant to the emergency, such as the
location of the vehicle (determined by the
GPS satellite location system), vehicle
model, identification number and color are
generated.
iWhen a Tele Aid call has been initiated,
the COMAND system audio is muted and the
selected mode (radio, CD etc.) pauses.
The optional cellular phone (if installed) inserted
in cradle switches off. If you must use this
phone, we recommend that you use it only with
the vehicle at a standstill in a safe location.
Remove the phone from the cradle and place the
call. The navigation system (if engaged) will con-
tinue to run. The display in the instrument cluster
is available for use, and spoken commands are
only available by pressing the RPT button on the
COMAND system. A pop-up window will appear
in the COMAND system display to indicate that a
Tele Aid call is in progress. After the Tele Aid call
has ended, the optional cellular phone inserted
in the cradle switches on again. A PIN entry
might be necessary.
Warning!G
If the indicator lamps on the SOS button, on
the Roadside Assistance button, and/or on
the Information button remain illuminated
continuously in red and/or the message
Tele Aid inoperative is displayed in the
multifunction display after the system
self-check, a malfunctio n in the system has
been detected.
If a malfunction is indicated as outlined
above, the system may not operate as
expected. Have the system checked at the
nearest Mercedes-Benz Light Truck Center
as soon as possible.
W463.boo Seite 230 Montag, 19 . November 2007 8:41 08

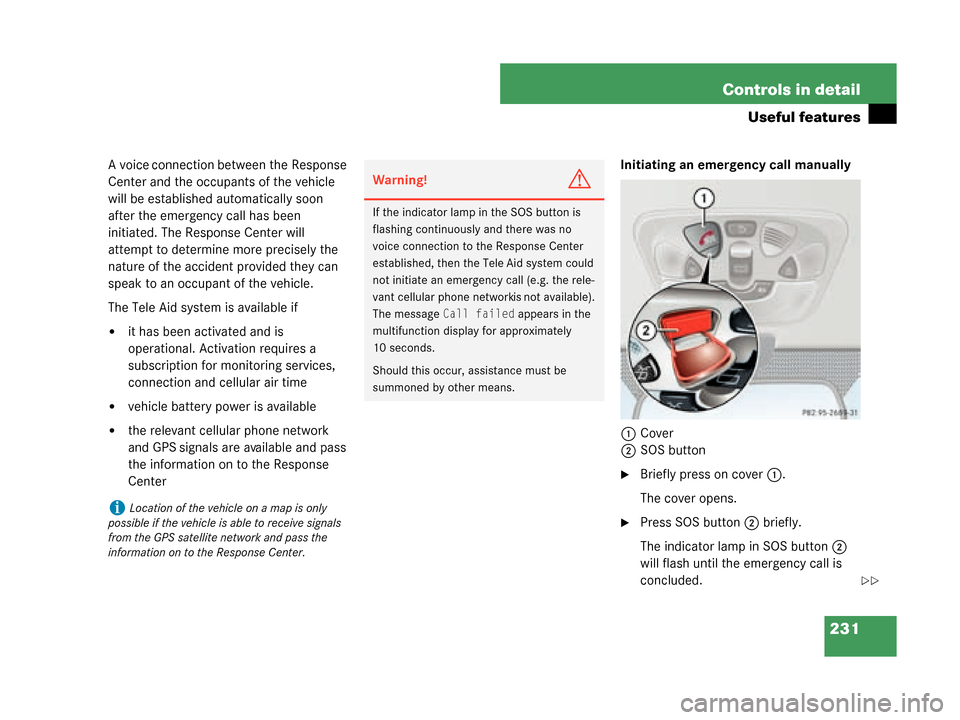

231
Controls in detail
Useful features
A voice connection between the Response
Center and the occupants of the vehicle
will be established automatically soon
after the emergency call has been
initiated. The Response Center will
attempt to determine more precisely the
nature of the accident
provided they can
speak to an occupant of the vehicle.
The Tele Aid system is available if

it has been activated and is
operational. Activation requires a
subscription for monitoring services,
connection and cellular air time

vehicle battery power is available

the relevant cellular phone network
and GPS signals are available and pass
the information on to the Response
Center Initiating an emergency call manually
1 Cover
2 SOS button
Briefly press on cover 1.
The cover opens.
Press SOS button 2 briefly.
The indicator lamp in SOS button 2
will flash until the emergency call is
concluded.iLocation of the vehicle on a map is only
possible if the vehicle is able to receive signals
from the GPS satellite network and pass the
information on to the Response Center.
Warning!G
If the indicator lamp in the SOS button is
flashing continuously and there was no
voice connection to the Response Center
established, then the Tele Aid system could
not initiate an emergency call (e.g. the rele-
vant cellular phone network is not available).
The message
Call failed appears in the
multifunction display for approximately
10 seconds.
Should this occur, assistance must be
summoned by other means.

W463.boo Seite 231 Montag, 19 . November 2007 8:41 08

232 Controls in detail
Useful features
Wait for a voice connection to the
Response Center.
Close cover1 after the emergency
call is concluded. Roadside Assi
stance button •
The Roadside Assistance button • is
located below the center armrest cover.
1 Button to open telephone tray
2 Armrest cover
3 Roadside Assistance button •
Press button1 and lift up armrest
cover 2.
Press and hold button 3 (for longer
than 2 seconds).
A call to a Mercedes-Benz Roadside
Assistance dispatcher will be initiated.
The button will flash while the call is in
progress. The message
Connecting
call
will appear in the multifunction
display.
When the connection is established, the
message
Call connected appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and
location (subject to availability of cellular
and GPS signals).
Warning!G
If you feel at any way in jeopardy when in the
vehicle (e.g. smoke or fire in the vehicle,
vehicle in a dangerous road location), please
do not wait for voice contact after you have
pressed the emergency button. Carefully
leave the vehicle and move to a safe loca-
tion. The Response Center will automatically
contact local emergency officials with the
vehicle’s approximate location if they
receive an automatic SOS signal and cannot
make voice contact with the vehicle
occupants.
iWhile the call is connected you can change
to the navigation menu by pressing the NAV
button on the COMAND system headunit.

W463.boo Seite 232 Montag, 19 . November 2007 8:41 08

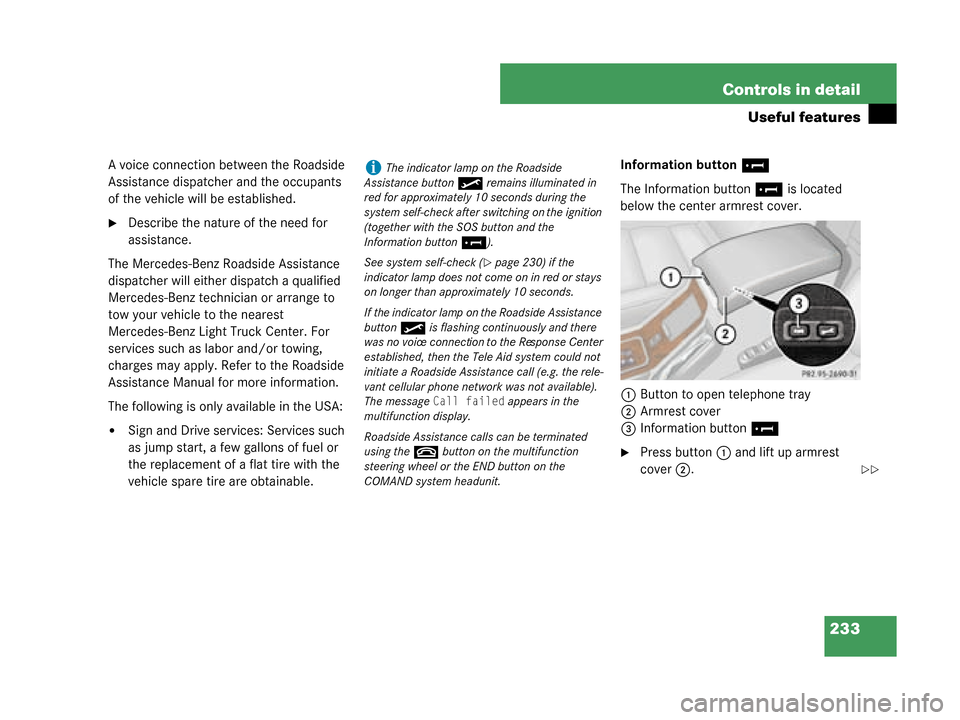

233
Controls in detail
Useful features
A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established.
Describe the nature of the need for
assistance.
The Mercedes-Benz Roadside Assistance
dispatcher will either dispatch a qualified
Mercedes-Benz technician or arrange to
tow your vehicle to the nearest
Mercedes-Benz Light Truck Center. For
services such as labor and/or towing,
charges may apply. Refer to the Roadside
Assistance Manual for more information.
The following is only available in the USA:

Sign and Drive services: Services such
as jump start, a few gallons of fuel or
the replacement of a flat tire with the
vehicle spare tire are obtainable. Information button
¡
The Information button ¡ is located
below the center armrest cover.
1 Button to open telephone tray
2 Armrest cover
3 Information button ¡
Press button1 and lift up armrest
cover 2.
iThe indicator lamp on the Roadside
Assistance button • remains illuminated in
red for approximately 10 seconds during the
system self-check after switching on the ignition
(together with the SOS button and the
Information button ¡).
See system self-check (
page 230) if the
indicator lamp does not come on in red or stays
on longer than approximately 10 seconds.
If the indicator lamp on the Roadside Assistance
button • is flashing continuously and there
was no voice connection to the Response Center
established, then the Tele Aid system could not
initiate a Roadside Assistance call (e.g. the rele-
vant cellular phone network was not available).
The message
Call failed appears in the
multifunction display.
Roadside Assistance calls can be terminated
using the t button on the multifunction
steering wheel or the END button on the
COMAND system headunit.

W463.boo Seite 233 Montag, 19 . November 2007 8:41 08

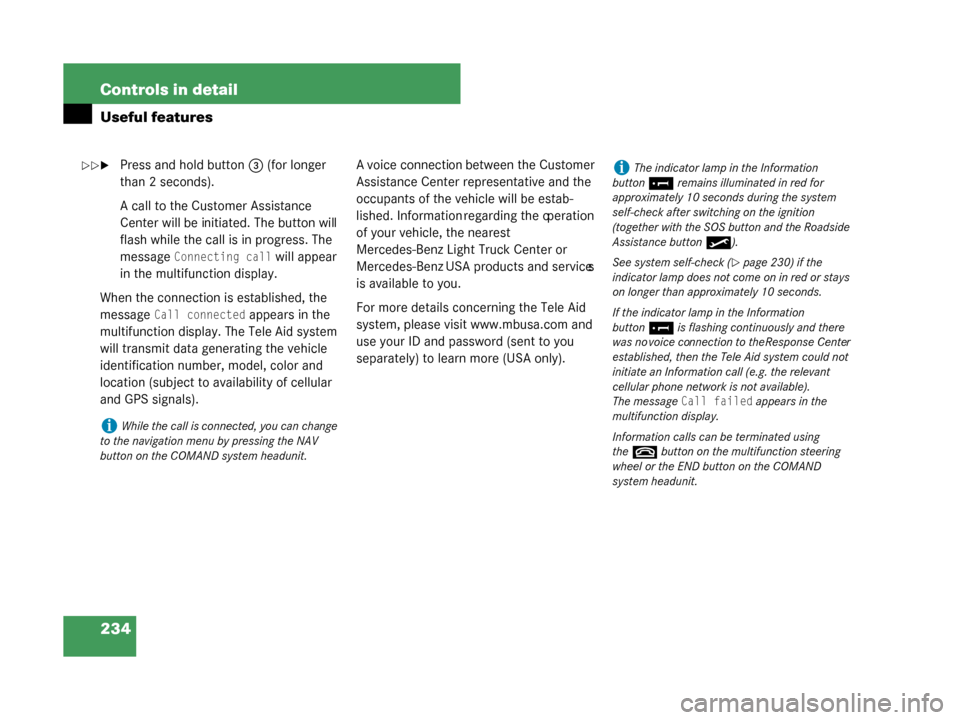

234 Controls in detail
Useful features
Press and hold button3 (for longer
than 2 seconds).
A call to the Customer Assistance
Center will be initiated. The button will
flash while the call is in progress. The
message
Connecting call will appear
in the multifunction display.
When the connection is established, the
message
Call connected appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and
location (subject to availability of cellular
and GPS signals). A voice connection between the Customer
Assistance Center representative and the
occupants of the vehicle will be estab-
lished. Information regarding the operation
of your vehicle, the nearest
Mercedes-Benz Light
Truck Center or
Mercedes-Benz USA products and services
is available to you.
For more details concerning the Tele Aid
system, please visit www.mbusa.com and
use your ID and password (sent to you
separately) to learn more (USA only).
iWhile the call is connected, you can change
to the navigation menu by pressing the NAV
button on the COMAND system headunit.
iThe indicator lamp in the Information
button ¡ remains illuminated in red for
approximately 10 seconds during the system
self-check after switch ing on the ignition
(together with the SOS button and the Roadside
Assistance button •).
See system self-check (
page 230) if the
indicator lamp does not come on in red or stays
on longer than approximately 10 seconds.
If the indicator lamp in the Information
button ¡ is flashing continuously and there
was no voice connection to the Response Center
established, then the Tele Aid system could not
initiate an Information call (e.g. the relevant
cellular phone network is not available).
The message
Call failed appears in the
multifunction display.
Information calls can be terminated using
the t button on the multifunction steering
wheel or the END button on the COMAND
system headunit.

W463.boo Seite 234 Montag, 19 . November 2007 8:41 08

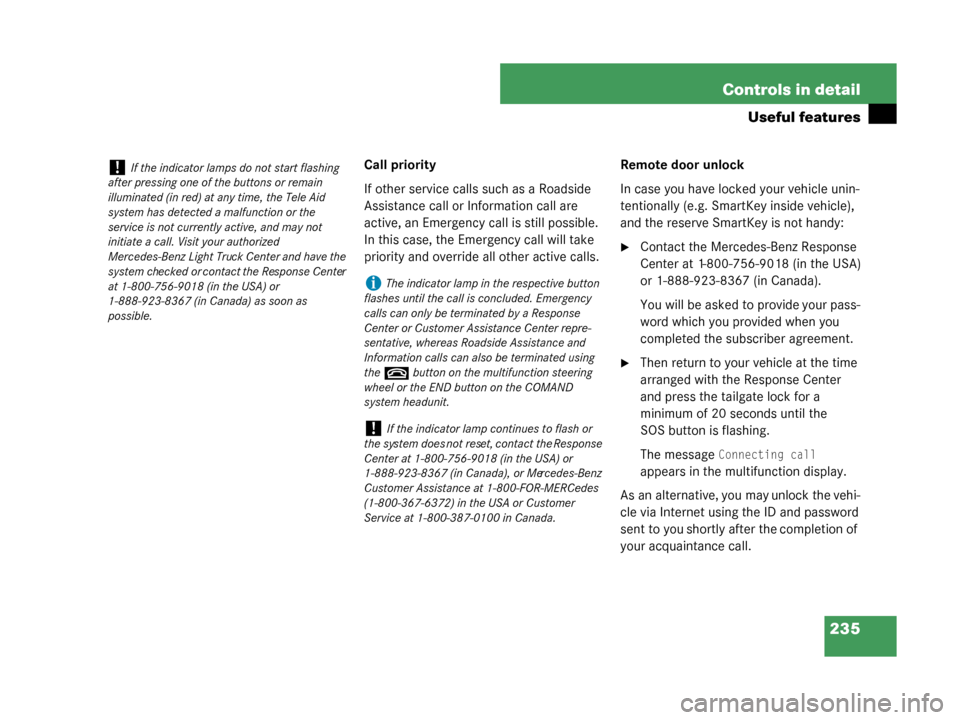

235
Controls in detail
Useful features
Call priority
If other service calls such as a Roadside
Assistance call or Information call are
active, an Emergency call is still possible.
In this case, the Emergency call will take
priority and override all other active calls.
Remote door unlock
In case you have locked your vehicle unin-
tentionally (e.g. SmartKey inside vehicle),
and the reserve SmartKey is not handy:
Contact the Mercedes-Benz Response
Center at 1-800-756-9018 (in the USA)
or 1-888-923-8367 (in Canada).
You will be asked to provide your pass-
word which you provided when you
completed the subs
criber agreement.
Then return to your vehicle at the time
arranged with the Response Center
and press the tailgate lock for a
minimum of 20 seconds until the
SOS button is flashing.
The message
Connecting call
appears in the multifunction display.
As an alternative, you may unlock the vehi-
cle via Internet using the ID and password
sent to you shortly after the completion of
your acquaintance call.
!If the indicator lamps do not start flashing
after pressing one of the buttons or remain
illuminated (in red) at any time, the Tele Aid
system has detected a malfunction or the
service is not currently active, and may not
initiate a call. Visit your authorized
Mercedes-Benz Light Truck Center and have the
system checked or contact the Response Center
at 1-800-756-9018 (in the USA) or
1-888-923-8367 (in Canada) as soon as
possible.
iThe indicator lamp in the respective button
flashes until the call is concluded. Emergency
calls can only be terminated by a Response
Center or Customer Assistance Center repre-
sentative, whereas Roadside Assistance and
Information calls can also be terminated using
the t button on the multifunction steering
wheel or the END button on the COMAND
system headunit.
!If the indicator lamp continues to flash or
the system does not reset, contact the Response
Center at 1-800-756-9018 (in the USA) or
1-888-923-8367 (in Canada), or Mercedes-Benz
Customer Assistance at 1-800-FOR-MERCedes
(1-800-367-6372) in the USA or Customer
Service at 1-800-387-0100 in Canada.
W463.boo Seite 235 Montag, 19 . November 2007 8:41 08

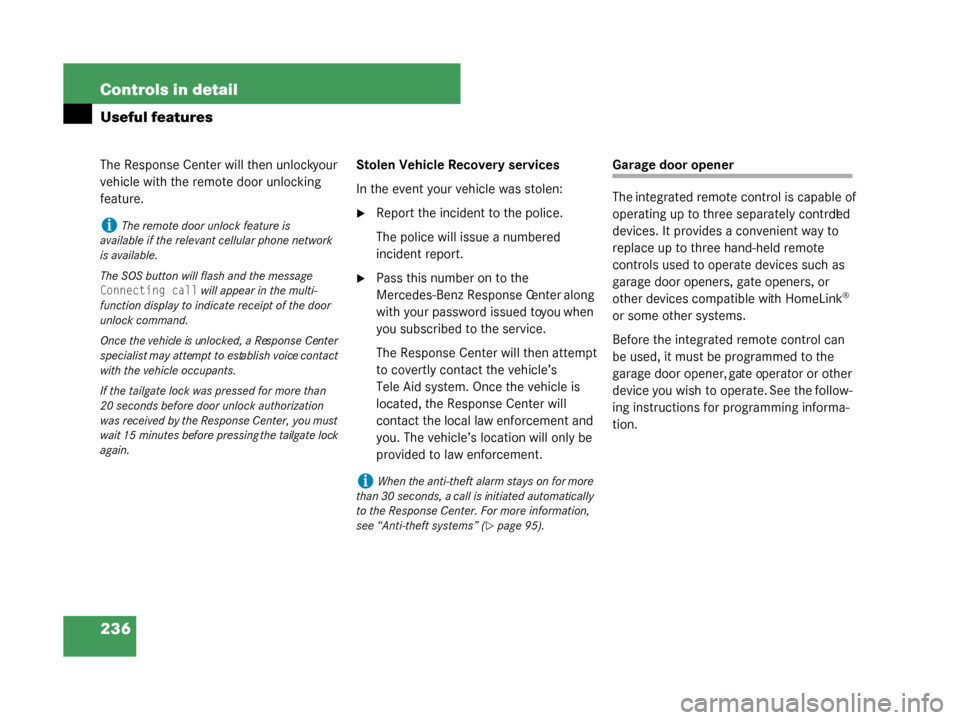

236 Controls in detail
Useful features
The Response Center will then unlock your
vehicle with the remote door unlocking
feature.Stolen Vehicle Recovery services
In the event your vehicle was stolen:
Report the incident to the police.
The police will issue a numbered
incident report.
Pass this number on to the
Mercedes-Benz Response Center along
with your password issued to you when
you subscribed to the service.
The Response Center will then attempt
to covertly contact the vehicle’s
Tele Aid system. Once the vehicle is
located, the Response Center will
contact the local law enforcement and
you. The vehicle’s location will only be
provided to law enforcement.
Garage door opener
The integrated remote control is capable of
operating up to three separately controlled
devices. It provides a convenient way to
replace up to three hand-held remote
controls used to operate devices such as
garage door openers, gate openers, or
other devices compatible with HomeLink
®
or some other systems.
Before the integrated remote control can
be used, it must be programmed to the
garage door opener, ga te operator or other
device you wish to operate. See the follow-
ing instructions for programming informa-
tion.
iThe remote door unlock feature is
available if the relevant cellular phone network
is available.
The SOS button will flash and the message
Connecting call will appear in the multi-
function display to indicate receipt of the door
unlock command.
Once the vehicle is unlocked, a Response Center
specialist may attempt to establish voice contact
with the vehicle occupants.
If the tailgate lock was pressed for more than
20 seconds before door unlock authorization
was received by the Response Center, you must
wait 15 minutes before pressing the tailgate lock
again.
iWhen the anti-theft al arm stays on for more
than 30 seconds, a call is initiated automatically
to the Response Center. For more information,
see “Anti-theft systems” (
page 95).
W463.boo Seite 236 Montag, 19 . November 2007 8:41 08

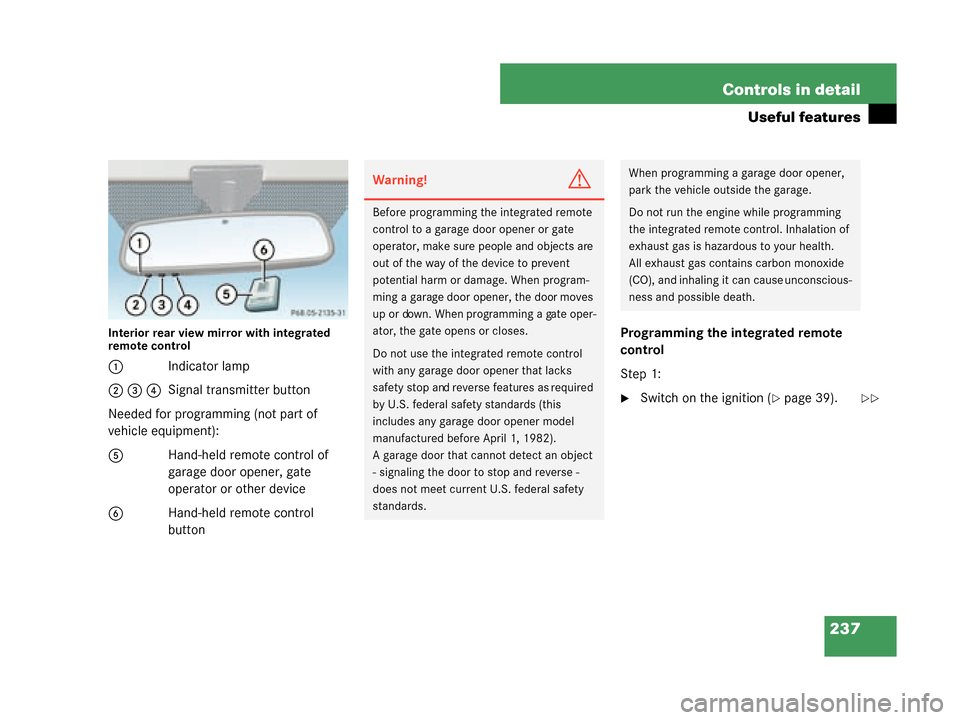

237
Controls in detail
Useful features
Interior rear view mirror with integrated
remote control
1
Indicator lamp
2 3 4 Signal transmitter button
Needed for programming (not part of
vehicle equipment):
5 Hand-held remote control of
garage door opener, gate
operator or other device
6 Hand-held remote control
button Programming the integrated remote
control
Step 1:
Switch on the ignition (page 39).
Warning!G
Before programming the integrated remote
control to a garage door opener or gate
operator, make sure people and objects are
out of the way of th
e device to prevent
potential harm or damage. When program-
ming a garage door opener, the door moves
up or down. When programming a gate oper-
ator, the gate opens or closes.
Do not use the integrated remote control
with any garage door opener that lacks
safety stop and reverse features as required
by U.S. federal safety standards (this
includes any garage door opener model
manufactured before April 1, 1982).
A garage door that cannot detect an object
- signaling the door to stop and reverse -
does not meet current U.S. federal safety
standards.
When programming a garage door opener,
park the vehicle outside the garage.
Do not run the engine while programming
the integrated remote co ntrol. Inhalation of
exhaust gas is hazardous to your health.
All exhaust gas contains carbon monoxide
(CO), and inhaling it can cause unconscious-
ness and possible death.

W463.boo Seite 237 Montag, 19 . November 2007 8:41 08

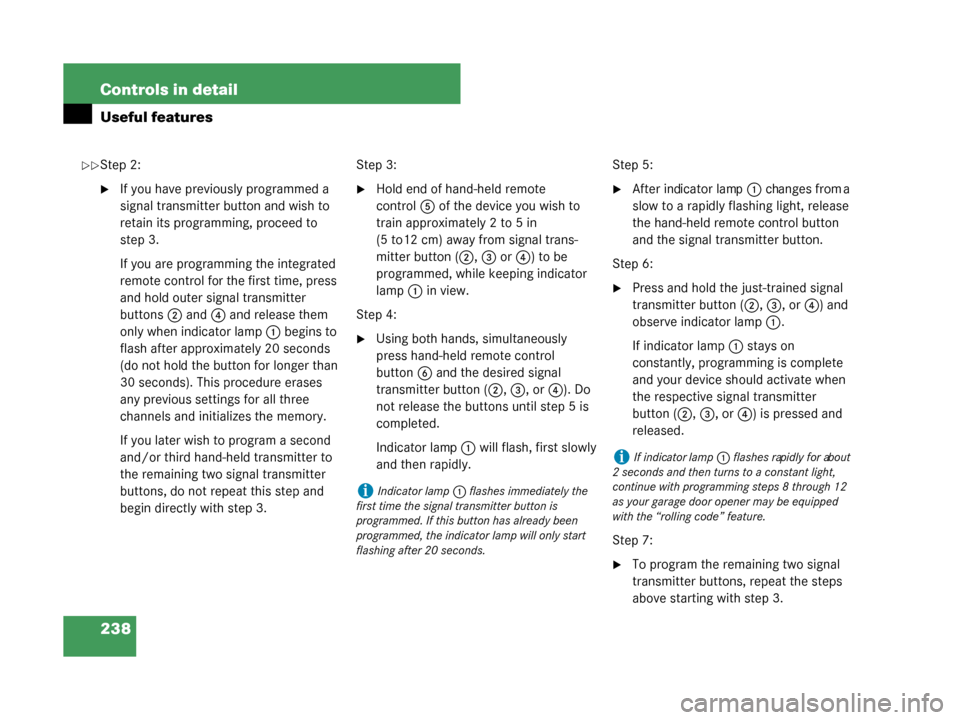

238 Controls in detail
Useful features
Step 2:
If you have previously programmed a
signal transmitter button and wish to
retain its programming, proceed to
step 3.
If you are programming the integrated
remote control for the first time, press
and hold outer signal transmitter
buttons2 and 4 and release them
only when indicator lamp 1 begins to
flash after approximately 20 seconds
(do not hold the button for longer than
30 seconds). This procedure erases
any previous settings for all three
channels and initializes the memory.
If you later wish to program a second
and/or third hand-held transmitter to
the remaining two signal transmitter
buttons, do not repeat this step and
begin directly with step 3. Step 3:Hold end of hand-held remote
control
5 of the device you wish to
train approximately 2 to 5 in
(5 to12 cm) away from signal trans-
mitter button ( 2, 3 or 4) to be
programmed, while keeping indicator
lamp 1 in view.
Step 4:
Using both hands, simultaneously
press hand-held remote control
button 6 and the desired signal
transmitter button ( 2, 3 , or 4). Do
not release the buttons until step 5 is
completed.
Indicator lamp 1 will flash, first slowly
and then rapidly. Step 5:
After indicator lamp
1 changes from a
slow to a rapidly flashing light, release
the hand-held remote control button
and the signal transmitter button.
Step 6:
Press and hold the just-trained signal
transmitter button ( 2, 3 , or 4) and
observe indicator lamp 1.
If indicator lamp 1 stays on
constantly, programming is complete
and your device should activate when
the respective signal transmitter
button ( 2, 3 , or 4) is pressed and
released.
Step 7:
To program the remaining two signal
transmitter buttons, repeat the steps
above starting with step 3.
iIndicator lamp 1 flashes immediately the
first time the signal transmitter button is
programmed. If this button has already been
programmed, the indicator lamp will only start
flashing after 20 seconds.
iIf indicator lamp 1 flashes rapidly for about
2 seconds and then turns to a constant light,
continue with programming steps 8 through 12
as your garage door opener may be equipped
with the “rolling code” feature.

W463.boo Seite 238 Montag, 19 . November 2007 8:41 08

239
Controls in detail
Useful features
Rolling code programming
To train a garage door opener (or other
rolling code devices) with the rolling code
feature, follow these instructions after
completing the “Programming” portion
(steps 1 through 6) of this text. (A second
person may make the following training
procedures quicker and easier.)
Step 8:
Locate “training”
button on the garage
door opener motor head unit.
Exact location and color of the button
may vary by garage door opener brand.
Depending on manufacturer, the
“training” button may also be referred
to as “learn” or “smart” button. If there
is difficulty locating the transmitting
button, refer to the garage door opener
Operator’s manual. Step 9:
Press the “training” button on the
garage door opener motor head unit.
The “training light” is activated.
You have 30 seconds to initiate the
following steps.
Step 10:
Return to the vehicle and firmly press,
hold for 2 seconds and release the
programmed signal transmitter button
( 2 ,3 ,or 4).
Step 11:
Press, hold for 2 seconds and release
same signal transmitter button a
second time to complete the training
process. Step 12:
Confirm the garage door operation by
pressing the programmed signal
transmitter button (
2,3 ,or 4).
Step 13:
To program the remaining two signal
transmitter buttons, repeat the steps
above starting with step 3.
Gate operator/Can adian programming
Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission
which may not be long enough for the
integrated signal transmitter to pick up the
signal during programming. Similar to this
Canadian law, some U.S. gate operators
are designed to “time-out” in the same
manner.
iSome garage door openers (or other rolling
code equipped devices) may require you to
press, hold for 2 seconds and release the same
signal transmitter button a third time to
complete the training process.
W463.boo Seite 239 Montag, 19 . November 2007 8:41 08
