Replacing SmartKey batteries
Replacing SmartKey batteries
If the batteries in the SmartKey are dis-
charged, the vehicle can no longer be
locked or unlocked. It is recommended to
have the batteries replaced at an autho-
rized Mercedes-Benz Light Truck Center.Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.Warning!
G
Keep the batteries out of reach of children.
If a battery is swallowed, seek medical help
immediately.
iWhen inserting the batteries, make
sure they are clean and free of lint.iWhen replacing batteries, always re-
place both batteries.
The required replacement batteries are
available at any Mercedes-Benz Light
Truck Center.

332 Practical hintsReplacing SmartKey batteriesSmartKey
Replacement batteries: Lithium, type
CR 2025 or equivalent.
Remove mechanical key (
page 325).
1Mechanical key
2Battery compartment

Insert mechanical key1 in side open-
ing and push gray slide.
Battery compartment2 is unlatched.

Pull battery compartment out of the
housing in direction of arrow.

Remove the discharged batteries.
3Battery
4Contact spring

Using a lint-free cloth, insert new
batteries3 under contact spring4
with the plus (+) side facing up.

Return battery compartment2 into
the housing until it engages.

Slide mechanical key1 back into the
SmartKey.

Check the operation of the SmartKey.

333 Practical hints
Replacing bulbs
Replacing bulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See an authorized
Mercedes-Benz Light Truck Center for
headlamp adjustment.
iIf the headlamps or front fog lamps are
fogged up on the inside as a result of
high humidity, driving the vehicle a dis-
tance with the lights on should clear up
the fogging.
iBackup bulbs will be brought into use
when lamps malfunction. Observe the
messages in the multifunction display
(page 296).

334 Practical hintsReplacing bulbsBulbs Front lamps Rear lamps
Lamp
Type
1
Additional turn
signal lamp
LED
2
Turn signal lamp
1156 NA
3
Side marker lamp
T 4 W
4
High and low beam
H4 60 (55 W)
Parking and
standing lamp
T 4 W
5
Fog lamp
H3 (55 W)
Lamp
Type
6
High mounted brake
lamp
LED
7
Turn signal lamp
PY 21 W
Brake lamp
P 21 W
Tail, parking and
standing lamp
R 5 W
8
Backup lamp
P 21 W
9
License plate lamps
C 5 W
a
Rear fog lamp
P 21 W
b
Side marker lamp
T 4 W

335 Practical hints
Replacing bulbs
Notes on bulb replacement

Use only 12 volt bulbs of the same type
and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not
come on, visit an authorized
Mercedes-Benz Light Truck Center.
Have the LEDs for the following lamps re-
placed by an authorized Mercedes-Benz
Light Truck Center.


Additional turn signals in the exterior
rear view mirrors


High mounted brake lamp


Lamps in the exterior rear view mirrors
Warning!
G
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Keep bulbs out of reach of children.
Halogen lamps contain pressurized gas.
A bulb can explode if you:

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
iHave the headlamp adjustment
checked regularly by a Mercedes-Benz
Light Truck Center.
Do not turn the headlamp adjusting
screws. If the adjusting screws are
turned, the headlamp adjustment must
be checked by a Mercedes-Benz Light
Truck Center.

336 Practical hintsReplacing bulbsReplacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page 110).Headlamp unit
Left headlamp, right headlamp laterally
reversed1Securing screw (trim panel)
2Headlamp trim panel
3Headlamp4Securing screw (headlamp)
iFor vehicles with brush guard*:
Fold the brush guard* down before
replacing bulbs (
page 329).
G55AMG:
Remove the protective grille before
replacing the bulbs.

337 Practical hints
Replacing bulbs
Removing
Loosen and remove securing
screws1.

Remove headlamp trim panel2 and
seal.

Loosen and remove headlamp-securing
screws4.

Remove headlamp3.
Installing

Insert headlamp3 and install and
tighten headlamp-securing screws4.

Install headlamp trim panel2 and
seal.

Install and tighten securing screws1.Headlamp bulbs

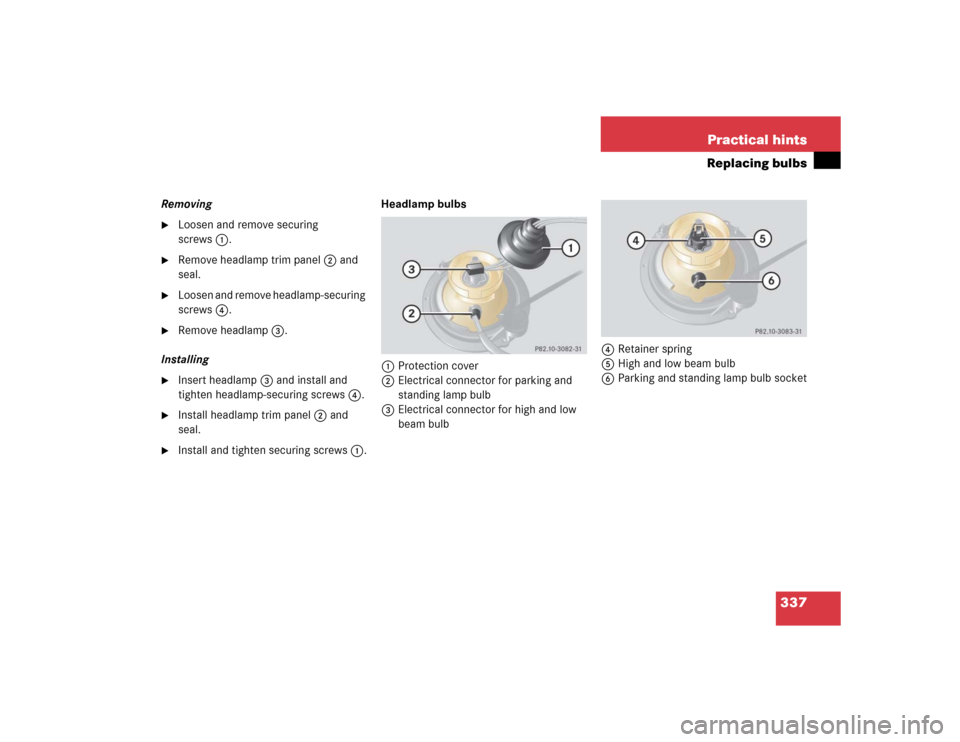

1Protection cover
2Electrical connector for parking and
standing lamp bulb
3Electrical connector for high and low
beam bulb4Retainer spring
5High and low beam bulb
6Parking and standing lamp bulb socket

338 Practical hintsReplacing bulbsHigh and low beam bulb
Remove protection cover1.

Pull off electrical connector3.

Unclip retainer spring4.

Remove bulb5.

Insert the new bulb so that its socket
locates in the recess of the lamp
housing.

Clip on retainer spring4.

Plug electrical connector3 onto
bulb5.

Reinstall protection cover1.Parking and standing lamp bulb

Pull off electrical connector2 from
bulb socket6.

Turn bulb socket6 counterclockwise
out of the lamp housing.

Insert a new bulb into bulb socket6.

Insert bulb socket6 into the lamp
housing and turn clockwise until it
engages.

Plug electrical connector2 onto bulb
socket6.Front fog lamp

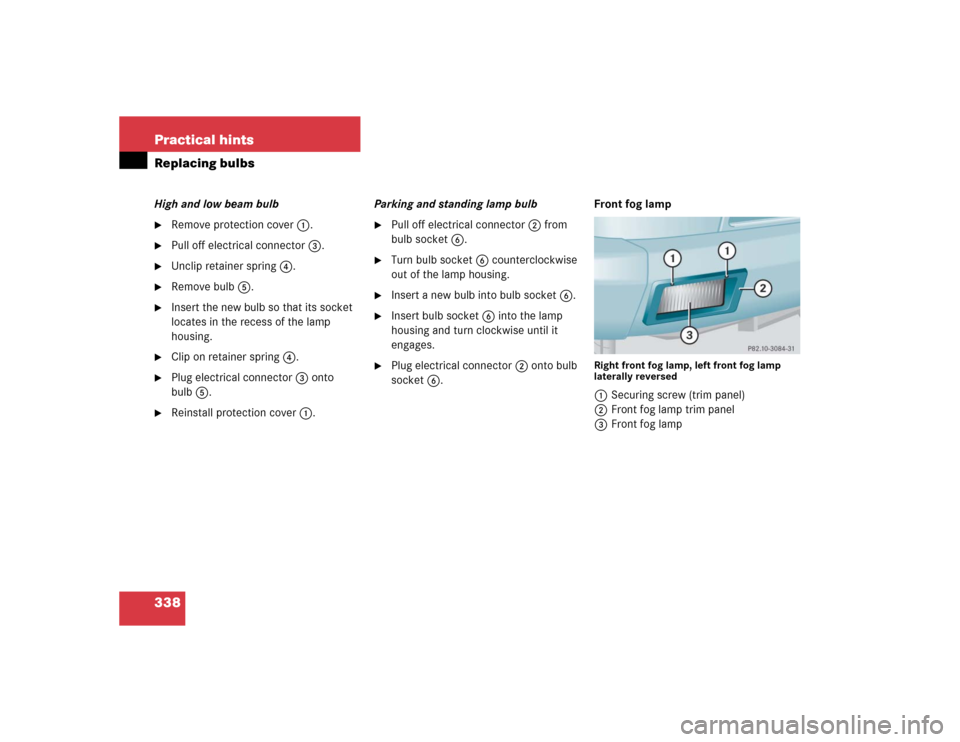

Right front fog lamp, left front fog lamp
laterally reversed1Securing screw (trim panel)
2Front fog lamp trim panel
3Front fog lamp

339 Practical hints
Replacing bulbs

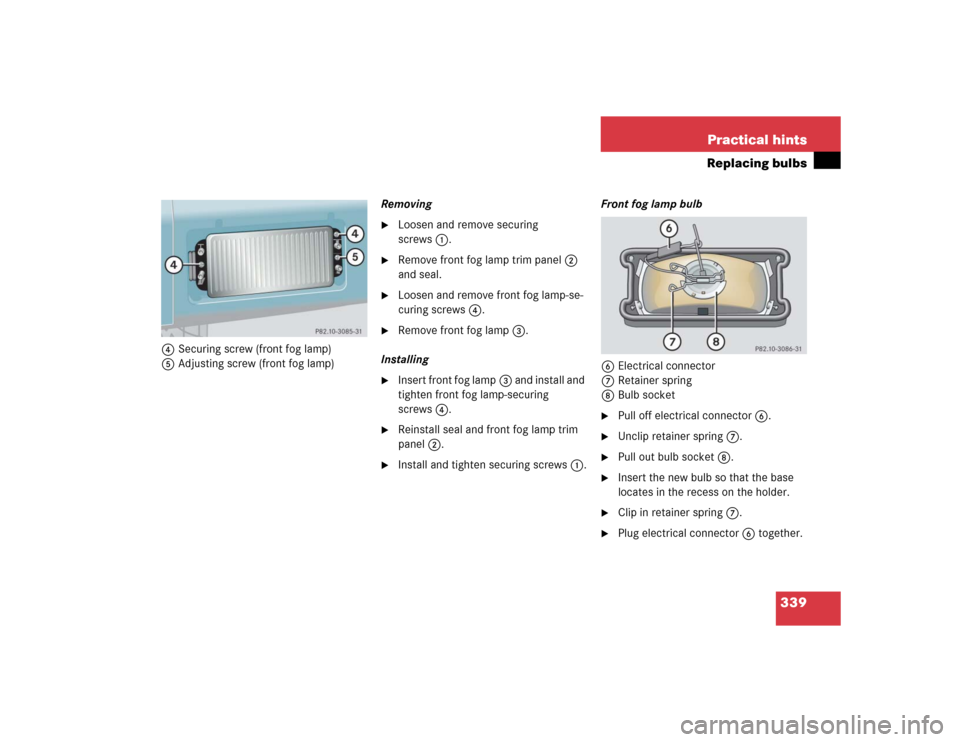

4Securing screw (front fog lamp)
5Adjusting screw (front fog lamp)Removing

Loosen and remove securing
screws1.

Remove front fog lamp trim panel2
and seal.

Loosen and remove front fog lamp-se-
curing screws4.

Remove front fog lamp3.
Installing

Insert front fog lamp3 and install and
tighten front fog lamp-securing
screws4.

Reinstall seal and front fog lamp trim
panel2.

Install and tighten securing screws1.Front fog lamp bulb
6Electrical connector
7Retainer spring
8Bulb socket

Pull off electrical connector6.

Unclip retainer spring7.

Pull out bulb socket8.

Insert the new bulb so that the base
locates in the recess on the holder.

Clip in retainer spring7.

Plug electrical connector6 together.

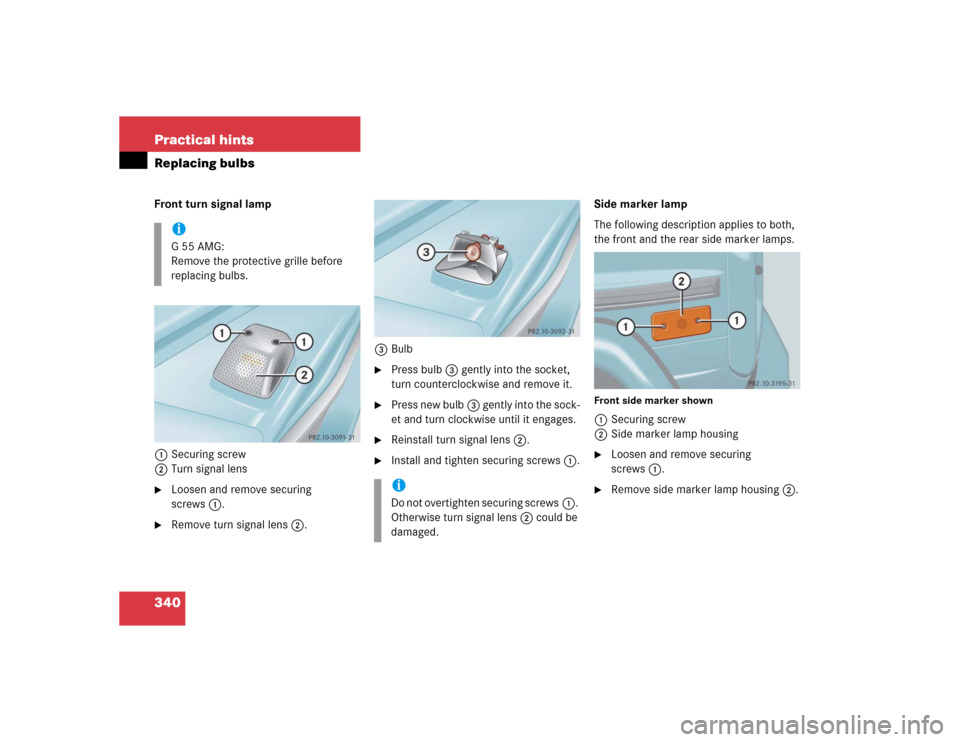

340 Practical hintsReplacing bulbsFront turn signal lamp
1Securing screw
2Turn signal lens
Loosen and remove securing
screws1.

Remove turn signal lens2.3Bulb

Press bulb3 gently into the socket,
turn counterclockwise and remove it.

Press new bulb3 gently into the sock-
et and turn clockwise until it engages.

Reinstall turn signal lens2.

Install and tighten securing screws1.Side marker lamp
The following description applies to both,
the front and the rear side marker lamps.
Front side marker shown1Securing screw
2Side marker lamp housing
Loosen and remove securing
screws1.

Remove side marker lamp housing2.
iG55AMG:
Remove the protective grille before
replacing bulbs.
iDo not overtighten securing screws1.
Otherwise turn signal lens2 could be
damaged.
