MERCEDES-BENZ G55AMG 2007 W463 Owner's Manual

320 Operation
Vehicle care
Clean the wiper blade inserts with a
clean cloth and detergent solution.
Use a soft, clean cloth and a mild
window cleaning solution on all outside
and inside glass surfaces.
An automotive glass cleaner is recom-
mended.Light alloy wheels
If possible, clean wheels once a week.Use Mercedes-Benz approved Wheel
Care, a soft bristle brush and a strong
spray of water for cleaning the light
alloy wheels.Plastic and rubber parts
Use a gentle dishwashing detergent or
mild detergent for delicate fabrics as a
washing solution.
Wipe with a cloth moistened in a
lukewarm solution.
The surface may temporarily change
color. If this is the case, wait for it to
dry.
!Fold the windshield wiper arms back onto
the windshield before turning the SmartKey in
the starter switch.
Hold on to the wiper when folding the wiper arm
back. If released, the force of the impact from
the tensioning spring could crack the windshield.
!To clean the window interior, do not use a
dry cloth, abrasives, solvents or cleaners con-
taining solvents. Do not touch the inside of the
front, rear or side windows with hard objects
such as an ice scraper or ring. Doing so may
damage the windows.
!Only use acid-free cleaning materials. Acid
may cause corrosion or damage the clear coat.
!The vehicle should not be parked for an
extended period of time immediately after it has
been cleaned, especially not after the wheel rims
have been cleaned with wheel rim cleaner.
Wheel rim cleaners can lead to increased
corrosion of the brake disks and brake pads.
Non-approved wheel cleaners may also damage
the wheel paint if the car is not driven after
cleaning. Therefore, the vehicle’s brake system
should always be warmed-up before it is parked
after cleaning. To do so, please drive your vehicle
for several minutes to allow the brakes to dry.
When applying Mercedes-Benz approved Tire
Care and Mercedes-Benz approved Wheel Care
products, take care not to spray them on the
brake disks.
Warning!G
Do not use cleaners or cockpit care sprays
containing solvents to clean the cockpit or
the steering wheel. Cleaners containing
solvents will make the surface porous and
vehicle occupants could suffer serious
injuries from plastic parts coming loose in
the event of air bag deployment.


321 Operation
Vehicle care
Hard plastic trim items
Use Mercedes-Benz approved Interior
Care, a soft, lint-free cloth and apply
with light pressure.Steering wheel and gear selector lever
Wipe with a damp cloth and dry
thoroughly or clean with
Mercedes-Benz approved Leather
Care.
Carpets
Use Mercedes-Benz approved Carpet
and Fabric Care for cleaning the
carpets.
Headliner
Use a soft bristle brush or a
dry-shampoo cleaner in case of
excessive dirt.Seat belts
Only use clear, lukewarm water and
soap.
!Do not use oil, wax or scouring agents on
these parts.
Never apply strong force and only use a soft,
non-scratching cloth when cleaning the surface.
Do not attempt to wipe the surface with a dry
cloth or sponge.
Otherwise you may scratch or damage the
surface.
!Never apply strong force and only use a soft,
non-scratching cloth when cleaning the surface.
Do not attempt to wipe the surface with a dry
cloth or sponge.
Otherwise you may scratch or damage the
surface.
!The seat belts must not be treated with
chemical cleaning agents. Do not dry the seat
belts at temperatures above 176°F (80°C) or in
direct sunlight.
Warning!G
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.

322 Operation
Vehicle care
Upholstery
Using aftermarket seat covers or wearing
clothing that have the tendency to give off
coloring (e.g. when wet, etc.) may cause
the upholstery to become permanently dis-
colored. By lining the seats with a proper
intermediate cover, contact-discoloration
will be prevented.
Leather upholstery
Please not that leather upholstery is a
natural product and is therefore subject to
a natural aging process. Leather
upholstery may also react to certain
ambient influences such as high humidity
or high temperature by showing wrinkles
for example.Wipe leather upholstery with a damp
cloth and dry thoroughly or clean with
Mercedes-Benz approved Leather
Care.
Exercise particular care when cleaning
perforated leather as its underside should
not become wet.
Wood trims
Dampen cloth using water and use
damp cloth to clean wood trims in your
vehicle.
!Wipe with light pressure to avoid damage to
the upholstery.
!Do not use solvents like tar remover or
wheel cleaner nor polishes or waxes as these
may be abrasive.

323
Practical hints
What to do if …
Where will I find...?
Unlocking/locking in an emergency
Opening/closing in an emergency
Brush guard
Replacing SmartKey batteries
Replacing bulbs
Replacing wiper blades
Flat tire
Battery
Jump starting
Towing the vehicle
Fuses

324 Practical hints
What to do if …
Lamps in instrument clusterGeneral information:
If any of the following lamps in the instru-
ment cluster fails to come on during thebulb self-check when switching on ignition,
have the respective bulb checked and
replaced if necessary.
ProblemPossible cause/consequenceSuggested solution
-The yellow ABS indicator lamp
comes on while driving.You have engaged the differential locks. The
ABS, ESP®, BAS, EBB and 4-ETS are switched
off.
The driving systems will switch on
again after the differential locks have
been disengaged.
The ABS has detected a malfunction and has
switched off. The ESP®, BAS, EBB and 4-ETS
are also switched off (see messages in multi-
function display).
The brake system is still functioning normally
but without the ABS available.
If the ABS control unit is malfunctioning,
other systems such as the navigation system
or Rear Parking Assist* may also be malfunc-
tioning.
Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.
Have the system checked at an autho-
rized Mercedes-Benz Light Truck
Center as soon as possible.
Failure to follow these instructions
increases the risk of an accident.
Read and observe messages in the
multifunction display (
page 338).

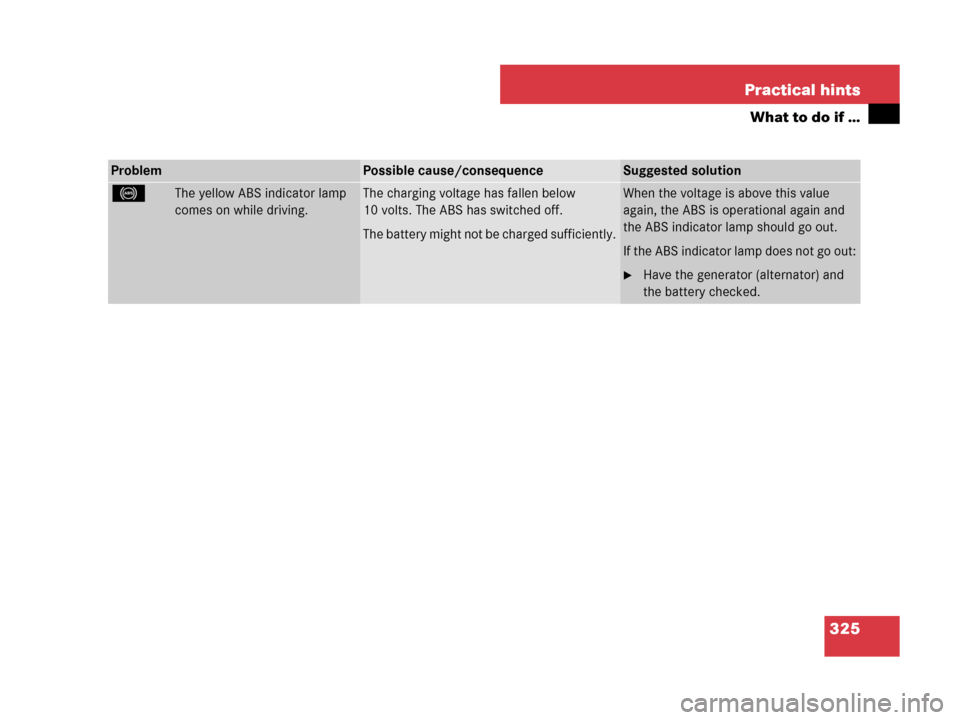

325 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
-The yellow ABS indicator lamp
comes on while driving.The charging voltage has fallen below
10 volts. The ABS has switched off.
The battery might not be charged sufficiently.When the voltage is above this value
again, the ABS is operational again and
the ABS indicator lamp should go out.
If the ABS indicator lamp does not go out:
Have the generator (alternator) and
the battery checked.

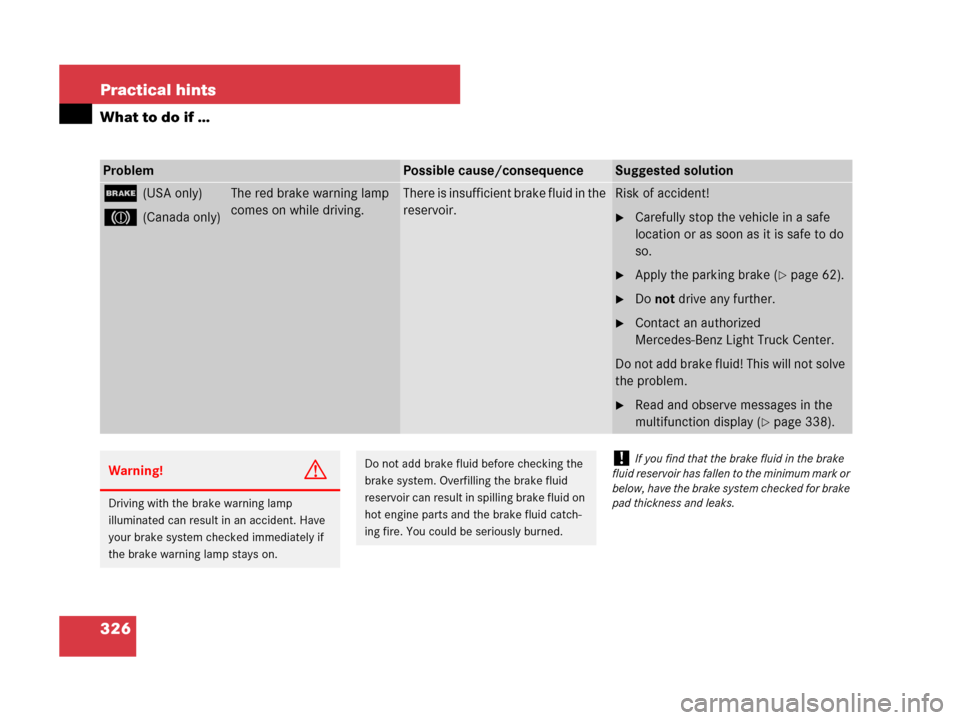

326 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
;(USA only)
3(Canada only)
The red brake warning lamp
comes on while driving.There is insufficient brake fluid in the
reservoir.Risk of accident!
Carefully stop the vehicle in a safe
location or as soon as it is safe to do
so.
Apply the parking brake (page 62).
Do not drive any further.
Contact an authorized
Mercedes-Benz Light Truck Center.
Do not add brake fluid! This will not solve
the problem.
Read and observe messages in the
multifunction display (
page 338).
Warning!G
Driving with the brake warning lamp
illuminated can result in an accident. Have
your brake system checked immediately if
the brake warning lamp stays on.
Do not add brake fluid before checking the
brake system. Overfilling the brake fluid
reservoir can result in spilling brake fluid on
hot engine parts and the brake fluid catch-
ing fire. You could be seriously burned.!If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks.

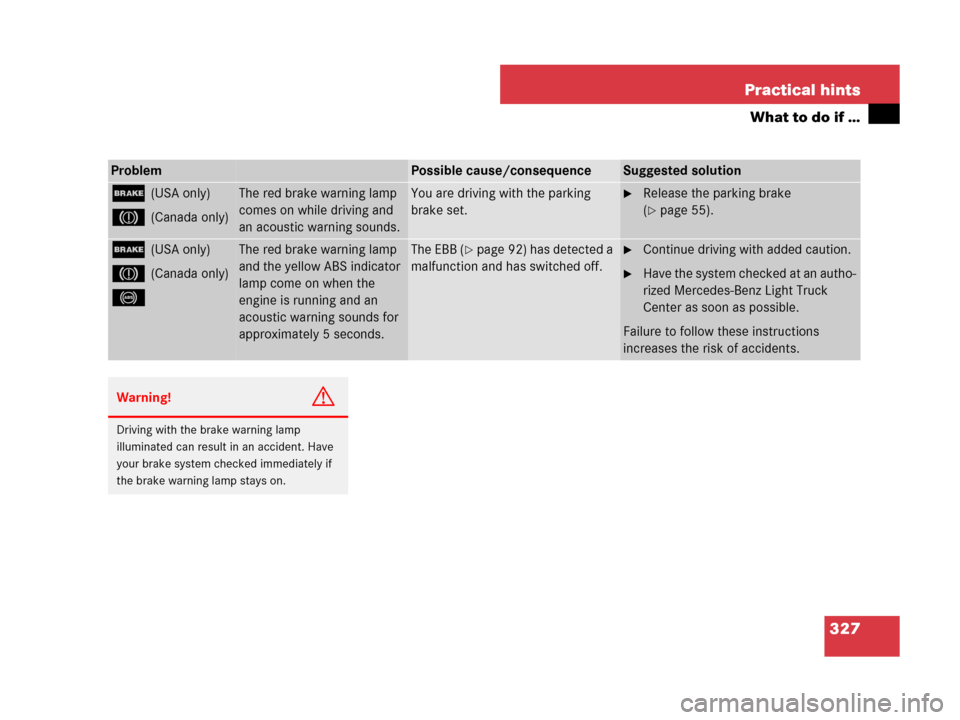

327 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
;(USA only)
3(Canada only)
The red brake warning lamp
comes on while driving and
an acoustic warning sounds.You are driving with the parking
brake set.Release the parking brake
(
page 55).
;(USA only)
3(Canada only)
-
The red brake warning lamp
and the yellow ABS indicator
lamp come on when the
engine is running and an
acoustic warning sounds for
approximately 5 seconds.The EBB (page 92) has detected a
malfunction and has switched off.Continue driving with added caution.
Have the system checked at an autho-
rized Mercedes-Benz Light Truck
Center as soon as possible.
Failure to follow these instructions
increases the risk of accidents.
Warning!G
Driving with the brake warning lamp
illuminated can result in an accident. Have
your brake system checked immediately if
the brake warning lamp stays on.

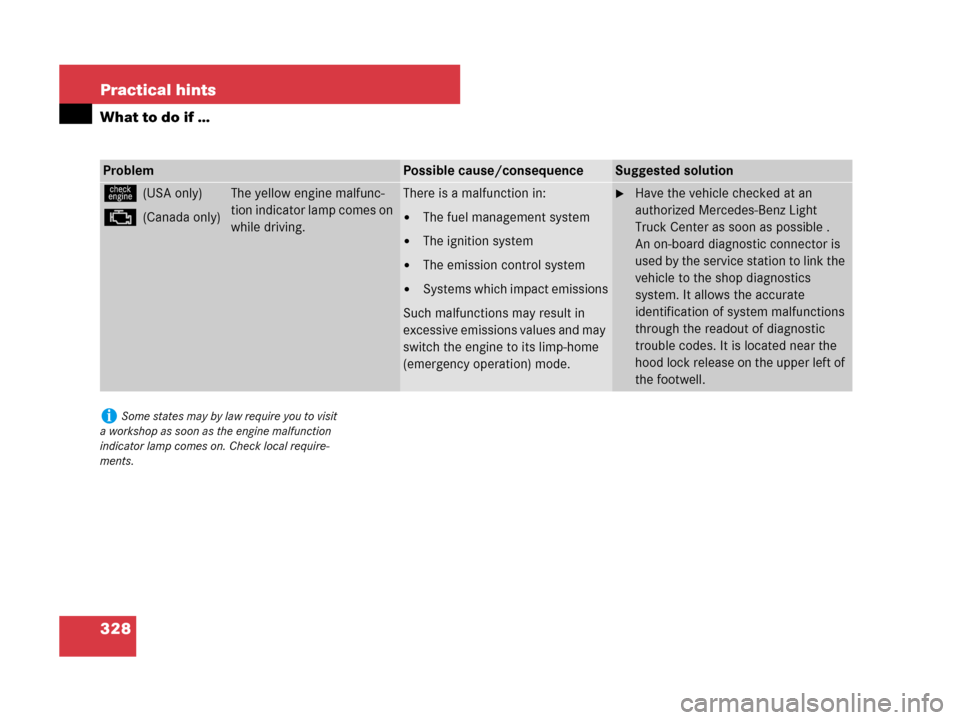

328 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
ú(USA only)
±(Canada only)
The yellow engine malfunc-
tion indicator lamp comes on
while driving.There is a malfunction in:

The fuel management system

The ignition system

The emission control system

Systems which impact emissions
Such malfunctions may result in
excessive emissions values and may
switch the engine to its limp-home
(emergency operation) mode.
Have the vehicle checked at an
authorized Mercedes-Benz Light
Truck Center as soon as possible .
An on-board diagnostic connector is
used by the service station to link the
vehicle to the shop diagnostics
system. It allows the accurate
identification of system malfunctions
through the readout of diagnostic
trouble codes. It is located near the
hood lock release on the upper left of
the footwell.
iSome states may by law require you to visit
a workshop as soon as the engine malfunction
indicator lamp comes on. Check local require-
ments.

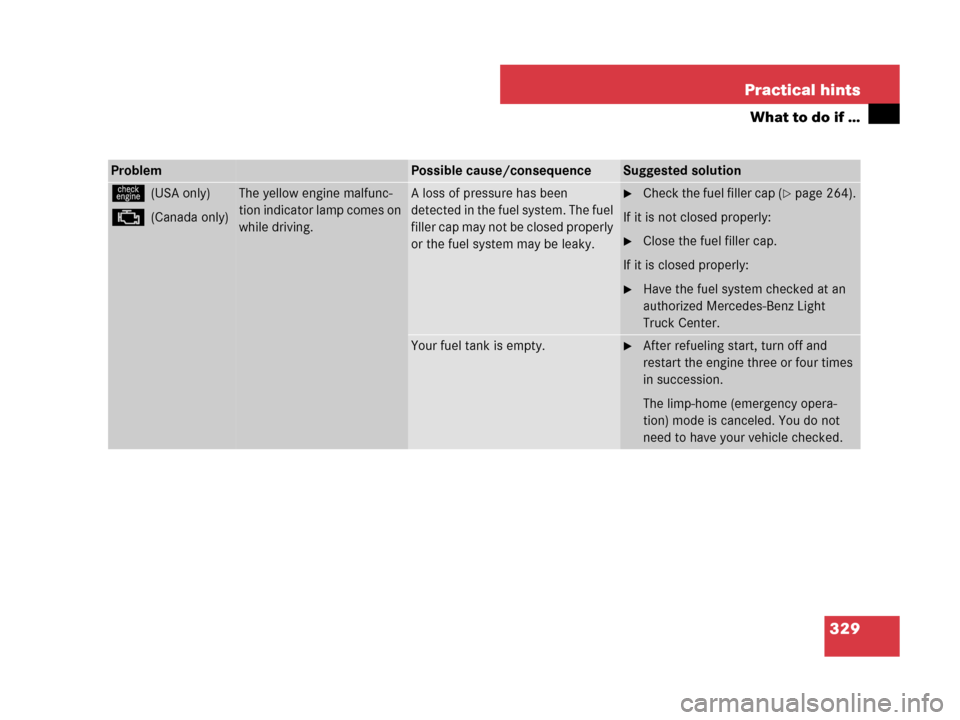

329 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
ú(USA only)
±(Canada only)
The yellow engine malfunc-
tion indicator lamp comes on
while driving.A loss of pressure has been
detected in the fuel system. The fuel
filler cap may not be closed properly
or the fuel system may be leaky.Check the fuel filler cap (page 264).
If it is not closed properly:
Close the fuel filler cap.
If it is closed properly:
Have the fuel system checked at an
authorized Mercedes-Benz Light
Truck Center.
Your fuel tank is empty.After refueling start, turn off and
restart the engine three or four times
in succession.
The limp-home (emergency opera-
tion) mode is canceled. You do not
need to have your vehicle checked.
