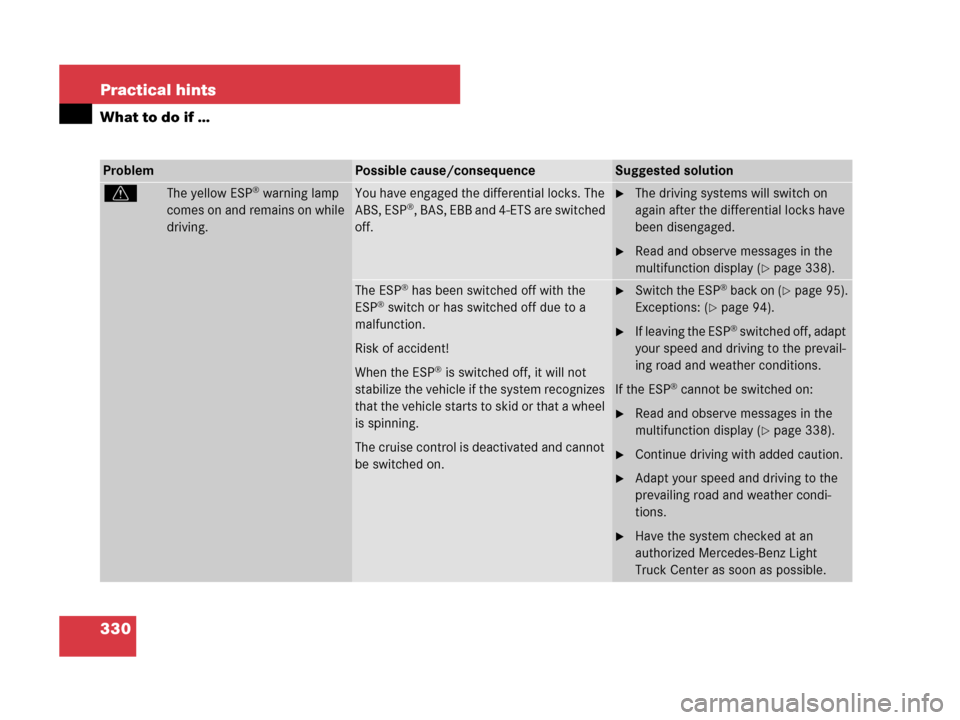

330 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
vThe yellow ESP® warning lamp
comes on and remains on while
driving.You have engaged the differential locks. The
ABS, ESP®, BAS, EBB and 4-ETS are switched
off.
The driving systems will switch on
again after the differential locks have
been disengaged.
Read and observe messages in the
multifunction display (
page 338).
The ESP® has been switched off with the
ESP® switch or has switched off due to a
malfunction.
Risk of accident!
When the ESP
® is switched off, it will not
stabilize the vehicle if the system recognizes
that the vehicle starts to skid or that a wheel
is spinning.
The cruise control is deactivated and cannot
be switched on.
Switch the ESP® back on (page 95).
Exceptions: (
page 94).
If leaving the ESP® switched off, adapt
your speed and driving to the prevail-
ing road and weather conditions.
If the ESP
® cannot be switched on:
Read and observe messages in the
multifunction display (
page 338).
Continue driving with added caution.
Adapt your speed and driving to the
prevailing road and weather condi-
tions.
Have the system checked at an
authorized Mercedes-Benz Light
Truck Center as soon as possible.

331 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
vThe yellow ESP® warning lamp
comes on and remains on while
driving.The ESP® is deactivated because of inter-
rupted power supply. The ABS may still be
operational.Read and observe messages in the
multifunction display (
page 338).
The ESP®, ABS, BAS, EBB or 4-ETS has
detected a malfunction. All driving systems
are switched off.
Risk of accident!
Adapt your speed and driving to the
prevailing road conditions.Read and observe messages in the
multifunction display (
page 338).
The yellow fuel tank reserve warning lamp
comes on while driving.The fuel level has dropped below the reserve
mark.Refuel at the next gas station
(
page 264).
Read and observe messages in the
multifunction display (
page 338).
The yellow fuel tank reserve warning lamp is
blinking.The fuel cap is not closed tight.Check the fuel filler cap (page 264).
Read and observe messages in the
multifunction display (
page 338).

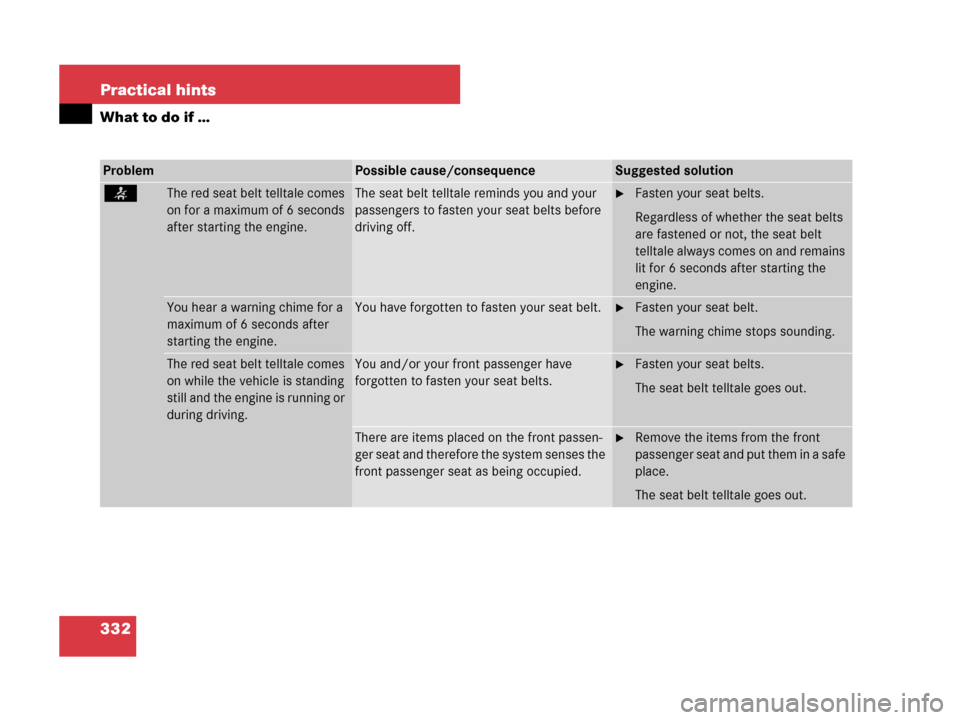

332 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
on for a maximum of 6 seconds
after starting the engine.The seat belt telltale reminds you and your
passengers to fasten your seat belts before
driving off.Fasten your seat belts.
Regardless of whether the seat belts
are fastened or not, the seat belt
telltale always comes on and remains
lit for 6 seconds after starting the
engine.
You hear a warning chime for a
maximum of 6 seconds after
starting the engine.You have forgotten to fasten your seat belt.Fasten your seat belt.
The warning chime stops sounding.
The red seat belt telltale comes
on while the vehicle is standing
still and the engine is running or
during driving.You and/or your front passenger have
forgotten to fasten your seat belts.Fasten your seat belts.
The seat belt telltale goes out.
There are items placed on the front passen-
ger seat and therefore the system senses the
front passenger seat as being occupied.Remove the items from the front
passenger seat and put them in a safe
place.
The seat belt telltale goes out.

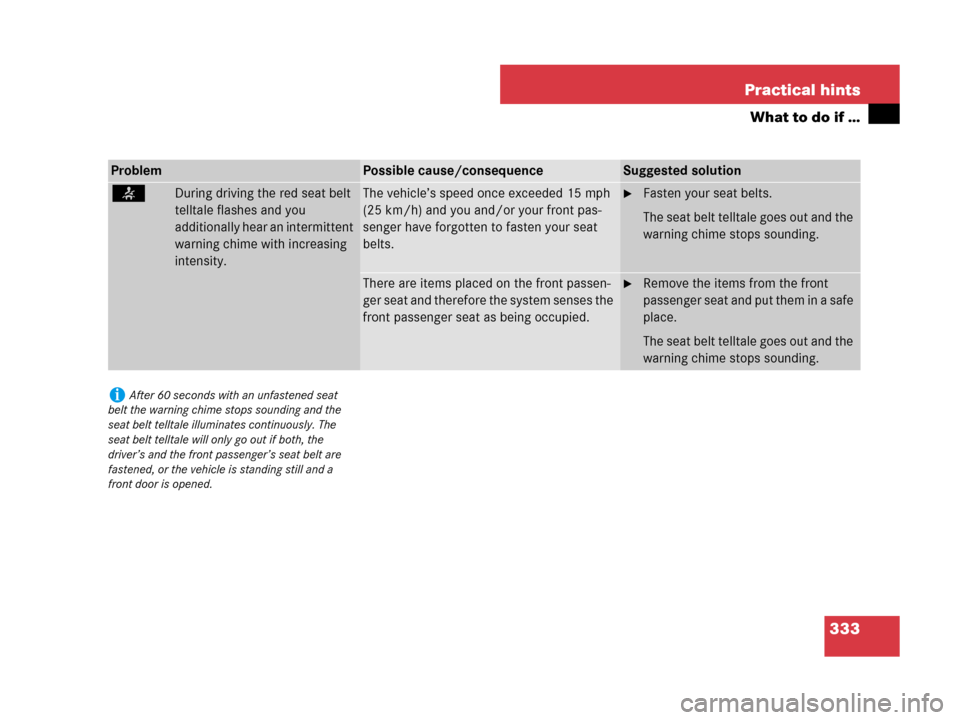

333 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
telltale flashes and you
additionally hear an intermittent
warning chime with increasing
intensity.The vehicle’s speed once exceeded 15 mph
(25 km/h) and you and/or your front pas-
senger have forgotten to fasten your seat
belts.Fasten your seat belts.
The seat belt telltale goes out and the
warning chime stops sounding.
There are items placed on the front passen-
ger seat and therefore the system senses the
front passenger seat as being occupied.Remove the items from the front
passenger seat and put them in a safe
place.
The seat belt telltale goes out and the
warning chime stops sounding.
iAfter 60 seconds with an unfastened seat
belt the warning chime stops sounding and the
seat belt telltale illuminates continuously. The
seat belt telltale will only go out if both, the
driver’s and the front passenger’s seat belt are
fastened, or the vehicle is standing still and a
front door is opened.

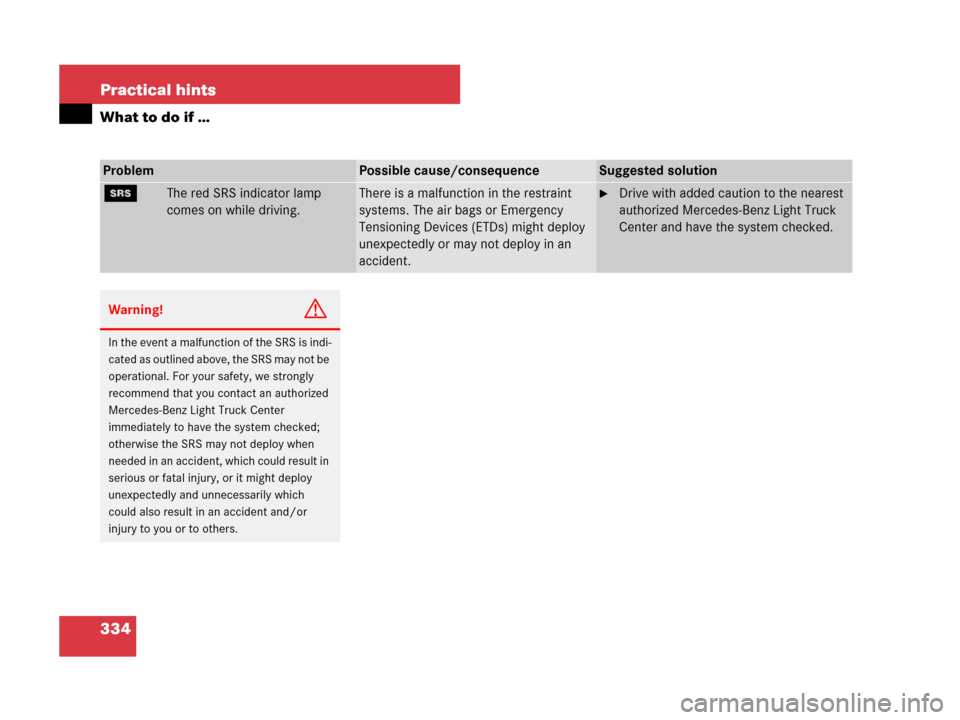

334 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
1The red SRS indicator lamp
comes on while driving.There is a malfunction in the restraint
systems. The air bags or Emergency
Tensioning Devices (ETDs) might deploy
unexpectedly or may not deploy in an
accident.Drive with added caution to the nearest
authorized Mercedes-Benz Light Truck
Center and have the system checked.
Warning!G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational. For your safety, we strongly
recommend that you contact an authorized
Mercedes-Benz Light Truck Center
immediately to have the system checked;
otherwise the SRS may not deploy when
needed in an accident, which could result in
serious or fatal injury, or it might deploy
unexpectedly and unnecessarily which
could also result in an accident and/or
injury to you or to others.

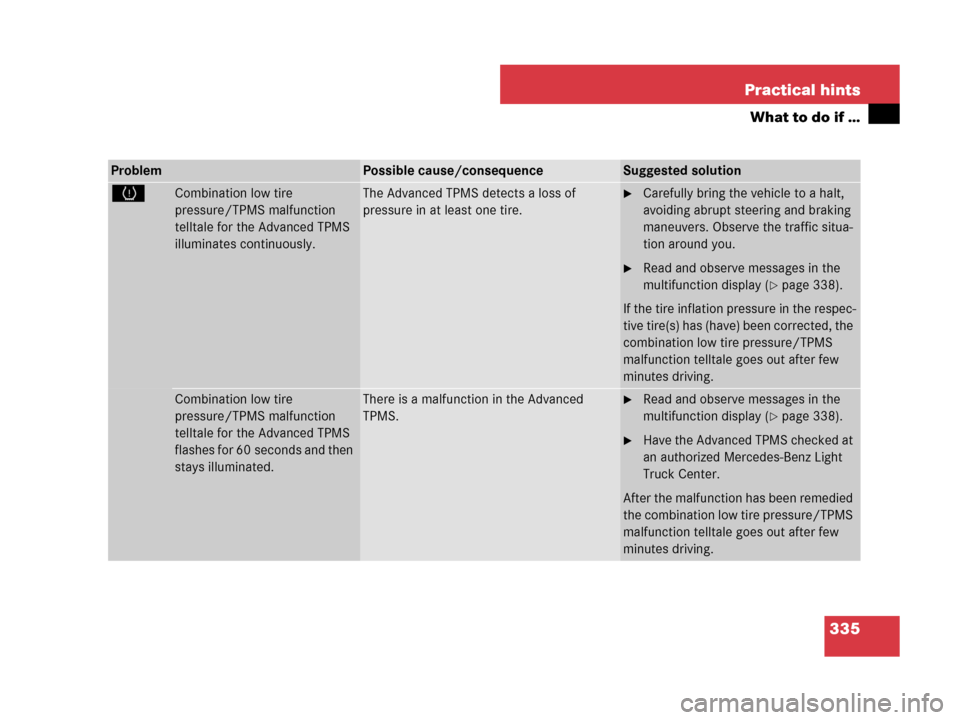

335 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
HCombination low tire
pressure/TPMS malfunction
telltale for the Advanced TPMS
illuminates continuously.The Advanced TPMS detects a loss of
pressure in at least one tire.Carefully bring the vehicle to a halt,
avoiding abrupt steering and braking
maneuvers. Observe the traffic situa-
tion around you.
Read and observe messages in the
multifunction display (
page 338).
If the tire inflation pressure in the respec-
tive tire(s) has (have) been corrected, the
combination low tire pressure/TPMS
malfunction telltale goes out after few
minutes driving.
Combination low tire
pressure/TPMS malfunction
telltale for the Advanced TPMS
flashes for 60 seconds and then
stays illuminated.There is a malfunction in the Advanced
TPMS.Read and observe messages in the
multifunction display (
page 338).
Have the Advanced TPMS checked at
an authorized Mercedes-Benz Light
Truck Center.
After the malfunction has been remedied
the combination low tire pressure/TPMS
malfunction telltale goes out after few
minutes driving.

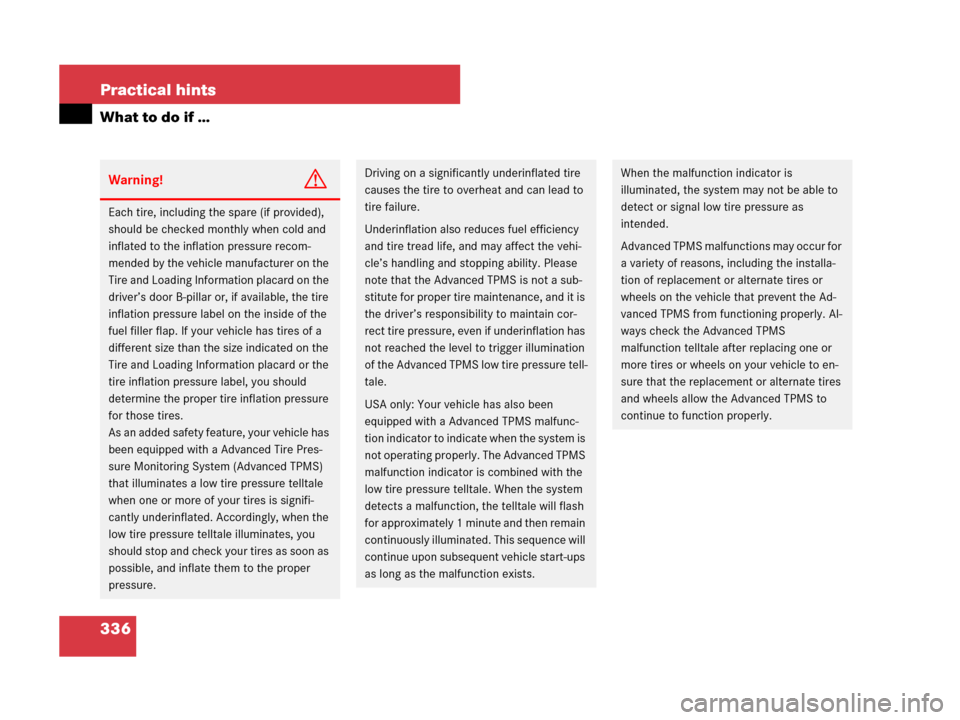

336 Practical hints
What to do if …
Warning!G
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
Tire and Loading Information placard on the
driver’s door B-pillar or, if available, the tire
inflation pressure label on the inside of the
fuel filler flap. If your vehicle has tires of a
different size than the size indicated on the
Tire and Loading Information placard or the
tire inflation pressure label, you should
determine the proper tire inflation pressure
for those tires.
As an added safety feature, your vehicle has
been equipped with a Advanced Tire Pres-
sure Monitoring System (Advanced TPMS)
that illuminates a low tire pressure telltale
when one or more of your tires is signifi-
cantly underinflated. Accordingly, when the
low tire pressure telltale illuminates, you
should stop and check your tires as soon as
possible, and inflate them to the proper
pressure.
Driving on a significantly underinflated tire
causes the tire to overheat and can lead to
tire failure.
Underinflation also reduces fuel efficiency
and tire tread life, and may affect the vehi-
cle’s handling and stopping ability. Please
note that the Advanced TPMS is not a sub-
stitute for proper tire maintenance, and it is
the driver’s responsibility to maintain cor-
rect tire pressure, even if underinflation has
not reached the level to trigger illumination
of the Advanced TPMS low tire pressure tell-
tale.
USA only: Your vehicle has also been
equipped with a Advanced TPMS malfunc-
tion indicator to indicate when the system is
not operating properly. The Advanced TPMS
malfunction indicator is combined with the
low tire pressure telltale. When the system
detects a malfunction, the telltale will flash
for approximately 1 minute and then remain
continuously illuminated. This sequence will
continue upon subsequent vehicle start-ups
as long as the malfunction exists.When the malfunction indicator is
illuminated, the system may not be able to
detect or signal low tire pressure as
intended.
Advanced TPMS malfunctions may occur for
a variety of reasons, including the installa-
tion of replacement or alternate tires or
wheels on the vehicle that prevent the Ad-
vanced TPMS from functioning properly. Al-
ways check the Advanced TPMS
malfunction telltale after replacing one or
more tires or wheels on your vehicle to en-
sure that the replacement or alternate tires
and wheels allow the Advanced TPMS to
continue to function properly.

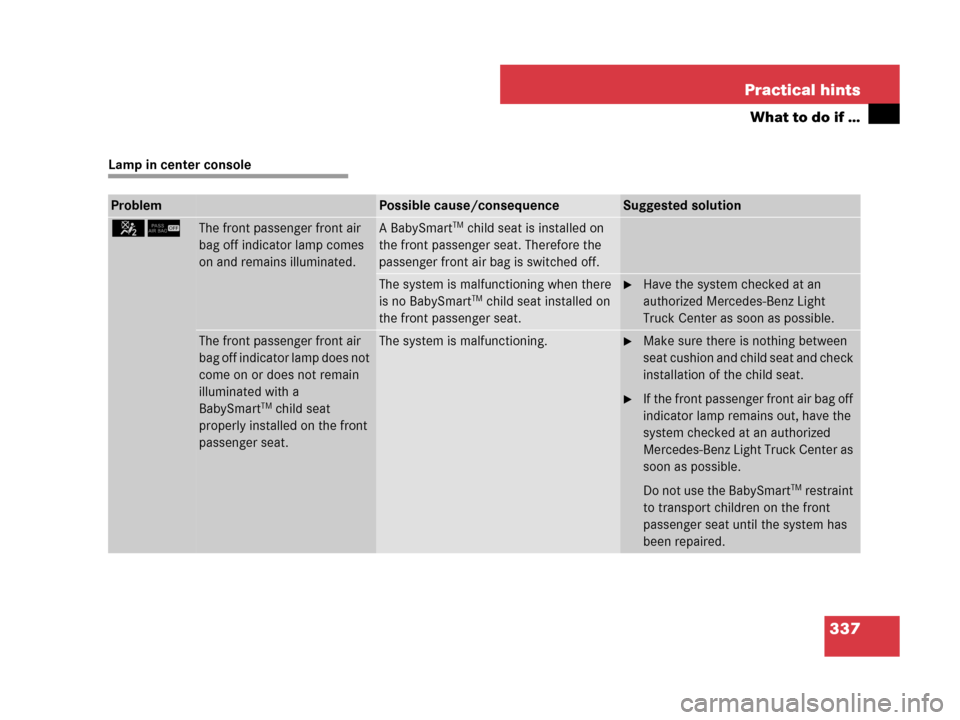

337 Practical hints
What to do if …
Lamp in center console
ProblemPossible cause/consequenceSuggested solution
56The front passenger front air
bag off indicator lamp comes
on and remains illuminated.A BabySmartTM child seat is installed on
the front passenger seat. Therefore the
passenger front air bag is switched off.
The system is malfunctioning when there
is no BabySmartTM child seat installed on
the front passenger seat.
Have the system checked at an
authorized Mercedes-Benz Light
Truck Center as soon as possible.
The front passenger front air
bag off indicator lamp does not
come on or does not remain
illuminated with a
BabySmart
TM child seat
properly installed on the front
passenger seat.
The system is malfunctioning.Make sure there is nothing between
seat cushion and child seat and check
installation of the child seat.
If the front passenger front air bag off
indicator lamp remains out, have the
system checked at an authorized
Mercedes-Benz Light Truck Center as
soon as possible.
Do not use the BabySmart
TM restraint
to transport children on the front
passenger seat until the system has
been repaired.

338 Practical hints
What to do if …
Vehicle status messages in the
multifunction display
Warning and malfunction messages
appear in the multifunction display located
in the instrument cluster.
Certain warning and malfunction mes-
sages are accompanied by an audible
signal.
Address these messages accordingly and
follow the additional instructions given in
this Operator’s Manual.
Selecting the vehicle status message
memory menu in the control system
(
page 144) displays both cleared and
uncleared messages.High-priority messages appear in the
multifunction display in red color.
Certain messages of high priority cannot
be cleared from the multifunction display
using the reset button (
page 130) or
buttonj,k,·, orè on the
multifunction steering wheel.
Other messages of high priority and
messages of less immediate priority can
be cleared from the multifunction display
using the reset button (
page 130) or
buttonj,k,·, orè on the
multifunction steering wheel. They are
then stored in the vehicle status message
memory (
page 144). Remember that
clearing a message will only make the
message disappear. Clearing a message
will not correct the condition that caused
the message to appear.
Warning!G
All categories of messages contain
important information which should be
taken note of and, where a malfunction is
indicated, addressed as soon as possible at
an authorized Mercedes-Benz Light Truck
Center.
Failure to repair condition noted may cause
damage not covered by the Mercedes-Benz
Limited Warranty, or result in property
damage or personal injury.

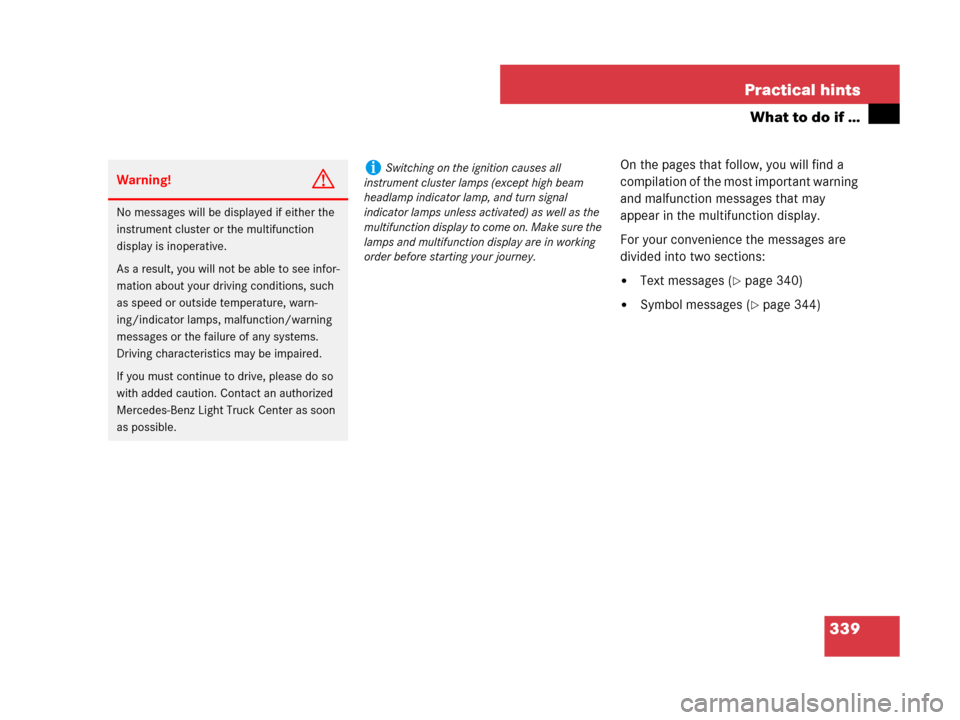

339 Practical hints
What to do if …
On the pages that follow, you will find a
compilation of the most important warning
and malfunction messages that may
appear in the multifunction display.
For your convenience the messages are
divided into two sections:

Text messages (page 340)

Symbol messages (page 344)
Warning!G
No messages will be displayed if either the
instrument cluster or the multifunction
display is inoperative.
As a result, you will not be able to see infor-
mation about your driving conditions, such
as speed or outside temperature, warn-
ing/indicator lamps, malfunction/warning
messages or the failure of any systems.
Driving characteristics may be impaired.
If you must continue to drive, please do so
with added caution. Contact an authorized
Mercedes-Benz Light Truck Center as soon
as possible.
iSwitching on the ignition causes all
instrument cluster lamps (except high beam
headlamp indicator lamp, and turn signal
indicator lamps unless activated) as well as the
multifunction display to come on. Make sure the
lamps and multifunction display are in working
order before starting your journey.
