MERCEDES-BENZ G55AMG 2007 W463 Owner's Manual

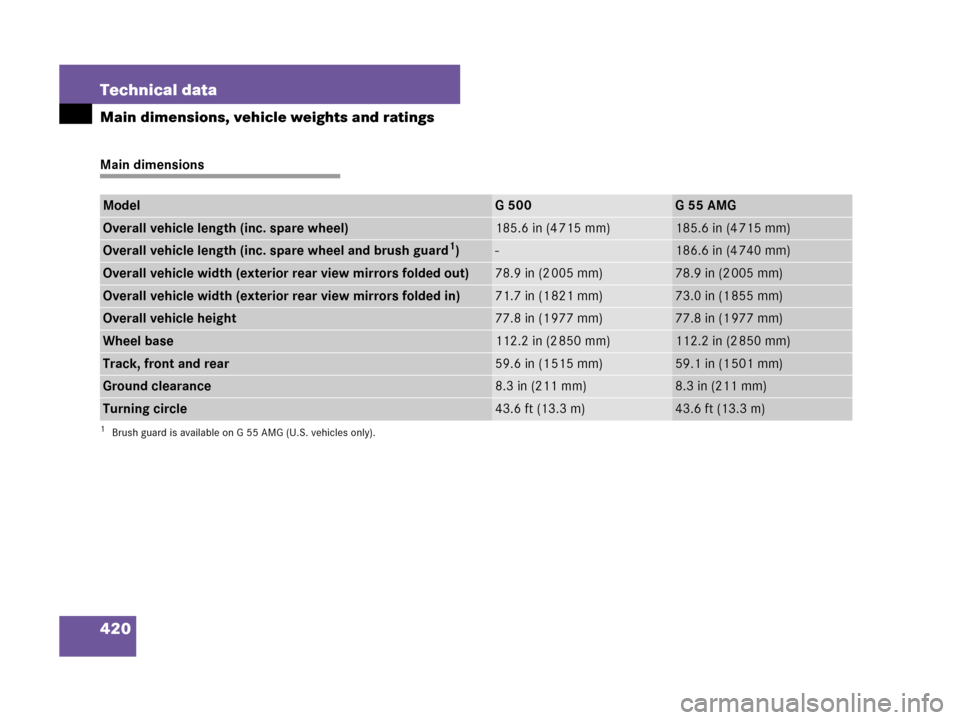

420 Technical data
Main dimensions, vehicle weights and ratings
Main dimensions
ModelG500G55AMG
Overall vehicle length (inc. spare wheel)185.6 in (4 715 mm)185.6 in (4 715 mm)
Overall vehicle length (inc. spare wheel and brush guard1)
1Brush guard is available on G 55 AMG (U.S. vehicles only).
-186.6 in (4 740 mm)
Overall vehicle width (exterior rear view mirrors folded out)78.9 in (2 005 mm)78.9 in (2 005 mm)
Overall vehicle width (exterior rear view mirrors folded in)71.7 in (1 821 mm)73.0 in (1 855 mm)
Overall vehicle height77.8 in (1 977 mm)77.8 in (1 977 mm)
Wheel base112.2 in (2 850 mm)112.2 in (2 850 mm)
Track, front and rear59.6 in (1 515 mm)59.1 in (1 501 mm)
Ground clearance8.3 in (211 mm)8.3 in (211 mm)
Turning circle43.6ft (13.3m)43.6 ft (13.3 m)

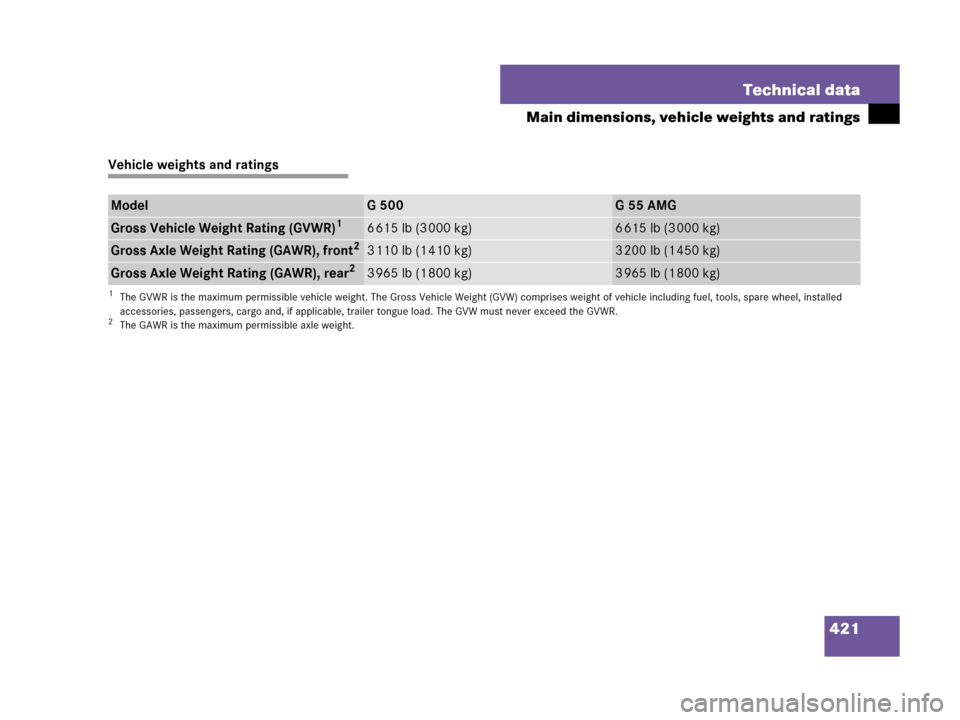

421 Technical data
Main dimensions, vehicle weights and ratings
Vehicle weights and ratings
ModelG500G55AMG
Gross Vehicle Weight Rating (GVWR)1
1The GVWR is the maximum permissible vehicle weight. The Gross Vehicle Weight (GVW) comprises weight of vehicle including fuel, tools, spare wheel, installed
accessories, passengers, cargo and, if applicable, trailer tongue load. The GVW must never exceed the GVWR.
6 615 lb (3 000 kg)6 615 lb (3 000 kg)
Gross Axle Weight Rating (GAWR), front2
2The GAWR is the maximum permissible axle weight.
3 110 lb (1 410 kg)3 200 lb (1 450 kg)
Gross Axle Weight Rating (GAWR), rear23 965 lb (1 800 kg)3 965 lb (1 800 kg)

422 Technical data
Fuels, coolants, lubricants, etc.
Capacities
Vehicle components and their respective
lubricants must match.Therefore only use
products tested and approved by
Mercedes-Benz.
Please refer to the Factory Approved
Service Products pamphlet (USA only), or
inquire at an authorized Mercedes-Benz
Light Truck Center.
Warning!G
Comply with all valid regulations with
respect to handling, storing and disposing
of service fluids. Otherwise you could
endanger persons or the environment.
Keep service fluids out of the reach of
children.
For health reasons, you should prevent
service fluids from coming into direct
contact with your skin or clothing.
If a service fluid is swallowed, contact a
physician immediately.

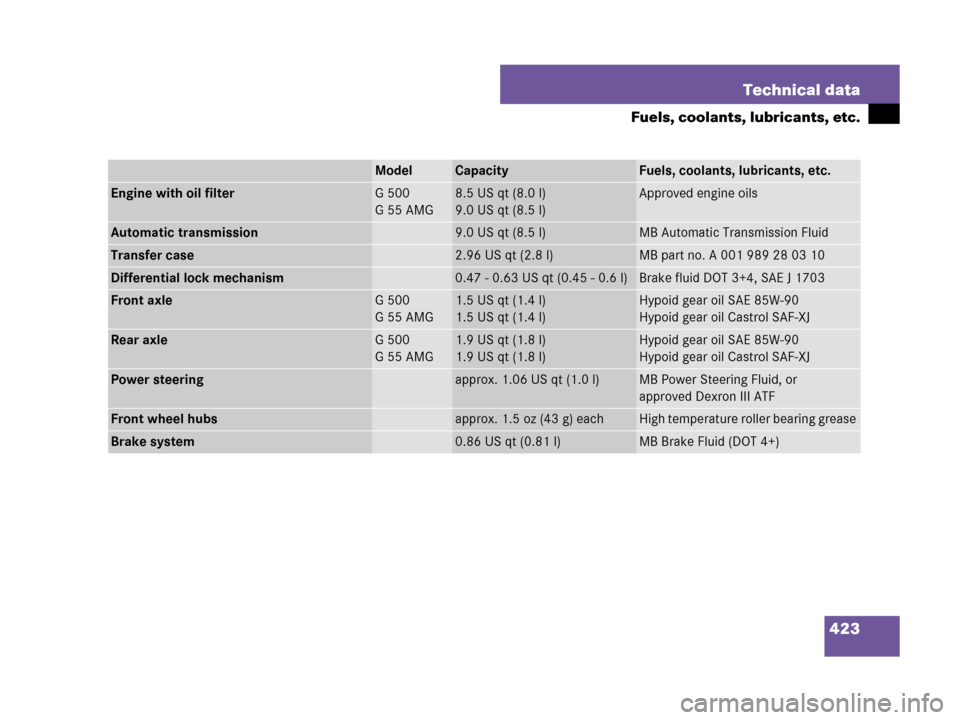

423 Technical data
Fuels, coolants, lubricants, etc.
ModelCapacityFuels, coolants, lubricants, etc.
Engine with oil filterG 500
G55AMG8.5 US qt (8.0 l)
9.0 US qt (8.5 l)Approved engine oils
Automatic transmission9.0 US qt (8.5 l)MB Automatic Transmission Fluid
Transfer case2.96 US qt (2.8 l)MB part no. A 001 989 28 03 10
Differential lock mechanism0.47 - 0.63 US qt (0.45 - 0.6 l)Brake fluid DOT 3+4, SAE J 1703
Front axleG 500
G55AMG1.5 US qt (1.4 l)
1.5 US qt (1.4 l)Hypoid gear oil SAE 85W-90
Hypoid gear oil Castrol SAF-XJ
Rear axleG 500
G55AMG1.9 US qt (1.8 l)
1.9 US qt (1.8 l)Hypoid gear oil SAE 85W-90
Hypoid gear oil Castrol SAF-XJ
Power steeringapprox. 1.06 US qt (1.0 l)MB Power Steering Fluid, or
approved Dexron III ATF
Front wheel hubsapprox. 1.5oz (43g) eachHigh temperature roller bearing grease
Brake system0.86 US qt (0.81 l)MB Brake Fluid (DOT 4+)

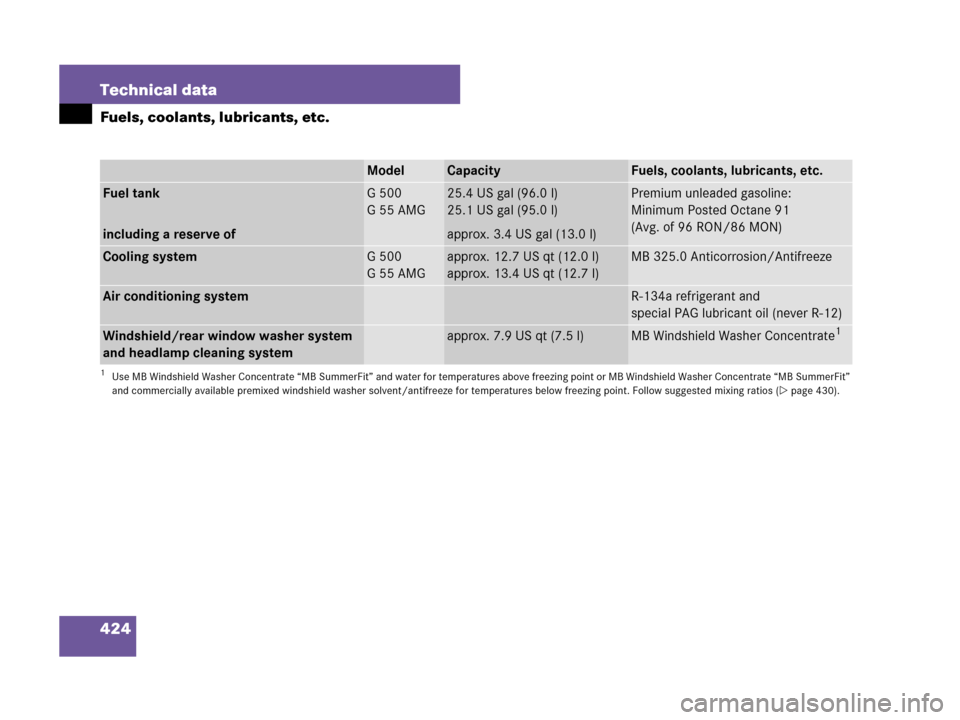

424 Technical data
Fuels, coolants, lubricants, etc.
ModelCapacityFuels, coolants, lubricants, etc.
Fuel tank
including a reserve ofG500
G55AMG25.4 US gal (96.0 l)
25.1 US gal (95.0 l)
approx. 3.4 US gal (13.0 l)Premium unleaded gasoline:
Minimum Posted Octane 91
(Avg. of 96 RON/86 MON)
Cooling systemG500
G55AMGapprox. 12.7USqt (12.0l)
approx. 13.4USqt (12.7l)MB 325.0 Anticorrosion/Antifreeze
Air conditioning systemR-134a refrigerant and
special PAG lubricant oil (never R-12)
Windshield/rear window washer system
and headlamp cleaning systemapprox. 7.9 US qt (7.5 l)MB Windshield Washer Concentrate1
1Use MB Windshield Washer Concentrate “MB SummerFit” and water for temperatures above freezing point or MB Windshield Washer Concentrate “MB SummerFit”
and commercially available premixed windshield washer solvent/antifreeze for temperatures below freezing point. Follow suggested mixing ratios (page 430).

425 Technical data
Fuels, coolants, lubricants, etc.
Engine oils
Engine oils are specifically tested for their
suitability in our engines and durability for
our service intervals. Therefore, only use
approved engine oils and oil filters
required for vehicles with Maintenance
System (U.S. vehicles) or FSS (Canada
vehicles). For a listing of approved engine
oils and oil filters, refer to the Factory
Approved Service Products pamphlet
(USA only), or contact an authorized
Mercedes-Benz Light Truck Center.
Engine oil additives
Air conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil are used in the air condition-
ing system.
Brake fluid
Only brake fluid approved by
Mercedes-Benz is recommended. Any
authorized Mercedes-Benz Light Truck
Center will provide you with additional
information.
!Using engine oils and oil filters of specifi-
cation other than those expressly required for
the Maintenance System (U.S. vehicles) or FSS
(Canada vehicles), or changing of oil and oil filter
at change intervals longer than those called for
by the Maintenance System (U.S. vehicles) or
FSS (Canada vehicles) will result in engine
damage not covered by the Mercedes-Benz
Limited Warranty.Please follow Maintenance System
(U.S. vehicles) or FSS (Canada vehicles)
recommendations for scheduled oil changes.
Failure to do so will result in engine damage not
covered by the Mercedes-Benz Limited
Warranty.
!Do not blend oil additives with engine oil.
They may damage the engine.
Damage or malfunctions resulting from blending
oil additives are not covered by the
Mercedes-Benz Limited Warranty.
!Never use R-12 (CFC) or mineral-based
lubricating oil. Otherwise damage to the system
will occur.
Warning!G
During vehicle operation, the boiling point of
the brake fluid is continuously reduced
through the absorption of moisture from the
atmosphere. Under extremely strenuous
operating conditions, this moisture content
can lead to the formation of bubbles in the
system, thus reducing the system’s
efficiency.
Therefore, the brake fluid must be replaced
regularly. Refer to your vehicle’s
Maintenance Booklet for replacement
interval.

426 Technical data
Fuels, coolants, lubricants, etc.
Premium unleaded gasolineFuel requirements
Only use premium unleaded fuel:

The octane number (posted at the
pump) must be 91 min. It is an average
of both the Research Octane Number
(RON) and the Motor Octane Number
(MON): (RON+MON)/2. This is also
known as the ANTI-KNOCK INDEX.
Unleaded gasoline containing oxygenates
such as ethanol, IPA, IBA and TBA can be
used provided the ratio of any one of these
oxygenates to gasoline does not
exceed 10%; MTBE must not exceed 15%.
The ratio of methanol to gasoline must not
exceed 3% plus additional cosolvents.
Using mixtures of ethanol and methanol is
not allowed. Gasohol, which contains 10%
ethanol and 90% unleaded gasoline, can
be used.
These blends must also meet all other fuel
requirements, such as resistance to spark
knock, boiling range, vapor pressure, etc.Warning!G
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious
personal injury.
Never allow sparks, flame or smoking
materials near gasoline!
Turn off the engine before refueling.
Whenever you are around gasoline, avoid
inhaling fumes and skin or clothing contact,
extinguish all smoking materials.
Direct skin contact with fuels and the
inhalation of fuel vapors are damaging to
your health.
!To maintain the engine’s durability and
performance, premium unleaded gasoline must
be used. If premium unleaded gasoline is not
available and low octane fuel is used, follow
these precautions:

Have the fuel tank only partially filled with
unleaded regular gasoline and fill up with
premium unleaded gasoline as soon as
possible.

Avoid full throttle driving and abrupt
acceleration.

Do not exceed an engine speed of 3 000 rpm
if the vehicle is loaded with a light load such
as two persons and no luggage.

Do not exceed 2/3 of maximum accelerator
pedal position if the vehicle is fully loaded or
operating in mountainous terrain.

427 Technical data
Fuels, coolants, lubricants, etc.
Gasoline additives
A major concern among engine
manufacturers is carbon build-up caused
by gasoline. Mercedes-Benz recommends
only the use of quality gasoline containing
additives that prevent the build-up of car-
bon deposits.
After an extended period of using fuels
without such additives, carbon deposits
can build up, especially on the intake
valves and in the combustion area, leading
to engine performance problems such as:

Warm-up hesitation

Unstable idle

Knocking/pinging

Misfire

Power lossIn areas where carbon deposits may be
encountered due to lack of availability of
gasolines which contain these additives,
Mercedes-Benz recommends the use of
additives approved by us for use on
Mercedes-Benz vehicles. Refer to the
Factory Approved Service Products
pamphlet (USA only) or contact an autho-
rized Mercedes-Benz Light Truck Center
for a listing of approved product(s). Follow
directions on product label.
Do not blend other fuel additives with fuel.
This only results in unnecessary cost and
may be harmful to the engine operation.
Coolants
The engine coolant is a mixture of water
and anticorrosion/antifreeze, which
provides:

Corrosion protection

Freeze protection

Boiling protection (by increasing the
boiling point)
The cooling system was filled at the factory
with a coolant providing freeze protection
to approximately -35°F (-37°C) and corro-
sion protection.
If the antifreeze mixture is effective to
-35°F (-37°C), the boiling point of the cool-
ant in the pressurized cooling system is
reached at approximately 266°F (130°C).
!Damage or malfunction resulting from poor
fuel quality or from blending additional fuel
additives other than those tested and approved
by us for use on Mercedes-Benz vehicles are not
covered by the Mercedes-Benz Limited
Warranty.! Add premixed coolant solution only. Adding
water and MB 325.0 Anticorrosion/Antifreeze
separately from each other, could cause engine
damage not covered by the Mercedes-Benz
Limited Warranty.

428 Technical data
Fuels, coolants, lubricants, etc.
The coolant solution must be used year
round to provide the necessary corrosion
protection and increase boil-over protec-
tion. Refer to Maintenance Booklet for
replacement interval.
Coolant system design and coolant used
determine the replacement interval. The
replacement interval published in the
Maintenance Booklet is only applicable if
MB 325.0 Anticorrosion/Antifreeze
solution or other Mercedes-Bent approved
products of equal specification are used to
renew the coolant concentration or bring it
back up to the proper level.
For information on other Mercedes-Benz
approved products of equal specification,
refer to the Factory Approved Service
Products pamphlet (USA only) or contact
an authorized Mercedes-Benz Light Truck

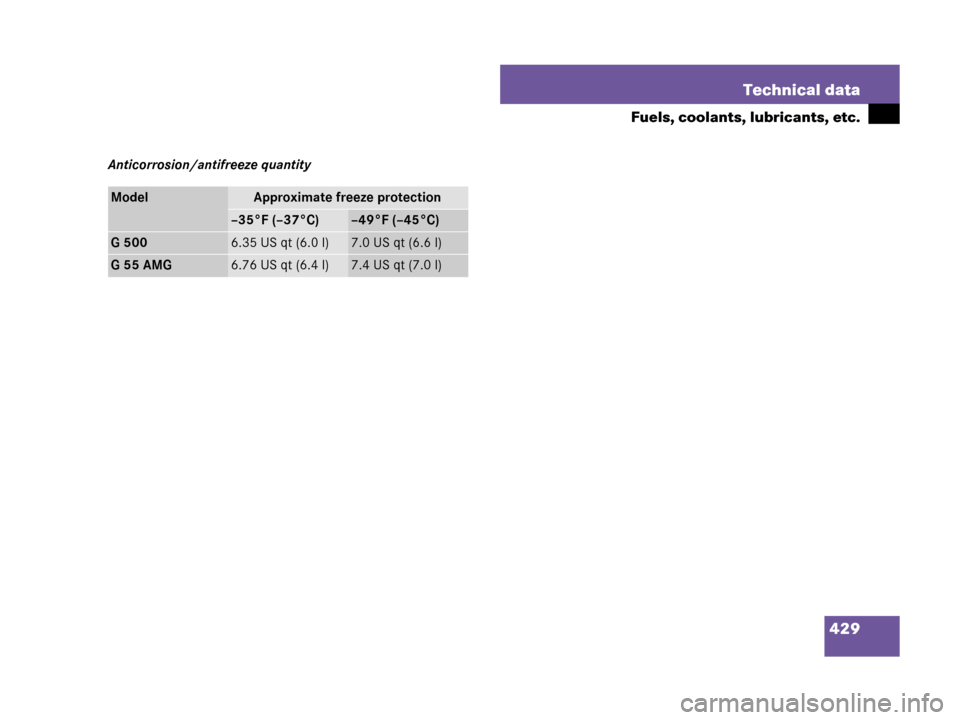

Center.To provide important corrosion protection,
the solution must be at least
50% anticorrosion/antifreeze (equivalent
to freeze protection to approximately
-35°F [-37°C]). If you use a solution that is
more than 55% anticorrosion/antifreeze
(freeze protection to approximately
-49°F [-45°C]), the engine temperature
will increase due to the lower heat transfer
capability of the solution. Therefore,
do not use more than this amount of
anticorrosion/antifreeze.
If the coolant level is low, water and
MB 325.0 Anticorrosion/Antifreeze
should be used to bring it up to the proper
level (have cooling system checked for
signs of leakage). Please make sure the
mixture is in accordance with label
instructions.
The water in the cooling system must meet
minimum requirements, which are usually
satisfied by normal drinking water. If you
are not sure about the water quality,
contact an authorized Mercedes-Benz
Light Truck Center.Anticorrosion/antifreeze
Your vehicle contains a number of
aluminum parts. The use of aluminum
components in motor vehicle engines
necessitates that anticorrosion/antifreeze
coolant used in such engines be
specifically formulated to protect the
aluminum parts. Failure to use such
anticorrosion/antifreeze coolant will
result in a significantly shortened service
life.
Therefore, the following product is strongly
recommended for use in your vehicle:
Mercedes-Benz
325.0 Anticorrosion/Antifreeze agent.
Before the start of the winter season (or
once a year in hot southern regions), you
should have the anticorrosion/antifreeze
concentration checked. The coolant is also
regularly checked each time you bring your
vehicle to an authorized Mercedes-Benz
Light Truck Center for service.

429 Technical data
Fuels, coolants, lubricants, etc.
Anticorrosion/antifreeze quantity
ModelApproximate freeze protection
–35°F (–37°C)–49°F (–45°C)
G5006.35 US qt (6.0 l)7.0 US qt (6.6 l)
G55AMG6.76 US qt (6.4 l)7.4 US qt (7.0 l)
