MERCEDES-BENZ GL 2014 Owners Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2014, Model line: GL, Model: MERCEDES-BENZ GL 2014Pages: 462, PDF Size: 8.98 MB

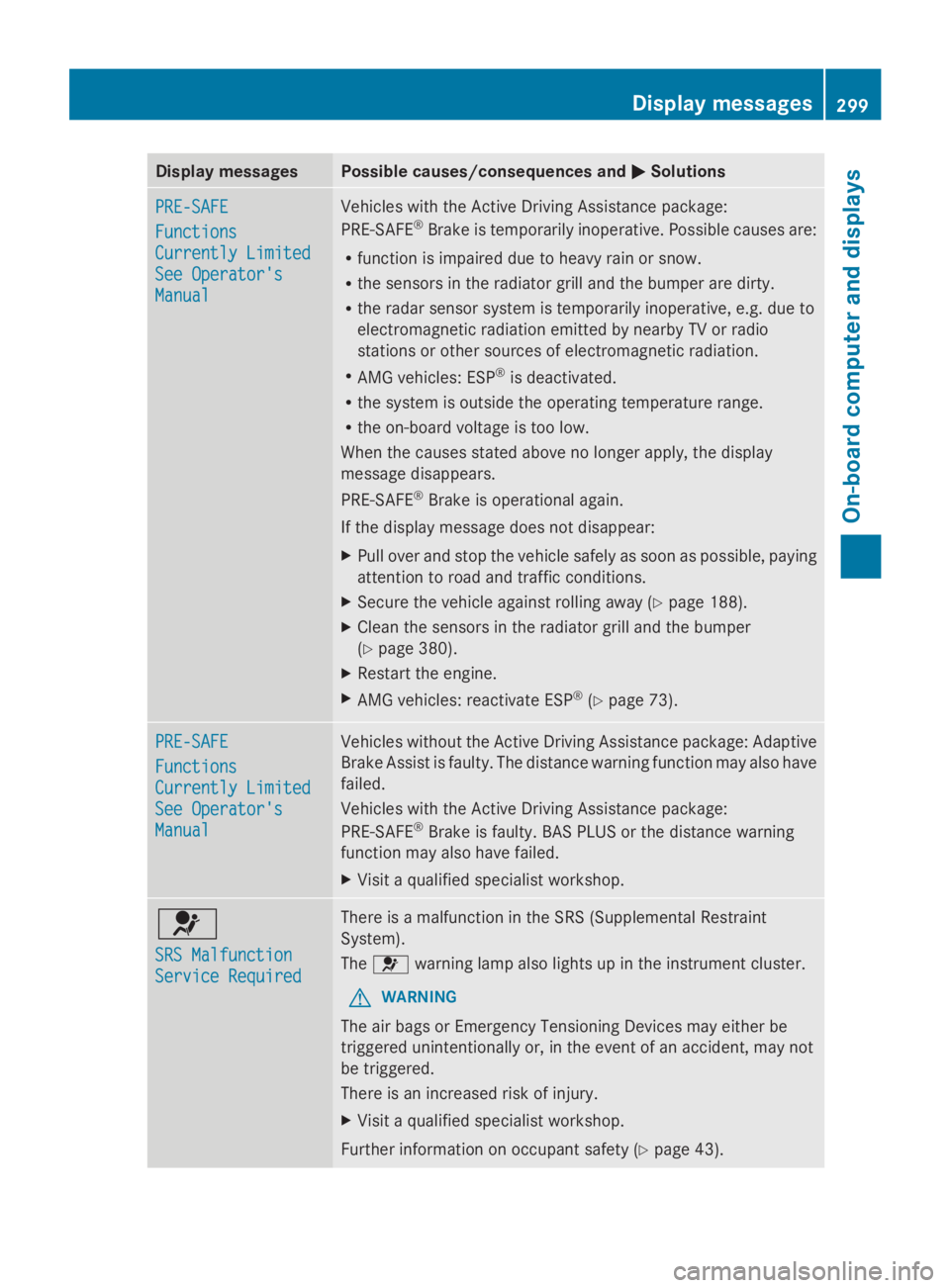

Page 301 of 462
Display messagesPossible causes/consequences and P PSolutions
PRE-SAFEPRE-SAFE
FunctionsFunctions
Currently LimitedCurrently Limited
See Operator'sSee Operator's
ManualManual
Vehicles with the Active Driving Assistance package:
PRE-SAFE®Brake is temporarily inoperative. Possible causes are:
Rfunction is impaired due to heavy rain or snow.
Rthe sensors in the radiator grill and the bumper are dirty.
Rthe radar sensor system is temporarily inoperative, e.g. due to
electromagnetic radiation emitted by nearby TV or radio
stations or other sources of electromagnetic radiation.
RAMG vehicles: ESP®is deactivated.
Rthe system is outside the operating temperature range.
Rthe on-board voltage is too low.
When the causes stated above no longer apply, the display
message disappears.
PRE-SAFE®Brake is operational again.
If the display message does not disappear:
XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
XSecure the vehicle against rolling away (Ypage 188).
XClean the sensors in the radiator grill and the bumper
(Ypage 380).
XRestart the engine.
XAMG vehicles: reactivate ESP®(Ypage 73).
PRE-SAFEPRE-SAFE
FunctionsFunctions
Currently LimitedCurrently Limited
See Operator'sSee Operator's
ManualManual
Vehicles without the Active Driving Assistance package: Adaptive
Brake Assist is faulty. The distance warning function may also have
failed.
Vehicles with the Active Driving Assistance package:
PRE-SAFE®Brake is faulty. BAS PLUS or the distance warning
function may also have failed.
XVisit a qualified specialist workshop.
u
SRS MalfunctionSRS Malfunction
Service RequiredService Required
There is a malfunction in the SRS (Supplemental Restraint
System).
The uwarning lamp also lights up in the instrument cluster.
GWARNING
The air bags or Emergency Tensioning Devices may either be
triggered unintentionally or, in the event of an accident, may not
be triggered.
There is an increased risk of injury.
XVisit a qualified specialist workshop.
Further information on occupant safety (Ypage 43).
Displaymessages299
On-b oard computer and displays
Z

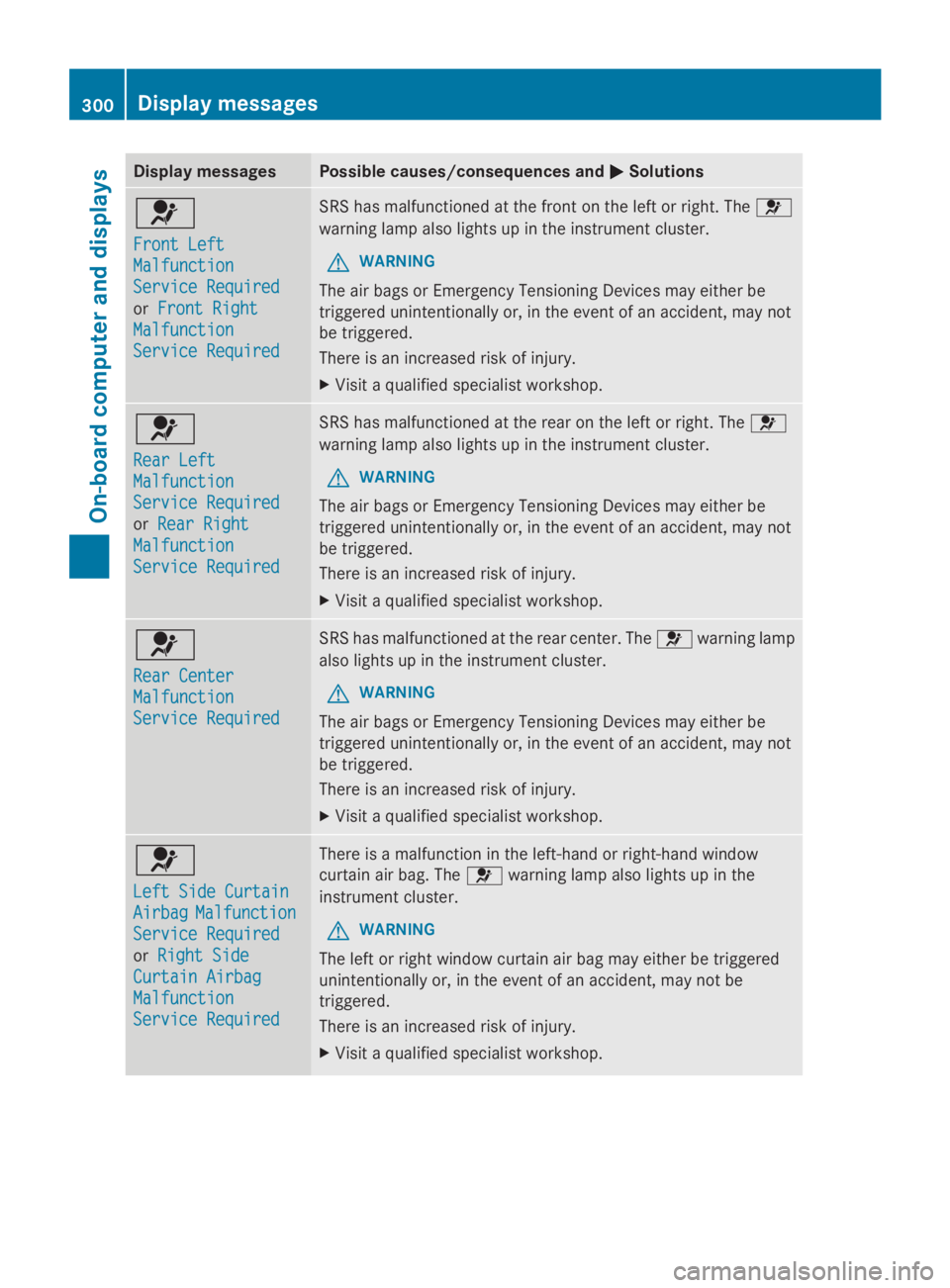

Page 302 of 462
Display messagesPossible causes/consequences and P PSolutions
u
Front LeftFront Left
MalfunctionMalfunction
Service RequiredService Required
orFront RightFront Right
MalfunctionMalfunction
Service RequiredService Required
SRS has malfunctioned at the front on the left or right. The u
warning lamp also lights up in the instrument cluster.
GWARNING
The air bags or Emergency Tensioning Devices may either be
triggered unintentionally or, in the event of an accident, may not
be triggered.
There is an increased risk of injury.
XVisit a qualified specialist workshop.
u
Rear LeftRear Left
MalfunctionMalfunction
Service RequiredService Required
orRear RightRear Right
MalfunctionMalfunction
Service RequiredService Required
SRS has malfunctioned at the rear on the left or right. The u
warning lamp also lights up in the instrument cluster.
GWARNING
The air bags or Emergency Tensioning Devices may either be
triggered unintentionally or, in the event of an accident, may not
be triggered.
There is an increased risk of injury.
XVisit a qualified specialist workshop.
u
Rear CenterRear Center
MalfunctionMalfunction
Service RequiredService Required
SRS has malfunctioned at the rear center. The uwarning lamp
also lights up in the instrument cluster.
GWARNING
The air bags or Emergency Tensioning Devices may either be
triggered unintentionally or, in the event of an accident, may not
be triggered.
There is an increased risk of injury.
XVisit a qualified specialist workshop.
u
Left Side CurtainLeft Side Curtain
AirbagAirbagMalfunctionMalfunction
Service RequiredService Required
orRight SideRight Side
Curtain AirbagCurtain Airbag
MalfunctionMalfunction
Service RequiredService Required
There is a malfunction in the left-hand or right-hand window
curtain air bag. The uwarning lamp also lights up in the
instrument cluster.
GWARNING
The left or right window curtain air bag may either be triggered
unintentionally or, in the event of an accident, may not be
triggered.
There is an increased risk of injury.
XVisit a qualified specialist workshop.
300Displaymessages
On-b oard computer and displays

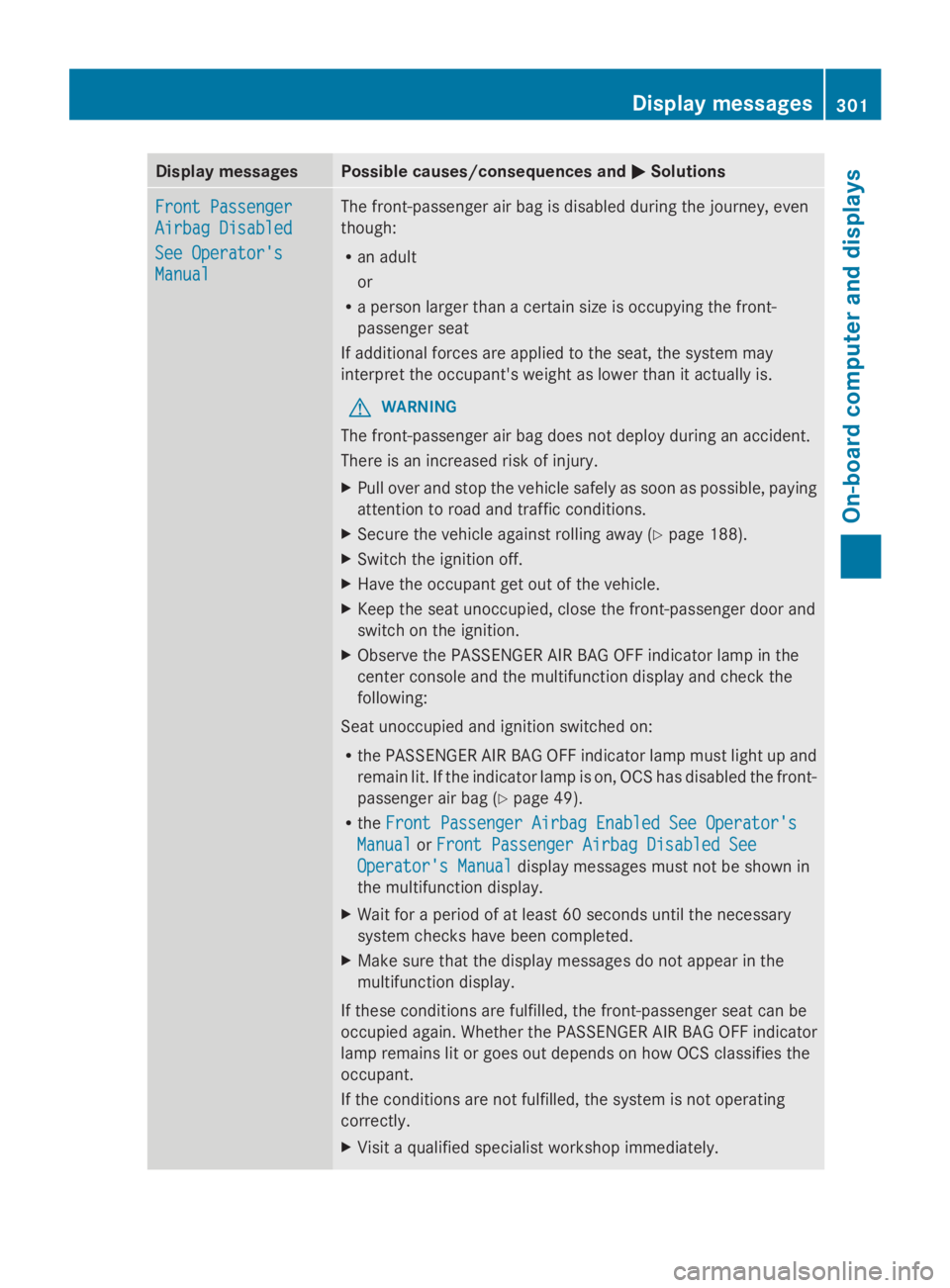

Page 303 of 462
Display messagesPossible causes/consequences and P PSolutions
Front PassengerFront Passenger
Airbag DisabledAirbag Disabled
See Operator'sSee Operator's
ManualManual
The front-passenger air bag is disabled during the journey, even
though:
Ran adult
or
Ra person larger than a certain size is occupying the front-
passenger seat
If additional forces are applied to the seat, the system may
interpret the occupant's weight as lower than it actually is.
GWARNING
The front-passenger air bag does not deploy during an accident.
There is an increased risk of injury.
XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
XSecure the vehicle against rolling away (Ypage 188).
XSwitch the ignition off.
XHave the occupant get out of the vehicle.
XKeep the seat unoccupied, close the front-passenger door and
switch on the ignition.
XObserve the PASSENGER AIR BAG OFF indicator lamp in the
center console and the multifunction display and check the
following:
Seat unoccupied and ignition switched on:
Rthe PASSENGER AIR BAG OFF indicator lamp must light up and
remain lit. If the indicator lamp is on, OCS has disabled the front-
passenger air bag (Ypage 49).
RtheFront Passenger Airbag Enabled See Operator'sFront Passenger Airbag Enabled See Operator's
ManualManualorFront Passenger Airbag Disabled SeeFront Passenger Airbag Disabled See
Operator's ManualOperator's Manualdisplay messages must not be shown in
the multifunction display.
XWait for a period of at least 60 seconds until the necessary
system checks have been completed.
XMake sure that the display messages do not appear in the
multifunction display.
If these conditions are fulfilled, the front-passenger seat can be
occupied again. Whether the PASSENGER AIR BAG OFF indicator
lamp remains lit or goes out depends on how OCS classifies the
occupant.
If the conditions are not fulfilled, the system is not operating
correctly.
XVisit a qualified specialist workshop immediately.
Displaymessages301
On-b oard computer and displays
Z

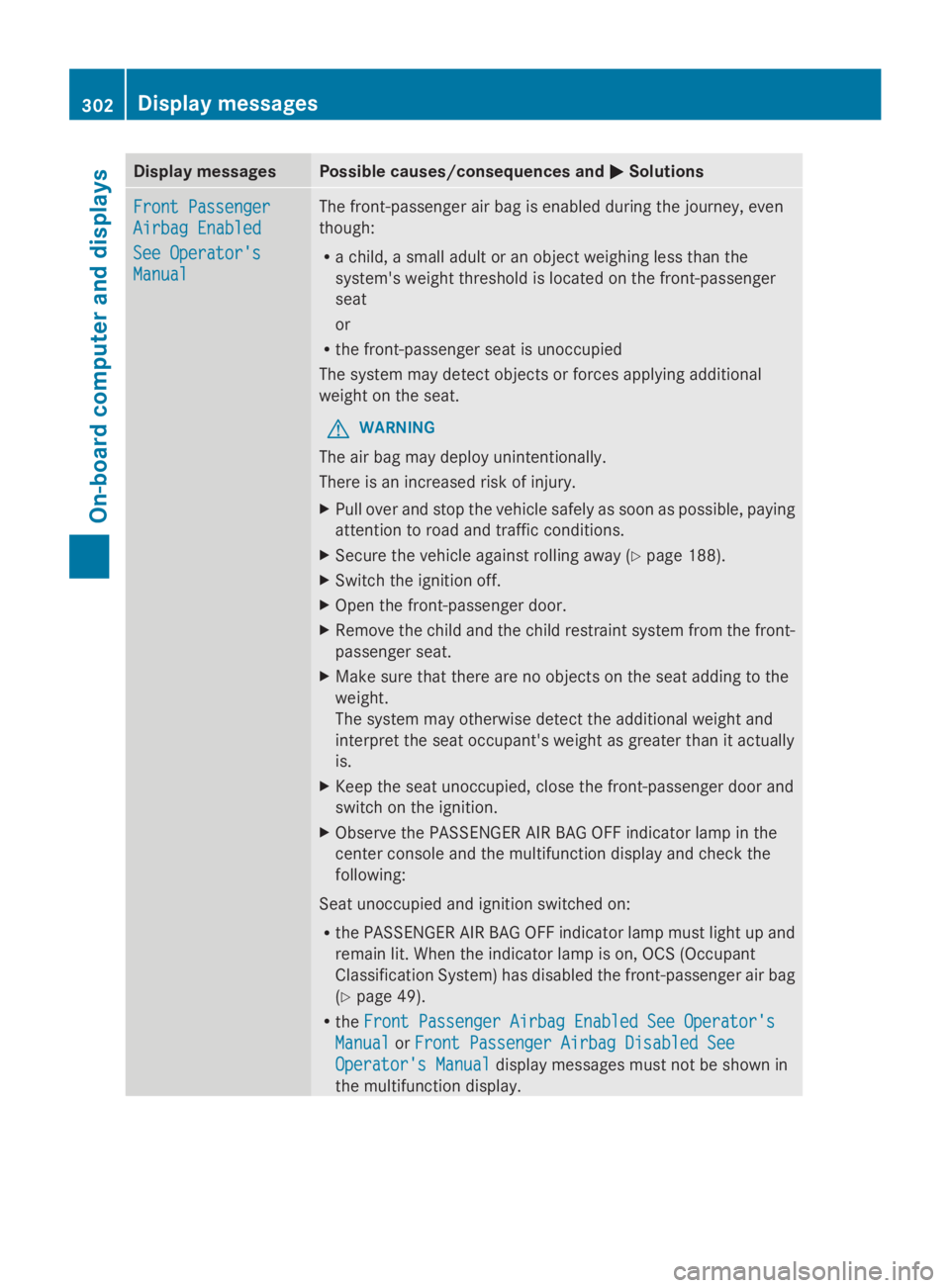

Page 304 of 462
Display messagesPossible causes/consequences and P PSolutions
Front PassengerFront Passenger
Airbag EnabledAirbag Enabled
See Operator'sSee Operator's
ManualManual
The front-passenger air bag is enabled during the journey, even
though:
Ra child, a small adult or an object weighing less than the
system's weight threshold is located on the front-passenger
seat
or
Rthe front-passenger seat is unoccupied
The system may detect objects or forces applying additional
weight on the seat.
GWARNING
The air bag may deploy unintentionally.
There is an increased risk of injury.
XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
XSecure the vehicle against rolling away (Ypage 188).
XSwitch the ignition off.
XOpen the front-passenger door.
XRemove the child and the child restraint system from the front-
passenger seat.
XMake sure that there are no objects on the seat adding to the
weight.
The system may otherwise detect the additional weight and
interpret the seat occupant's weight as greater than it actually
is.
XKeep the seat unoccupied, close the front-passenger door and
switch on the ignition.
XObserve the PASSENGER AIR BAG OFF indicator lamp in the
center console and the multifunction display and check the
following:
Seat unoccupied and ignition switched on:
Rthe PASSENGER AIR BAG OFF indicator lamp must light up and
remain lit. When the indicator lamp is on, OCS (Occupant
Classification System) has disabled the front-passenger air bag
(Ypage 49).
RtheFront Passenger Airbag Enabled See Operator'sFront Passenger Airbag Enabled See Operator's
ManualManualorFront Passenger Airbag Disabled SeeFront Passenger Airbag Disabled See
Operator's ManualOperator's Manualdisplay messages must not be shown in
the multifunction display.
302Displaymessages
On-b oard computer and displays

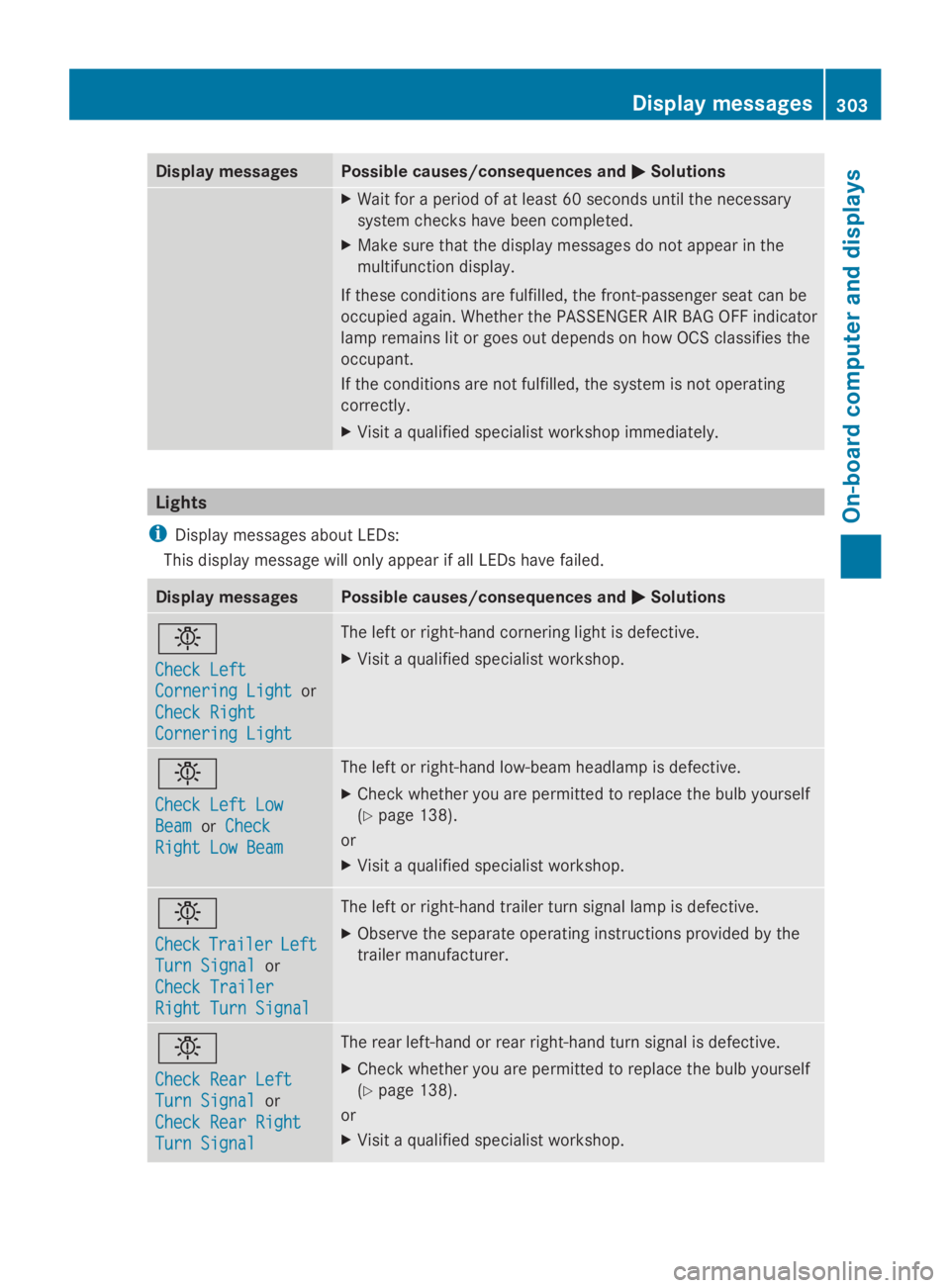

Page 305 of 462
Display messagesPossible causes/consequences and P PSolutions
XWait for a period of at least 60 seconds until the necessary
system checks have been completed.
XMake sure that the display messages do not appear in the
multifunction display.
If these conditions are fulfilled, the front-passenger seat can be
occupied again. Whether the PASSENGER AIR BAG OFF indicator
lamp remains lit or goes out depends on how OCS classifies the
occupant.
If the conditions are not fulfilled, the system is not operating
correctly.
XVisit a qualified specialist workshop immediately.
Lights
iDisplay messages about LEDs:
This display message will only appear if all LEDs have failed.
Display messagesPossible causes/consequences and P PSolutions
I
Check LeftCheck Left
Cornering LightCornering Lightor
Check RightCheck Right
Cornering LightCornering Light
The left or right-hand cornering light is defective.
XVisit a qualified specialist workshop.
I
Check Left LowCheck Left Low
BeamBeamorCheckCheck
Right Low BeamRight Low Beam
The left or right-hand low-beam headlamp is defective.
XCheck whether you are permitted to replace the bulb yourself
(Ypage 138).
or
XVisit a qualified specialist workshop.
I
CheckCheckTrailerTrailerLeftLeft
Turn SignalTurn Signalor
Check TrailerCheck Trailer
Right Turn SignalRight Turn Signal
The left or right-hand trailer turn signal lamp is defective.
XObserve the separate operating instructions provided by the
trailer manufacturer.
I
Check Rear LeftCheck Rear Left
Turn SignalTurn Signalor
Check Rear RightCheck Rear Right
Turn SignalTurn Signal
The rear left-hand or rear right-hand turn signal is defective.
XCheck whether you are permitted to replace the bulb yourself
(Ypage 138).
or
XVisit a qualified specialist workshop.
Displaymessages303
On-b oard computer and displays
Z

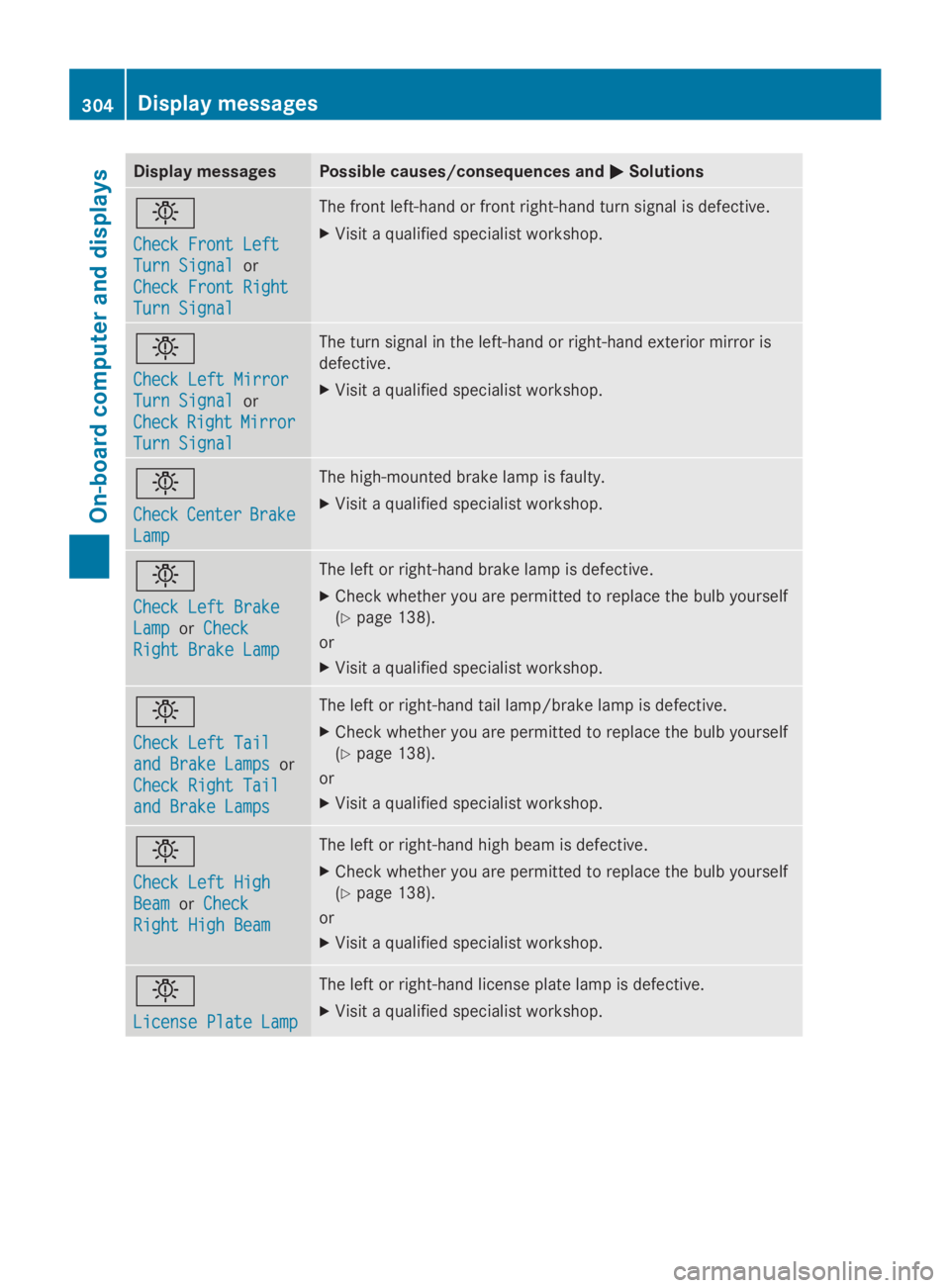

Page 306 of 462
Display messagesPossible causes/consequences and P PSolutions
I
Check Front LeftCheck Front Left
Turn SignalTurn Signalor
Check Front RightCheck Front Right
Turn SignalTurn Signal
The front left-hand or front right-hand turn signal is defective.
XVisit a qualified specialist workshop.
I
Check Left MirrorCheck Left Mirror
Turn SignalTurn Signalor
CheckCheckRightRightMirrorMirror
Turn SignalTurn Signal
The turn signal in the left-hand or right-hand exterior mirror is
defective.
XVisit a qualified specialist workshop.
I
CheckCheckCenterCenterBrakeBrake
LampLamp
The high-mounted brake lamp is faulty.
XVisit a qualified specialist workshop.
I
Check Left BrakeCheck Left Brake
LampLamporCheckCheck
Right Brake LampRight Brake Lamp
The left or right-hand brake lamp is defective.
XCheck whether you are permitted to replace the bulb yourself
(Ypage 138).
or
XVisit a qualified specialist workshop.
I
Check Left TailCheck Left Tail
and Brake Lampsand Brake Lampsor
Check Right TailCheck Right Tail
and Brake Lampsand Brake Lamps
The left or right-hand tail lamp/brake lamp is defective.
XCheck whether you are permitted to replace the bulb yourself
(Ypage 138).
or
XVisit a qualified specialist workshop.
I
Check Left HighCheck Left High
BeamBeamorCheckCheck
Right High BeamRight High Beam
The left or right-hand high beam is defective.
XCheck whether you are permitted to replace the bulb yourself
(Ypage 138).
or
XVisit a qualified specialist workshop.
I
License Plate LampLicense Plate Lamp
The left or right-hand license plate lamp is defective.
XVisit a qualified specialist workshop.
304Displaymessages
On-b oard computer and displays
Page 307 of 462

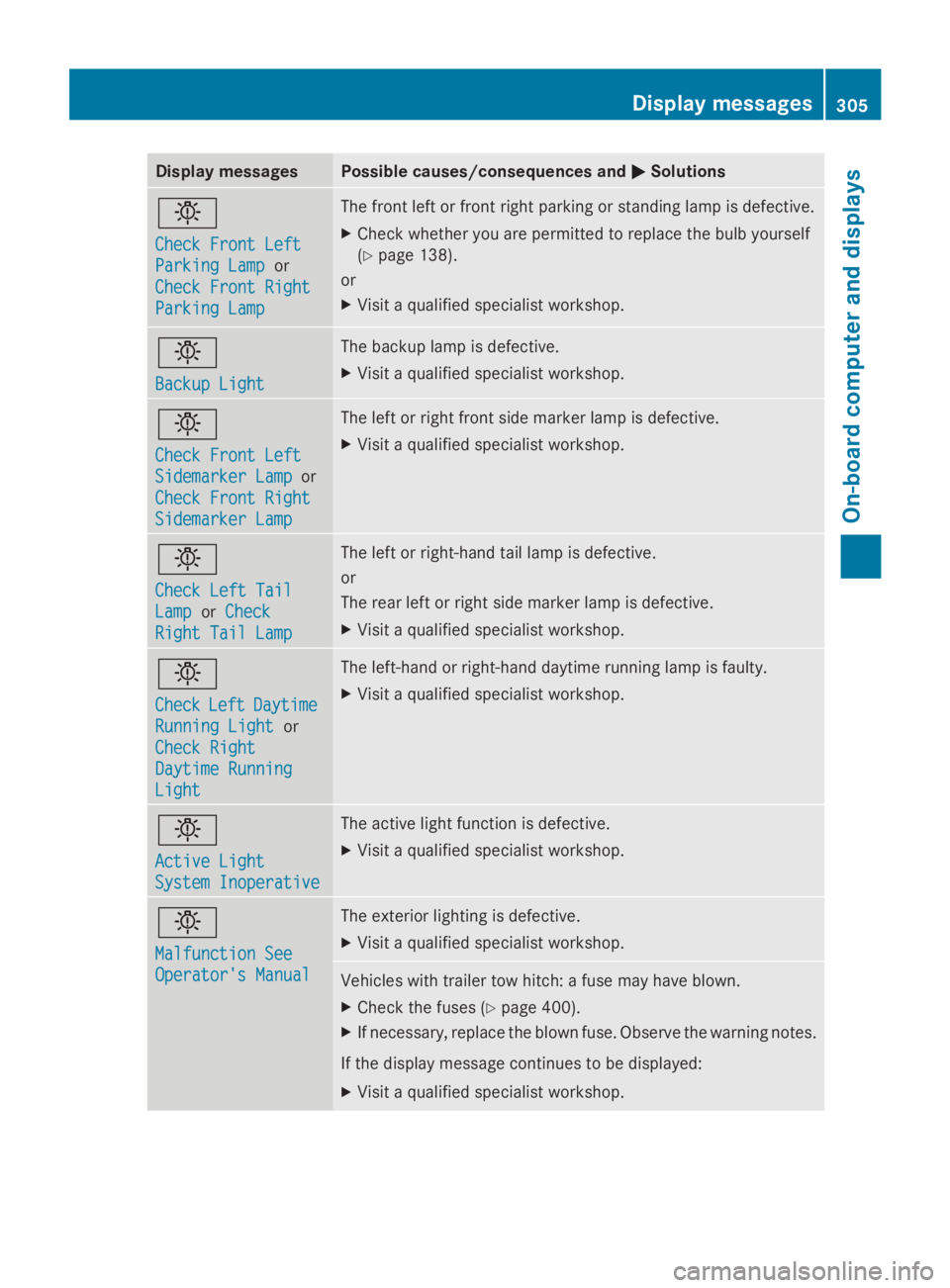

Display messagesPossible causes/consequences and P PSolutions
I
Check Front LeftCheck Front Left
Parking LampParking Lampor
Check Front RightCheck Front Right
Parking LampParking Lamp
The front left or front right parking or standing lamp is defective.
XCheck whether you are permitted to replace the bulb yourself
(Ypage 138).
or
XVisit a qualified specialist workshop.
I
Backup LightBackup Light
The backup lamp is defective.
XVisit a qualified specialist workshop.
I
Check Front LeftCheck Front Left
Sidemarker LampSidemarker Lampor
Check Front RightCheck Front Right
Sidemarker LampSidemarker Lamp
The left or right front side marker lamp is defective.
XVisit a qualified specialist workshop.
I
Check Left TailCheck Left Tail
LampLamporCheckCheck
Right Tail LampRight Tail Lamp
The left or right-hand tail lamp is defective.
or
The rear left or right side marker lamp is defective.
XVisit a qualified specialist workshop.
I
CheckCheckLeftLeftDaytimeDaytime
Running LightRunning Lightor
Check RightCheck Right
Daytime RunningDaytime Running
LightLight
The left-hand or right-hand daytime running lamp is faulty.
XVisit a qualified specialist workshop.
I
Active LightActive Light
System InoperativeSystem Inoperative
The active light function is defective.
XVisit a qualified specialist workshop.
I
Malfunction SeeMalfunction See
Operator's ManualOperator's Manual
The exterior lighting is defective.
XVisit a qualified specialist workshop.
Vehicles with trailer tow hitch: a fuse may have blown.
XCheck the fuses (Ypage 400).
XIf necessary, replace the blown fuse. Observe the warning notes.
If the display message continues to be displayed:
XVisit a qualified specialist workshop.
Displaymessages305
On-b oard computer and displays
Z
Page 308 of 462
Display messagesPossible causes/consequences and P PSolutions
I
AutoAutoLampLampFunctionFunction
InoperativeInoperative
The light sensor is defective.
XVisit a qualified specialist workshop.
I
Switch Off LightsSwitch Off Lights
The lights are still switched on when you leave the vehicle. A
warning tone also sounds.
XTurn the light switch to X.
Adaptive HighbeamAdaptive Highbeam
Assist InoperativeAssist Inoperative
Adaptive Highbeam Assist is faulty.
XVisit a qualified specialist workshop.
Adaptive HighbeamAdaptive Highbeam
Assist CurrentlyAssist Currently
Unavailable SeeUnavailable See
Operator's ManualOperator's Manual
Adaptive Highbeam Assist is deactivated and temporarily
inoperative. Possible causes are:
Rthe windshield in the camera's field of vision is dirty.
Rvisibility is impaired due to heavy rain, snow or fog.
XClean the windshield.
If the system detects that the camera is fully operational again,
theAdaptive Highbeam Assist Now AvailableAdaptive Highbeam Assist Now Availablemessage is
displayed.
Adaptive Highbeam Assist is operational again.
Engine
Display messagesPossible causes/consequences and P PSolutions
Page 309 of 462
Display messagesPossible causes/consequences and P PSolutions
Page 310 of 462
Display messagesPossible causes/consequences and P PSolutions
