MERCEDES-BENZ GL 2014 Owners Manual

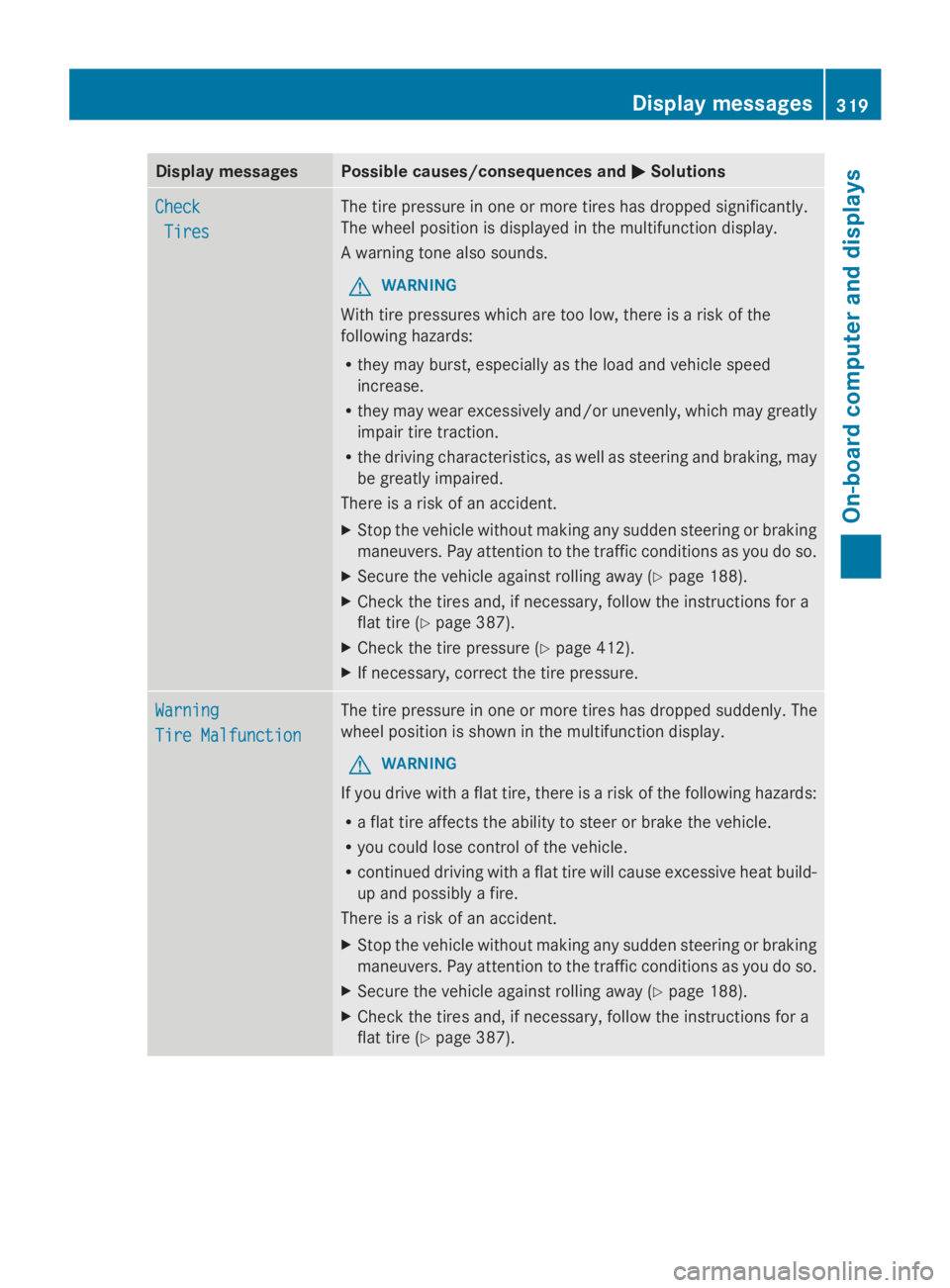

Display messagesPossible causes/consequences andPPSolutions
CheckCheck
TiresTires
The tire pressure in one or more tires has dropped significantly.
The wheel position is displayed in the multifunction display.
A warning tone also sounds.
GWARNING
With tire pressures which are too low, there is a risk of the
following hazards:
Rthey may burst, especially as the load and vehicle speed
increase.
Rthey may wear excessively and/or unevenly, which may greatly
impair tire traction.
Rthe driving characteristics, as well as steering and braking, may
be greatly impaired.
There is a risk of an accident.
XStop the vehicle without making any sudden steering or braking
maneuvers. Pay attention to the traffic conditions as you do so.
XSecure the vehicle against rolling away (Ypage 188).
XCheck the tires and, if necessary, follow the instructions for a
flat tire (Ypage 387).
XCheck the tire pressure (Ypage 412).
XIf necessary, correct the tire pressure.
WarningWarning
Tire MalfunctionTire Malfunction
The tire pressure in one or more tires has dropped suddenly. The
wheel position is shown in the multifunction display.
GWARNING
If you drive with a flat tire, there is a risk of the following hazards:
Ra flat tire affects the ability to steer or brake the vehicle.
Ryou could lose control of the vehicle.
Rcontinued driving with a flat tire will cause excessive heat build-
up and possibly a fire.
There is a risk of an accident.
XStop the vehicle without making any sudden steering or braking
maneuvers. Pay attention to the traffic conditions as you do so.
XSecure the vehicle against rolling away (Ypage 188).
XCheck the tires and, if necessary, follow the instructions for a
flat tire (Ypage 387).
Displaymessages319
On-b oard computer and displays
Z

Display messagesPossible causes/consequences andPPSolutions

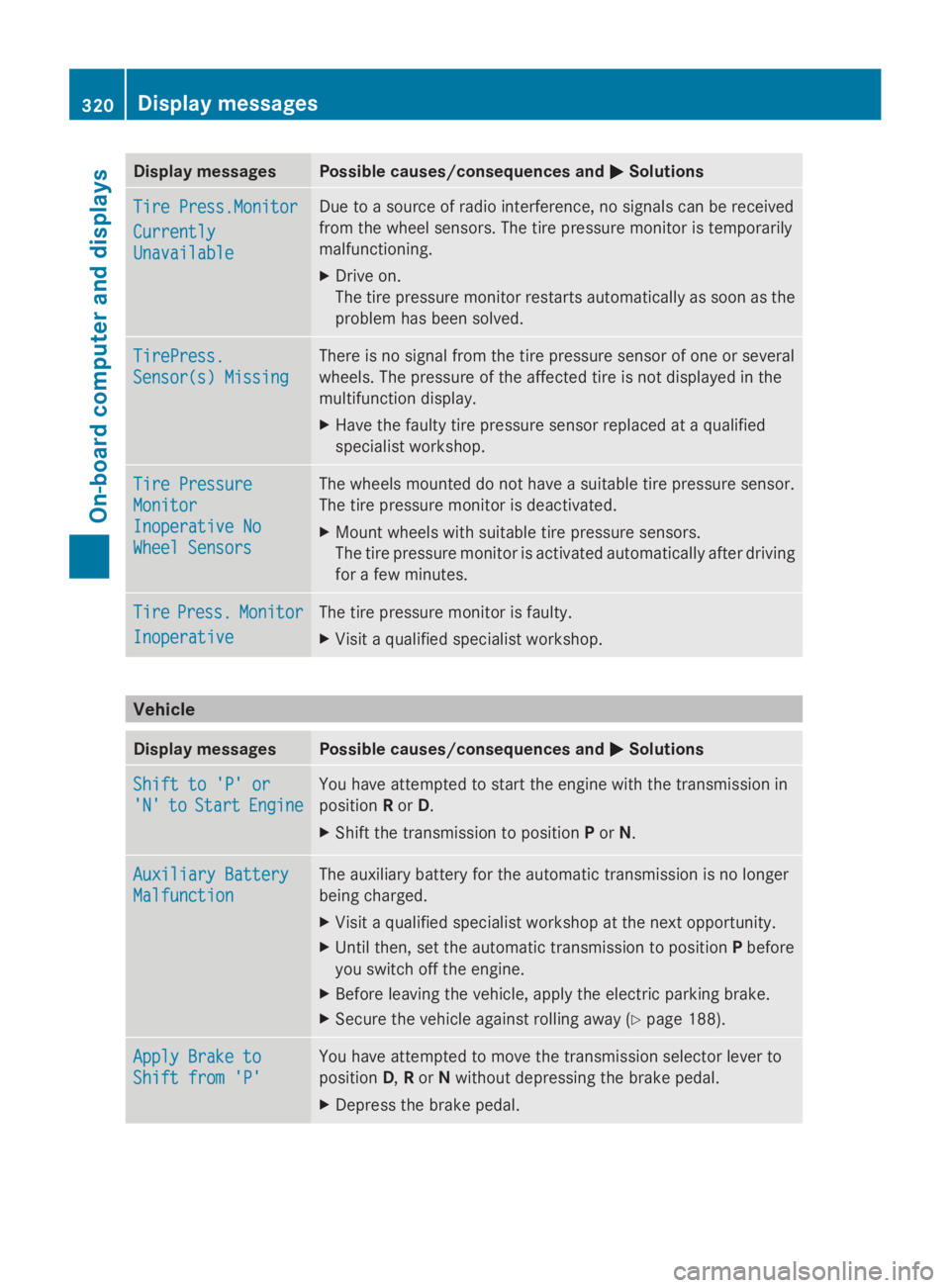

Tire Press.MonitorTire Press.Monitor
CurrentlyCurrently
UnavailableUnavailable
Due to a source of radio interference, no signals can be received
from the wheel sensors. The tire pressure monitor is temporarily
malfunctioning.
XDrive on.
The tire pressure monitor restarts automatically as soon as the
problem has been solved.
TirePress.TirePress.
Sensor(s) MissingSensor(s) Missing
There is no signal from the tire pressure sensor of one or several
wheels. The pressure of the affected tire is not displayed in the
multifunction display.
XHave the faulty tire pressure sensor replaced at a qualified
specialist workshop.
Tire PressureTire Pressure
MonitorMonitor
Inoperative NoInoperative No
Wheel SensorsWheel Sensors
The wheels mounted do not have a suitable tire pressure sensor.
The tire pressure monitor is deactivated.
XMount wheels with suitable tire pressure sensors.
The tire pressure monitor is activated automatically after driving
for a few minutes.
TireTirePress.Press.MonitorMonitor
InoperativeInoperative
The tire pressure monitor is faulty.
XVisit a qualified specialist workshop.
Vehicle
Display messagesPossible causes/consequences andPPSolutions
Shift to 'P' orShift to 'P' or
'N''N'totoStartStartEngineEngine
You have attempted to start the engine with the transmission in
positionRorD.
XShift the transmission to positionPorN.
Auxiliary BatteryAuxiliary Battery
MalfunctionMalfunction
The auxiliary battery for the automatic transmission is no longer
being charged.
XVisit a qualified specialist workshop at the next opportunity.
XUntil then, set the automatic transmission to positionPbefore
you switch off the engine.
XBefore leaving the vehicle, apply the electric parking brake.
XSecure the vehicle against rolling away (Ypage 188).
Apply Brake toApply Brake to
Shift from 'P'Shift from 'P'
You have attempted to move the transmission selector lever to
positionD,RorNwithout depressing the brake pedal.
XDepress the brake pedal.
320Displaymessages
On-b oard computer and displays

Display messagesPossible causes/consequences andPPSolutions

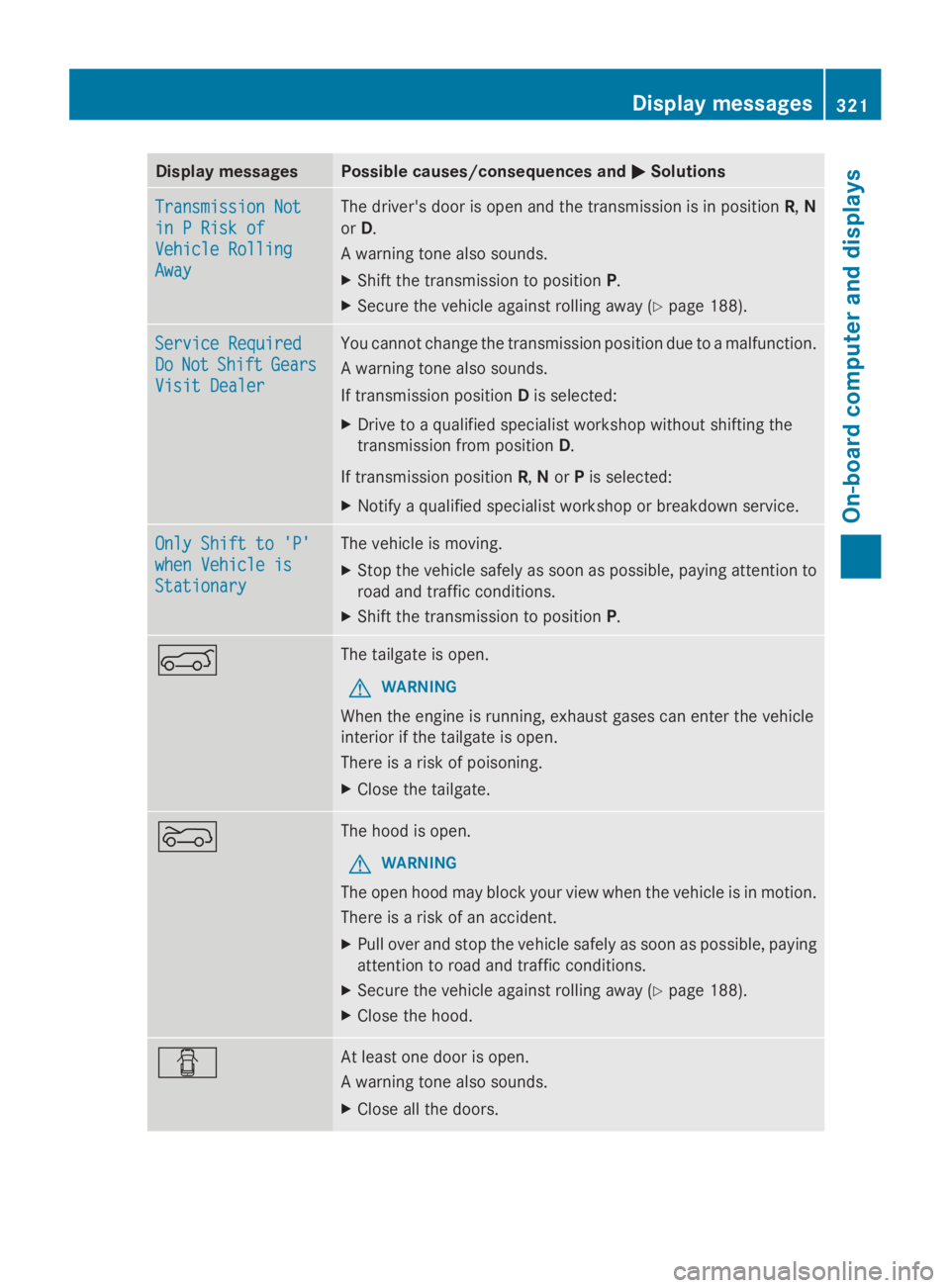

Transmission NotTransmission Not
in P Risk ofin P Risk of
Vehicle RollingVehicle Rolling
AwayAway
The driver's door is open and the transmission is in positionR,N
orD.
A warning tone also sounds.
XShift the transmission to positionP.
XSecure the vehicle against rolling away (Ypage 188).
Service RequiredService Required
DoDoNotNotShiftShiftGearsGears
Visit DealerVisit Dealer
You cannot change the transmission position due to a malfunction.
A warning tone also sounds.
If transmission positionDis selected:
XDrive to a qualified specialist workshop without shifting the
transmission from positionD.
If transmission positionR,NorPis selected:
XNotify a qualified specialist workshop or breakdown service.
Only Shift to 'P'Only Shift to 'P'
when Vehicle iswhen Vehicle is
StationaryStationary
The vehicle is moving.
XStop the vehicle safely as soon as possible, paying attention to
road and traffic conditions.
XShift the transmission to positionP.
eThe tailgate is open.
GWARNING
When the engine is running, exhaust gases can enter the vehicle
interior if the tailgate is open.
There is a risk of poisoning.
XClose the tailgate.
fThe hood is open.
GWARNING
The open hood may block your view when the vehicle is in motion.
There is a risk of an accident.
XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
XSecure the vehicle against rolling away (Ypage 188).
XClose the hood.
QAt least one door is open.
A warning tone also sounds.
XClose all the doors.
Displaymessages321
On-b oard computer and displays
Z

Display messagesPossible causes/consequences andPPSolutions
o

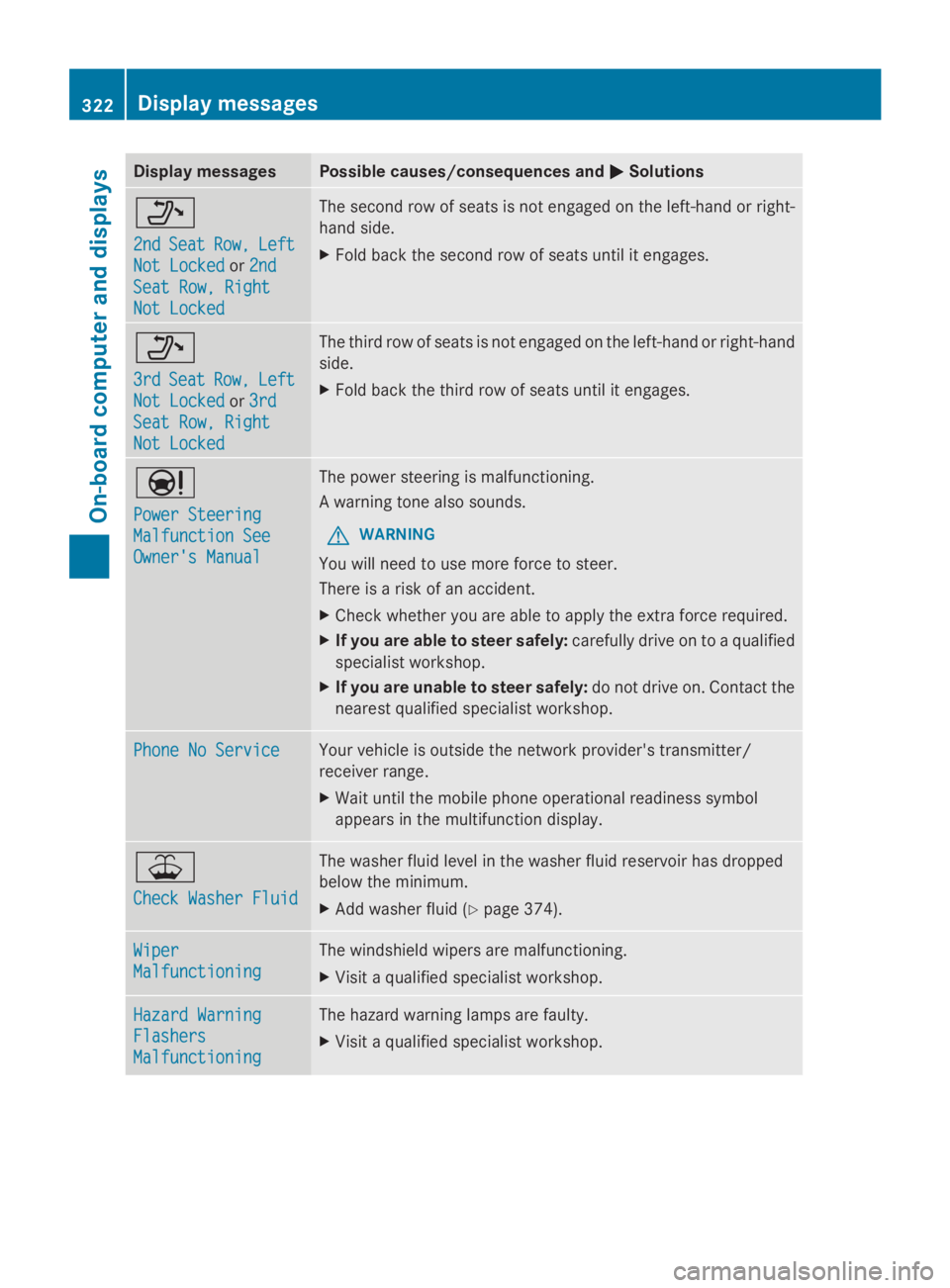

2nd2ndSeatSeatRow,Row,LeftLeft
Not LockedNot Lockedor2nd2nd
Seat Row, RightSeat Row, Right
Not LockedNot Locked
The second row of seats is not engaged on the left-hand or right-
hand side.
XFold back the second row of seats until it engages.
o
3rd3rdSeatSeatRow,Row,LeftLeft
Not LockedNot Lockedor3rd3rd
Seat Row, RightSeat Row, Right
Not LockedNot Locked
The third row of seats is not engaged on the left-hand or right-hand
side.
XFold back the third row of seats until it engages.

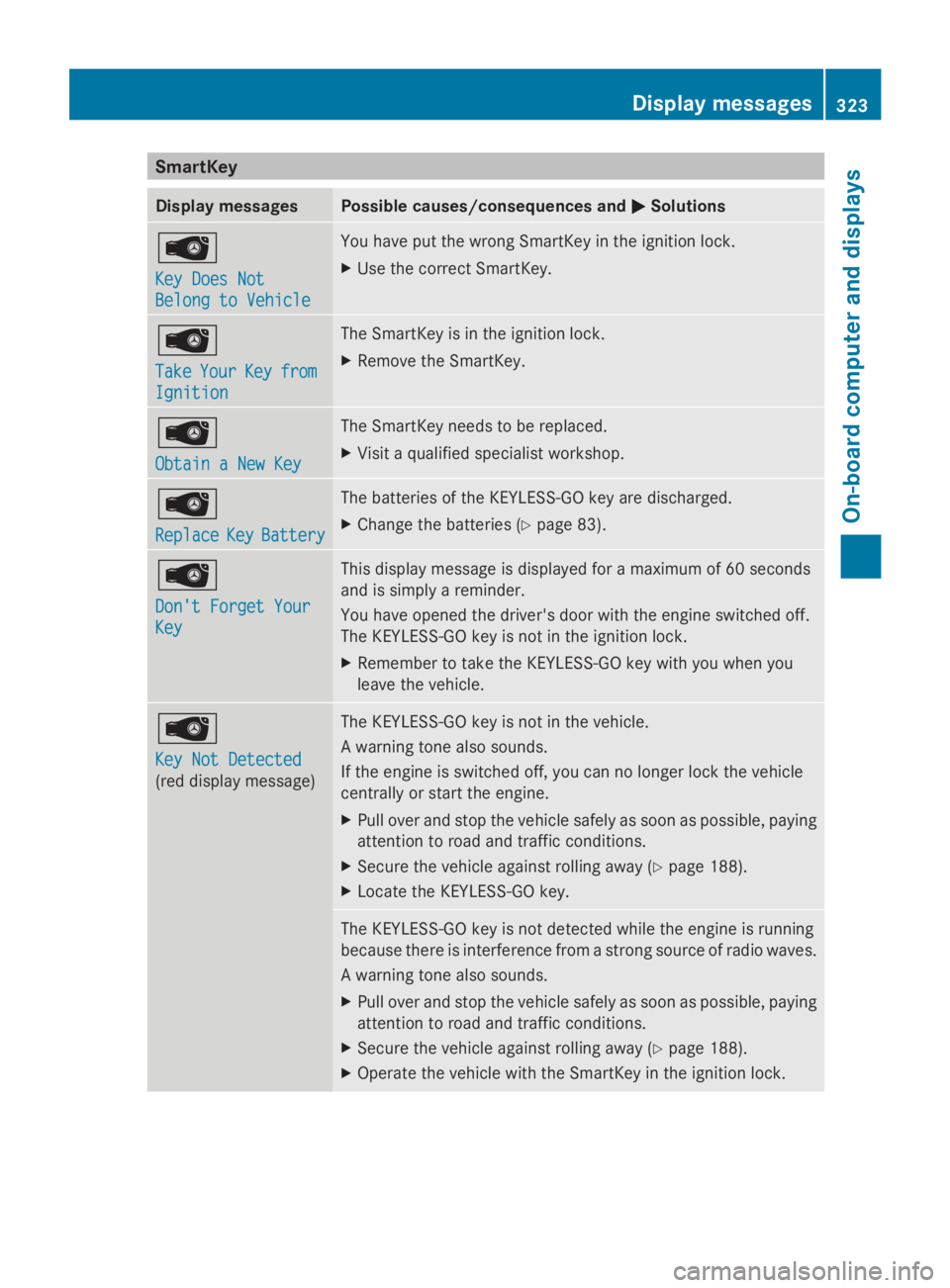

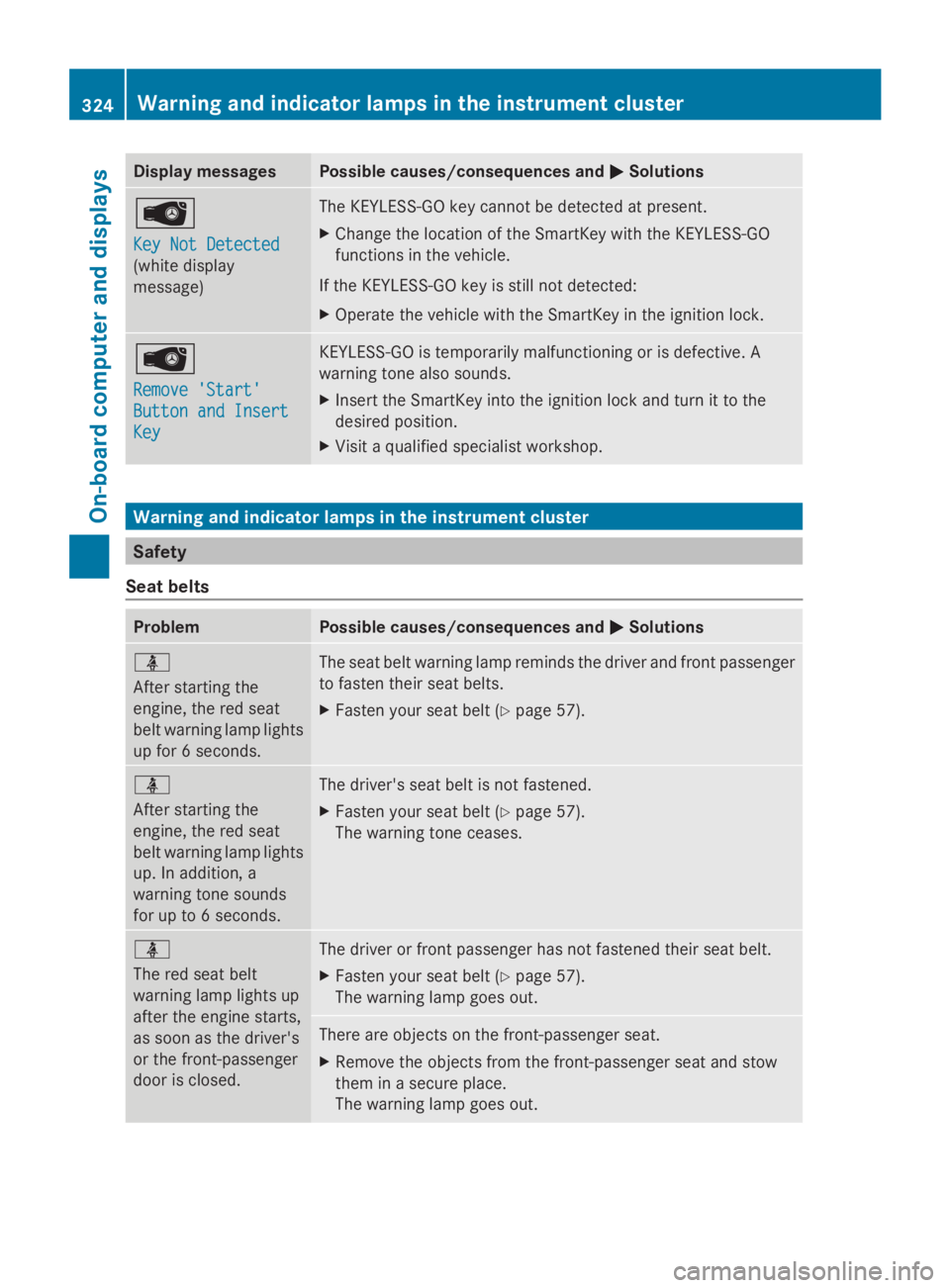

SmartKey
Display messagesPossible causes/consequences andPPSolutions

Display messagesPossible causes/consequences andPPSolutions

ProblemPossible causes/consequences andPPSolutions

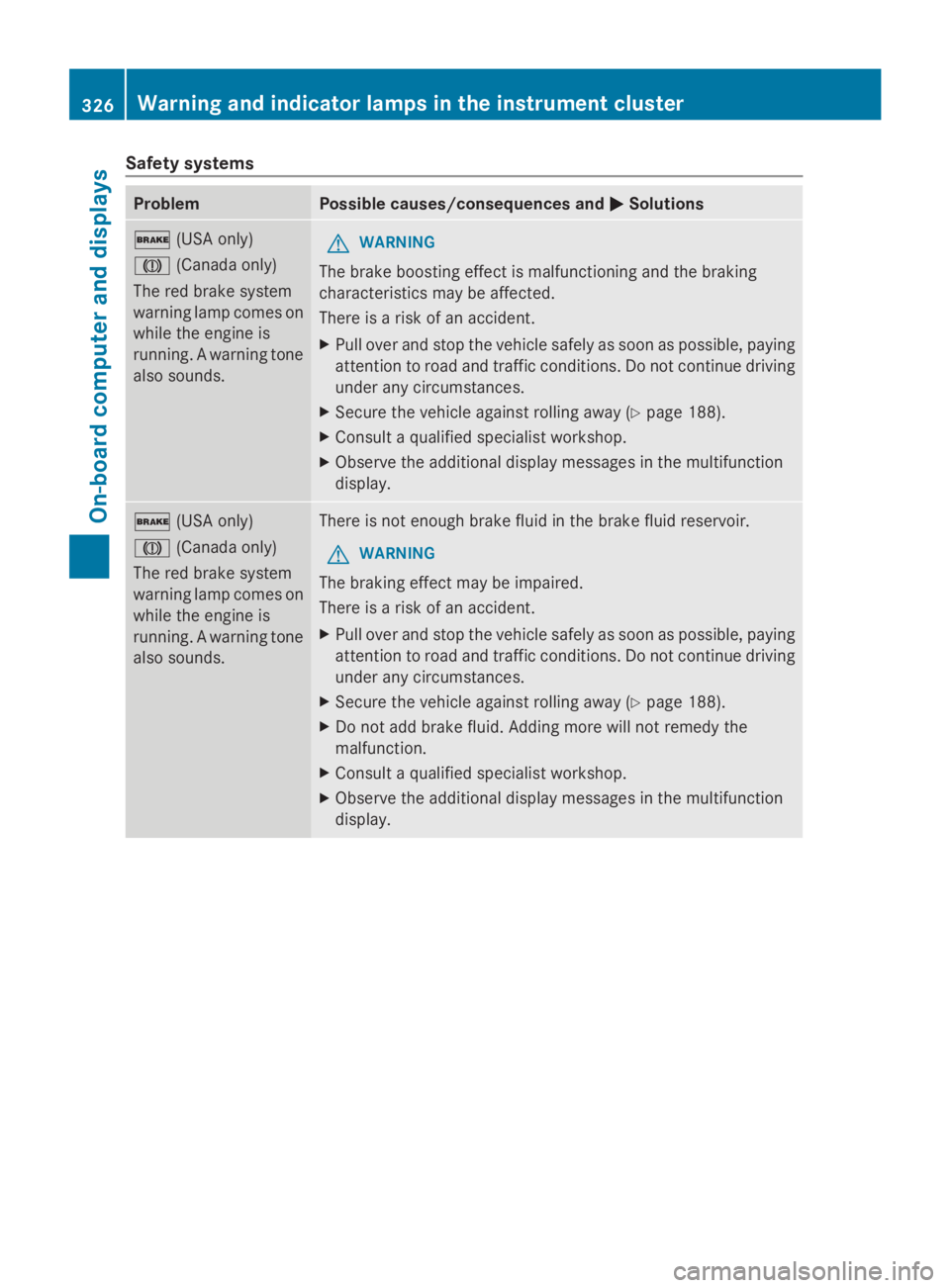

Safety systems
ProblemPossible causes/consequences andPPSolutions
'(USA only)
M(Canada only)
The red brake system
warning lamp comes on
while the engine is
running. A warning tone
also sounds.
GWARNING
The brake boosting effect is malfunctioning and the braking
characteristics may be affected.
There is a risk of an accident.
XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions. Do not continue driving
under any circumstances.
XSecure the vehicle against rolling away (Ypage 188).
XConsult a qualified specialist workshop.
XObserve the additional display messages in the multifunction
display.
'(USA only)
M(Canada only)
The red brake system
warning lamp comes on
while the engine is
running. A warning tone
also sounds.
There is not enough brake fluid in the brake fluid reservoir.
GWARNING
The braking effect may be impaired.
There is a risk of an accident.
XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions. Do not continue driving
under any circumstances.
XSecure the vehicle against rolling away (Ypage 188).
XDo not add brake fluid. Adding more will not remedy the
malfunction.
XConsult a qualified specialist workshop.
XObserve the additional display messages in the multifunction
display.
326Warning and indicator lamps in the instrument cluster
On-board computer and displays

ProblemPossible causes/consequences andPPSolutions
%

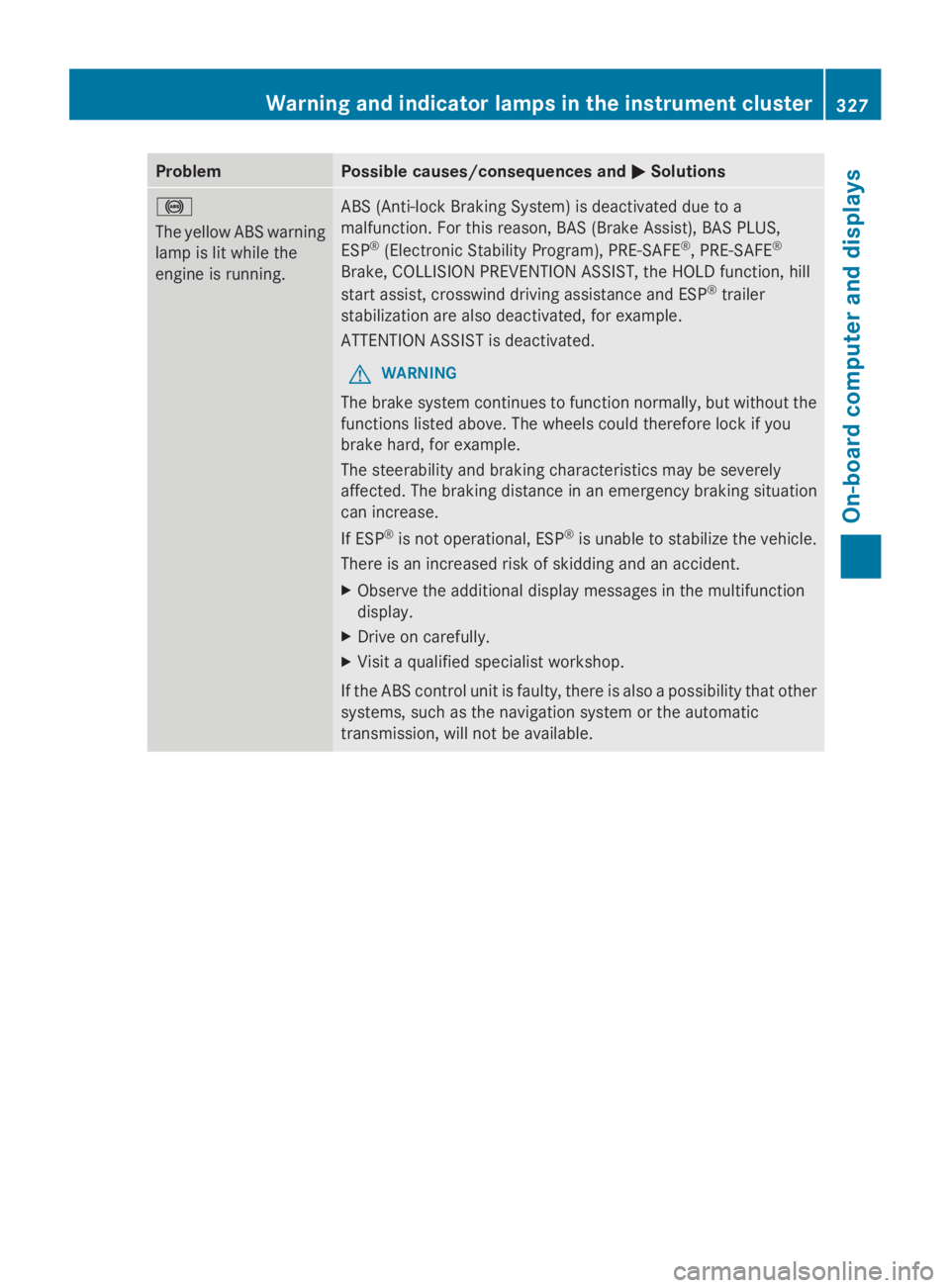

The yellow ABS warning
lamp is lit while the
engine is running.
ABS (Anti-lock Braking System) is deactivated due to a
malfunction. For this reason, BAS (Brake Assist), BAS PLUS,
ESP®(Electronic Stability Program), PRE-SAFE®, PRE-SAFE®
Brake, COLLISION PREVENTION ASSIST, the HOLD function, hill
start assist, crosswind driving assistance and ESP®trailer
stabilization are also deactivated, for example.
ATTENTION ASSIST is deactivated.
GWARNING
The brake system continues to function normally, but without the
functions listed above. The wheels could therefore lock if you
brake hard, for example.
The steerability and braking characteristics may be severely
affected. The braking distance in an emergency braking situation
can increase.
If ESP®is not operational, ESP®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XObserve the additional display messages in the multifunction
display.
XDrive on carefully.
XVisit a qualified specialist workshop.
If the ABS control unit is faulty, there is also a possibility that other
systems, such as the navigation system or the automatic
transmission, will not be available.
Warning and indicator lamps in the instrument cluster327
On-board computer and displays
Z

ProblemPossible causes/consequences andPPSolutions
%

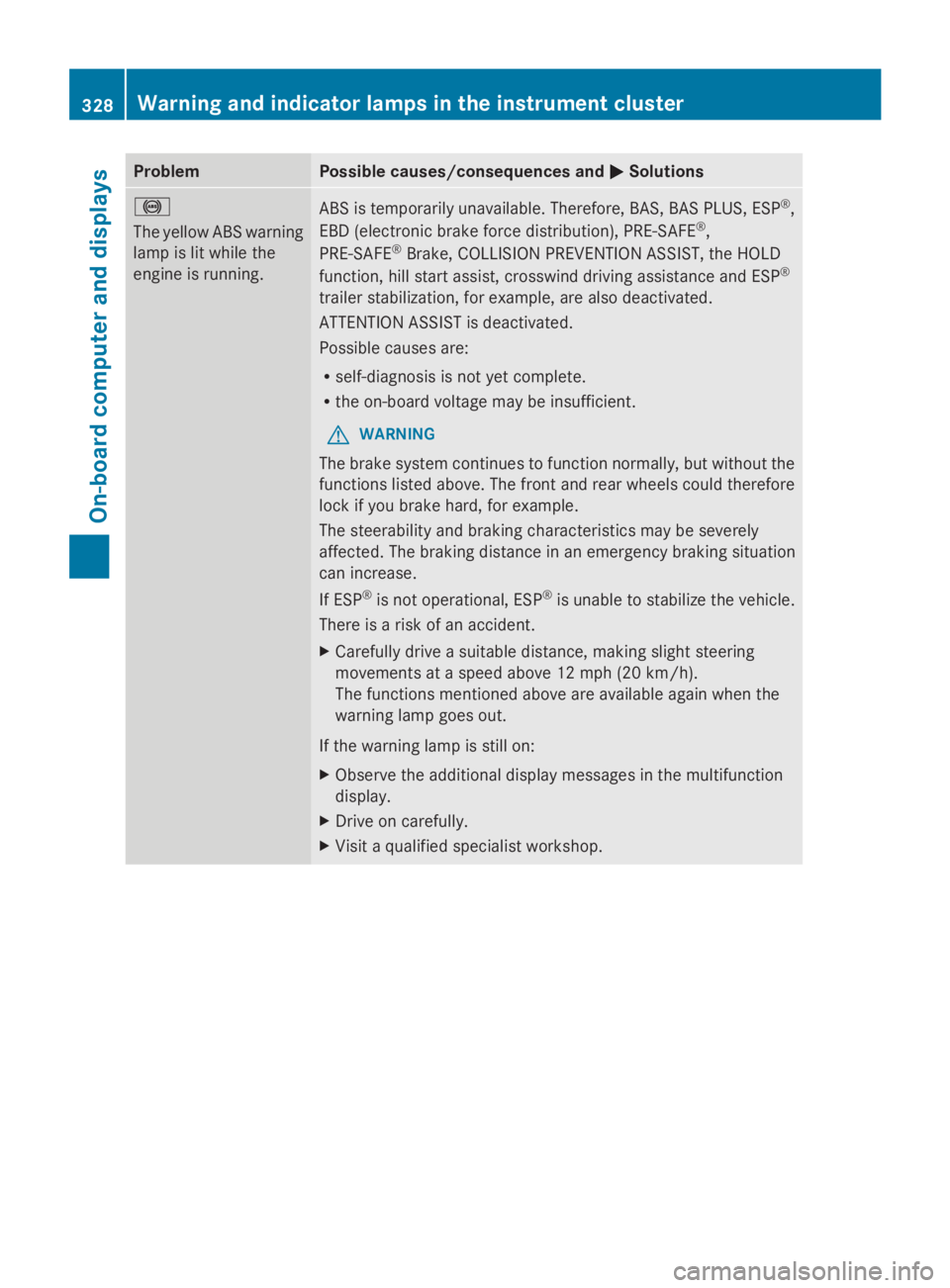

The yellow ABS warning
lamp is lit while the
engine is running.
ABS is temporarily unavailable. Therefore, BAS, BAS PLUS, ESP®,
EBD (electronic brake force distribution), PRE-SAFE®,
PRE-SAFE®Brake, COLLISION PREVENTION ASSIST, the HOLD
function, hill start assist, crosswind driving assistance and ESP®
trailer stabilization, for example, are also deactivated.
ATTENTION ASSIST is deactivated.
Possible causes are:
Rself-diagnosis is not yet complete.
Rthe on-board voltage may be insufficient.
GWARNING
The brake system continues to function normally, but without the
functions listed above. The front and rear wheels could therefore
lock if you brake hard, for example.
The steerability and braking characteristics may be severely
affected. The braking distance in an emergency braking situation
can increase.
If ESP®is not operational, ESP®is unable to stabilize the vehicle.
There is a risk of an accident.
XCarefully drive a suitable distance, making slight steering
movements at a speed above 12 mph (20 km/h).
The functions mentioned above are available again when the
warning lamp goes out.
If the warning lamp is still on:
XObserve the additional display messages in the multifunction
display.
XDrive on carefully.
XVisit a qualified specialist workshop.
328Warning and indicator lamps in the instrument cluster
On-board computer and displays
