MERCEDES-BENZ GL-Class 2013 X166 Owner's Manual

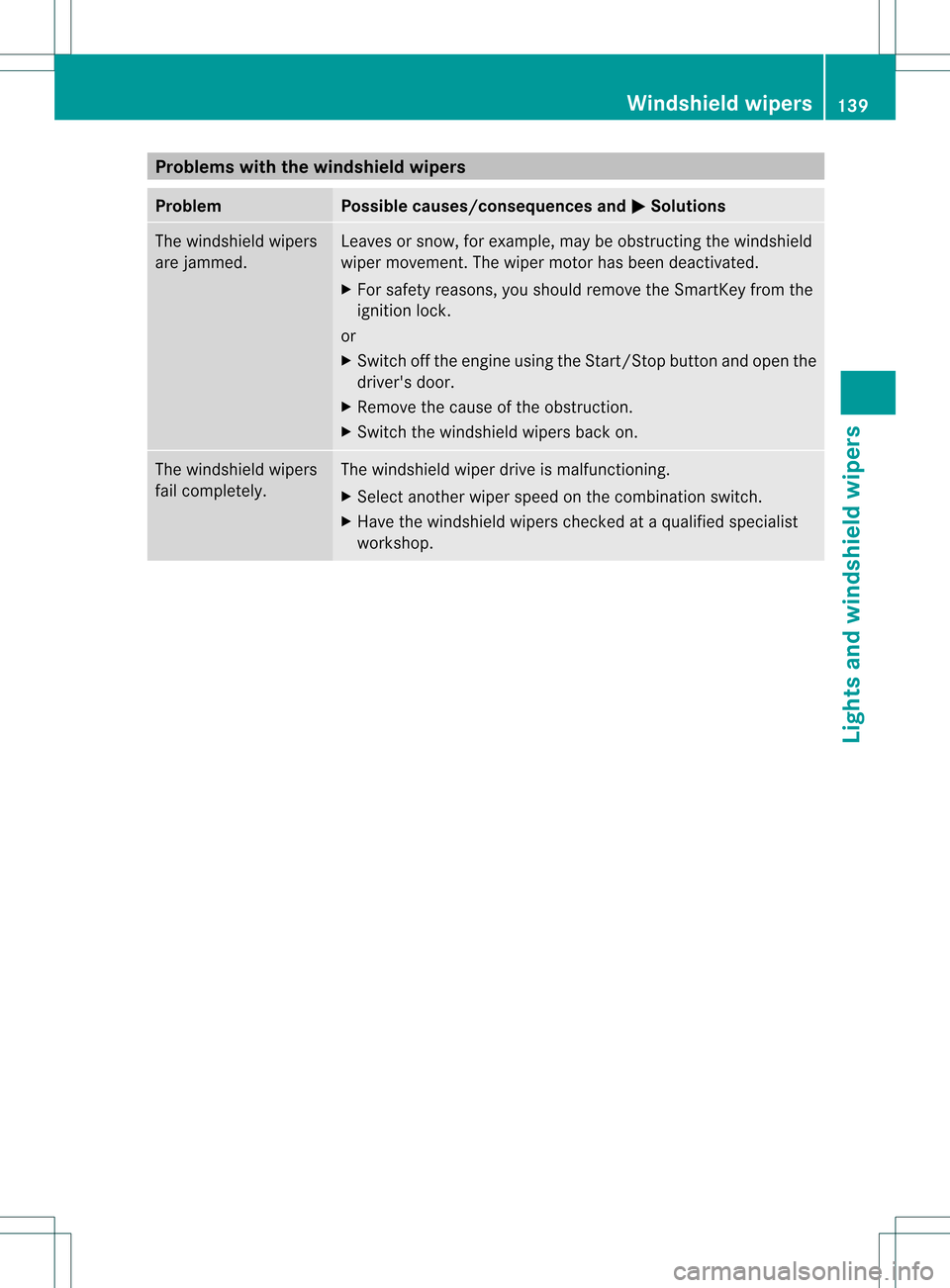

Problems with the windshield wipers
Problem Possible causes/consequences and
0001 Solutions
The windshield wipers
are jammed. Leaves or snow, for example, may be obstructing the windshield
wiper movement.T
he wiper motor has been deactivated.
X For safety reasons, you should remove the SmartKey from the
ignition lock.
or
X Switch off the engine using the Start/Stop button and open the
driver's door.
X Remove the cause of the obstruction.
X Switch the windshield wipers back on. The windshield wipers
fail completely. The windshield wiper drive is malfunctioning.
X
Select another wiper speed on the combination switch.
X Have the windshield wipers checked at a qualified specialist
workshop. Windshield wipers
139Lights and windshield wipers Z

140

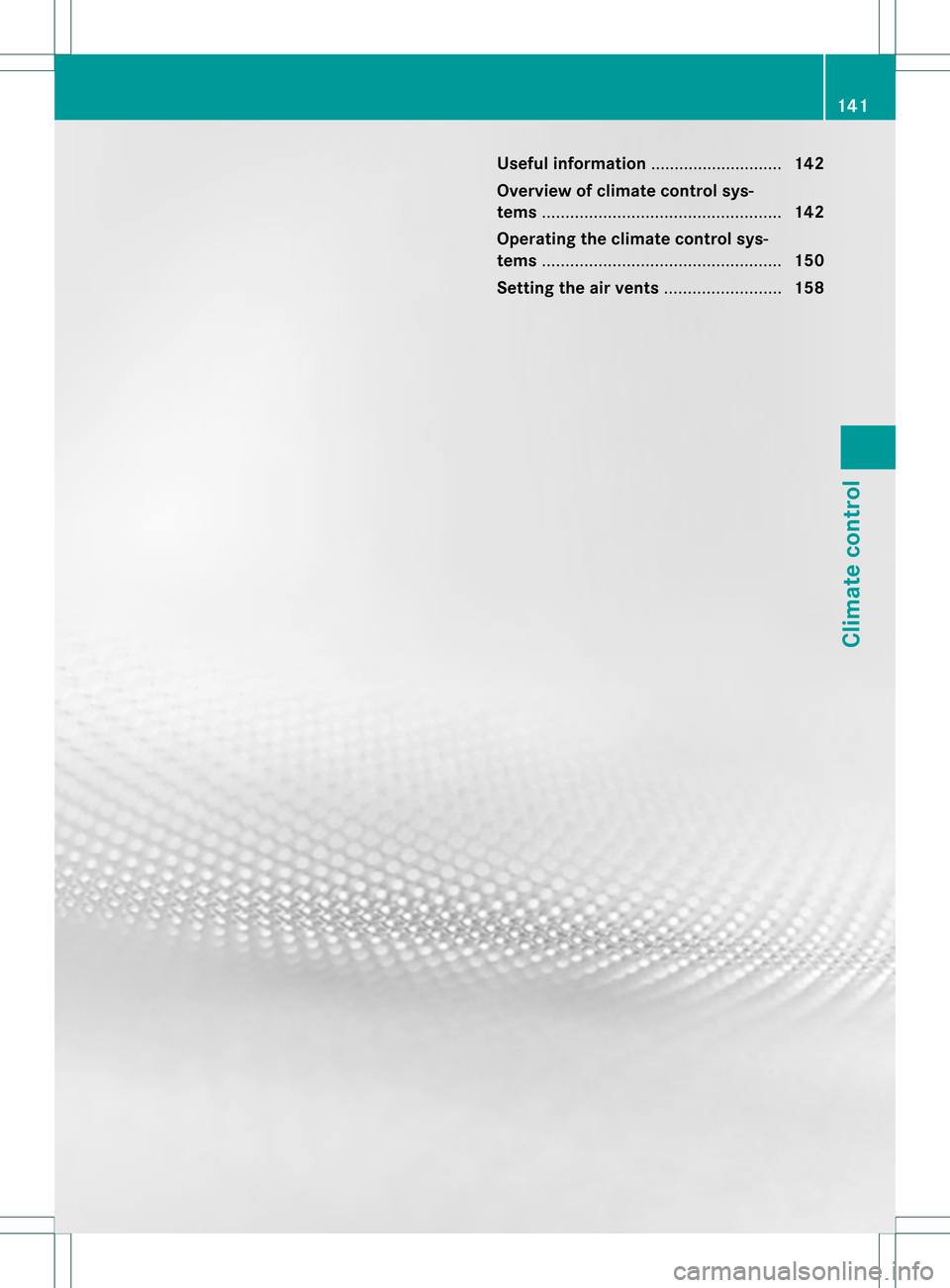

Useful information
............................142
Overview of climate control sys-
tems ................................................... 142
Operating the climate control sys-
tems ................................................... 150
Setting the air vents .........................158 141Climate control

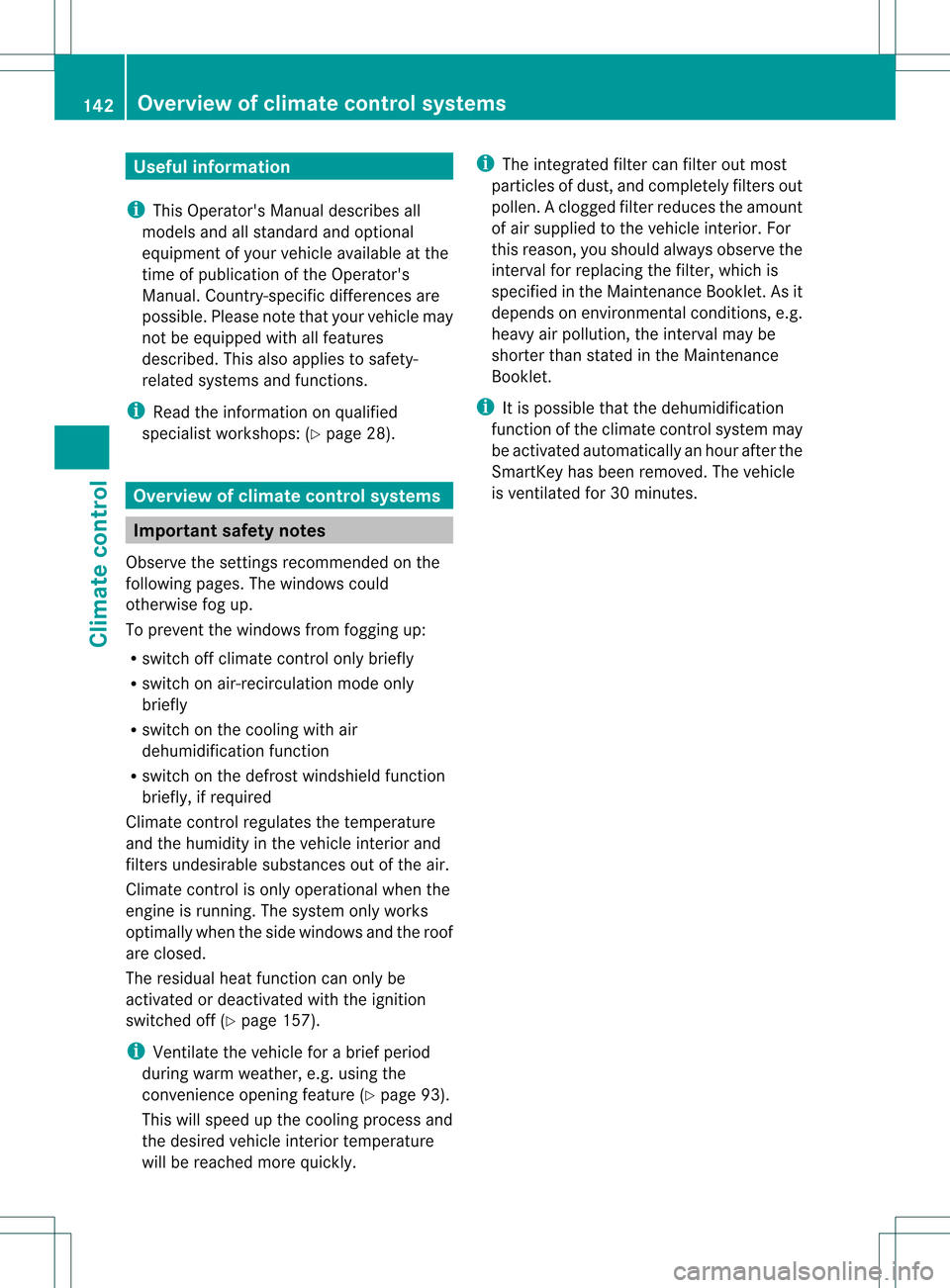

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Read the information on qualified
specialist workshops: (Y page 28).Overview of climate control systems
Important safety notes
Observe the settings recommended on the
following pages. The windows could
otherwise fog up.
To preven tthe windows from fogging up:
R switch off climate control only briefly
R switch on air-recirculation mode only
briefly
R switch on the cooling with air
dehumidification function
R switch on the defrost windshield function
briefly, if required
Climate control regulates the temperature
and the humidity in the vehicle interior and
filters undesirable substances out of the air.
Climate control is only operational when the
engine is running. The system only works
optimally when the side windows and the roof
are closed.
The residual heat function can only be
activated or deactivated with the ignition
switched off (Y page 157).
i Ventilate the vehicle for a brief period
during warm weather, e.g. using the
convenience opening feature (Y page 93).
This will speed up the cooling process and
the desired vehicle interior temperature
will be reached more quickly. i
The integrated filter can filter out most
particles of dust, and completely filters out
pollen. Aclogged filter reduces the amount
of air supplied to the vehicle interior .For
this reason, you should always observe the
interval for replacing the filter, which is
specified in the Maintenance Booklet .As it
depends on environmental conditions, e.g.
heavy air pollution, the interval may be
shorter than stated in the Maintenance
Booklet.
i It is possible that the dehumidification
function of the climate control system may
be activated automatically an hour after the
SmartKey has been removed. The vehicle
is ventilated for 30 minutes. 142
Overview of climate control systemsClimate control

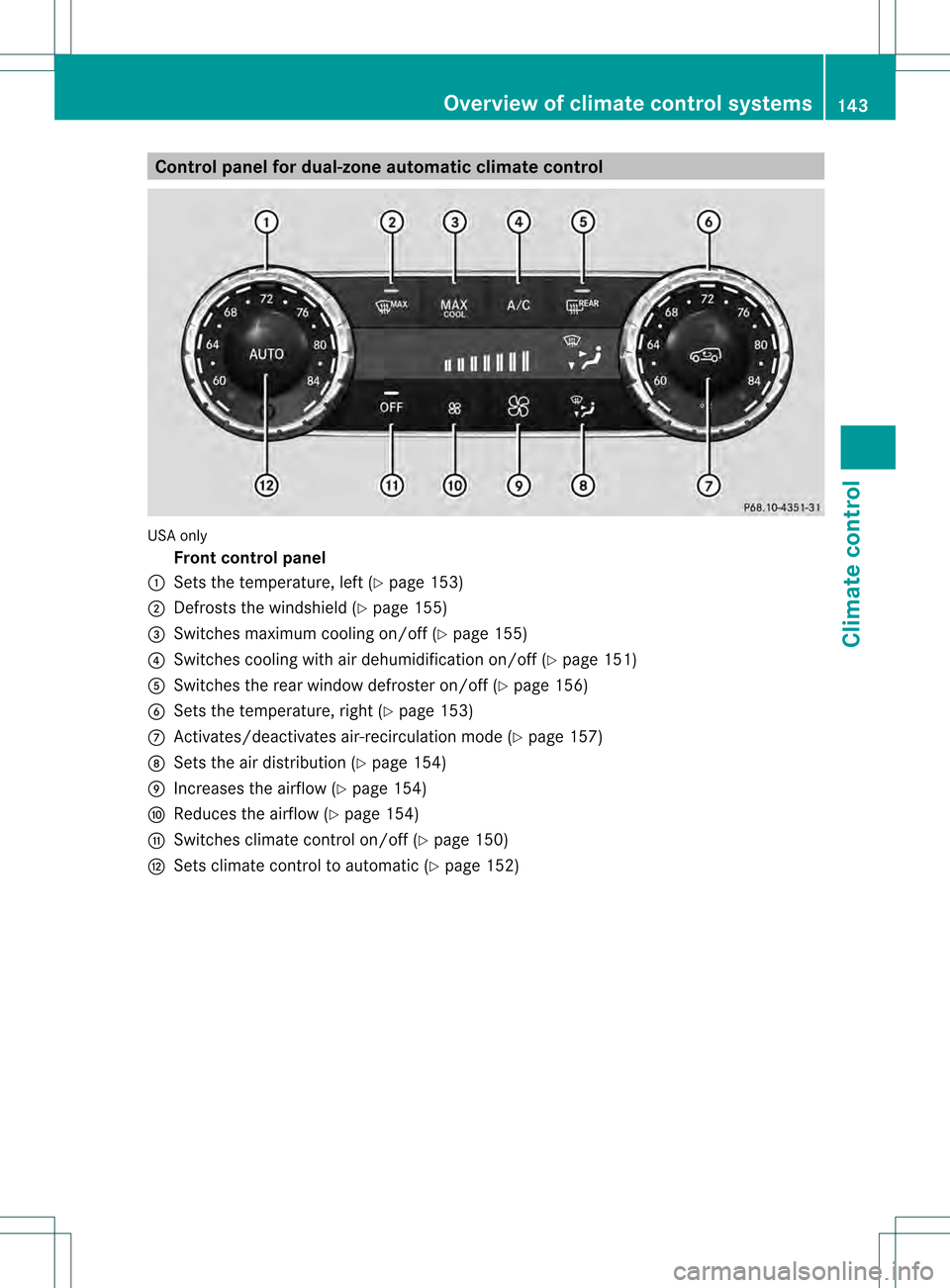

Control panel for dual-zone automatic climate control
USA only
Fron tcontrol panel
0002 Sets the temperature, left (Y page 153)
0003 Defrosts the windshield (Y page 155)
0021 Switches maximum cooling on/off (Y page 155)
0020 Switches cooling with air dehumidificatio non/off (Y page 151)
001E Switches the rea rwindow defroster on/off (Y page 156)
001F Sets the temperature, right (Y page 153)
0013 Activates/deactivates air-recirculation mode (Y page 157)
0014 Sets the air distribution (Y page 154)
0015 Increases the airflow (Y page 154)
0016 Reduces the airflow ( Ypage 154)
0017 Switches climate control on/off (Y page 150)
0018 Sets climate control to automatic (Y page 152) Overview of climate control systems
143Climate control

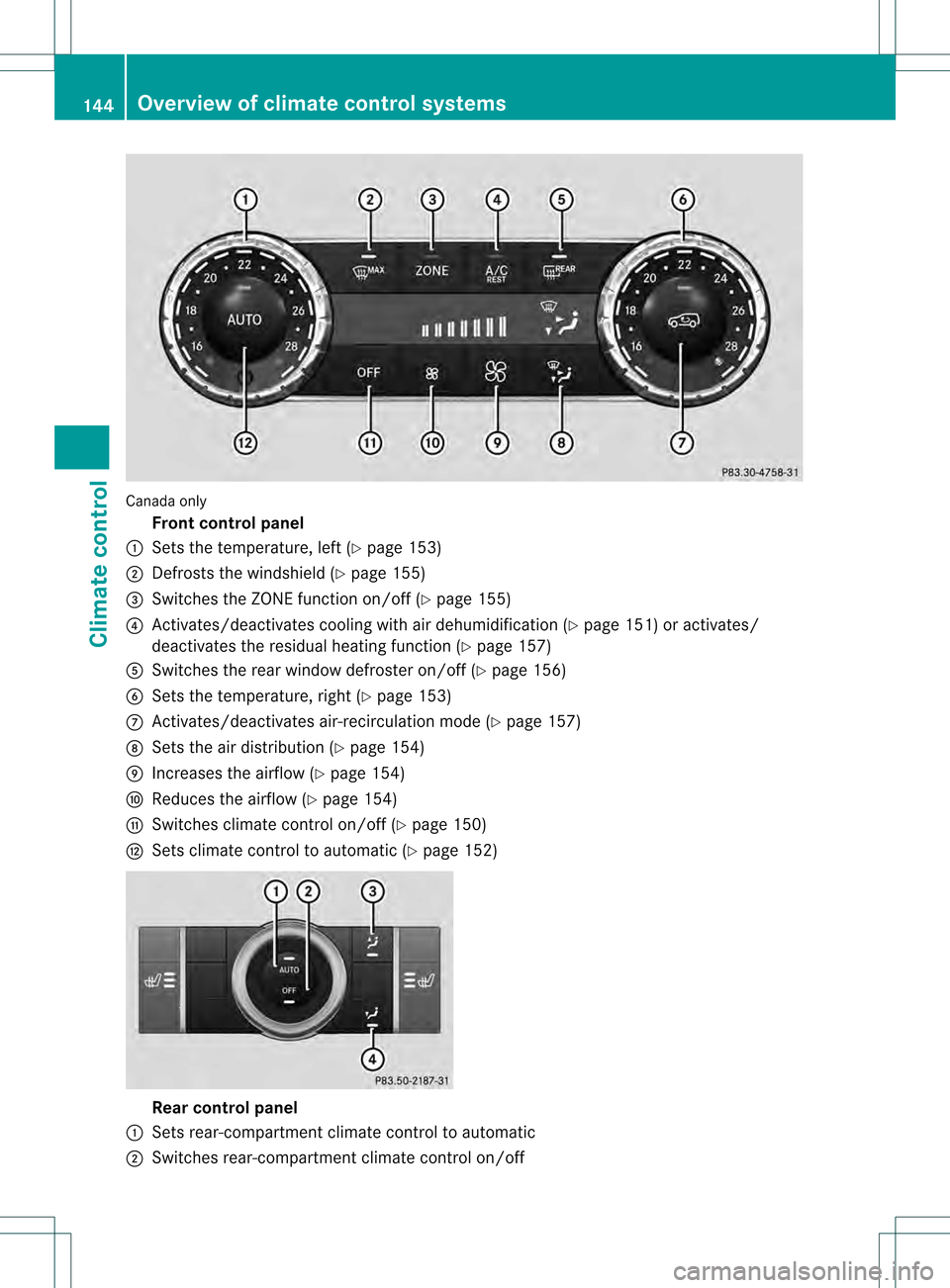

Canada only
Fron tcontrol panel
0002 Sets the temperature, left (Y page 153)
0003 Defrosts the windshield (Y page 155)
0021 Switches the ZONE function on/off (Y page 155)
0020 Activates/deactivates cooling with air dehumidificatio n(Ypage 151) or activates/
deactivates the residual heatin gfunction ( Ypage 157)
001E Switches the rear window defroste ron/off ( Ypage 156)
001F Sets the temperature, right ( Ypage 153)
0013 Activates/deactivates air-recirculation mode (Y page 157)
0014 Sets the ai rdistribution (Y page 154)
0015 Increases the airflow (Y page 154)
0016 Reduces the airflow ( Ypage 154)
0017 Switches climate control on/off (Y page 150)
0018 Sets climate control to automatic (Y page 152)Rear control panel
0002 Sets rear-compartment climate control to automatic
0003 Switches rear-compartment climate control on/off 144
Overview of climate control systemsClimate control

0021
Directs the airflow through the rear air vents

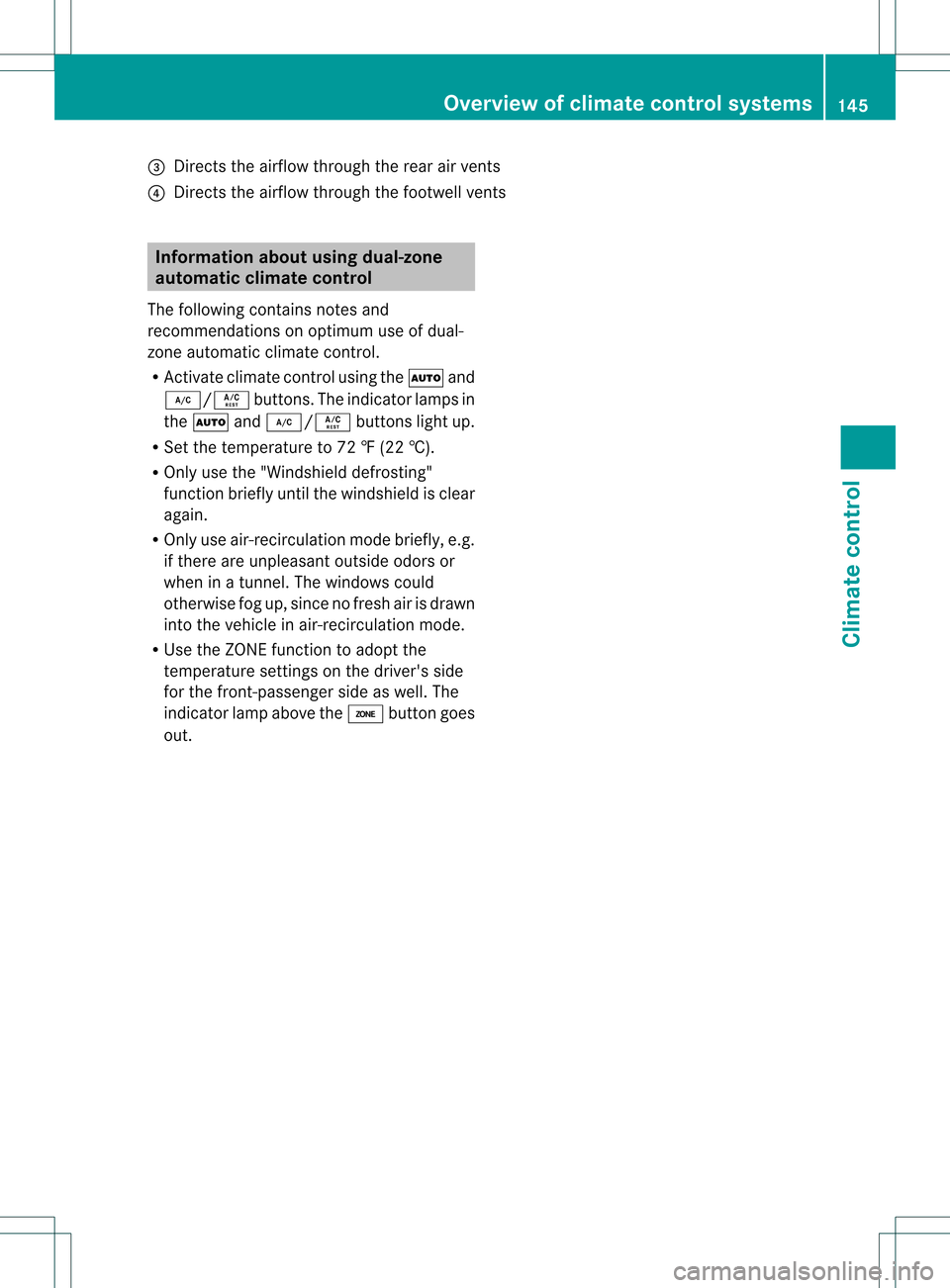

0020 Directs the airflow throug hthe footwell vents Information about using dual-zone
automatic climate control
The following contains notes and
recommendations on optimum use of dual-
zone automatic climate control.
R Activate climate control using the 0006and
0007/0005 buttons. The indicator lamps in
the 0006 and0007/0005 buttons light up.
R Set the temperature to 72 ‡ (22 †).
R Only use the "Windshield defrosting"
function briefly until the windshield is clear
again.
R Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or
when in a tunnel. The windows could
otherwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
R Use the ZONE function to adopt the
temperature settings on the driver's side
for the front-passenger side as well. The
indicator lamp above the 0004button goes
out. Overview of climate control systems
145Climate control

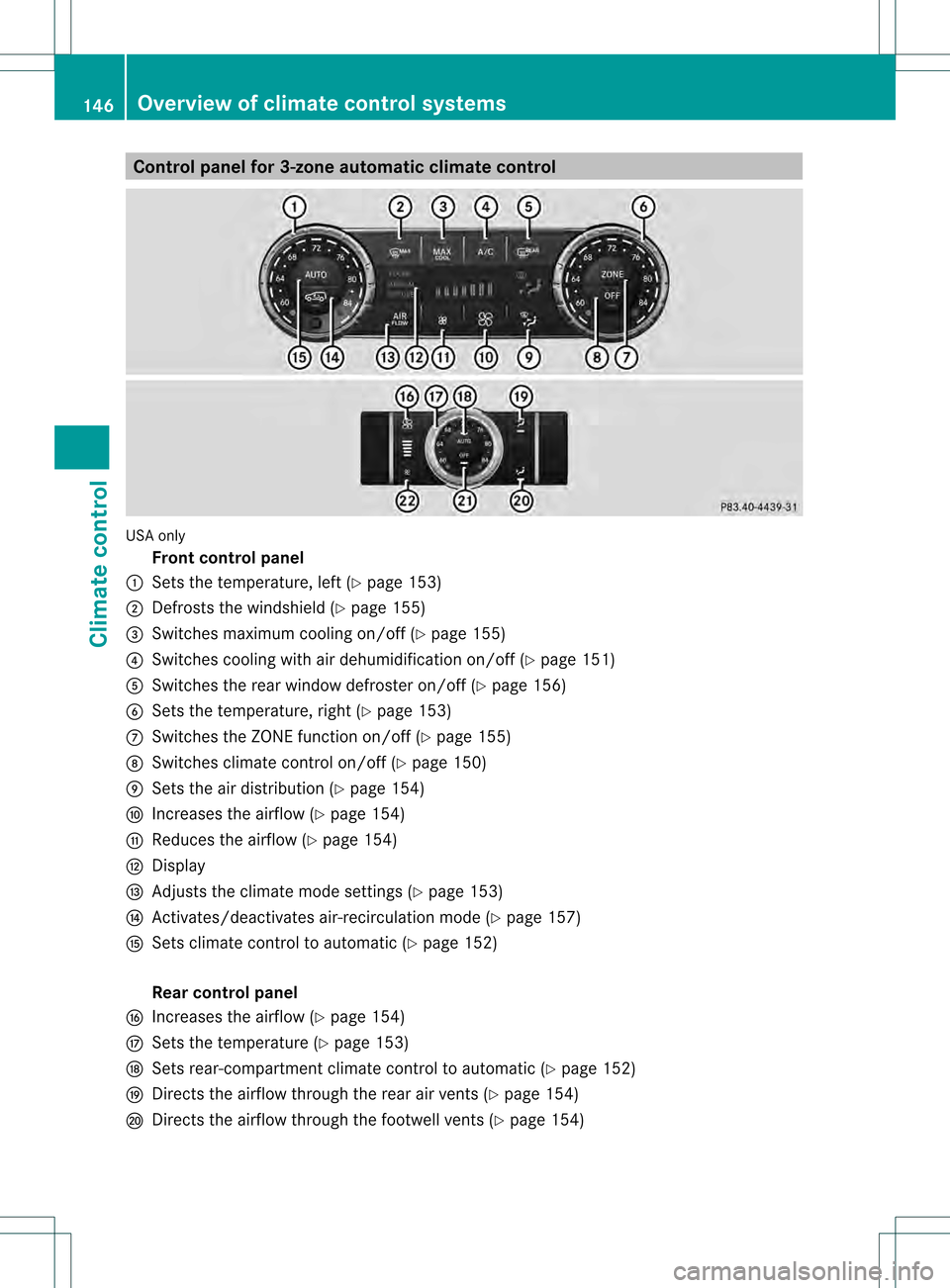

Control panel for 3-zone automatic climate control
USA only
Fron tcontrol panel
0002 Sets the temperature, left (Y page 153)
0003 Defrosts the windshield (Y page 155)
0021 Switches maximum cooling on/off (Y page 155)
0020 Switches cooling with air dehumidificatio non/off (Y page 151)
001E Switches the rea rwindow defroster on/off (Y page 156)
001F Sets the temperature, right (Y page 153)
0013 Switches the ZONE function on/off (Y page 155)
0014 Switches climate control on/off (Y page 150)
0015 Sets the air distribution (Y page 154)
0016 Increases the airflow (Y page 154)
0017 Reduces the airflow ( Ypage 154)
0018 Display
0019 Adjusts the climate mode settings (Y page 153)
001A Activates/deactivates air-recirculation mode (Y page 157)
001B Sets climate control to automatic (Y page 152)
Rear control panel
001C Increases the airflow (Y page 154)
001D Sets the temperature (Y page 153)
0023 Sets rear-compartment climate control to automatic (Y page 152)
0024 Directs the airflow through the rear air vents (Y page 154)
0025 Directs the airflow through the footwell vents (Y page 154)146
Overview of climate control systemsClimate control

0026
Switches rear-compartment climate control on/off (Y page 150)

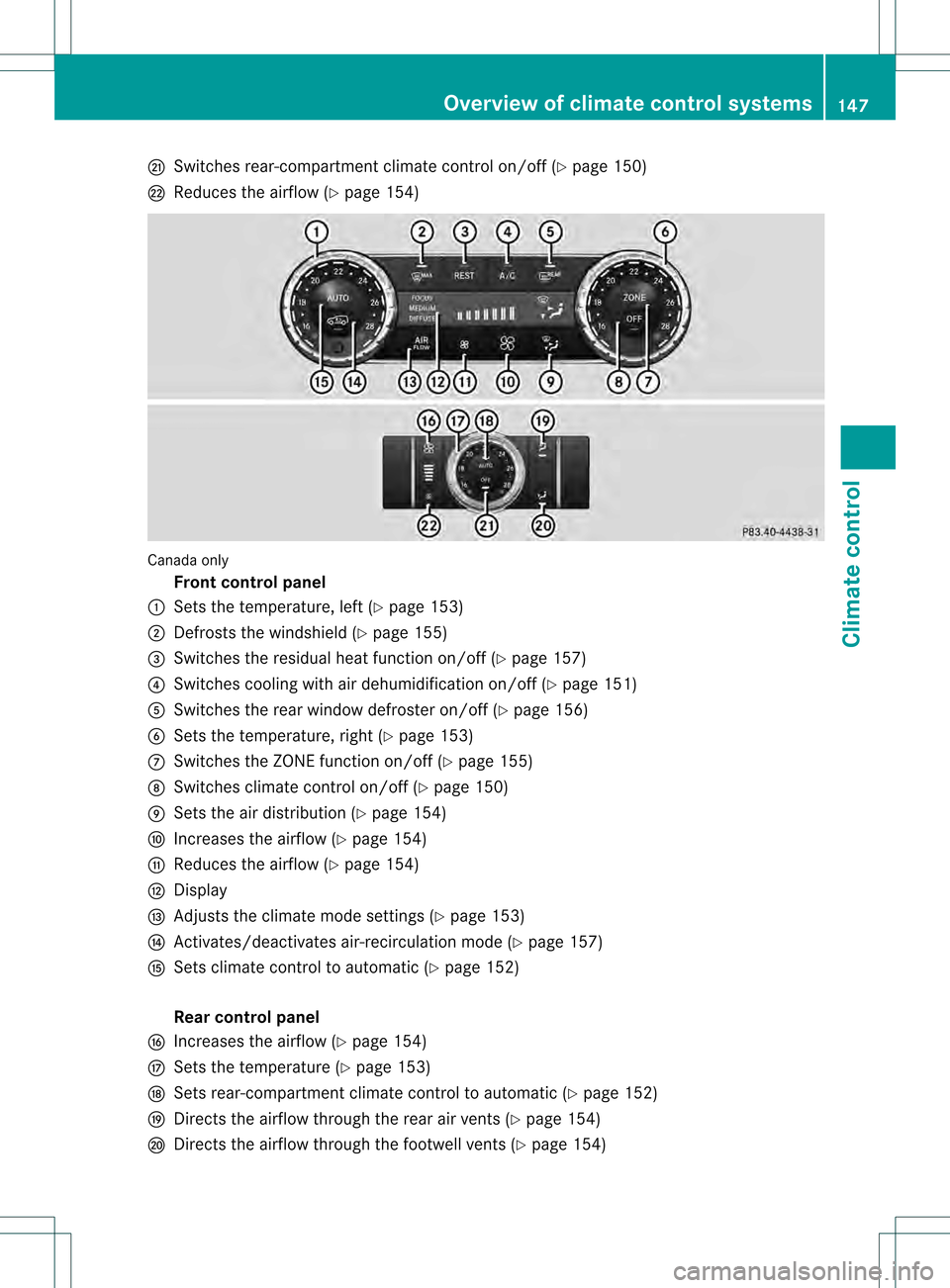

0027 Reduces the airflow (Y page 154)Canada only
Front control panel
0002 Sets the temperature, left ( Ypage 153)
0003 Defrosts the windshield (Y page 155)
0021 Switches the residual hea tfunction on/off (Y page 157)
0020 Switches cooling with air dehumidification on/off ( Ypage 151)
001E Switches the rear window defroste ron/off ( Ypage 156)
001F Sets the temperature, right ( Ypage 153)
0013 Switches the ZONE function on/off ( Ypage 155)
0014 Switches climate control on/off ( Ypage 150)
0015 Sets the ai rdistribution (Y page 154)
0016 Increases the airflow (Y page 154)
0017 Reduces the airflow ( Ypage 154)
0018 Display
0019 Adjusts the climate mode settings (Y page 153)
001A Activates/deactivates air-recirculation mode (Y page 157)
001B Sets climate control to automatic (Y page 152)
Rear control panel
001C Increases the airflow (Y page 154)
001D Sets the temperature (Y page 153)
0023 Sets rear-compartment climate control to automatic (Y page 152)
0024 Directs the airflow through the rear air vents (Y page 154)
0025 Directs the airflow through the footwell vents (Y page 154) Overview of climate control systems
147Climate control

0026
Switches rear-compartment climate control on/off (Y page 150)

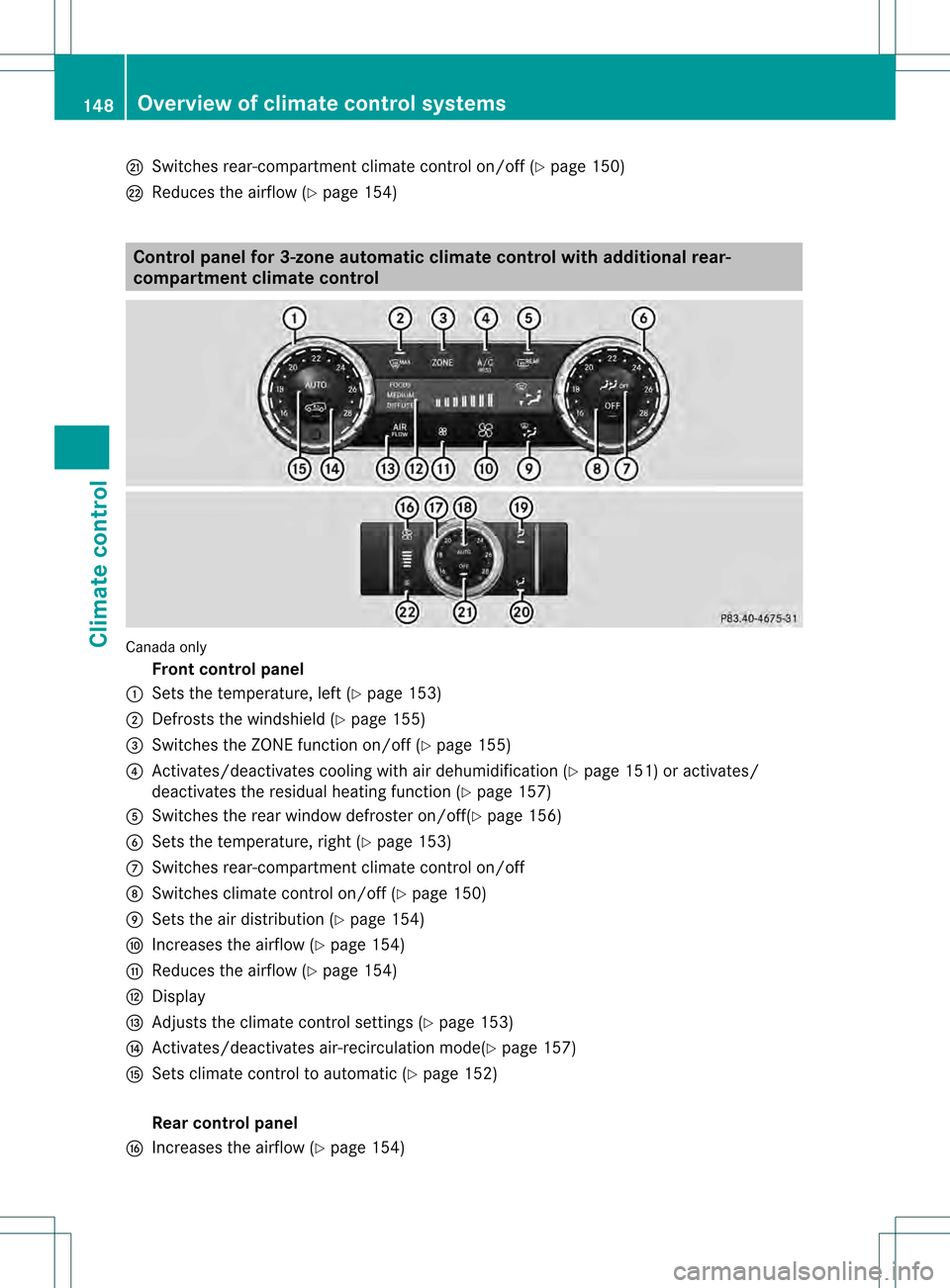

0027 Reduces the airflow (Y page 154)Control panel for 3-zone automatic climate control with additional rear-
compartment climate control Canada only
Front control panel
0002 Sets the temperature, left ( Ypage 153)
0003 Defrosts the windshield (Y page 155)
0021 Switches the ZONE function on/off (Y page 155)
0020 Activates/deactivates cooling with ai rdehumidification ( Ypage 151) or activates/
deactivates the residual heating function (Y page 157)
001E Switches the rear window defroster on/off(Y page 156)
001F Sets the temperature, right (Y page 153)
0013 Switches rear-compartment climate control on/off
0014 Switches climate control on/off (Y page 150)
0015 Sets the air distribution (Y page 154)
0016 Increases the airflow (Y page 154)
0017 Reduces the airflow ( Ypage 154)
0018 Display
0019 Adjusts the climate control settings (Y page 153)
001A Activates/deactivates air-recirculation mode(Y page 157)
001B Sets climate control to automatic (Y page 152)
Rear control panel
001C Increases the airflow (Y page 154)148
Overview of climate control systemsClimate control
