MERCEDES-BENZ GL320CDI 2007 X164 Owner's Manual

210 Controls in detail
Good visibility
For information on windshield wipers, see
“Windshield wipers” (
page 63).
Headlamp cleaning system*
The headlamp cleaning button is located
on the left side of the dashboard.
1Headlamp cleaning button
Switch on the ignition (page 42).
Press button1.
The headlamps are cleaned with a
high-pressure water jet.
For information on filling up the washer
reservoir, see “Windshield/rear window
washer system and headlamp cleaning
system*” (
page 384).
Rear view mirrors
For more information on setting the rear
view mirrors, see “Mirrors” (
page 52).
Interior rear view mirror, antiglare
position
1Lever
Tilt the mirror to the antiglare position
by moving lever1 towards the wind-
shield.
The interior rear view mirror is dimmed.
iThe headlamps will automatically be
cleaned when you have

switched on the headlamps
and

operated the windshield wipers with wind-
shield washer fluid fifteen times
When you switch off the ignition, the counter
resets.

211 Controls in detail
Good visibility
Auto-dimming rear view mirrors*
The reflection brightness of the exterior
rear view mirror on the driver’s side and
the interior rear view mirror will respond
automatically to glare when

the ignition is switched on
and

incoming light from headlamps falls on
the sensor in the interior rear view
mirror
The rear view mirror will not react if

the automatic transmission is set to
positionR

the interior lighting is turned onPower folding exterior rear view
mirrors*
Folding the exterior rear view mirrors
in and out automatically
When the corresponding function in the
control system is activated (
page 185):

The exterior rear view mirrors automat-
ically fold in as soon as the vehicle is
locked from the outside.

The exterior rear view mirrors automat-
ically fold out as soon as the vehicle is
unlocked and the driver’s or front pas-
senger door are subsequently opened.
Warning!G
The auto-dimming function does not react if
incoming light is not aimed directly at sen-
sors in the interior rear view mirror.
The interior rear view mirror and the exterior
rear view mirror on the driver’s side do not
react, for example, when transporting cargo
which covers the rear window.
Light hitting the mirror(s) at certain angles
(incident light) could blind you. As a result,
you may not be able to observe traffic con-
ditions and could cause an accident.
Warning!G
Exercise care when using the passen-
ger-side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your
interior rear view mirror or glance over your
shoulder before changing lanes.
!Before you drive the vehicle through an
automatic car wash, fold the exterior rear view
mirrors in. Otherwise they may get damaged.

212 Controls in detail
Good visibility
Synchronizing exterior rear view
mirrors
The power folding rear view mirrors may
have to be synchronized after the vehicle
battery has been disconnected or dis-
charged. If the exterior rear view mirrors
do not fold properly upon locking or un-
locking the vehicle although the corre-
sponding function in the control system is
activated (
page 185), do the following:
Fold each exterior rear view mirror in
completely (
page 212).
Fold each exterior rear view mirror out
completely (
page 212).
When the exterior rear view mirrors fold
properly upon locking the vehicle, the exte-
rior mirrors are synchronized. Otherwise
repeat the above steps.Folding the exterior rear view mirrors
in and out manually
The button is located on the door control
panel.
1Button for folding exterior rear view
mirrors in and out
Switch on the ignition (page 42).Folding in
Briefly press button1.
Both exterior rear view mirrors fold in.
Folding out
Briefly press button1 again.
Both exterior rear view mirrors fold out.
iThe exterior rear view mirrors can vibrate if
they are not folded out completely.
iIf you are driving at more than approximately
30 mph (47 km/h), you will not be able to fold
the exterior mirrors in.
!If an exterior rear view mirror housing is
forcibly pushed forward (hit from the rear) or
forcibly pushed rearward (hit from the front)
press button1 to fold mirrors in, then press
button1 again to fold mirrors out. Do not force
mirrors by hand as this may damage the adjust-
ment mechanism.
The mirror housing is then properly positioned
and you can adjust the mirror in the usual
manner.
Please make sure both rear view mirrors are
folded out before driving off.

213 Controls in detail
Good visibility
Sun visors
The sun visors protect you from sun glare
while driving.
1Sun visor
2Additional sun visor*
3Mirror lamp
4Vanity mirror cover
5Vanity mirror
6Holder for gas cards
7MountingGlare through the windshield
Swing sun visor1 down.
Make sure sun visor1 is properly en-
gaged in mounting7.
When you do not experience glare any-
more, swing sun visor1 up.
Vanity mirror
Swing sun visor1 down.
Flip up cover4 to access vanity
mirror5.
Vanity mirror lamp3 comes on.
After using vanity mirror5, flip down
cover4.
Swing sun visor1 up.
Warning!G
Do not use the vanity mirror while driving.
Keep the mirrors in the sun visors closed
while vehicle is in motion. Reflected glare
can endanger you and others.

214 Controls in detail
Good visibility
Glare through a side window
1Sun visor
2Additional sun visor*
Swing sun visor1 down.
Disengage sun visor1 from
mounting7 (
page 213).
Pivot sun visor1 to the side.
Adjust sun visor1 by pushing or pull-
ing in the direction of arrows.
Swing down additional sun visor*2
when you experience additional glare
through the windshield.
Rear panorama roof sunshade
The rear panorama roof sunshade over the
third-row seats prevents the sun from shin-
ing directly into the vehicle.
You can open and close the sunshade by
hand.1Mounting
2Clip
3Handle
4Button
Closing
Grasp on handle3 and insert clips2
into mounting1.
The third-row sunshade engages.
Opening
Press on button4 to disengage the
third-row sunshade from mounting1.
!To avoid damage to vanity mirror cover4
(
page 213), make sure it is closed before
pivoting sun visor1 to the side.
!Always guide the sunshade. Do not let it
snap back abruptly, as it could be damaged.

215 Controls in detail
Good visibility
Rear window defroster
The rear window defroster uses a large
amount of power. To keep battery drain to
a minimum, switch off the defroster as
soon as the rear window is clear. The de-
froster is automatically deactivated after
approximately 6 to 17 minutes of
operation depending on the outside tem-
perature.
Switch on the ignition (page 42).Activating
Press button1 on the climate con-
trol panel (
page 218) or the automat-
ic climate control* panel (
page 232).
The indicator lamp on the button
comes on.
Deactivating
Press button1 once more.
The indicator lamp on the button goes
out.
Warning!G
Any accumulation of snow and ice should be
removed from the rear window before driv-
ing. Visibility could otherwise be impaired,
endangering you and others.!If the rear window defroster switches off too
soon and the indicator lamp starts flashing, too
many electrical consumers are operating simul-
taneously and there is insufficient voltage in the
battery. The system responds automatically by
switching the rear window defroster off.
As soon as the battery has sufficient voltage, the
rear window defroster switches back on auto-
matically.

216 Controls in detail
Climate control

217 Controls in detail
Climate control
1Driver’s door air vent, fixed
2Left side air vent, adjustable
3Thumbwheel for air volume control
for left side and door air vent
4Thumbwheel for air volume control
for left center air vent
5Left center air vent, adjustable
6Right center air vent, adjustable
7Thumbwheel for air volume control
for right center air vent
8Thumbwheel for air volume control
for right side and door air vent
9Right side air vent, adjustable
aFront passenger door air vent, fixed
bClimate control panel
iFor draft-free ventilation, move the sliders
for center air vents and side air vents to the
middle position.

218 Controls in detail
Climate control

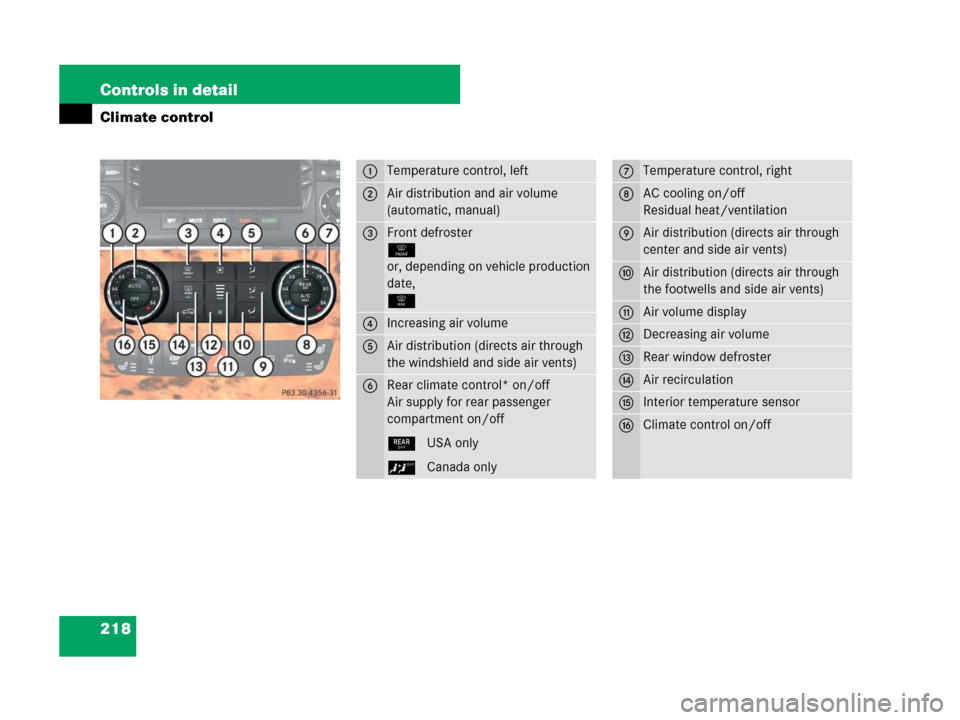

1Temperature control, left
2Air distribution and air volume
(automatic, manual)
3Front defroster
0
or, depending on vehicle production
date,
|
4Increasing air volume
5Air distribution (directs air through
the windshield and side air vents)
6Rear climate control* on/off
Air supply for rear passenger
compartment on/off
:USA only
7Temperature control, right
8AC cooling on/off
Residual heat/ventilation
9Air distribution (directs air through
center and side air vents)
aAir distribution (directs air through
the footwells and side air vents)
bAir volume display
cDecreasing air volume
dRear window defroster
eAir recirculation
fInterior temperature sensor
gClimate control on/off

219 Controls in detail
Climate control
The climate control is operational whenev-
er the engine is running. You can operate
the climate control system in either the
automatic or manual mode. The system
cools or heats the interior depending on
the selected interior temperature and the
current outside temperature.Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
The air conditioning will not engage (no
cooling) if the A/C mode is deactivated
(
page 226).
Warning!G
When operating the climate control, the air
that enters the passenger compartment
through the air vents can be very hot or very
cold (depending on the set temperature).
This may cause burns or frostbite to unpro-
tected skin in the immediate area of the air
vents.
Always keep sufficient distance between un-
protected parts of the body and the air
vents. If necessary, use the air distribution
controls (
page 218) to direct the air to air
vents in the vehicle interior that are not in
the immediate area of unprotected skin.
Warning!G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
iSevere conditions (e.g. strong air pollution)
may require replacement of the filter before its
scheduled interval. A clogged filter will reduce
the air volume to the interior.
If the vehicle interior is hot, ventilate the interior
before driving off, see “Summer opening fea-
ture” (
page 251). The climate control will then
adjust the interior temperature to the set value
much faster.
Keep the air intake grille in front of the wind-
shield free of snow and debris.
