360 Operation
Driving instructions
Driving in steep terrain
Slope angle

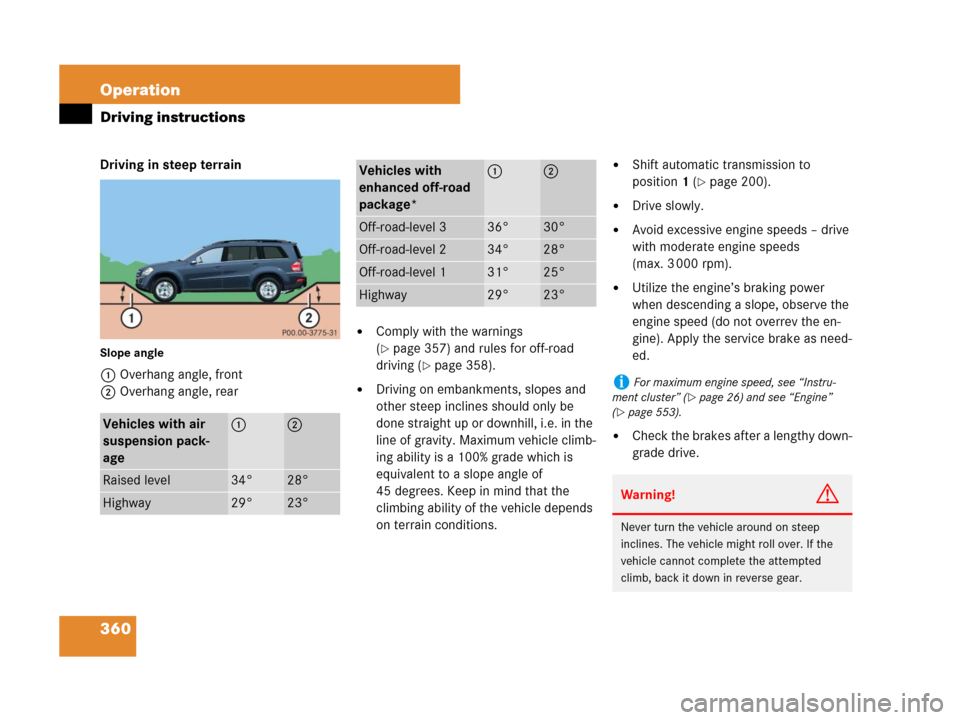

1 Overhang angle, front
2Overhang angle, rear

Comply with the warnings
(
page 357) and rules for off-road
driving (
page 358).

Driving on embankments, slopes and
other steep inclines should only be
done straight up or downhill, i.e. in the
line of gravity. Maximum vehicle climb-
ing ability is a 100% grade which is
equivalent to a slope angle of
45 degrees. Keep in mind that the
climbing ability of the vehicle depends
on terrain conditions.

Shift automatic transmission to
position1 (
page 200).

Drive slowly.

Avoid excessive engine speeds – drive
with moderate engine speeds
(max. 3 000 rpm).

Utilize the engine’s braking power
when descending a slope, observe the
engine speed (do not overrev the en-
gine). Apply the service brake as need-
ed.

Check the brakes after a lengthy down-
grade drive.Vehicles with air
suspension pack-
age12
Raised level34°28°
Highway29°23°
Vehicles with
enhanced off-road
package*12
Off-road-level 336°30°
Off-road-level 234°28°
Off-road-level 131°25°
Highway29°23°
iFor maximum engine speed, see “Instru-
ment cluster” (
page 26) and see “Engine”
(
page 553).
Warning!G
Never turn the vehicle around on steep
inclines. The vehicle might roll over. If the
vehicle cannot complete the attempted
climb, back it down in reverse gear.

361 Operation
Driving instructions
Traction in steep terrain
The maximum vehicle climbing ability is a
100% grade which is equivalent to a slope
angle of 45 degrees. Keep in mind that the
climbing ability of the vehicle depends on
terrain conditions.
Be easy on the accelerator and watch for
continuous wheel traction when driving in
steep terrain.Driving across a hilltop
Decelerate just ahead of a hilltop (do not
shift automatic transmission to
positionN), to prevent the vehicle from
speeding up too much after climbing a hill.
Use the momentum of the vehicle to drive
across the hilltop.
After climbing a hill, driving in this manner
prevents the vehicle from:

losing ground contact when cresting
hills

losing its forward momentum

speeding up too much after climbing
the hillDriving downhill

Drive slowly.

Do not drive at an angle to the incline.
Steer into the line of gravity and drive
with the front wheels pointing straight
downhill. Otherwise, the vehicle may
slide sideways off the path and roll
over.

Shift automatic transmission to
position1 (
page 200).

On steep inclines, use the Downhill
Speed Regulation (
page 275).

Utilize the engine’s braking power to
reduce vehicle speed.
If this is insufficient, apply the brake
gently. Make sure the vehicle is moving
in the line of gravity.

Check the brakes after a lengthy down-
grade drive.
iThe hill start assist system supports you
when driving uphill.
For more information, see “Hill start assist sys-
tem” (
page 199).
iThe 4-ETS helps greatly when starting out on
a steep incline when the front wheels have then
the tendency to slip due to the weight shifting
towards the rear axle.
The 4-ETS recognizes the situation and limits the
torque for the front wheels by braking them.
Simultaneously the torque for the rear wheels is
increased.
iVehicles with enhanced off-road package*
are equipped with automatic locks for the center
and rear axle differential to improve vehicle
traction.

362 Operation
Driving instructions
Driving through water

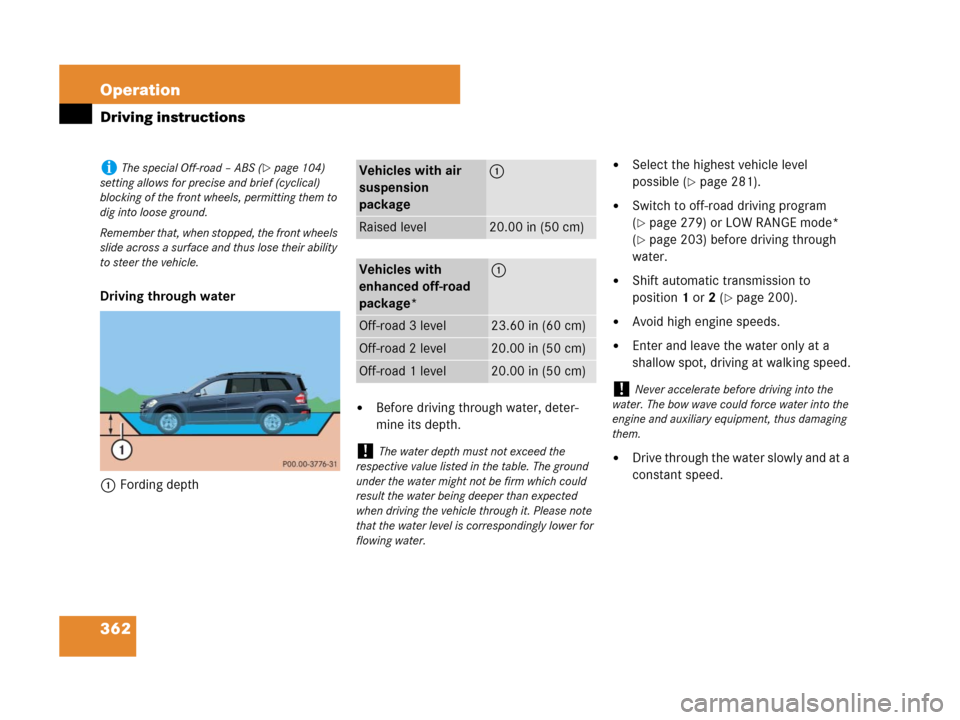

1Fording depth

Before driving through water, deter-
mine its depth.

Select the highest vehicle level
possible (
page 281).

Switch to off-road driving program
(
page 279) or LOW RANGE mode*
(
page 203) before driving through
water.

Shift automatic transmission to
position1 or2 (
page 200).

Avoid high engine speeds.

Enter and leave the water only at a
shallow spot, driving at walking speed.

Drive through the water slowly and at a
constant speed.
iThe special Off-road – ABS (page 104)
setting allows for precise and brief (cyclical)
blocking of the front wheels, permitting them to
dig into loose ground.
Remember that, when stopped, the front wheels
slide across a surface and thus lose their ability
to steer the vehicle.Vehicles with air
suspension
package1
Raised level20.00in (50cm)
Vehicles with
enhanced off-road
package*1
Off-road 3 level23.60 in (60 cm)
Off-road 2 level20.00 in (50 cm)
Off-road 1 level20.00 in (50 cm)
!The water depth must not exceed the
respective value listed in the table. The ground
under the water might not be firm which could
result the water being deeper than expected
when driving the vehicle through it. Please note
that the water level is correspondingly lower for
flowing water.
!Never accelerate before driving into the
water. The bow wave could force water into the
engine and auxiliary equipment, thus damaging
them.

363 Operation
Driving instructions

Do not stop vehicle while immersed in
water, and do not shut off the engine.

There is a very high level of driving re-
sistance in water. The surface is slip-
pery and may not be firm, making
pulling away in water difficult and dan-
gerous.

Make sure that only small bow waves
are formed when driving the vehicle
through water.

Clean mud off the tire tread after driv-
ing through water.

To dry the brakes, apply pressure to the
brake pedal several times while driving

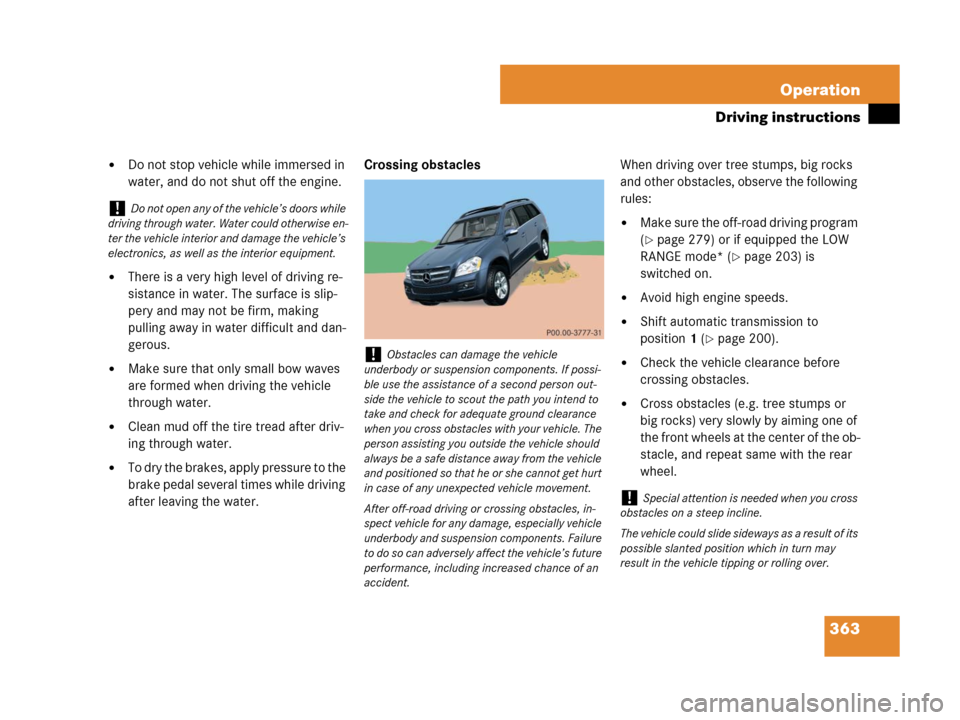

after leaving the water.Crossing obstaclesWhen driving over tree stumps, big rocks
and other obstacles, observe the following
rules:

Make sure the off-road driving program
(
page 279) or if equipped the LOW
RANGE mode* (
page 203) is
switched on.

Avoid high engine speeds.

Shift automatic transmission to
position1 (
page 200).

Check the vehicle clearance before
crossing obstacles.

Cross obstacles (e.g. tree stumps or
big rocks) very slowly by aiming one of
the front wheels at the center of the ob-
stacle, and repeat same with the rear
wheel.
!Do not open any of the vehicle’s doors while
driving through water. Water could otherwise en-
ter the vehicle interior and damage the vehicle’s
electronics, as well as the interior equipment.
!Obstacles can damage the vehicle
underbody or suspension components. If possi-
ble use the assistance of a second person out-
side the vehicle to scout the path you intend to
take and check for adequate ground clearance
when you cross obstacles with your vehicle. The
person assisting you outside the vehicle should
always be a safe distance away from the vehicle
and positioned so that he or she cannot get hurt
in case of any unexpected vehicle movement.
After off-road driving or crossing obstacles, in-
spect vehicle for any damage, especially vehicle
underbody and suspension components. Failure
to do so can adversely affect the vehicle’s future
performance, including increased chance of an
accident.
!Special attention is needed when you cross
obstacles on a steep incline.
The vehicle could slide sideways as a result of its
possible slanted position which in turn may
result in the vehicle tipping or rolling over.

364 Operation
Driving instructions
Driving on sand
When driving on sand, observe the follow-
ing rules:

Set the raised level (page 281).

Avoid high engine speeds.

Shift automatic transmission into a
gear range that is appropriate for the
terrain.

In sandy soil, drive at a steady speed as
conditions permit. This helps overcome
the vehicle rolling resistance and re-
duce the likelihood of the vehicle sink-
ing into the ground.

Drive in tracks of other vehicles if they
are not too deep and you have suffi-
cient clearance.
Ruts
A number of off-road tracks or other by-
ways have deep ruts which can cause the
underbody to come in contact with the
ground.

Make sure the off-road driving program
(
page 279), or if equipped, the LOW
RANGE mode* (
page 203) is
switched on.

Set the raised level (page 281).

Avoid high engine speeds.

Shift automatic transmission to
position1 (
page 200).

Drive next to the ruts rather than
through them if at all possible.

If the ruts are too deep to drive in, drive
with one side of the vehicle on the
grassy center strip if the route permits.
Warning!G
Do not reduce the tire inflation pressure
before driving through sand. However, if you
do so, remember to correct the tire inflation
pressure (
page 396) before continuing
your trip. Driving with reduced tire inflation
pressure increases the risk of losing control
of the vehicle and rolling over.
!Check that the ruts are not too deep and
your vehicle’s clearance is sufficient. Otherwise:

your vehicle may be damaged

the underbody of the vehicle may come in
contact with the ground and you may get
stuck

365 Operation
Driving instructions
Returning from off-road drivingOff-road driving increases strain on the
vehicle.
We recommend that you inspect the vehi-
cle for possible damage after each off-road
trip. Recognizing any damage and a subse-
quent timely repair reduces the chance of
a possible breakdown or accident later on.
Proceed as follows:

Switch off the off-road driving program
(
page 280) or the LOW RANGE
mode* (
page 203).

Switch off the DSR (page 276).

Set the differential locks* to AUTO
(
page 207).

Lower the vehicle back to a level
suitable for road conditions, e.g. High-
way/High-speed level (
page 281).

Clean all exterior lamps and check for
possible damage.

Clean the front and rear license plate.

Remove excessive dirt from tires,
wheels, wheel housings, and under-
body.
For instance, after driving in mud, clean
the radiator, chassis, engine, brakes,
and wheels from extreme dirt using a
strong jet of water.

Check tires for possible damage.

Inspect vehicle underbody, oil pan,
brake hoses, etc., as well as vehicle un-
derbody for possible damage.

Check for brush or branches caught in
the underbody.

After continued operation in mud,
sand, water or other dirty conditions
clean the brake discs, wheels, brake
pads and check and clean axle joints.

Conduct a brake test.

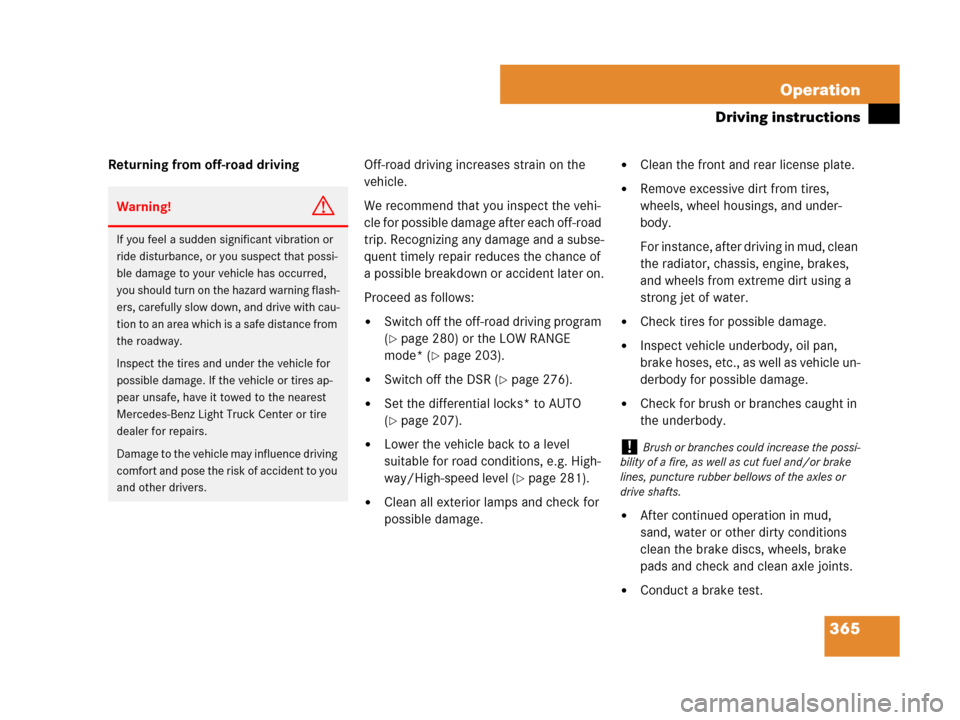

Warning!G
If you feel a sudden significant vibration or
ride disturbance, or you suspect that possi-
ble damage to your vehicle has occurred,
you should turn on the hazard warning flash-
ers, carefully slow down, and drive with cau-
tion to an area which is a safe distance from
the roadway.
Inspect the tires and under the vehicle for
possible damage. If the vehicle or tires ap-
pear unsafe, have it towed to the nearest
Mercedes-Benz Light Truck Center or tire
dealer for repairs.
Damage to the vehicle may influence driving
comfort and pose the risk of accident to you
and other drivers.
!Brush or branches could increase the possi-
bility of a fire, as well as cut fuel and/or brake
lines, puncture rubber bellows of the axles or
drive shafts.

366 Operation
Driving instructions
Trailer towing Trailer hitch*

Only install a trailer hitch receiver ap-
proved for your vehicle.
For information on availability and in-
stallation, contact an authorized
Mercedes-Benz Light Truck Center.

The bumpers on your vehicle are not
designed for use with clamp-type hitch-
es.
Do not attach rental hitches or other
bumper-type hitches to them.

To reduce the possibility of damage, re-
move the hitch ball adaptor from the
receiver when not in use.Electrical connections
The vehicle is prewired to accept the
seven-wire harness included in the
Mercedes-Benz approved trailer hitch
receiver kit.
For further information, contact an autho-
rized Mercedes-Benz Light Truck Center.
Vehicle and trailer weights and ratings
Gross Vehicle Weight Rating (GVWR) is the
maximum permissible vehicle weight:
6944 lb (3150 kg).
Gross Vehicle Weight (GVW):
Comprises weight of vehicle including fuel,
tools, spare wheel, installed accessories,
passengers, cargo and trailer tongue. It
must never exceed the GVWR.

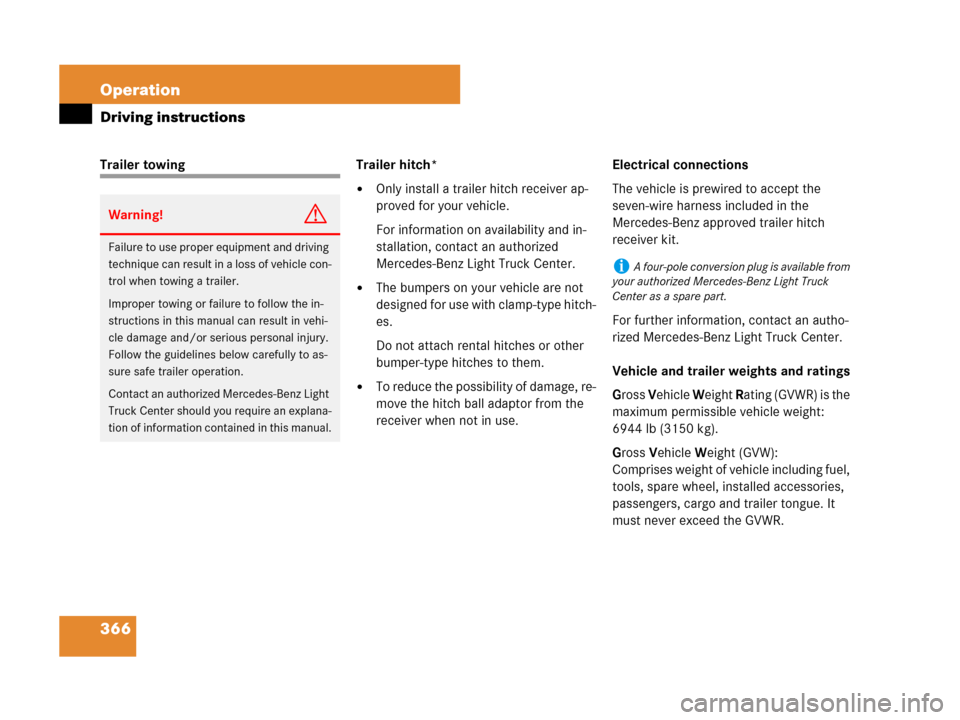

Warning!G
Failure to use proper equipment and driving
technique can result in a loss of vehicle con-
trol when towing a trailer.
Improper towing or failure to follow the in-
structions in this manual can result in vehi-
cle damage and/or serious personal injury.
Follow the guidelines below carefully to as-
sure safe trailer operation.
Contact an authorized Mercedes-Benz Light
Truck Center should you require an explana-
tion of information contained in this manual.
iA four-pole conversion plug is available from
your authorized Mercedes-Benz Light Truck
Center as a spare part.

367 Operation
Driving instructions
Gross Axle Weight Rating (GAWR) is the
maximum permissible axle weight:
The Gross Trailer Weight (GTW) is the
weight of the trailer plus the weight of all
cargo, equipment, luggage etc. loaded on
the trailer. The maximum permissible
gross trailer weight to be towed:
7500 lb (3402 kg).
Trailer Tongue Weight Rating (TWR) is the
maximum permissible weight on the trailer
tongue:
600 lb (272 kg) limit for Mercedes-Benz
approved hitch receiver.Loading a trailer

When loading a trailer, you should ob-
serve that neither the permissible GTW,
nor the GVWR are exceeded.
Maximum permissible values are listed
on the safety compliance certification
labels for the vehicle and for the trailer
to be towed.
The lowest value listed must be select-
ed when determining how the vehicle
and trailer are loaded.

The tongue weight at the hitch ball
must be added to the GVW to prevent
exceeding your Mercedes-Benz tow
vehicle’s rear GAWR.Checking weights of vehicle and trailer

To assure that the tow vehicle and trail-
er are in compliance with the maximum
permissible weight limits have the load-
ed rig (tow vehicle including driver, pas-
sengers and cargo, trailer fully loaded)
weighed on a commercial scale.

Check the vehicle’s front and rear
Gross Axle Weight (GAW), the Gross
Trailer Weight (GTW) and Tongue
Weight (TW).
The values as measures must not
exceed the weight limits listed under
“Vehicle and trailer weight and ratings”
(
page 366).

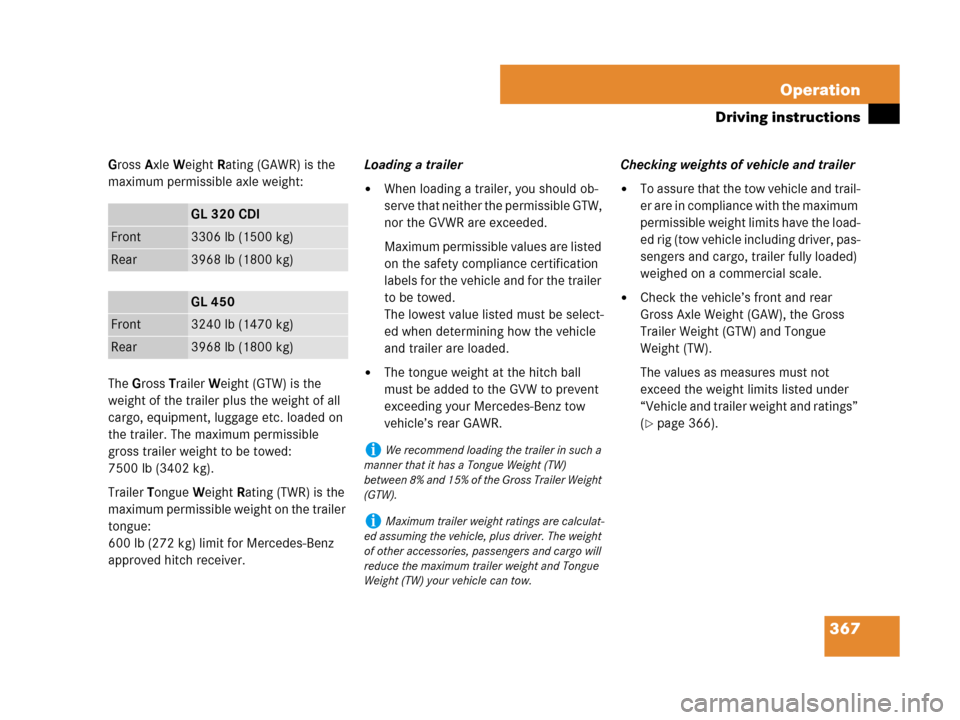

GL 320 CDI
Front3306 lb (1500 kg)
Rear3968 lb (1800 kg)
GL 450
Front3240 lb (1470 kg)
Rear3968 lb (1800 kg)
iWe recommend loading the trailer in such a
manner that it has a Tongue Weight (TW)
between 8% and 15% of the Gross Trailer Weight
(GTW).
iMaximum trailer weight ratings are calculat-
ed assuming the vehicle, plus driver. The weight
of other accessories, passengers and cargo will
reduce the maximum trailer weight and Tongue
Weight (TW) your vehicle can tow.

368 Operation
Driving instructions
Attaching a trailerObserve maximum permitted trailer
dimensions (width and length).
Most states and all Canadian provinces
require

safety chains between your tow vehicle
and the trailer.
The chains should be criss-crossed
under the trailer tongue. They must be
attached to the hitch receiver, and not
to the vehicle’s bumper or axle.
Ma ke sur e to l ea ve e nough s la ck i n the
chains to permit turning corners.

a separate brake system at various
trailer weights.

a break-away switch on trailers with a
separate brake system. Check with
your local state laws for specific
requirements.
The switch activates the trailer brakes
in the possible event that the trailer
might separate from the tow vehicle.
Make sure the automatic transmission
is set toP (
page 194).
Set the parking brake for the vehicle
(
page 68).
Start the engine (page 57).
Set the vehicle level to Highway
(
page 281).
Vehicle with ADS*: Set the ADS* to
AUTO or COMFORT (
page 280).
Turn off the engine (page 69).
Warning!G
While you are coupling or decoupling a trail-
er, make sure that you do not

lock or unlock

open or close
a vehicle door or the tailgate.
The vehicle’s level could change and you
could endanger yourself and/or others as a
result.
Make sure that you do not operate the ADS
button* (
page 281) or the vehicle level
control system (
page 281) when cou-
pling/decoupling the trailer.
!Do not connect a trailer brake system (if
trailer is so equipped) directly to the vehicle’s
hydraulic brake system, as your vehicle is
equipped with antilock brakes. If you do, neither
the vehicle’s brakes nor the trailer’s brakes will
function properly.
iThe provided vehicle electrical connector for
trailer towing has a brake signal wire for hook-up
to a brake controller.
You should consider using a trailer sway control
system. For further information, contact an
authorized Mercedes-Benz Light Truck Center.

369 Operation
Driving instructions
Close all doors and the tailgate.
Attach the trailer.
Plug in all electrical connectors.
Towing a trailer
There are many different laws, including
speed limit restrictions, having to do with
trailer towing. Make sure your rig will be le-
gal, not only for where you reside, but also
for where you will be driving. A good
source for this information can be the po-
lice or local authorities.Note the following points, when driving
with the trailer:
In order to gain skill and an understand-
ing of the vehicle’s behavior, you
should practice turning, stopping and
backing up in an area which is free from
traffic.

Before you start driving check the

trailer hitch

break-away switch

safety chains

electrical connections

lighting and tires

Adjust the mirrors (page 52) to
permit unobstructed view beyond rear
of trailer.

If the trailer has electric brakes, start
your vehicle and trailer moving slowly,
and then apply only the trailer brake
controller by hand to make sure the
brakes are working properly.

Always secure items in the trailer to
prevent load shifts while driving.

When towing a trailer, check occasion-
ally to make sure the load is secure,
and that lighting and trailer brakes (if
so equipped) are functioning properly.

Take into consideration that when tow-
ing a trailer, the handling characteris-
tics are different and less stable from
those when operating the vehicle with-
out a trailer.
It is important to avoid sudden maneu-
vers.

The vehicle and trailer combination is
heavier, and therefore is limited in ac-
celeration and climbing ability, and re-
quires longer stopping distances.
It is more prone to reacting to cross
wind gusts, and requires more sensi-
tive steering input.

If possible, do not brake abruptly, but
rather engage the brake slightly at first
to permit the trailer to activate its
brake. Then increase the braking force.
iWhen you are towing a trailer, the vehicle
level always remains in the Highway setting.
The following applies additionally when towing a
trailer:

The vehicle is lowered to the highway level
when it reaches a speed of 5 mph (8 km/h)
if not set to highway level.

The high-speed level is not available.
The restrictions that apply to towing also apply
when using accessories that are connected to
the trailer power socket, such as a bicycle rack.
