MERCEDES-BENZ GL320CDI 2007 X164 Owner's Guide

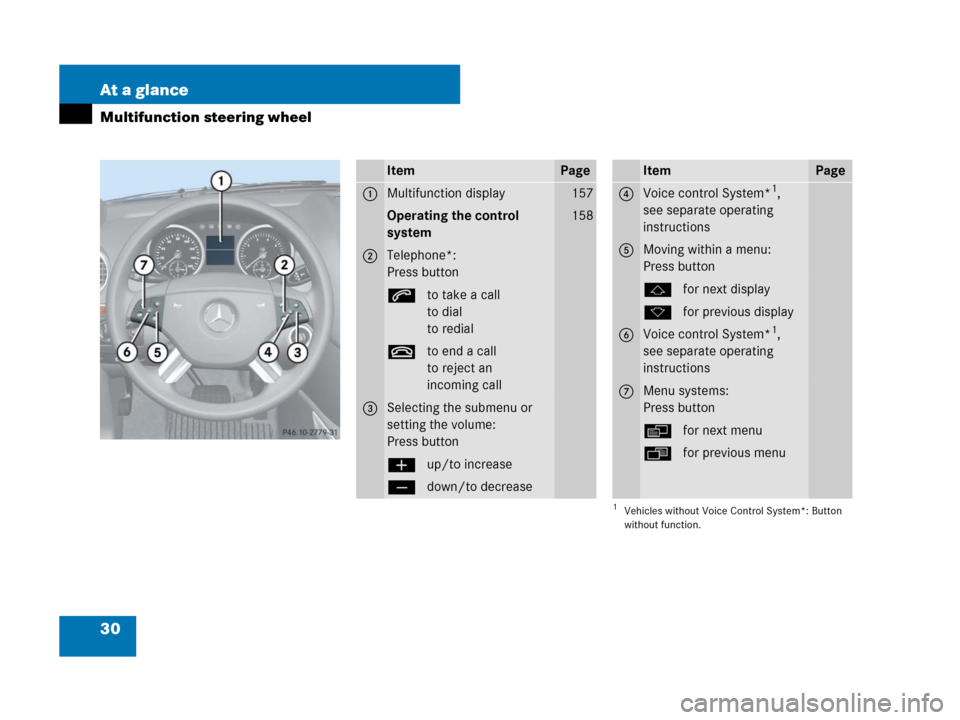

30 At a glance
Multifunction steering wheel
ItemPage
1Multifunction display157
Operating the control
system158
2Telephone*:
Press button
sto take a call
to dial
to redial
tto end a call
to reject an
incoming call
3Selecting the submenu or
setting the volume:
Press button
æup/to increase
çdown/to decrease
ItemPage
4Voice control System*1,
see separate operating
instructions
5Moving within a menu:
Press button
jfor next display
kfor previous display
6Voice control System*1,
see separate operating
instructions
7Menu systems:
Press button
èfor next menu
ÿfor previous menu
1Vehicles without Voice Control System*: Button
without function.

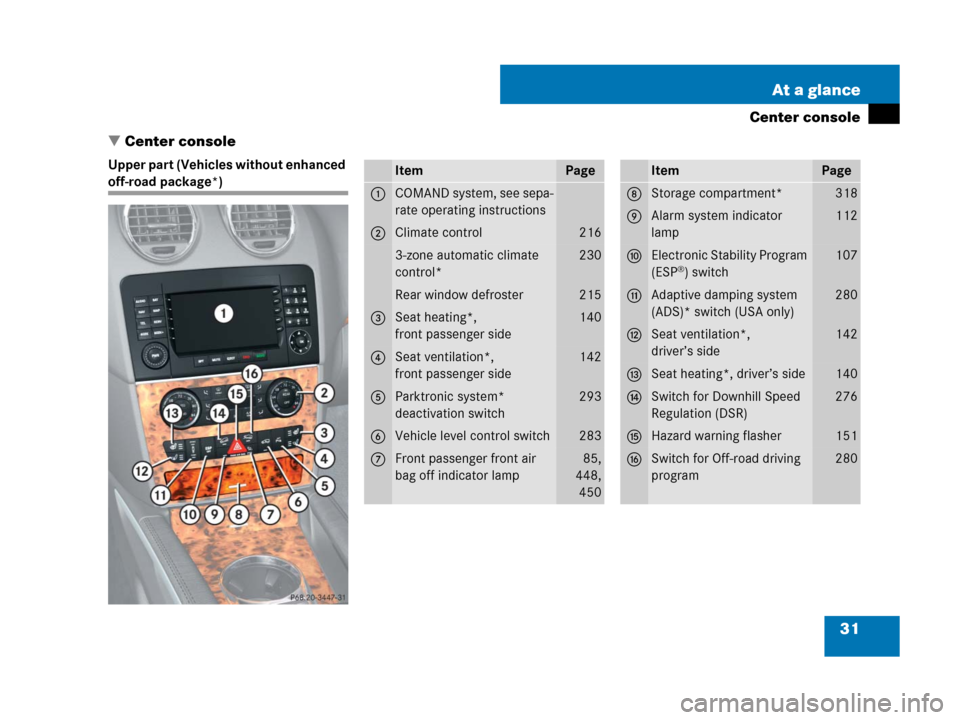

31 At a glance
Center console
Center console
Upper part (Vehicles without enhanced
off-road package*)ItemPage
1COMAND system, see sepa-
rate operating instructions
2Climate control216
3-zone automatic climate
control*230
Rear window defroster215
3Seat heating*,
front passenger side140
4Seat ventilation*,
front passenger side142
5Parktronic system*
deactivation switch293
6Vehicle level control switch283
7Front passenger front air
bag off indicator lamp85,
448,
450
ItemPage
8Storage compartment*318
9Alarm system indicator
lamp112
aElectronic Stability Program
(ESP®) switch
107
bAdaptive damping system
(ADS)* switch (USA only)280
cSeat ventilation*,
driver’s side142
dSeat heating*, driver’s side140
eSwitch for Downhill Speed
Regulation (DSR)276
fHazard warning flasher151
gSwitch for Off-road driving
program280

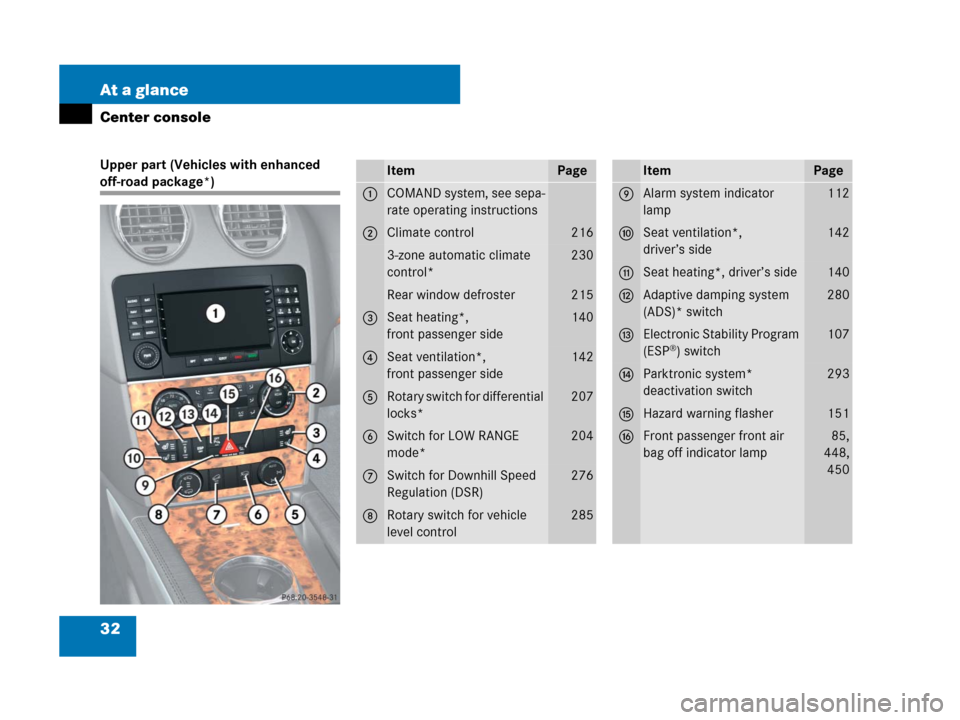

32 At a glance
Center console
Upper part (Vehicles with enhanced
off-road package*)ItemPage
1COMAND system, see sepa-
rate operating instructions
2Climate control216
3-zone automatic climate
control*230
Rear window defroster215
3Seat heating*,
front passenger side140
4Seat ventilation*,
front passenger side142
5Rotary switch for differential
locks*207
6Switch for LOW RANGE
mode*204
7Switch for Downhill Speed
Regulation (DSR)276
8Rotary switch for vehicle
level control285
ItemPage
9Alarm system indicator
lamp112
aSeat ventilation*,
driver’s side142
bSeat heating*, driver’s side140
cAdaptive damping system
(ADS)* switch280
dElectronic Stability Program
(ESP®) switch
107
eParktronic system*
deactivation switch293
fHazard warning flasher151
gFront passenger front air
bag off indicator lamp85,
448,
450

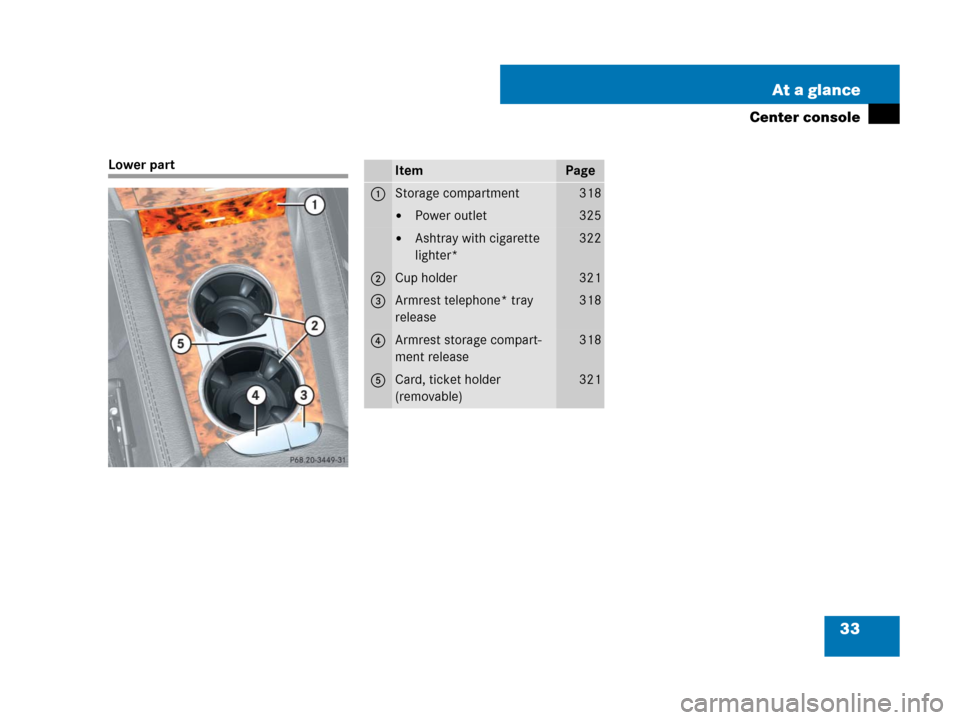

33 At a glance
Center console
Lower partItemPage
1Storage compartment318

Power outlet325

Ashtray with cigarette
lighter*322
2Cup holder321
3Armrest telephone* tray
release318
4Armrest storage compart-
ment release318
5Card, ticket holder
(removable)321

34 At a glance
Overhead control panel
ItemPage
1Left reading lamp switch151
2Rear interior lighting switch151
3Automatic interior lighting
switch151
4Front interior lighting switch151
5Right reading lamp switch151
6Front right interior lamp151
7Power tilt/sliding sunroof*
switch253
8Tele Aid (emergency call
system) button335
9Interior rear view mirror210
aFront right reading lamp151
ItemPage
bFront left reading lamp151
cGarage door opener340
dVehicles without
telephone* installed:
Hands-free microphone for
Tele Aid (emergency call
system)332
eVehicles with telephone*
installed:
Hands-free microphone for
Tele Aid (emergency call
system) and telephone*332
fFront left interior lamp151

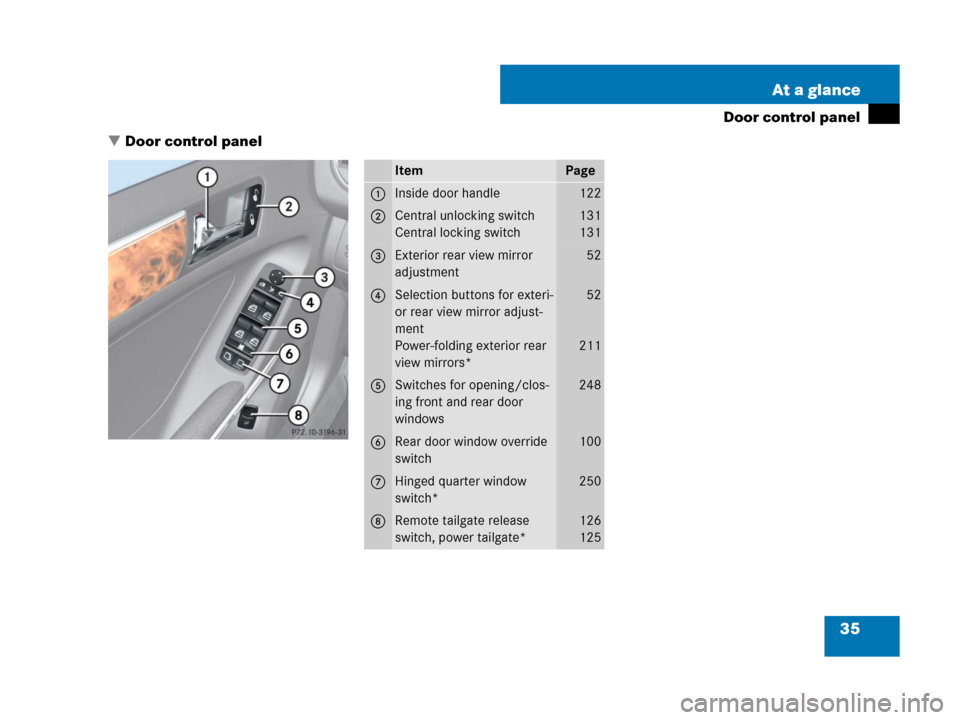

35 At a glance
Door control panel
Door control panel
ItemPage
1Inside door handle122
2Central unlocking switch
Central locking switch131
131
3Exterior rear view mirror
adjustment52
4Selection buttons for exteri-
or rear view mirror adjust-
ment
Power-folding exterior rear
view mirrors*52
211
5Switches for opening/clos-
ing front and rear door
windows248
6Rear door window override
switch100
7Hinged quarter window
switch*250
8Remote tailgate release
switch, power tailgate*126
125

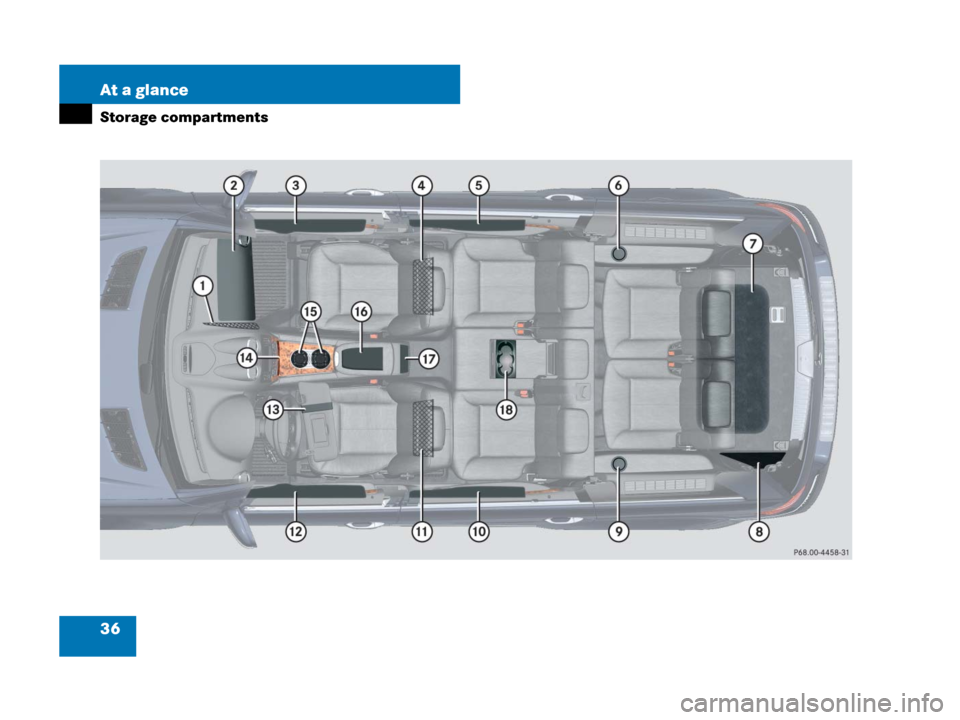

36 At a glance
Storage compartments

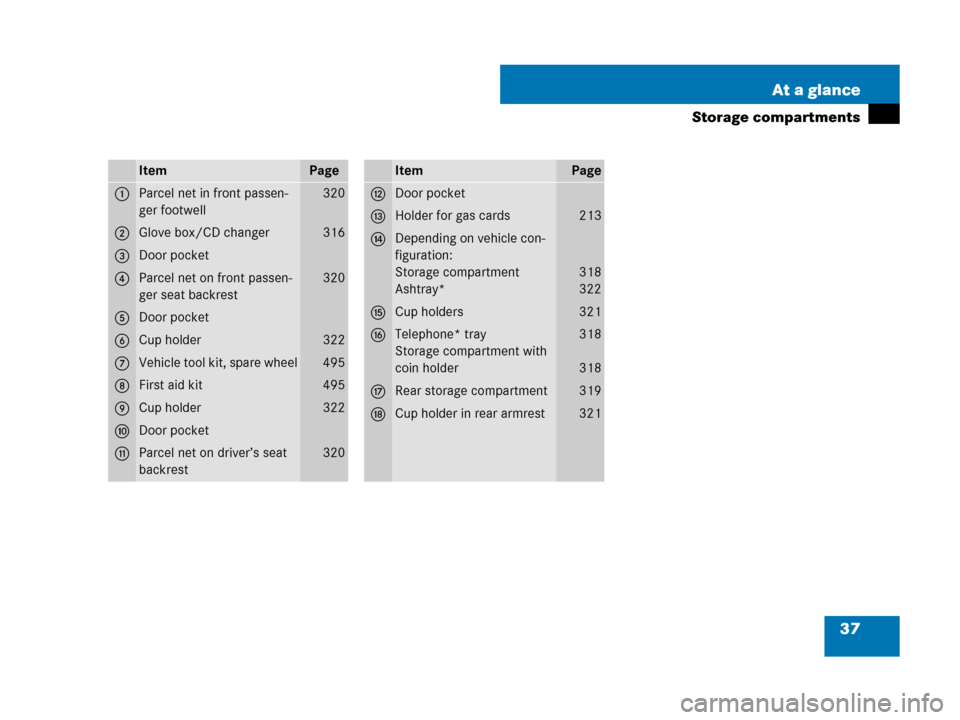

37 At a glance
Storage compartments
ItemPage
1Parcel net in front passen-
ger footwell320
2Glove box/CD changer316
3Door pocket
4Parcel net on front passen-
ger seat backrest320
5Door pocket
6Cup holder322
7Vehicle tool kit, spare wheel495
8First aid kit495
9Cup holder322
aDoor pocket
bParcel net on driver’s seat
backrest320
ItemPage
cDoor pocket
dHolder for gas cards213
eDepending on vehicle con-
figuration:
Storage compartment
Ashtray*
318
322
fCup holders321
gTelephone* tray
Storage compartment with
coin holder318
318
hRear storage compartment319
jCup holder in rear armrest321

38

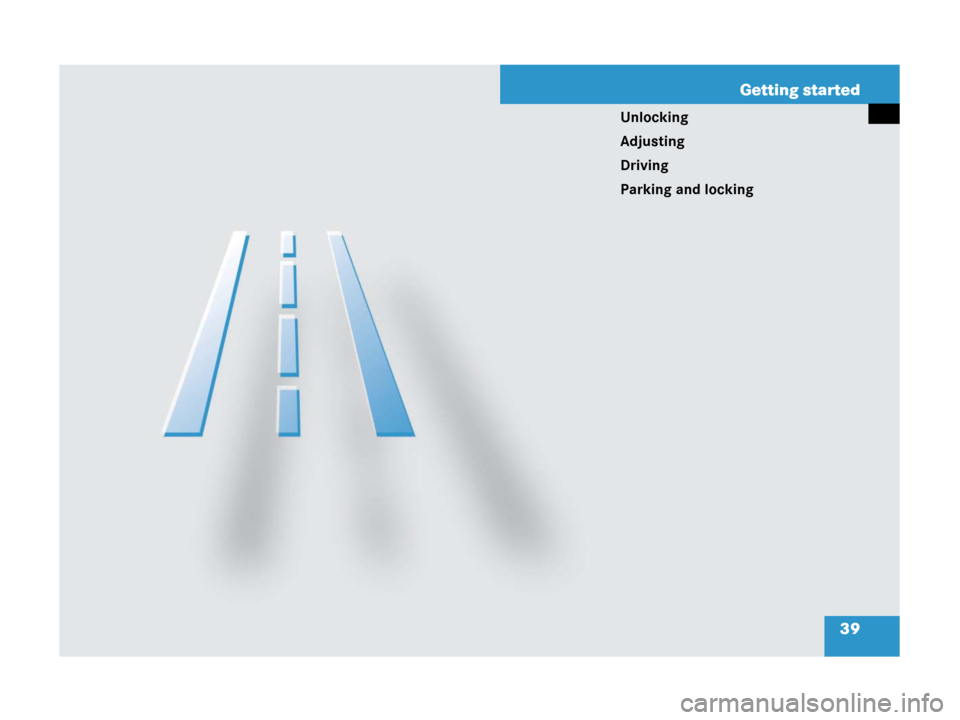

39 Getting started
Unlocking
Adjusting
Driving
Parking and locking
