333 Controls in detail
Useful features
Emergency calls
An emergency call is initiated automatical-
ly following an accident in which the emer-
gency tensioning devices (ETDs) or
air bags deploy.
An emergency call can also be initiated
manually by opening the cover next to the
interior rear view mirror labeled SOS, then
briefly pressing the button located under
the cover. See (
page 334) for
instructions on initiating an emergency call
manually.Once the emergency call is in progress, the
indicator lamp on the SOS button will
begin to flash. The message
Connecting Call appears in the multifunc-
tion display. When the connection is estab-
lished, the message
Call Connected
appears in the multifunction display. All in-
formation relevant to the emergency, such
as the location of the vehicle (determined
by the GPS satellite location system), vehi-
cle model, identification number and color
are generated.
A voice connection between the Response
Center and the occupants of the vehicle
will be established automatically soon af-
ter the emergency call has been initiated.
The Response Center will attempt to
determine more precisely the nature of the
accident provided they can speak to an
occupant of the vehicle.The Tele Aid system is available if

it has been activated and is operation-
al. Activation requires a subscription
for monitoring services, connection
and cellular air time

vehicle battery power is available

the relevant cellular phone network
and GPS signals are available and pass
the information on to the Response
Center
If a malfunction is indicated as outlined
above, the system may not operate as
expected. Have the system checked at the
nearest Mercedes-Benz Light Truck Center
as soon as possible.
iLocation of the vehicle on a map is only pos-
sible if the vehicle is able to receive signals from
the GPS satellite network and pass the informa-
tion on to the Response Center.
164.boo Seite 333 Freitag, 30. März 2007 12:54 12

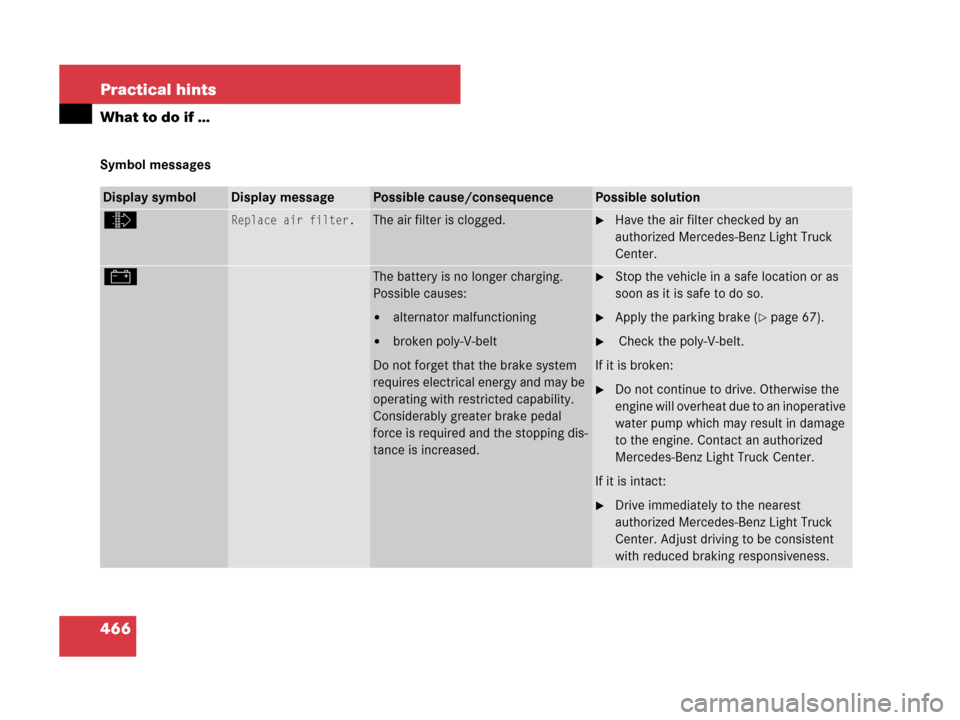

466 Practical hints
What to do if …
Symbol messages
Display symbolDisplay messagePossible cause/consequencePossible solution
ò Replace air filter.The air filter is clogged.Have the air filter checked by an
authorized Mercedes-Benz Light Truck
Center.
#The battery is no longer charging.
Possible causes:

alternator malfunctioning

broken poly-V-belt
Do not forget that the brake system
requires electrical energy and may be
operating with restricted capability.
Considerably greater brake pedal
force is required and the stopping dis-
tance is increased.
Stop the vehicle in a safe location or as
soon as it is safe to do so.
Apply the parking brake (page 67).
 Check the poly-V-belt.
If it is broken:
Do not continue to drive. Otherwise the
engine will overheat due to an inoperative
water pump which may result in damage
to the engine. Contact an authorized
Mercedes-Benz Light Truck Center.
If it is intact:
Drive immediately to the nearest
authorized Mercedes-Benz Light Truck
Center. Adjust driving to be consistent
with reduced braking responsiveness.
164.boo Seite 466 Freitag, 30. März 2007 12:54 12

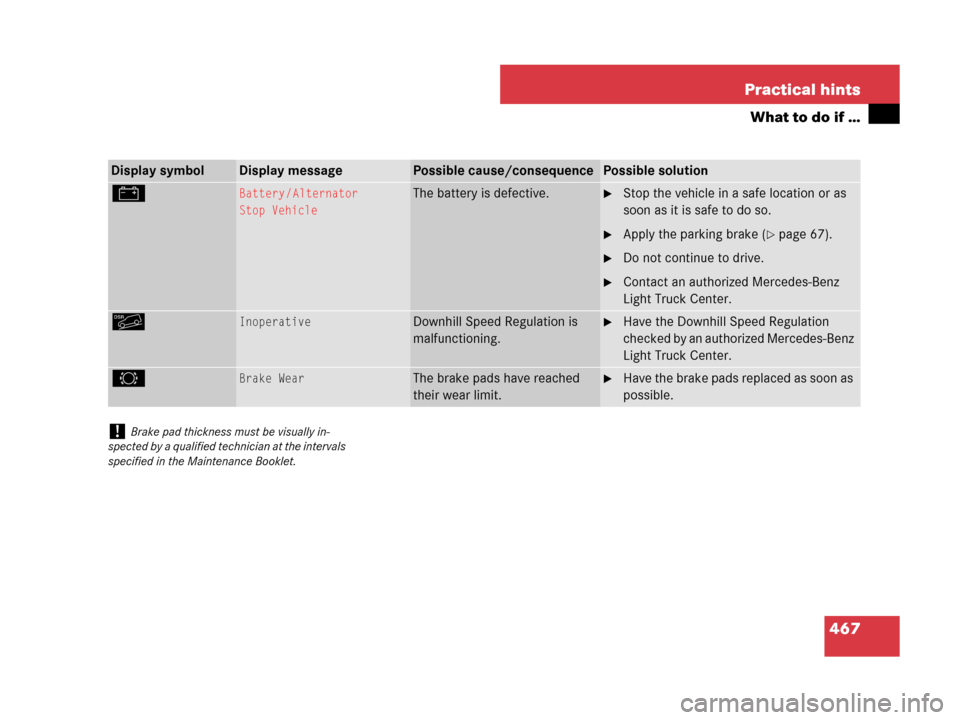

467 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
#Battery / Alternator
Stop VehicleThe battery is defective.Stop the vehicle in a safe location or as
soon as it is safe to do so.
Apply the parking brake (page 67).
Do not continue to drive.
Contact an authorized Mercedes-Benz
Light Truck Center.
{InoperativeDownhill Speed Regulation is
malfunctioning.Have the Downhill Speed Regulation
checked by an authorized Mercedes-Benz
Light Truck Center.
2Brake WearThe brake pads have reached
their wear limit.Have the brake pads replaced as soon as
possible.
!Brake pad thickness must be visually in-
spected by a qualified technician at the intervals
specified in the Maintenance Booklet.
