MERCEDES-BENZ GL550 2008 X164 Owner's Manual

150 Controls in detail
Lighting
Automatic control
Deactivating
Press switch3.
The switch engages in the recessed
position.
The interior lighting and the locator
lighting (
page 176) remain switched
off even when you

unlock the vehicle

open a door

open the tailgate

remove the SmartKey from the
starter switchActivating
Press switch3.
The switch disengages from its
recessed position back to its original
position.
The interior lighting and the locator
lighting (
page 176) come on when
you

unlock the vehicle

open a door

open the tailgate

remove the SmartKey from the
starter switch
The interior lamps go out following an
adjustable time delay (
page 177).Manual control
Switching front/rear interior lighting on
and off
Press front/rear interior lighting
switch4 or2 to switch on the
respective interior light.
Press front/rear interior lighting
switch4 or2 again to switch off the
respective interior light.
Switching front reading lamps on and off
Press front reading lamp switch1
or5 to switch on the respective front
reading lamp.
Press front reading lamp switch1
or5 again to switch off the respective
front reading lamp.
!An interior lamp switched on manually does
not go out automatically.
Leaving an interior lamp switch in the ON
position for extended periods of time with the
engine turned off could result in a discharged
battery.
iThe interior lighting is factory-set to
automatic mode.
iIf a door remains open, the interior lamps
switch off automatically after approximately
5 minutes when the SmartKey is removed or in
starter switch position0.
iAn interior lamp switched on manually does
not go out automatically.
164.boo Seite 150 Freitag, 30. März 2007 12:54 12

151 Controls in detail
Lighting
Switching second-row reading lamps on
and off
The second-row reading lamps are located
above the side windows.
Passenger side reading lamp
1Second-row reading lamp
Press on reading lamp1 where indi-
cated by arrow.
The reading lamp comes on.
Press on reading lamp1 once more.
The reading lamp goes out.
Door entry lamps
For better orientation in the dark, the
corresponding door entry lamps comes on
when you open a door and the automatic
control is activated.
The door entry lamps will switch off when
the corresponding door is closed.Cargo compartment lamp
The cargo compartment lamp comes on
when the tailgate is opened.
If you leave the tailgate open for an extend-
ed period of time, the cargo compartment
lamp will switch off automatically after ap-
proximately 5 minutes.
iIf you turn the SmartKey in the starter
switch to position0 or remove the SmartKey
from the starter switch, the door entry lamps will
remain lit for approximately 5 minutes.
164.boo Seite 151 Freitag, 30. März 2007 12:54 12

152 Controls in detail
Instrument cluster
For a full view illustration of the instrument
cluster, see “Instrument cluster”
(
page 26).
1To dim instrument cluster illumination
2Reset button
3To brighten instrument cluster
illuminationThe instrument cluster is activated when
you
open a door

switch on the ignition (page 42)

press reset button2

switch on the exterior lamps
(
page 143)
For information on changing the instru-
ment cluster settings, e.g. the language,
see “Instrument cluster submenu”
(
page 172).
iOpening a front door or pressing the reset
button without switching on the ignition or the
exterior lighting activates the multifunction
display illumination only for 30 seconds.
Warning!G
No messages will be displayed if either the
instrument cluster or the multifunction
display is inoperative.
As a result, you will not be able to see infor-
mation about your driving conditions, such
as speed or outside temperature, warn-
ing/indicator lamps, malfunction/warning
messages or the failure of any systems.
Driving characteristics may be impaired.
If you must continue to drive, do so with
added caution. Contact an authorized
Mercedes-Benz Light Truck Center as soon
as possible.
164.boo Seite 152 Freitag, 30. März 2007 12:54 12

153 Controls in detail
Instrument cluster
Adjusting instrument cluster illumina-
tion
Use button1 or3 to adjust the illumina-
tion brightness for the instrument cluster.
To brighten illumination
Press and hold button3 until the
desired level of illumination is reached.
To dim illumination
Press and hold button1 until the
desired level of illumination is reached.
Resetting trip odometer
Make sure you are viewing the trip odome-
ter display (
page 155).
If it is not displayed, press buttonè
orÿ on the multifunction steering
wheel (
page 156) repeatedly until
the trip odometer appears in the multi-
function display.
Press and hold reset button2 in the
instrument cluster (
page 152) until
the trip odometer is reset.
Tachometer
The red marking on the tachometer
(
page 26) denotes excessive engine
speed.To help protect the engine, the fuel supply
is interrupted if the engine is operated
within the red marking.
Outside temperature indicator
The outside temperature is displayed in the
multifunction display (
page 155).
iThe instrument cluster illumination is
dimmed or brightened automatically to suit am-
bient light conditions.
The instrument cluster illumination will also be
adjusted automatically when you switch on the
vehicle’s exterior lamps.
iWith the exterior lighting switched on, the
brightness of the switches in the center console
will also be adjusted when using button
1 or3.
!Avoid driving at excessive engine speeds, as
it may result in serious engine damage that is not
covered by the Mercedes-Benz Limited
Warranty.
Warning!G
The outside temperature indicator is not de-
signed to serve as an ice-warning device and
is therefore unsuitable for that purpose.
Indicated temperatures just above the freez-
ing point do not guarantee that the road sur-
face is free of ice. The road may still be icy,
especially in wooded areas or on bridges.
164.boo Seite 153 Freitag, 30. März 2007 12:54 12

154 Controls in detail
Instrument cluster
The temperature sensor is located in the
front bumper area. Due to its location, the
sensor can be affected by road or engine
heat during idling or slow driving. This
means that the accuracy of the displayed
temperature can only be verified by com-
parison to a thermometer placed next to
the sensor, not by comparison to external
displays (e.g. bank signs etc.).
When moving the vehicle into colder ambi-
ent temperatures (e.g. when leaving your
garage), you will notice a delay before the
lower temperature is displayed.
A delay also occurs when ambient temper-
atures rise. This prevents inaccurate tem-
perature indications caused by heat
radiated from the engine during idling or
slow driving.
164.boo Seite 154 Freitag, 30. März 2007 12:54 12

155 Controls in detail
Control system
Control system
The control system is activated as soon as
the SmartKey in the starter switch is
turned to position1 (
page 42) or as
soon as the KEYLESS-GO start/stop but-
ton* is in position1 (
page 44). The con-
trol system enables you to

call up information about your vehicle

change vehicle settings
For example, you can use the control sys-
tem to find out when your vehicle is next
due for maintenance service, to set the
language for messages in the instrument
cluster display, and much more.
The control system relays information to
the multifunction display.

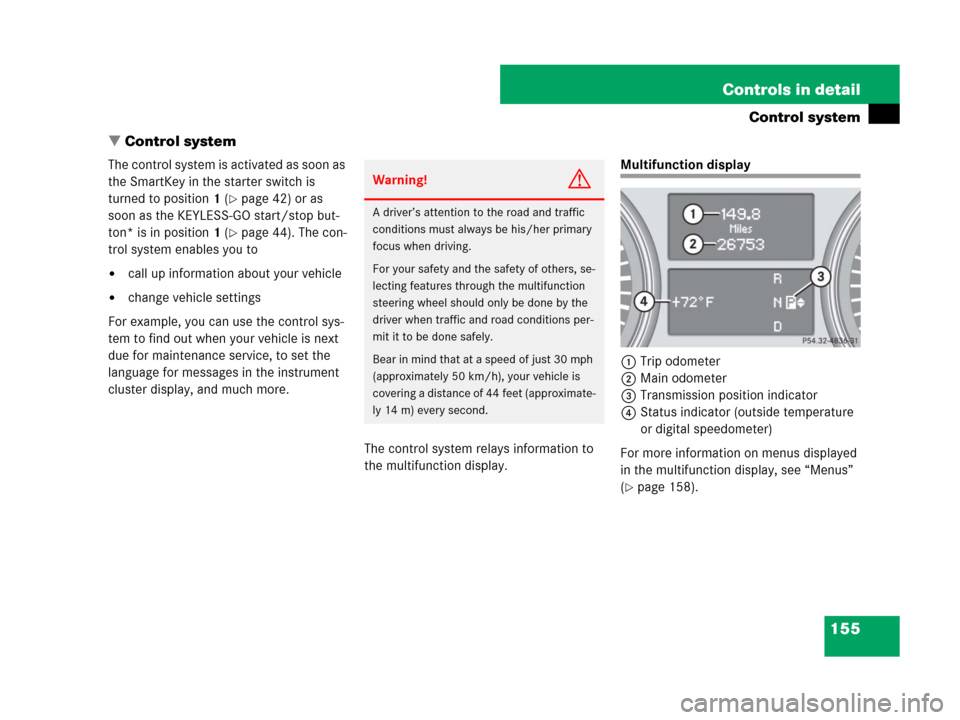

Multifunction display
1Trip odometer
2Main odometer
3Transmission position indicator
4Status indicator (outside temperature
or digital speedometer)
For more information on menus displayed
in the multifunction display, see “Menus”
(
page 158).
Warning!G
A driver’s attention to the road and traffic
conditions must always be his/her primary
focus when driving.
For your safety and the safety of others, se-
lecting features through the multifunction
steering wheel should only be done by the
driver when traffic and road conditions per-
mit it to be done safely.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approximate-
ly 14 m) every second.
164.boo Seite 155 Freitag, 30. März 2007 12:54 12

156 Controls in detail
Control system

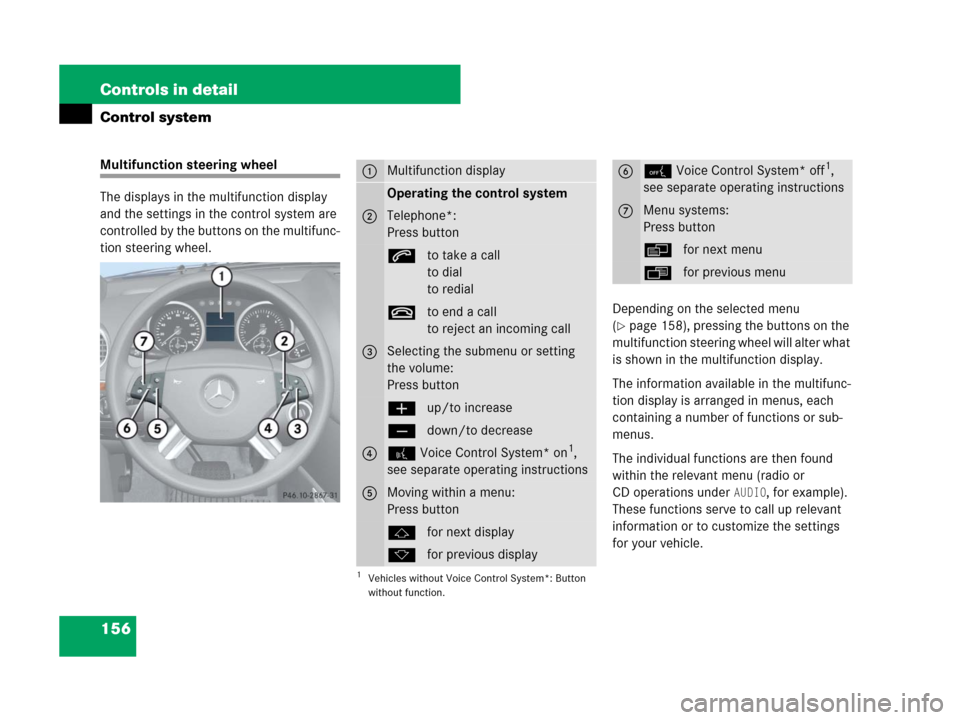

Multifunction steering wheel
The displays in the multifunction display
and the settings in the control system are
controlled by the buttons on the multifunc-
tion steering wheel.
Depending on the selected menu
(
page 158), pressing the buttons on the
multifunction steering wheel will alter what
is shown in the multifunction display.
The information available in the multifunc-
tion display is arranged in menus, each
containing a number of functions or sub-
menus.
The individual functions are then found
within the relevant menu (radio or
CD operations under
AUDIO, for example).
These functions serve to call up relevant
information or to customize the settings
for your vehicle.
1Multifunction display
Operating the control system
2Telephone*:
Press button
sto take a call
to dial
to redial
tto end a call
to reject an incoming call
3Selecting the submenu or setting
the volume:
Press button
æup/to increase
çdown/to decrease
4! Voice Control System* on1,
see separate operating instructions
1Vehicles without Voice Control System*: Button
without function.
5Moving within a menu:
Press button
jfor next display
kfor previous display
60 Voice Control System* off1,
see separate operating instructions
7Menu systems:
Press button
èfor next menu
ÿfor previous menu
164.boo Seite 156 Freitag, 30. März 2007 12:54 12

157 Controls in detail
Control system
It is helpful to think of the menus, and the
functions within each menu, as being ar-
ranged in a circular pattern.

If you press buttonè orÿ
repeatedly, you will pass through each
menu one after the other.

If you press buttonk orj
repeatedly, you will pass through each
function display, one after the other, in
the current menu.In the
Settings menu, instead of
functions, you will find a number of
submenus for calling up and changing
settings. For instructions on using these
submenus, see “Settings menu”
(
page 168).
The number of menus available in the sys-
tem depends on which optional equipment
is installed in your vehicle.The menus are described on the following
pages.
164.boo Seite 157 Freitag, 30. März 2007 12:54 12

158 Controls in detail
Control system

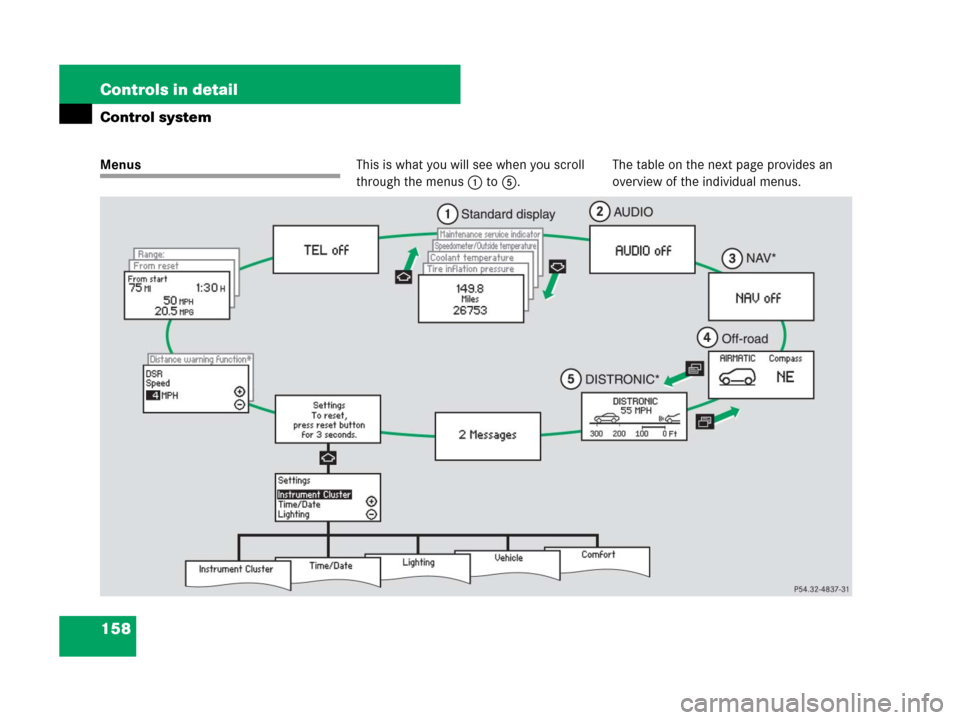

MenusThis is what you will see when you scroll
through the menus1 to5.The table on the next page provides an
overview of the individual menus.
164.boo Seite 158 Freitag, 30. März 2007 12:54 12

159 Controls in detail
Control system

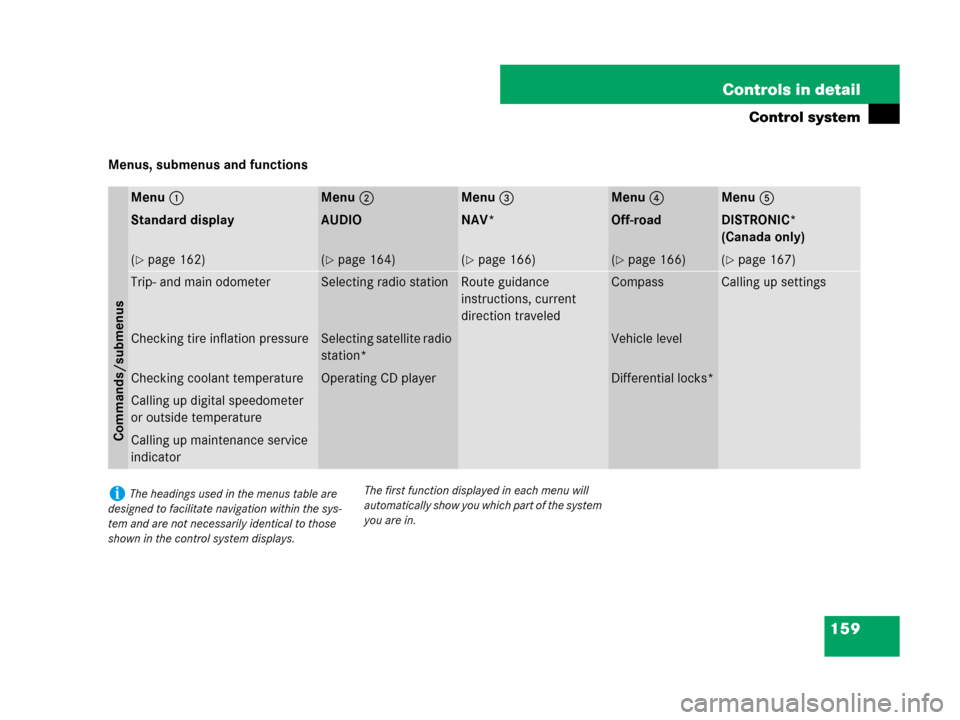

Menus, submenus and functions
Menu1Menu2Menu3Menu4Menu5
Standard displayAUDIONAV*Off-roadDISTRONIC*
(Canada only)
(page 162)(page 164)(page 166)(page 166)(page 167)
Commands/submenus
Trip- and main odometerSelecting radio stationRoute guidance
instructions, current
direction traveledCompassCalling up settings
Checking tire inflation pressureSelecting satellite radio
station*Vehicle level
Checking coolant temperatureOperating CD playerDifferential locks*
Calling up digital speedometer
or outside temperature
Calling up maintenance service
indicator
iThe headings used in the menus table are
designed to facilitate navigation within the sys-
tem and are not necessarily identical to those
shown in the control system displays.The first function displayed in each menu will
automatically show you which part of the system
you are in.
164.boo Seite 159 Freitag, 30. März 2007 12:54 12
