MERCEDES-BENZ GL550 2008 X164 Owner's Manual

110 Safety and Security
Anti-theft systems
Arming the alarm system
The alarm system indicator lamp is located
to the lower left of the hazard warning
flasher.
1Alarm system indicator lamp
Lock the vehicle with the SmartKey or
with KEYLESS-GO* (
page 70).
The turn signal lamps flash three times
to indicate that the vehicle is locked.
The alarm system is armed within ap-
proximately 10 seconds. Alarm system
indicator lamp1 flashes.Disarming the alarm system
Unlock the vehicle with the SmartKey
or with KEYLESS-GO* (
page 40).
The turn signal lamps flash once to
indicate that the alarm system is
disarmed. Indicator lamp1 goes out.Canceling the alarm
To cancel the alarm:
With the SmartKey
Insert the SmartKey in the starter
switch.
or
Press theŒ or ‹button on the
SmartKey.
With KEYLESS-GO*
Grasp an outside door handle.
The SmartKey with KEYLESS-GO must
be within 3 ft (1 m) of the vehicle.
or
Press the KEYLESS-GO start/stop
button (
page 43).
The SmartKey with KEYLESS-GO must
be inside the vehicle.
iIf the turn signal lamps do not flash three
times, one of the following elements may not be
properly closed:

a door

the tailgate
Close the respective element and lock the
vehicle again.
iThe alarm system will rearm automatically
again after approximately 40 seconds if neither a
door nor the tailgate is opened.
164.boo Seite 110 Freitag, 30. März 2007 12:54 12

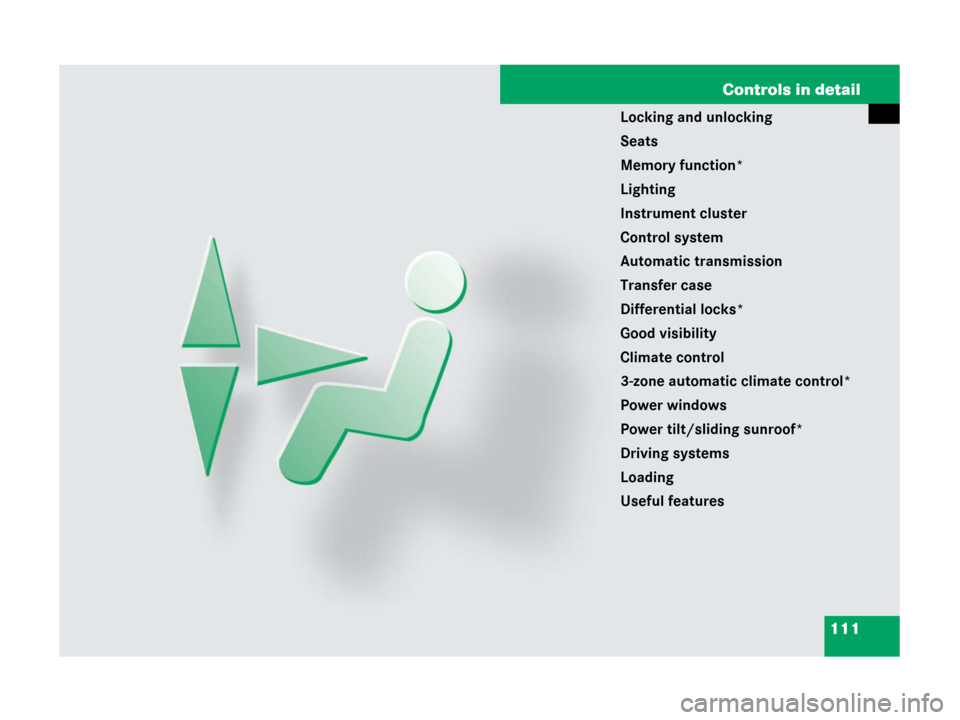

111 Controls in detail
Locking and unlocking
Seats
Memory function*
Lighting
Instrument cluster
Control system
Automatic transmission
Transfer case
Differential locks*
Good visibility
Climate control
3-zone automatic climate control*
Power windows
Power tilt/sliding sunroof*
Driving systems
Loading
Useful features
164.boo Seite 111 Freitag, 30. März 2007 12:54 12

112 Controls in detail
In the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed in your vehicle.
If you are already familiar with the basic
functions of your vehicle, this section will
be of particular interest to you.
To quickly familiarize yourself with the ba-
sic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are
given at the beginning of each segment.
Locking and unlocking
For more information on locking and un-
locking, see the “Getting started” section
(
page 40) and (page 70).
SmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and a
removable mechanical key.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks:

the doors

the tailgate

the fuel filler flap
SmartKey with remote control
1‹ Lock button
2Š Unlock button* for tailgate
3Locking tab for mechanical key
4ΠUnlock button
5Battery check lamp
6Â Panic button (
page 100)
164.boo Seite 112 Freitag, 30. März 2007 12:54 12

113 Controls in detail
Locking and unlocking
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. It is possible
for children to open a locked door from the
inside, which could result in an accident
and/or serious personal injury.
!To prevent possible malfunction, avoid
exposing the SmartKey to high levels of electro-
magnetic radiation.
iUSA only:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iCanada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iYou can also open and close

the door windows

the hinged quarter windows*

the tilt/sliding sunroof*
using the SmartKey, see “Summer opening fea-
ture” (
page 249) and see “Convenience clos-
ing feature” (
page 250).
!If you cannot lock or unlock the vehicle with
the SmartKey, the batteries in the SmartKey are
discharged, the SmartKey is malfunctioning, or
the vehicle battery is drained.

Check the batteries in the SmartKey and
replace them if necessary (
page 502).

Use the mechanical key to unlock the
driver’s door (
page 496).

Lock the vehicle as described in the
“Practical hints” section (
page 497).

Have the vehicle battery and the vehicle
battery connections checked (
page 528).
If the SmartKey is malfunctioning, contact
Roadside Assistance or an authorized
Mercedes-Benz Light Truck Center.
164.boo Seite 113 Freitag, 30. März 2007 12:54 12

114 Controls in detail
Locking and unlocking
Factory setting
Global unlocking
Press buttonŒ.
All turn signal lamps flash once. The
locking knobs in the doors move up.
The anti-theft alarm system is
disarmed.
The vehicle will lock again automatically
and rearm the anti-theft alarm system
within approximately 40 seconds of un-
locking if

neither door nor tailgate is opened

the SmartKey is not inserted in the
starter switch

the central locking switch is not
activatedGlobal locking
Press button‹.
With the tailgate and all doors closed,
the turn signal lamps flash three times.
The locking knobs in the doors move
down. The anti-theft alarm system is
armed.
Selective setting
If you frequently travel alone, you may wish
to reprogram the SmartKey so that
pressing buttonΠonly unlocks the
driver’s door and the fuel filler flap.
Press and hold buttonsŒ and‹
simultaneously for about 5 seconds
until battery check lamp5
(
page 112) flashes twice.
The SmartKey will then function as
follows:Unlocking driver’s door and fuel filler
flap
Press buttonΠonce.
All turn signal lamps flash once. The
locking knob in the driver’s door moves
up. The anti-theft alarm system is
disarmed.
Global unlocking
Press buttonΠtwice.
All turn signal lamps flash once. The
locking knobs in the doors move up.
The anti-theft alarm system is
disarmed.
164.boo Seite 114 Freitag, 30. März 2007 12:54 12

115 Controls in detail
Locking and unlocking
Global locking
Press button‹.
With the tailgate and all doors closed,
the turn signal lamps flash three times.
The locking knobs in the doors move
down. The anti-theft alarm system is
armed.
Restoring to factory setting
Press and hold buttonsŒ and‹
simultaneously for about 5 seconds
until battery check lamp5
(
page 112) flashes twice.
SmartKey with KEYLESS-GO*
Vehicles equipped with KEYLESS-GO come
with two SmartKeys with KEYLESS-GO,
each with remote control and a removable
mechanical key.
The KEYLESS-GO function is integrated
into the SmartKey. On these vehicles, the
validity of the SmartKey with KEYLESS-GO
is checked when you grasp an outside door
handle.
If the SmartKey with KEYLESS-GO is valid,
your vehicle unlocks

the doors

the tailgate

the fuel filler flap
SmartKey with KEYLESS-GO*
1‹ Lock button
2Š Unlock button* for tailgate
3Locking tab for mechanical key
4ΠUnlock button
5Battery check lamp
6Â Panic button (
page 100)
164.boo Seite 115 Freitag, 30. März 2007 12:54 12

116 Controls in detail
Locking and unlocking
Warning!G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO* with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised
access to a vehicle could result in an
accident and/or serious personal injury.
!To prevent possible malfunction, avoid
exposing the SmartKey with KEYLESS-GO to high
levels of electromagnetic radiation.
iUSA only:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iCanada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iYou can also open and close

the door windows

the hinged quarter windows*

the tilt/sliding sunroof*
using the SmartKey with KEYLESS-GO, see
“Summer opening feature” (
page 249) and
see “Convenience closing feature”
(
page 250).
!If you cannot lock or unlock the vehicle with
the SmartKey with KEYLESS-GO, the batteries in
the SmartKey with KEYLESS-GO are discharged,
the SmartKey with KEYLESS-GO is malfunction-
ing or the vehicle battery is drained.

Check the batteries in the SmartKey with
KEYLESS-GO (
page 120) and replace
them if necessary (
page 502).

Use the mechanical key to unlock the
driver’s door (
page 496).

Lock the vehicle as described in the
“Practical hints” section (
page 497).

Have the vehicle battery and the vehicle
battery connections checked (
page 528).
If the SmartKey with KEYLESS-GO is malfunc-
tioning, contact Roadside Assistance or an
authorized Mercedes-Benz Light Truck Center.
164.boo Seite 116 Freitag, 30. März 2007 12:54 12

117 Controls in detail
Locking and unlocking
Important notes on using KEYLESS-GO*

You can also use the SmartKey with
KEYLESS-GO like a normal SmartKey
(
page 112).
The starter switch is located under the
KEYLESS-GO button. Pull the
KEYLESS-GO button out in order to ac-
cess the starter switch (
page 43).

You can combine KEYLESS-GO func-
tions with normal SmartKey functions
(e.g. unlocking with KEYLESS-GO and
locking with the ‹button).

Always carry the SmartKey with
KEYLESS-GO with you.

Never store the SmartKey with
KEYLESS-GO together with:

electronic items such as a cellular
phone or another SmartKey with
KEYLESS-GO

metallic objects such as coins or
metal foil
Doing so could impair the function of
the KEYLESS-GO system.

To lock or unlock the vehicle, the
SmartKey with KEYLESS-GO must be
located outside the vehicle within ap-
proximately 3 ft (1 m) of the respective
door or the tailgate.

If the vehicle has been parked for more
than 72 hours, you must pull an outside
door handle in order to activate the
KEYLESS-GO function.

In order to start the engine with the
SmartKey with KEYLESS-GO:

The SmartKey with KEYLESS-GO
must be located in the vehicle.

The KEYLESS-GO start/stop button
must be inserted in the starter
switch (
page 43).

The brake pedal must be firmly
depressed. Do not depress the
accelerator.

If the SmartKey with KEYLESS-GO is
positioned farther away from the vehi-
cle, the system may no longer recog-
nize the SmartKey with KEYLESS-GO.
The vehicle then cannot be locked or
the engine started via the KEYLESS-GO
system.

If you have started the engine with the
KEYLESS-GO start/stop button
(
page 57), you can turn it off again by

pressing the KEYLESS-GO
start/stop button (
page 69)

inserting the SmartKey into the
starter switch when the vehicle is at
a standstill and the automatic
transmission is in positionP
(
page 69)
164.boo Seite 117 Freitag, 30. März 2007 12:54 12

118 Controls in detail
Locking and unlocking

If the SmartKey with KEYLESS-GO is
removed from the vehicle (e.g. if a
passenger exits the vehicle with the
SmartKey with KEYLESS-GO)

when pressing the KEYLESS-GO
start/stop button or trying to lock
the vehicle with the look button on
an outside door handle the mes-
sage
Key Not Detected appears in
the multifunction display

with the engine running, the mes-
sage
Key Not Detected appears in
the multifunction display while
driving off.
Find the SmartKey with KEYLESS-GO or
change its present location immediate-
ly (e.g. place it on the front passenger
seat or insert it in shirt pocket).

Remember that the engine can be
started by anyone with a SmartKey
with KEYLESS-GO that is left inside the
vehicle.
Possibility 1 (One SmartKey with
KEYLESS-GO in the vehicle, one
SmartKey with KEYLESS-GO outside
the vehicle):
If you leave the SmartKey with
KEYLESS-GO behind when exiting and
locking the vehicle, no message
appears in the multifunction display.
Possibility 2 (One SmartKey with
KEYLESS-GO in the vehicle, no
SmartKey with KEYLESS-GO outside
the vehicle):
When exiting and trying to lock the
vehicle, the message
Key Detected In
Vehicle
will appear in the multifunction
display. The vehicle will not be locked.Factory setting
Global unlocking
Grasp an outside door handle.
All turn signal lamps flash once. The
locking knobs in the doors move up.
The anti-theft alarm system is dis-
armed.
The vehicle will lock again automatically
and rearm the anti-theft alarm system
within approximately 40 seconds of
unlocking if

neither a door nor the tailgate is
opened

the central locking switch is not
activated
iThe vehicle could be inadvertently unlocked
if the SmartKey with KEYLESS-GO is within 3 ft
(1 m) of the vehicle and

an outside door handle is splashed with
water
or

you attempt to clean an outside door handle
164.boo Seite 118 Freitag, 30. März 2007 12:54 12

119 Controls in detail
Locking and unlocking
Global locking
Press the lock button on an outside
door handle (
page 71).
With the tailgate and all doors closed,
the turn signal lamps flash three times.
The locking knobs in the doors move
down. The anti-theft alarm system is
armed.
Selective setting
If you frequently travel alone, you may wish
to reprogram the SmartKey with
KEYLESS-GO so when you grasp the
driver’s door handle only the driver’s door
and the fuel filler flap unlocks.
Press and hold buttonsŒ and‹
simultaneously for about 5 seconds
until battery check lamp5
(
page 115) flashes twice.
The SmartKey with KEYLESS-GO will
then function as follows:Unlocking driver’s door and fuel filler
flap
Grasp the driver’s outside door handle.
All turn signal lamps flash once. The
locking knob in the driver’s door moves
up. The anti-theft alarm system is dis-
armed.
Global unlocking
Grasp any outside door handle other
than the driver’s outside door handle.
All turn signal lamps flash once. The
locking knobs in the doors move up.
The anti-theft alarm system is dis-
armed.Global locking
Press the lock button on an outside
door handle (
page 71).
All turn signal lamps flash three times.
The locking knobs in the doors move
down. The anti-theft alarm system is
armed.
Restoring to factory setting
Press and hold buttonsŒ and‹
simultaneously for about 5 seconds
until battery check lamp5
(
page 115) flashes twice.
164.boo Seite 119 Freitag, 30. März 2007 12:54 12
