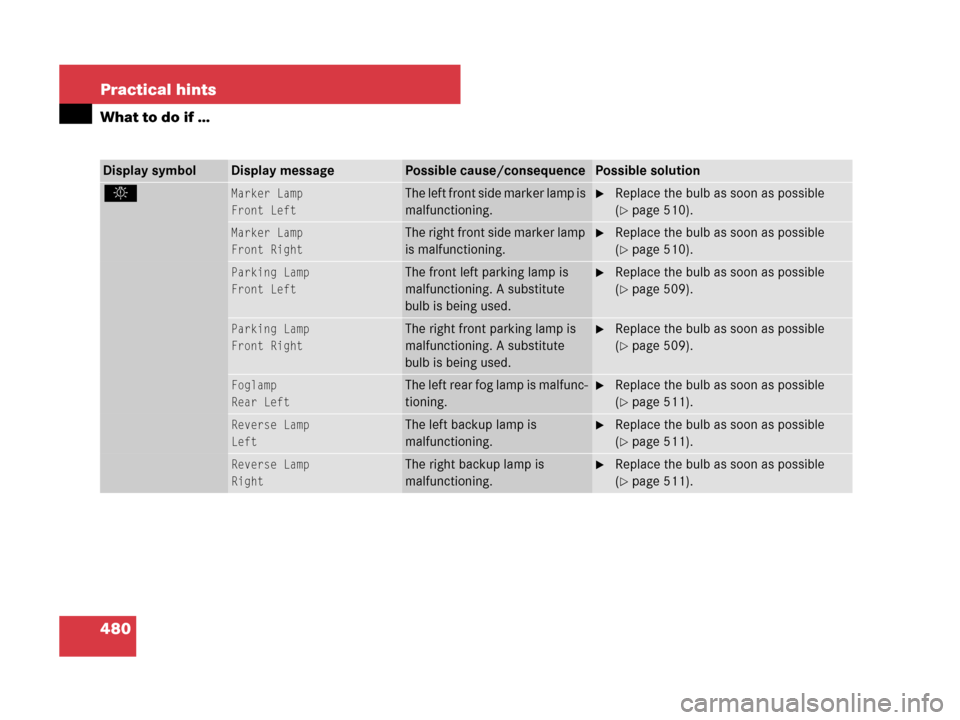

480 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
. Marker Lamp
Front LeftThe left front side marker lamp is
malfunctioning.Replace the bulb as soon as possible
(
page 510).
Marker Lamp
Front RightThe right front side marker lamp
is malfunctioning.Replace the bulb as soon as possible
(
page 510).
Parking Lamp
Front LeftThe front left parking lamp is
malfunctioning. A substitute
bulb is being used.Replace the bulb as soon as possible
(
page 509).
Parking Lamp
Front RightThe right front parking lamp is
malfunctioning. A substitute
bulb is being used.Replace the bulb as soon as possible
(
page 509).
Foglamp
Rear LeftThe left rear fog lamp is malfunc-
tioning.Replace the bulb as soon as possible
(
page 511).
Reverse Lamp
LeftThe left backup lamp is
malfunctioning.Replace the bulb as soon as possible
(
page 511).
Reverse Lamp
RightThe right backup lamp is
malfunctioning.Replace the bulb as soon as possible
(
page 511).
164.boo Seite 480 Freitag, 30. März 2007 12:54 12

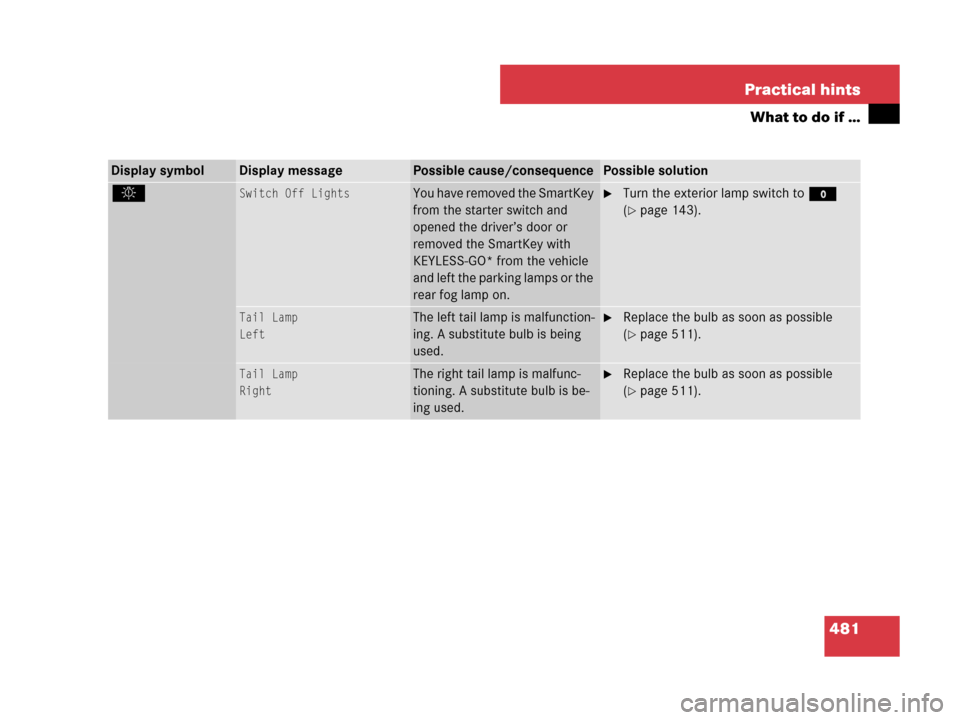

481 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
. Switch Off LightsYou have removed the SmartKey
from the starter switch and
opened the driver’s door or
removed the SmartKey with
KEYLESS-GO* from the vehicle
and left the parking lamps or the
rear fog lamp on.Turn the exterior lamp switch toM
(
page 143).
Tail Lamp
LeftThe left tail lamp is malfunction-
ing. A substitute bulb is being
used.Replace the bulb as soon as possible
(
page 511).
Tail Lamp
RightThe right tail lamp is malfunc-
tioning. A substitute bulb is be-
ing used.Replace the bulb as soon as possible
(
page 511).
164.boo Seite 481 Freitag, 30. März 2007 12:54 12

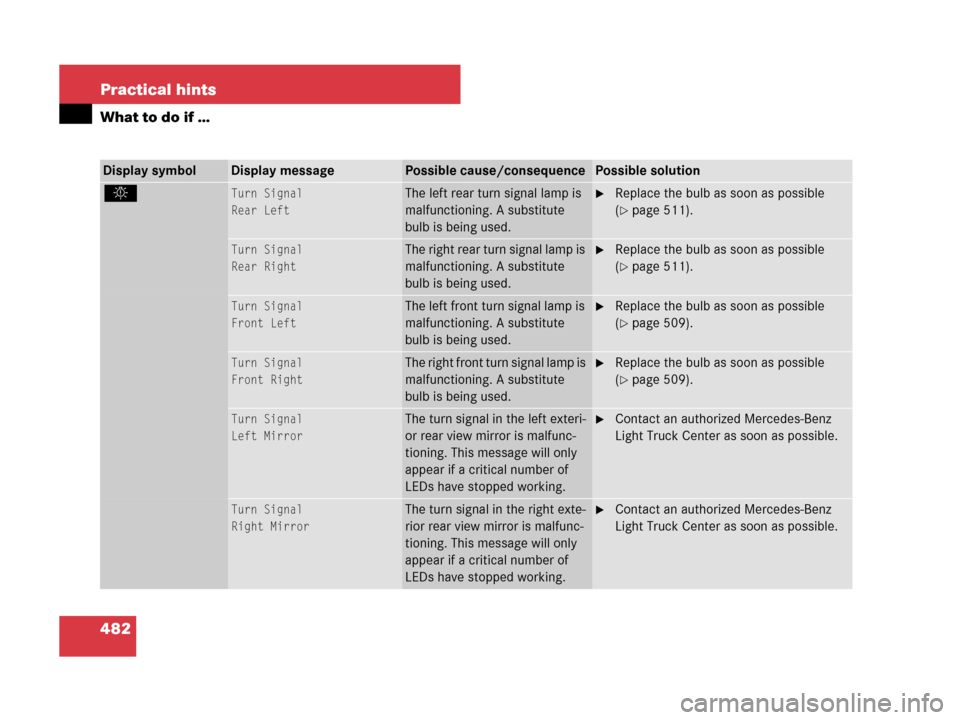

482 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
. Turn Signal
Rear LeftThe left rear turn signal lamp is
malfunctioning. A substitute
bulb is being used.Replace the bulb as soon as possible
(
page 511).
Turn Signal
Rear RightThe right rear turn signal lamp is
malfunctioning. A substitute
bulb is being used.Replace the bulb as soon as possible
(
page 511).
Turn Signal
Front LeftThe left front turn signal lamp is
malfunctioning. A substitute
bulb is being used.Replace the bulb as soon as possible
(
page 509).
Turn Signal
Front RightThe right front turn signal lamp is
malfunctioning. A substitute
bulb is being used.Replace the bulb as soon as possible
(
page 509).
Turn Signal
Left MirrorThe turn signal in the left exteri-
or rear view mirror is malfunc-
tioning. This message will only
appear if a critical number of
LEDs have stopped working.Contact an authorized Mercedes-Benz
Light Truck Center as soon as possible.
Turn Signal
Right MirrorThe turn signal in the right exte-
rior rear view mirror is malfunc-
tioning. This message will only
appear if a critical number of
LEDs have stopped working.Contact an authorized Mercedes-Benz
Light Truck Center as soon as possible.
164.boo Seite 482 Freitag, 30. März 2007 12:54 12

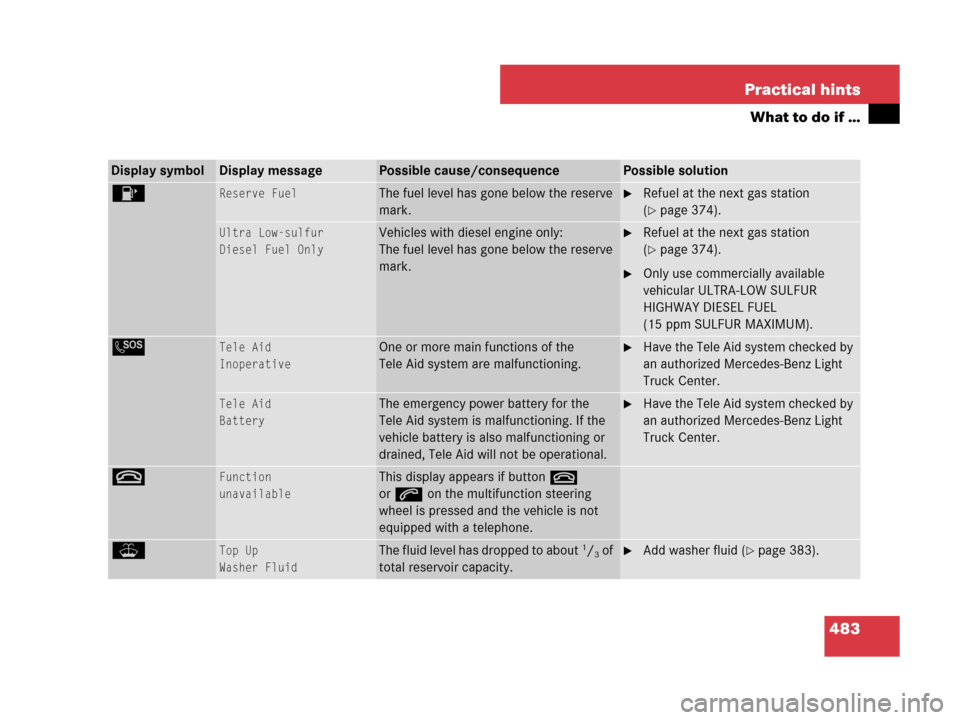

483 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
4Reserve FuelThe fuel level has gone below the reserve
mark.Refuel at the next gas station
(
page 374).
Ultra Low-sulfur
Diesel Fuel OnlyVehicles with diesel engine only:
The fuel level has gone below the reserve
mark.Refuel at the next gas station
(
page 374).
Only use commercially available
vehicular ULTRA-LOW SULFUR
HIGHWAY DIESEL FUEL
(15 ppm SULFUR MAXIMUM).
L Tele Aid
InoperativeOne or more main functions of the
Tele Aid system are malfunctioning.Have the Tele Aid system checked by
an authorized Mercedes-Benz Light
Truck Center.
Tele Aid
BatteryThe emergency power battery for the
Tele Aid system is malfunctioning. If the
vehicle battery is also malfunctioning or
drained, Tele Aid will not be operational.Have the Tele Aid system checked by
an authorized Mercedes-Benz Light
Truck Center.
tFunction
unavailableThis display appears if buttont
ors on the multifunction steering
wheel is pressed and the vehicle is not
equipped with a telephone.
W Top Up
Washer FluidThe fluid level has dropped to about 1/3 of
total reservoir capacity.Add washer fluid (page 383).
164.boo Seite 483 Freitag, 30. März 2007 12:54 12

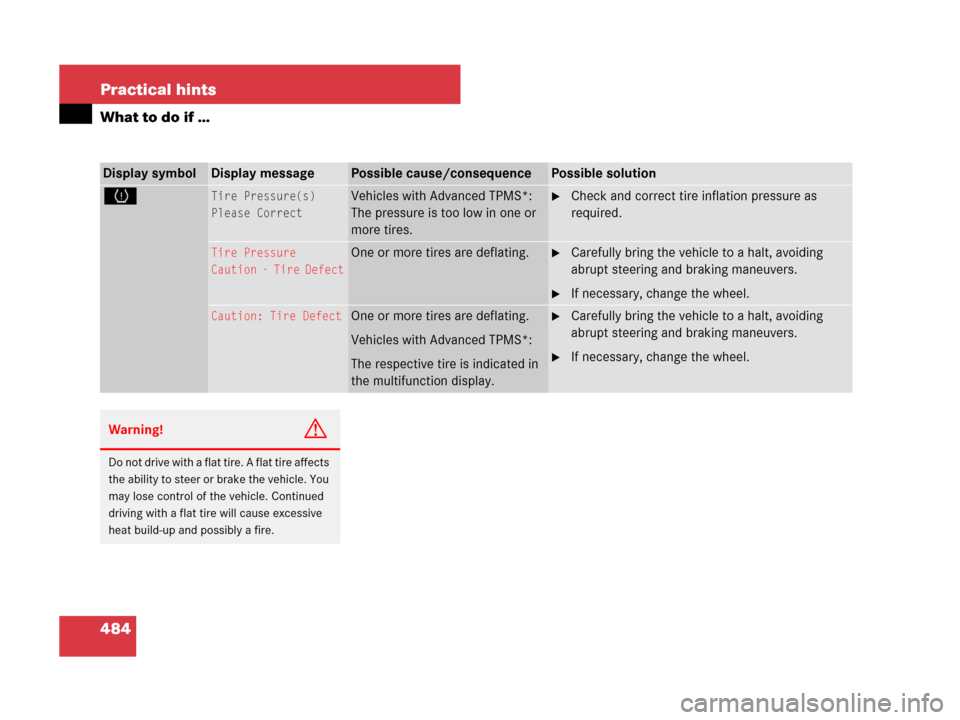

484 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
HTire Pressure(s)
Please CorrectVehicles with Advanced TPMS*:
The pressure is too low in one or
more tires.Check and correct tire inflation pressure as
required.
Tire Pressure
Caution - Tire DefectOne or more tires are deflating.Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.
If necessary, change the wheel.
Caution: Tire DefectOne or more tires are deflating.
Vehicles with Advanced TPMS*:
The respective tire is indicated in
the multifunction display.Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.
If necessary, change the wheel.
Warning!G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle. Continued
driving with a flat tire will cause excessive
heat build-up and possibly a fire.
164.boo Seite 484 Freitag, 30. März 2007 12:54 12

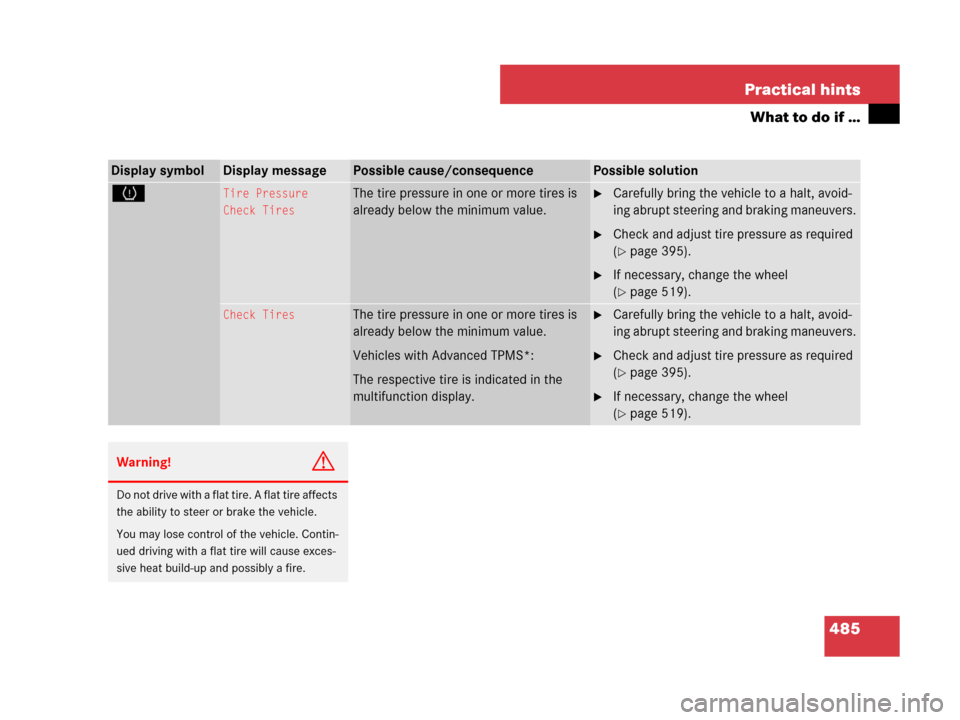

485 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
HTire Pressure
Check TiresThe tire pressure in one or more tires is
already below the minimum value.Carefully bring the vehicle to a halt, avoid-
ing abrupt steering and braking maneuvers.
Check and adjust tire pressure as required
(
page 395).
If necessary, change the wheel
(
page 519).
Check TiresThe tire pressure in one or more tires is
already below the minimum value.
Vehicles with Advanced TPMS*:
The respective tire is indicated in the
multifunction display.Carefully bring the vehicle to a halt, avoid-
ing abrupt steering and braking maneuvers.
Check and adjust tire pressure as required
(
page 395).
If necessary, change the wheel
(
page 519).
Warning!G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.
164.boo Seite 485 Freitag, 30. März 2007 12:54 12

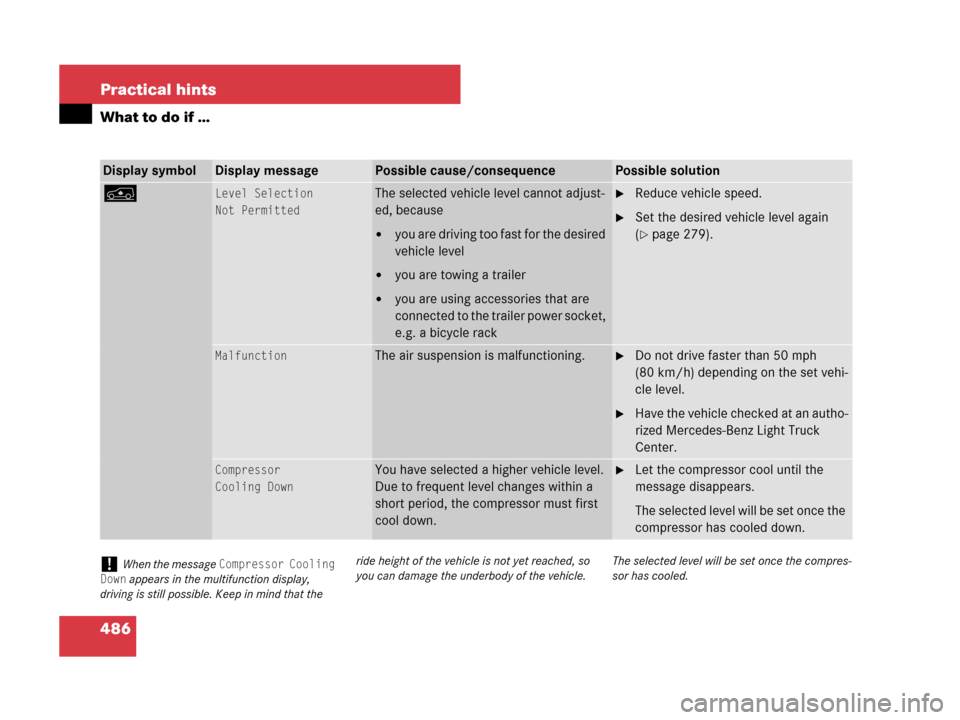

486 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
nLevel Selection
Not PermittedThe selected vehicle level cannot adjust-
ed, because

you are driving too fast for the desired
vehicle level

you are towing a trailer

you are using accessories that are
connected to the trailer power socket,
e.g. a bicycle rack
Reduce vehicle speed.
Set the desired vehicle level again
(
page 279).
MalfunctionThe air suspension is malfunctioning.Do not drive faster than 50 mph
(80 km/h) depending on the set vehi-
cle level.
Have the vehicle checked at an autho-
rized Mercedes-Benz Light Truck
Center.
Compressor
Cooling DownYou have selected a higher vehicle level.
Due to frequent level changes within a
short period, the compressor must first
cool down.Let the compressor cool until the
message disappears.
The selected level will be set once the
compressor has cooled down.
!When the message Compressor Cooling
Down
appears in the multifunction display,
driving is still possible. Keep in mind that theride height of the vehicle is not yet reached, so
you can damage the underbody of the vehicle.The selected level will be set once the compres-
sor has cooled.
164.boo Seite 486 Freitag, 30. März 2007 12:54 12

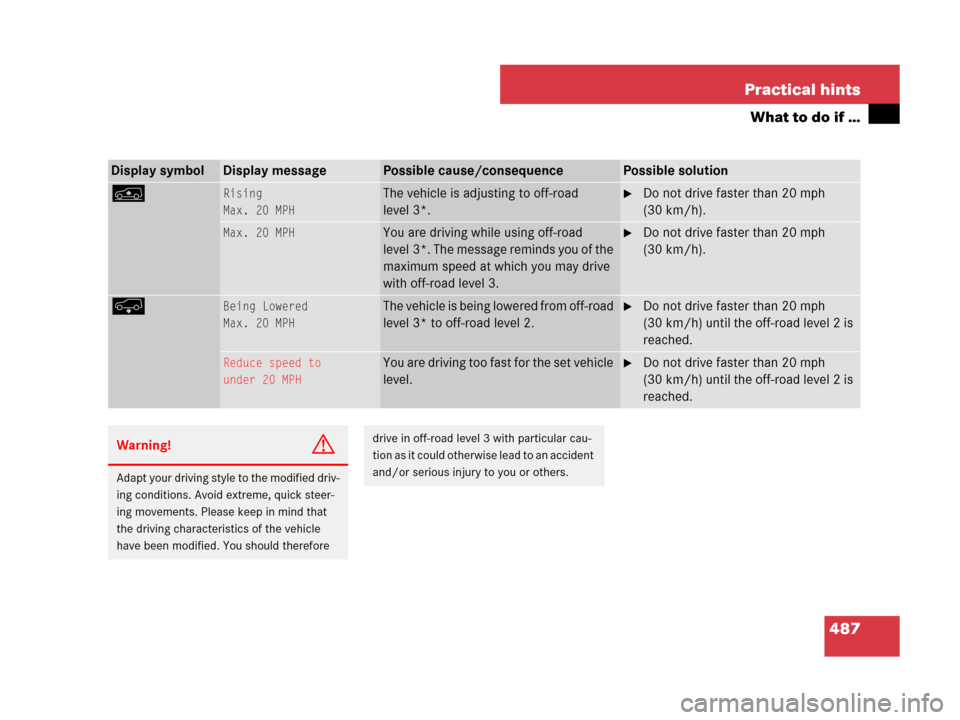

487 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
nRising
Max. 20 MPHThe vehicle is adjusting to off-road
level 3*.Do not drive faster than 20 mph
(30 km/h).
Max. 20 MPHYou are driving while using off-road
level 3*. The message reminds you of the
maximum speed at which you may drive
with off-road level 3.Do not drive faster than 20 mph
(30 km/h).
pBeing Lowered
Max. 20 MPHThe vehicle is being lowered from off-road
level3* to off-road level2.Do not drive faster than 20 mph
(30 km/h) until the off-road level 2 is
reached.
Reduce speed to
under 20 MPHYou are driving too fast for the set vehicle
level.Do not drive faster than 20 mph
(30 km/h) until the off-road level 2 is
reached.
Warning!G
Adapt your driving style to the modified driv-
ing conditions. Avoid extreme, quick steer-
ing movements. Please keep in mind that
the driving characteristics of the vehicle
have been modified. You should therefore
drive in off-road level 3 with particular cau-
tion as it could otherwise lead to an accident
and/or serious injury to you or others.
164.boo Seite 487 Freitag, 30. März 2007 12:54 12

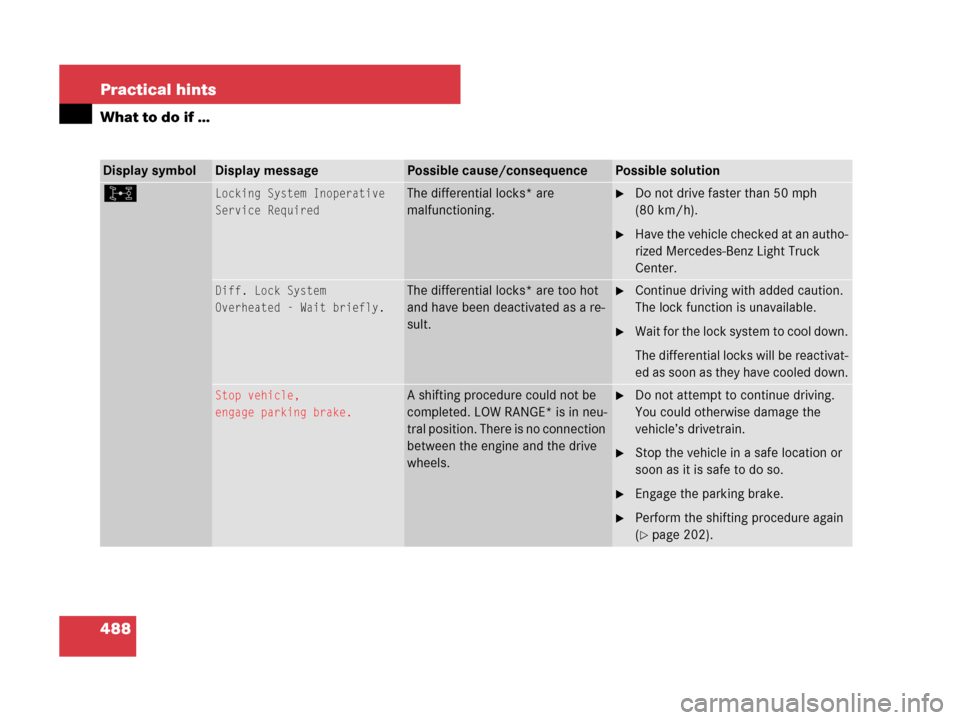

488 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
kLocking System Inoperative
Service RequiredThe differential locks* are
malfunctioning.Do not drive faster than 50 mph
(80 km/h).
Have the vehicle checked at an autho-
rized Mercedes-Benz Light Truck
Center.
Diff. Lock System
Overheated - Wait briefly.The differential locks* are too hot
and have been deactivated as a re-
sult.Continue driving with added caution.
The lock function is unavailable.
Wait for the lock system to cool down.
The differential locks will be reactivat-
ed as soon as they have cooled down.
Stop vehicle,
engage parking brake.A shifting procedure could not be
completed. LOW RANGE* is in neu-
tral position. There is no connection
between the engine and the drive
wheels.Do not attempt to continue driving.
You could otherwise damage the
vehicle’s drivetrain.
Stop the vehicle in a safe location or
soon as it is safe to do so.
Engage the parking brake.
Perform the shifting procedure again
(
page 202).
164.boo Seite 488 Freitag, 30. März 2007 12:54 12

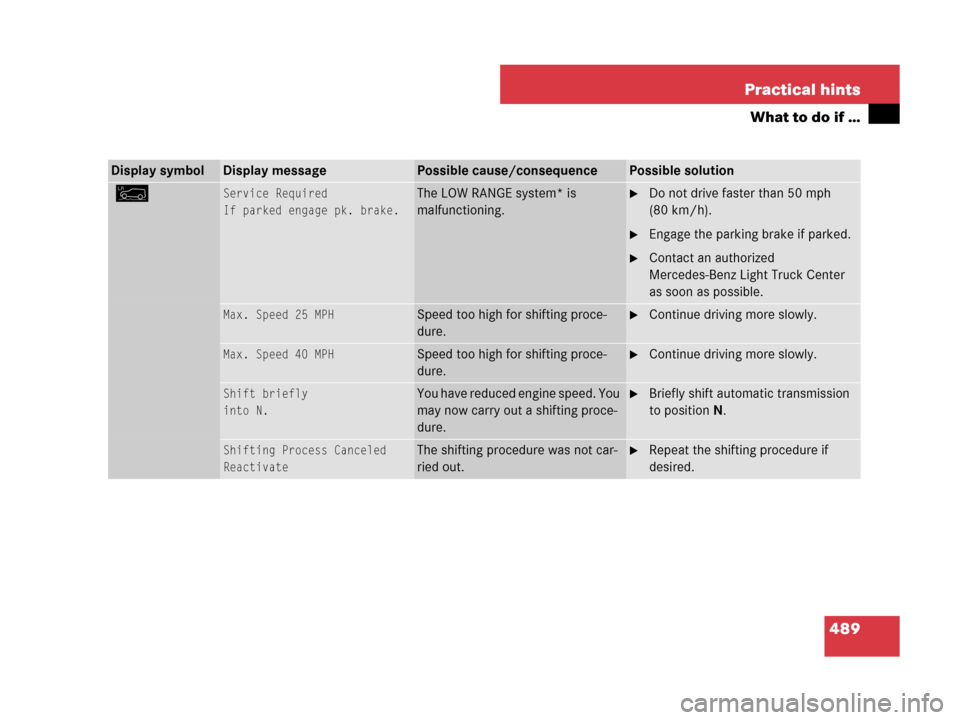

489 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
mService Required
If parked engage pk. brake.The LOW RANGE system* is
malfunctioning.Do not drive faster than 50 mph
(80 km/h).
Engage the parking brake if parked.
Contact an authorized
Mercedes-Benz Light Truck Center
as soon as possible.
Max. Speed 25 MPHSpeed too high for shifting proce-
dure.Continue driving more slowly.
Max. Speed 40 MPHSpeed too high for shifting proce-
dure.Continue driving more slowly.
Shift briefly
into N.You have reduced engine speed. You
may now carry out a shifting proce-
dure.Briefly shift automatic transmission
to positionN.
Shifting Process Canceled
ReactivateThe shifting procedure was not car-
ried out.Repeat the shifting procedure if
desired.
