MERCEDES-BENZ GL550 2008 X164 Owner's Manual

510 Practical hints
Replacing bulbs
Side marker lamp bulb
Turn bulb socket5 (page 507)
counterclockwise.
Pull bulb socket5 out of the
headlamp housing.
Pull the side marker bulb out of bulb
socket5.
Insert the new side marker bulb into
bulb socket5.
Insert bulb socket5 into the
headlamp housing.
Turn bulb socket5 clockwise until it
engages.Front fog lamp bulbs

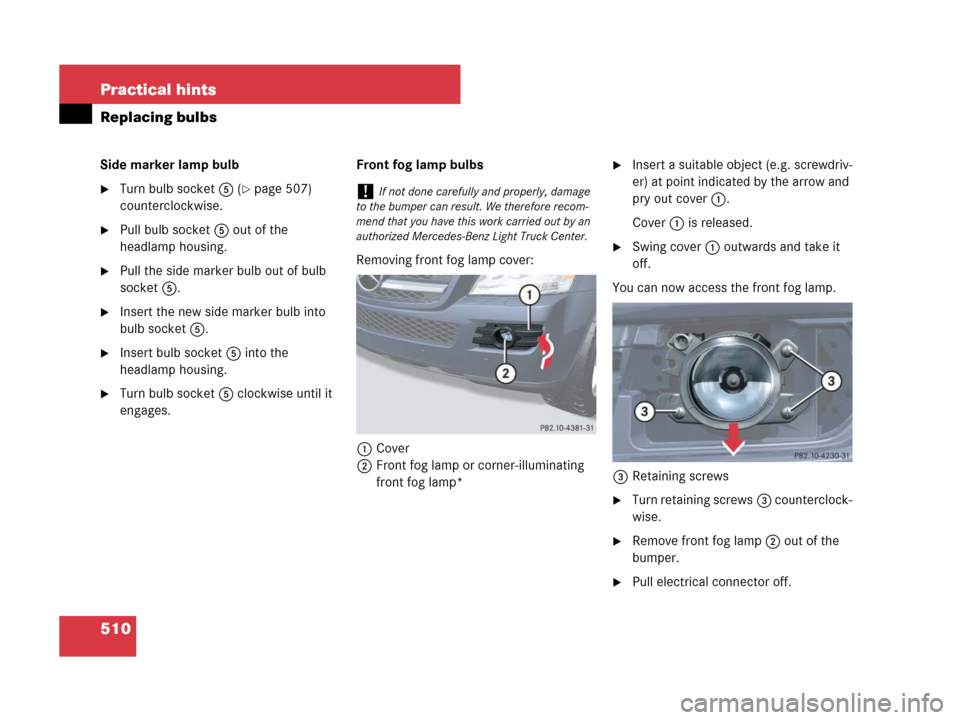

Removing front fog lamp cover:
1Cover
2Front fog lamp or corner-illuminating
front fog lamp*
Insert a suitable object (e.g. screwdriv-
er) at point indicated by the arrow and
pry out cover1.
Cover1 is released.
Swing cover1 outwards and take it
off.
You can now access the front fog lamp.
3Retaining screws
Turn retaining screws3 counterclock-
wise.
Remove front fog lamp2 out of the
bumper.
Pull electrical connector off.
!If not done carefully and properly, damage
to the bumper can result. We therefore recom-
mend that you have this work carried out by an
authorized Mercedes-Benz Light Truck Center.
164.boo Seite 510 Freitag, 30. März 2007 12:54 12

511 Practical hints
Replacing bulbs

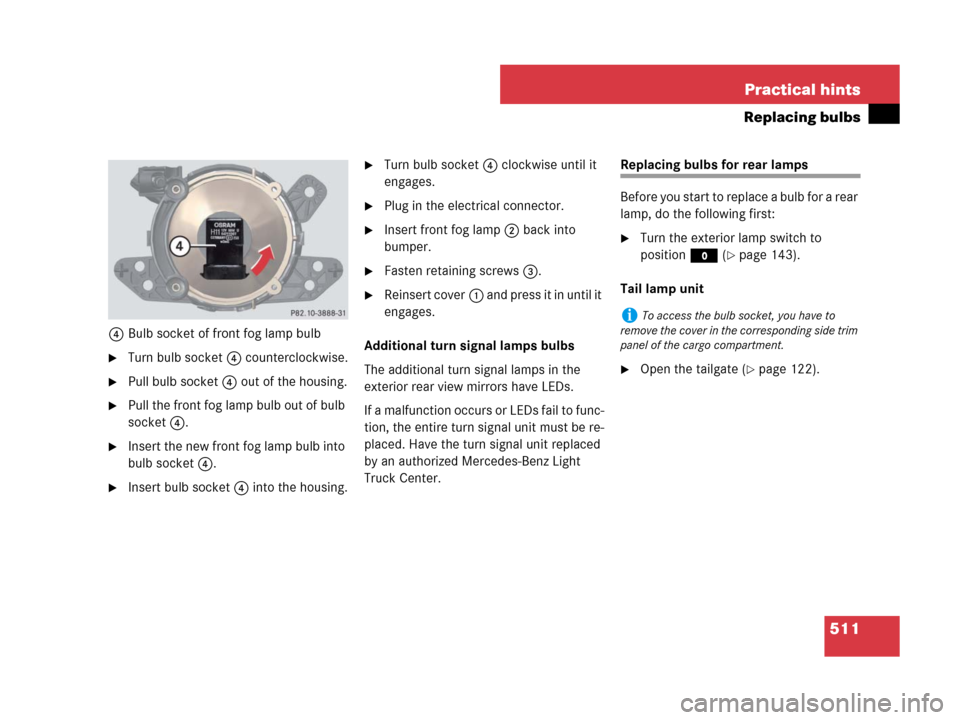

4Bulb socket of front fog lamp bulb
Turn bulb socket4 counterclockwise.
Pull bulb socket4 out of the housing.
Pull the front fog lamp bulb out of bulb
socket4.
Insert the new front fog lamp bulb into
bulb socket4.
Insert bulb socket4 into the housing.
Turn bulb socket4 clockwise until it
engages.
Plug in the electrical connector.
Insert front fog lamp2 back into
bumper.
Fasten retaining screws3.
Reinsert cover1 and press it in until it
engages.
Additional turn signal lamps bulbs
The additional turn signal lamps in the
exterior rear view mirrors have LEDs.
If a malfunction occurs or LEDs fail to func-
tion, the entire turn signal unit must be re-
placed. Have the turn signal unit replaced
by an authorized Mercedes-Benz Light
Truck Center.
Replacing bulbs for rear lamps
Before you start to replace a bulb for a rear
lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page 143).
Tail lamp unit
Open the tailgate (page 122).
iTo access the bulb socket, you have to
remove the cover in the corresponding side trim
panel of the cargo compartment.
164.boo Seite 511 Freitag, 30. März 2007 12:54 12

512 Practical hints
Replacing bulbs

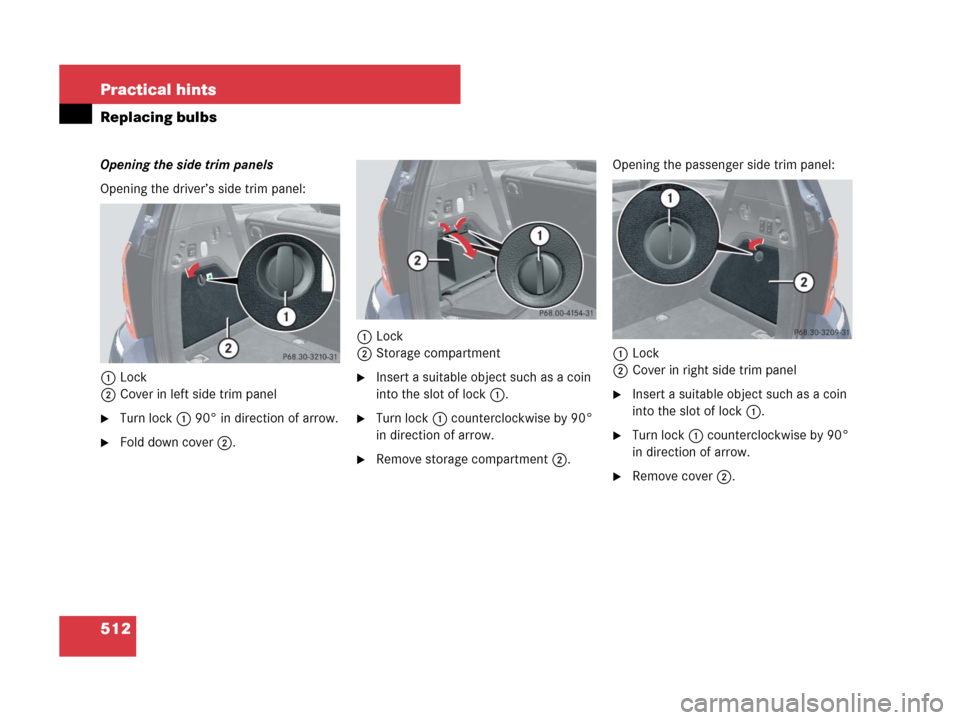

Opening the side trim panels
Opening the driver’s side trim panel:
1Lock
2Cover in left side trim panel
Turn lock1 90° in direction of arrow.
Fold down cover2.1Lock
2Storage compartment
Insert a suitable object such as a coin
into the slot of lock1.
Turn lock1 counterclockwise by 90°
in direction of arrow.
Remove storage compartment2.Opening the passenger side trim panel:
1Lock
2Cover in right side trim panel
Insert a suitable object such as a coin
into the slot of lock1.
Turn lock1 counterclockwise by 90°
in direction of arrow.
Remove cover2.
164.boo Seite 512 Freitag, 30. März 2007 12:54 12

513 Practical hints
Replacing bulbs
Replacing bulbs

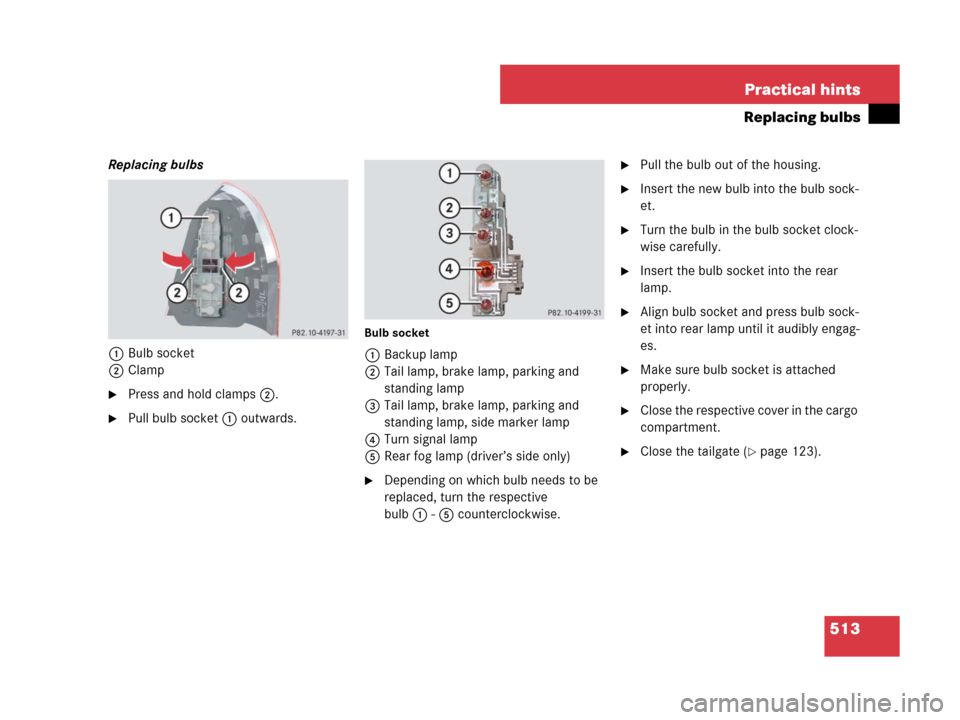

1Bulb socket
2Clamp
Press and hold clamps2.
Pull bulb socket1 outwards.
Bulb socket
1Backup lamp
2Tail lamp, brake lamp, parking and
standing lamp
3Tail lamp, brake lamp, parking and
standing lamp, side marker lamp
4Turn signal lamp
5Rear fog lamp (driver’s side only)
Depending on which bulb needs to be
replaced, turn the respective
bulb1-5 counterclockwise.
Pull the bulb out of the housing.
Insert the new bulb into the bulb sock-
et.
Turn the bulb in the bulb socket clock-
wise carefully.
Insert the bulb socket into the rear
lamp.
Align bulb socket and press bulb sock-
et into rear lamp until it audibly engag-
es.
Make sure bulb socket is attached
properly.
Close the respective cover in the cargo
compartment.
Close the tailgate (page 123).
164.boo Seite 513 Freitag, 30. März 2007 12:54 12

514 Practical hints
Replacing bulbs

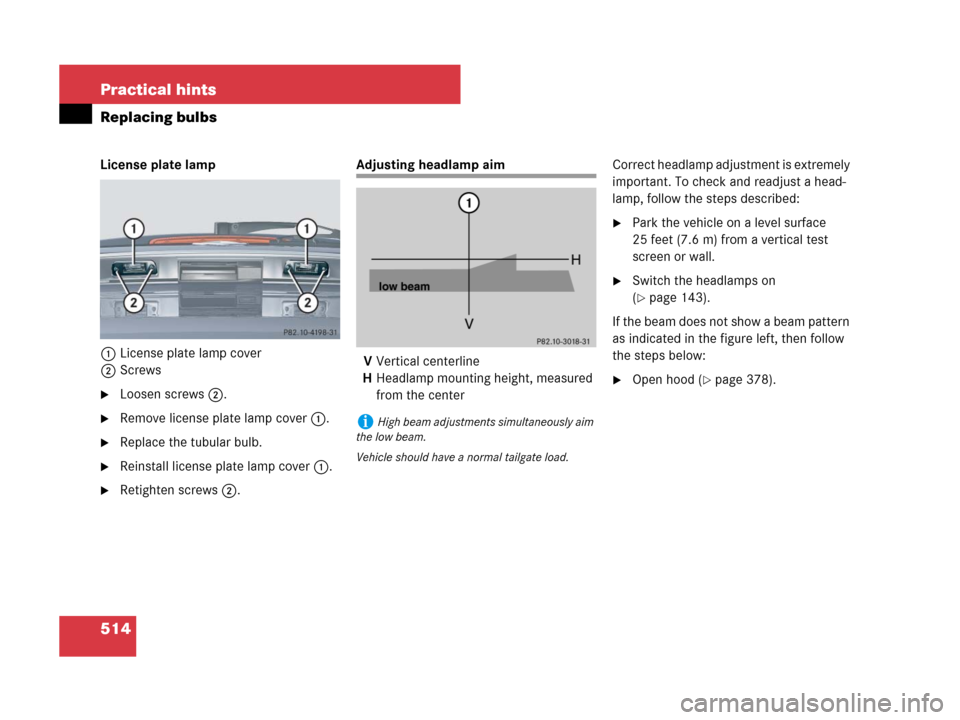

License plate lamp
1License plate lamp cover
2Screws
Loosen screws2.
Remove license plate lamp cover1.
Replace the tubular bulb.
Reinstall license plate lamp cover1.
Retighten screws2.
Adjusting headlamp aim
VVertical centerline
HHeadlamp mounting height, measured
from the centerCorrect headlamp adjustment is extremely
important. To check and readjust a head-
lamp, follow the steps described:
Park the vehicle on a level surface
25 feet (7.6 m) from a vertical test
screen or wall.
Switch the headlamps on
(
page 143).
If the beam does not show a beam pattern
as indicated in the figure left, then follow
the steps below:
Open hood (page 378).
iHigh beam adjustments simultaneously aim
the low beam.
Vehicle should have a normal tailgate load.
164.boo Seite 514 Freitag, 30. März 2007 12:54 12

515 Practical hints
Replacing bulbs

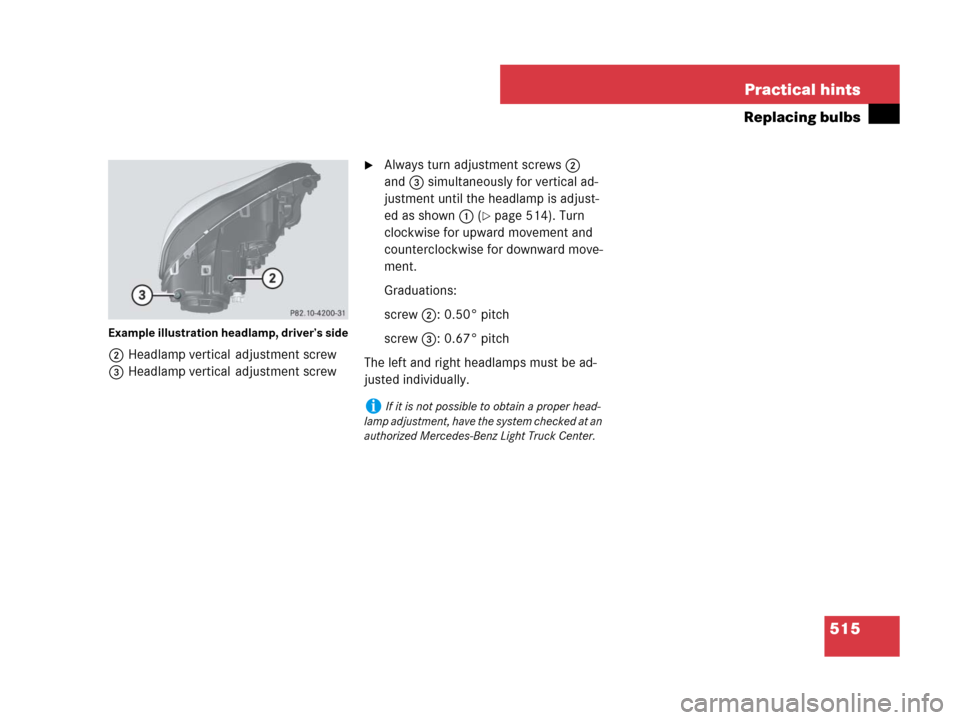

Example illustration headlamp, driver’s side
2Headlamp vertical adjustment screw
3Headlamp vertical adjustment screw
Always turn adjustment screws2
and3 simultaneously for vertical ad-
justment until the headlamp is adjust-
ed as shown1 (
page 514). Turn
clockwise for upward movement and
counterclockwise for downward move-
ment.
Graduations:
screw2:0.50° pitch
screw3:0.67° pitch
The left and right headlamps must be ad-
justed individually.
iIf it is not possible to obtain a proper head-
lamp adjustment, have the system checked at an
authorized Mercedes-Benz Light Truck Center.
164.boo Seite 515 Freitag, 30. März 2007 12:54 12

516 Practical hints
Replacing wiper blades

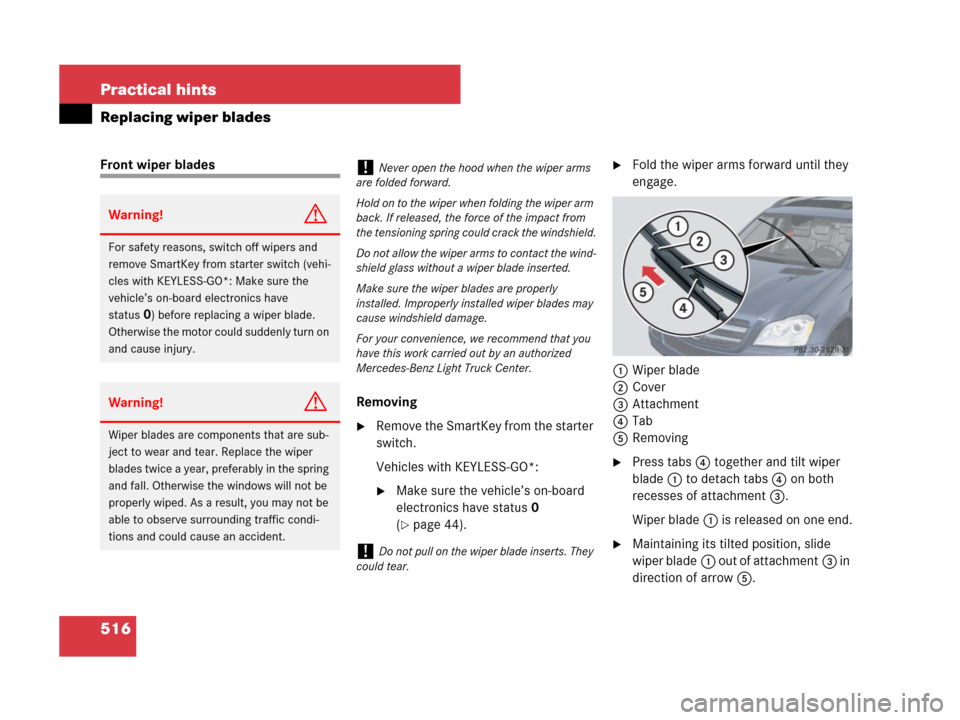

Front wiper blades
Removing
Remove the SmartKey from the starter
switch.
Vehicles with KEYLESS-GO*:
Make sure the vehicle’s on-board
electronics have status0
(
page 44).
Fold the wiper arms forward until they
engage.
1Wiper blade
2Cover
3Attachment
4Tab
5Removing
Press tabs4 together and tilt wiper
blade1 to detach tabs4 on both
recesses of attachment3.
Wiper blade1 is released on one end.
Maintaining its tilted position, slide
wiper blade1 out of attachment3 in
direction of arrow5.
Warning!G
For safety reasons, switch off wipers and
remove SmartKey from starter switch (vehi-
cles with KEYLESS-GO*: Make sure the
vehicle’s on-board electronics have
status
0) before replacing a wiper blade.
Otherwise the motor could suddenly turn on
and cause injury.
Warning!G
Wiper blades are components that are sub-
ject to wear and tear. Replace the wiper
blades twice a year, preferably in the spring
and fall. Otherwise the windows will not be
properly wiped. As a result, you may not be
able to observe surrounding traffic condi-
tions and could cause an accident.
!Never open the hood when the wiper arms
are folded forward.
Hold on to the wiper when folding the wiper arm
back. If released, the force of the impact from
the tensioning spring could crack the windshield.
Do not allow the wiper arms to contact the wind-
shield glass without a wiper blade inserted.
Make sure the wiper blades are properly
installed. Improperly installed wiper blades may
cause windshield damage.
For your convenience, we recommend that you
have this work carried out by an authorized
Mercedes-Benz Light Truck Center.
!Do not pull on the wiper blade inserts. They
could tear.
164.boo Seite 516 Freitag, 30. März 2007 12:54 12

517 Practical hints
Replacing wiper blades

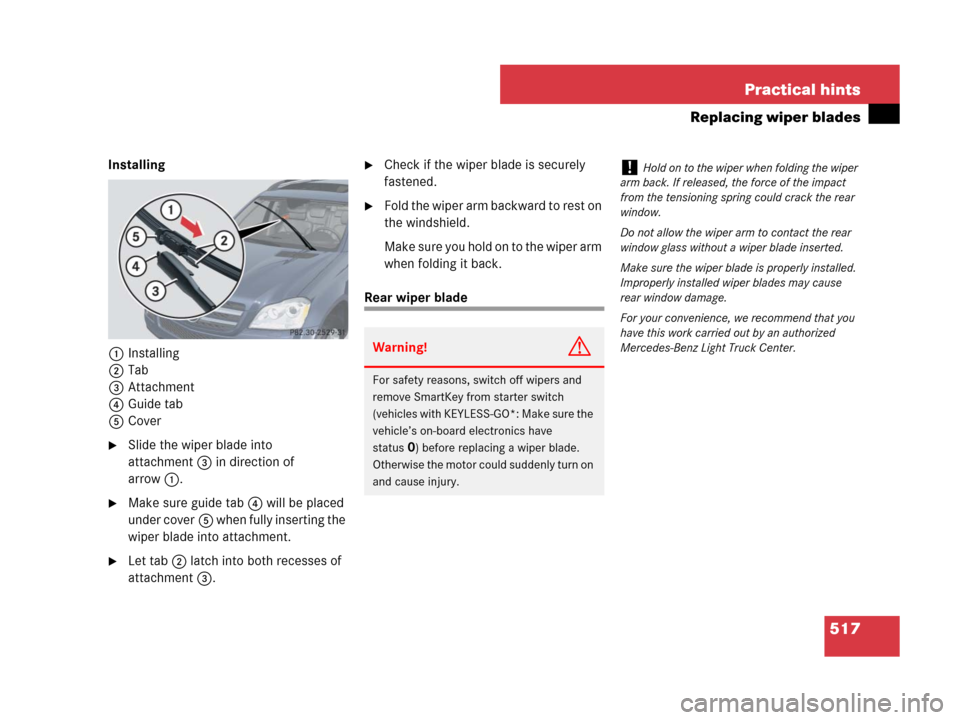

Installing
1Installing
2Tab
3Attachment
4Guide tab
5Cover
Slide the wiper blade into
attachment3 in direction of
arrow1.
Make sure guide tab4 will be placed
under cover5 when fully inserting the
wiper blade into attachment.
Let tab2 latch into both recesses of
attachment3.
Check if the wiper blade is securely
fastened.
Fold the wiper arm backward to rest on
the windshield.
Make sure you hold on to the wiper arm
when folding it back.
Rear wiper blade
Warning!G
For safety reasons, switch off wipers and
remove SmartKey from starter switch
(vehicles with KEYLESS-GO*: Make sure the
vehicle’s on-board electronics have
status
0) before replacing a wiper blade.
Otherwise the motor could suddenly turn on
and cause injury.
!Hold on to the wiper when folding the wiper
arm back. If released, the force of the impact
from the tensioning spring could crack the rear
window.
Do not allow the wiper arm to contact the rear
window glass without a wiper blade inserted.
Make sure the wiper blade is properly installed.
Improperly installed wiper blades may cause
rear window damage.
For your convenience, we recommend that you
have this work carried out by an authorized
Mercedes-Benz Light Truck Center.
164.boo Seite 517 Freitag, 30. März 2007 12:54 12

518 Practical hints
Replacing wiper blades
Removing
Remove the SmartKey from the starter
switch.
Vehicles with KEYLESS-GO*:
Make sure the vehicle’s on-board
electronics have status0
(
page 44).
Fold wiper arm1 away from the rear
window until it engages.
1Wiper arm
2Wiper blade
Turn wiper blade2 to form a right
angle with wiper arm1 as shown.
Hold wiper arm1 and disengage wip-
er blade2 by carefully sliding it in
direction of arrow.
Remove wiper blade2.
Installing
1Wiper arm
2Wiper blade
Insert wiper blade2 into wiper
arm1.
Hold wiper arm1 and engage wiper
blade2 by pushing it in direction of
arrow until it locks into place.
Check whether the wiper blade is
securely fastened.
Fold the wiper arm to rest on the rear
window.
Make sure to hold on to the wiper when
folding the wiper arm back.
!Do not pull on the wiper blade insert. It
could tear.
164.boo Seite 518 Freitag, 30. März 2007 12:54 12

519 Practical hints
Flat tire
Flat tire
Preparing the vehicle
Make sure the vehicle level is set to
highway (
page 279).
Park the vehicle in a safe distance from
moving traffic on a hard, flat surface
when possible.
Turn on the hazard warning flasher
(
page 149).
Turn the steering wheel so that the
front wheels are in a straight-ahead
position.
Set the parking brake (page 59).
Set the automatic transmission to park
positionP (
page 191).
Turn off the engine (page 41).
Have any passenger exit the vehicle at
a safe distance from the roadway.
Vehicles with SmartKey: Remove the
SmartKey from the starter switch.
Vehicles with KEYLESS-GO*: Open the
driver’s door (this puts the starter
switch in position0, same as with the
SmartKey removed from the starter
switch). The driver’s door then can be
closed again.
Remove the KEYLESS-GO*
start/stop button from the starter
switch.

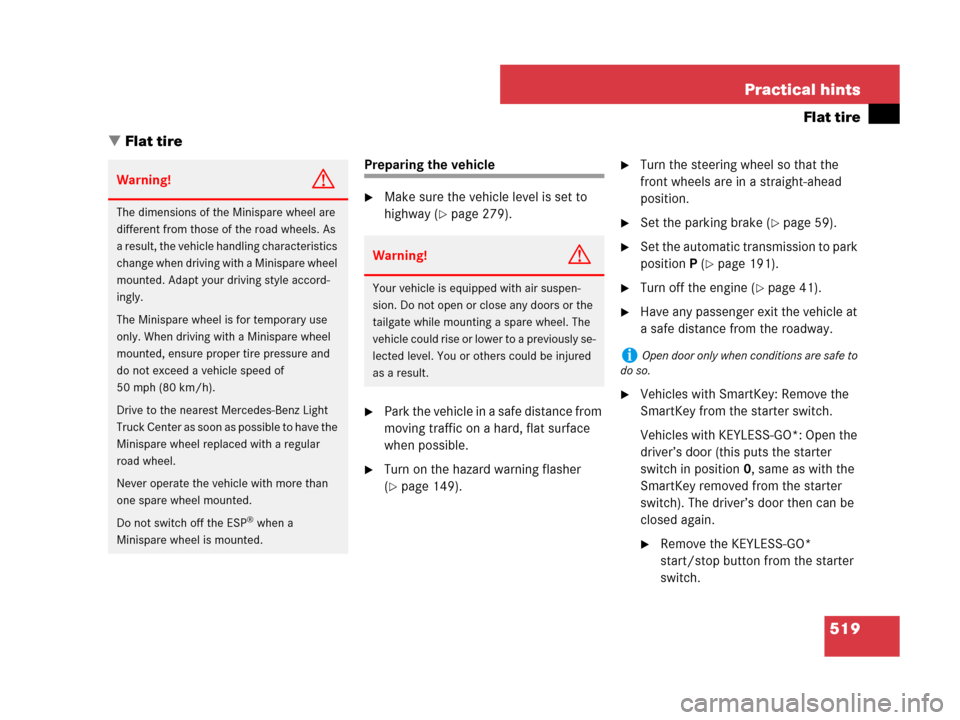

Warning!G
The dimensions of the Minispare wheel are
different from those of the road wheels. As
a result, the vehicle handling characteristics
change when driving with a Minispare wheel
mounted. Adapt your driving style accord-
ingly.
The Minispare wheel is for temporary use
only. When driving with a Minispare wheel
mounted, ensure proper tire pressure and
do not exceed a vehicle speed of
50 mph (80 km/h).
Drive to the nearest Mercedes-Benz Light
Truck Center as soon as possible to have the
Minispare wheel replaced with a regular
road wheel.
Never operate the vehicle with more than
one spare wheel mounted.
Do not switch off the ESP
® when a
Minispare wheel is mounted.
Warning!G
Your vehicle is equipped with air suspen-
sion. Do not open or close any doors or the
tailgate while mounting a spare wheel. The
vehicle could rise or lower to a previously se-
lected level. You or others could be injured
as a result.
iOpen door only when conditions are safe to
do so.
164.boo Seite 519 Freitag, 30. März 2007 12:54 12
