MERCEDES-BENZ GLA 2016 Owners Manual

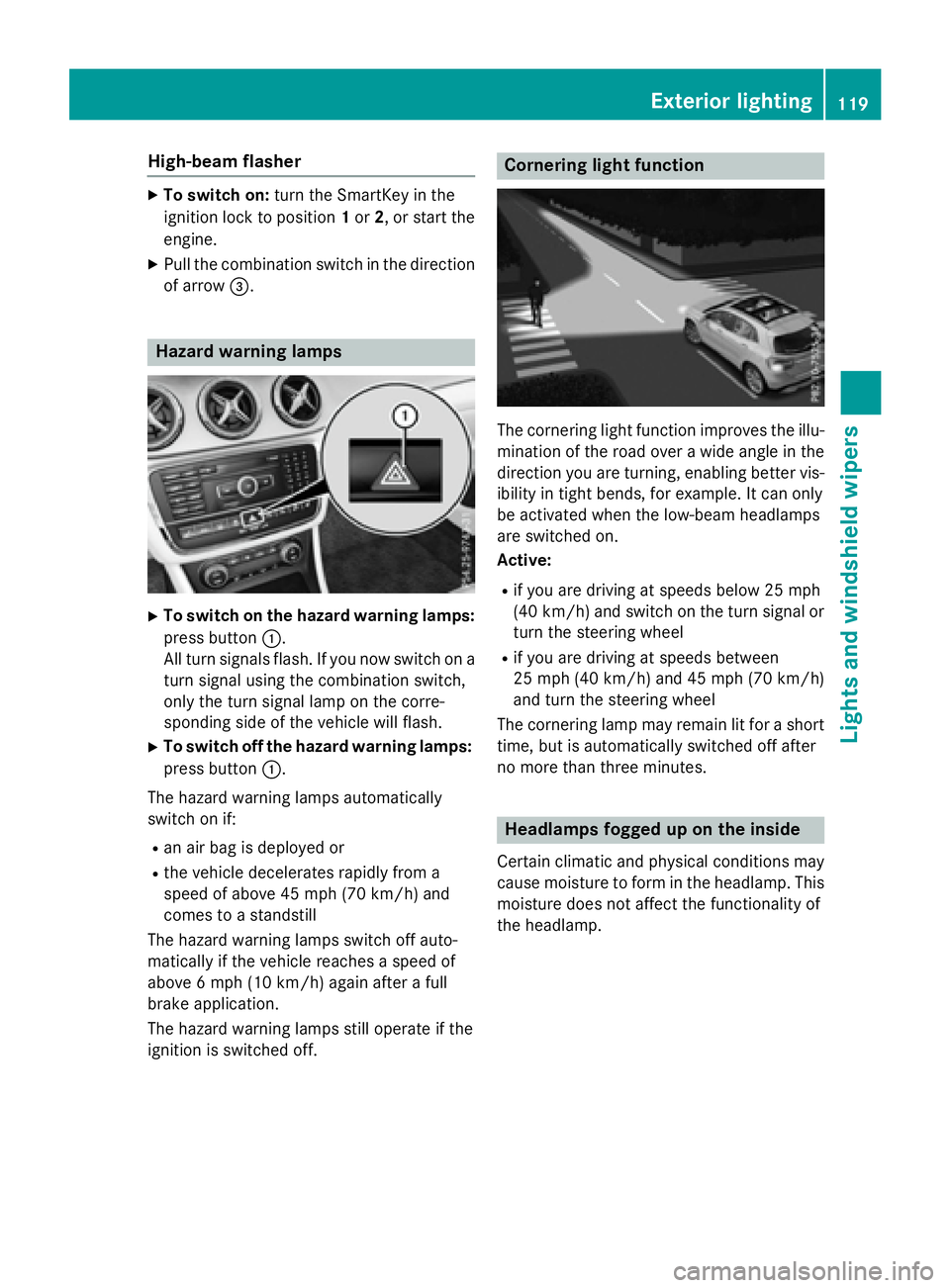

High-beam flasher X
To switch on: turn the SmartKey in the
ignition lock to position 1 or 2 , or start the
engine. X
Pull the combination switch in the direction
of arrow

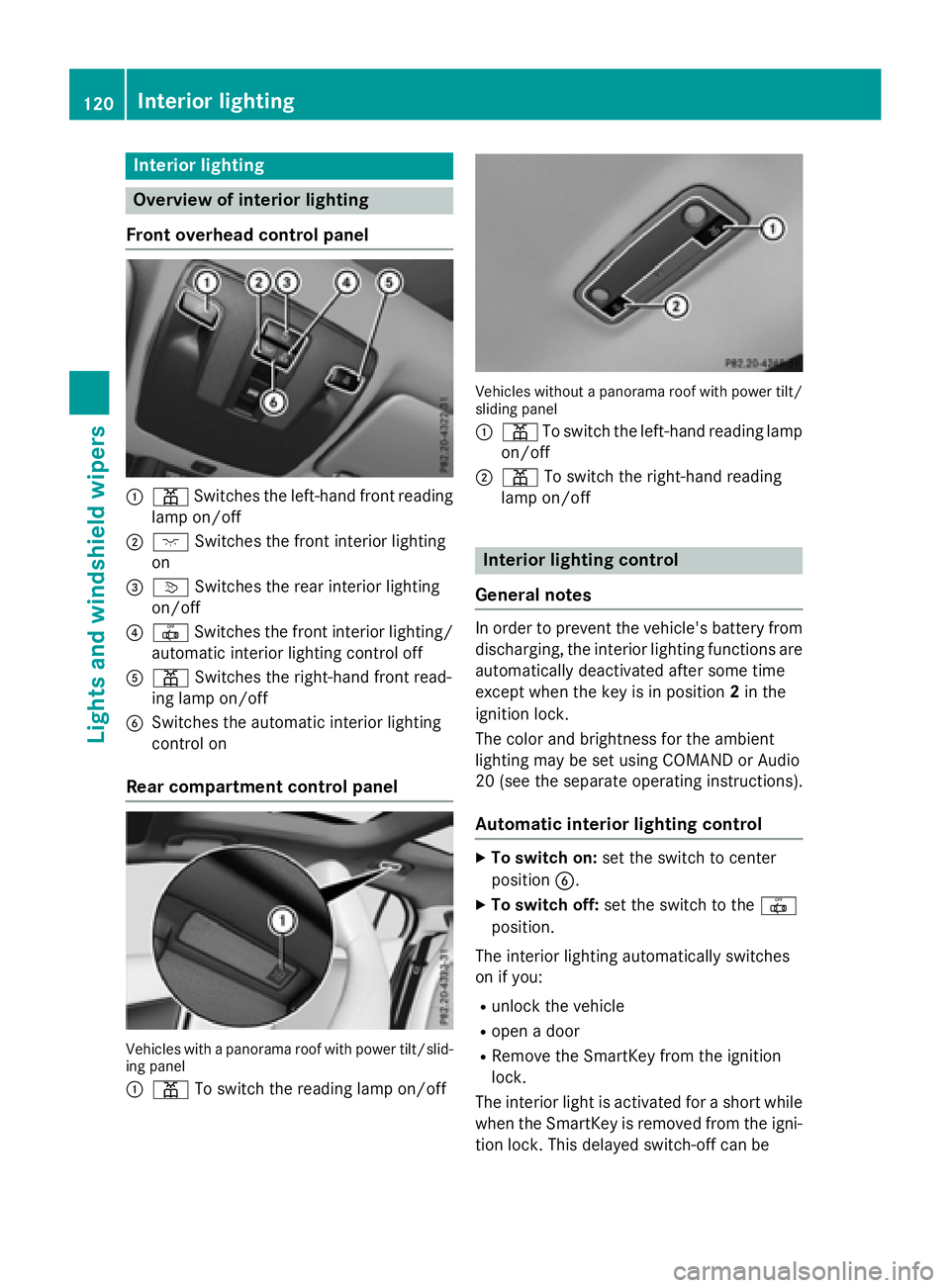

Interior lighting
Overview of interior lighting
Front overhead control panel
C
= Swi tches the left-hand front reading
lamp on /o ffD
J Swi tches the front interior lighting
on

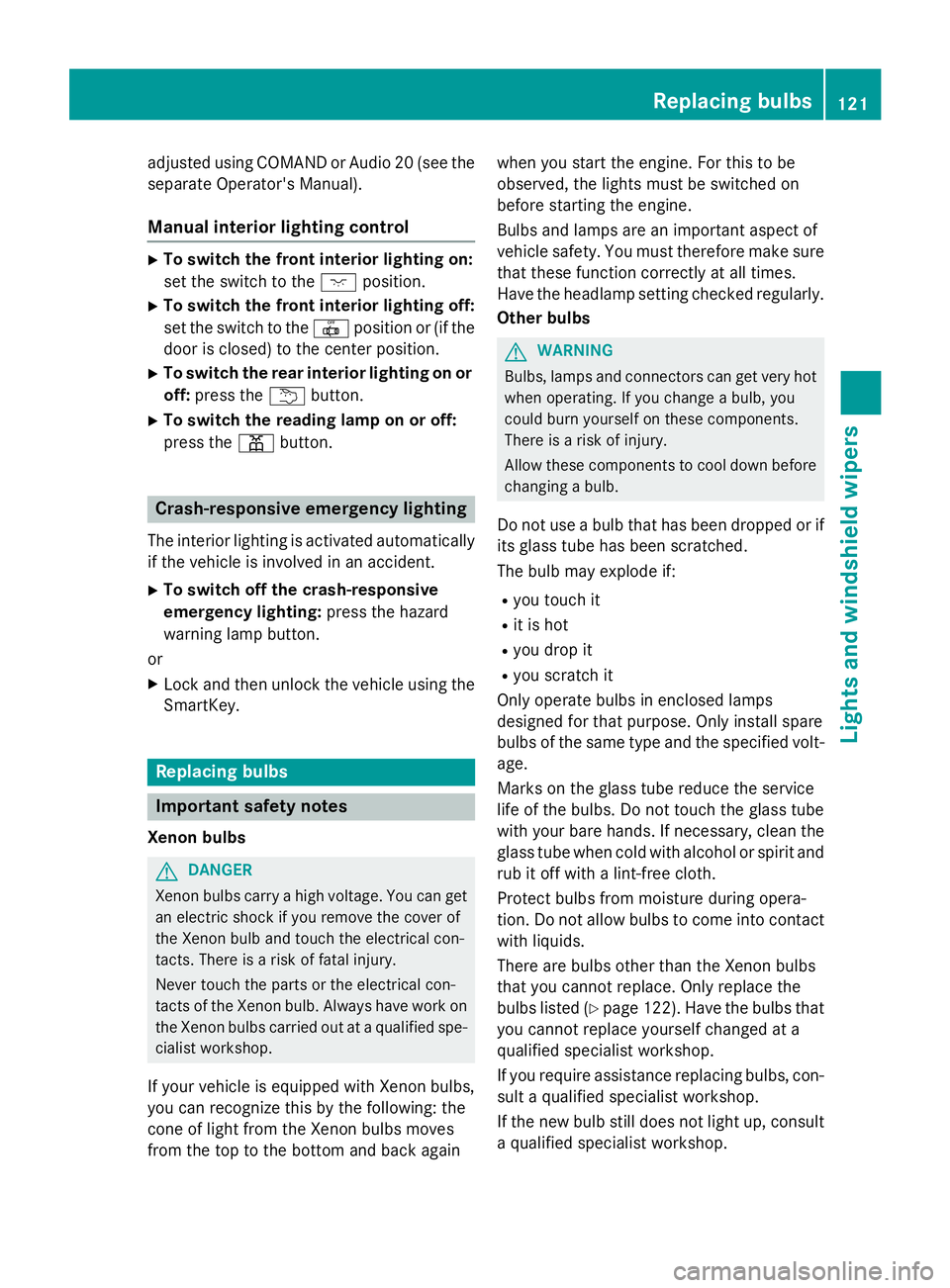

adjusted using COMAND or Audio 20 (see the
separate Operator's Manual).
Manual interior lighting control X
To switch the front interior lighting on:
set the switch to the J position.X
To switch the front interior lighting off:
set the switch to the 3 position or (if the
door is closed) to the center position. X
To switch the rear interior lighting on or
off: press the B button.X
To switch the reading lamp on or off:
press the = button.
Crash-responsive emergency lighting The interior lighting is activated automatically
if the vehicle is involved in an accident. X
To switch off the crash-responsive
emergency lighting: press the hazard
warning lamp button.
or X
Lock and then unlock the vehicle using the
SmartKey.
Replacing bulbs
Important safety notes
Xenon bulbs
G DANGER
Xenon bulbs carry a high voltage. You can get
an electr ic shock if you remove the cover of
the Xenon bulb and touch the electrical con-
tacts. There is a risk of fatal injury.
Never touch the parts or the electrical con-
tacts of the Xenon bulb. Alwa ys have work on
the Xenon bulbs carried out at a qualif ied spe-
cialist worksho p.
If your vehicle is equipped with Xenon bulbs,
you can recognize this by the following: the
cone of light from the Xenon bulbs moves
from the top to the bottom and back again when you start the engine. For this to be
observed, the lights must be switched on
before starting the engine.
Bulbs and lamps are an important aspect of
vehicle safety. You must therefore make sure
that these function correctly at all times.
Have the headlamp setting checked regularly.
Other bulbs
G WARNING
Bulbs, lamps and connectors can get very hot
when operating. If you change a bulb, you
could burn yourself on these components.
There is a risk of injury.
Allow these components to cool down before
changing a bulb.
Do not use a bulb that has been dropped or if
its glass tube has been scratched.
The bulb may explode if: R
you touch it R
it is hot R
you drop it R
you scratch it
Only operate bulbs in enclosed lamps
designed for that purpose. Only install spare
bulbs of the same type and the specified volt-
age.
Marks on the glass tube reduce the service
life of the bulbs. Do not touch the glass tube
with your bare hands. If necessary, clean the
glass tube when cold with alcohol or spirit and
rub it off with a lint-free cloth.
Protect bulbs from moisture during opera-
tion. Do not allow bulbs to come into contact
with liquids.
There are bulbs other than the Xenon bulbs
that you cannot replace. Only replace the
bulbs listed ( Y
page 122). Have the bulbs that
you cannot replace yourself changed at a
qualified specialist workshop.
If you require assistance replacing bulbs, con-
sult a qualified specialist workshop.
If the new bulb still does not light up, consult
a qualified specialist workshop. Replacing bulbs 121
Lights and windshield wipers Z

Bulbs and lamps are an important aspect of
vehicle safety. You must therefore make sure
that these function correctly at all times.
Have the headlamp setting checked regularly.

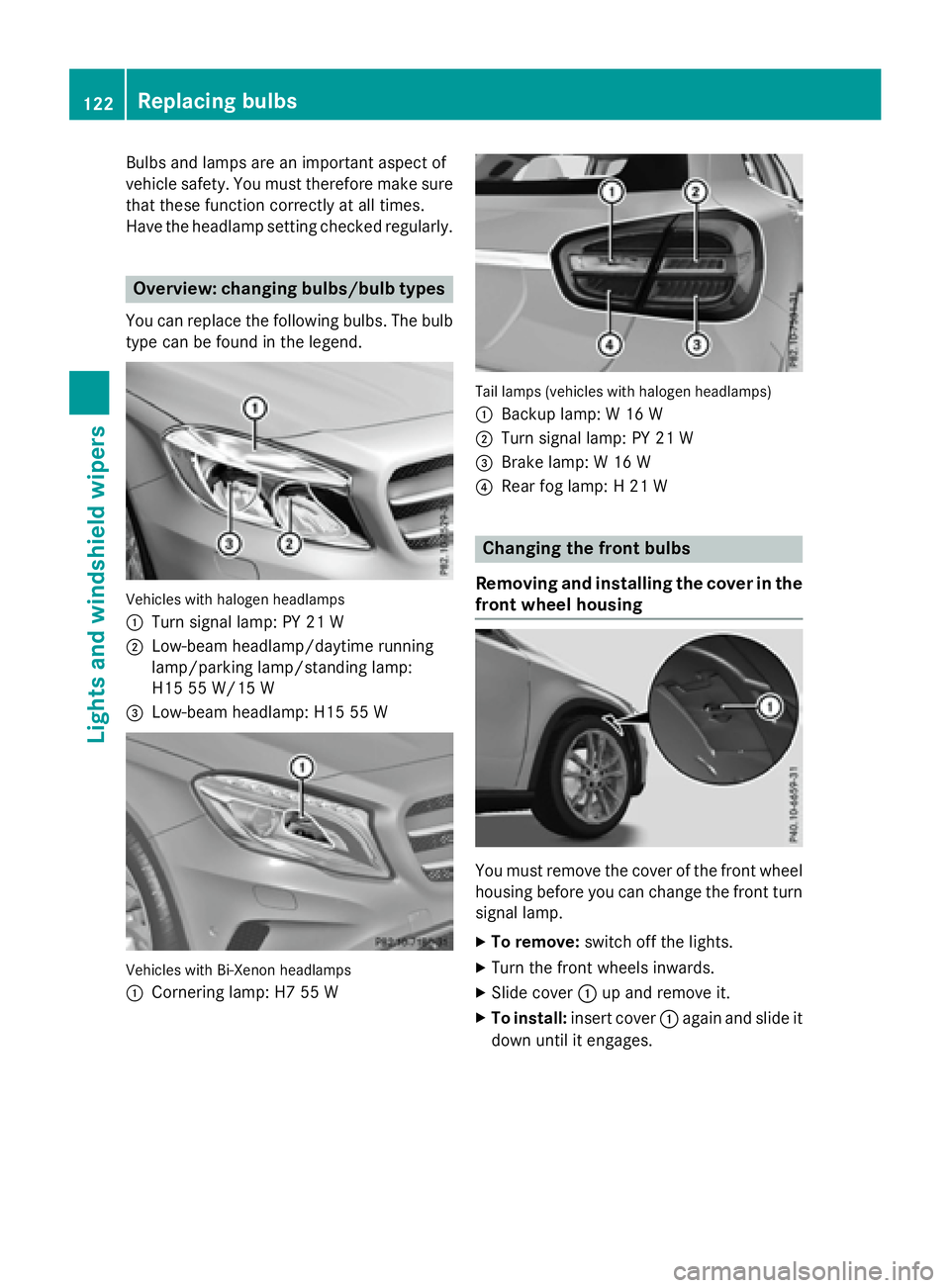

Overview: changing bulbs/bulb typesYou can replace the following bulbs. The bulb
type can be found in the legend.
Vehicles with halogen headlamps
C
Turn signal lamp: PY 21 WD
Low-beam headlamp/daytime running
lamp/parking lamp/standing lamp:
H15 55 W/15 W

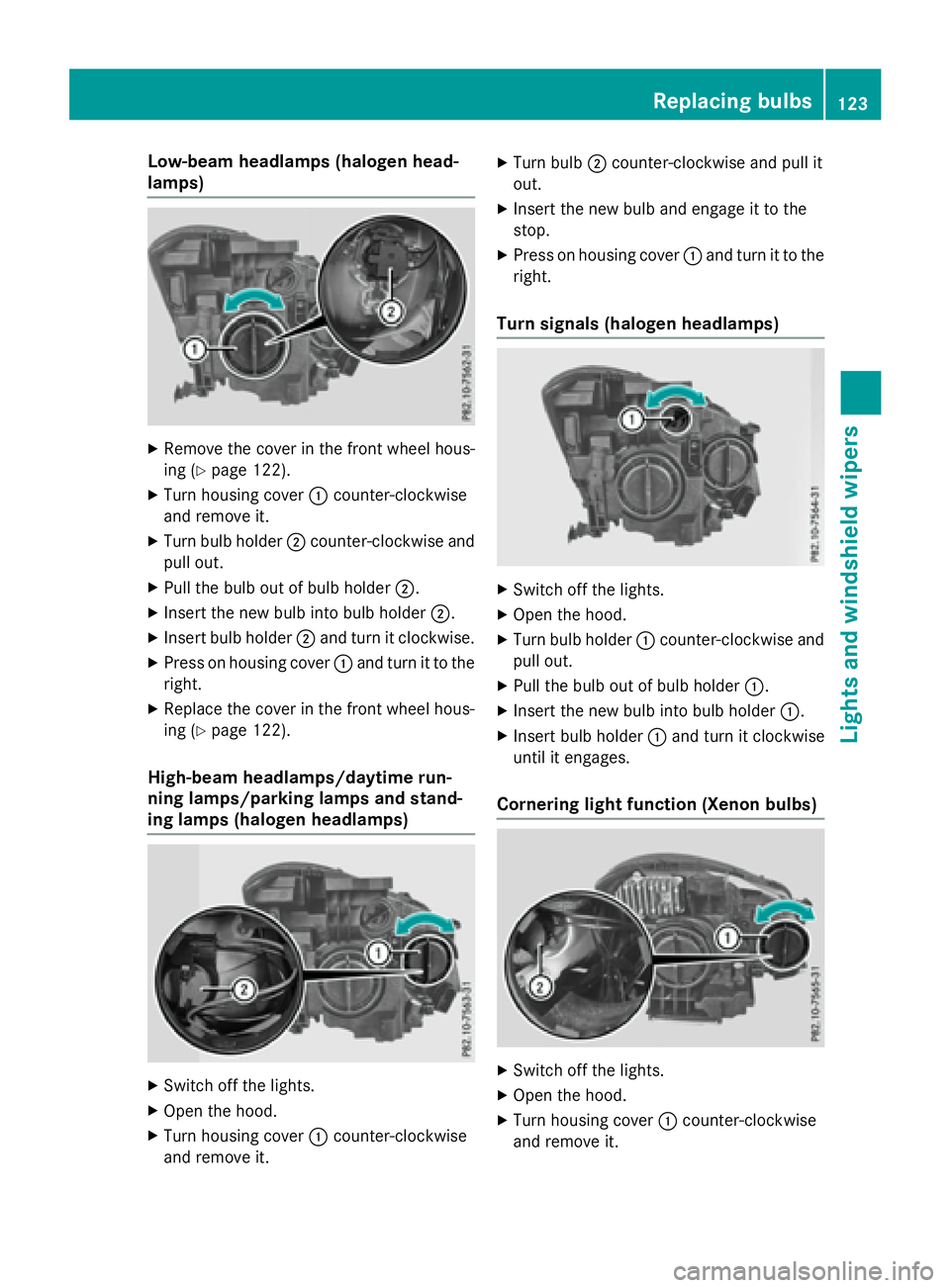

Low-beam headlamps (halogen head-
lamps) X
Remove the cover in the front wheel hous-
ing ( Y
page 122).X
Turn housing cover C counter-clockwise
and remove it. X
Turn bulb holder D counter-clockwise and
pull out. X
Pull the bulb out of bulb holder D .X
Insert the new bulb into bulb holder D .X
Insert bulb holder D and turn it clockwise.X
Press on housing cover C and turn it to the
right. X
Replace the cover in the front wheel hous-
ing ( Y
page 122).
High-beam headlamps/daytime run-
ning lamps/parking lamps and stand-
ing lamps (halogen headlamps)
X
Switch off the lights. X
Open the hood. X
Turn housing cover C counter-clockwise
and remove it. X
Turn bulb D counter-clockwise and pull it
out. X
Insert the new bulb and engage it to the
stop. X
Press on housing cover C and turn it to the
right.
Turn signals (halogen headlamps) X
Switch off the lights. X
Open the hood. X
Turn bulb holder C counter-clockwise and
pull out. X
Pull the bulb out of bulb holder C .X
Insert the new bulb into bulb holder C .X
Insert bulb holder C and turn it clockwise
until it engages.
Cornering light function (Xenon bulbs)
X
Switch off the lights. X
Open the hood. X
Turn housing cover C counter-clockwise
and remove it. Replacing bulbs 123
Lights and windshield wipers Z

X
Turn bulb holder D counter-clockwise and
pull out. X
Pull the bulb out of bulb holder D .X
Insert the new bulb into bulb holder D .X
Insert bulb holder D and turn it clockwise.X
Press on housing cover C and turn it to the
right.

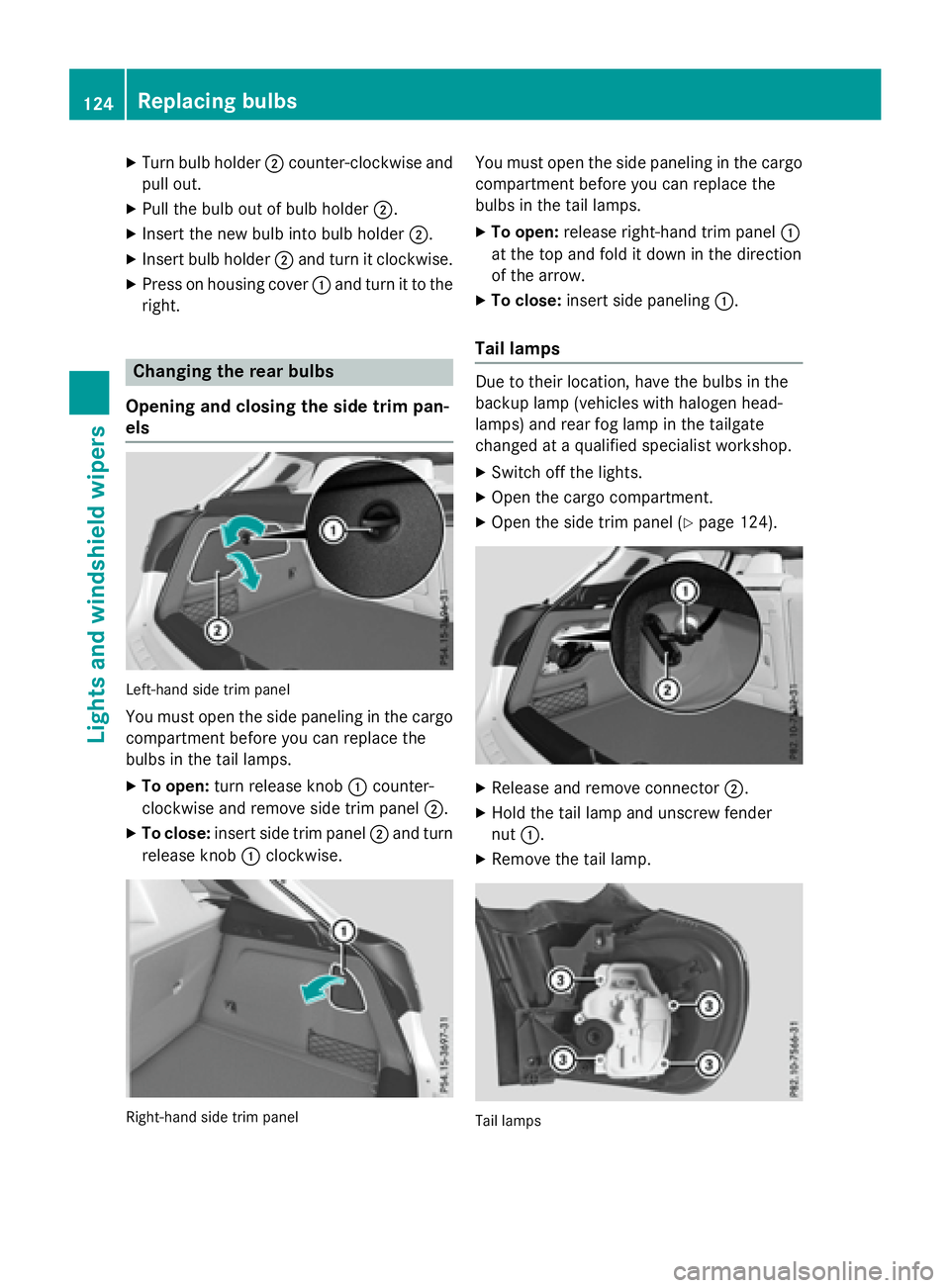

Changing the rear bulbs
Opening and closing the side trim pan-
els
Left-hand side trim panel
You must open the side paneling in the cargo
compartment before you can replace the
bulbs in the tail lamps. X
To open: turn release knob C counter-
clockwise and remove side trim panel D .X
To close: insert side trim panel D and turn
release knob C clockwise.
Right-hand side trim panel You must open the side paneling in the cargo
compartment before you can replace the
bulbs in the tail lamps. X
To open: release right-hand trim panel C
at the top and fold it down in the direction
of the arrow. X
To close: insert side paneling C .
Tail lamps Due to their location, have the bulbs in the
backup lamp (vehicles with halogen head-
lamps) and rear fog lamp in the tailgate
changed at a qualified specialist workshop. X
Switch off the lights. X
Open the cargo compartment. X
Open the side trim panel ( Y
page 124).
X
Release and remove connector D .X
Hold the tail lamp and unscrew fender
nut C . X
Remove the tail lamp.
Tail lamps124
Replacing bulbs
Lights and windshield wipers

X
Loosen screws

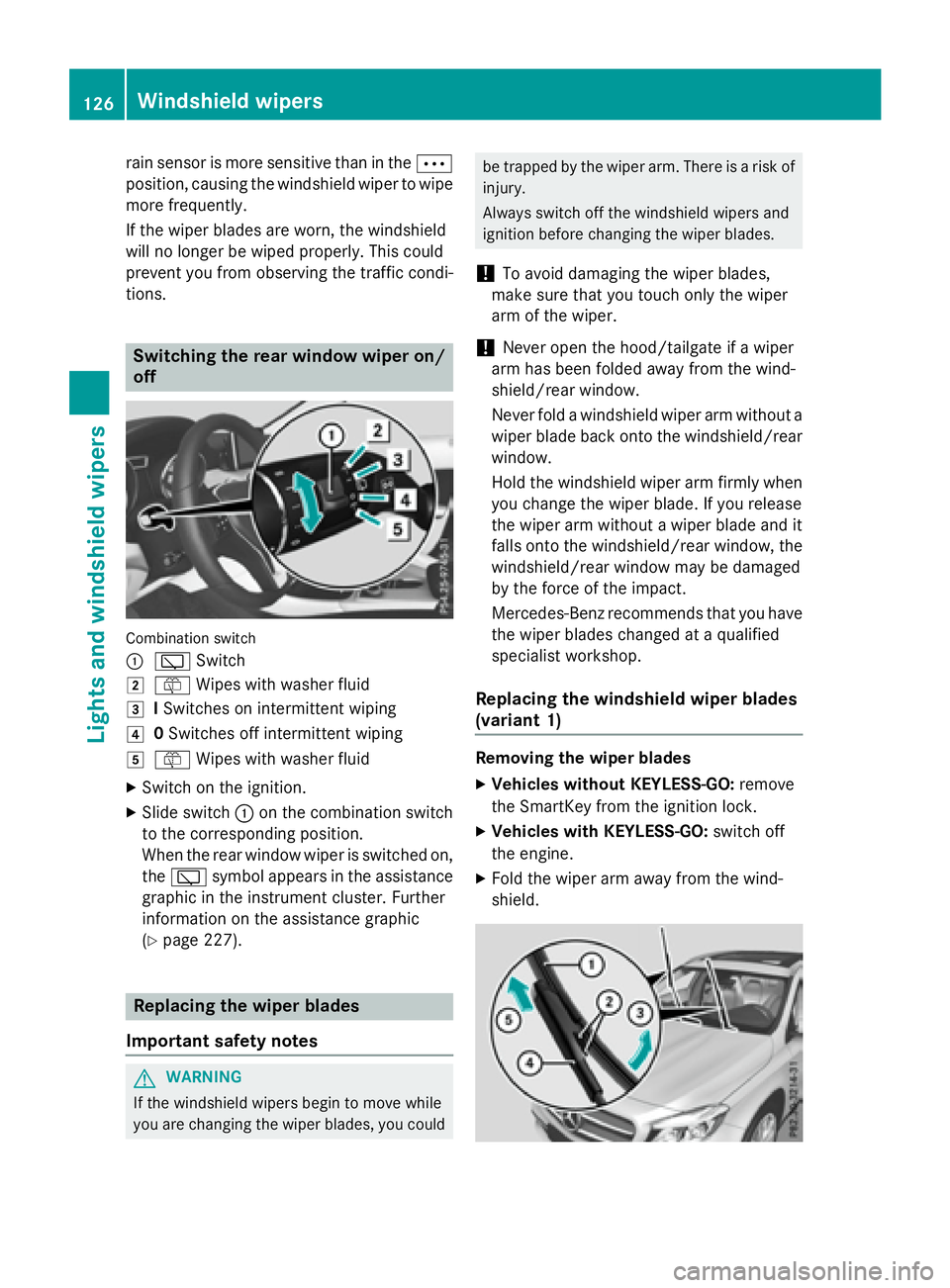

rain sensor is more sensitive than in the b
position, causing the windshield wiper to wipe
more frequently.
If the wiper blades are worn, the windshield
will no longer be wiped properly. This could
prevent you from observing the traffic condi-
tions.
Switching the rear window wiper on/
off
Combination switch
C

X

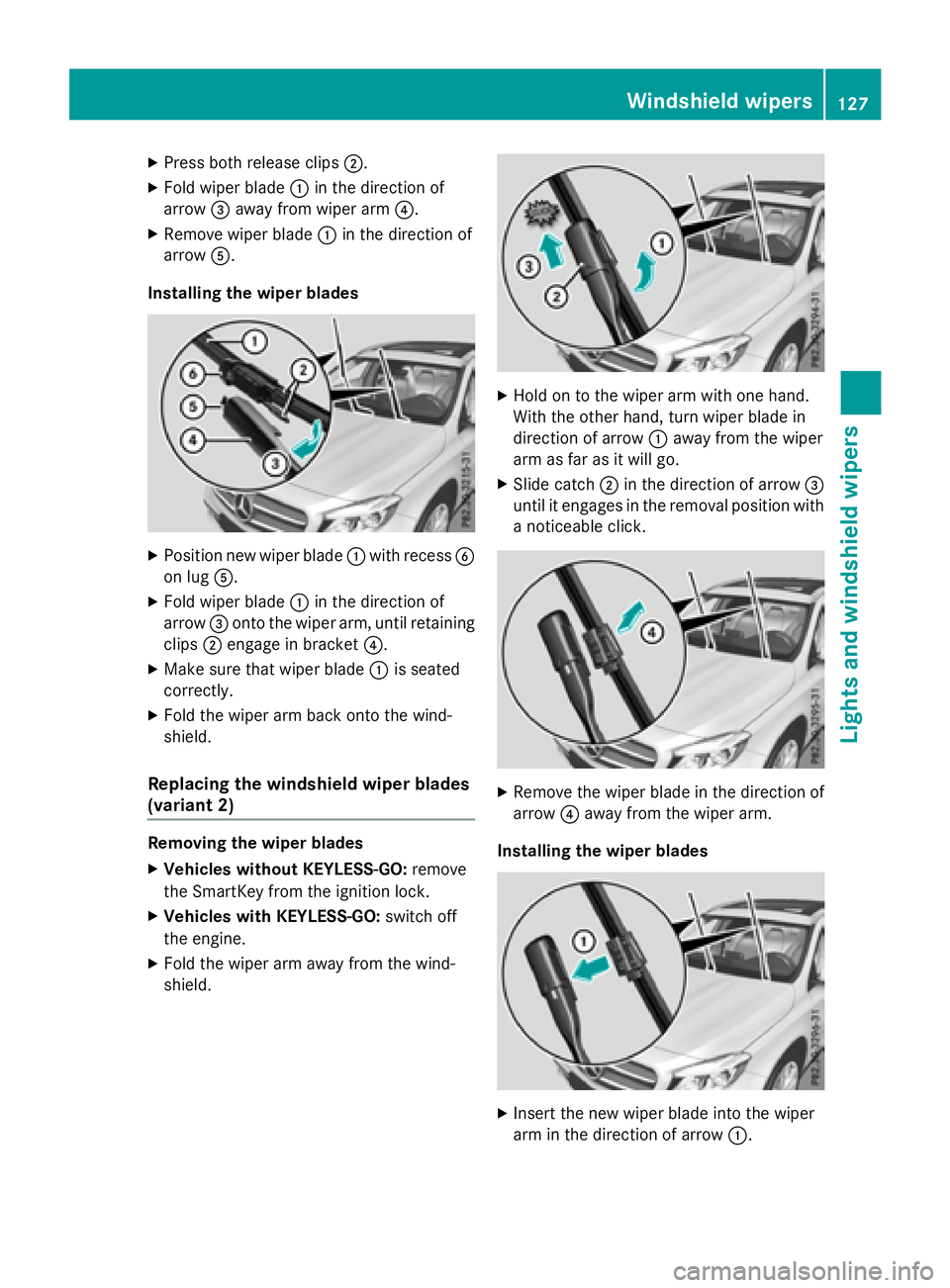

Press both release clips D .X
Fold wiper blade C in the direction of
arrow

X

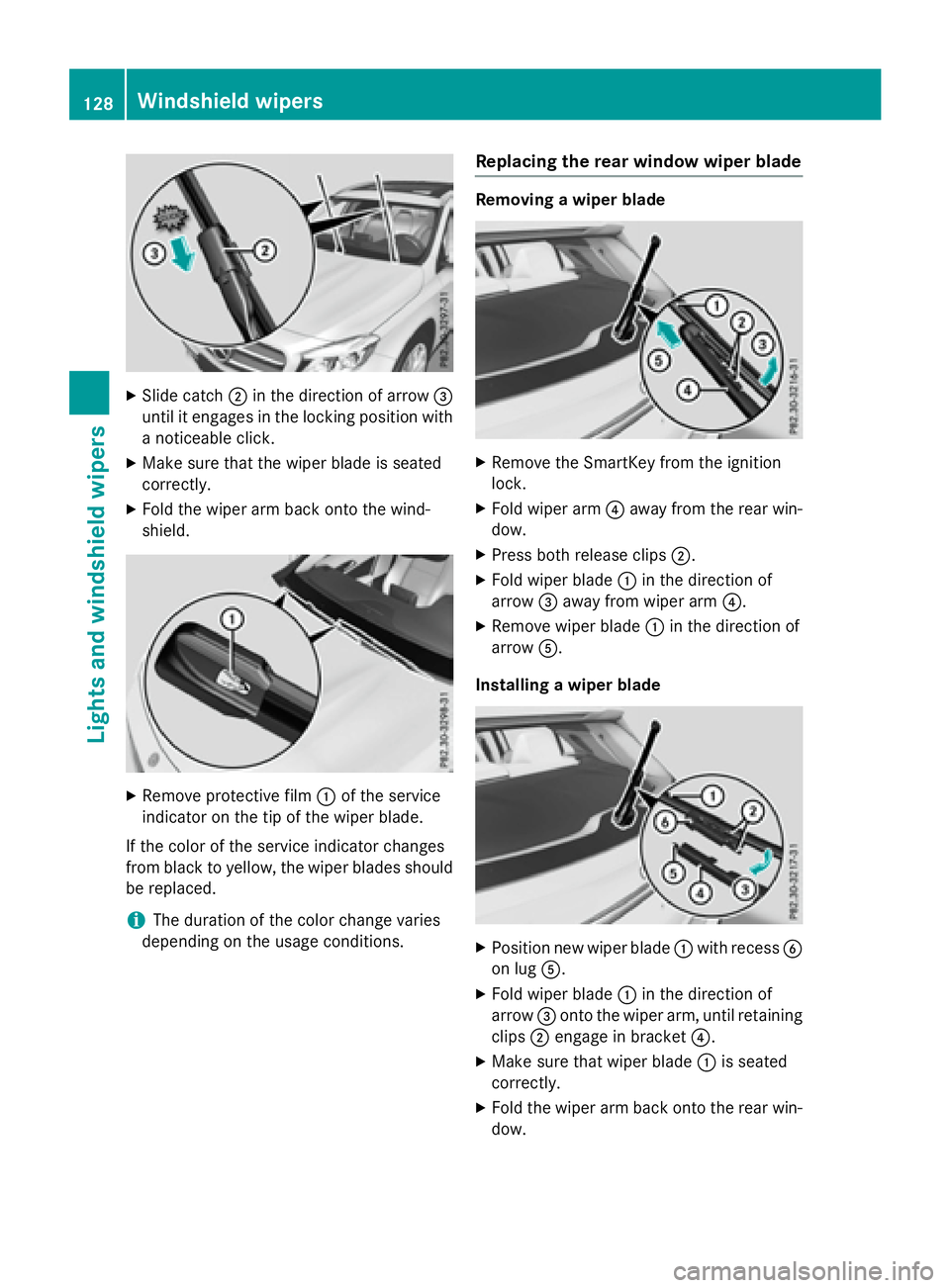

Slide catch D in the direction of arrow
