MERCEDES-BENZ GLA 2016 Owners Manual

Useful information ............................ 280
Loading guidelines ............................ 280
Stowage areas ................................... 281
Features ............................................. 288 279
Stowage and features

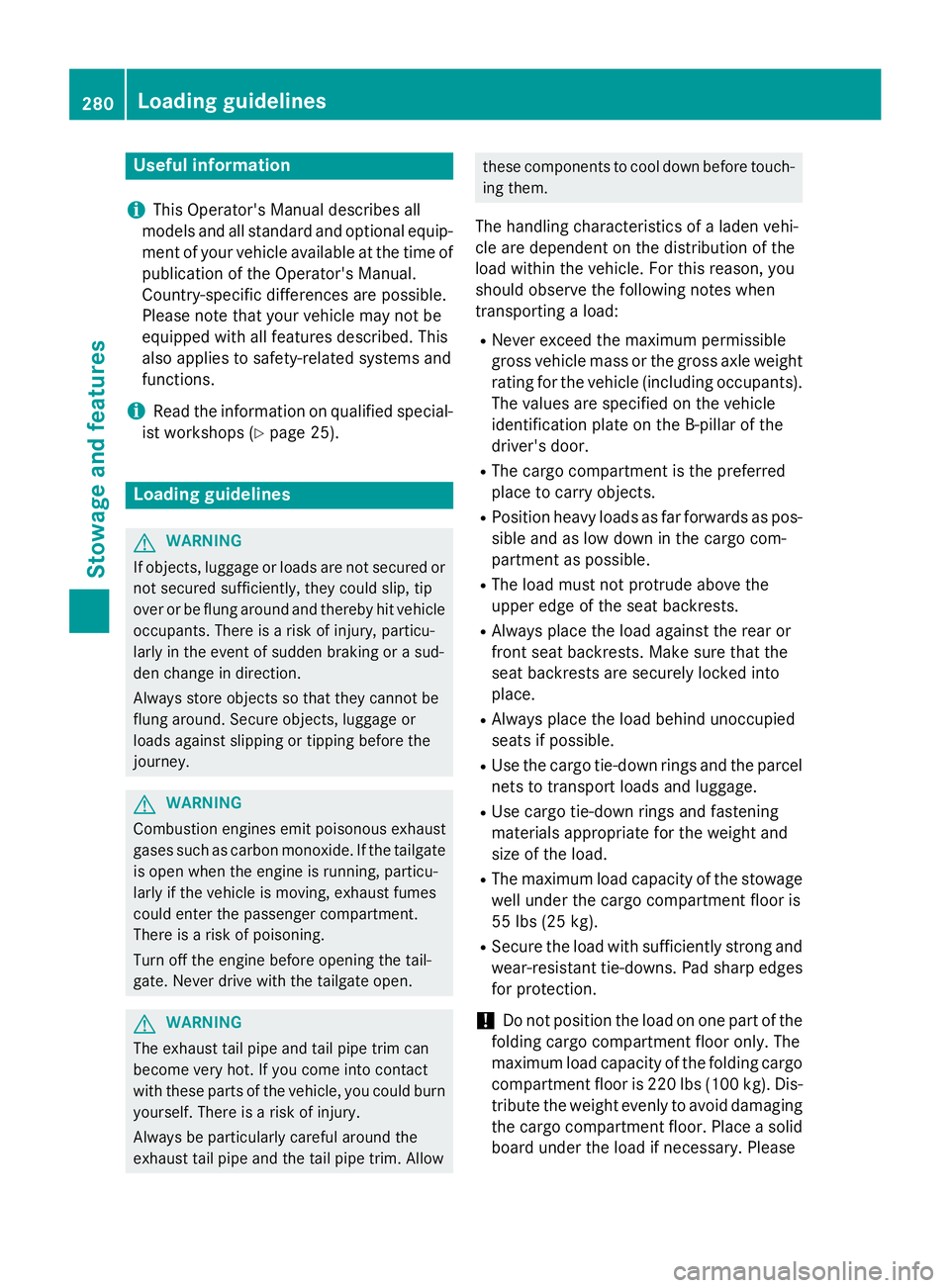

Useful information
i This Operator's Manual describes all
models and all standard and optional equip-
ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
i Read the information on qualified special-
ist workshops ( Y
page 25).
Loading guidelines
G WARNING
If objects, luggage or loads are not secured or
not secured sufficiently, they could slip, tip
over or be flung around and thereby hit vehicle
occupants. There is a risk of injury, particu-
larly in the event of sudden braking or a sud-
den change in direction.
Always store objects so that they cannot be
flung around. Secure objects, luggage or
loads against slipping or tipping before the
journey.
G WARNING
Combustion engines emit poisonous exhaust
gases such as carbon monoxide. If the tailgate
is open when the engine is running, particu-
larly if the vehicle is moving, exhaust fumes
could enter the passenger compartment.
There is a risk of poisoning.
Turn off the engine before opening the tail-
gate. Never drive with the tailgate open.
G WARNING
The exhaust tail pipe and tail pipe trim can
become very hot. If you come into contact
with these parts of the vehicle, you could burn
yourself. There is a risk of injury.
Always be particularly careful around the
exhaust tail pipe and the tail pipe trim. Allow these components to cool down before touch-
ing them.
The handling characteristics of a laden vehi-
cle are dependent on the distribution of the
load within the vehicle. For this reason, you
should observe the following notes when
transporting a load: R
Never exceed the maximum permissible
gross vehicle mass or the gross axle weight
rating for the vehicle (including occupants).
The values are specified on the vehicle
identification plate on the B-pillar of the
driver's door. R
The cargo compartment is the preferred
place to carry objects. R
Position heavy loads as far forwards as pos-
sible and as low down in the cargo com-
partment as possible. R
The load must not protrude above the
upper edge of the seat backrests. R
Always place the load against the rear or
front seat backrests. Make sure that the
seat backrests are securely locked into
place. R
Always place the load behind unoccupied
seats if possible. R
Use the cargo tie-down rings and the parcel
nets to transport loads and luggage. R
Use cargo tie-down rings and fastening
materials appropriate for the weight and
size of the load. R
The maximum load capacity of the stowage
well under the cargo compartment floor is
55 lbs (25 kg). R
Secure the load with sufficiently strong and
wear-resistant tie-downs. Pad sharp edges
for protection.
! Do not position the load on one part of the
folding cargo compartment floor only. The
maximum load capacity of the folding cargo
compartment floor is 220 lbs (100 kg). Dis-
tribute the weight evenly to avoid damaging
the cargo compartment floor. Place a solid
board under the load if necessary. Please280
Loading guidelines
Stowage and features

note that the load on the cargo compart-
ment floor will be increased when the load
is lashed down.

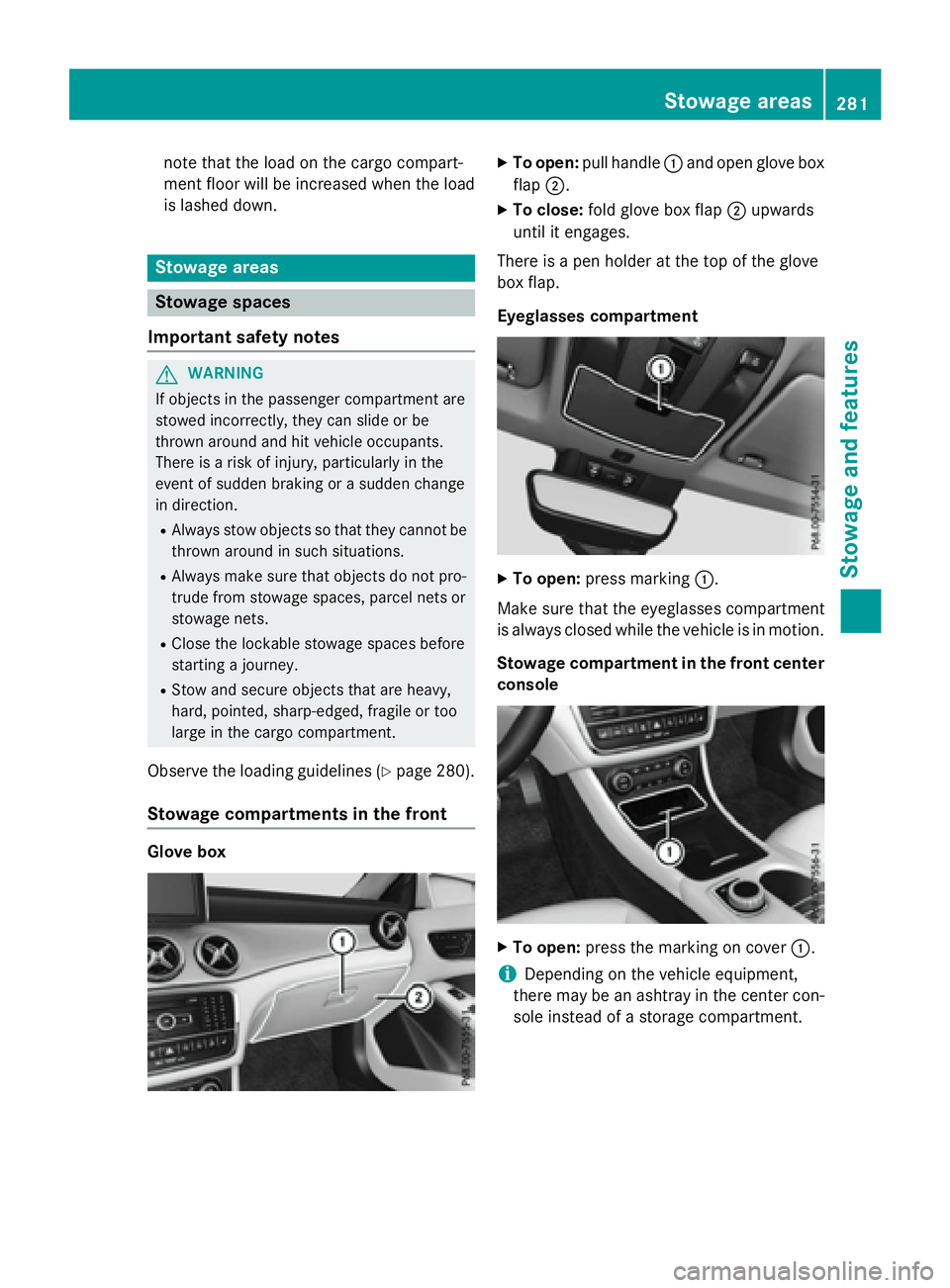

Stowage areas
Stowage spaces
Important safety notes
G WARNING
If objects in the passenger compartment are
stowed incorrectly, they can slide or be
thrown around and hit vehicle occupants.
There is a risk of injury, particularly in the
event of sudden braking or a sudden change
in direction. R
Always stow objects so that they cannot be
thrown around in such situations. R
Always make sure that objects do not pro-
trude from stowage spaces, parcel nets or
stowage nets. R
Close the lockable stowage spaces before
starting a journey. R
Stow and secure objects that are heavy,
hard, pointed, sharp-edged, fragile or too
large in the cargo compartment.
Observe the loading guidelines ( Y
page 280).
Stowage compartments in the front
Glove box X
To open: pull handle C and open glove box
flap D . X
To close: fold glove box flap D upwards
until it engages.
There is a pen holder at the top of the glove
box flap.
Eyeglasses compartment
X
To open: press marking C .
Make sure that the eyeglasses compartment
is always closed while the vehicle is in motion.
Stowage compartment in the front center
console
X
To open: press the marking on cover C .
i Depending on the vehicle equipment,
there may be an ashtray in the center con-
sole instead of a storage compartment. Stowage areas 281
Sto wag e an d features Z

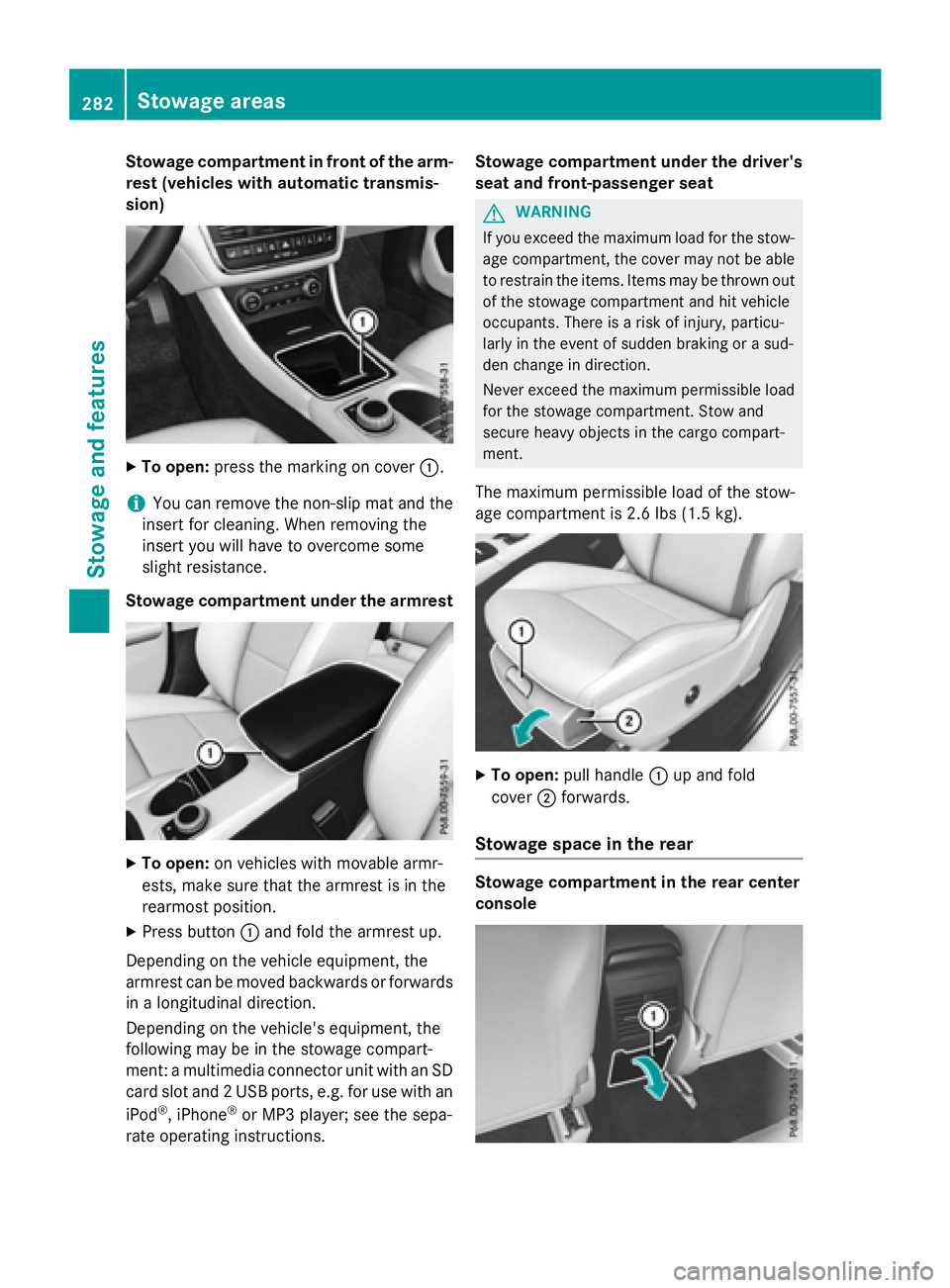

Stowage compartment in front of the arm-
rest (vehicles with automatic transmis-
sion) X
To open: press the marking on cover C .
i You can remove the non-slip mat and the
insert for cleaning. When removing the
insert you will have to overcome some
slight resistance.
Stowage compartment under the armrest
X
To open: on vehicles with movable armr-
ests, make sure that the armrest is in the
rearmost position. X
Press button C and fold the armrest up.
Depending on the vehicle equipment, the
armrest can be moved backwards or forwards
in a longitudinal direction.
Depending on the vehicle's equipment, the
following may be in the stowage compart-
ment: a multimedia connector unit with an SD
card slot and 2 USB ports, e.g. for use with an
iPod ®
, iPhone ®
or MP3 player; see the sepa-
rate operating instructions. Stowage compartment under the driver's
seat and front-passenger seat
G WARNING
If you exceed the maximum load for the stow-
age compartment, the cover may not be able
to restrain the items. Items may be thrown out
of the stowage compartment and hit vehicle
occupants. There is a risk of injury, particu-
larly in the event of sudden braking or a sud-
den change in direction.
Never exceed the maximum permissible load
for the stowage compartment. Stow and
secure heavy objects in the cargo compart-
ment.
The maximum permissible load of the stow-
age compartment is 2.6 lbs (1.5 kg).
X
To open: pull handle C up and fold
cover D forwards.
Stowage space in the rear
Stowage compartment in the rear center
console282
Stowage areas
Stowage and features

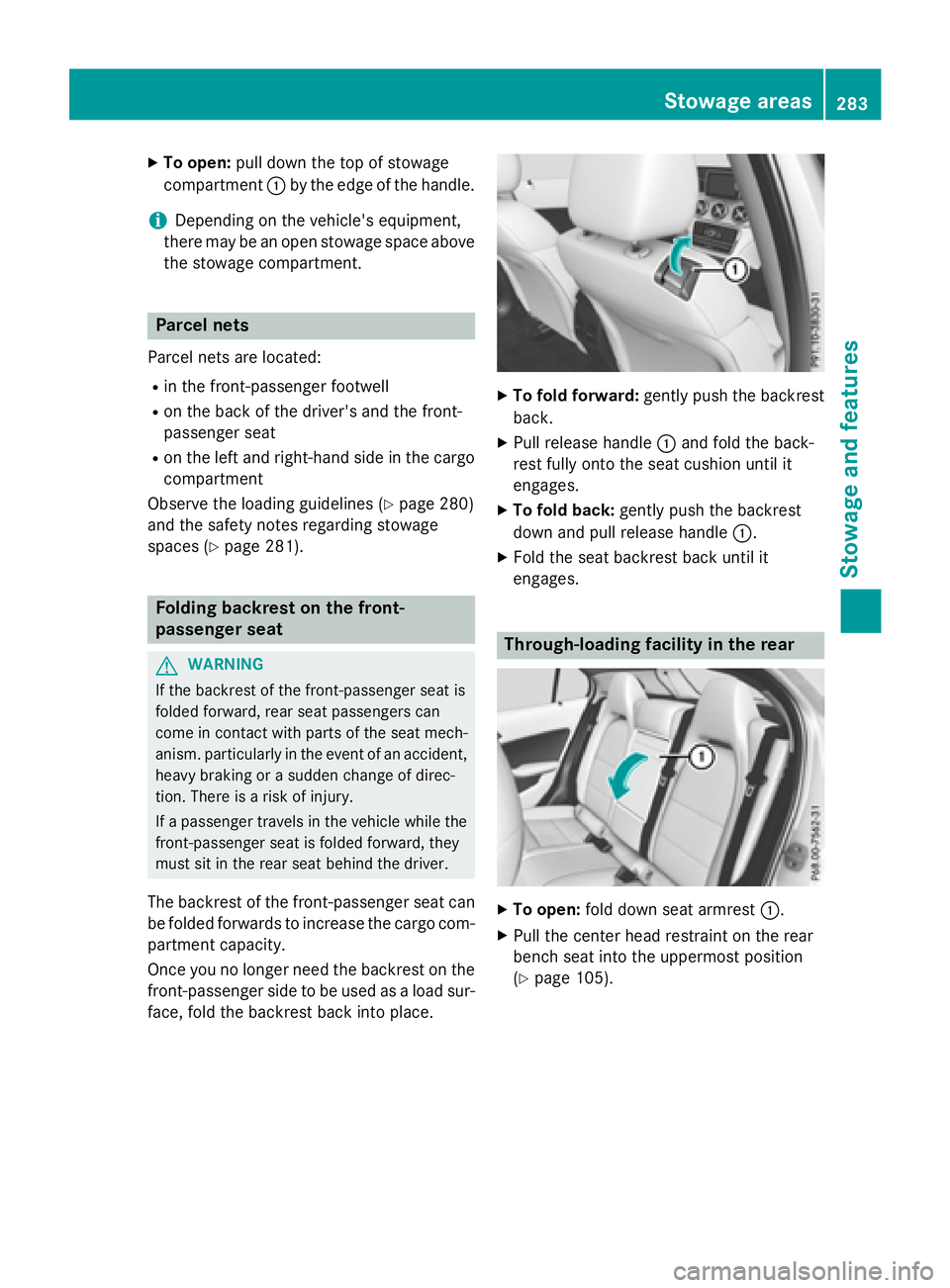

X
To open: pull down the top of stowage
compartment C by the edge of the handle.
i Depending on the vehicle's equipment,
there may be an open stowage space above
the stowage compartment.
Parcel nets Parcel nets are located: R
in the front-passenger footwell R
on the back of the driver's and the front-
passenger seat R
on the left and right-hand side in the cargo
compartment
Observe the loading guidelines ( Y
page 280)
and the safety notes regarding stowage
spaces ( Y
page 281).
Folding backrest on the front-
passenger seat
G WARNING
If the backrest of the front-passenger seat is
folded forward, rear seat passengers can
come in contact with parts of the seat mech-
anism. particularly in the event of an accident,
heavy braking or a sudden change of direc-
tion. There is a risk of injury.
If a passenger travels in the vehicle while the
front-passenger seat is folded forward, they
must sit in the rear seat behind the driver.
The backrest of the front-passenger seat can
be folded forwards to increase the cargo com-
partment capacity.
Once you no longer need the backrest on the
front-passenger side to be used as a load sur-
face, fold the backrest back into place. X
To fold forward: gently push the backrest
back. X
Pull release handle C and fold the back-
rest fully onto the seat cushion until it
engages. X
To fold back: gently push the backrest
down and pull release handle C .X
Fold the seat backrest back until it
engages.
Through-loading facility in the rear
X
To open: fold down seat armrest C .X
Pull the center head restraint on the rear
bench seat into the uppermost position
( Y
page 105).Stowage areas 283
Sto wag e an d features Z

X
Slide locking mechanism

X

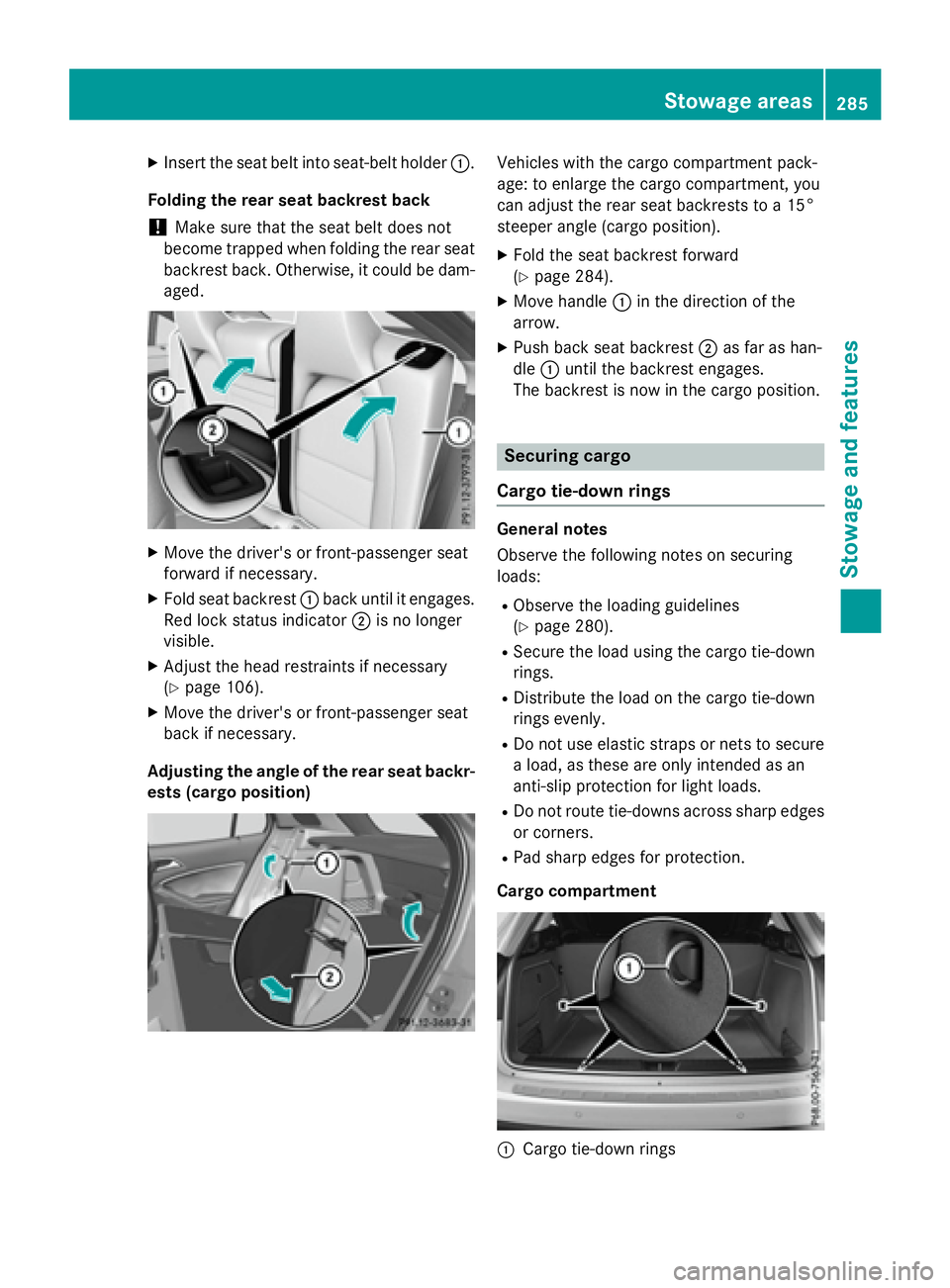

Insert the seat belt into seat-belt holder C .
Folding the rear seat backrest back
! Make sure that the seat belt does not
become trapped when folding the rear seat
backrest back. Otherwise, it could be dam-
aged. X
Move the driver's or front-passenger seat
forward if necessary. X
Fold seat backrest C back until it engages.
Red lock status indicator D is no longer
visible. X
Adjust the head restraints if necessary
( Y
page 106). X
Move the driver's or front-passenger seat
back if necessary.
Adjusting the angle of the rear seat backr-
ests (cargo position) Vehicles with the cargo compartment pack-
age: to enlarge the cargo compartment, you
can adjust the rear seat backrests to a 15°
steeper angle (cargo position). X
Fold the seat backrest forward
( Y
page 284). X
Move handle C in the direction of the
arrow. X
Push back seat backrest D as far as han-
dle C until the backrest engages.
The backrest is now in the cargo position.
Securing cargo
Cargo tie-down rings General notes
Observe the following notes on securing
loads: R
Observe the loading guidelines
( Y
page 280). R
Secure the load using the cargo tie-down
rings. R
Distribute the load on the cargo tie-down
rings evenly. R
Do not use elastic straps or nets to secure
a load, as these are only intended as an
anti-slip protection for light loads. R
Do not route tie-downs across sharp edges
or corners. R
Pad sharp edges for protection.
Cargo compartment
C
Cargo tie-down rings Stowage areas 285
Stowage and features Z

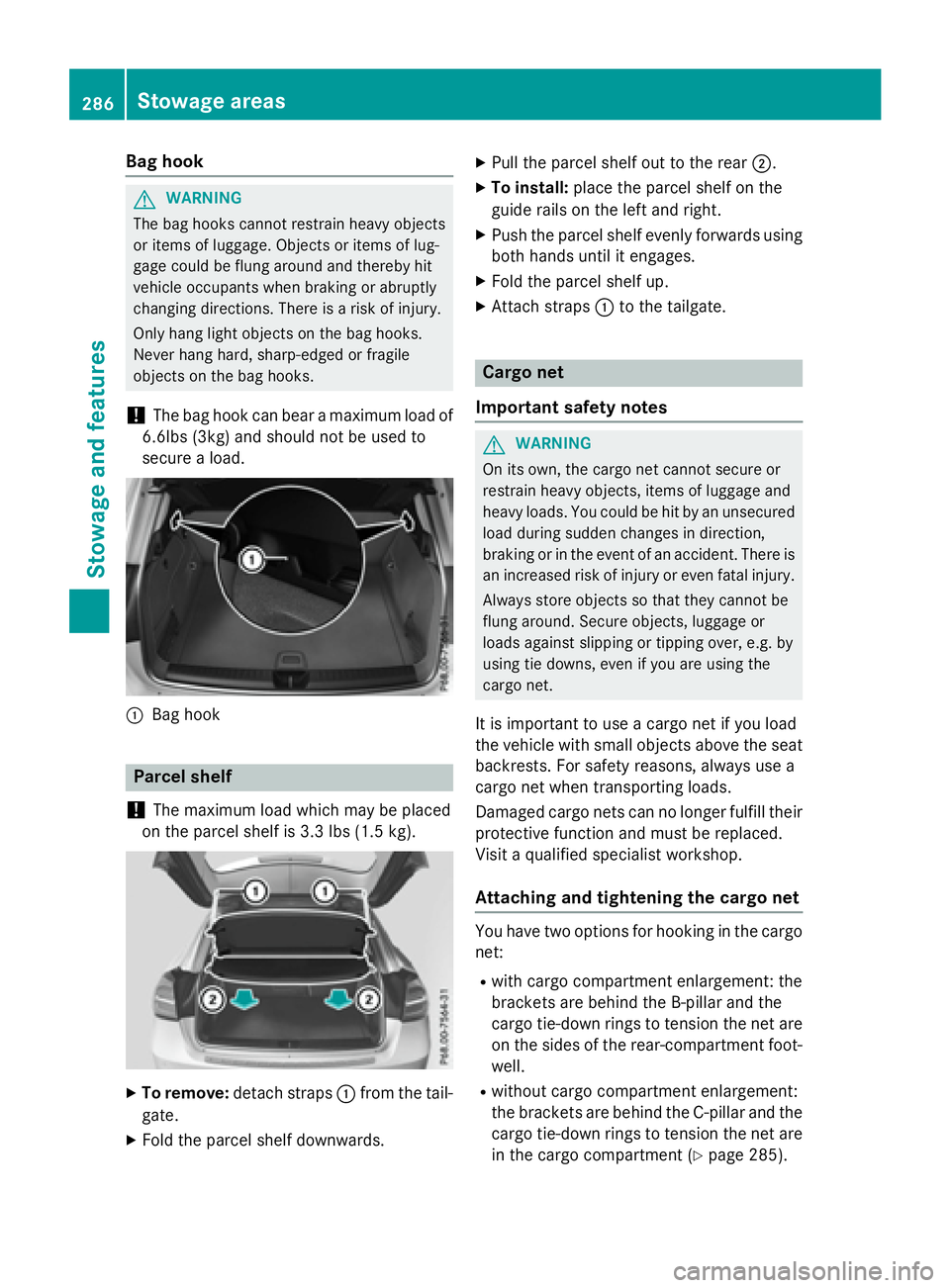

Bag hook
G WARNING
The bag hooks cannot restrain heavy objects
or items of luggage. Objects or items of lug-
gage could be flung around and thereby hit
vehicle occupants when braking or abruptly
changing directions. There is a risk of injury.
Only hang light objects on the bag hooks.
Never hang hard, sharp-edged or fragile
objects on the bag hooks.
! The bag hook can bear a maximum load of
6.6lbs (3kg) and should not be used to
secure a load.
C
Bag hook
Parcel shelf
! The maximum load which may be placed
on the parcel shelf is 3.3 lbs (1 .5 kg).
X
To remove: detach straps C from the tail-
gate. X
Fold the parcel shelf downwards. X
Pull the parcel shelf out to the rear D .X
To install: place the parcel shelf on the
guide rails on the left and right. X
Push the parcel shelf evenly forwards using
both hands until it engages. X
Fold the parcel shelf up. X
Attach straps C to the tailgate.
Cargo net
Important safety notes
G WARNING
On its own, the cargo net cannot secure or
restrain heavy objects, items of luggage and
heavy loads. You could be hit by an unsecured
load during sudden changes in direction,
braking or in the event of an accident. There is
an increased risk of injury or even fatal injury.
Always store objects so that they cannot be
flung around. Secure objects, luggage or
loads against slipping or tipping over, e.g. by
using tie downs, even if you are using the
cargo net.
It is important to use a cargo net if you load
the vehicle with small objects above the seat
backrests. For safety reasons, always use a
cargo net when transporting loads.
Damaged cargo nets can no longer fulfill their
protective function and must be replaced.
Visit a qualified specialist workshop.
Attaching and tightening the cargo net
You have two options for hooking in the cargo
net: R
with cargo compartment enlargement: the
brackets are behind the B ‑ pillar and the
cargo tie-down rings to tension the net are
on the sides of the rear-compartment foot-
well. R
without cargo compartment enlargement:
the brackets are behind the C-pillar and the
cargo tie-down rings to tension the net are
in the cargo compartment ( Y
page 285).286
Stowage areas
Stowage and features

The cargo net is located in the stowage space
under the cargo compartment floor
( Y
page 287). X
Open both Velcro fasteners and remove the
cargo net. X
Unroll and unfold the cargo net.
The joints on the upper and lower guide rod
should engage audibly.
Cargo net (with cargo compartment enlargement)
Cargo net (without cargo compartment enlarge-
ment) X
To attach and tighten: insert guide rod C
into bracket D .X
Attach belt hook

X

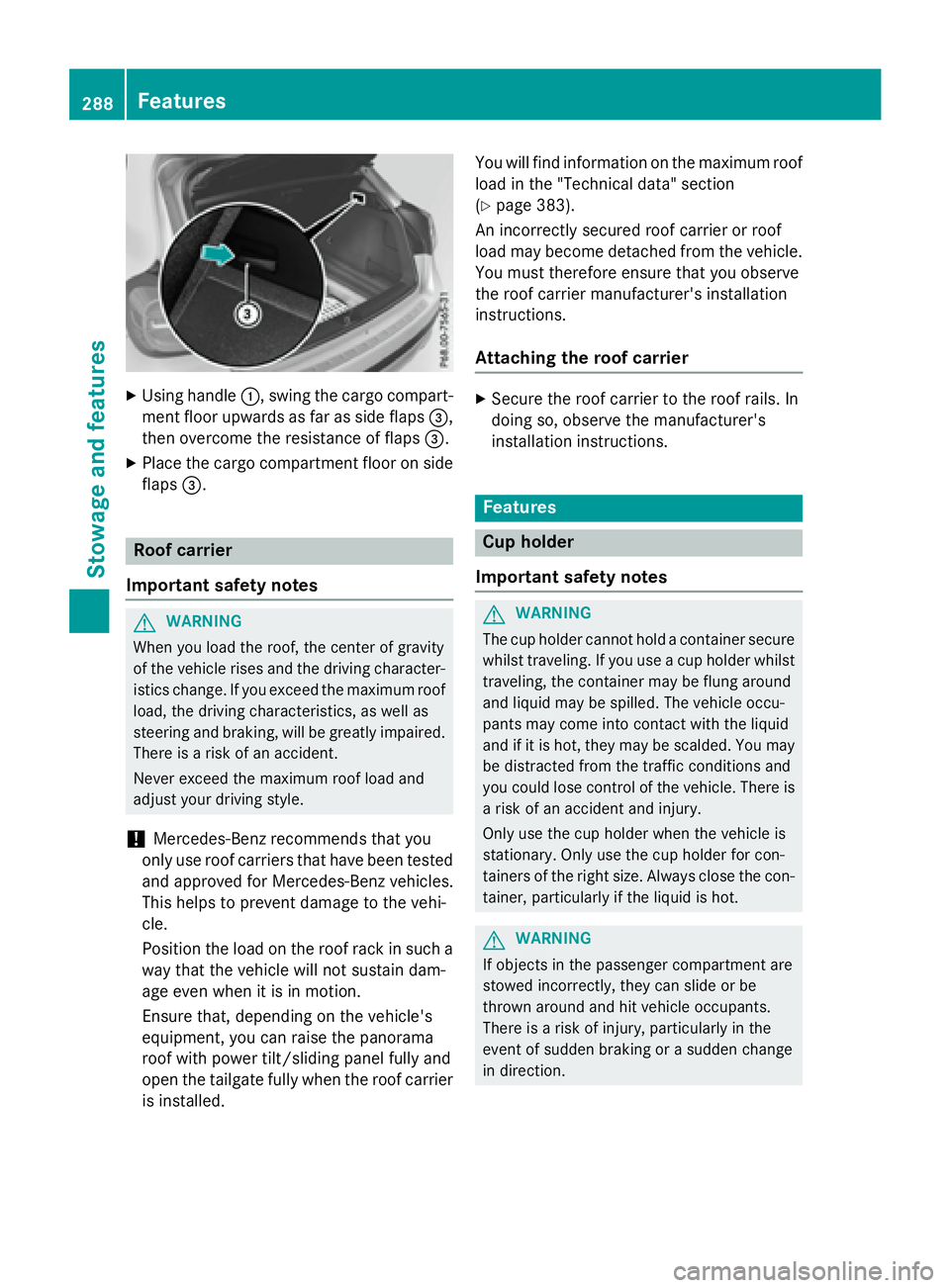

Using handle C , swing the cargo compart-
ment floor upwards as far as side flaps
