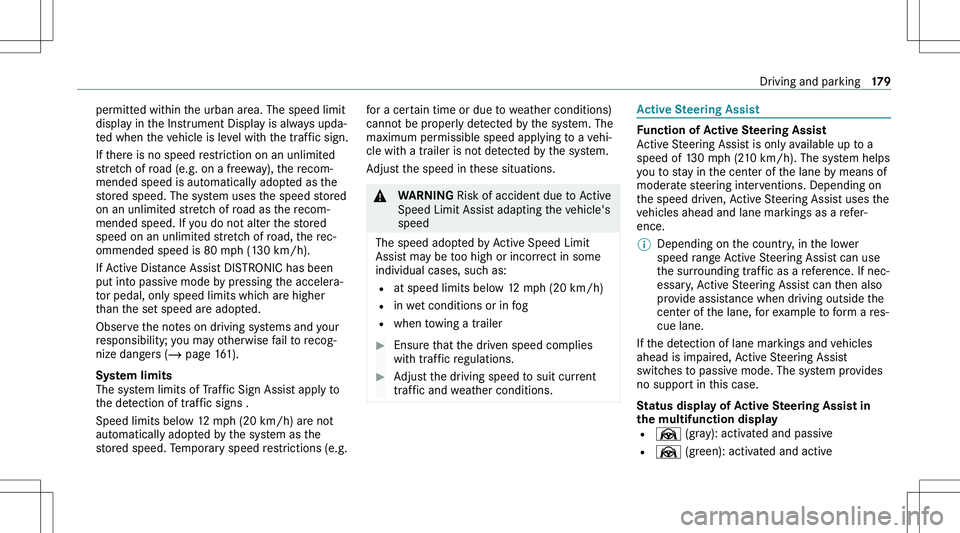

permitted within the urban area. The speed limit
display in the Instrument Display is always upda

=Ø (red): system limits detected
= Ø (white, red hands): "hands on the steer

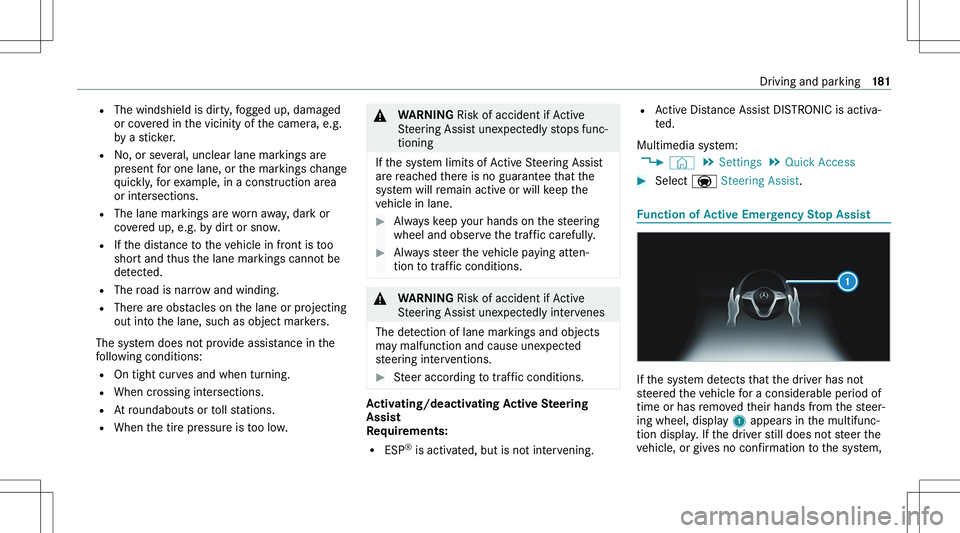

=The windshield is dirty, fogged up, damaged
or covered in the vicinity of the camera, e.g. by a sticker.
= No, or several, unclear lane markings are
present for one lane, or the markings change
quickly, for example, in a construction area or intersections.
= The lane markings are worn away, dark or
covered up, e.g. by dirt or snow.
= If the distance to the vehicle in front is too
short and thus the lane markings cannot be
detected.
= The road is narrow and winding.
= There are obstacles on the lane or projecting
out into the lane, such as object markers.
The system does not provide assistance in the
following conditions:
= On tight curves and when turning.
= When crossing intersections.
= At roundabouts or toll stations.
= When the tire pressure is too low.&WARNING Risk of accident if Active
Steering Assist unexpectedly stops func

a warning tone sounds in addition to the visual
warning message.
If the driver still does not respond to the warn

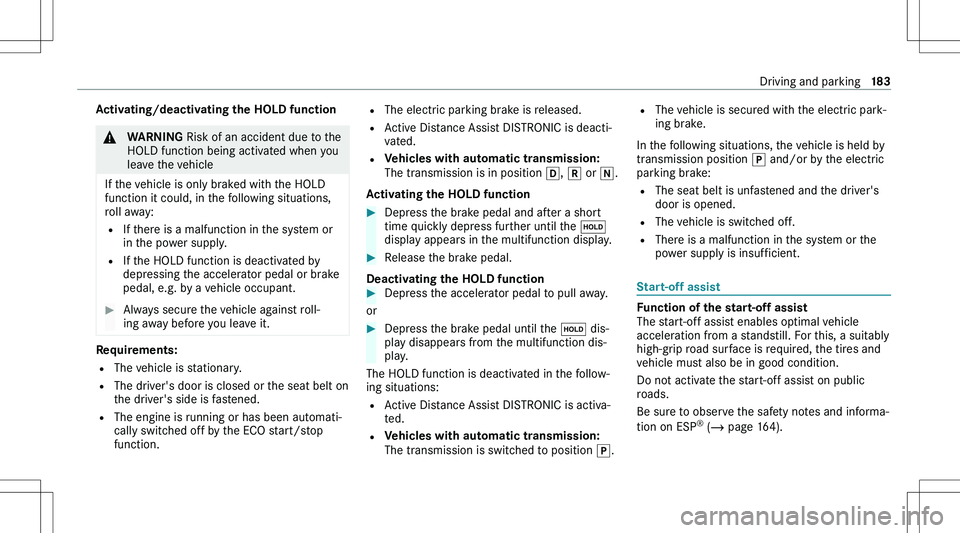

Activating/deactivatingtheHOLDfunction&WARNING Risk of an accident due to the
HOLD function being activated when you
leave the vehicle
If the vehicle is only braked with the HOLD
function it could, in the following situations,
roll away:
= If there is a malfunction in the system or
in the power supply.
= If the HOLD function is deactivated by
depressing the accelerator pedal or brake
pedal, e.g. by a vehicle occupant.
Always secure the vehicle against roll

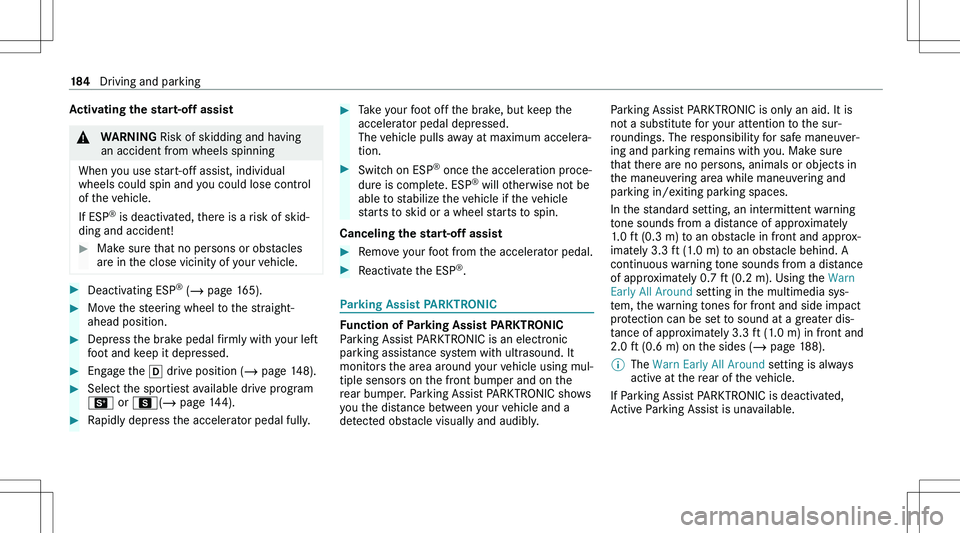

Activatingthestart-offassist&WARNING Risk of skidding and having
an accident from wheels spinning
When you use start-off assist, individual
wheels could spin and you could lose control
of the vehicle.
If ESP

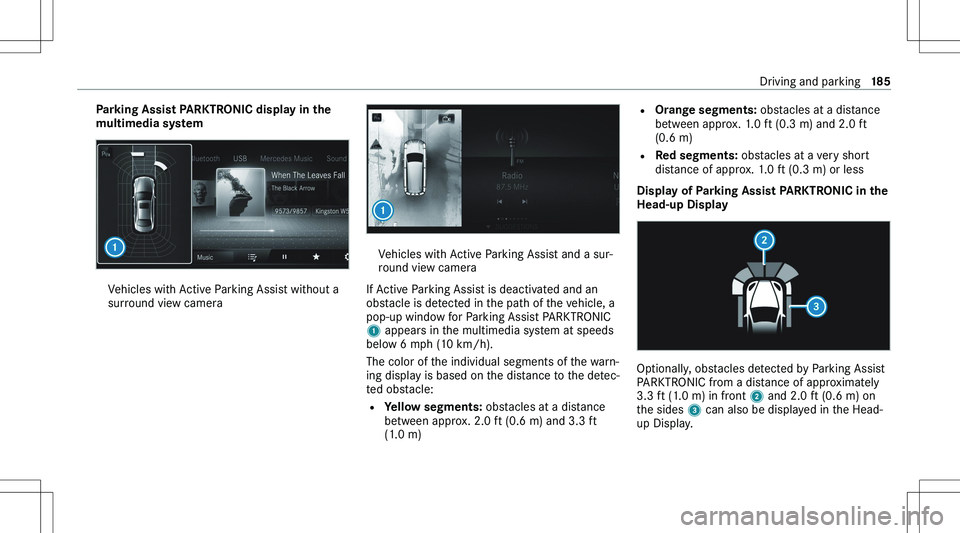

ParkingAssistPARKTRONICdisplayinthe
multimediasystemVehicles with Active Parking Assist without a surround view cameraVehicles with Active Parking Assist and a sur

Systemlimits
Parking Assist PARKTRONIC does not necessa

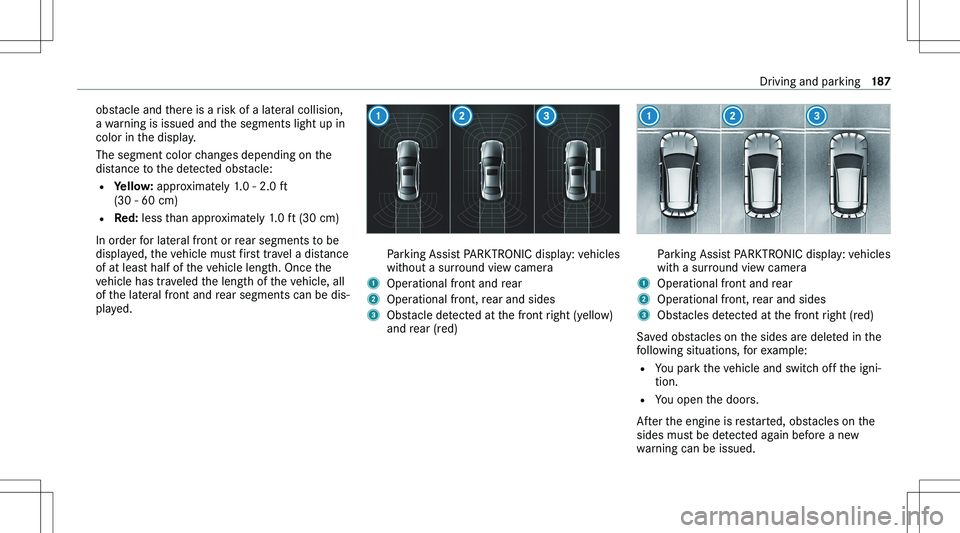

obstacle and there is a risk of a lateral collision,a warning is issued and the segments light up incolor in the display.
The segment color changes depending on the
distance to the detected obstacle:
= Yellow: approximately 1.0 - 2.0 ft
(30 - 60 cm)
= Red: less than approximately 1.0 ft (30 cm)
In order for lateral front or rear segments to be
displayed, the vehicle must first travel a distance
of at least half of the vehicle length. Once the
vehicle has traveled the length of the vehicle, all
of the lateral front and rear segments can be dis

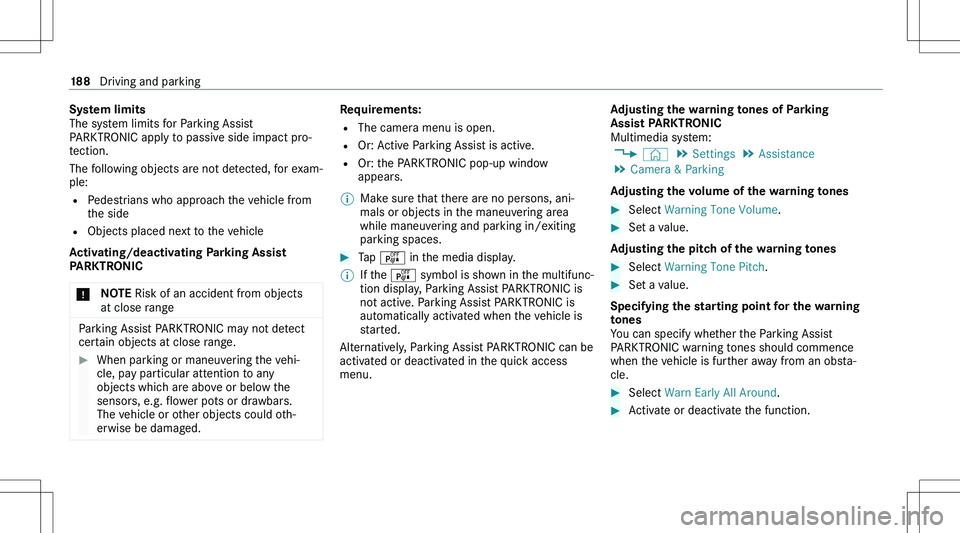

Systemlimits
The system limits for Parking Assist
PARKTRONIC apply to passive side impact pro
