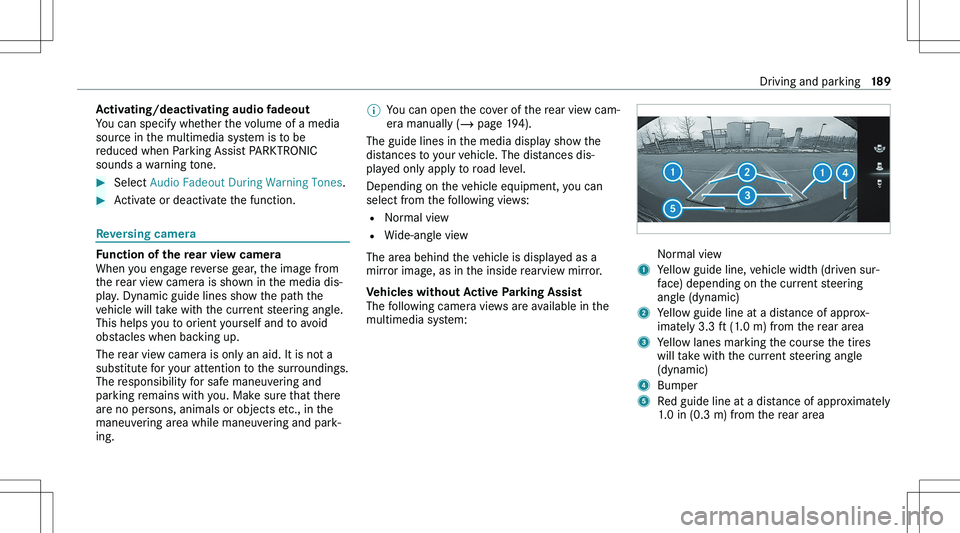

Activating/deactivatingaudiofadeoutYou can specify whether the volume of a media
source in the multimedia system is to be
reduced when Parking Assist PARKTRONIC
sounds a warning tone.Select Audio Fadeout During Warning Tones .Activate or deactivate the function.
Reversingcamera
Functionoftherearviewcamera
When you engage reverse gear, the image from the rear view camera is shown in the media dis

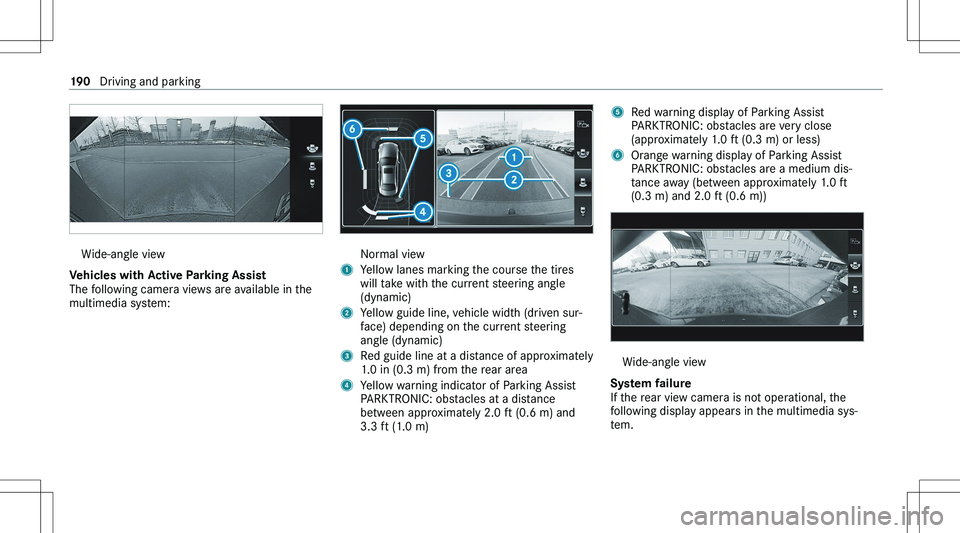

Wide-angle view
VehicleswithActiveParkingAssist
The following camera views are available in the
multimedia system:
Normal view1Yellow lanes marking the course the tires will take with the current steering angle(dynamic)2Yellow guide line, vehicle width (driven sur

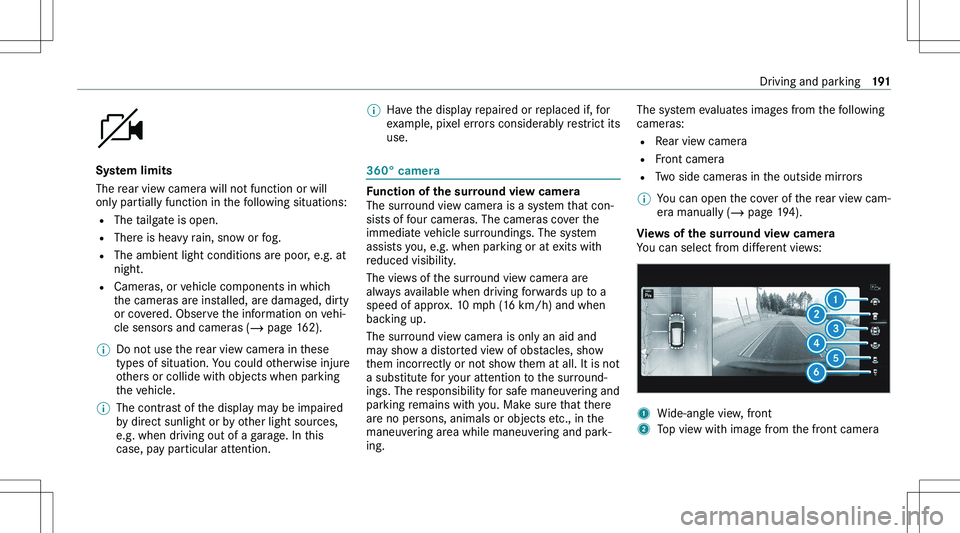

Systemlimits
The rear view camera will not function or will only partially function in the following situations:
= The tailgate is open.
= There is heavy rain, snow or fog.
= The ambient light conditions are poor, e.g. at
night.
= Cameras, or vehicle components in which
the cameras are installed, are damaged, dirty
or covered. Observe the information on vehi

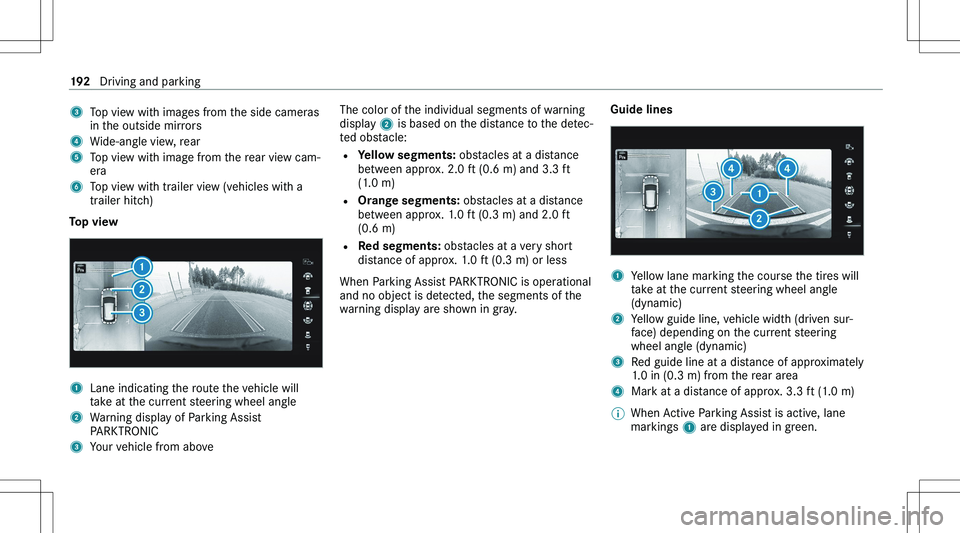

3Top view with images from the side cameras
in the outside mirrors4Wide-angle view, rear5Top view with image from the rear view cam

The guide lines in the media display showthe distances to your vehicle. The distances
apply to road level.

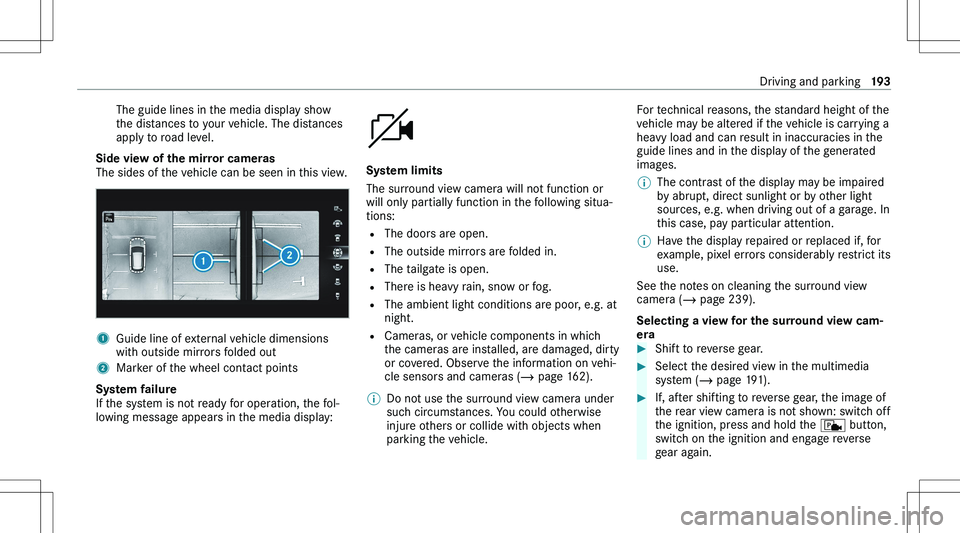

Sideviewofthemirrorcameras
The sides of the vehicle can be seen in this view.
1Guide line of external vehicle dimensions with outside mirrors folded out2Marker of the wheel contact points
Systemfailure
If the system is not ready for operation, the fol

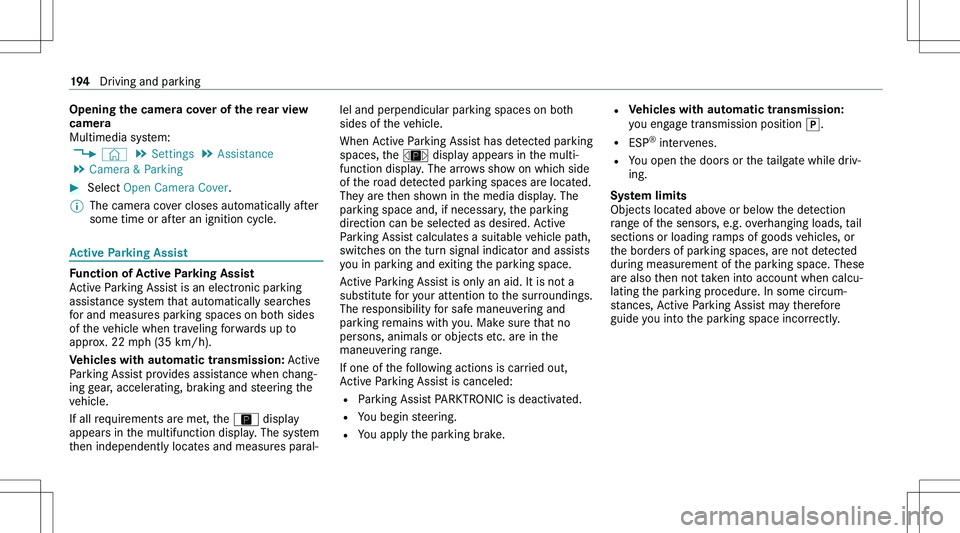

Openingthecameracoveroftherearviewcamera
Multimedia system:
4 © 5
Settings 5
Assistance
5 Camera & ParkingSelect Open Camera Cover .%The camera cover closes automatically after
some time or after an ignition cycle.
ActiveParkingAssist
FunctionofActiveParkingAssist
Active Parking Assist is an electronic parking
assistance system that automatically searches for and measures parking spaces on both sidesof the vehicle when traveling forwards up to
approx. 22 mph (35 km/h).
Vehicleswithautomatictransmission: Active
Parking Assist provides assistance when chang

&WARNING Risk of accident due to
objects located above or below the detection range of Active Parking Assist
If there are objects above or below the
detection range, the following situations may arise:
= Active Parking Assist may steer too early.
= The vehicle may not stop in front of these
objects.
This could cause a collision.
In these situations, do not use Active
Parking Assist.
Extreme environmental conditions, such as
snowfall or heavy rain, may lead to a parking
space being measured inaccurately. Parking
spaces that are partially occupied by trailer
drawbars might not be identified as such or be measured incorrectly. Only use Active Parking
Assist on level, high-grip ground.
Do not use Active Parking Assist in the following
situations:
= In extreme weather conditions such as ice,
packed snow or in heavy rain.
= When transporting a load that protrudes
beyond the vehicle.
= If the parking space is on a steep downhill or
uphill gradient.
= When snow chains are installed.
= Directly after a tire change or when spare
tires are installed.
= If the tire pressure is too low or too high.
= If the suspension is out of alignment, e.g.
after bottoming out on a curb.
= On steep inclines of more than approx. 15%.
Active Parking Assist may also display parking
spaces that are not suitable for parking, such as, e.g.:
= Parking spaces where parking is prohibited.
= Parking spaces on unsuitable surfaces.ParkingwithActiveParkingAssist%Depending on the vehicle's equipment, the
button may also be located at a different
position in the center console.Press button 1.Driving and parking195

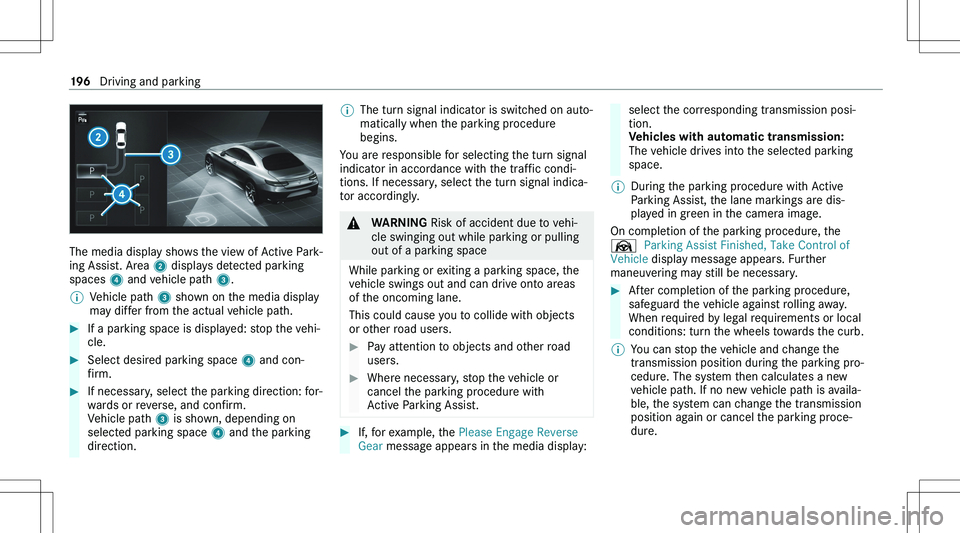

The media display shows the view of Active Park

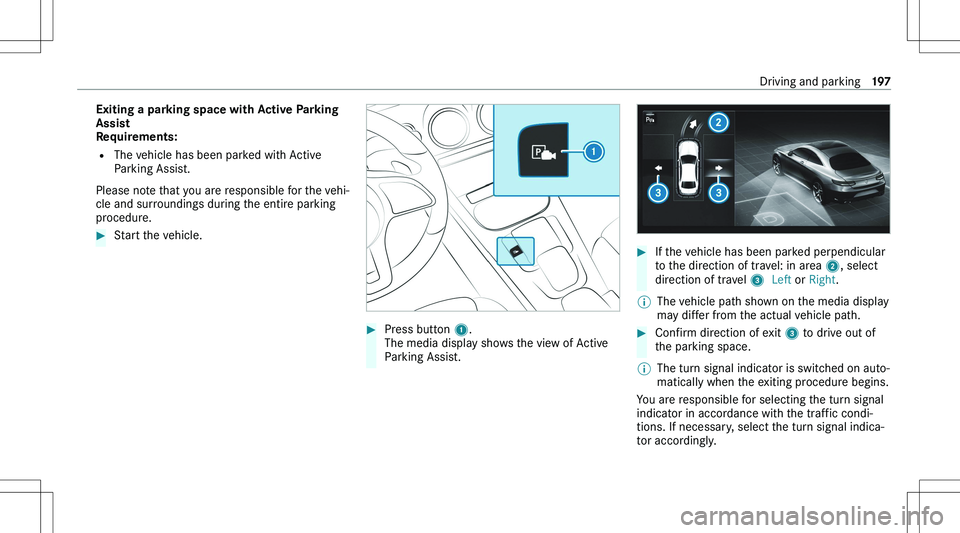

ExitingaparkingspacewithActiveParking
Assist
Requirements:
= The vehicle has been parked with Active
Parking Assist.
Please note that you are responsible for the vehi

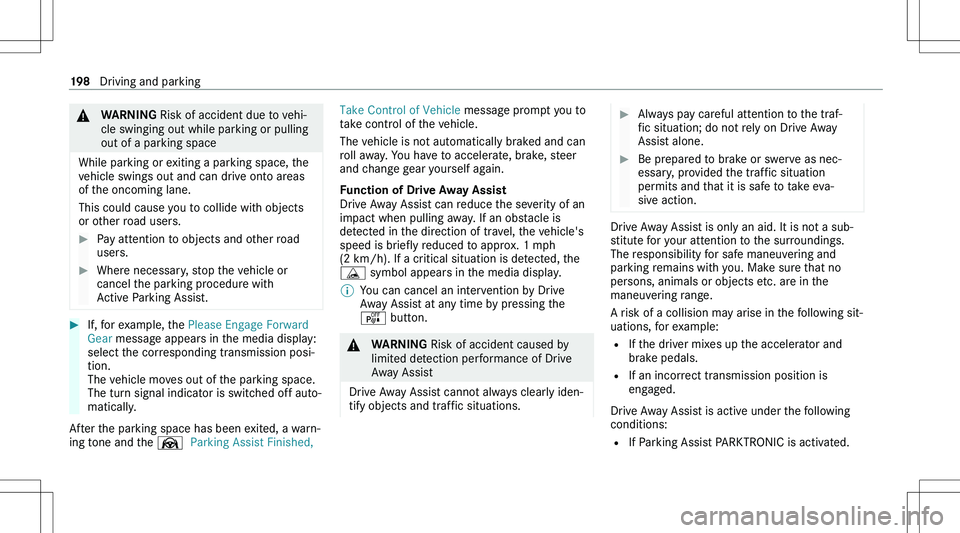

&WARNING Risk of accident due to vehi
