MERCEDES-BENZ GLA-Class 2016 X156 Owner's Manual

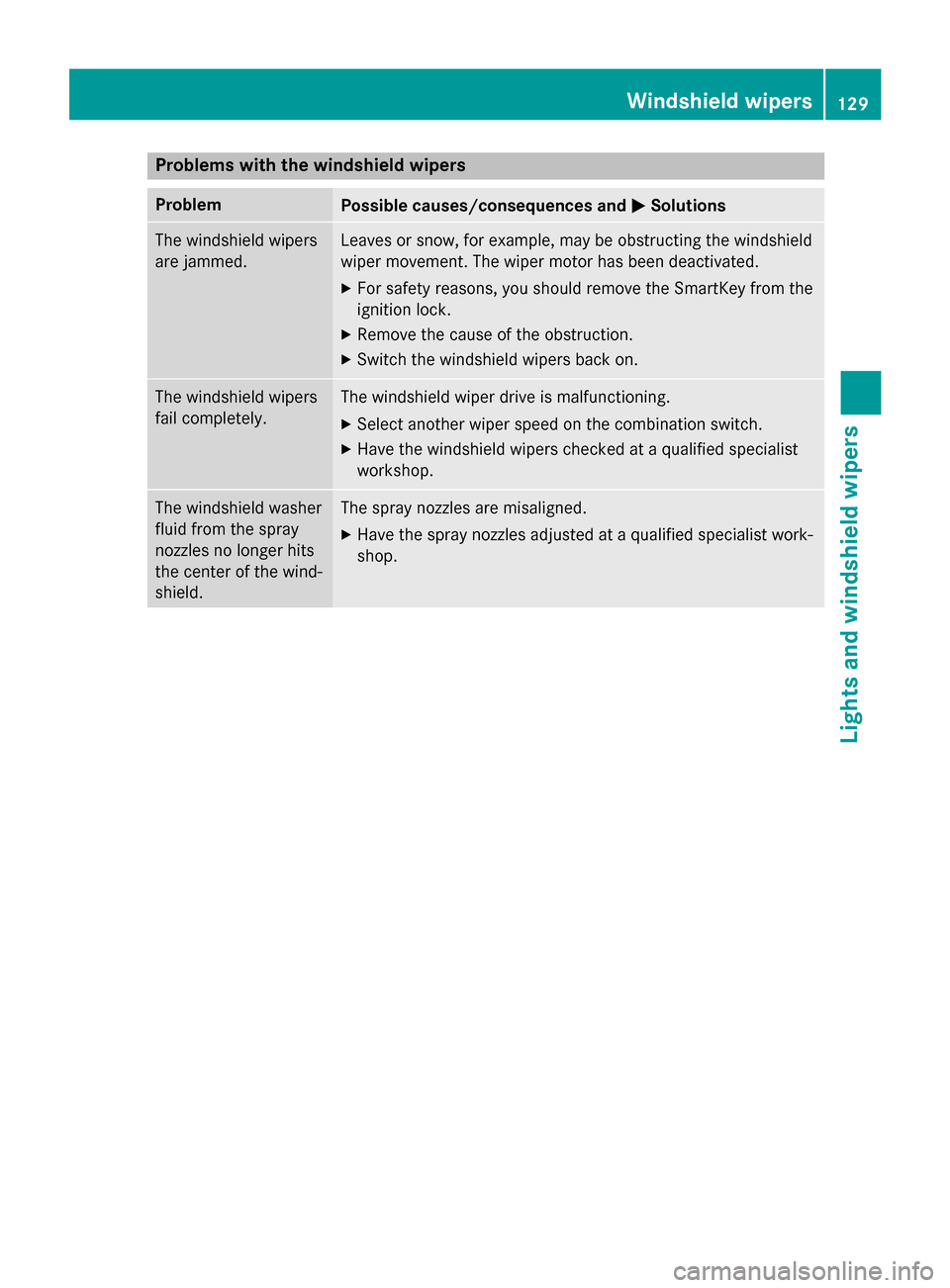

Problems with the windshield wipers
ProblemPossible causes/consequences andMSolutions
The windshield wipers
are jammed.Leaves or snow, for example, may be obstructing the windshield
wiper movement. The wiper motor has been deactivated.
XFor safety reasons, you should remove the SmartKey from the
ignition lock.
XRemove the cause of the obstruction.
XSwitch the windshield wipers back on.
The windshield wipers
fail completely.The windshield wiper drive is malfunctioning.
XSelect another wiper speed on the combination switch.
XHave the windshield wipers checked at a qualified specialist
workshop.
The windshield washer
fluid from the spray
nozzles no longer hits
the center of the wind-
shield.The spray nozzles are misaligned.
XHave the spray nozzles adjusted at a qualified specialist work-
shop.
Windshield wipers129
Lights and windshield wipers
Z

130

Useful information............................132
Overview of climate control sys-
tems ................................................... 132
Operating the climate control sys-
tems ................................................... 137
Air vents ............................................ 144
131
Climate control

Useful information
i
This Operator's Manual describes all
models and all standard and optional equip-
ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
iRead the information on qualified special-
ist workshops (
Ypage 25).
Overview of climate control systems
General notes
Observe the settings recommended on the
following pages. The windows could other-
wise fog up.
To prevent the windows from fogging up:
Rswitch off climate control only briefly
Rswitch on air-recirculation mode only
briefly
Rswitch on the cooling with air dehumidifi-
cation function
Rswitch on the defrost windshield function
briefly, if required
The air-conditioning system/dual-zone auto-
matic climate control regulates the tempera- ture and the humidity of the vehicle interior
and filters out undesirable substances from
the air.
The air-conditioning system/dual-zone auto-
matic climate control can only be operated
when the engine is running. Optimum opera-
tion is only achieved with the side windows
and panorama roof with power tilt/sliding
panel closed.
If you start the engine using your smartphone,
the last selected climate control setting is
reactivated (
Ypage 171). The residual heat function can only be acti-
vated or deactivated with the ignition
switched off (
Ypage 143).
Always keep the ventilation flaps behind the
side trim panel in the cargo compartment
clear (
Ypage 124). Otherwise the vehicle will
not be ventilated correctly.
iVentilate the vehicle for a brief period
during warm weather, e.g. using the con-
venience opening feature (
Ypage 91). This
will speed up the cooling process and the
desired interior temperature will be
reached more quickly.
iThe integrated filter filters out most par-
ticles of dust and soot and completely fil-
ters out pollen. It also reduces gaseous pol- lutants and odors. A clogged filter reduces
the amount of air supplied to the vehicle
interior. For this reason, you should always
observe the interval for replacing the filter,
which is specified in the Maintenance
Booklet. As it depends on environmental
conditions, e.g. heavy air pollution, the
interval may be shorter than stated in t
he
Maintenance Booklet.
iIt is possible that under certain circum-
stances the residual heat function may be
activated automatically an hour after the
SmartKey has been removed in order to dry the automatic climate control. The vehicle
is then ventilated for 30 minutes.
132Overview of climate control systems
Climate control

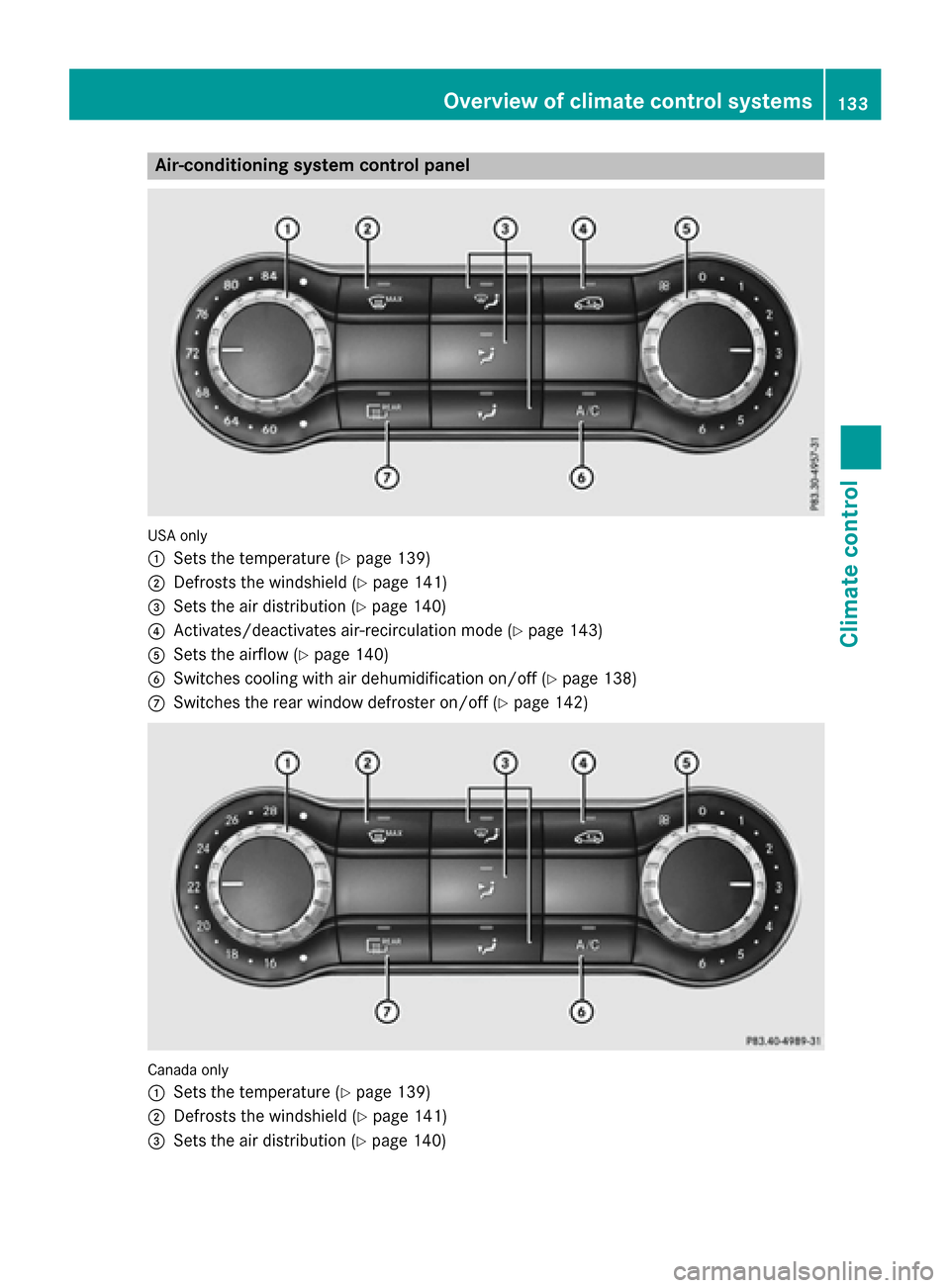

Air-conditioning system controlpanel
USAonly
:
Sets th etemperature (Ypage 139)
;Defroststh ewindshield (Ypage 141)
=Sets theair distribution (Ypage 140)
?Activates/deactivates air-recirculation mod e (Ypage 143)
ASets theairflow (Ypage 140)
BSwitches coolin gwit hair dehumidification on/off (Ypage 138)
CSwitches therear window defroste ron/off (Ypage 142)
Canada only
:
Sets thetemperature (Ypage 139)
;Defroststh ewindshield (Ypage 141)
=Sets theair distribution (Ypage 140)
Overview of climate control systems133
Climate control

?Activates/deactivates air-recirculation mode (Ypage 143)
ASets the airflow (Ypage 140)
BSwitches cooling with air dehumidification on/off (Ypage 138)
CSwitches the rear window defroster on/off (Ypage 142)

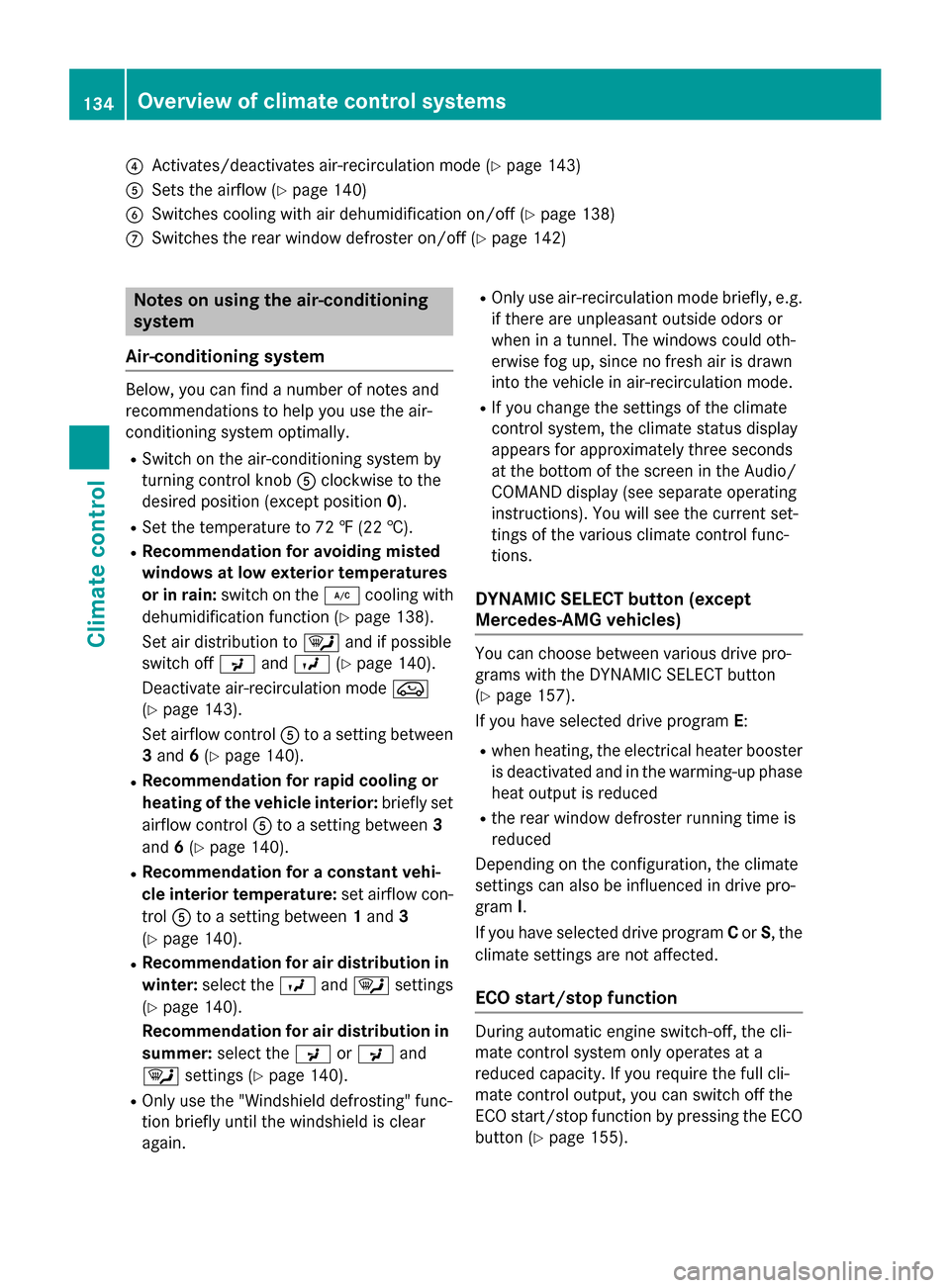

Notes on using the air-conditioning
system
Air-conditioning system
Below, you can find a number of notes and
recommendations to help you use the air-
conditioning system optimally.
RSwitch on the air-conditioning system by
turning control knob Aclockwise to the
desired position (except position 0).
RSet the temperature to 72 ‡ (22 †).
RRecommendation for avoiding misted
windows at low exterior temperatures
or in rain:switch on the ¿cooling with
dehumidification function (
Ypage 138).
Set air distribution to ¯and if possible
switch off PandO (
Ypage 140).
Deactivate air-recirculation mode e
(
Ypage 143).
Set airflow control Ato a setting between
3 and 6(
Ypage 140).
RRecommendation for rapid cooling or
heating of the vehicle interior: briefly set
airflow control Ato a setting between 3
and 6(
Ypage 140).
RRecommendation for a constant vehi-
cle interior temperature: set airflow con-
trol Ato a setting between 1and 3
(
Ypage 140).
RRecommendation for air distribution in winter: select the Oand¯ settings
(
Ypage 140).
Recommendation for air distribution in
summer: select the PorP and
¯ settings (
Ypage 140).
ROnly use the "Windshield defrosting" func-
tion briefly until the windshield is clear
again.
ROnly use air-recirculation mode briefly, e.g.
if there are unpleasant outsid e od
ors or
when in a tunnel. The windows could oth-
erwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
RIf you change the settings of the climate
control system, the climate status display
appears for approximately three seconds
at the bottom of the screen in the Audio/
COMAND display (see separate operating
instructions). You will see the current set-
tings of the various climate control func-
tions.
DYNAMIC SELECT button (except
Mercedes-AMG vehicles)
You can choose between various drive pro-
grams with the DYNAMIC SELECT button
(
Ypage 157).
If you have selected drive program E:
Rwhen heating, the electrical heater booster
is deactivated and in the warming-up phase
heat output is reduced
Rthe rear window defroster running time is
reduced
Depending on the configuration, the climate
settings can also be influenced in drive pro-
gram I.
If you have selected drive program Cor S, the
climate settings are not affected.
ECO start/stop function
During automatic engine switch-off, the cli-
mate control system only operates at a
reduced capacity. If you require the full cli-
mate control output, you can switch off the
ECO start/stop function by pressing the ECO
button (
Ypage 155).
134Overview of climate control systems
Climate control

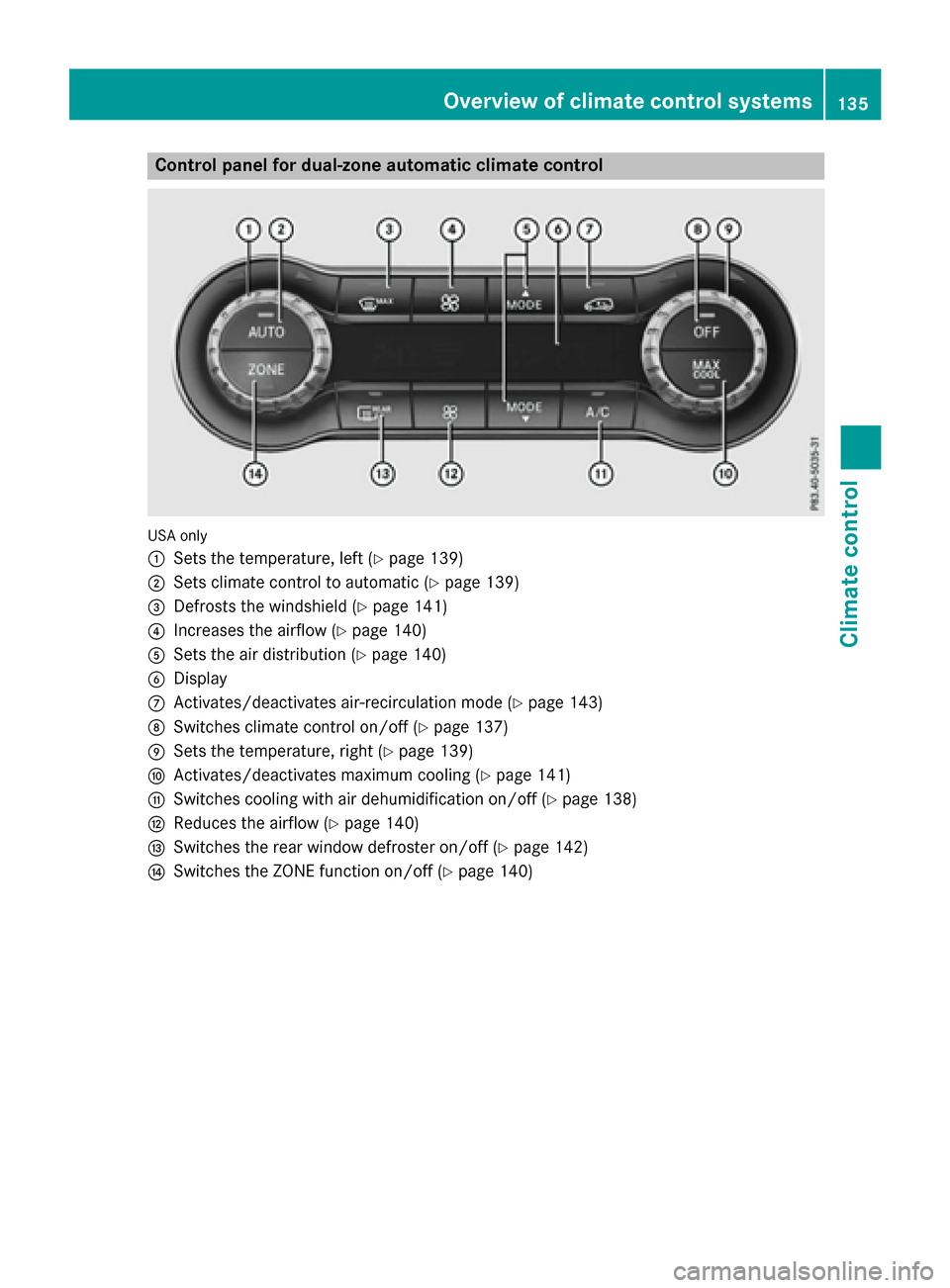

Control panel for dual-zone automatic climate control
USAonly
:
Sets the temperature, left (Ypage 139)
;Sets climate control to automatic (Ypage 139)
=Defrosts the windshield (Ypage 141)
?Increases the airflow (Ypage 140)
ASets the air distribution (Ypage 140)
BDisplay
CActivates/deactivates air-recirculation mode (Ypage 143)
DSwitches climate control on/off (Ypage 137)
ESets the temperature, right (Ypage 139)
FActivates/deactivates maximum cooling (Ypage 141)
GSwitches cooling with air dehumidification on/off (Ypage 138)
HReduces the airflow (Ypage 140)
ISwitches the rear window defroster on/off (Ypage 142)
JSwitches the ZONE function on/off (Ypage 140)
Overview of climate control systems135
Climate control

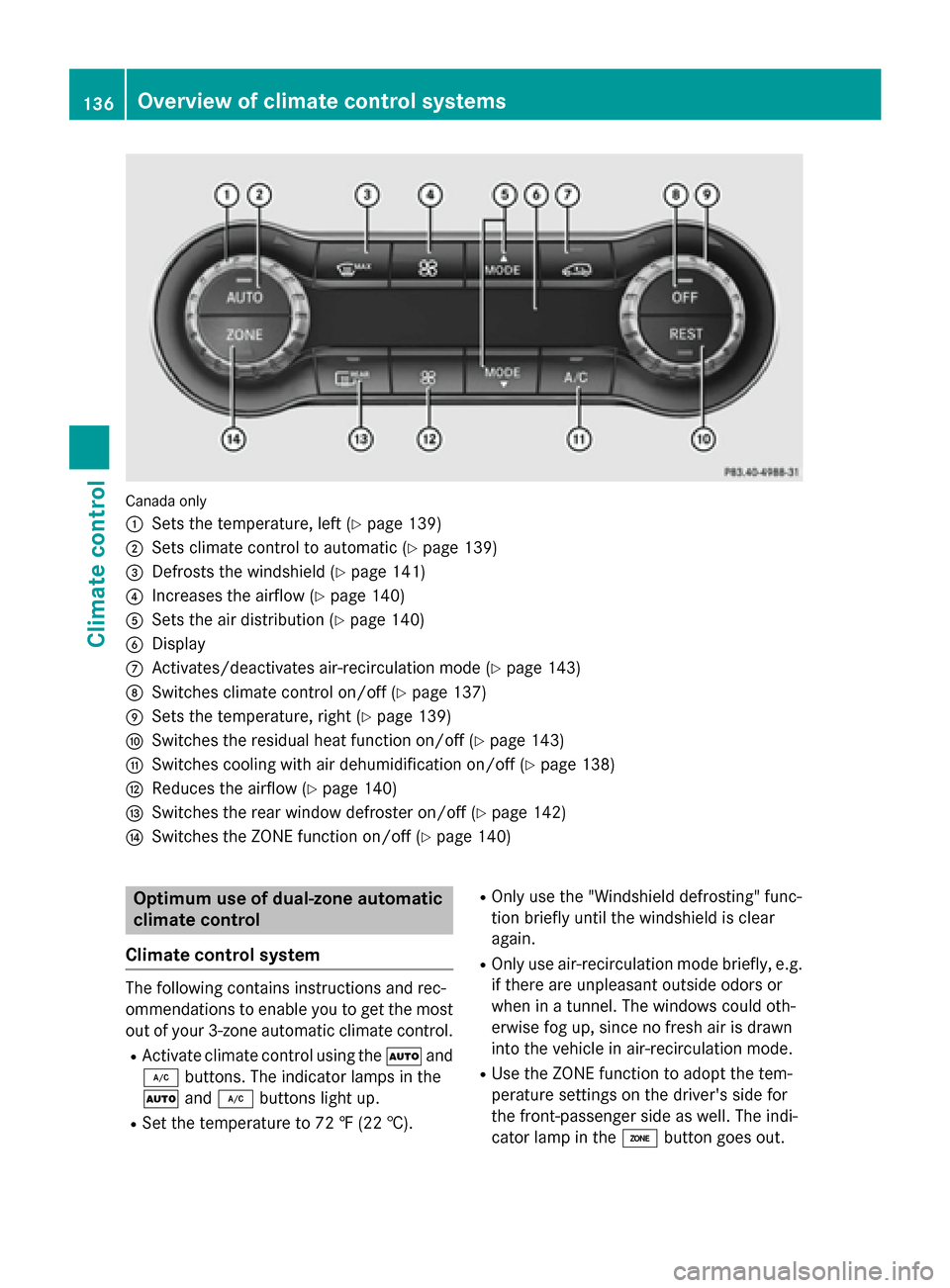

Canada only
:
Sets the temperature, left (Ypage 139)
;Sets climate control to automatic (Ypage 139)
=Defrosts the windshield (Ypage 141)
?Increases the airflow (Ypage 140)
ASets the air distribution (Ypage 140)
BDisplay
CActivates/deactivates air-recirculation mode (Ypage 143)
DSwitches climate control on/off (Ypage 137)
ESets the temperature, right (Ypage 139)
FSwitches the residual heat function on/off (Ypage 143)
GSwitches cooling with air dehumidification on/off (Ypage 138)
HReduces the airflow (Ypage 140)
ISwitches the rear window defroster on/off (Ypage 142)
JSwitches the ZONE function on/off (Ypage 140)
Optimum use of dual-zone automatic
climate control
Climate control system
The following contains instructions and rec-
ommendations to enable you to get the most
out of your 3-zone automatic climate control.
RActivate climate control using the Ãand
¿ buttons. The indicator lamps in the
à and¿ buttons light up.
RSet the temperature to 72 ‡ (22 †).
ROnly use the "Windshield defrosting" func-
tion briefly until the windshield is clear
again.
ROnly use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or
when in a tunnel. The windows could oth-
erwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
RUse the ZONE function to adopt the tem-
perature settings on the driver's side for
the front-passenger side as well. The indi-
cator lamp in the ábutton goes out.
136Overview of climate control systems
Climate control

RUse the residual heat function if you want to
heat or ventilate the vehicle interior when
the ignition is switched off. The residual
heat function can only be activated or deac-
tivated with the ignition switched off.
RIf you change the settings of the climate
control system, the climate status display
appears for approximately three seconds
at the bottom of the screen in the Audio/
COMAND display (see separate operating
instructions). You will see the current set-
tings of the various climate control func-
tions.
DYNAMIC SELECT button (except
Mercedes-AMG vehicles)
You can choose between various drive pro-
grams with the DYNAMIC SELECT button
(
Ypage 157).
If you have selected drive program E:
Rwhen heating, the electrical heater booster
is deactivated and in the warming-up phase
heat output is reduced
Rthe rear window defroster running time is
reduced
Depending on the configuration, the climate
settings can also be influenced in drive pro-
gram I.
If you have selected drive program Cor S, the
climate settings are not affected.
ECO start/stop function
During automatic engine switch-off, the cli-
mate control system only operates at a
reduced capacity. If you require the full cli-
mate control output, you can switch off the
ECO start/stop function by pressing the ECO
button (
Ypage 155).

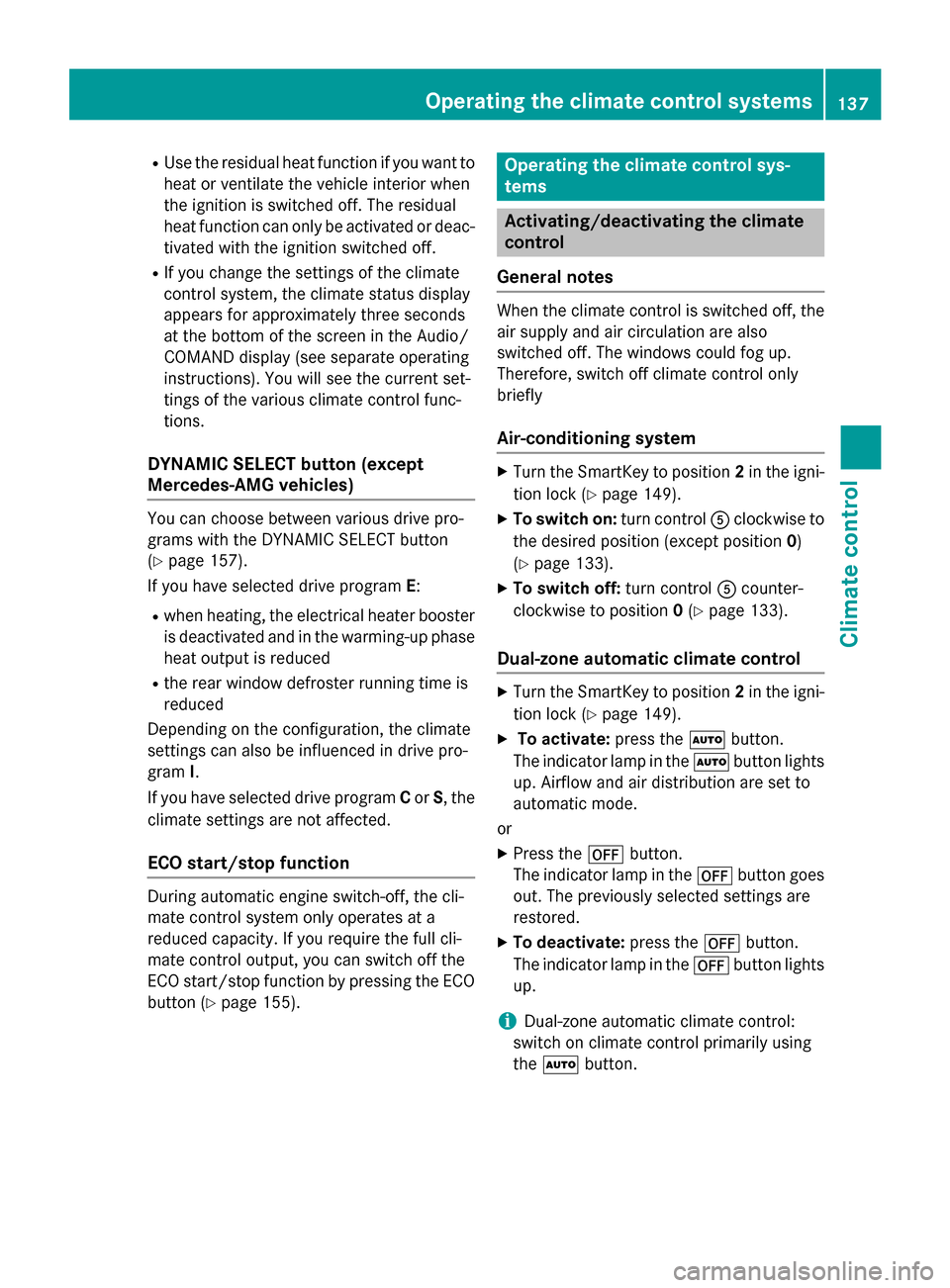

Operating the climate control sys-
tems
Activating/deactivating the climate
control
General notes
When the climate control is switched off, the
air supply and air circulation are also
switched off. The windows could fog up.
Therefore, switch off climate control only
briefly
Air-conditioning system
XTurn the SmartKey to position 2in the igni-
tion lock (
Ypage 149).
XTo switch on: turn controlAclockwise to
the desired position (except position 0)
(
Ypage 133).
XTo switch off: turn controlAcounter-
clockwise to position 0(
Ypage 133).
Dual-zone automatic climate control
XTurn the SmartKey to position 2in the igni-
tion lock (
Ypage 149).
XTo activate: press theÃbutton.
The indicator lamp in the Ãbutton lights
up. Airflow and air distribution are set to
automatic mode.
or
XPress the ^button.
The indicator lamp in the ^button goes
out. The previously selected settings are
restored.
XTo deactivate: press the^button.
The indicator lamp in the ^button lights
up.
iDual-zone automatic climate control:
switch on climate control primarily using
the à button.
Operating the climate control systems137
Climate control

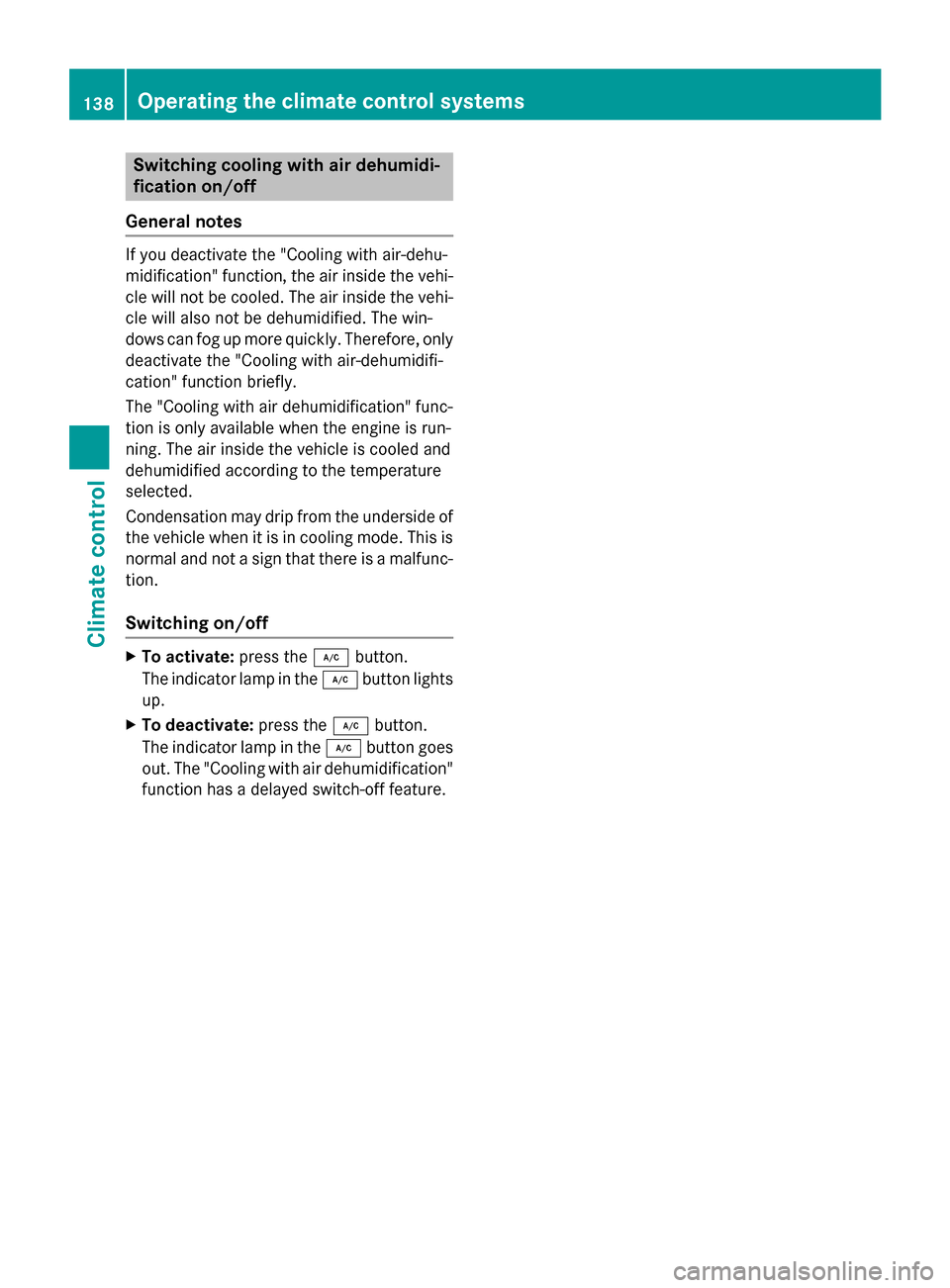

Switching cooling with air dehumidi-
fication on/off
General notes
If you deactivate the "Cooling with air-dehu-
midification" function, the air inside the vehi- cle will not be cooled. The air inside the vehi-
cle will also not be dehumidified. The win-
dows can fog up more quickly. Therefore, only
deactivate the "Cooling with air-dehumidifi-
cation" function briefly.
The "Cooling with air dehumidification" func-
tion is only available when the engine is run-
ning. The air inside the vehicle is cooled and
dehumidified according to the temperature
selected.
Condensation may drip from the underside of
the vehicle when it is in cooling mode. This is
normal and not a sign that there is a malfunc- tion.
Switching on/off
XTo activate: press the¿button.
The indicator lamp in the ¿button lights
up.
XTo deactivate: press the¿button.
The indicator lamp in the ¿button goes
out. The "Cooling with air dehumidification" function has a delayed switch-off feature.
138Operating the climate control systems
Climate control
