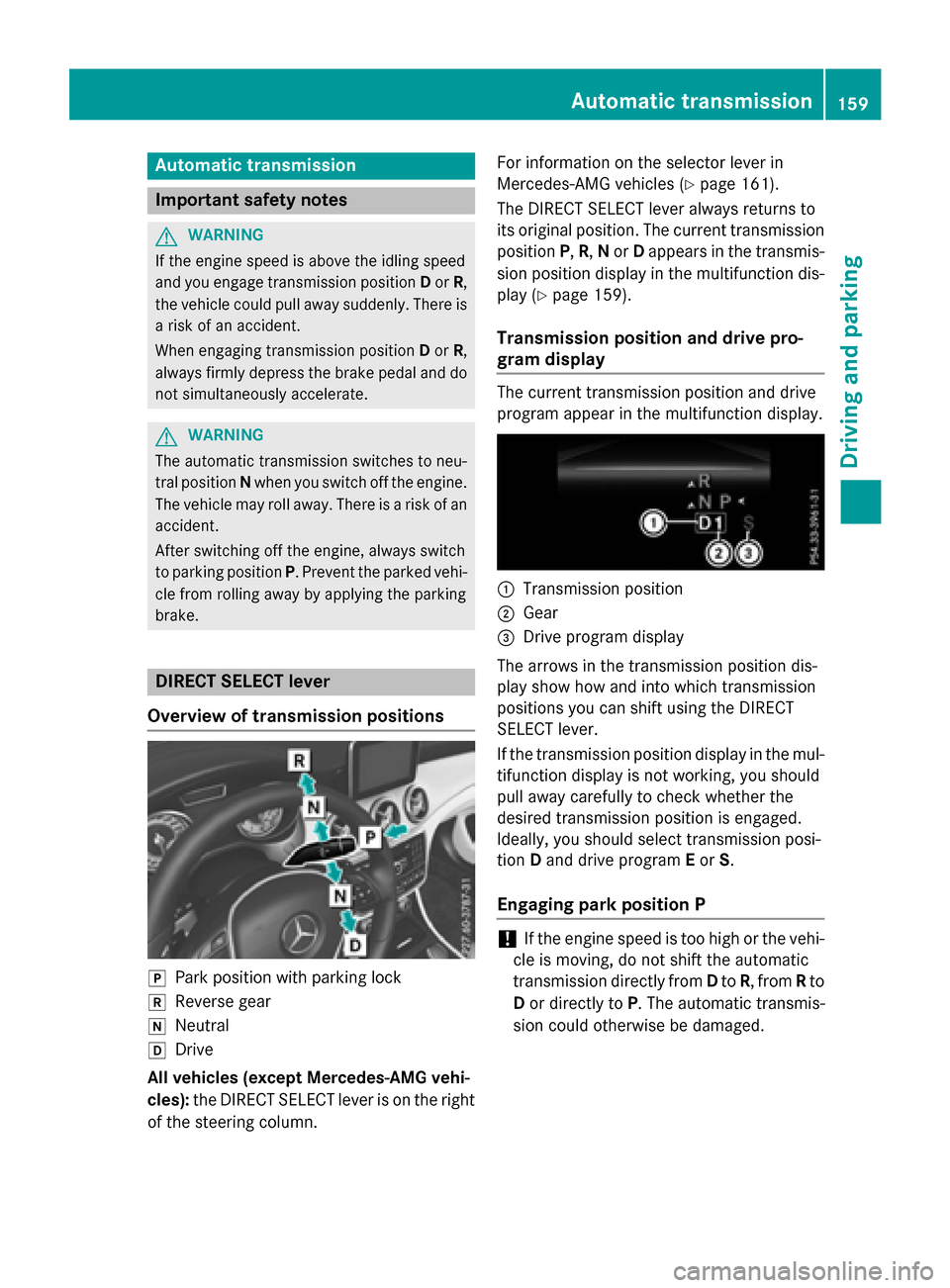

Page 161 of 390

MERCEDES-BENZ GLA-Class 2016 X156 Owners Manual Automa tic trans mission
Import ant safety notes
GWARNIN G
If th eengin espee dis abov eth eidlin gspee d
and you engage transmission position Dor R,
th evehicl ecould pull away suddenly. There is
a r

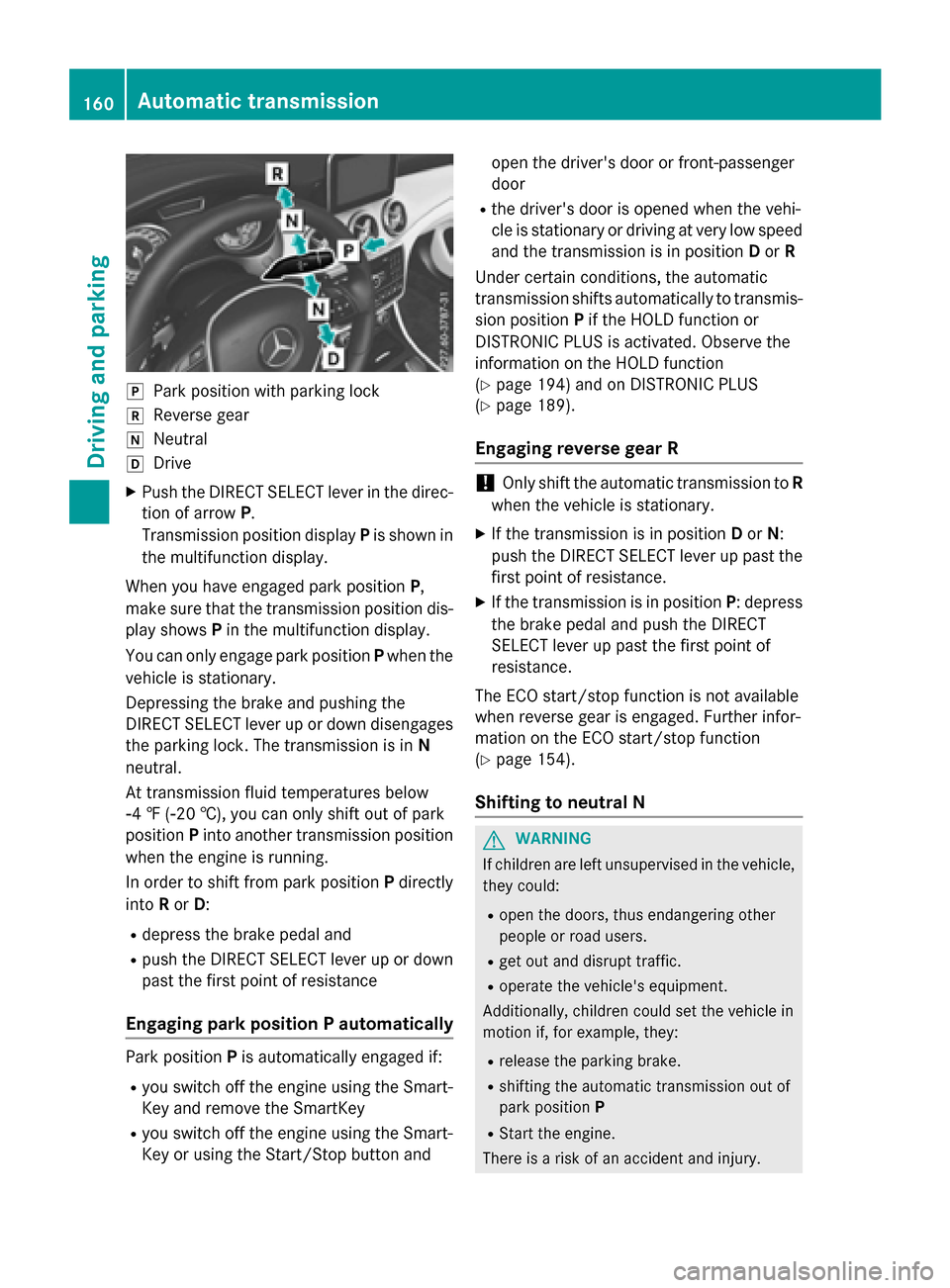

Page 162 of 390

MERCEDES-BENZ GLA-Class 2016 X156 Owners Manual jPark position with parking lock
kReverse gear
iNeutral
hDrive
XPush the DIRECT SELECT lever in the direc-
tion of arrowP.
Transmission position display Pis shown in
the multifunction display.
When yo

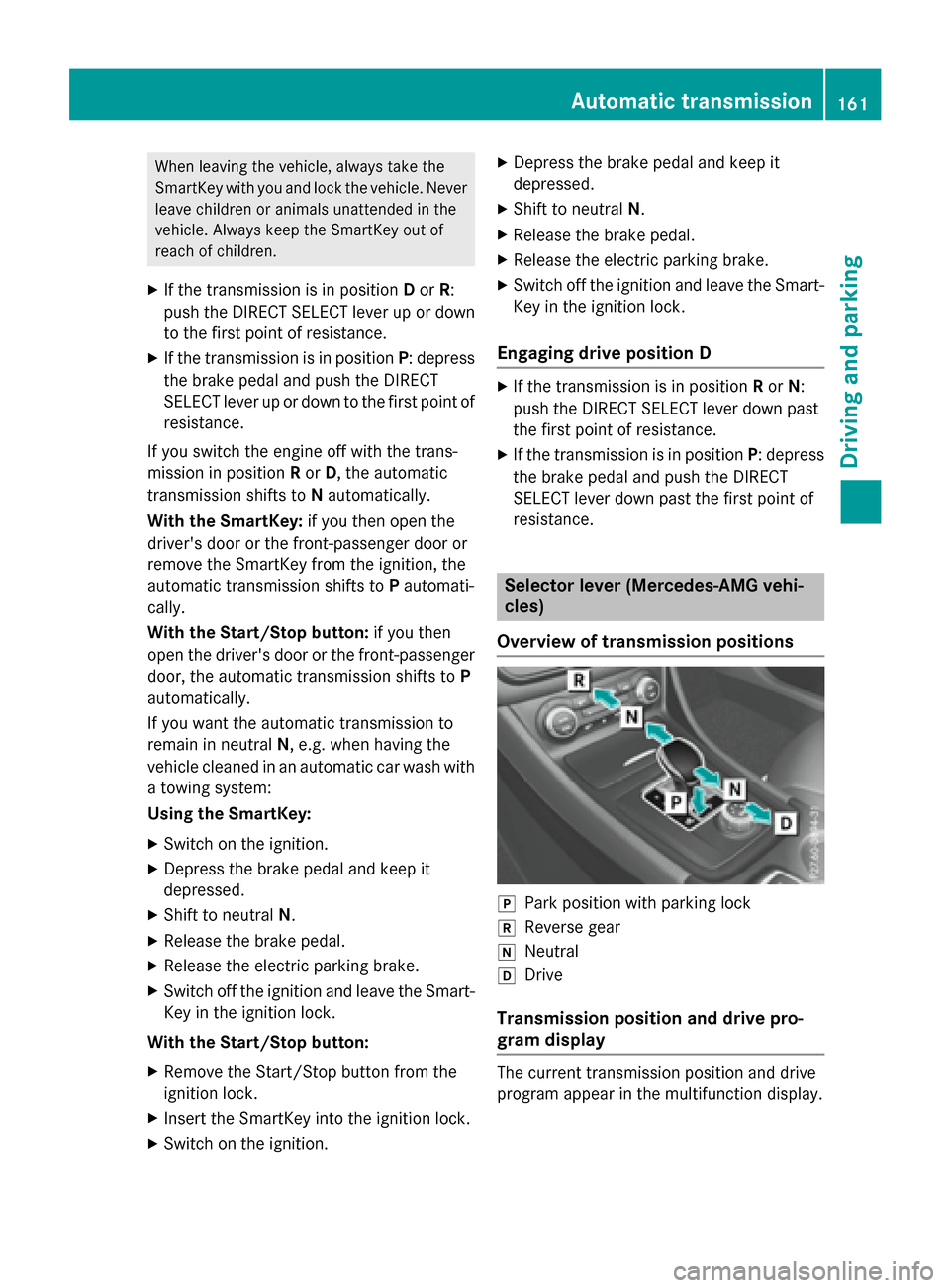

Page 163 of 390

MERCEDES-BENZ GLA-Class 2016 X156 Owners Manual When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children or animals unattended in the
vehicle. Always keep the SmartKey out of
reach of children.
XIf the

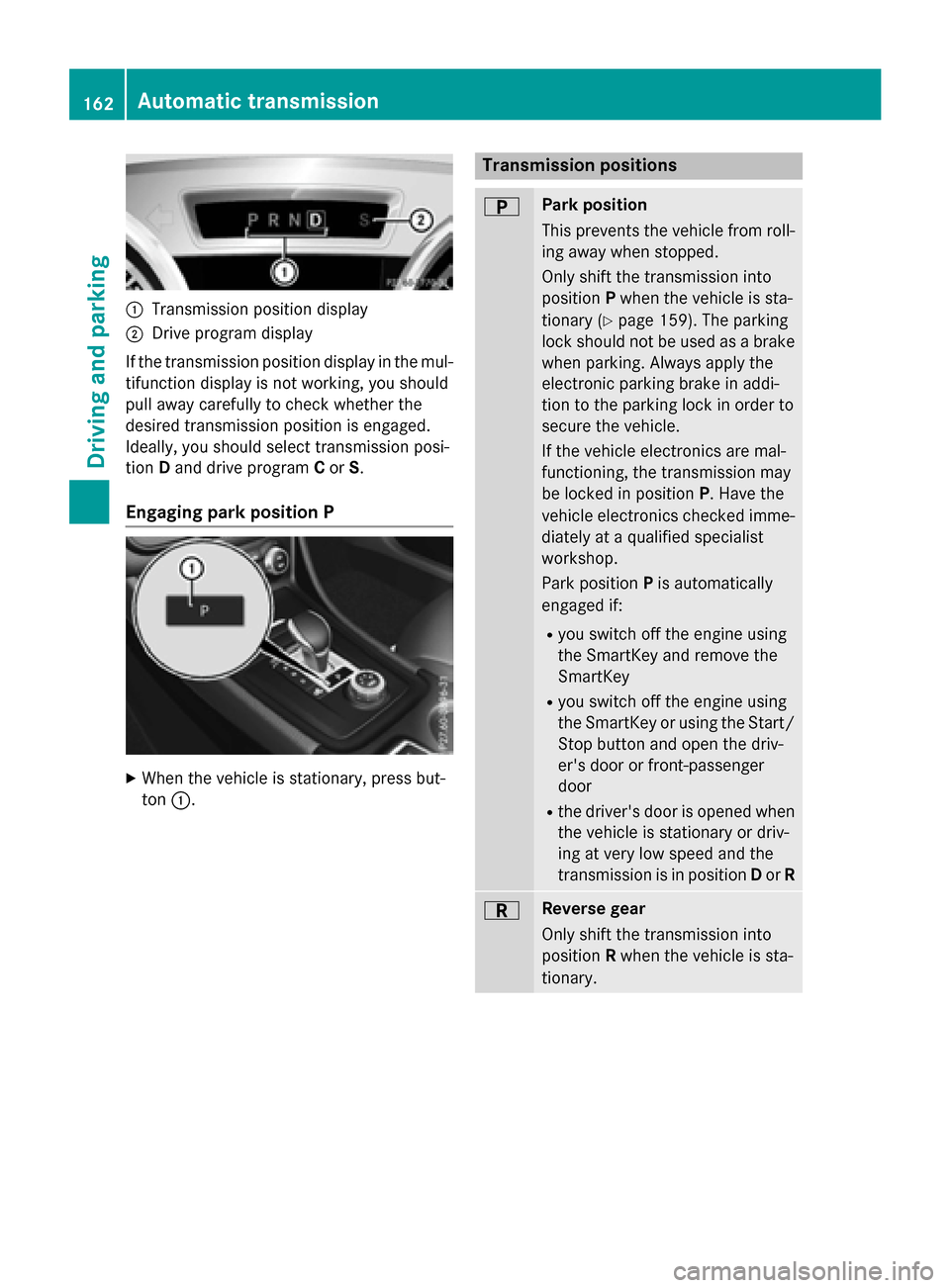

Page 164 of 390

MERCEDES-BENZ GLA-Class 2016 X156 Owners Manual :Transmission position display
;Drive program display
If the transmission position display in the mul-
tifunction display is not working, you should
pull away carefully to check whether the
desired tr

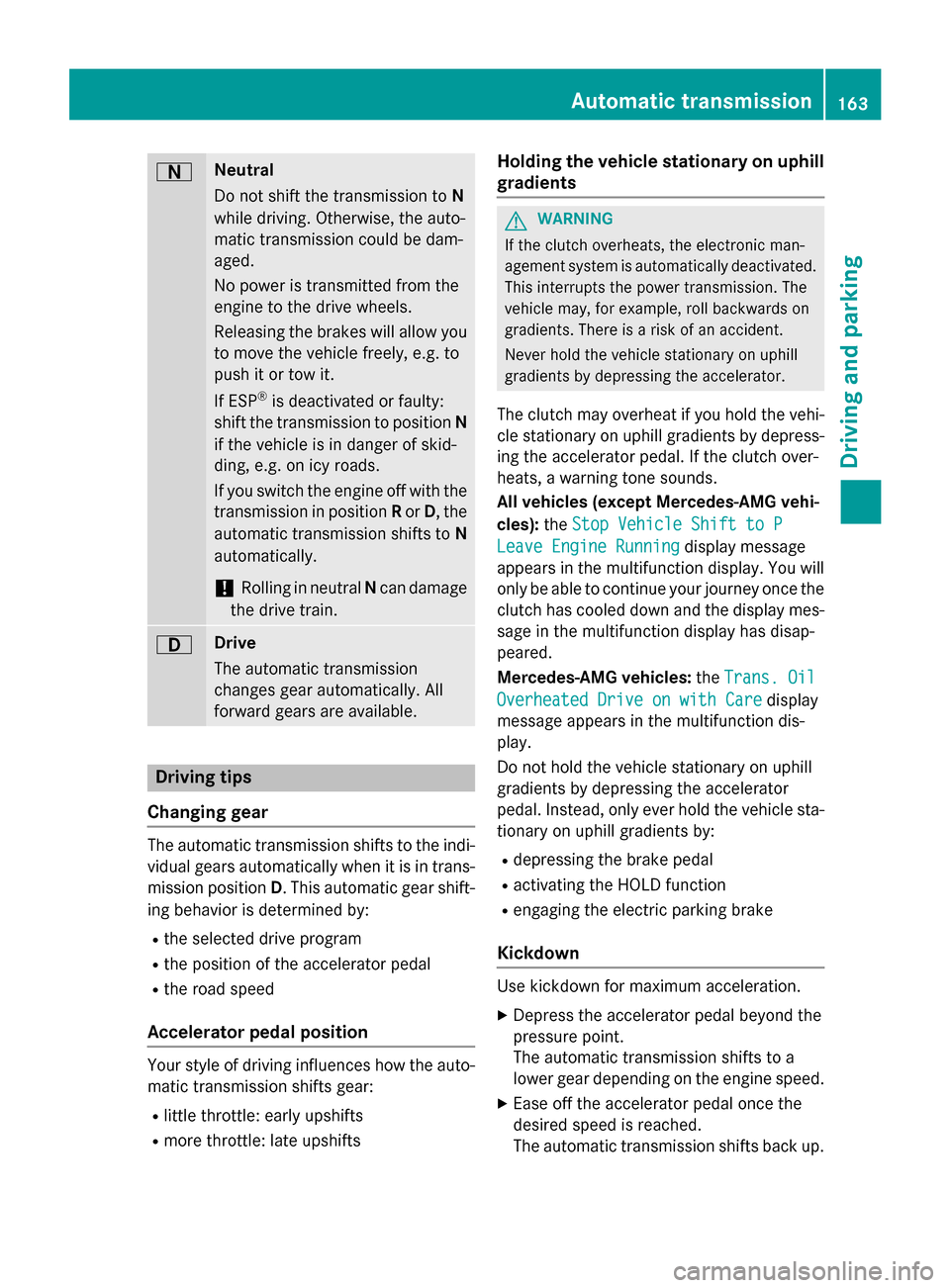

Page 165 of 390

MERCEDES-BENZ GLA-Class 2016 X156 Owners Manual ANeutral
Do not shift the transmission toN
while driving. Otherwise, the auto-
matic transmission could be dam-
aged.
No power is transmitted from the
engine to the drive wheels.
Releasing the brakes

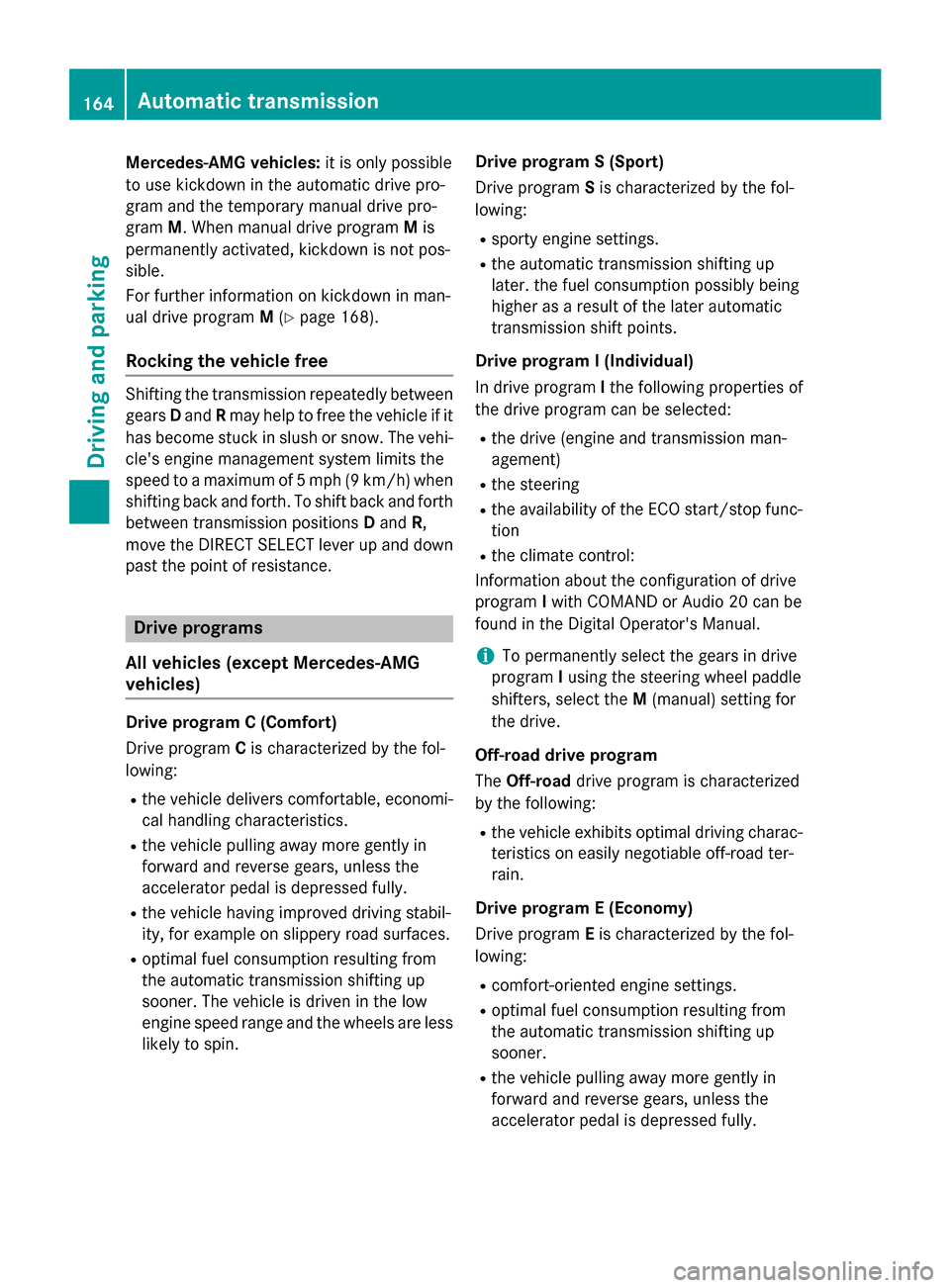

Page 166 of 390

MERCEDES-BENZ GLA-Class 2016 X156 Owners Manual Mercedes-AMG vehicles:it is only possible
to use kickdown in the automatic drive pro-
gram and the temporary manual drive pro-
gram M. When manual drive program Mis
permanently activated, kickdown is

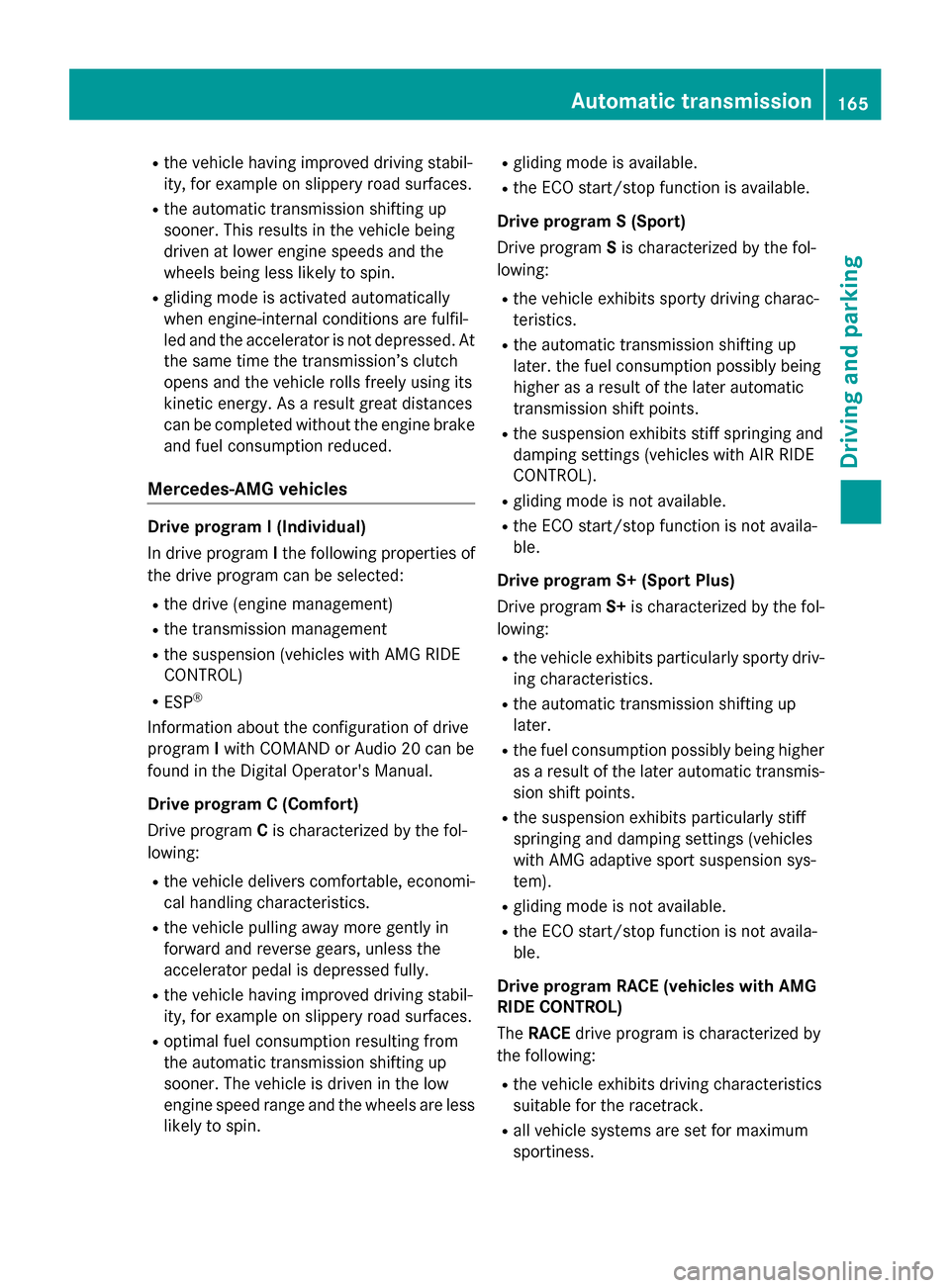

Page 167 of 390

MERCEDES-BENZ GLA-Class 2016 X156 Owners Manual Rthe vehicle having improved driving stabil-
ity, for example on slippery road surfaces.
Rthe automatic transmission shifting up
sooner. This results in the vehicle being
driven at lower engine speeds

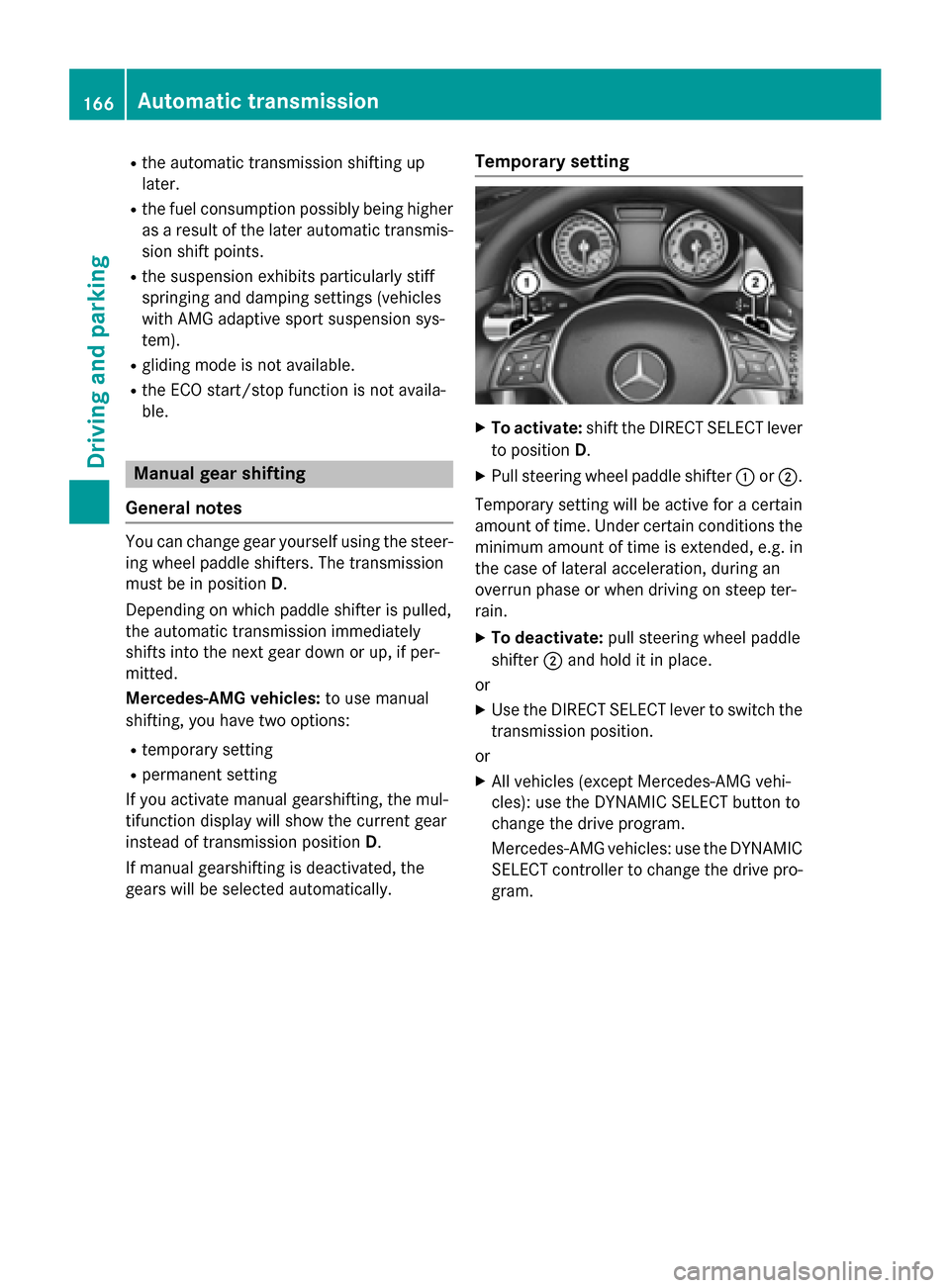

Page 168 of 390

MERCEDES-BENZ GLA-Class 2016 X156 Owners Manual Rthe automatic transmission shifting up
later.
Rthe fuel consumption possibly being higher
as a result of the later automatic transmis-
sion shift points.
Rthe suspension exhibits particularly stiff
s

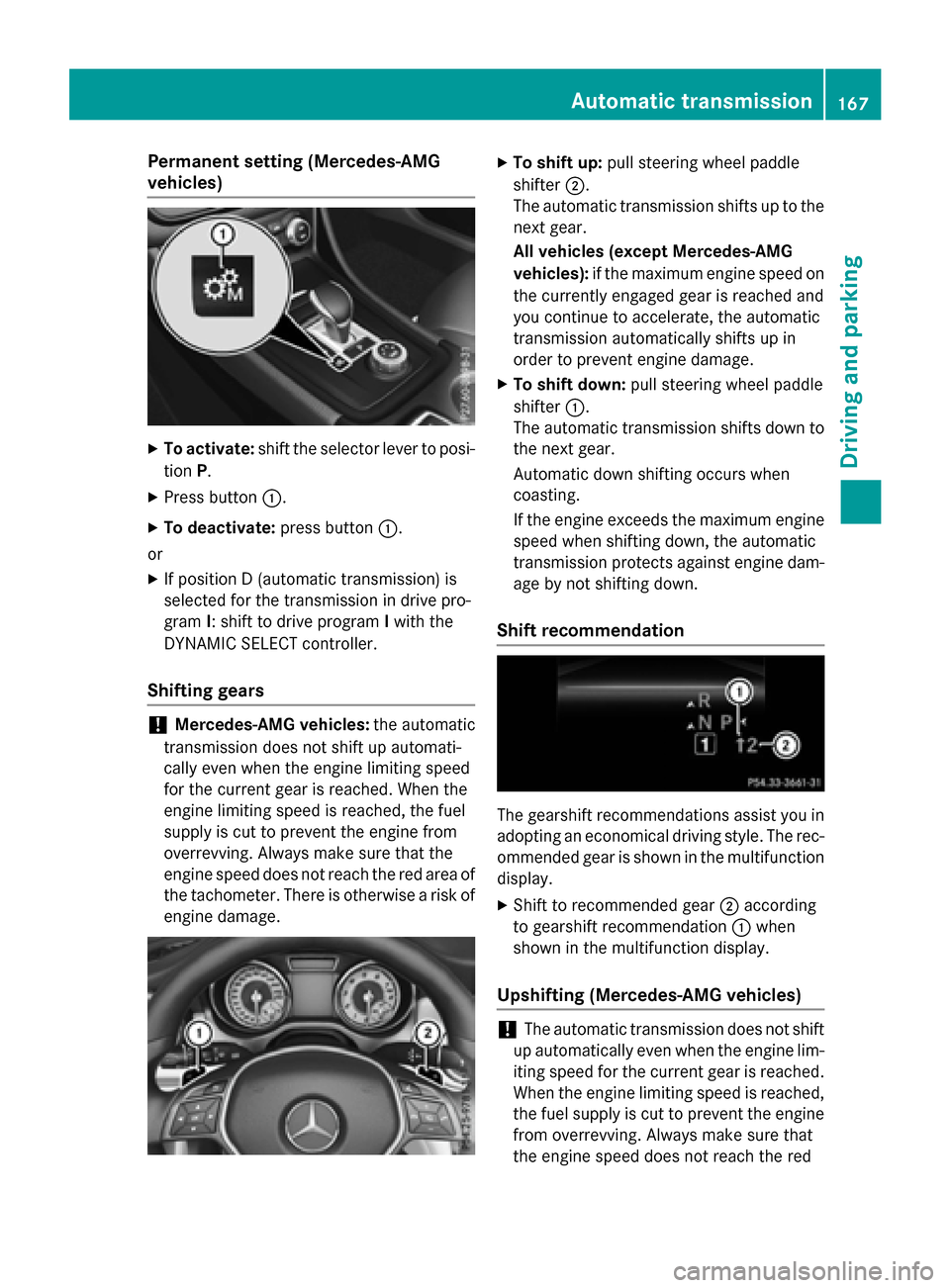

Page 169 of 390

MERCEDES-BENZ GLA-Class 2016 X156 Owners Manual Permanent setting (Mercedes-AMG
vehicles)
XTo activate:shift the selector lever to posi-
tion P.
XPress button :.
XTo deactivate: press button:.
or
XIf position D (automatic transmission) is
selected

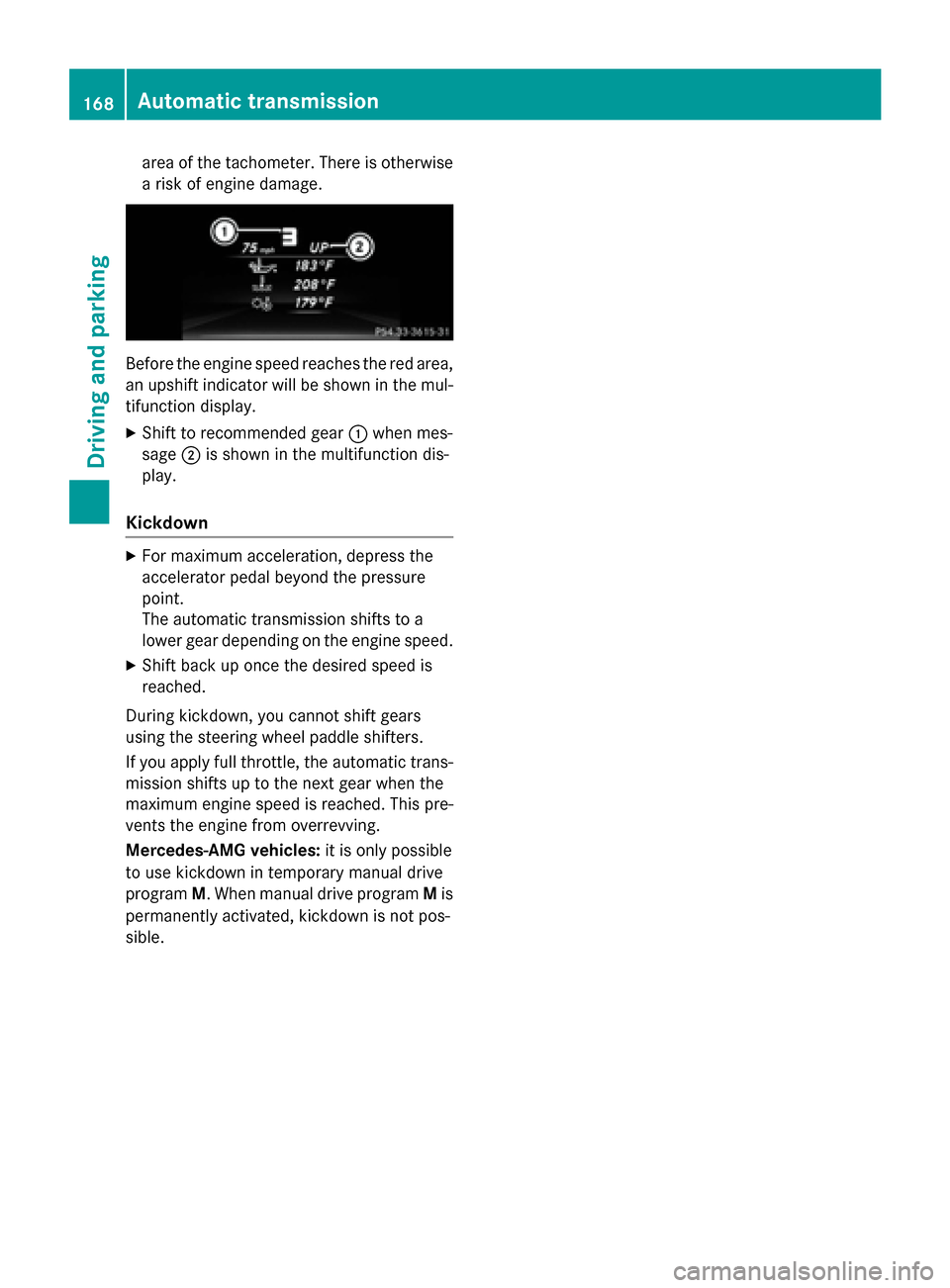

Page 170 of 390

MERCEDES-BENZ GLA-Class 2016 X156 Owners Manual area of the tachometer. There is otherwise
a risk of engine damage.
Before the engine speed reaches the red area,
an upshift indicator will be shown in the mul-
tifunction display.
XShift to recommend
