MERCEDES-BENZ GLA SUV 2022 Owners Manual

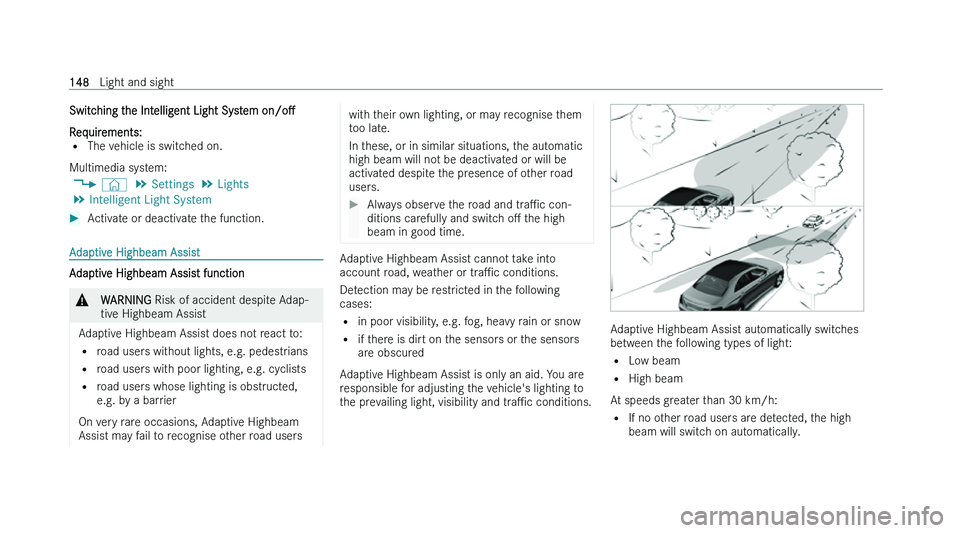

Switching the Intelligent Light System on/oM
R
equirements:
= The vehicle is switched on.
Multimedia system: 4 © 5
Settings 5
Lights
5 Intelligent Light System
Activate or deactivate the function. Adaptive Highbeam Assist
Adaptive Highbeam Assist function
&
WARNING Risk of accident despit
e Adap-
tive Highbeam Assist
Adaptive Highbeam Assist does not react to:
= r

oad users without lights, e.g. pedestrians
= road users with poor lighting, e.g. cyclists
= road users whose lighting is obstructed,
e.g. by a barrier
On very rare occasions, Adaptive Highbeam
Assist may fail to recognise other road users with their own lighting, or may recognise them
t
oo late.
In these, or in similar situations, the automatic
high beam will not be deactivated or will be
activated despite the presence of other road
users.
Always observe the road and tr
aPc con-
ditions carefully and switch oM the high
beam in good time. Adaptive Highbeam Assist cannot take into
account r

oad, weather or traPc conditions.
Detection may be restricted in the following
cases:
= in poor visibility, e.g. fog, heavy rain or snow
= if there is dirt on the sensors or the sensors
are obscured
Adaptive Highbeam Assist is only an aid. You are
responsible for adjusting the vehicle's lighting to
the prevailing light, visibility and traPc conditions. Adaptive Highbeam Assist automatically switches
be

tween the following types of light:
= Low beam
= High beam
At speeds greater than 30 km/h:
= If no other road users are detected, the high
beam will switch on automatically. 148
Light and sight

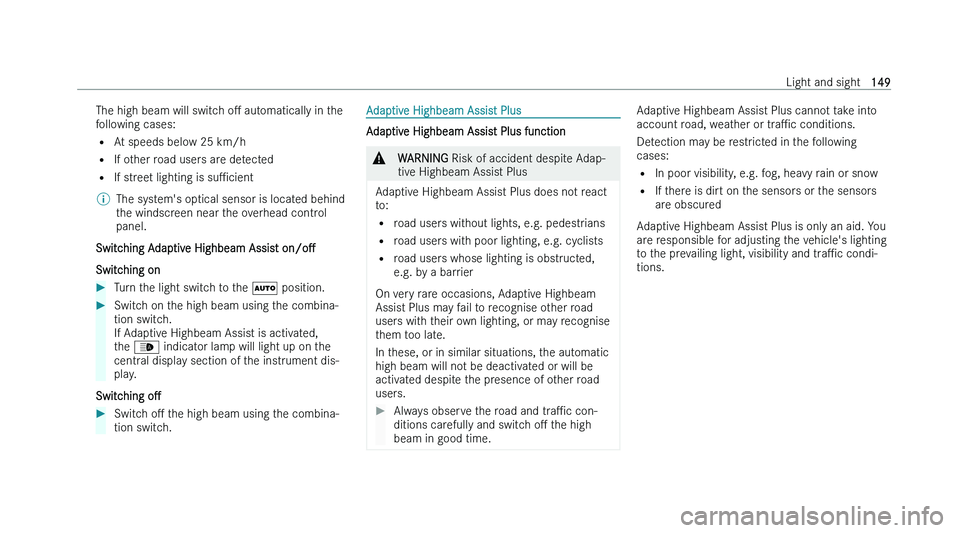

The high beam will switch
oM aut omatically in the
following cases:
= At speeds below 25 km/h
= If other road users are detected
= If street lighting is suPcient
% The system's optical sensor is located behind
t
he windscreen near the overhead control
panel.
Switching Adaptive Highbeam Assist on/oM
Switc
hing on
Turn the light switch to the X position.
Switch on the high beam using the combina-
tion switc

h.

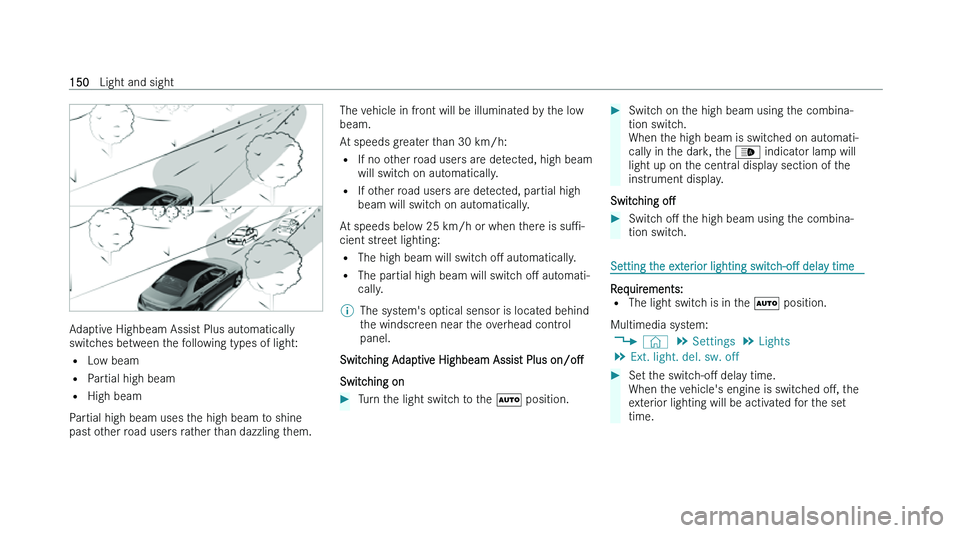

If Adaptive Highbeam Assist is activated,
the

Adaptive Highbeam Assist Plus automatically
switc
hes between the following types of light:
= Low beam
= Partial high beam
= High beam
Partial high beam uses the high beam to shine
past other road users rather than dazzling them. The vehicle in front will be illuminated by the low
beam.
A

t speeds greater than 30 km/h:
= If no other road users are detected, high beam
will switch on automatically.
= If other road users are detected, partial high
beam will switch on automatically.
At speeds below 25 km/h or when there is suP-
cient street lighting:
= The high beam will switch oM automatically.
= The partial high beam will switch oM automati-
cally.
% The system's optical sensor is located behind
t
he windscreen near the overhead control
panel.
Switching Adaptive Highbeam Assist Plus on/oM
Switc
hing on
Turn the light switch to the X position.
Switch on the high beam using the combina-
tion switc

h.
When the high beam is switched on automati-
cally in the dark, the

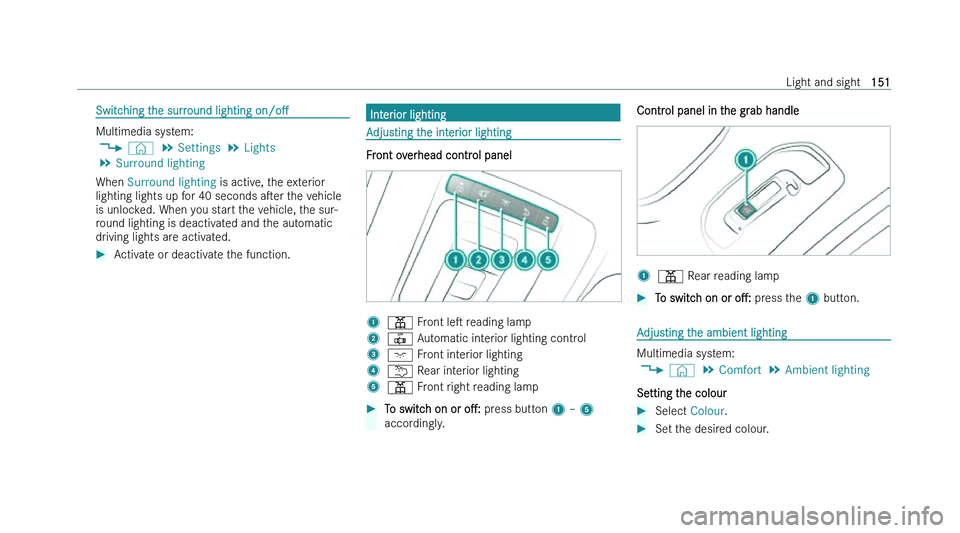

Switching the surround lighting
on/oMMultimedia system:
4 © 5
Settings 5
Lights
5 Surround lighting
When Surround lighting is activ
e, the exterior
lighting lights up for 40 seconds aser the vehicle
is unlocked. When you start the vehicle, the sur-
round lighting is deactivated and the automatic
driving lights are activated.
Activate or deactivate the function. Interior lighting
Adjusting the interior lighting
Front overhead control panel
1
= F
ront les reading lamp
2 3 A
utomatic interior lighting control
3 J F
ront interior lighting
4 B R
ear interior lighting
5 = F
ront right reading lamp
To switch on or oM: pr
ess button 1 !

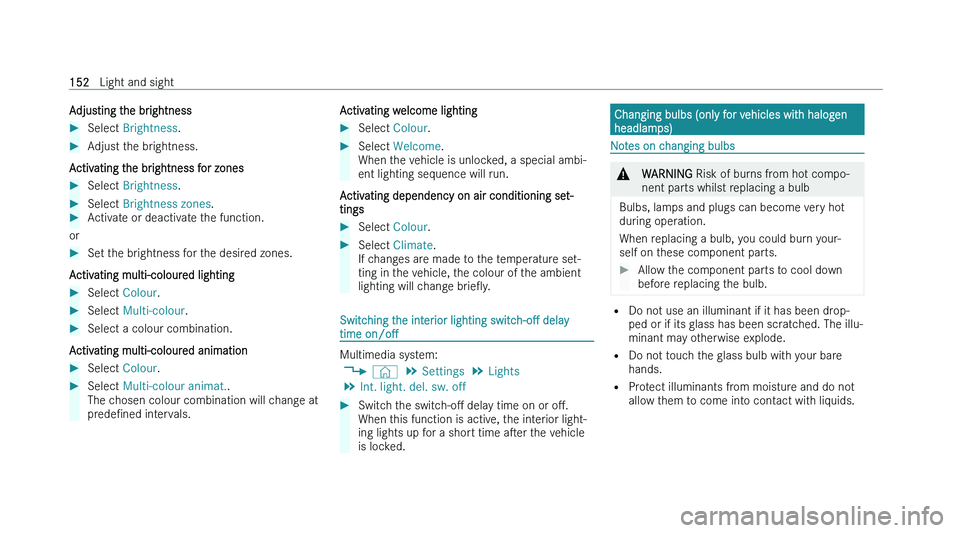

Adjusting the brightness

Select Brightness.
Adjust the brightness.
Activating the brightness for zones
Select Brightness.
Select Brightness zones .
Activate or deactivate the function.
or
Set the brightness for the desired zones.
Activating multi-coloured lighting
Select Colour .
Select Multi-colour .
Select a colour combination.
Activating multi-coloured animation
Select Colour .
Select Multi-colour animat. .
The c hosen colour combination will change at
predeNned intervals. Activating welcome lighting
Select Colour .
Select Welcome .
When t
he vehicle is unlocked, a special ambi-
ent lighting sequence will run.
Activating dependency on air conditioning set-
tings
Select Colour .
Select Climate .
If c
hanges are made to the temperature set-
ting in the vehicle, the colour of the ambient
lighting will change brieOy. Switching the interior lighting switc

h-oM delay
time on/oM Multimedia system:
4 © 5
Settings 5
Lights
5 Int. light. del. sw. off
Switch the switc
h-oM delay time on or oM.
When this function is active, the interior light-
ing lights up for a short time aser the vehicle
is locked. Changing bulbs (only for vehicles with halogen
headlam
ps) Notes on changing bulbs
&
WARNING Risk of bur
ns from hot compo-
nent parts whilst replacing a bulb
Bulbs, lamps and plugs can become very hot
dur
ing operation.
When replacing a bulb, you could burn your-
self on these component parts.
Allow the component parts to cool down
bef
ore replacing the bulb. =
Do no
t use an illuminant if it has been drop-
ped or if its glass has been scratched. The illu-
minant may otherwise explode.
= Do not touch the glass bulb with your bare
hands.
= Protect illuminants from moisture and do not
allow them to come into contact with liquids. 152
Light and sight

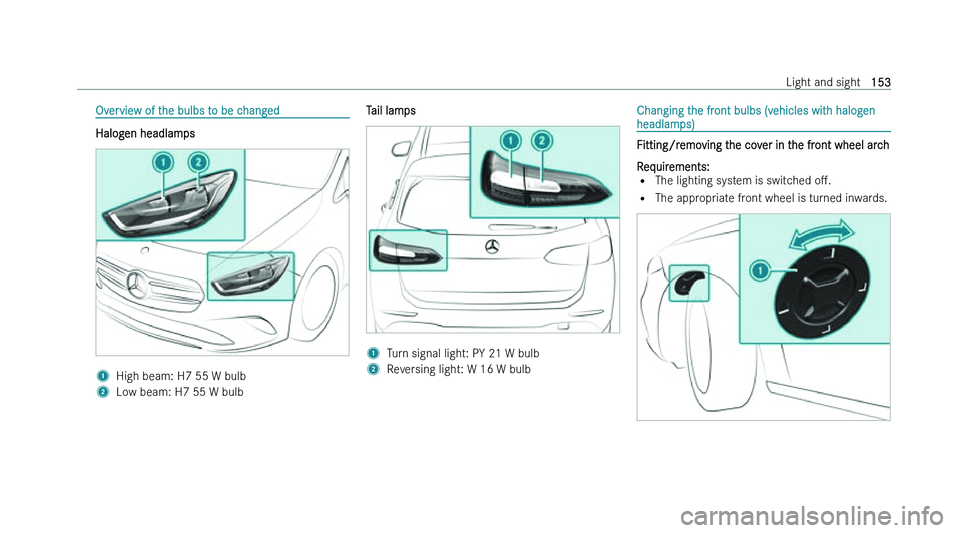

Overview of the bulbs to be changed
Halogen headlamps
1
High beam: H7 55 W bulb
2 Low beam: H7 55 W bulb Tail lamps
1
Turn signal light: PY 21 W bulb
2 Reversing light: W 16 W bulb Changing the front bulbs (vehicles with halogen
headlam ps) Fitting/removing the cover in the front wheel arch
R
equirements:
= The lighting system is switched oM.
= The appropriate front wheel is turned inwards. Light and sight
153

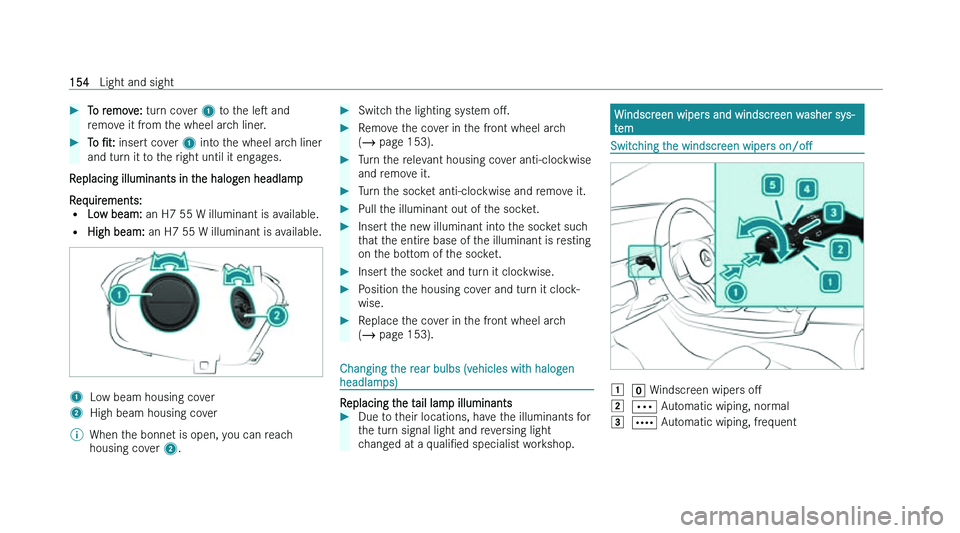

To remove: tur n cover 1 to the les and
remove it from the wheel arch liner.
To Nt: inser
t cover 1 into the wheel arch liner
and turn it to the right until it engages.
Replacing illuminants in the halogen headlamp
R
equirements:
= Low beam: an H7 55 W illuminant is available.
= High beam: an H7 55 W illuminant is available. 1
Low beam housing cover
2 High beam housing cover
% When the bonnet is open, you can reach
housing co

ver 2.
Switch the lighting system oM.
Remove the cover in the front wheel arch
( pag

e 153).
Turn the relevant housing cover anti-clockwise
and r

emove it.
Turn the socket anti-clockwise and remove it.
Pull the illuminant out of the socket.
Insert the new illuminant into the socket such
t
hat the entire base of the illuminant is resting
on the bottom of the socket.
Insert the socket and turn it clockwise.
Position the housing cover and turn it clock-
wise.
Replace the cover in the front wheel arch
( pag

e 153). Changing the rear bulbs (vehicles with halogen
headlam
ps) Replacing the tail lamp illuminants

Due to their locations, have the illuminants for
t

he turn signal light and reversing light
changed at a qualiNed specialist workshop. Windscreen wipers and windscreen washer sys-
t
em Switching the windscreen wipers
on/oM 1
g W
indscreen wipers oM
2 Ä A
utomatic wiping, normal
3 Å A
utomatic wiping, frequent 154
Light and sight

4
° Continuous wiping, slo w
5 ¯ Continuous wiping, f
ast
Turn the combination switch to the corre-
sponding position 1 - 5.
Single wipe/washing: push t
he button on the
combination switch in the direction of arrow
1.
= í Single wipe
= î Wipes with washer Ouid
% Observe the notes on washing the vehicle in a
car w

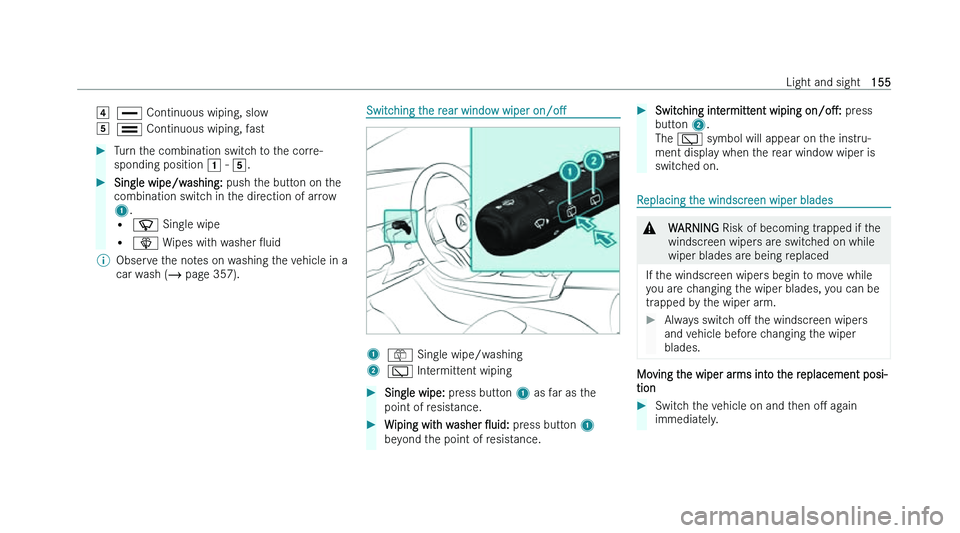

ash ( page 357). Switching the rear window wiper
on/oM 1

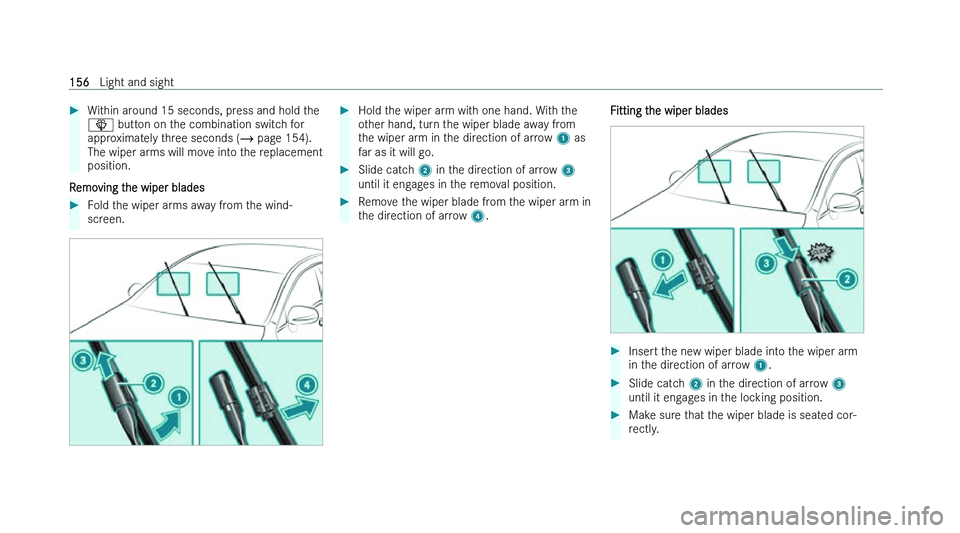

Within around 15 seconds, press and hold the
î butt
on on the combination switch for
approximately three seconds (  page 154).
The wiper arms will move into the replacement
position.
Removing the wiper blades
Fold the wiper arms away from the wind-
scr

een.
Hold the wiper arm with one hand. With the
o

ther hand, turn the wiper blade away from
the wiper arm in the direction of arrow 1 as
far as it will go.
Slide catch 2 in t
he direction of arrow 3
until it engages in the removal position.
Remove the wiper blade from the wiper arm in
t

he direction of arrow 4. Fitting the wiper blades
Insert the new wiper blade into the wiper arm
in t

he direction of arrow 1.
Slide catch 2 in t
he direction of arrow 3
until it engages in the locking position.
Make sure that the wiper blade is seated cor-
r

ectly. 156
Light and sight

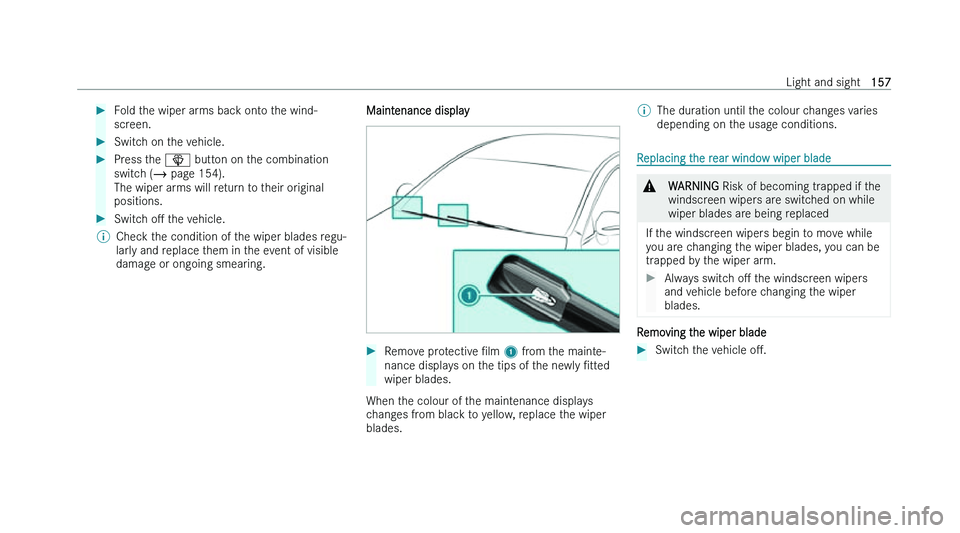

Fold the wiper arms back onto the wind-
scr een.
Switch on the vehicle.
Press the î butt
on on the combination
switch (  page 154).
The wiper arms will return to their original
positions.
Switch oM t
he vehicle.
% Check the condition of the wiper blades regu-
lar

ly and replace them in the event of visible
damage or ongoing smearing. Maintenance display
Remove protective Nlm 1 fr
om the mainte-
nance displays on the tips of the newly Ntted
wiper blades.
When the colour of the maintenance displays
c
hanges from black to yellow, replace the wiper
blades. %
The duration until the colour changes varies
depending on t

he usage conditions. Replacing the rear window wiper blade
&
WARNING Risk of becoming tr
apped if the
windscreen wipers are switched on while
wiper blades are being replaced
If the windscreen wipers begin to move while
y
ou are changing the wiper blades, you can be
trapped by the wiper arm.
Always switch oM t
he windscreen wipers
and vehicle before changing the wiper
blades. Removing the wiper blade

Switch the vehicle oM. Light and sight
157
