MERCEDES-BENZ GLC 2017 Owners Manual

Tachometer
! Do not drive in the overrevving range, as this
could damage the engine.
The red band in the tachometer indicates the
engine's overrevving range.
The fuel supply is interrupted to protect the
engine when the red band is reached.
Outside temperature display You should pay special attention to road condi-
tions when temperatures are around freezing
point.
Bear in mind that the outside temperature dis-
play indicates the temperature measured and
does not record the road temperature.
The outside temperature display is in the multi-
function display ( Y
page 210).
Changes in the outside temperature are dis-
played after a short delay.
Coolant temperature gauge
G WARNING
Opening the hood when the engine is over-
heated or when there is a fire in the engine
compartment could expose you to hot gases
or other service products. There is a risk of
injury.
Let an overheated engine cool down before
opening the hood. If there is a fire in the
engine compartment, keep the hood closed
and contact the fire department.
! A display message is shown if the coolant
temperature is too high.
If the coolant temperature is over 248 ‡
(120 †), do not continue driving. The engine
will otherwise be damaged.
The coolant temperature gauge is in the lower
section of the tachometer ( Y
page 36).
Under normal operating conditions and with the
specified coolant level, the coolant temperature
may rise to 248 ‡ (120 †). Operating the on-board computer

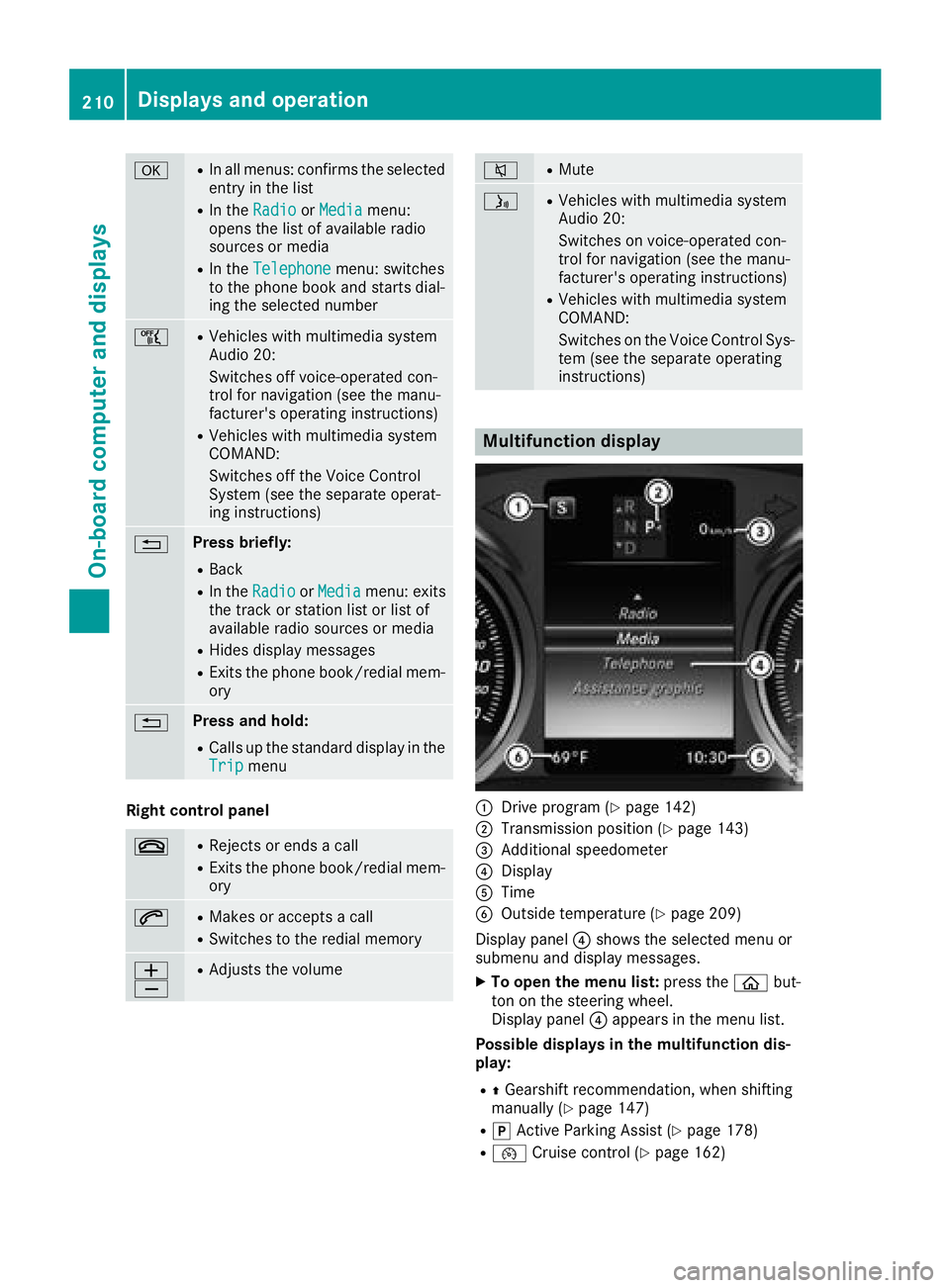

C
Multifunction display D
Right control panel

v R
In all menus: confirms the selected
entry in the list R
In the Radio or Media menu:
opens the list of available radio
sources or media R
In the Telephone menu: switches
to the phone book and starts dial-
ing the selected number

R

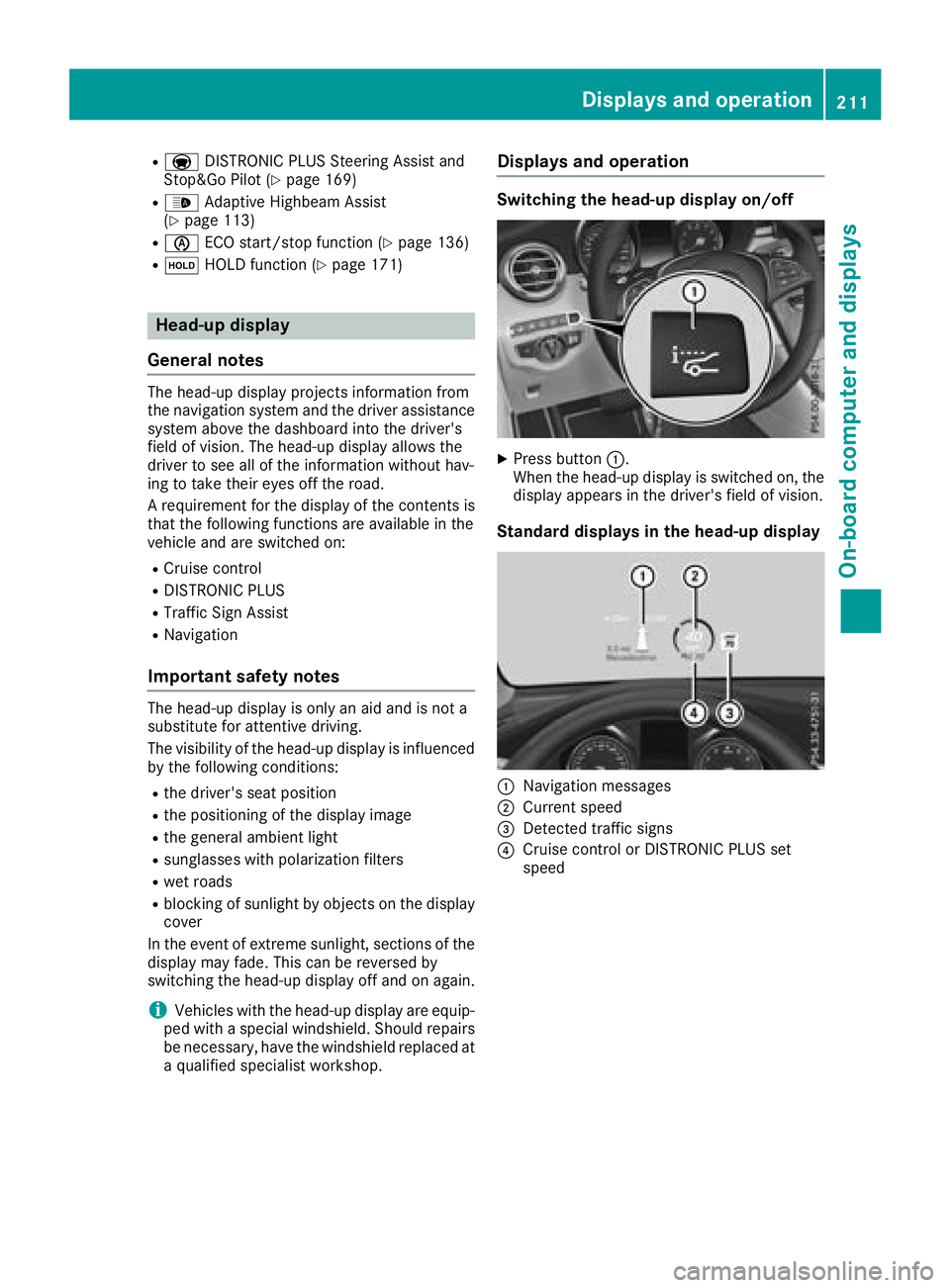

O DISTRONIC PLUS Steering Assist and
Stop&Go Pilot ( Y
page 169)R

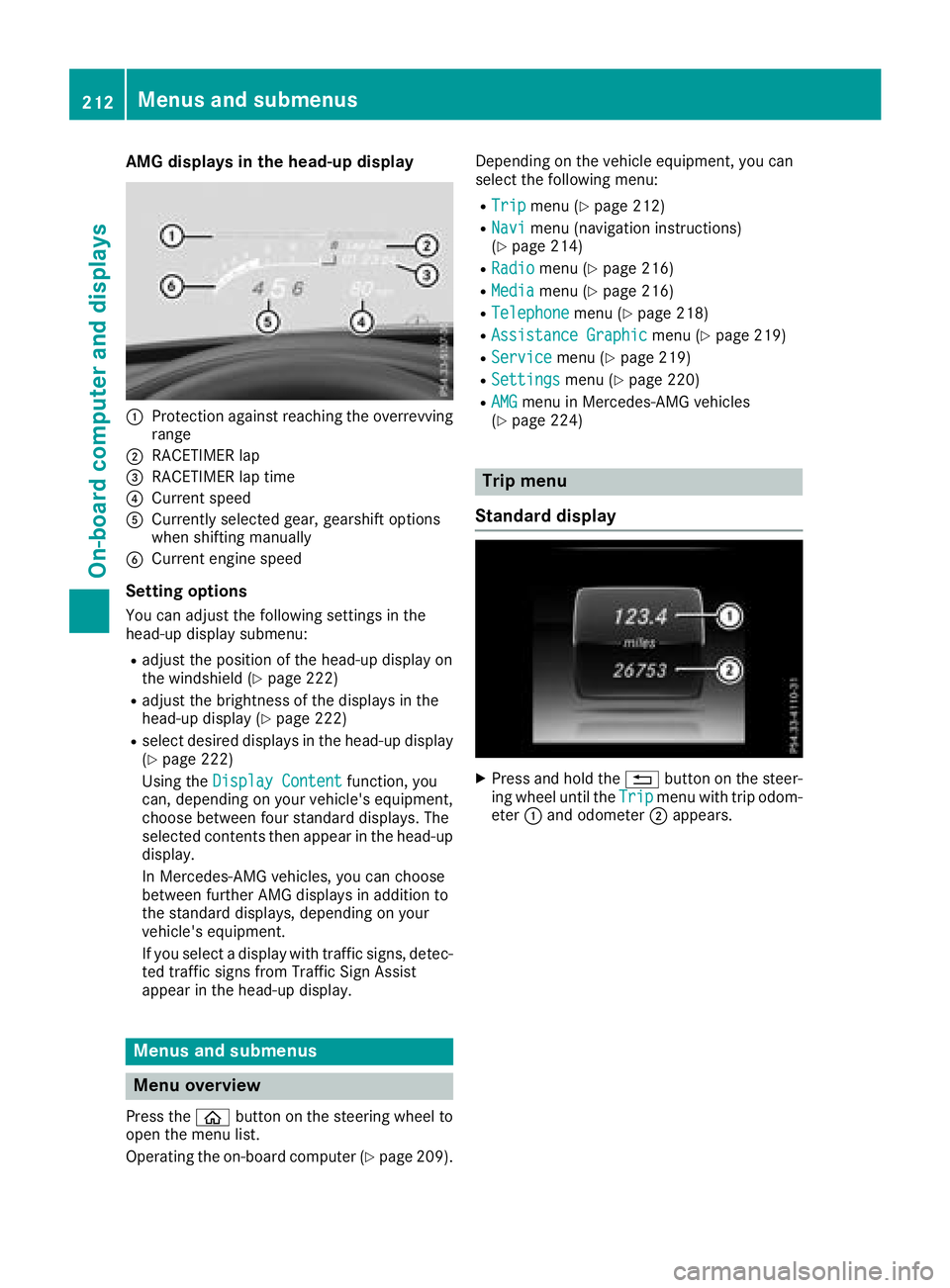

AMG displays in th e head-up display
C
Protection against reachin g th e overrevving
rangeD
RACETIMER lap

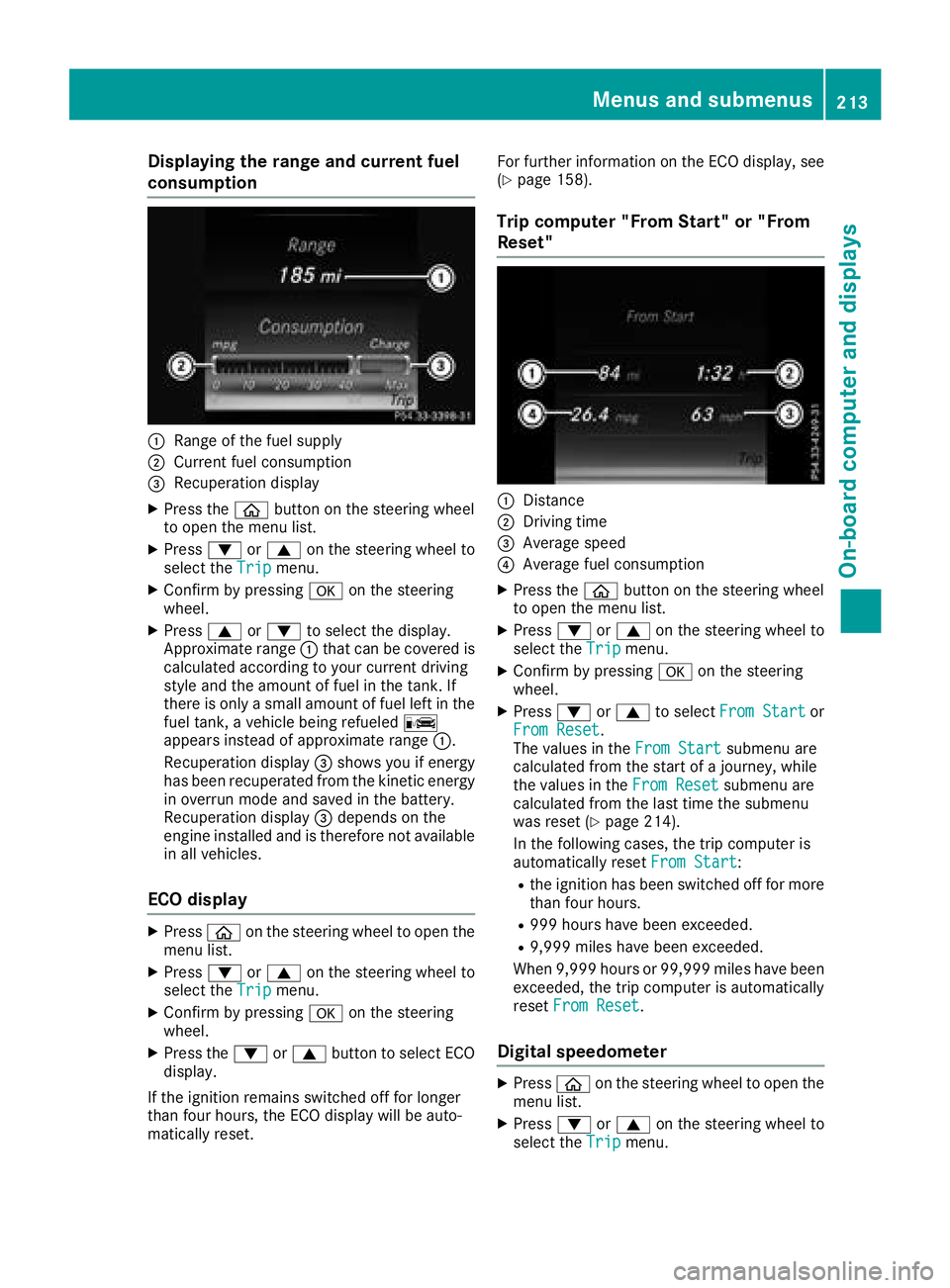

Displaying th e range an d current fuel
consumption
C
Range of th e fue l supplyD
Curren t fue l consumption

X

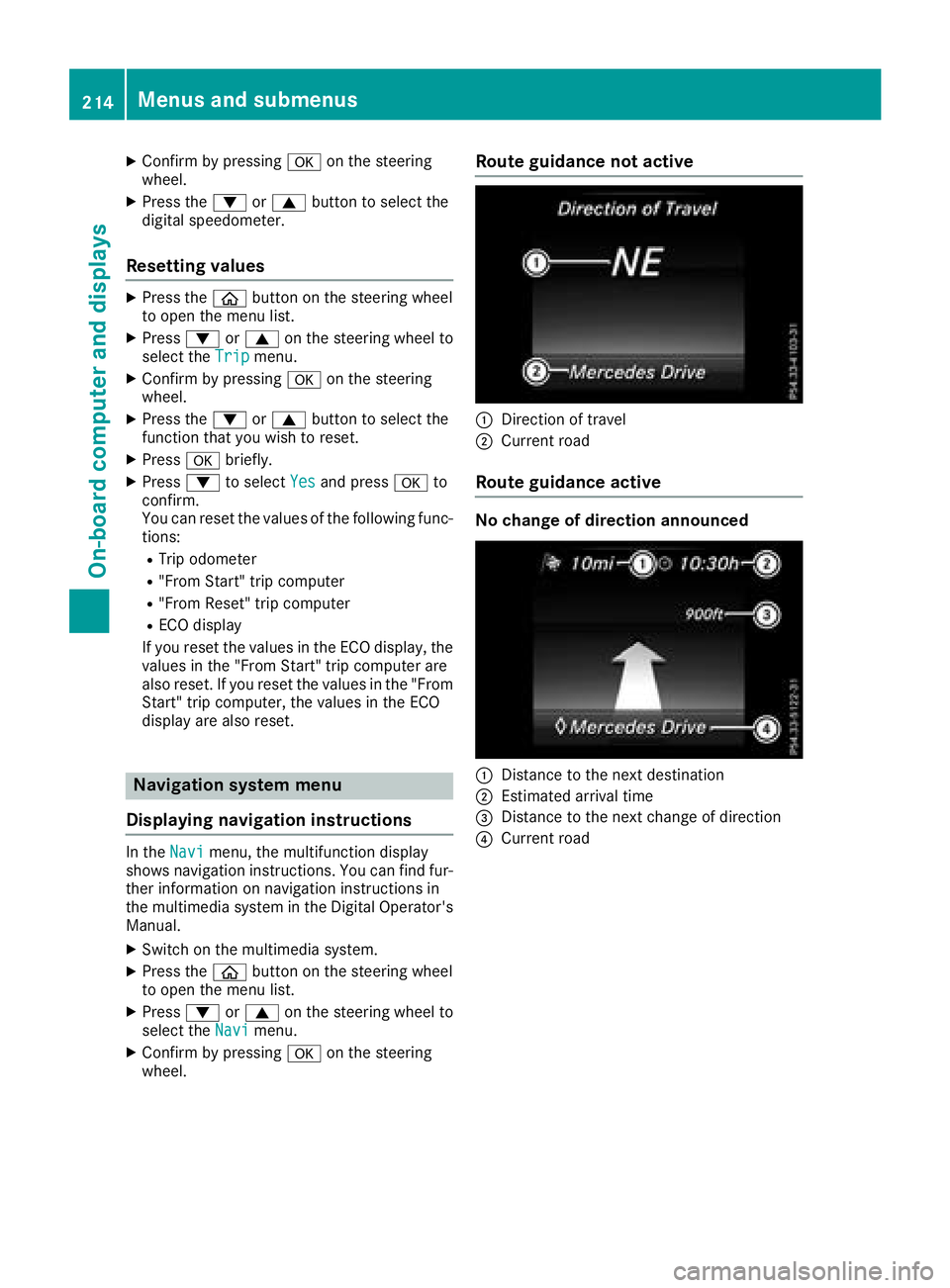

Confirm by pressing v on the steering
wheel. X
Press the d or c button to select the
digit al speedometer.
Resetting values X
Press the

Change of direction announced with a
lane recommendation
C
Target of the change of directionD
Distance to the change of direction

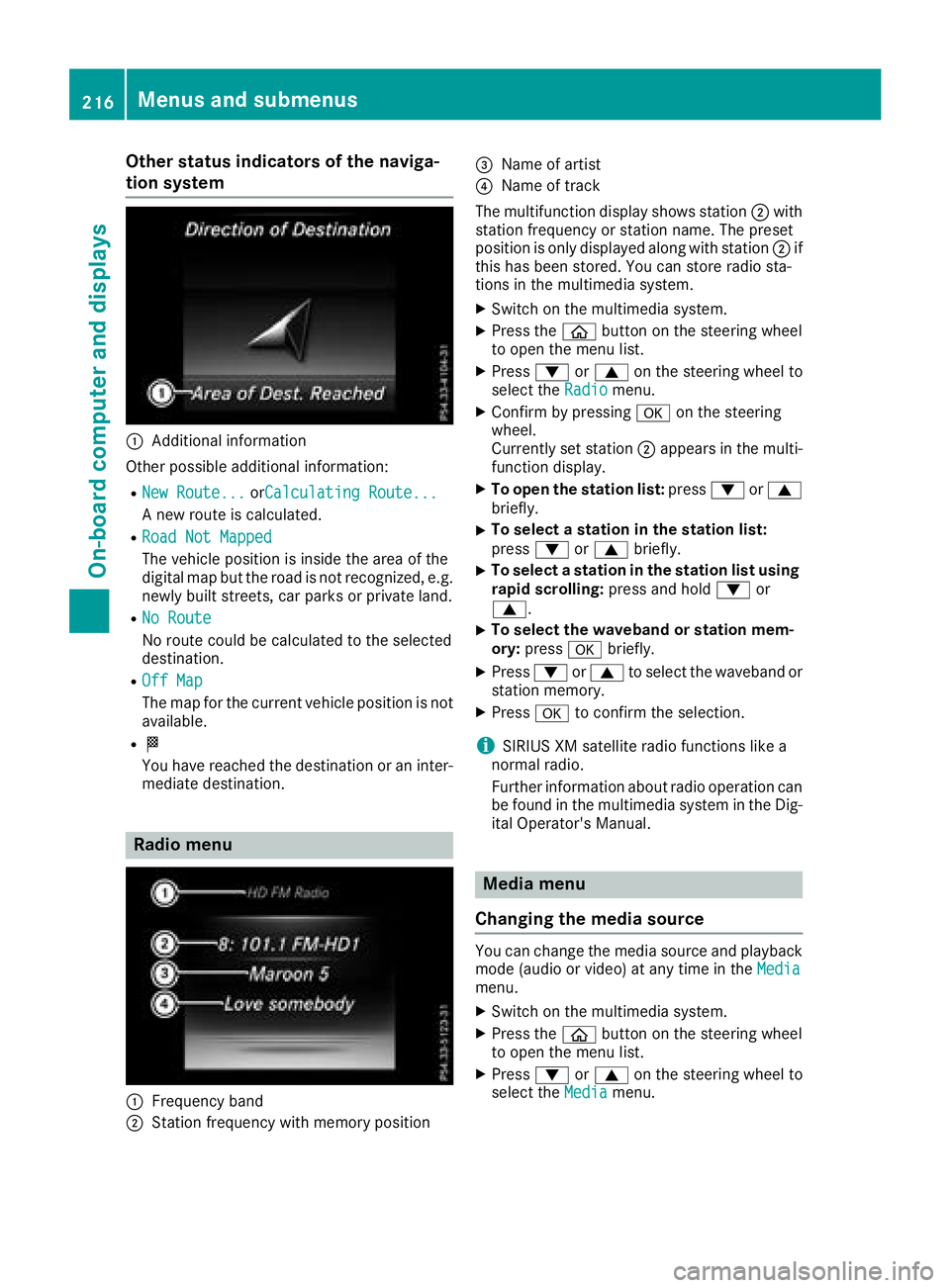

Other status indicators of the naviga-
tion system
C
Additional information
Other possible additional information: R
New Route... or Calculating Route...
A new route is calculated. R
Road Not Mapped
The vehicle position is inside the area of the
digital map but the road is not recognized, e.g.
newly built streets, car parks or private land. R
No Route
No route could be calculated to the selected
destination. R
Off Map
The map for the current vehicle position is not
available. R
K
You have reached the destination or an inter-
mediate destination.
Radio menu
C
Frequency band
D
Station frequency with memory position

X
Confirm by pressing v on the steering
wheel. X
To open the media sources list: press v
brie fly.
The list sho ws the foll owin g media sources,
for example: R
CD or DVD (DVD on ly in the COMAND mul-
tim edia system)R
SD card R
Media Register (on ly in the COMAND mul-
tim edia system)R
USB storage device R
Bluetooth ®
capab le audio device
Please observe further information on media
support and media operation in the multimed ia
system (see the Digital Operator's Manual).
Operating an audio player or audio
media
C
Media source, e.g. name of USB memory
stickD
Current tit le

X
To select a DVD single drive or disc: press
v briefly. The list containing the media
sources appears. X
Press d or c to select the correspond-
ing DVD single drive or disc. X
Press v to confirm.X
To open the scene list: press the d or
c button briefly.X
To select the next or previous scene in the
scene list: press the d or c button
briefly. X
To select a scene from the scene list using
rapid scrolling: press and hold d or c
until desired scene C is reached.X
Press v to confirm your selection.
Telephone menu
Introduction
G WARNING
If you operate information systems and com-
munication equipment integrated in the vehi-
cle while driving, you will be distracted from
traffic conditions. You could also lose control
of the vehicle. There is a risk of an accident.
Only operate the equipment when the traffic
situation permits. If you are not sure that this
is possible, park the vehicle paying attention
to traffic conditions and operate the equip-
ment when the vehicle is stationary.
When telephoning, you must observe the legal
requirements for the country in which you are
currently driving. X
Switch on the mobile phone (see the manu-
facturer’s operating instructions). X
Switch on the multimedia system. X
Establish a Bluetooth ®
connection to the mul-
timedia system (see the Digital Operator's
Manual). X
Press the
