MERCEDES-BENZ GLC 2018 Owners Manual

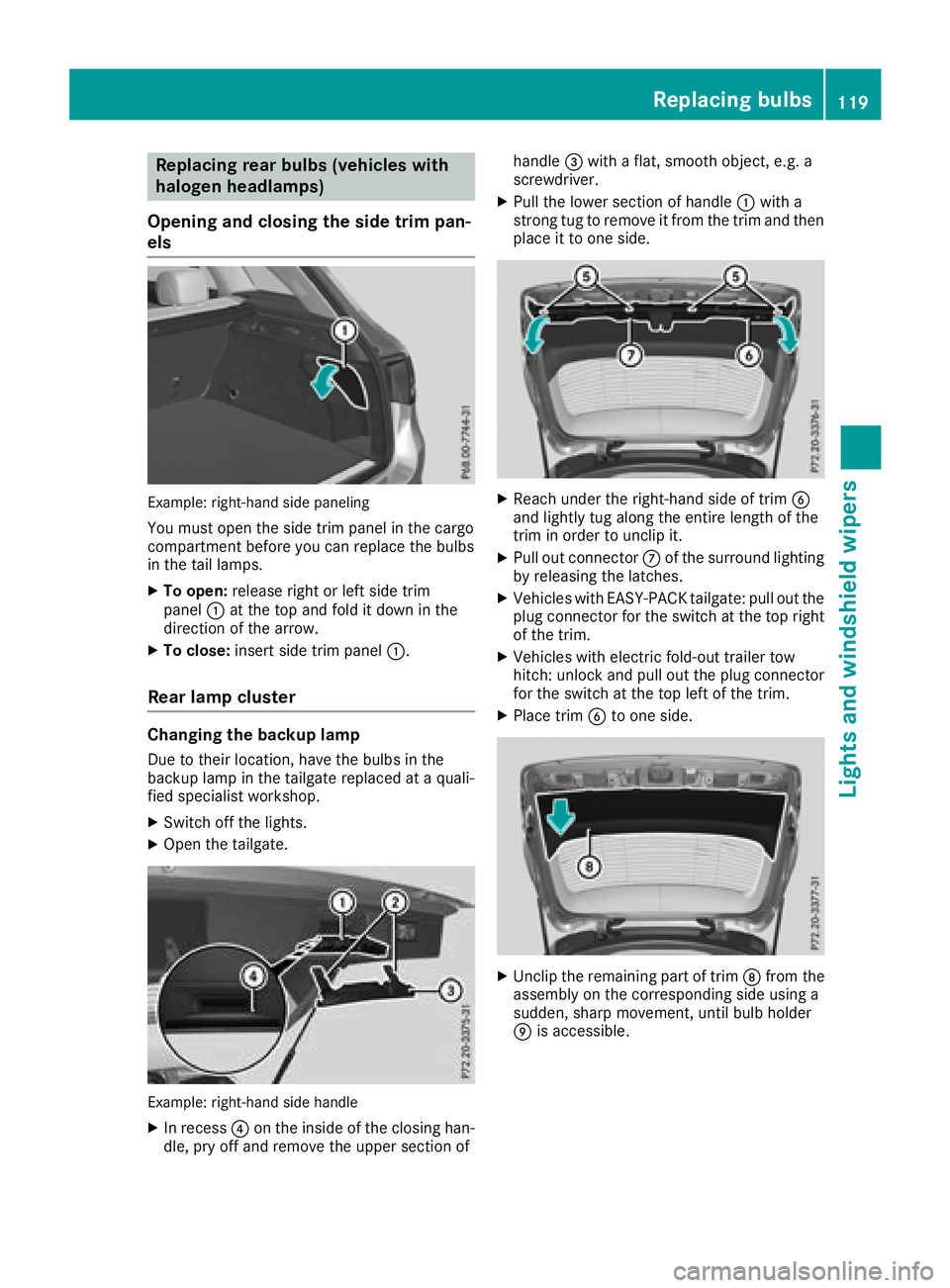

Replacing rear bulbs (vehicles with
halogen headlamps)
Opening and closing the side trim pan-
els
Example: right-hand side paneling
You must open the side trim panel in the cargo
compartment before you can replace the bulbs
in the tail lamps. X
To open: release right or left side trim
panel C at the top and fold it down in the
direction of the arrow. X
To close: insert side trim panel C .
Rear lamp cluster
Changing the backup lamp Due to their location, have the bulbs in the
backup lamp in the tailgate replaced at a quali-
fied specialist workshop. X
Switch off the lights. X
Open the tailgate.
Example: right-hand side handle X
In recess

X
Pull the defective bulb out of bulb holder m .X
Insert the new bulb into bulb holder m .X
Position trim l and engage it in place by
tapping it with your hand. X
Check that all the metal clips are inserted in
the parts that were placed to one side: two
clips D in the upper section of handle

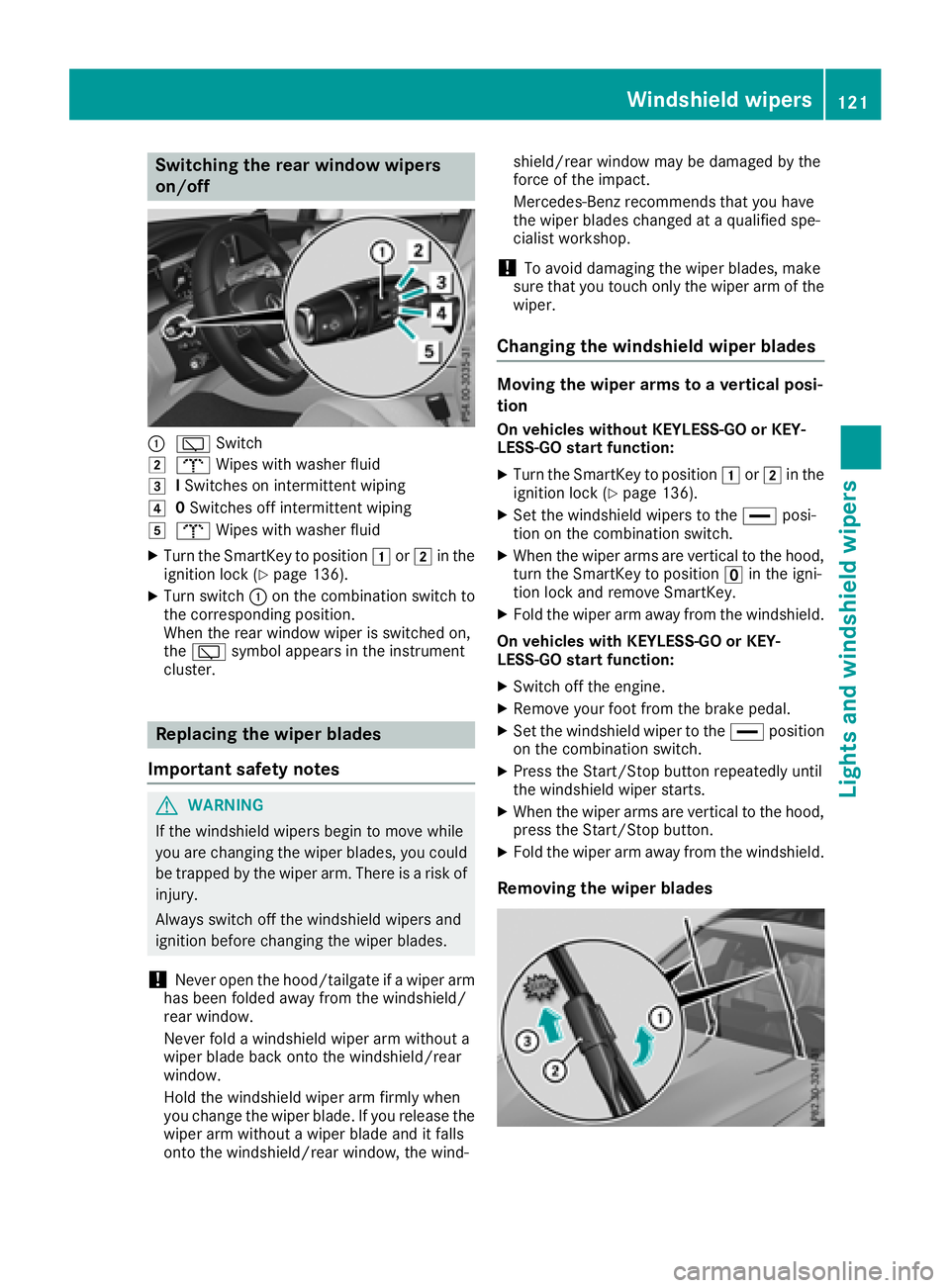

Switching the rear window wipers
on/off
C

X

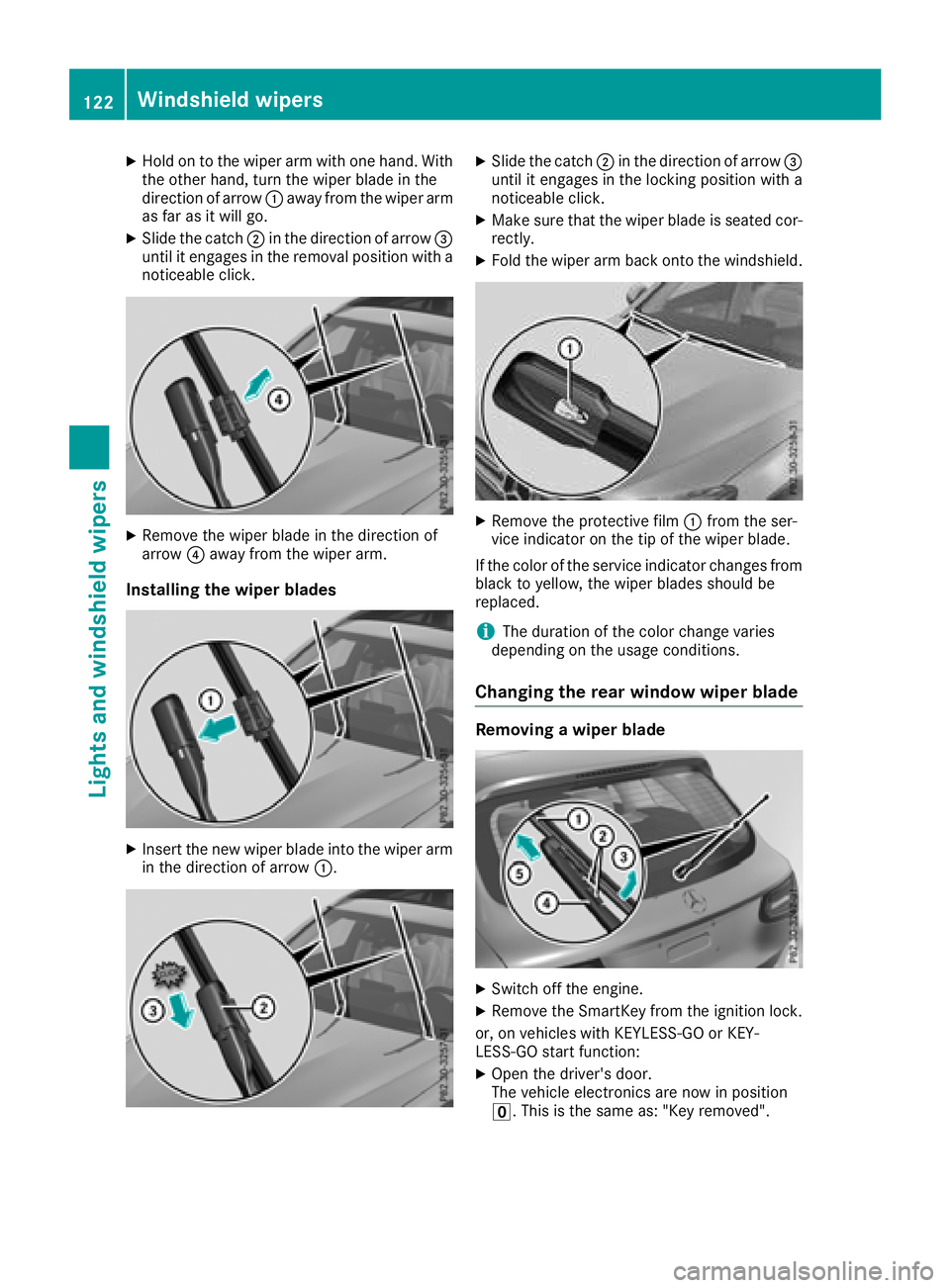

Hold on to the wiper arm with one hand. With
the other hand, turn the wiper blade in the
direction of arrow C away from the wiper arm
as far as it will go. X
Slide the catch D in the direction of arrow

X
Fold wiper arm

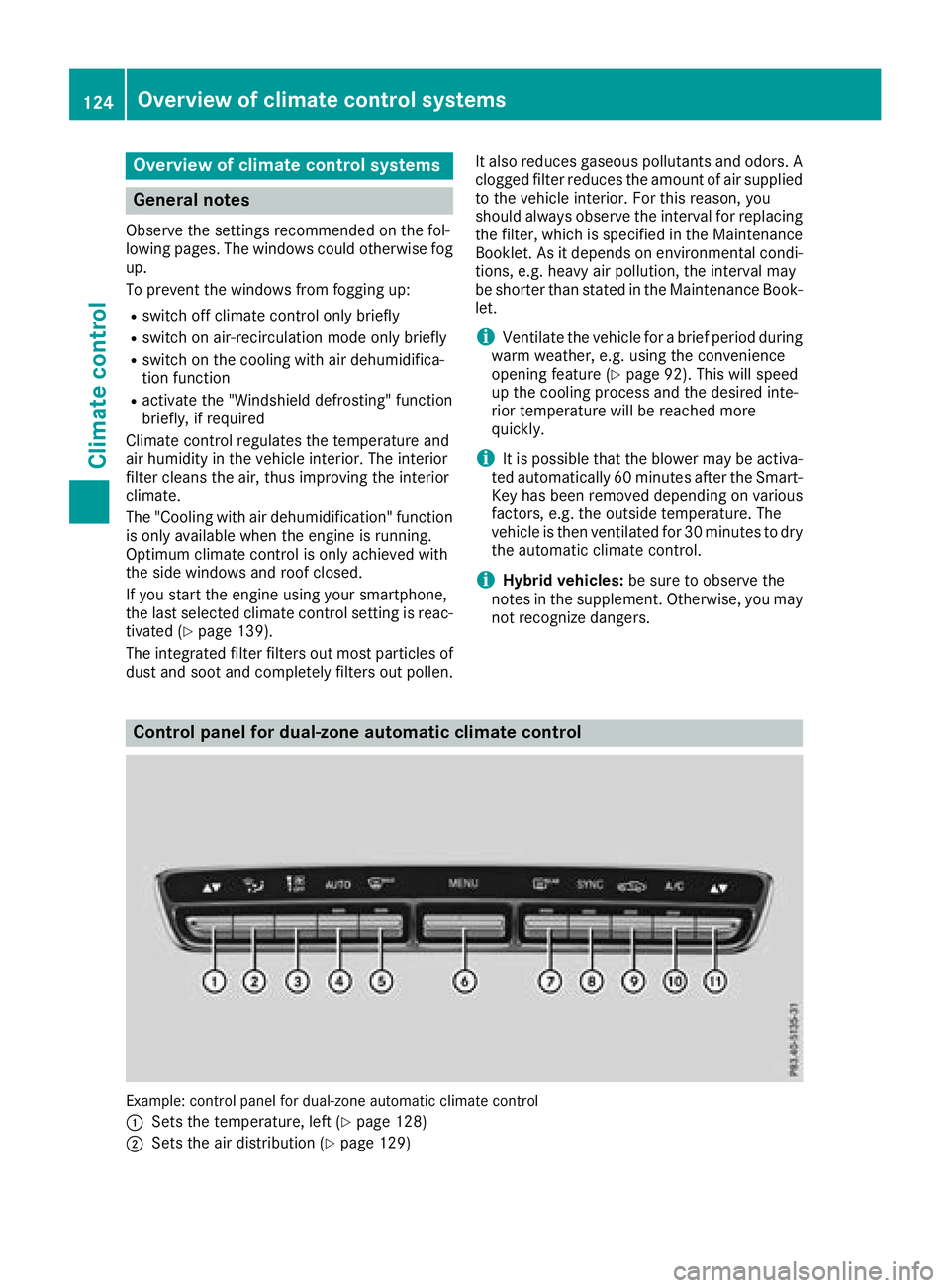

Overview of climate control systems
General notes Observe the settings recommended on the fol-
lowing pages. The windows could otherwise fog
up.
To prevent the windows from fogging up: R
switch off climate control only briefly R
switch on air-recirculation mode only briefly R
switch on the cooling with air dehumidifica-
tion function R
activate the "Windshield defrosting" function
briefly, if required
Climate control regulates the temperature and
air humidity in the vehicle interior. The interior
filter cleans the air, thus improving the interior
climate.
The "Cooling with air dehumidification" function
is only available when the engine is running.
Optimum climate control is only achieved with
the side windows and roof closed.
If you start the engine using your smartphone,
the last selected climate control setting is reac-
tivated ( Y
page 139).
The integrated filter filters out most particles of
dust and soot and completely filters out pollen. It also reduces gaseous pollutants and odors. A
clogged filter reduces the amount of air supplied
to the vehicle interior. For this reason, you
should always observe the interval for replacing
the filter, which is specified in the Maintenance
Booklet. As it depends on environmental condi-
tions, e.g. heavy air pollution, the interval may
be shorter than stated in the Maintenance Book-
let.
i Ventilate the vehicle for a brief period during
warm weather, e.g. using the convenience
opening feature ( Y
page 92). This will speed
up the cooling process and the desired inte-
rior temperature will be reached more
quickly.
i It is possible that the blower may be activa-
ted automatically 60 minutes after the Smart-
Key has been removed depending on various
factors, e.g. the outside temperature. The
vehicle is then ventilated for 30 minutes to dry
the automatic climate control.
i Hybrid vehicles: be sure to observe the
notes in the supplement. Otherwise, you may
not recognize dangers.
Control panel for dual-zone automatic climate control
Example: control panel for dual-zone automatic climate control
C
Sets the temperature, left ( Y
page 128)
D
Sets the air distribution ( Y
page 129)124
Overview of climate control systems
Climate control

q
Displayr
Sets the airflow ( Y
page 129)

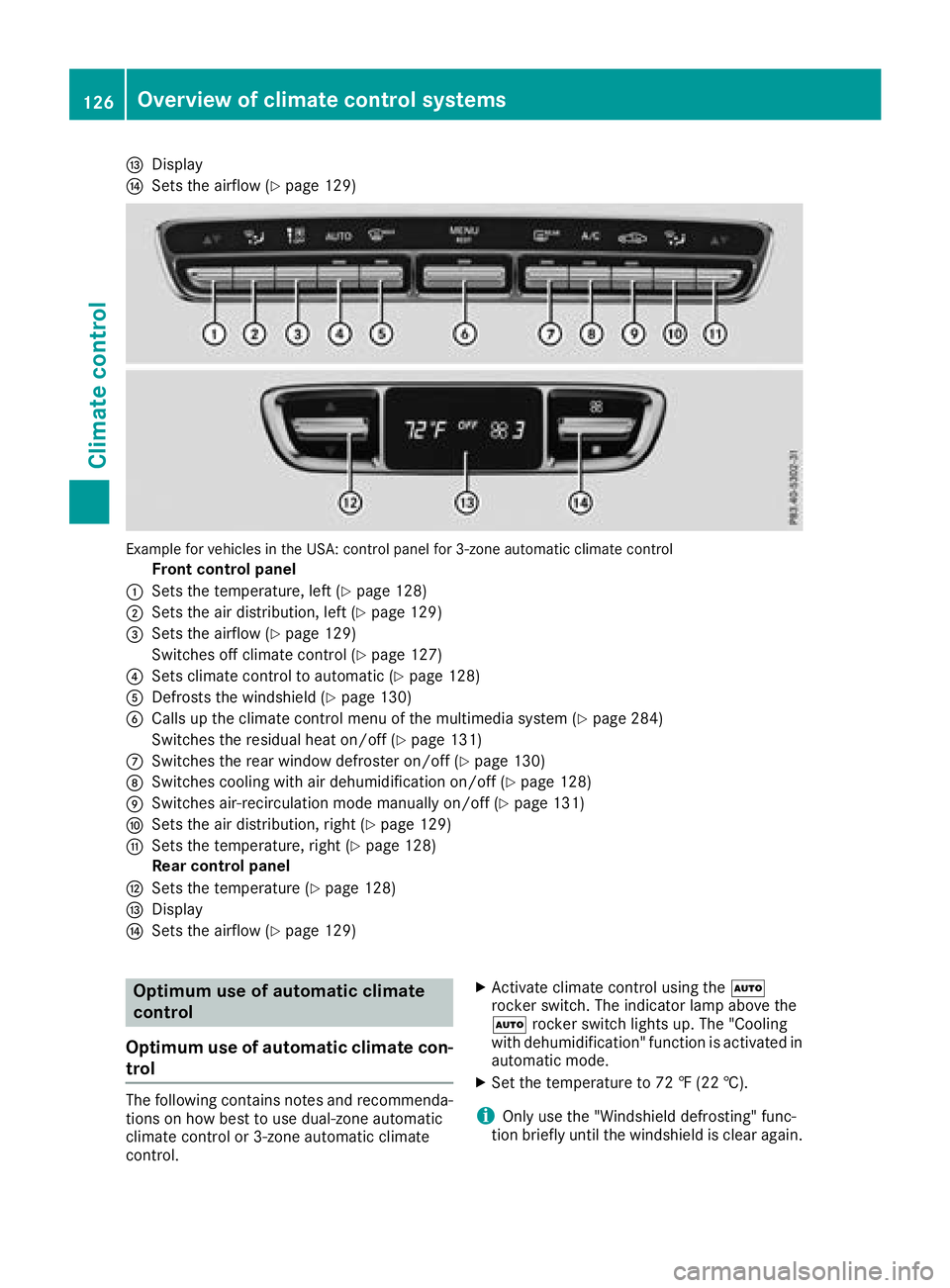

Example for vehicles in the USA: control panel for 3-zone automatic climate control
Front control panelC
Sets the temperature, left ( Y
page 128)D
Sets the air distribution, left ( Y
page 129)

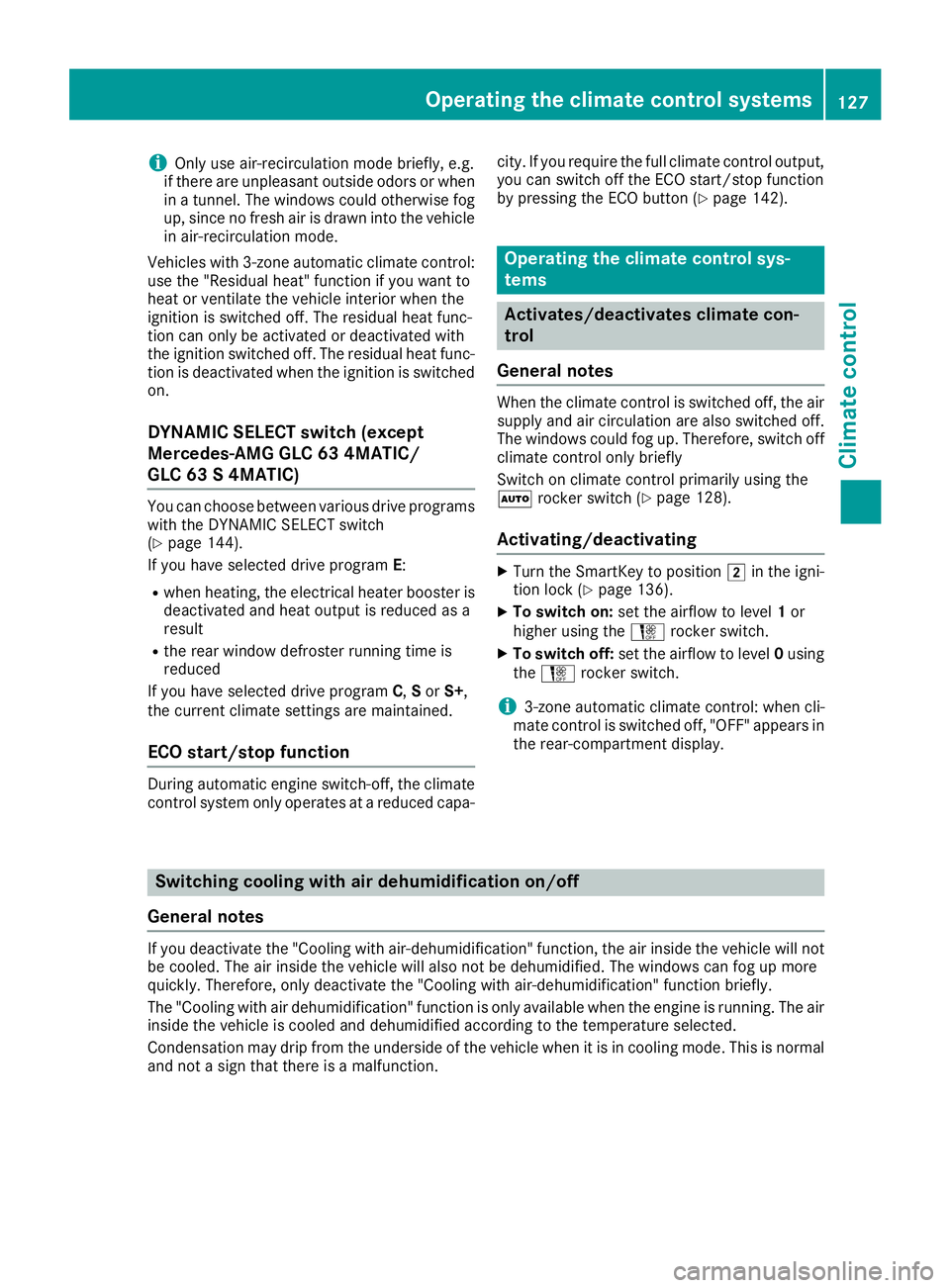

i Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or when
in a tunnel. The windows could otherwise fog
up, since no fresh air is drawn into the vehicle
in air-recirculation mode.
Vehicles with 3-zone automatic climate control:
use the "Residual heat" function if you want to
heat or ventilate the vehicle interior when the
ignition is switched off. The residual heat func-
tion can only be activated or deactivated with
the ignition switched off. The residual heat func-
tion is deactivated when the ignition is switched
on.
DYNAMIC SELECT switch (except
Mercedes-AMG GLC 63 4MATIC/
GLC 63 S 4MATIC) You can choose between various drive programs
with the DYNAMIC SELECT switch
( Y
page 144).
If you have selected drive program E :R
when heating, the electrical heater booster is
deactivated and heat output is reduced as a
result R
the rear window defroster running time is
reduced
If you have selected drive program C , S or S+ ,
the current climate settings are maintained.
ECO start/stop function During automatic engine switch-off, the climate
control system only operates at a reduced capa- city. If you require the full climate control output,
you can switch off the ECO start/stop function
by pressing the ECO button ( Y
page 142).
Operating the climate control sys-
tems
Activates/deactivates climate con-
trol
General notes When the climate control is switched off, the air
supply and air circulation are also switched off.
The windows could fog up. Therefore, switch off
climate control only briefly
Switch on climate control primarily using the
X rocker switch ( Y
page 128).
Activating/deactivating X
Turn the SmartKey to position H in the igni-
tion lock ( Y
page 136). X
To switch on: set the airflow to level 1 or
higher using the H rocker switch.X
To switch off: set the airflow to level 0 using
the H rocker switch.
i 3-zone automatic climate control: when cli-
mate control is switched off, "OFF" appears in
the rear-compartment display.
Switching cooling with air dehumidification on/off
General notes If you deactivate the "Cooling with air-dehumidification" function, the air inside the vehicle will not
be cooled. The air inside the vehicle will also not be dehumidified. The windows can fog up more
quickly. Therefore, only deactivate the "Cooling with air-dehumidification" function briefly.
The "Cooling with air dehumidification" function is only available when the engine is running. The air
inside the vehicle is cooled and dehumidified according to the temperature selected.
Condensation may drip from the underside of the vehicle when it is in cooling mode. This is normal
and not a sign that there is a malfunction. Operating the climate control systems 127
Climate control

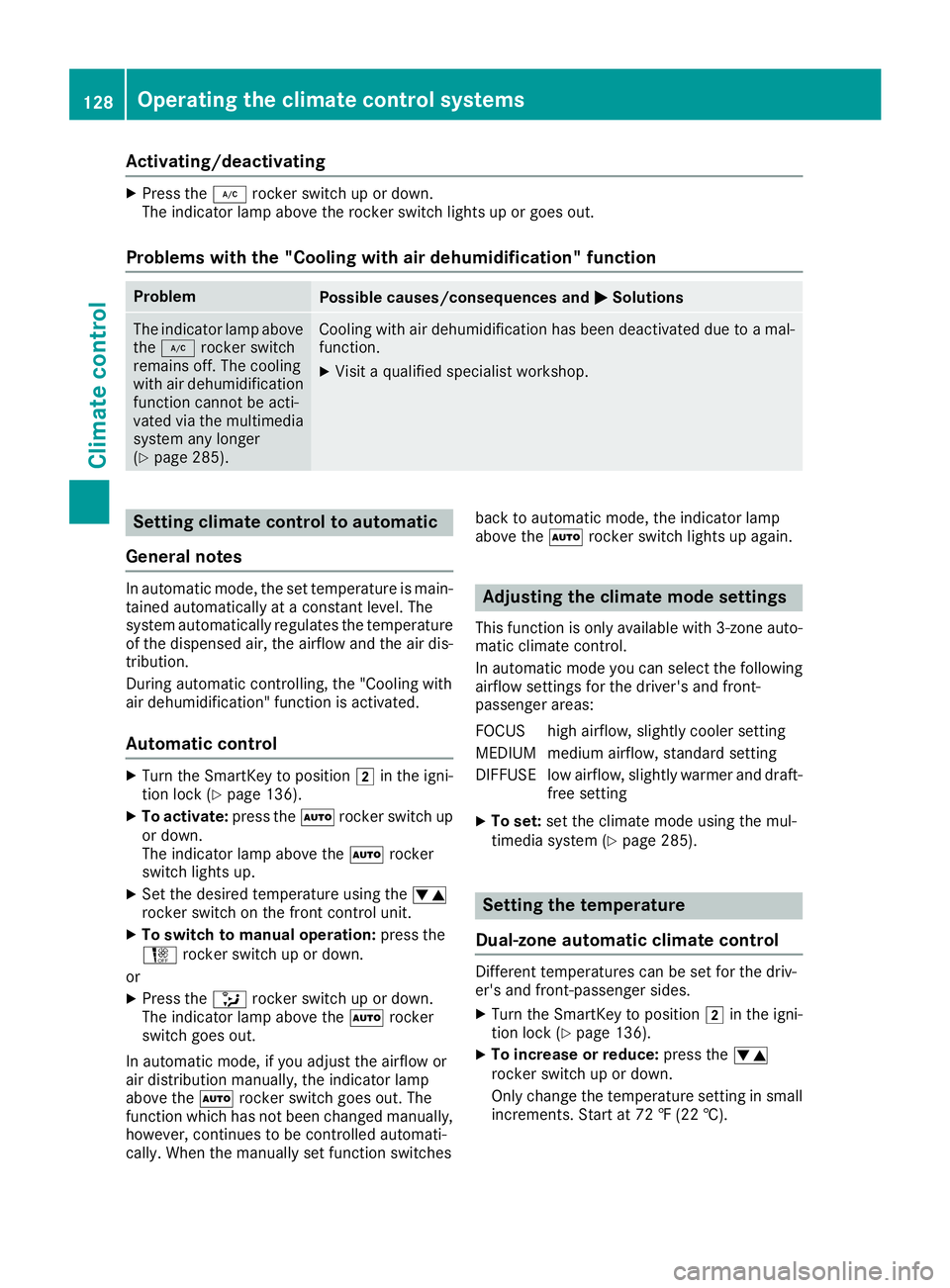

Activating/deactivating X
Press th e Z rocke r switch up or down .
The indicator lamp abov e th e rocke r switch lights up or goe s out .
Problems with the "Cooling with air dehumidification" function Problem
Possible causes/consequences and P Solutions
The indicator lamp abov e
th e Z rocke r switch
remain s off . The coolin g
wit h air dehumidification
function canno t be acti-
vated via th e multimedia
system any longer
( Y
page 285). Cooling wit h air dehumidification has been deactivated due to a mal-
function . X
Visit a qualified specialis t workshop .
Setting climate cont rol to automatic
Gene ra l notesIn automatic mode, th e set temperature is main -
taine d automatically at a constan t level. The
system automatically regulates th e temperature
of th e dispensed air, th e airflow and th e air dis-
tribution .
During automatic controlling, th e "Cooling wit h
air dehumidification " function is activated.
Aut oma tic cont rolX
Turn th e SmartKey to position H in th e igni-
tion loc k ( Y
page 136).X
To activate: press th e X rocke r switch up
or down .
The indicator lamp abov e th e X rocke r
switch lights up. X
Se t th e desired temperature usin g th e
