MERCEDES-BENZ GLC COUPE 2022 Workshop Manual

#
Always ensu rethat all vehicle occupants
ha ve their seat belts fastened co rrectly
and are sitting proper ly.Alw
ays obser vethe inst ructions about the cor rect
driver's seat position and adjusting the seat
(/ page 103).
In order forth e cor rectly wornseat belt toprov ide
th e intended le vel of pr otection, each vehicle
occupant must obser vethefo llowing information:
R The seat belt must not be twisted and must /t
tightly and snugly across the body.
R The seat belt must be routed across the
cent reofthe shoulder and as low down across
th e hips as possible.
R The shoulder section of the seat belt should
not touch your neck nor be routed under your
arm or behind your bac k.
R Avoid wearing bulky clo thing, e.g. a winter
coat.
R Push the lap belt down as far as possible
across your hips and pull tight with the shoul-
der section of the belt. Neverro ute the lap
belt across your abdomen. Pregnant
women must also take particular
care with this.
R Neverro ute the seat belt across sharp, poin-
te d, abrasive or fragile objects.
R Only one person should use each seat belt at
any one time.
R Never secure objects with a seat belt if the
seat belt is also being used byone of theve hi-
cle's occupants.
Also ensu rethat no objects, e.g. a cushion,
are ever placed between a person and the
seat.
If ch ildren are tr avelling in theve hicle, be sure to
obser vethe inst ructions and saf ety no tes on
"Child ren in theve hicle" (/ page 61).
Alw ays obser vethe inst ructions for loading the
ve hicle when securing objects, lug gage or loads
(/ page 115). Limit Limit
ations of t
ations of t he prot
he pr otection pro
ection pro vided b
vided by t
y the seat
he seat
belt
belt &
W
WARNING
ARNING Risk of injury or death due to
incor rect seat position
The seat belt will not o.er the intended le vel
of pr otection if you ha venot mo vedth e seat
backrest toan almost vertical position.
In particular, you may slip under the seatbelt
and injure yourself. #
Adjust the seat proper lybefore begin-
ning your journe y. #
Always ensu rethat the seat backrest is
in an almost vertical position and that
th e shoulder section of your seat belt is
ro uted across the centre of your shoul-
der. 48
48
Occupant saf
ety

&
W
W ARNI NG
ARNI NGRisk of injury or dea thwhen
additional restraint systems are not used
fo r persons with a smaller stature

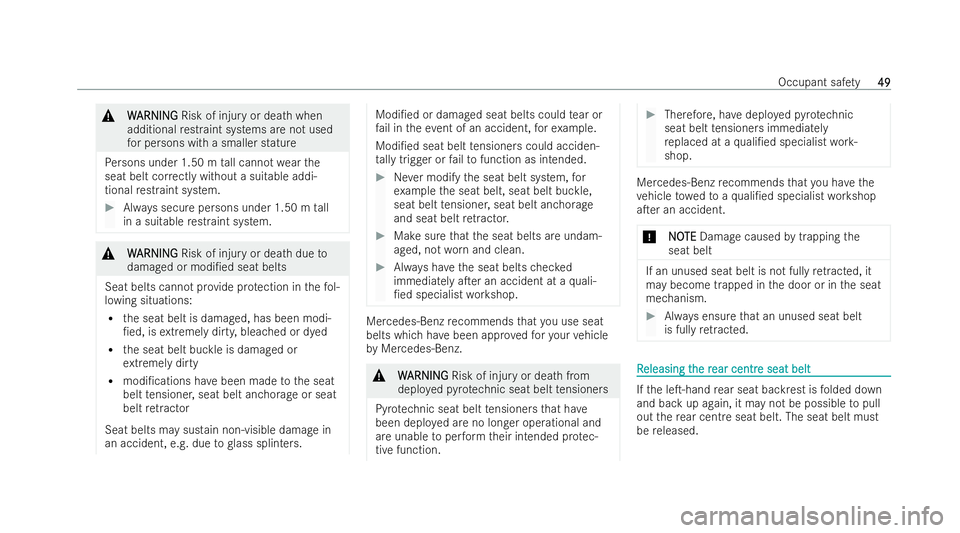

Pe rsons under 1.50 m tall cannot wearthe
seat belt cor rectly without a suitable addi-
tional restraint system. #
Always secure persons under 1.50 m tall
in a suitable restraint system. &
W
W ARNING
ARNING Risk of injur y or death due to
damaged or modi/ed seat belts
Seat belts cannot pr ovide pr otection in thefo l-
lowing situations:
R the seat belt is damaged, has been modi-
/ed, is extremely dirty, blea ched or dyed
R the seat belt buckle is damaged or
ex tremely dirty
R modi/cations ha vebeen made tothe seat
belt tensioner, seat belt anchorage or seat
belt retractor
Seat belts may sustain non-visible damage in
an accident, e.g. due toglass splinters. Modi/ed or damaged seat belts could
tear or
fa il in theev ent of an accident, forex ample.
Modi/ed seat belt tensioners could acciden-
ta lly trigger or failto function as intended. #
Never modify the seat belt system, for
ex ample the seat belt, seat belt buckle,
seat belt tensioner, seat belt anchorage
and seat belt retractor. #
Make sure that the seat belts are undam-
aged, not wornand clean. #
Always ha vethe seat belts checked
immediately aTer an accident at a quali-
/ed specialist workshop. Mercedes-Benz
recommends that you use seat
belts which ha vebeen appr ovedfo ryo ur vehicle
by Mercedes-Benz. &
W
WARNI NG
ARNI NGRisk of injury or dea thfrom
deplo yedpy rotech nic seat belt tensioners
Pyro tech nic seat belt tensioners that ha ve
been deplo yed are no longer operational and
are unable toper form their intended pr otec-
tive function. #
Therefore, ha vedeplo yedpy rotech nic
seat belt tensioners immedia tely
re placed at a quali/ed specialist work-
shop. Mercedes-Benz
recommends that you ha vethe
ve hicle towe dto aqu ali/ed specialist workshop
aTer an accident.
* N
NOOTE
TE Damage caused bytrapping the
seat belt If an unused seat belt is not fully
retracted, it
may become trapped in the door or in the seat
mechanism. #
Always ensu rethat an unused seat belt
is fully retracted. R
R
eleasing t
eleasing t he r
he rear centr
ear centr e seat belt
e seat belt If
th e leT-hand rear seat backrest is folded down
and back up again, it may not be possible topull
out there ar cent reseat belt. The seat belt must
be released. Occupant saf
ety
49
49

#

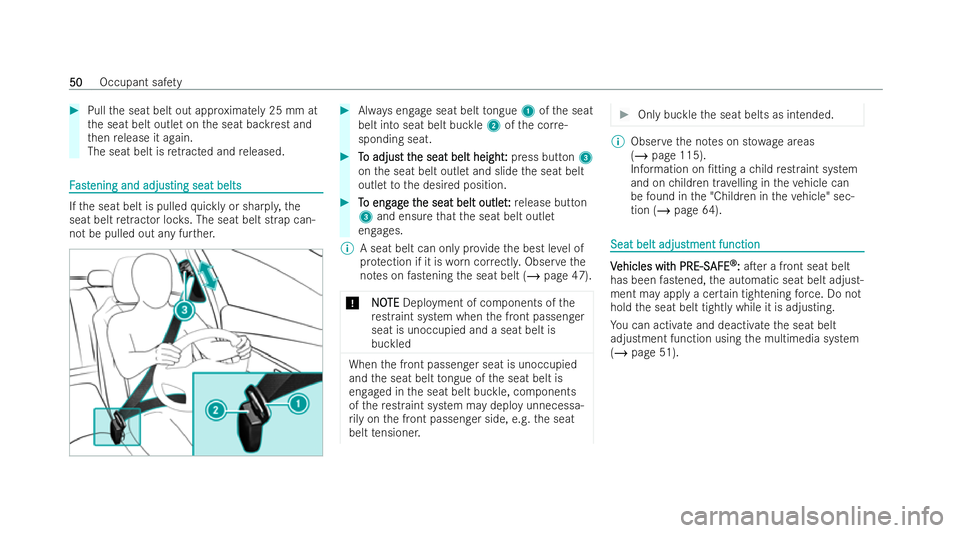

Pull the seat belt out appr oximately 25 mm at
th e seat belt outlet on the seat backrest and
th en release it again.
The seat belt is retracted and released. F
F
ast
ast ening and adjus
ening and adjusting seat belts ting seat beltsIf
th e seat belt is pulled quickly or sharpl y,the
seat belt retractor loc ks. The seat belt strap can-
not be pulled out any fur ther. #
Always engage seat belt tongue 1ofthe seat
belt into seat belt buckle 2ofthe cor re-
sponding seat. #
T
T o adjus
o adjust t t the seat belt height
he seat belt height: :press button 3
on the seat belt outlet and slide the seat belt
outlet tothe desired position. #
T
T o eng
o eng ag
age t
e t he seat belt outlet
he seat belt outlet: :re lease button
3 and ensure that the seat belt outlet
engages.
% A seat belt can only pr ovide the best le vel of
pr otection if it is worncor rectl y.Obser vethe
no tes on fastening the seat belt (/ page 47).
* NO NOTE TEDeployment of components of the
re straint system when the front passenger
seat is unoccupied and a seat belt is
buckled When
the front passenger seat is unoccupied
and the seat belt tongue of the seat belt is
engaged in the seat belt buckle, components
of there straint system ma y deployunnecessa-
ri ly on the front passenger side, e.g. the seat
belt tensioner. #
Only buckle the seat belts as intended. %
Obser vethe no tes on st owage areas
(/ page 115).
Information on /tting a child restraint system
and on children tr avelling in theve hicle can
be found in the "Children in theve hicle" sec-
tion (/ page 64). Seat belt adjus Seat belt adjustment function
tment function V
V
ehicles wit
ehicles wit h PRE-S
h PRE-SAFE
AFE®
®
:
:aTer a front seat belt
has been fastened, the automatic seat belt adjust-
ment may apply a cer tain tightening forc e. Do not
hold the seat belt tightly while it is adjusting.
Yo u can activate and deactivate the seat belt
adjustment function using the multimedia system
(/ page 51). 50
50
Occupant saf
ety

A
A
ctiv
ctiv ating/deactiv
ating/deactiv ating seat belt adjus
ating seat belt adjus tment via
tment via
t
t he multimedia syst
he multimedia syst em

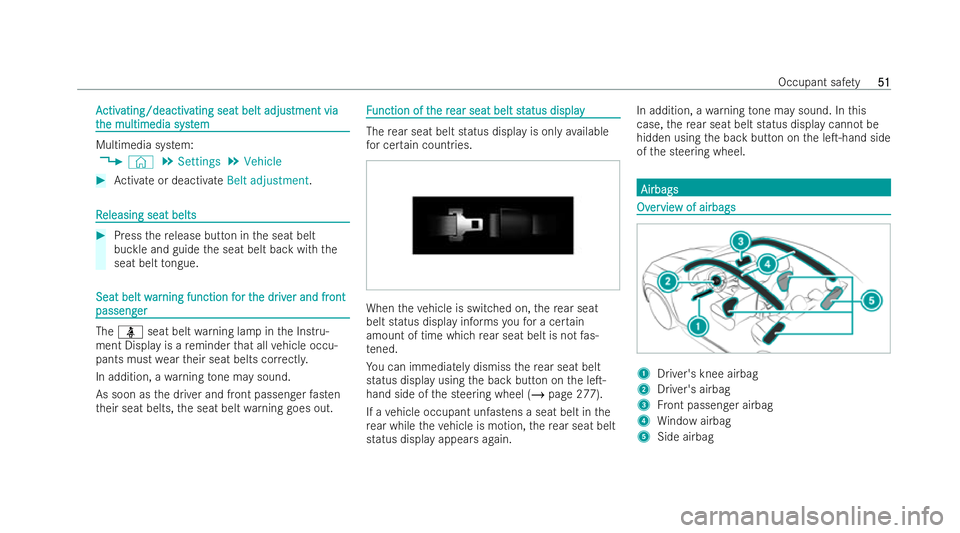

em Multimedia system:
4 © 5
Settings 5
Vehicle #
Activate or deactivate Belt adjustment.R
R
eleasing seat belts
eleasing seat belts #
Press there lease button in the seat belt
buckle and guide the seat belt back with the
seat belt tongue. Seat belt w
Seat belt w
ar
ar ning function f
ning function f or t
or the dr
he dr iv
iver and fr
er and fr ont
ont
passeng
passeng er
er The
ü seat belt warning lamp in the Instru-
ment Display is a reminder that all vehicle occu-
pants must weartheir seat belts cor rectl y.
In addition, a warning tone may sound.
As soon as the driver and front passenger fasten
th eir seat belts, the seat belt warning goes out. F
F
unction of t
unction of t he r
he rear seat belt st
ear seat belt st atus display
atus display The
rear seat belt status displ ayis only available
fo r cer tain countries. When
theve hicle is switched on, there ar seat
belt status displ ayinforms youfo r a cer tain
amount of time which rear seat belt is not fas-
te ned.
Yo u can immediately dismiss there ar seat belt
status displ ayusing the back button on the leT-
hand side of the steering wheel (/ page 277).
If a vehicle occupant unfastens a seat belt in the
re ar while theve hicle is motion, there ar seat belt
status displ ayappears again. In addition, a
warning tone may sound. In this
case, there ar seat belt status displ aycann otbe
hidden using the back button on the leT-hand side
of the steering wheel. Airbags
Airbags
Ov
Ov
er
ervie
vie w of airbags
w of airbags 1
Driver's knee airbag
2 Driver's airbag
3 Front passenger airbag
4 Window airbag
5 Side airbag Occupant sa
fety
51
51

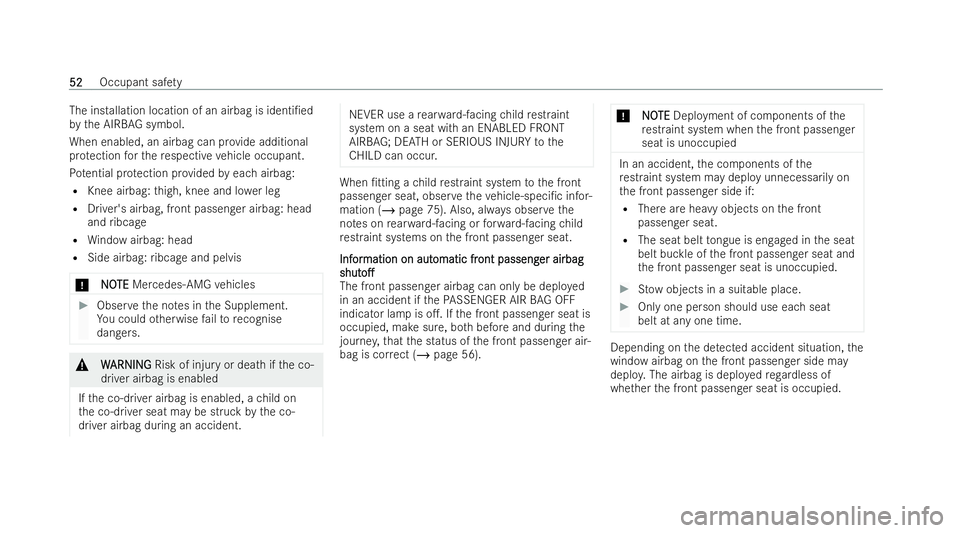

The installation location of an airbag is identi/ed
by the AIRB AGsymbol.
When enabled, an airbag can pr ovide additional
pr otection forth ere specti ve vehicle occupant.
Po tential pr otection pr ovided byeach airbag:
R Knee airbag: thigh, knee and lo wer leg
R Driver's airbag, front passenger airbag: head
and ribcage
R Window airbag: head
R Side airbag: ribcage and pelvis
* N
NO OTE
TE Mercedes-AMG vehicles #
Obser vethe no tes in the Supplement.
Yo u could otherwise failto recognise
dangers. &
W
WARNING
ARNING Risk of injury or death if the co-
driver airbag is enabled
If th e co-driver airbag is enabled, a child on
th e co-driver seat may be struck bythe co-
driver airbag during an accident. NEVER use a
rear wa rd-facing child restraint
system on a seat wi than ENABLED FRONT
AIR BAG; DEATH or SERIOUS INJURY tothe
CHILD ca n occur. When /tting a
child restraint system tothe front
passenger seat, obser vetheve hicle-speci/c infor-
mation (/ page 75). Also, alw ays obser vethe
no tes on rear wa rd-facing or forw ard-facing child
re straint systems on the front passenger seat.
Inf
Inf or
ormation on aut
mation on aut omatic fr
omatic front passeng
ont passeng er airbag
er airbag
shut
shut o.
o.
The front passenger airbag can only be deplo yed
in an accident if thePA SSENGER AIR BAG OFF
indicator la mpis o.. If the front passenger seat is
occupied, make sure, bo thbefore and during the
journe y,that the status of the front passenger air-
bag is cor rect (/ page 56). *
N
NOOTE
TE Deployment of components of the
re straint system when the front passenger
seat is unoccupied In an accident,
the components of the
re straint system ma y deployunnecessarily on
th e front passenger side if:
R There are heavy objects on the front
passenger seat.
R The seat belt tongue is engaged in the seat
belt buckle of the front passenger seat and
th e front passenger seat is unoccupied. #
Stow objects in a suitable place. #
Only one person should use each seat
belt at any one time. Depending on
the de tected accident situation, the
wind owairbag on the front passenger side may
deplo y.The airbag is deplo yedre ga rdless of
whe ther the front passenger seat is occupied. 52
52
Occupant saf
ety

Pr
ot
Pr otection pro
ection pro vided b
vided by t
y the airbags
he airbags Depending on
the accident situation, an airbag
may supplement the pr otection o.ered bya cor-
re ctly fastened seat belt. &
W
WARNING
ARNING Risk of injur y or death due to
an inco rrect seat position
If yo u deviate from the cor rect seat position,
th e airbag cannot per form its intended pr otec-
tive function.
Each vehicle occupant must make sure of the
fo llowing:
R Fasten seat belts co rrectl y.Pregnant
wo men must take particular care toensure
th at the lap belt ne ver lies across the
abdomen.
R Adopt the cor rect seat position and keep
as farawa y as possible from the airbags.
R Obser vethefo llowing information. #
Always make sure that there are no
objects between the airbag and vehicle
occupant. To
avo idtherisks resulting from the deployment
of an airbag, each vehicle occupant must obser ve
th efo llowing information in particular:
R Before starting your journe y,adjust your seat
cor rectl y;the driver's seat and front
passenger seat should be mo ved as far back
as possible.
When doing so, alw ays obser vethe informa-
tion on the cor rect driver's seat position
(/ page 103).
R Only hold the steering wheel bythe steering
wheel rim. This allo ws the airbag tobe fully
deplo yed.
R Always lean against the seat backrest when
th eve hicle is in motion. Do not lean forw ards
or against the door or side windo w.You may
ot herwise be in the deployment area of the
airbags.
R The occupants must alw ayske ep their feet on
th e 0oor. Do not put your feet on the cockpit,
fo rex ample. Your feet may otherwise be in the
deployment area of the airbag.
R Ifch ildren are tr avelling in theve hicle, obser ve
th e additional no tes (/ page 61). R
Always st owand secure objects cor rectl y.
Objects in theve hicle interior may pr event an air-
bag from functioning cor rectl y.Each vehicle occu-
pant must alw ays make sure of thefo llowing in
particular:
R There are no people, animals or objects
between theve hicle occupants and an airbag.
R There are no objects between the seat, door
and door pillar (B-pillar).
R There are no hard objects, e.g. coat hangers,
hanging on thegr ab handles or coat hooks.
R There are no accessories, such as mobile navi-
gation devices, mobile phones or cup holders,
within the deployment area of an airbag, e.g.
on the cockpit, on the door, on the side win-
dow or on the side trim.
In addition, no connecting cables, tensioning
straps or retaining straps must be routed or
attached totheve hicle within the deployment
area of an airbag. Alw ays comply with the
accessory manu facturer's ins tallation inst ruc-
tions and, in particular, the no tes on suitable
places for installation. Occupant saf
ety
53 53

R
There are no heavy, sharp-ed ged or fragile
objects in the poc kets of your clo thing. Store
such objects in a suitable place. Limit
Limit
ations of t
ations of t he prot
he pr otection pro
ection pro vided b
vided by airbags
y airbags &
W
WARNING
ARNING Risk of injury due tomodi/ca-
tions tothe co ver of an airbag
If yo u modify the co ver of an airbag or a1x
objects such as stic kers to it,the airbag can
no longer function as intended. #
Never modify the co ver of an airbag. #
Do not attach any objects tothe co ver. The installation location of an airbag is identi/ed
by the AIRB AGsymbol (/ page 51).
Objects in the deployment area of an airbag may
pr ev ent the airbag from functioning cor rectl y. &
W
WARNI NG
ARNI NGRisk of injury from objects in
th e deployment area of an airbag
Objects in the deployment area of an airbag
can hinder or pr eventthe cor rect deployment
of the airbag.
The airbag may then deploy in an uncontrolled
manner and may even cause additional inju-
ri es totheve hicle occupants bydeploying.
This may be the case in particular if the airbag
is integ rated into the seat. #
Always st owand secure objects cor-
re ctl y. #
Before commencing your journe y,make
sure that no objects are st owed in the
deployment area of an airbag. &
W WARNING
ARNING Risk of inju ryor death due to
th e use of unsuitable seat co vers
Due tounsuitable seat co vers,th e airbags
cannot pr otect vehicle occupants as intended.
In addition, the operation of the automatic
front passenger airbag shuto. could be
re stric ted. #
You should only use seat co vers that
ha ve been appr oved forth e cor respond-
ing seats byMercedes-Benz. &
W WARNI NG
ARNI NGRisk of injury due tomalfunc-
tioning sensors in the door
The function of the airbags can be impaired
due tomodi/cations or incor rect wo rkper-
fo rm ed on the doors or door trim, or if the
doors are damaged. #
Never modify the doors or parts of the
doors. #
Always ha veworkon the doors or door
trim car ried out at a quali/ed specialist
wo rkshop. &
W
WARNING
ARNING Risk of injury due todeplo yed
airbag
A depl oyed airbag no longer o.ers any pr otec-
tion. 54
54
Occupant saf
ety

#

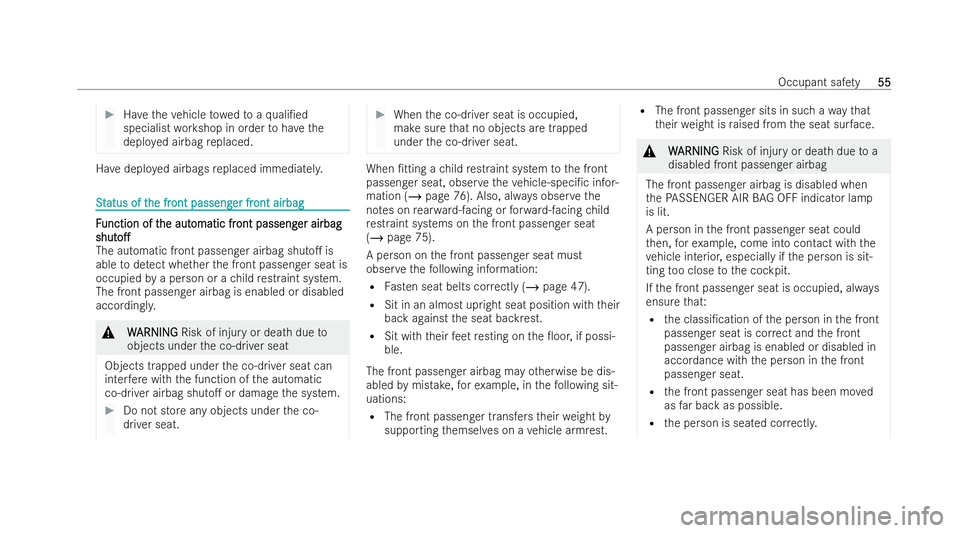

Have theve hicle towe dto a quali/ed
specialist workshop in order tohave the
deplo yed airbag replaced. Ha
ve deplo yed airbags replaced immediatel y. S
S
t
tatus of t
atus of t he fr
he front passeng
ont passeng er fr
er front airbag
ont airbag F
F
unction of t
unction of t he aut
he automatic fr
omatic fr ont passeng
ont passeng er airbag
er airbag
shut
shut o.
o.
The automatic front passen ger airbag shuto. is
able todetect whe ther the front passenger seat is
occupied bya person or a child restraint system.
The front passenger airbag is enabled or disabled
acco rdingl y. &
W WARNI NG
ARNI NGRisk of injury or dea thdue to
objects under the co-driver seat
Objects trapped under the co-driver seat can
inter fere with the function of the automatic
co-driver airbag shuto. or damage the system. #
Do not store any objects under the co-
driver seat. #
When the co-driver seat is occupied,
make sure that no objects are trapped
under the co-driver seat. When /tting a
child restraint system tothe front
passenger seat, obser vetheve hicle-speci/c infor-
mation (/ page 76). Also, alw ays obser vethe
no tes on rear wa rd-facing or forw ard-facing child
re straint systems on the front passenger seat
(/ page 75).
A person on the front passenger seat must
obser vethefo llowing information:
R Fasten seat belts co rrectly (/ page 47).
R Sit in an almost upright seat position with their
back against the seat backrest.
R Sit with their feet resting on the 0oor, if possi-
ble.
The front passenger airbag may otherwise be dis-
abled bymistake, forex ample, in thefo llowing sit-
uations:
R The front passenger transfers their weight by
supporting themsel ves on a vehicle armrest. R
The front passen ger sits in such a wayth at
th eir weight is raised from the seat sur face. &
W
WARNING
ARNING Risk of injury or death due to a
disabled front passenger airbag
The front passenger airbag is disabled when
th ePA SSENGER AIR BAG OFF indicator la mp
is lit.
A person in the front passenger seat could
th en, forex ample, come into contact with the
ve hicle interior, especially if the person is sit-
ting too close tothe cockpit.
If th e front passenger seat is occupied, alw ays
ensure that:
R the classi/cation of the person in the front
passenger seat is cor rect and the front
passenger airbag is enabled or disabled in
accordance with the person in the front
passenger seat.
R the front passenger seat has been mo ved
as far back as possible.
R the person is seated cor rectl y. Occupant saf
ety
55 55

#
Both before and during the journe y,
ensure that the status of the front
passenger airbag is cor rect. If
th e front passenger seat is occupied, the classi-
/cation of the person or child restraint system on
th e front passenger seat take s place aTer the
front passenger airbag shuto. self-test. The
PA SSENGER AIR BAG indicator la mps display the
status of the front passenger airbag.
Alw ays obser vethe no tes on the function of the
PA SSENGER AIR BAG indicator la mps
( / page 56). F
F unction of t unction of t he P
he PASSEN
ASSEN GER AIR BA
GER AIR BAG indicat
G indicat or
or
lam
lam ps
ps Ve
hicles without automatic front passen ger airbag
shuto. ha vea special stic ker a1xed tothe side of
th e cockpit on the front passenger side
(/ page 75). Self-t
Self-t
es
est of autt of aut omatic fr
omatic fr ont passeng
ont passeng er airbag shut-
er airbag shut-
o.
o.
When theve hicle is switched on, a self-test is per-
fo rm ed during which the two PASSENGER AIR
BAG ON and OFF indicator la mps light up simul ta-
neous ly.
The status of the front passenger airbag is dis-
pla yed via thePA SSENGER AIR BAG indicator
la mp s aTer the self-test:
R ON is lit:
ON is lit: the front passenger airbag may
deploy during an accident.
The indicator lamp goes out aTer 60 seconds.
R ON and OFF ar ON and OFF ar e no
e not lit:
t lit: the front passenger
airbag may deploy during an accident.
R OFF is lit:
OFF is lit: the front passenger airbag is disa-
bled. It will then not be deplo yed in theev ent
of an accident.
If th ePA SSENGER AIR BAG ON indicator la mpis
o., only thePA SSENGER AIR BAG OFF indicator
la mp shows th e status of the front passenger air-
bag. The PASSENGER AIR BAG OFF indicator la mp
may be lit continuously or be o.. 56
56
Occupant saf
ety

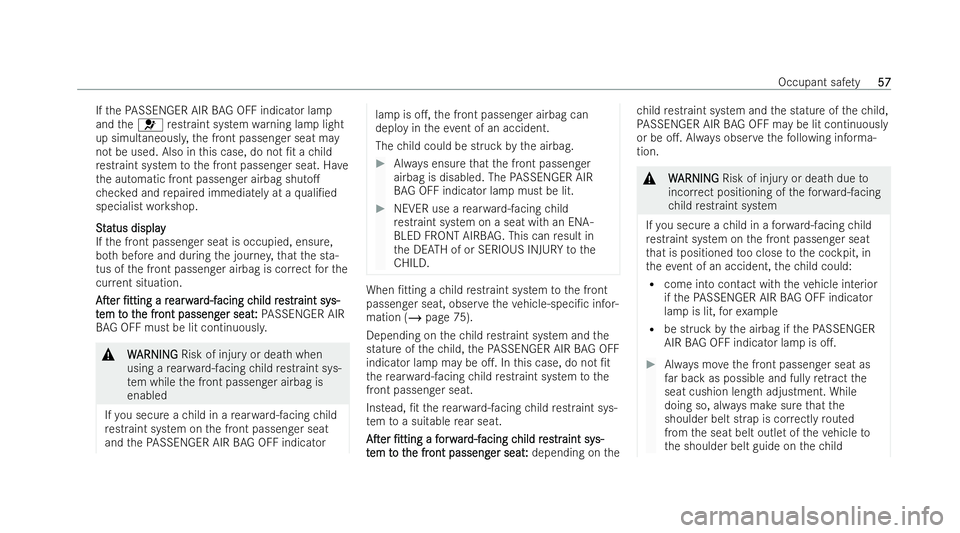

If
th ePA SSENGER AIR BAG OFF indicator la mp
and the6 restraint system warning lamp light
up simultaneousl y,the front passenger seat may
not be used. Also in this case, do not /t a child
re straint system tothe front passenger seat. Ha ve
th e automatic front passenger airbag shuto.
ch ecked and repaired immediately at a quali/ed
specialist workshop.
S
S t
tatus display
atus display
If th e front passenger seat is occupied, ensure,
bo th before and during the journe y,that the sta-
tus of the front passenger airbag is cor rect forthe
cur rent situation.
ATer
ATer /tting
/tting a r
a rearw
earw ar
ard-f
d-f acing c
acing c hild r
hild res
estrtraint sy
aint sy s-
s-
t
t em t
em t o t
o the fr
he fr ont passeng
ont passeng er seat
er seat::PA SSENGER AIR
BAG OFF must be lit continuous ly.&
W
WARNI NG
ARNI NGRisk of injury or dea thwhen
using a rear wa rd-facing child restraint sys-
te m while the front passenger airbag is
enabled
If yo u secure a child in a rear wa rd-facing child
re straint system on the front passenger seat
and thePA SSENGER AIR BAG OFF indicator la
mp is o., the front passenger airbag can
deploy in theev ent of an accident.
The child could be struck bythe airbag. #
Always ensu rethat the front passenger
airbag is disabled. The PASSENGER AIR
BAG OFF indicator la mpmust be lit. #
NEVER use a rear wa rd-facing child
re straint system on a seat wi than ENA-
BLED FRONT AIR BAG. This can result in
th e DEATH of or SERIOUS INJURY tothe
CHILD. When /tting a
child restraint system tothe front
passenger seat, obser vetheve hicle-speci/c infor-
mation (/ page 75).
Depending on thech ild restraint system and the
stature of thech ild, thePA SSENGER AIR BAG OFF
indicator la mpmay be o.. In this case, do not /t
th ere ar wa rd-facing child restraint system tothe
front passenger seat.
Instead, /t there ar wa rd-facing child restraint sys-
te m to a suitable rear seat.
ATer
ATer /tting
/tting a f a forw
orw ar
ard-f
d-f acing c
acing c hild r
hild res
estr
traint sy
aint sy s-
s-
t
t em t
em t o t
o the fr
he fr ont passeng
ont passeng er seat
er seat::depending on thech
ild restraint system and the stature of thech ild,
PA SSENGER AIR BAG OFF may be lit continuous ly
or be o.. Alw ays obser vethefo llowing informa-
tion. &
W
WARNING
ARNING Risk of injury or death due to
incor rect positioning of thefo rw ard-facing
ch ild restraint system
If yo u secure a child in a forw ard-facing child
re straint system on the front passenger seat
th at is positioned too close tothe cockpit, in
th eeve nt of an accident, thech ild could:
R come into contact with theve hicle interior
if th ePA SSENGER AIR BAG OFF indicator
la mp is lit, forex ample
R be st ruck bythe airbag if thePA SSENGER
AIR BAG OFF indicator la mpis o.. #
Always mo vethe front passenger seat as
fa r back as possible and fully retract the
seat cushion length adjustment. While
doing so, alw ays make sure that the
shoulder belt st rap is cor rectly routed
from the seat belt outlet of theve hicle to
th e shoulder belt guide on thech ild Occupant saf
ety
57 57
