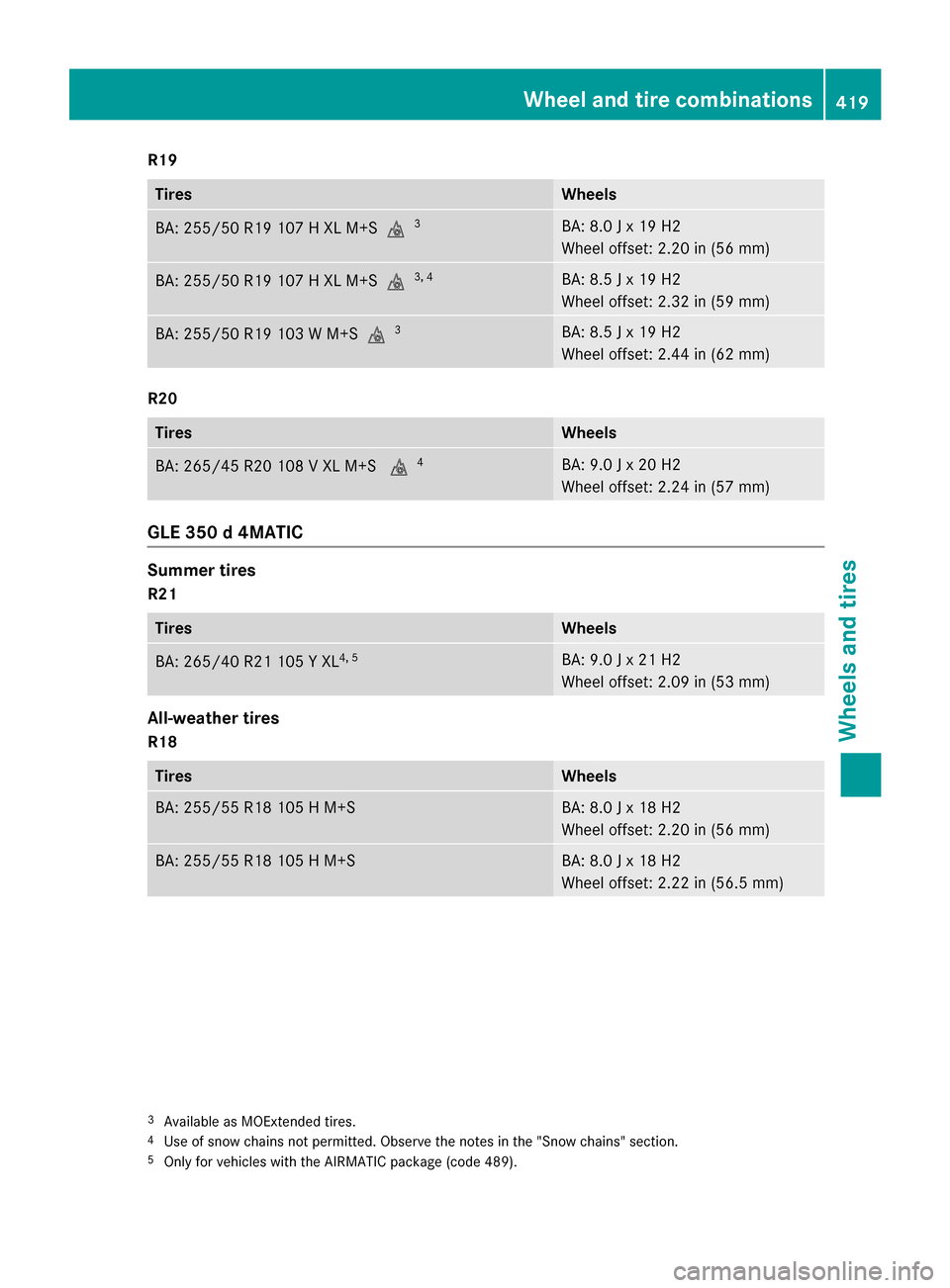

MERCEDES-BENZ GLE-Class 2016 W218 Owner's Manual

R19
TiresWheels
BA: 255/50 R19 107 H XL M+Si3BA: 8.0 J x 19 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/50 R19 107 H XL M+Si3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R19 103 W M+Si3BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
R20
TiresWheels
BA: 265/45 R20 108 V XL M+S i4BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
GLE 350 d 4MATIC
Summer tires
R21
TiresWheels
BA: 265/40 R21 105 Y XL4, 5BA: 9.0 J x 21 H2
Wheel offset: 2.09 in (53 mm)
All-weather tires
R18
TiresWheels
BA: 255/55 R18 105 H M+SBA: 8.0 J x 18 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/55 R18 105 H M+SBA: 8.0 J x 18 H2
Wheel offset: 2.22 in (56.5 mm)
3Available as MOExtended tires.4Use of snow chains not permitted. Observe the notes in the "Snow chains" section.5Only for vehicles with the AIRMATIC package (code 489).
Wheel and tire combinations419
Wheels and tires
Z

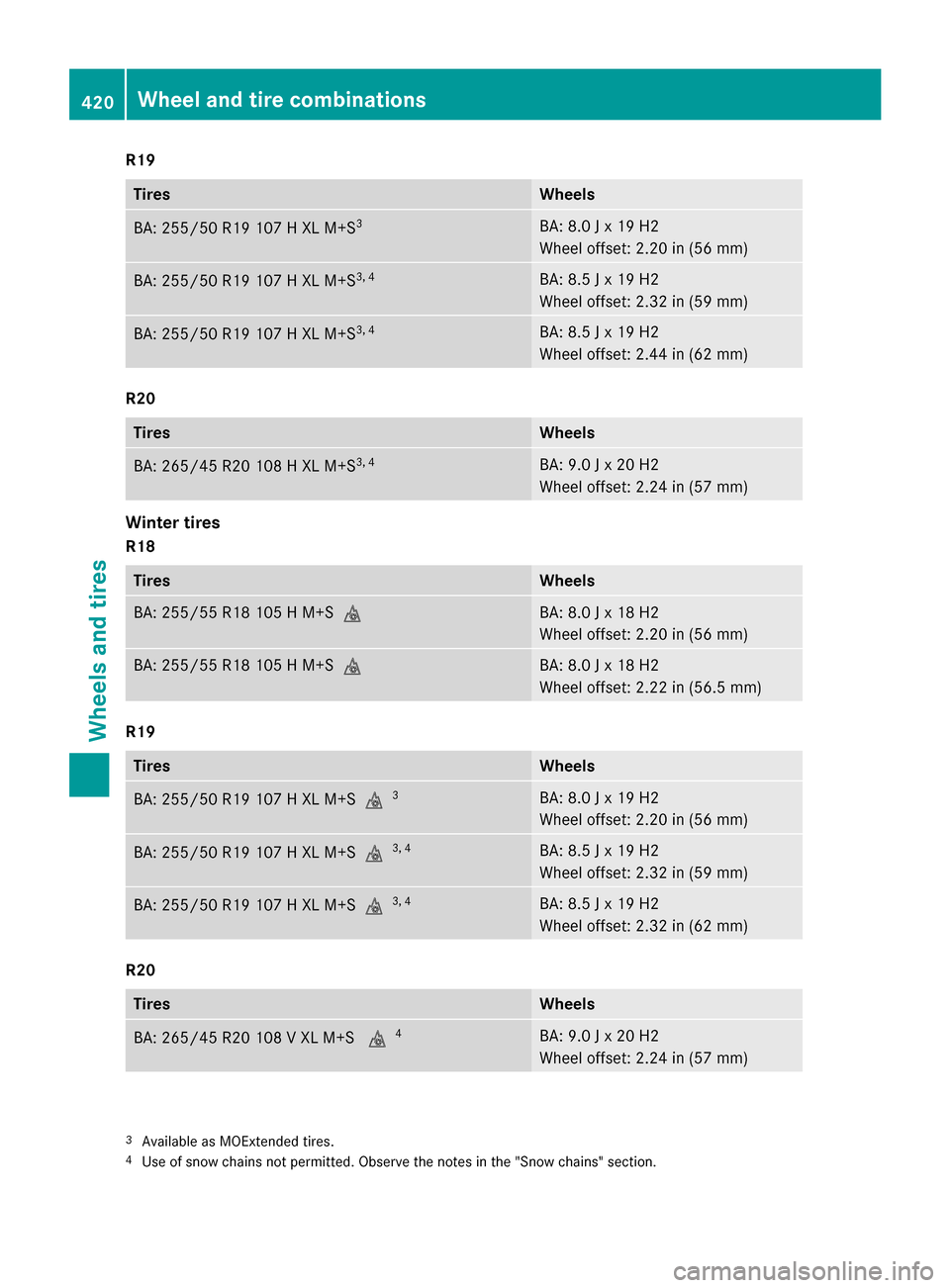

R19
TiresWheels
BA: 255/50 R19 107 H XL M+S3BA: 8.0 J x 19 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/50 R19 107 H XL M+S3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R19 107 H XL M+S3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
R20
TiresWheels
BA: 265/45 R20 108 H XL M+S3, 4BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
Winter tires
R18
TiresWheels
BA: 255/55 R18 105 H M+SiBA: 8.0 J x 18 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/55 R18 105 H M+SiBA: 8.0 J x 18 H2
Wheel offset: 2.22 in (56.5 mm)
R19
TiresWheels
BA: 255/50 R19 107 H XL M+S i3BA: 8.0 J x 19 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/50 R19 107 H XL M+Si3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R19 107 H XL M+Si3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (62 mm)
R20
TiresWheels
BA: 265/45 R20 108 V XL M+S i4BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
3Available as MOExtended tires.4Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
420Wheel and tire combinations
Wheels and tires

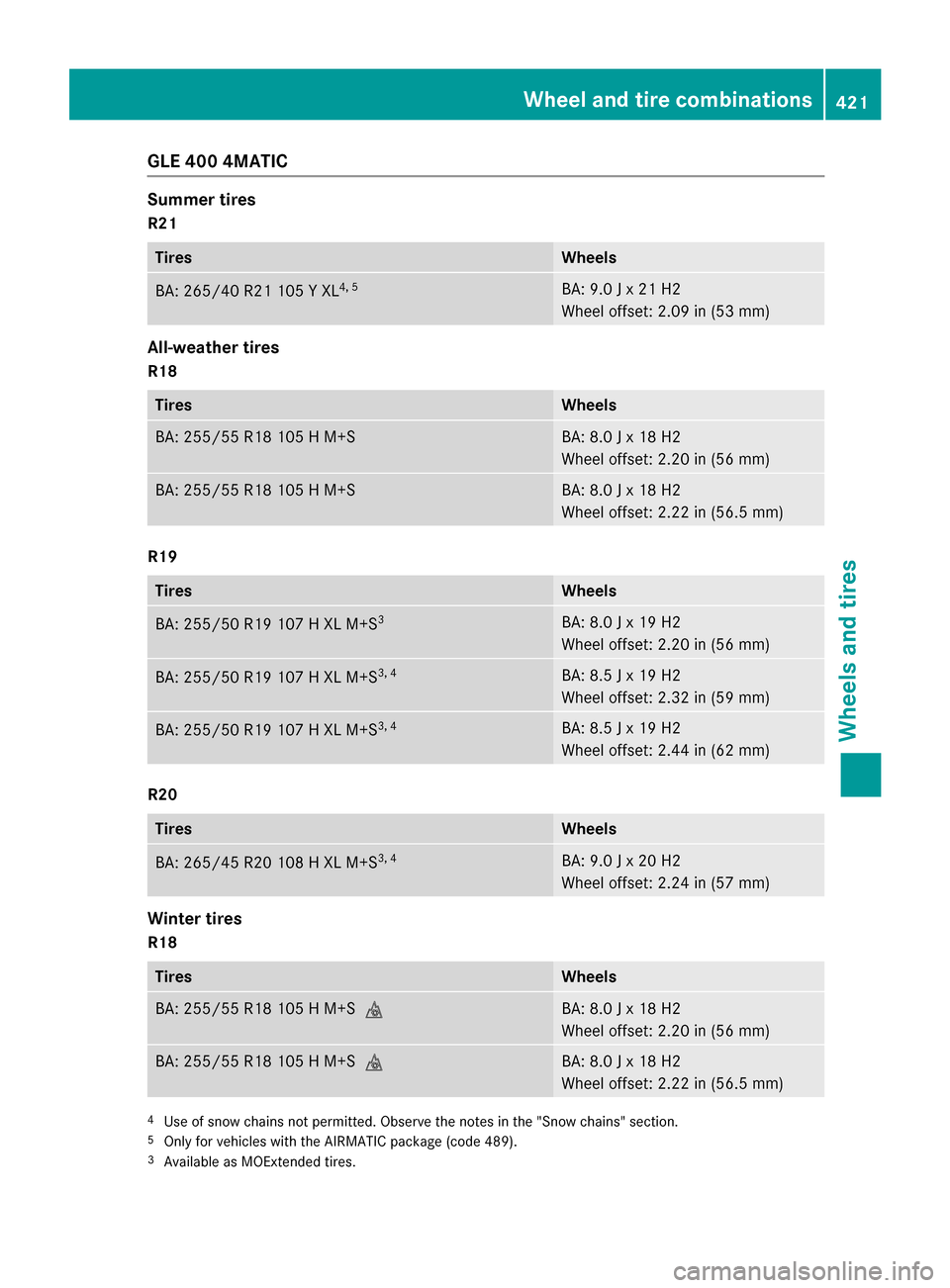

GLE 400 4MATIC
Summer tires
R21
TiresWheels
BA: 265/40 R21 105 Y XL4, 5BA: 9.0 J x 21 H2
Wheel offset: 2.09 in (53 mm)
All-weather tires
R18
TiresWheels
BA: 255/55 R18 105 H M+SBA: 8.0 J x 18 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/55 R18 105 H M+SBA: 8.0 J x 18 H2
Wheel offset: 2.22 in (56.5 mm)
R19
TiresWheels
BA: 255/50 R19 107 H XL M+S3BA: 8.0 J x 19 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/50 R19 107 H XL M+S3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R19 107 H XL M+S3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
R20
TiresWheels
BA: 265/45 R20 108 H XL M+S3, 4BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
Winter tires
R18
TiresWheels
BA: 255/55 R18 105 H M+SiBA: 8.0 J x 18 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/55 R18 105 H M+SiBA: 8.0 J x 18 H2
Wheel offset: 2.22 in (56.5 mm)
4Use of snow chains not permitted. Observe the notes in the "Snow chains" section.5Only for vehicles with the AIRMATIC package (code 489).3Available as MOExtended tires.
Wheel and tire combinations421
Wheels and tires
Z

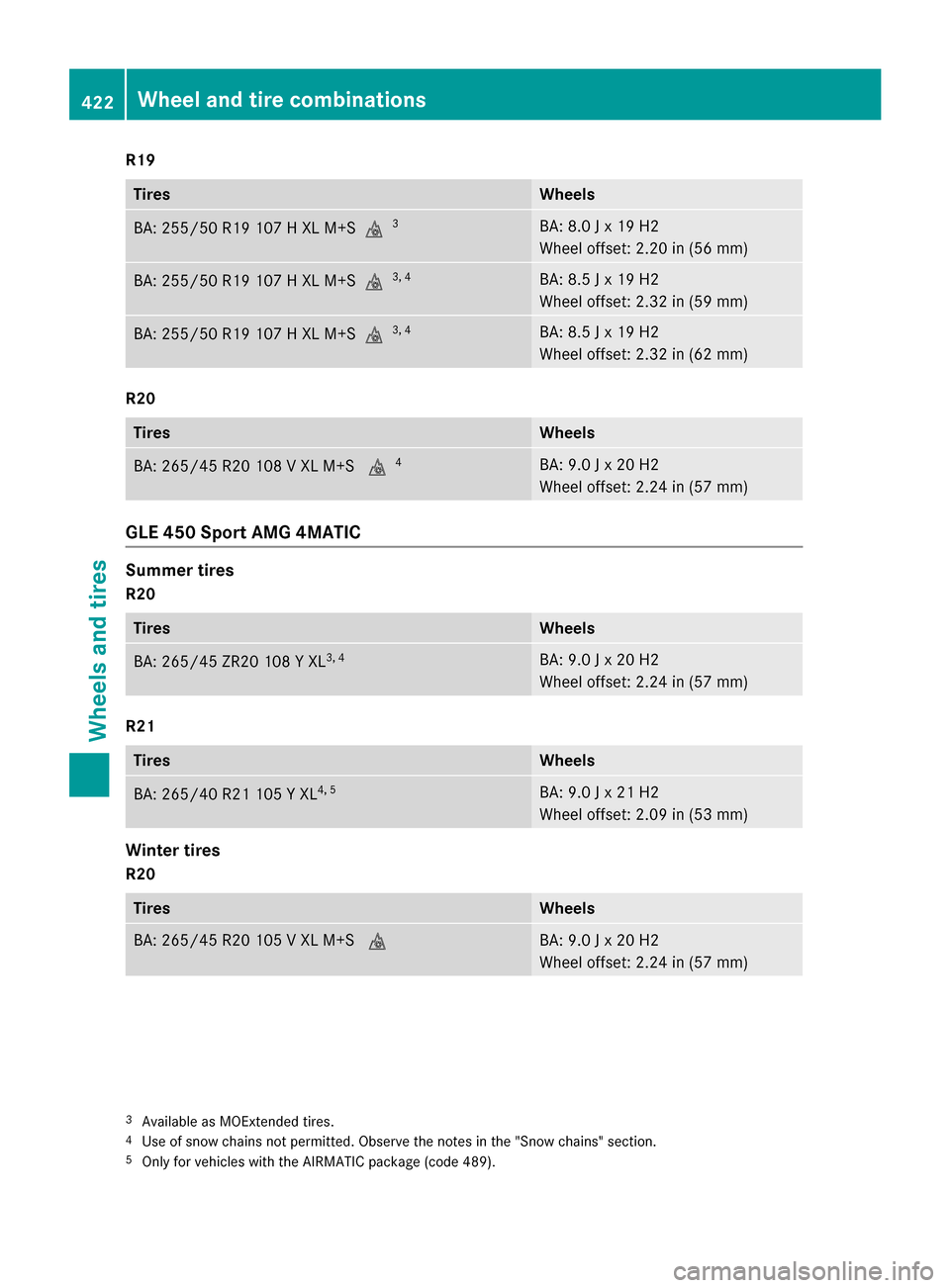

R19
TiresWheels
BA: 255/50 R19 107 H XL M+Si3BA: 8.0 J x 19 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/50 R19 107 H XL M+Si3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R19 107 H XL M+Si3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (62 mm)
R20
TiresWheels
BA: 265/45 R20 108 V XL M+S i4BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
GLE 450 Sport AMG 4MATIC
Summer tires
R20
TiresWheels
BA: 265/45 ZR20 108 Y XL3, 4BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
R21
TiresWheels
BA: 265/40 R21 105 Y XL4, 5BA: 9.0 J x 21 H2
Wheel offset: 2.09 in (53 mm)
Winter tires
R20
TiresWheels
BA: 265/45 R20 105 V XL M+SiBA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
3Available as MOExtended tires.4Use of snow chains not permitted. Observe the notes in the "Snow chains" section.5Only for vehicles with the AIRMATIC package (code 489).
422Wheel and tire combinations
Wheels and tires

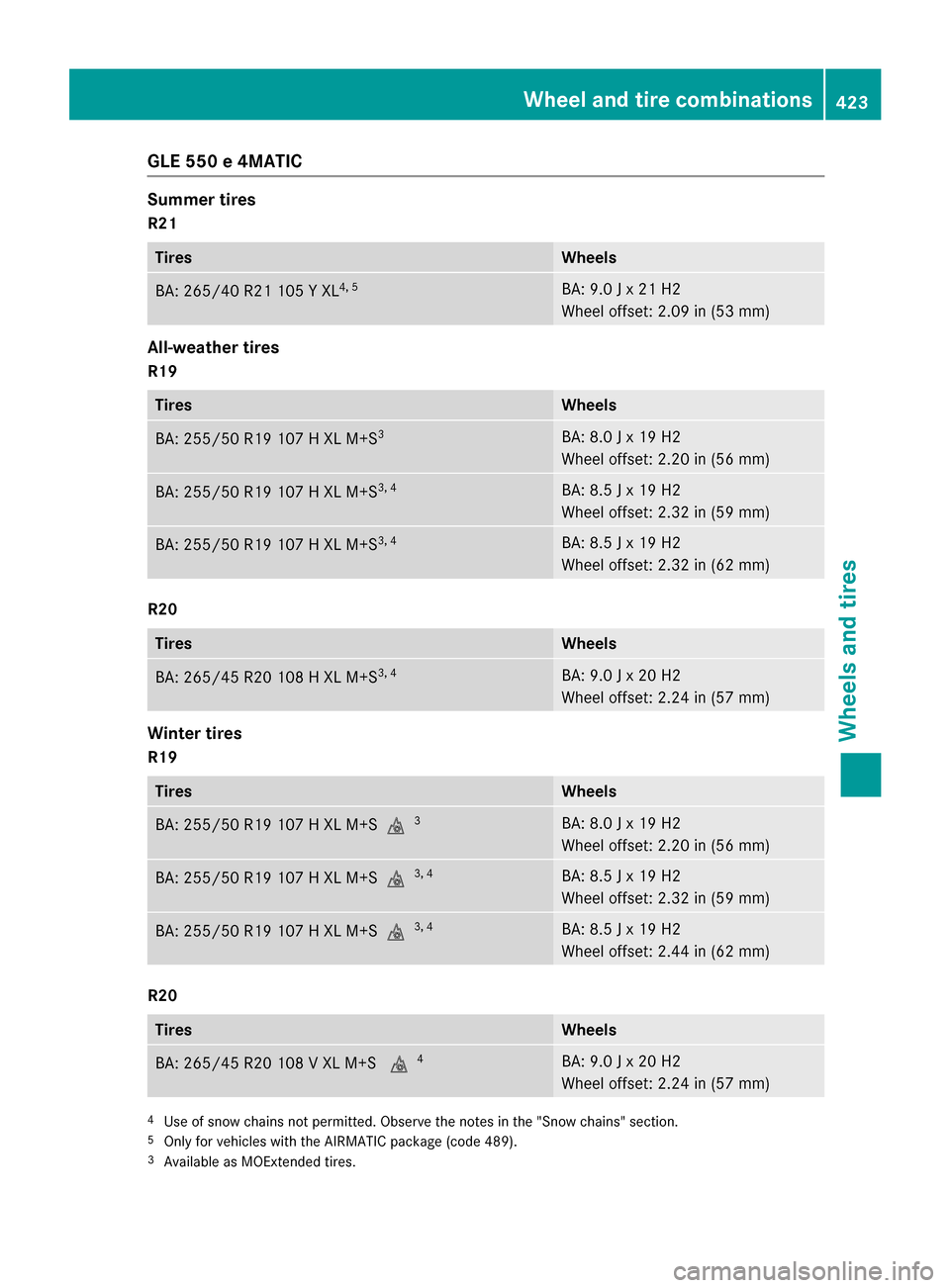

GLE 550 e 4MATIC
Summer tires
R21
TiresWheels
BA: 265/40 R21 105 Y XL4, 5BA: 9.0 J x 21 H2
Wheel offset: 2.09 in (53 mm)
All-weather tires
R19
TiresWheels
BA: 255/50 R19 107 H XL M+S3BA: 8.0 J x 19 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/50 R19 107 H XL M+S3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R19 107 H XL M+S3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (62 mm)
R20
TiresWheels
BA: 265/45 R20 108 H XL M+S3, 4BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
Winter tires
R19
TiresWheels
BA: 255/50 R19 107 H XL M+Si3BA: 8.0 J x 19 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/50 R19 107 H XL M+Si3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R19 107 H XL M+Si3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
R20
TiresWheels
BA: 265/45 R20 108 V XL M+Si4BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
4Use of snow chains not permitted. Observe the notes in the "Snow chains" section.5Only for vehicles with the AIRMATIC package (code 489).3Available as MOExtended tires.
Wheel and tire combinations423
Wheels and tires
Z

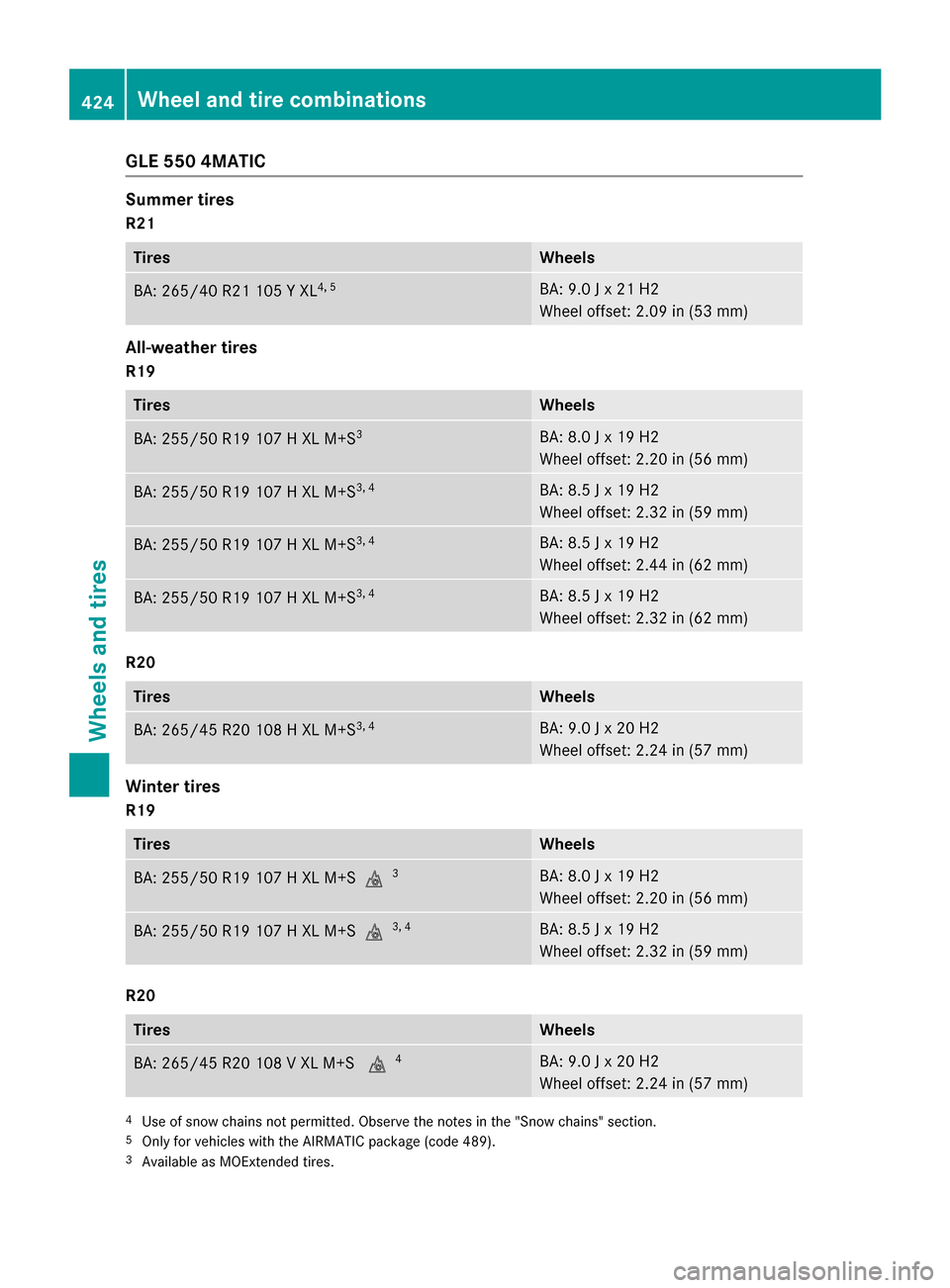

GLE 550 4MATIC
Summer tires
R21
TiresWheels
BA: 265/40 R21 105 Y XL4, 5BA: 9.0 J x 21 H2
Wheel offset: 2.09 in (53 mm)
All-weather tires
R19
TiresWheels
BA: 255/50 R19 107 H XL M+S3BA: 8.0 J x 19 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/50 R19 107 H XL M+S3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R19 107 H XL M+S3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
BA: 255/50 R19 107 H XL M+S3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (62 mm)
R20
TiresWheels
BA: 265/45 R20 108 H XL M+S3, 4BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
Winter tires
R19
TiresWheels
BA: 255/50 R19 107 H XL M+Si3BA: 8.0 J x 19 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/50 R19 107 H XL M+Si3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
R20
TiresWheels
BA: 265/45 R20 108 V XL M+Si4BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
4Use of snow chains not permitted. Observe the notes in the "Snow chains" section.5Only for vehicles with the AIRMATIC package (code 489).3Available as MOExtended tires.
424Wheel and tire combinations
Wheels and tires

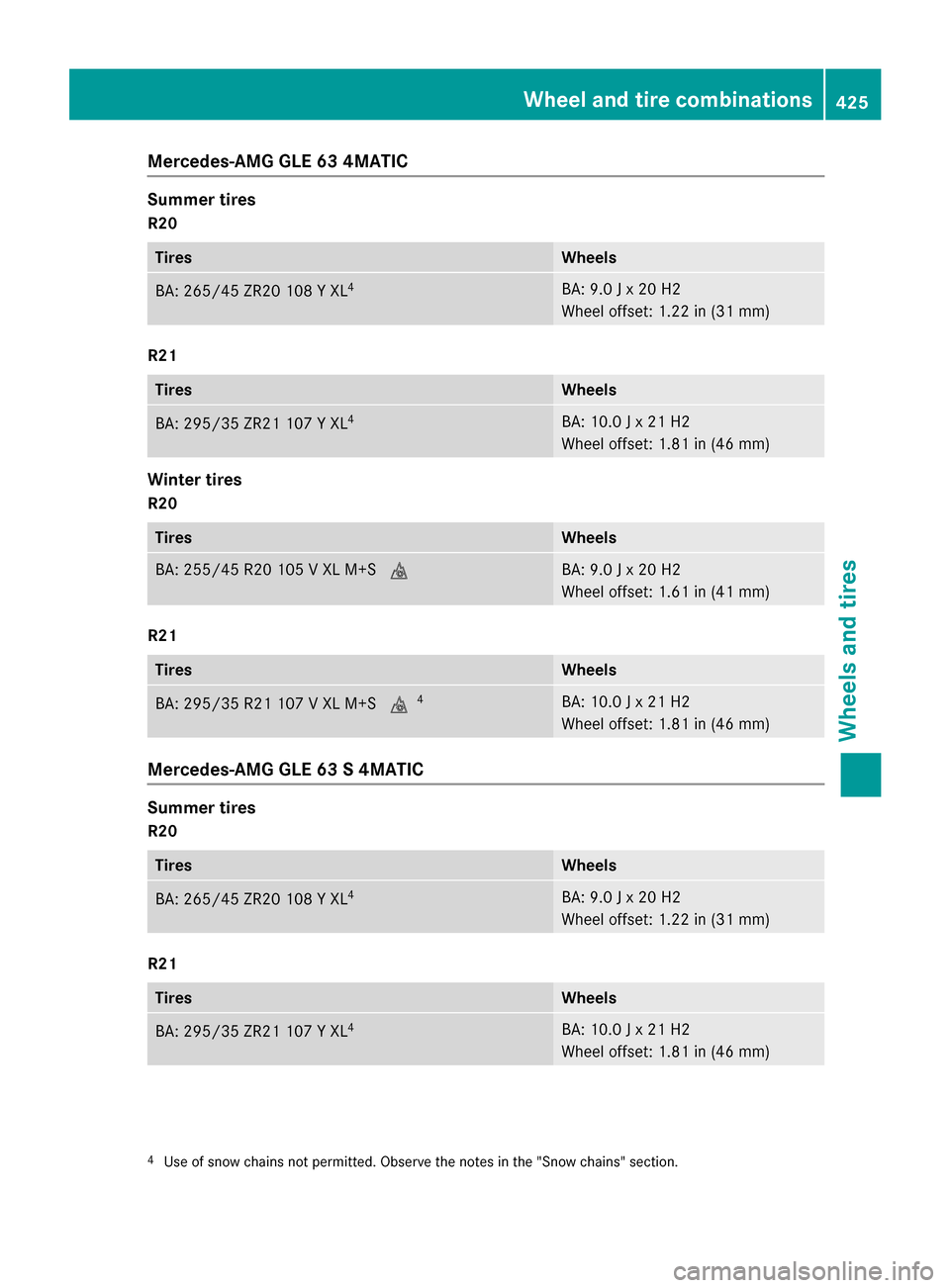

Mercedes-AMG GLE 63 4MATIC
Summer tires
R20
TiresWheels
BA: 265/45 ZR20 108 Y XL4BA: 9.0 J x 20 H2
Wheel offset: 1.22 in (31 mm)
R21
TiresWheels
BA: 295/35 ZR21 107 Y XL4BA: 10.0 J x 21 H2
Wheel offset: 1.81 in (46 mm)
Winter tires
R20
TiresWheels
BA: 255/45 R20 105 V XL M+SiBA: 9.0 J x 20 H2
Wheel offset: 1.61 in (41 mm)
R21
TiresWheels
BA: 295/35 R21 107 V XL M+Si4BA: 10.0 J x 21 H2
Wheel offset: 1.81 in (46 mm)
Mercedes-AMG GLE 63 S 4MATIC
Summer tires
R20
TiresWheels
BA: 265/45 ZR20 108 Y XL4BA: 9.0 J x 20 H2
Wheel offset: 1.22 in (31 mm)
R21
TiresWheels
BA: 295/35 ZR21 107 Y XL4BA: 10.0 J x 21 H2
Wheel offset: 1.81 in (46 mm)
4Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
Wheel and tire combinations425
Wheels and tires
Z

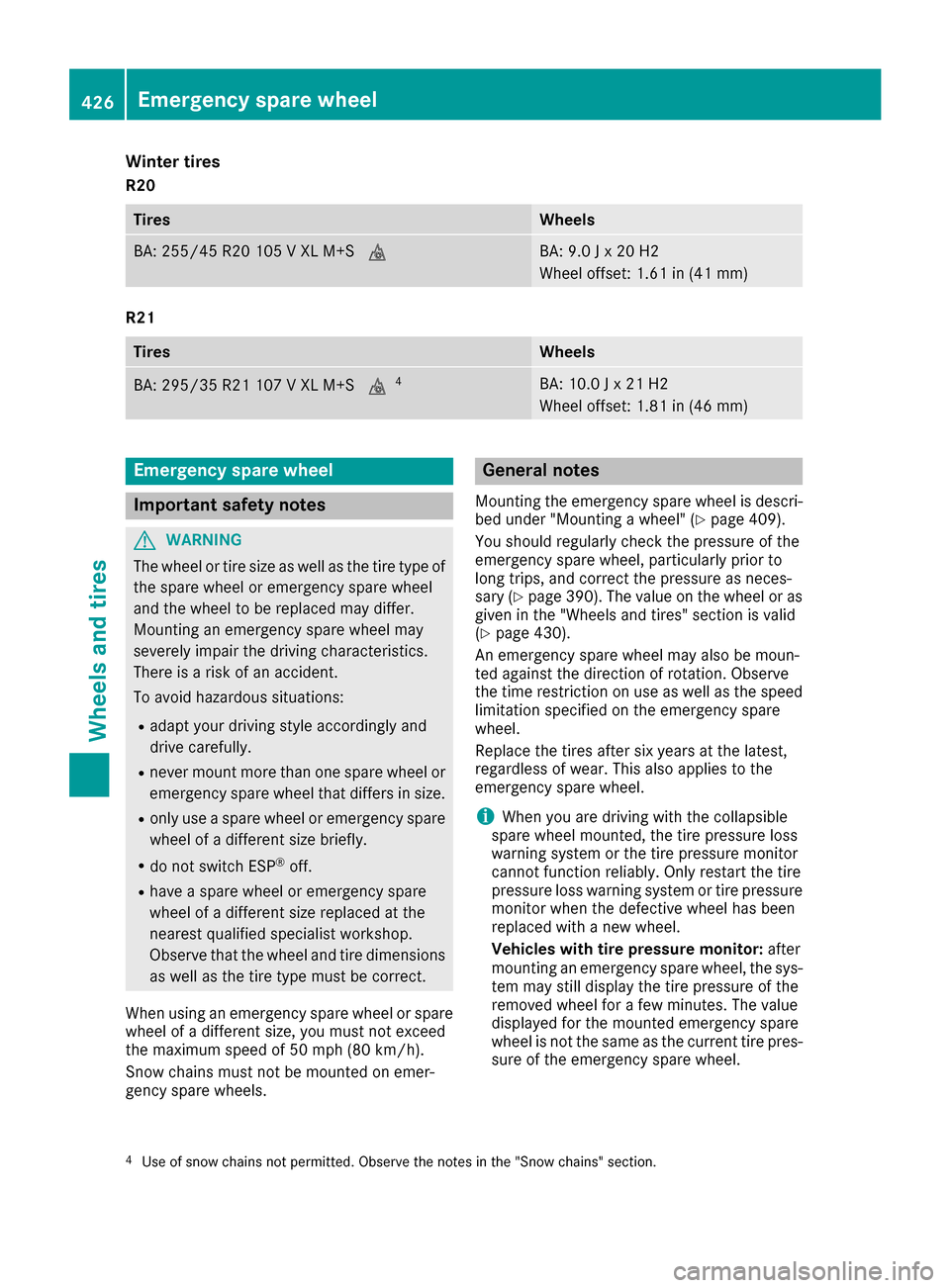

Winter tires
R20
TiresWheels
BA: 255/45 R20 105 V XL M+SiBA: 9.0 J x 20 H2
Wheel offset: 1.61 in (41 mm)
R21
TiresWheels
BA: 295/35 R21 107 V XL M+Si4BA: 10.0 J x 21 H2
Wheel offset: 1.81 in (46 mm)
Emergency spare wheel
Important safety notes
GWARNING
The wheel or tire size as well as the tire type of the spare wheel or emergency spare wheel
and the wheel to be replaced may differ.
Mounting an emergency spare wheel may
severely impair the driving characteristics.
There is a risk of an accident.
To avoid hazardous situations:
Radapt your driving style accordingly and
drive carefully.
Rnever mount more than one spare wheel or
emergency spare wheel that differs in size.
Ronly use a spare wheel or emergency spare
wheel of a different size briefly.
Rdo not switch ESP®off.
Rhave a spare wheel or emergency spare
wheel of a different size replaced at the
nearest qualified specialist workshop.
Observe that the wheel and tire dimensions
as well as the tire type must be correct.
When using an emergency spare wheel or spare
wheel of a different size, you must not exceed
the maximum speed of 50 mph (80 km/h).
Snow chains must not be mounted on emer-
gency spare wheels.
General notes
Mounting the emergency spare wheel is descri- bed under "Mounting a wheel" (Ypage 409).
You should regularly check the pressure of the
emergency spare wheel, particularly prior to
long trips, and correct the pressure as neces-
sary (
Ypage 390). The value on the wheel or as
given in the "Wheels and tires" section is valid
(
Ypage 430).
An emergency spare wheel may also be moun-
ted against the direction of rotation. Observe
the time restriction on use as well as the speed
limitation specified on the emergency spare
wheel.
Replace the tires after six years at the latest,
regardless of wear. This also applies to the
emergency spare wheel.
iWhen you are driving with the collapsible
spare wheel mounted, the tire pressure loss
warning system or the tire pressure monitor
cannot function reliably. Only restart the tire
pressure loss warning system or tire pressure
monitor when the defective wheel has been
replaced with a new wheel.
Vehicles with tire pressure monitor: after
mounting an emergency spare wheel, the sys-
tem may still display the tire pressure of the
removed wheel for a few minutes. The value
displayed for the mounted emergency spare
wheel is not the same as the current tire pres-
sure of the emergency spare wheel.
4Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
426Emergency spare wheel
Wheels and tires

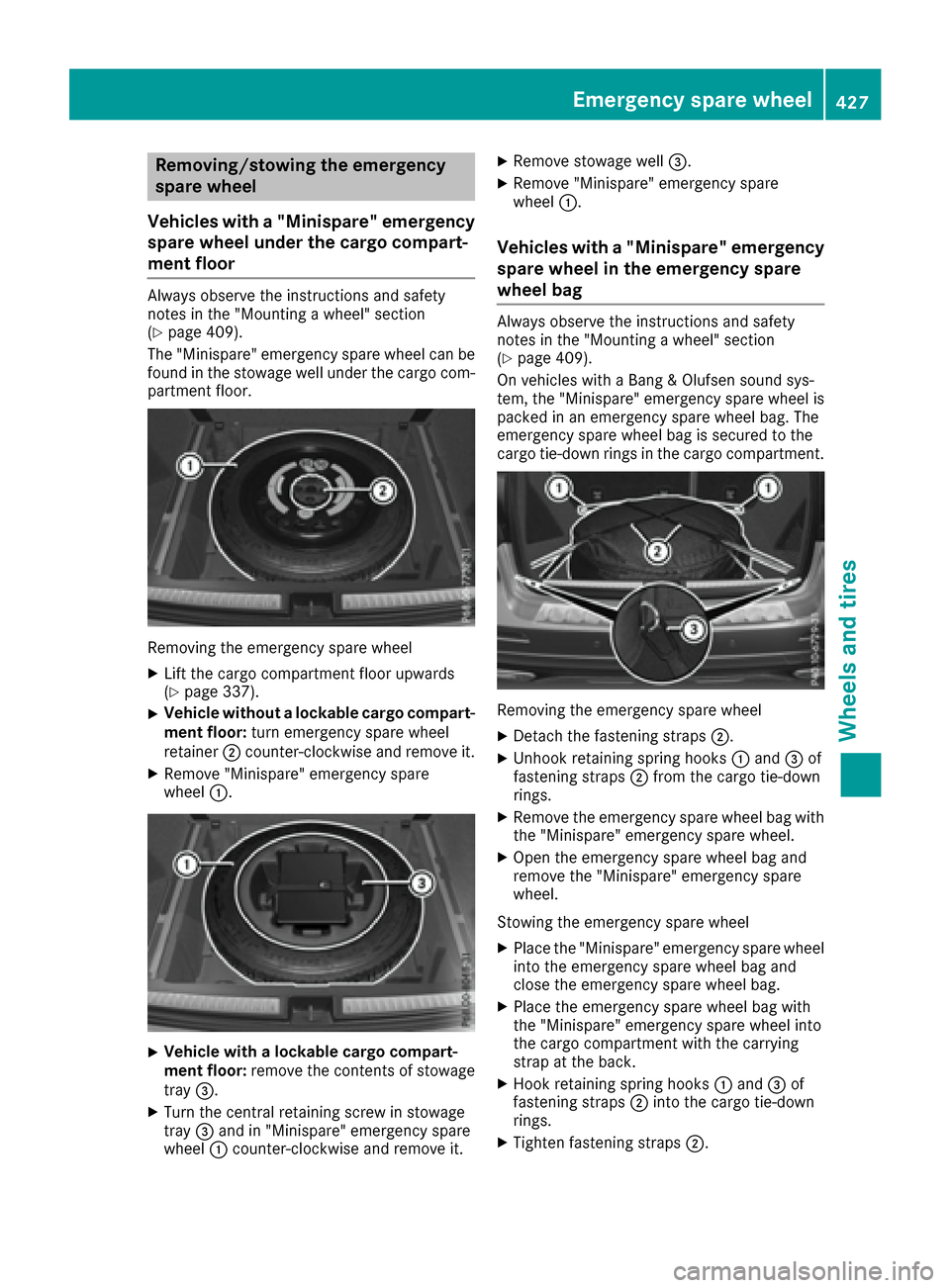

Removing/stowing the emergency
spare wheel
Vehicles with a "Minispare" emergency
spare wheel under the cargo compart-
ment floor
Always observe the instructions and safety
notes in the "Mounting a wheel" section
(
Ypage 409).
The "Minispare" emergency spare wheel can be
found in the stowage well under the cargo com-
partment floor.
Removing the emergency spare wheel
XLift the cargo compartment floor upwards
(Ypage 337).
XVehicle without a lockable cargo compart-
ment floor: turn emergency spare wheel
retainer ;counter-clockwise and remove it.
XRemove "Minispare" emergency spare
wheel :.
XVehicle with a lockable cargo compart-
ment floor: remove the contents of stowage
tray =.
XTurn the central retaining screw in stowage
tray=and in "Minispare" emergency spare
wheel :counter-clockwise and remove it.
XRemove stowage well =.
XRemove "Minispare" emergency spare
wheel:.
Vehicles with a "Minispare" emergency
spare wheel in the emergency spare
wheel bag
Always observe the instructions and safety
notes in the "Mounting a wheel" section
(
Ypage 409).
On vehicles with a Bang & Olufsen sound sys-
tem, the "Minispare" emergency spare wheel is
packed in an emergency spare wheel bag. The
emergency spare wheel bag is secured to the
cargo tie-down rings in the cargo compartment.
Removing the emergency spare wheel
XDetach the fastening straps ;.
XUnhook retaining spring hooks :and =of
fastening straps ;from the cargo tie-down
rings.
XRemove the emergency spare wheel bag with the "Minispare" emergency spare wheel.
XOpen the emergency spare wheel bag and
remove the "Minispare" emergency spare
wheel.
Stowing the emergency spare wheel
XPlace the "Minispare" emergency spare wheel
into the emergency spare wheel bag and
close the emergency spare wheel bag.
XPlace the emergency spare wheel bag with
the "Minispare" emergency spare wheel into
the cargo compartment with the carrying
strap at the back.
XHook retaining spring hooks :and =of
fastening straps ;into the cargo tie-down
rings.
XTighten fastening straps ;.
Emergency spare wheel427
Wheels and tires
Z

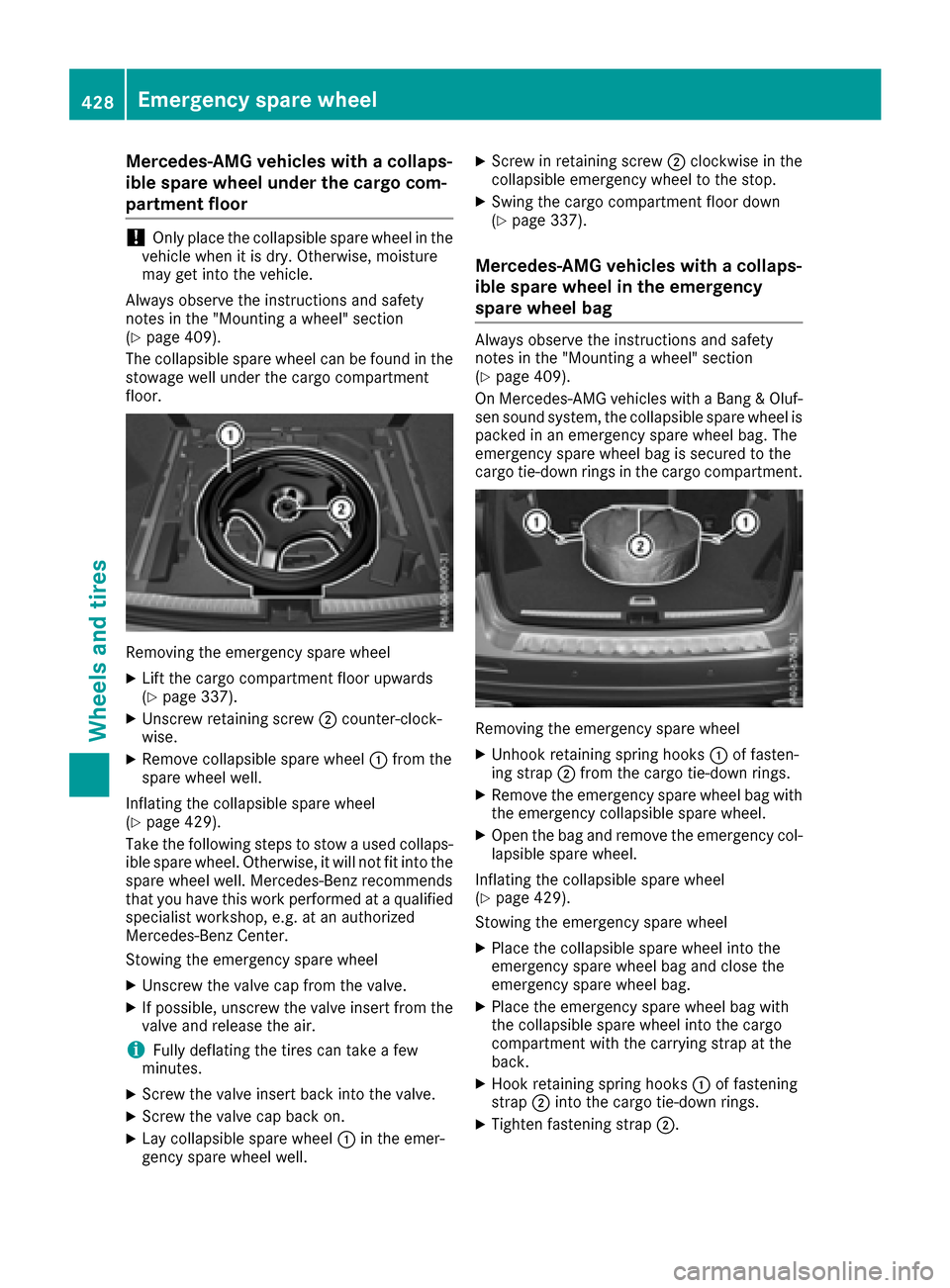

Mercedes-AMG vehicles with a collaps-
ible spare wheel under the cargo com-
partment floor
!Only place the collapsible spare wheel in the
vehicle when it is dry. Otherwise, moisture
may get into the vehicle.
Always observe the instructions and safety
notes in the "Mounting a wheel" section
(
Ypage 409).
The collapsible spare wheel can be found in the
stowage well under the cargo compartment
floor.
Removing the emergency spare wheel
XLift the cargo compartment floor upwards
(Ypage 337).
XUnscrew retaining screw ;counter-clock-
wise.
XRemove collapsible spare wheel :from the
spare wheel well.
Inflating the collapsible spare wheel
(
Ypage 429).
Take the following steps to stow a used collaps- ible spare wheel. Otherwise, it will not fit into the
spare wheel well. Mercedes-Benz recommends
that you have this work performed at a qualified
specialist workshop, e.g. at an authorized
Mercedes-Benz Center.
Stowing the emergency spare wheel
XUnscrew the valve cap from the valve.
XIf possible, unscrew the valve insert from the
valve and release the air.
iFully deflating the tires can take a few
minutes.
XScrew the valve insert back into the valve.
XScrew the valve cap back on.
XLay collapsible spare wheel :in the emer-
gency spare wheel well.
XScrew in retaining screw ;clockwise in the
collapsible emergency wheel to the stop.
XSwing the cargo compartment floor down
(Ypage 337).
Mercedes-AMG vehicles with a collaps-
ible spare wheel in the emergency
spare wheel bag
Always observe the instructions and safety
notes in the "Mounting a wheel" section
(
Ypage 409).
On Mercedes-AMG vehicles with a Bang & Oluf-
sen sound system, the collapsible spare wheel is packed in an emergency spare wheel bag. The
emergency spare wheel bag is secured to the
cargo tie-down rings in the cargo compartment.
Removing the emergency spare wheel
XUnhook retaining spring hooks :of fasten-
ing strap ;from the cargo tie-down rings.
XRemove the emergency spare wheel bag with
the emergency collapsible spare wheel.
XOpen the bag and remove the emergency col-
lapsible spare wheel.
Inflating the collapsible spare wheel
(
Ypage 429).
Stowing the emergency spare wheel
XPlace the collapsible spare wheel into the
emergency spare wheel bag and close the
emergency spare wheel bag.
XPlace the emergency spare wheel bag with
the collapsible spare wheel into the cargo
compartment with the carrying strap at the
back.
XHook retaining spring hooks :of fastening
strap ;into the cargo tie-down rings.
XTighten fastening strap ;.
428Emergency spare wheel
Wheels and tires
