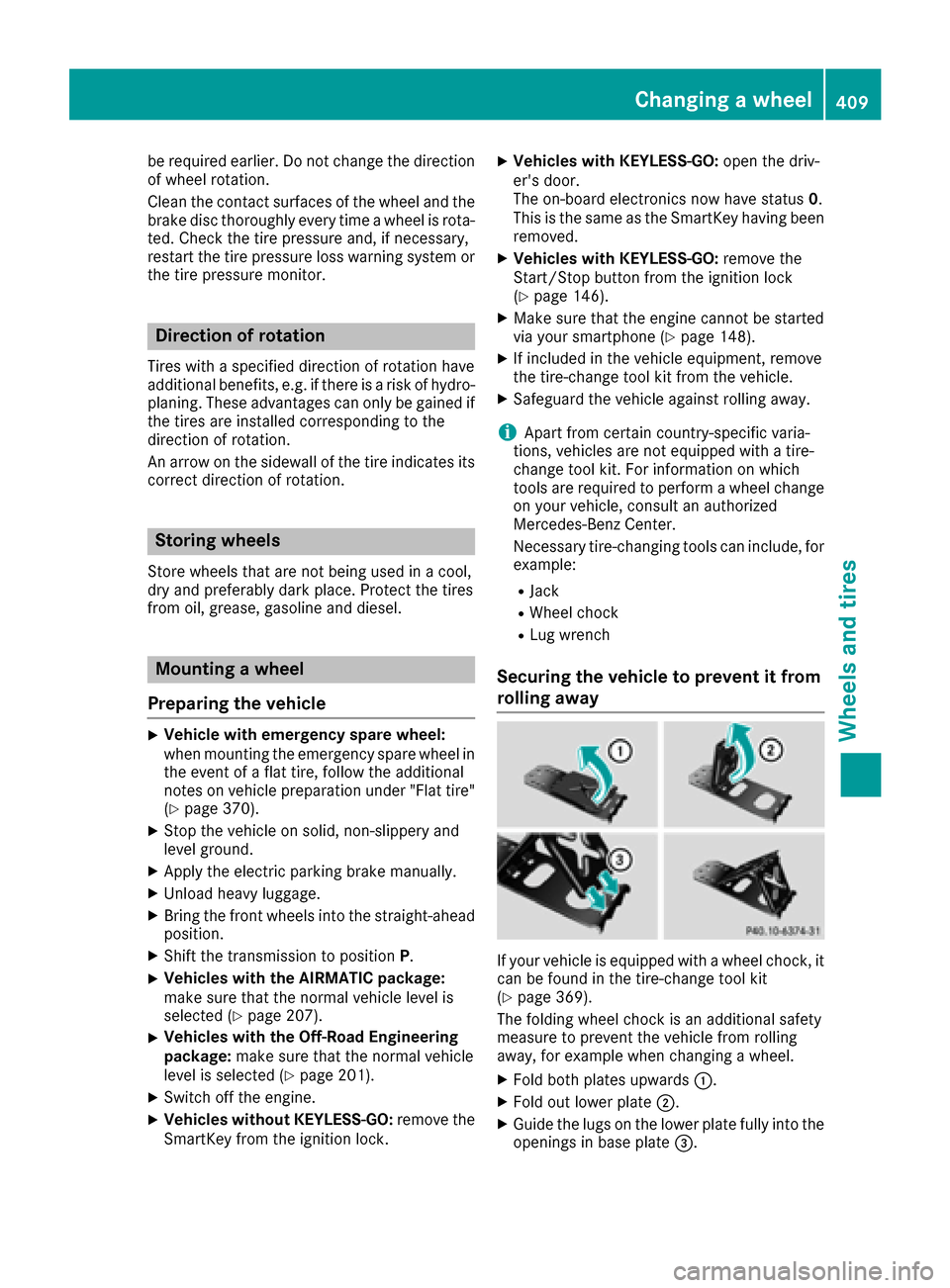

Page 411 of 450

be required earlier. Do not change the direction
of wheel rotation.
Clean the contact surfaces of the wheel and the
brake disc thoroughly every time a wheel is rota-ted. Check the tire pressure and, if necessary,
restart the tire pressure loss warning system or
the tire pressure monitor.
Direction of rotation
Tires with a specified direction of rotation have
additional benefits, e.g. if there is a risk of hydro-
planing. These advantages can only be gained if
the tires are installed corresponding to the
direction of rotation.
An arrow on the sidewall of the tire indicates its
correct direction of rotation.
Storing wheels
Store wheels that are not being used in a cool,
dry and preferably dark place. Protect the tires
from oil, grease, gasoline and diesel.
Mounting a wheel
Preparing the vehicle
XVehicle with emergency spare wheel:
when mounting the emergency spare wheel in
the event of a flat tire, follow the additional
notes on vehicle preparation under "Flat tire"
(
Ypage 370).
XStop the vehicle on solid, non-slippery and
level ground.
XApply the electric parking brake manually.
XUnload heavy luggage.
XBring the front wheels into the straight-ahead position.
XShift the transmission to position P.
XVehicles with the AIRMATIC package:
make sure that the normal vehicle level is
selected (
Ypage 207).
XVehicles with the Off-Road Engineering
package:make sure that the normal vehicle
level is selected (
Ypage 201).
XSwitch off the engine.
XVehicles without KEYLESS-GO: remove the
SmartKey from the ignition lock.
XVehicles with KEYLESS-GO: open the driv-
er's door.
The on-board electronics now have status 0.
This is the same as the SmartKey having been
removed.
XVehicles with KEYLESS-GO: remove the
Start/Stop button from the ignition lock
(
Ypage 146).
XMake sure that the engine cannot be started
via your smartphone (Ypage 148).
XIf included in the vehicle equipment, remove
the tire-change tool kit from the vehicle.
XSafeguard the vehicle against rolling away.
iApart from certain country-specific varia-
tions, vehicles are not equipped with a tire-
change tool kit. For information on which
tools are required to perform a wheel change
on your vehicle, consult an authorized
Mercedes-Benz Center.
Necessary tire-changing tools can include, for example:
RJack
RWheel chock
RLug wrench
Securing the vehicle to prevent it from
rolling away
If your vehicle is equipped with a wheel chock, itcan be found in the tire-change tool kit
(
Ypage 369).
The folding wheel chock is an additional safety
measure to prevent the vehicle from rolling
away, for example when changing a wheel.
XFold both plates upwards :.
XFold out lower plate;.
XGuide the lugs on the lower plate fully into the
openings in base plate =.
Changing a wheel409
Wheels and tires
Z

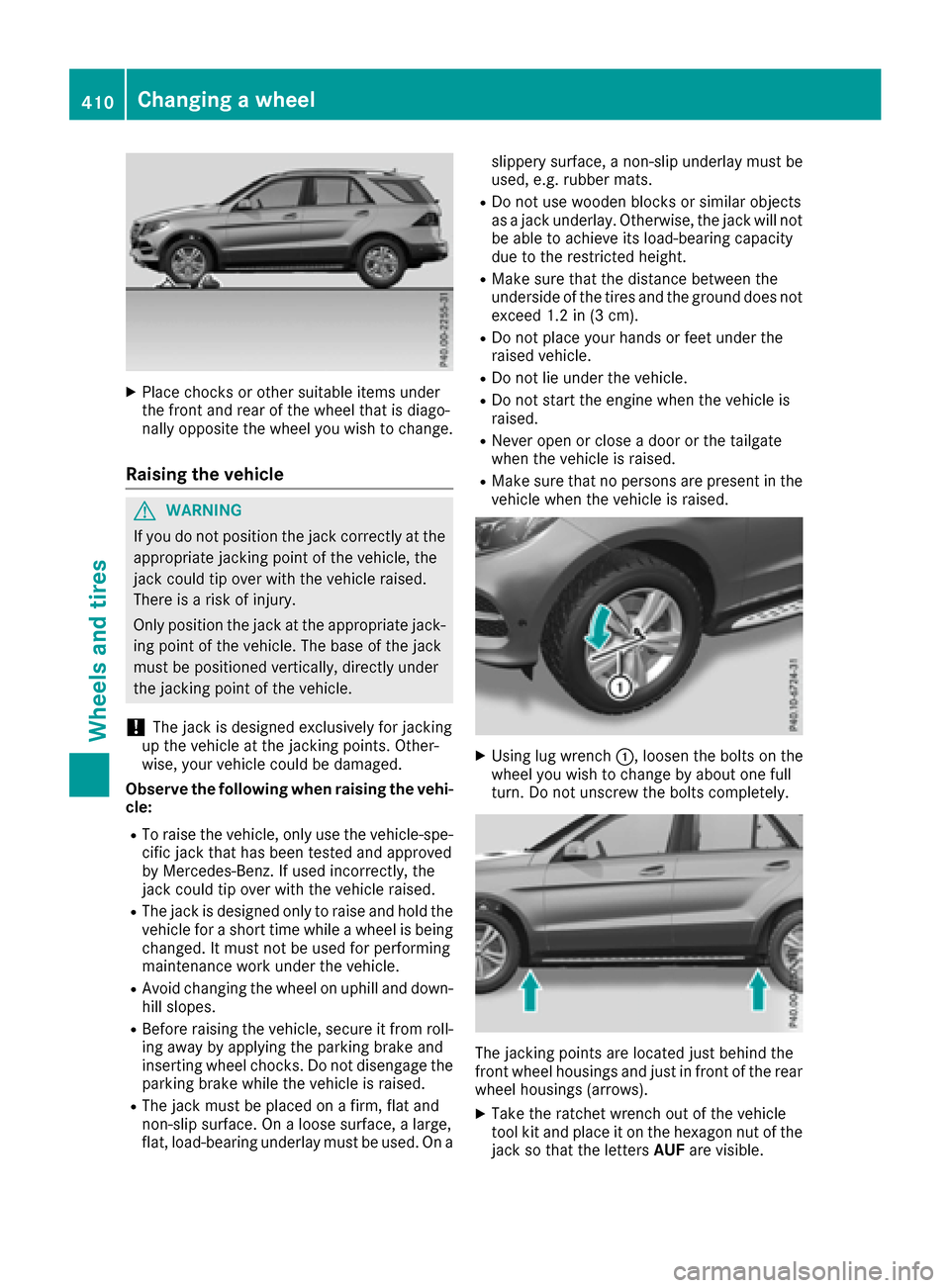

Page 412 of 450

XPlace chocks or other suitable items under
the front and rear of the wheel that is diago-
nally opposite the wheel you wish to change.
Raising the vehicle
GWARNING
If you do not position the jack correctly at the
appropriate jacking point of the vehicle, the
jack could tip over with the vehicle raised.
There is a risk of injury.
Only position the jack at the appropriate jack-
ing point of the vehicle. The base of the jack
must be positioned vertically, directly under
the jacking point of the vehicle.
!The jack is designed exclusively for jacking
up the vehicle at the jacking points. Other-
wise, your vehicle could be damaged.
Observe the following when raising the vehi-
cle:
RTo raise the vehicle, only use the vehicle-spe-
cific jack that has been tested and approved
by Mercedes-Benz. If used incorrectly, the
jack could tip over with the vehicle raised.
RThe jack is designed only to raise and hold the
vehicle for a short time while a wheel is being
changed. It must not be used for performing
maintenance work under the vehicle.
RAvoid changing the wheel on uphill and down-
hill slopes.
RBefore raising the vehicle, secure it from roll-
ing away by applying the parking brake and
inserting wheel chocks. Do not disengage the
parking brake while the vehicle is raised.
RThe jack must be placed on a firm, flat and
non-slip surface. On a loose surface, a large,
flat, load-bearing underlay must be used. On a slippery surface, a non-slip underlay must be
used, e.g. rubber mats.
RDo not use wooden blocks or similar objects
as a jack underlay. Otherwise, the jack will not
be able to achieve its load-bearing capacity
due to the restricted height.
RMake sure that the distance between the
underside of the tires and the ground does not
exceed 1.2 in (3 cm).
RDo not place your hands or feet under the
raised vehicle.
RDo not lie under the vehicle.
RDo not start the engine when the vehicle is
raised.
RNever open or close a door or the tailgate
when the vehicle is raised.
RMake sure that no persons are present in the
vehicle when the vehicle is raised.
XUsing lug wrench :, loosen the bolts on the
wheel you wish to change by about one full
turn. Do not unscrew the bolts completely.
The jacking points are located just behind the
front wheel housings and just in front of the rear
wheel housings (arrows).
XTake the ratchet wrench out of the vehicle
tool kit and place it on the hexagon nut of the
jack so that the letters AUFare visible.
410Changing a wheel
Wheels and tires

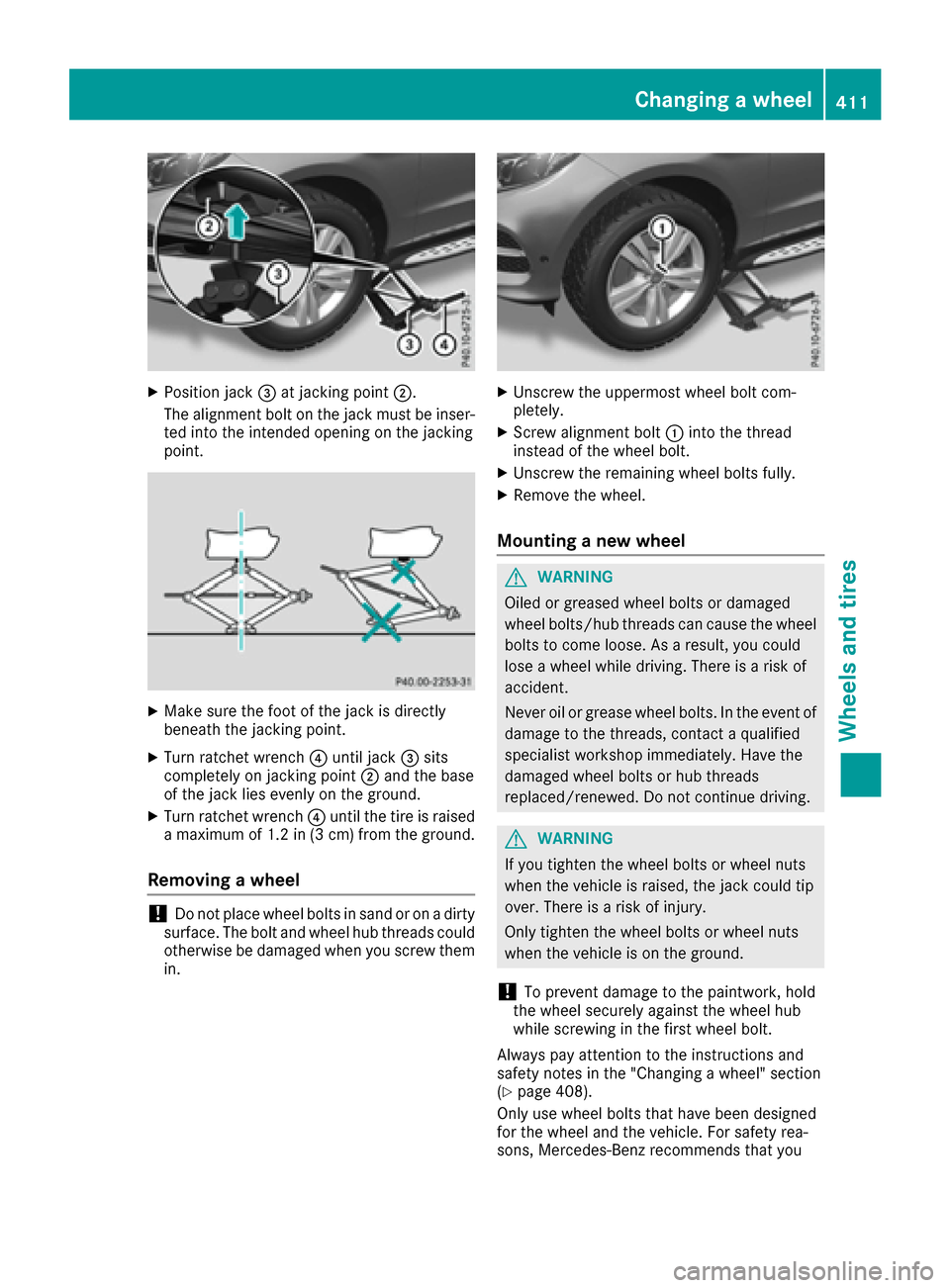

Page 413 of 450

XPosition jack=at jacking point ;.
The alignment bolt on the jack must be inser-
ted into the intended opening on the jacking
point.
XMake sure the foot of the jack is directly
beneath the jacking point.
XTurn ratchet wrench ?until jack =sits
completely on jacking point ;and the base
of the jack lies evenly on the ground.
XTurn ratchet wrench ?until the tire is raised
a maximum of 1.2 in (3 cm) from the ground.
Removing a wheel
!Do not place wheel bolts in sand or on a dirty
surface. The bolt and wheel hub threads could
otherwise be damaged when you screw them
in.
XUnscrew the uppermost wheel bolt com-
pletely.
XScrew alignment bolt :into the thread
instead of the wheel bolt.
XUnscrew the remaining wheel bolts fully.
XRemove the wheel.
Mounting a new wheel
GWARNING
Oiled or greased wheel bolts or damaged
wheel bolts/hub threads can cause the wheel bolts to come loose. As a result, you could
lose a wheel while driving. There is a risk of
accident.
Never oil or grease wheel bolts. In the event of
damage to the threads, contact a qualified
specialist workshop immediately. Have the
damaged wheel bolts or hub threads
replaced/renewed. Do not continue driving.
GWARNING
If you tighten the wheel bolts or wheel nuts
when the vehicle is raised, the jack could tip
over. There is a risk of injury.
Only tighten the wheel bolts or wheel nuts
when the vehicle is on the ground.
!To prevent damage to the paintwork, hold
the wheel securely against the wheel hub
while screwing in the first wheel bolt.
Always pay attention to the instructions and
safety notes in the "Changing a wheel" section
(
Ypage 408).
Only use wheel bolts that have been designed
for the wheel and the vehicle. For safety rea-
sons, Mercedes-Benz recommends that you
Changing a wheel411
Wheels and tires
Z

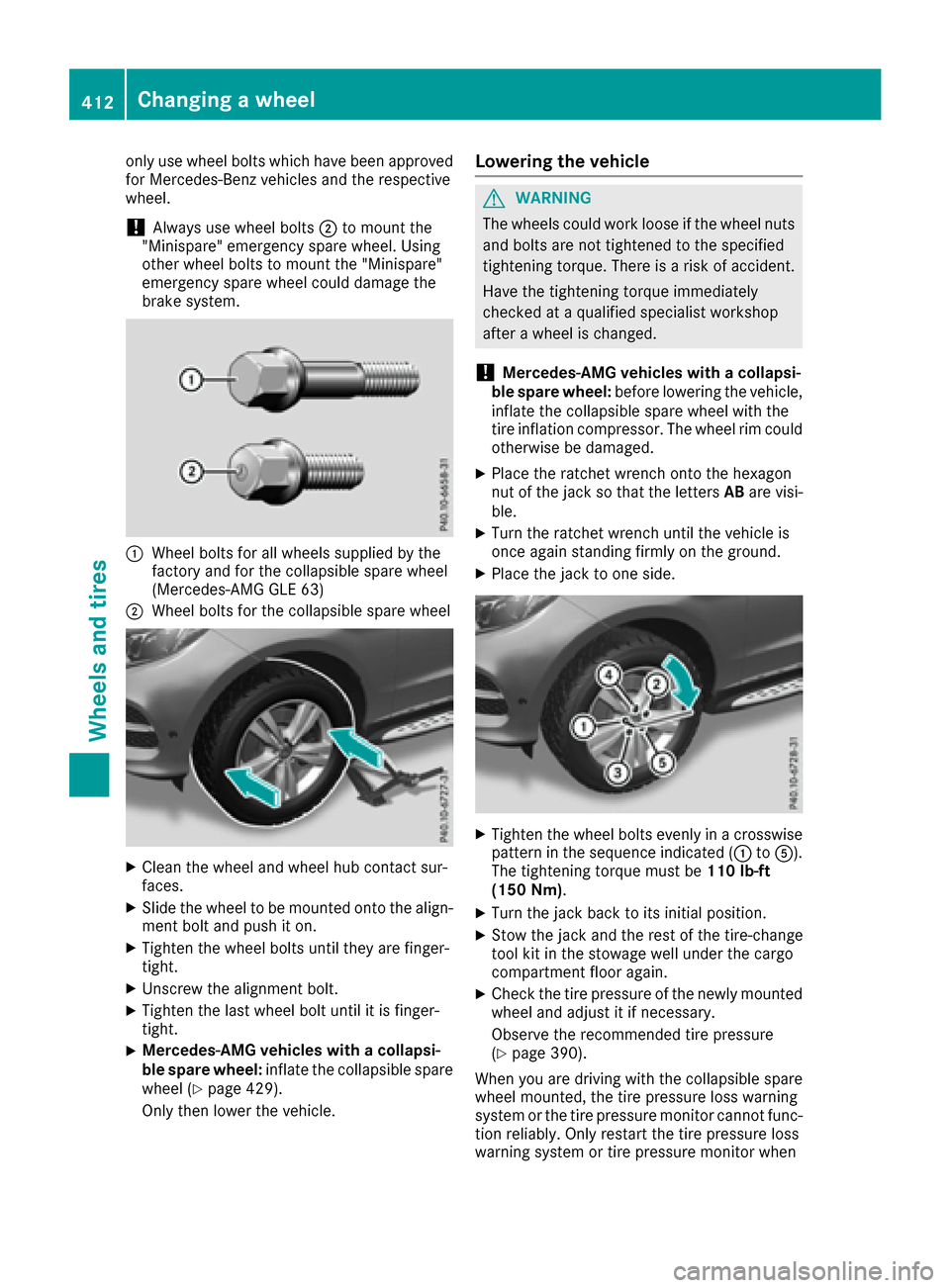

Page 414 of 450

only use wheel bolts which have been approved
for Mercedes-Benz vehicles and the respective
wheel.
!Always use wheel bolts;to mount the
"Minispare" emergency spare wheel. Using
other wheel bolts to mount the "Minispare"
emergency spare wheel could damage the
brake system.
:Wheel bolts for all wheels supplied by the
factory and for the collapsible spare wheel
(Mercedes-AMG GLE 63)
;Wheel bolts for the collapsible spare wheel
XClean the wheel and wheel hub contact sur-
faces.
XSlide the wheel to be mounted onto the align-
ment bolt and push it on.
XTighten the wheel bolts until they are finger-
tight.
XUnscrew the alignment bolt.
XTighten the last wheel bolt until it is finger-
tight.
XMercedes-AMG vehicles with a collapsi-
ble spare wheel: inflate the collapsible spare
wheel (
Ypage 429).
Only then lower the vehicle.
Lowering the vehicle
GWARNING
The wheels could work loose if the wheel nuts and bolts are not tightened to the specified
tightening torque. There is a risk of accident.
Have the tightening torque immediately
checked at a qualified specialist workshop
after a wheel is changed.
!Mercedes-AMG vehicles with a collapsi-
ble spare wheel: before lowering the vehicle,
inflate the collapsible spare wheel with the
tire inflation compressor. The wheel rim could
otherwise be damaged.
XPlace the ratchet wrench onto the hexagon
nut of the jack so that the letters ABare visi-
ble.
XTurn the ratchet wrench until the vehicle is
once again standing firmly on the ground.
XPlace the jack to one side.
XTighten the wheel bolts evenly in a crosswise pattern in the sequence indicated (: toA).
The tightening torque must be 110 lb-ft
(150 Nm).
XTurn the jack back to its initial position.
XStow the jack and the rest of the tire-change
tool kit in the stowage well under the cargo
compartment floor again.
XCheck the tire pressure of the newly mounted
wheel and adjust it if necessary.
Observe the recommended tire pressure
(
Ypage 390).
When you are driving with the collapsible spare
wheel mounted, the tire pressure loss warning
system or the tire pressure monitor cannot func-
tion reliably. Only restart the tire pressure loss
warning system or tire pressure monitor when
412Changing a wheel
Wheels and tires

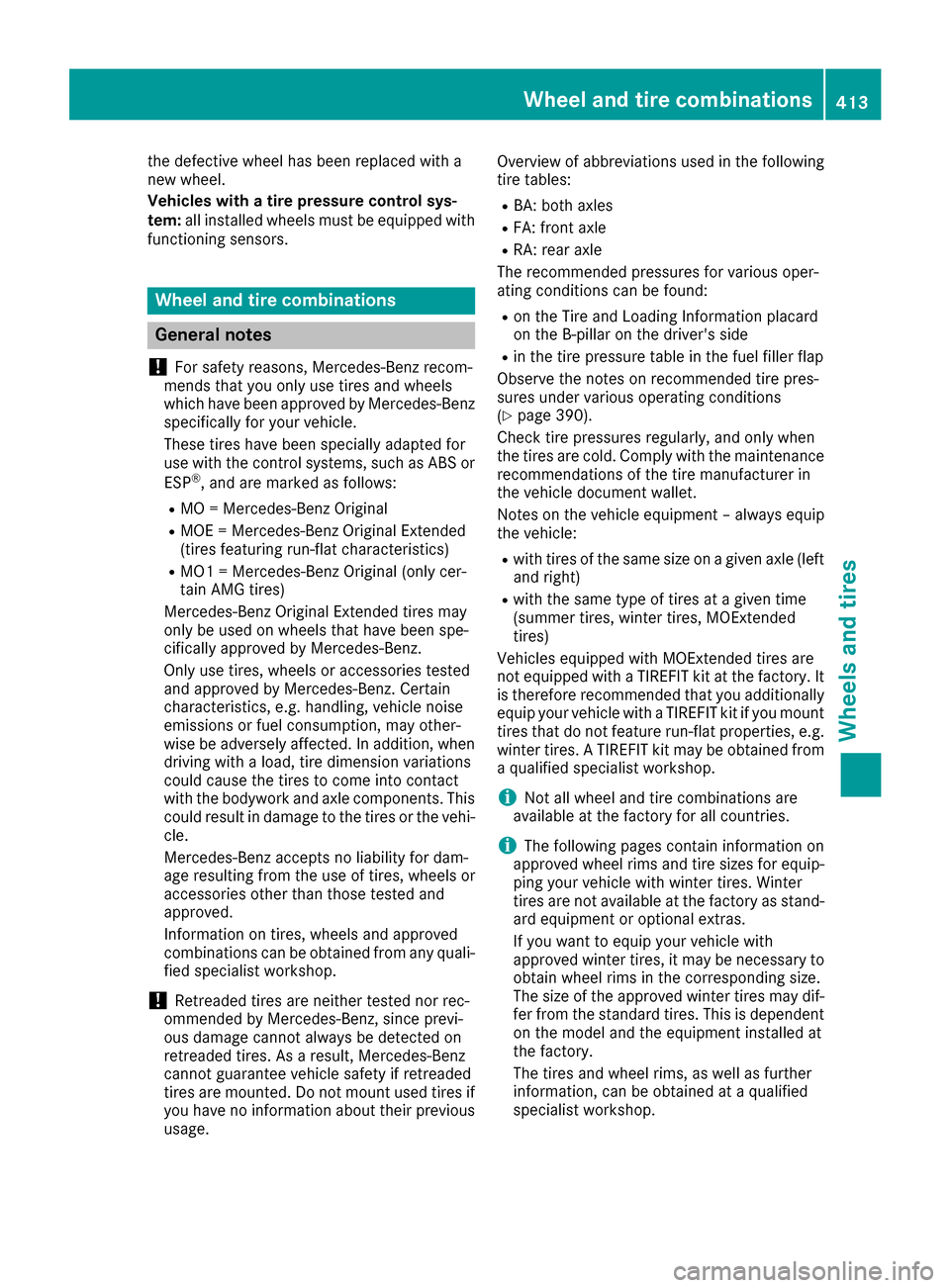

Page 415 of 450

the defective wheel has been replaced with a
new wheel.
Vehicles with a tire pressure control sys-
tem:all installed wheels must be equipped with
functioning sensors.
Wheel and tire combinations
General notes
!
For safety reasons, Mercedes-Benz recom-
mends that you only use tires and wheels
which have been approved by Mercedes-Benz
specifically for your vehicle.
These tires have been specially adapted for
use with the control systems, such as ABS or
ESP
®, and are marked as follows:
RMO = Mercedes-Benz Original
RMOE = Mercedes-Benz Original Extended
(tires featuring run-flat characteristics)
RMO1 = Mercedes-Benz Original (only cer-
tain AMG tires)
Mercedes-Benz Original Extended tires may
only be used on wheels that have been spe-
cifically approved by Mercedes-Benz.
Only use tires, wheels or accessories tested
and approved by Mercedes-Benz. Certain
characteristics, e.g. handling, vehicle noise
emissions or fuel consumption, may other-
wise be adversely affected. In addition, when
driving with a load, tire dimension variations
could cause the tires to come into contact
with the bodywork and axle components. This
could result in damage to the tires or the vehi- cle.
Mercedes-Benz accepts no liability for dam-
age resulting from the use of tires, wheels or
accessories other than those tested and
approved.
Information on tires, wheels and ap prove
d
combinations can be obtained from any quali-
fied specialist workshop.
!Retreaded tires are neither tested nor rec-
ommended by Mercedes-Benz, since previ-
ous damage cannot always be detected on
retreaded tires. As a result, Mercedes-Benz
cannot guarantee vehicle safety if retreaded
tires are mounted. Do not mount used tires if
you have no information about their previous
usage. Overview of abbreviations used in the following
tire tables:
RBA: both axles
RFA: front axle
RRA: rear axle
The recommended pressures for various oper-
ating conditions can be found:
Ron the Tire and Loading Information placard
on the B-pillar on the driver's side
Rin the tire pressure table in the fuel filler flap
Observe the notes on recommended tire pres-
sures under various operating conditions
(
Ypage 390).
Check tire pressures regularly, and only when
the tires are cold. Comply with the maintenance
recommendations of the tire manufacturer in
the vehicle document wallet.
Notes on the vehicle equipment – always equip
the vehicle:
Rwith tires of the same size on a given axle (left and right)
Rwith the same type of tires at a given time
(summer tires, winter tires, MOExtended
tires)
Vehicles equipped with MOExtended tires are
not equipped with a TIREFIT kit at the factory. It
is therefore recommended that you additionally
equip your vehicle with a TIREFIT kit if you mount tires that do not feature run-flat properties, e.g.
winter tires. A TIREFIT kit may be obtained from a qualified specialist workshop.
iNot all wheel and tire combinations are
available at the factory for all countries.
iThe following pages contain information on
approved wheel rims and tire sizes for equip-
ping your vehicle with winter tires. Winter
tires are not available at the factory as stand- ard equipment or optional extras.
If you want to equip your vehicle with
approved winter tires, it may be necessary to
obtain wheel rims in the corresponding size.
The size of the approved winter tires may dif-
fer from the standard tires. This is dependent
on the model and the equipment installed at
the factory.
The tires and wheel rims, as well as further
information, can be obtained at a qualified
specialist workshop.
Wheel and tire combinations413
Wheels and tires
Z
Page 416 of 450

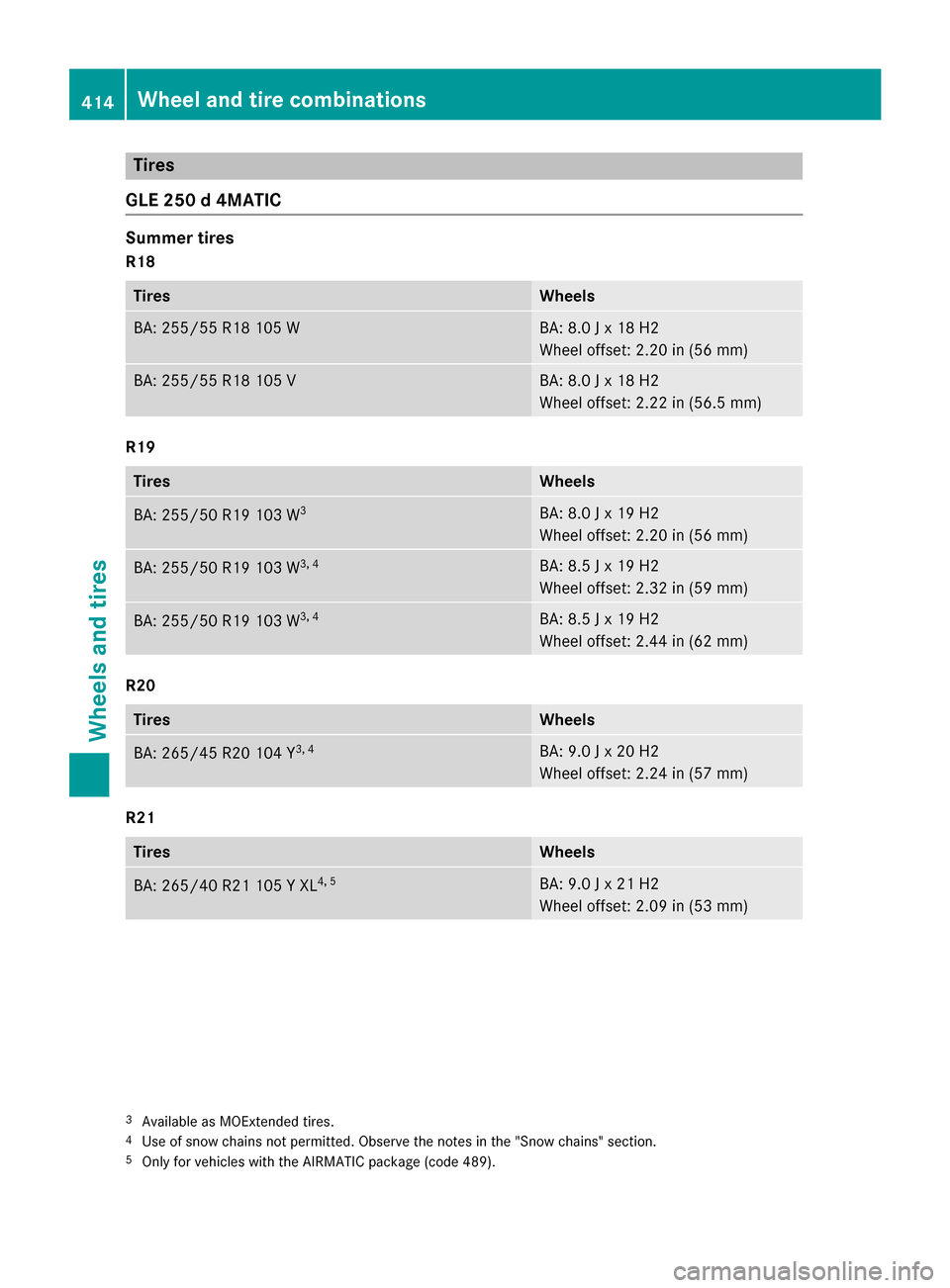

Tires
GLE 250 d 4MATIC
Summer tires
R18
TiresWheels
BA: 255/55 R1810 5 WBA: 8.0 J x 18 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/55 R18 105 VBA: 8.0 J x 18 H2
Wheel offset: 2.22 in (56.5 mm)
R19
TiresWheels
BA: 255/50 R19 103 W3BA: 8.0 J x 19 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/50 R19 103 W3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R19 103 W3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
R20
TiresWheels
BA: 265/45 R20 104 Y3, 4BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
R21
TiresWheels
BA: 265/40 R21 105 Y XL4, 5BA: 9.0 J x 21 H2
Wheel offset: 2.09 in (53 mm)
3Available as MOExtended tires.4Use of snow chains not permitted. Observe the notes in the "Snow chains" section.5Only for vehicles with the AIRMATIC package (code 489).
414Wheel and tire combinations
Wheels and tires
Page 417 of 450

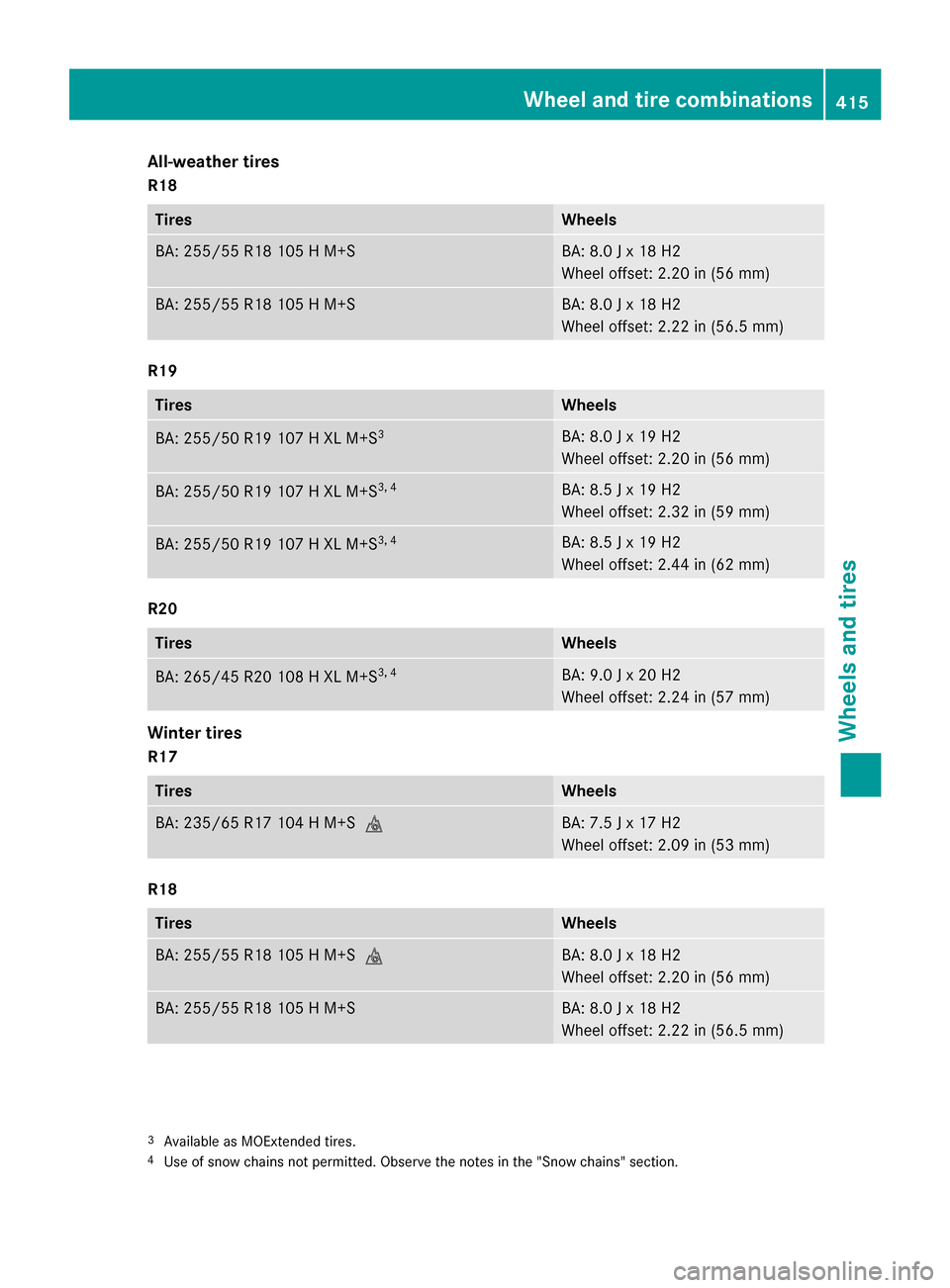

All-weather tires
R18
TiresWheels
BA:255/55 R18 10 5 HM+SBA:8. 0 J x 18 H2
Whee loffset :2.20 in (56 mm)
BA :255/55 R18 10 5 HM+SBA:8. 0 J x 18 H2
Whee loffset :2.22 in (56.5 mm)
R19
TiresWheels
BA :255/50 R19 10 7 HXL M+S3BA:8. 0 J x 19 H2
Whee loffset :2.20 in (56 mm)
BA :255/50 R19 10 7 HXL M+S3,4BA :8. 5 J x 19 H2
Whee loffset :2.32 in (59 mm)
BA :255/50 R19 10 7 HXL M+S3,4BA :8. 5 J x 19 H2
Whee loffset :2.44 in (62 mm)
R20
TiresWheels
BA :265/45 R20 10 8 HXL M+S3,4BA :9. 0 J x 20 H2
Whee loffset :2.24 in (57 mm)
Winter tires
R17
TiresWheels
BA :235/65 R17 10 4 HM+SiBA:7. 5 J x 17 H2
Whee loffset :2.09 in (53 mm)
R18
TiresWheels
BA :255/55 R18 10 5 HM+SiBA:8. 0 J x 18 H2
Whee loffset :2.20 in (56 mm)
BA :255/55 R18 10 5 HM+SBA:8. 0 J x 18 H2
Whee loffset :2.22 in (56.5 mm)
3Available as MOExtended tires.4Use of snow chain sno tpermitted. Observ eth enote sin th e"Snow chains" section.
Wheel and tire combinations415
Wheels and tires
Z
Page 418 of 450

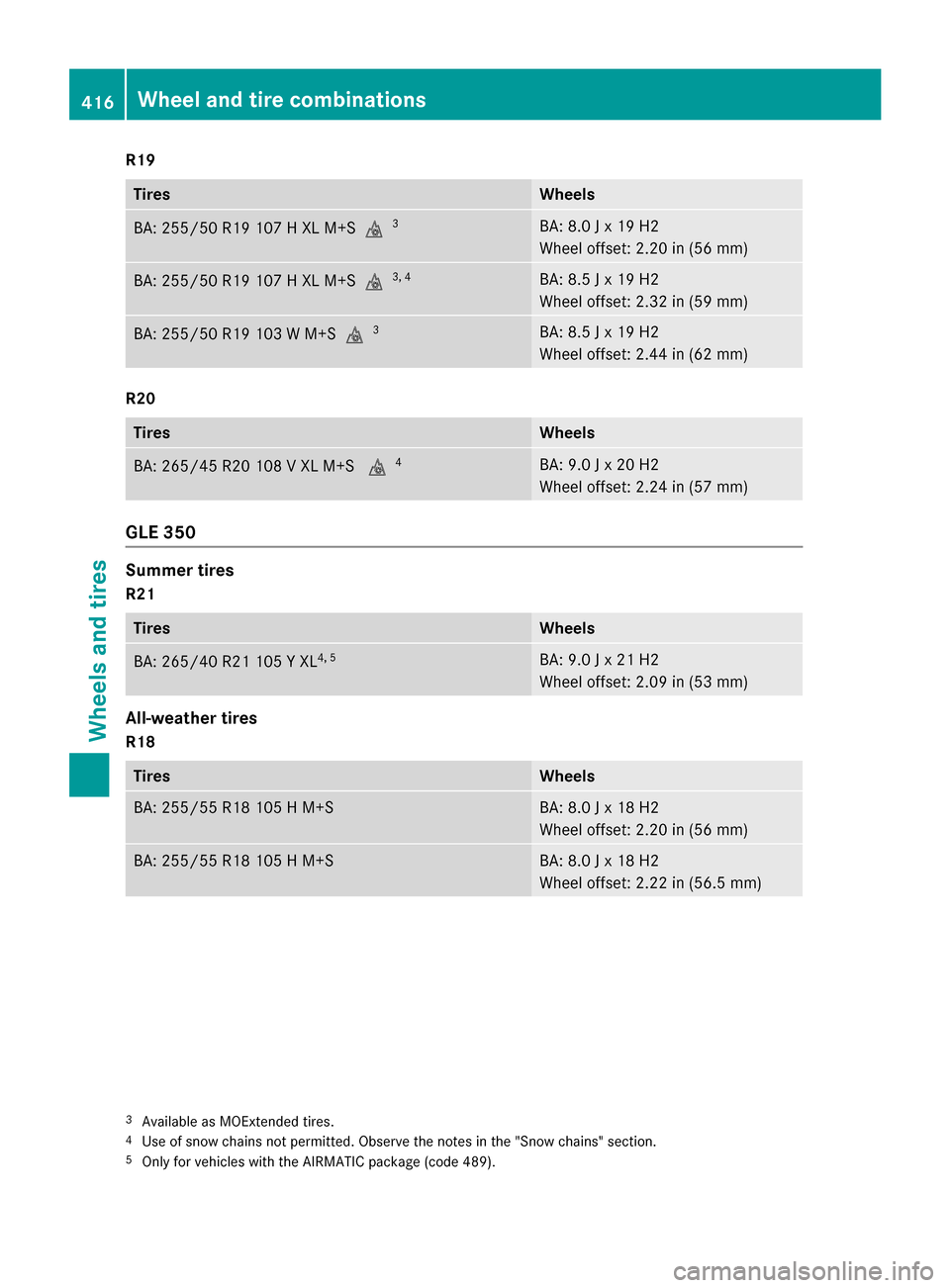

R19
TiresWheels
BA: 255/50 R19 107 H XL M+Si3BA: 8.0 J x 19 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/50 R19 107 H XL M+Si3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R19 103 W M+Si3BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
R20
TiresWheels
BA: 265/45 R20 108 V XL M+S i4BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
GLE 350
Summer tires
R21
TiresWheels
BA: 265/40 R21 105 Y XL4, 5BA: 9.0 J x 21 H2
Wheel offset: 2.09 in (53 mm)
All-weather tires
R18
TiresWheels
BA: 255/55 R18 105 H M+SBA: 8.0 J x 18 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/55 R18 105 H M+SBA: 8.0 J x 18 H2
Wheel offset: 2.22 in (56.5 mm)
3Available as MOExtended tires.4Use of snow chains not permitted. Observe the notes in the "Snow chains" section.5Only for vehicles with the AIRMATIC package (code 489).
416Wheel and tire combinations
Wheels and tires
Page 419 of 450

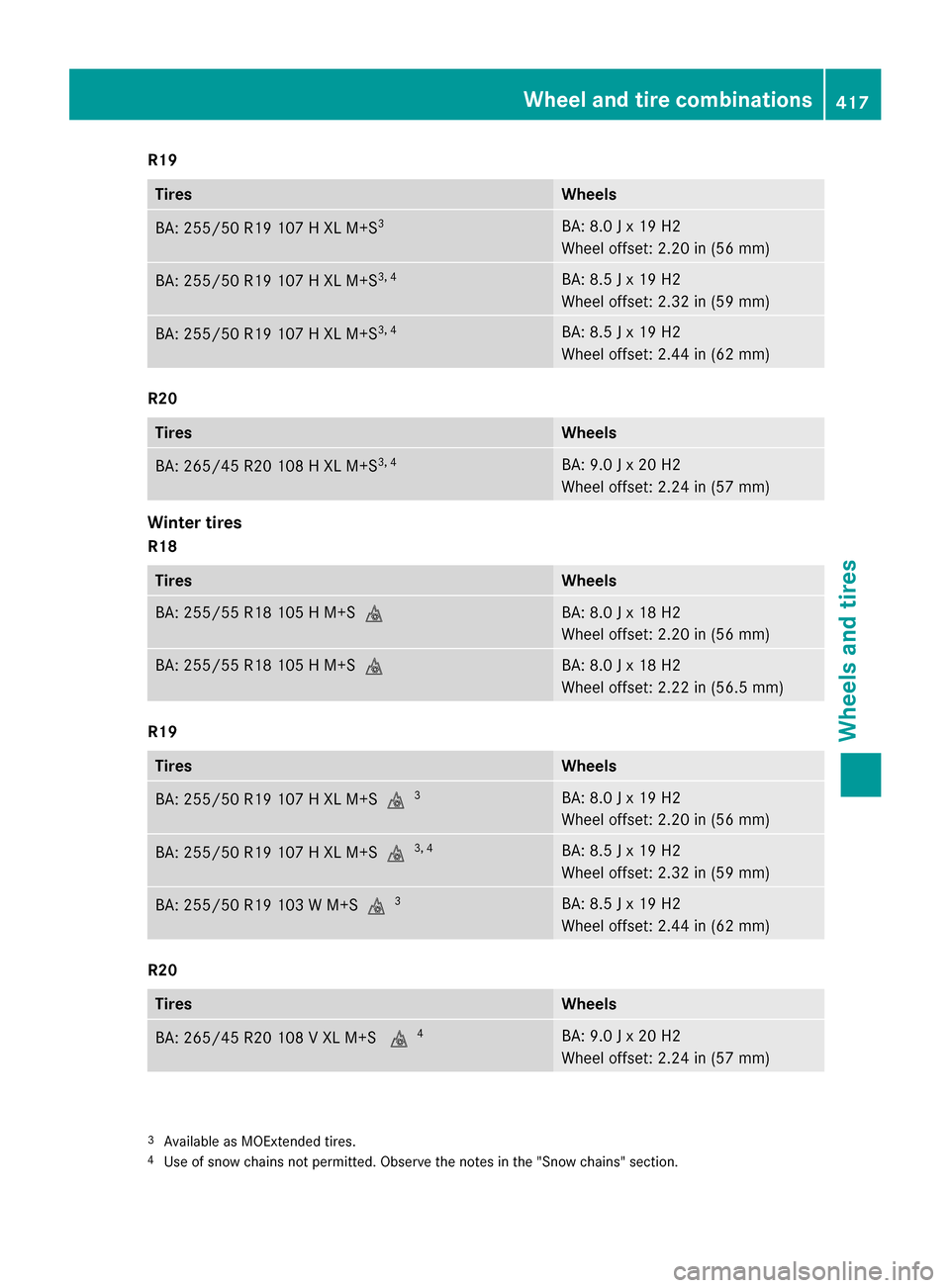

R19
TiresWheels
BA: 255/50 R19 107 H XL M+S3BA: 8.0 J x 19 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/50 R19 107 H XL M+S3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R19 107 H XL M+S3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
R20
TiresWheels
BA: 265/45 R20 108 H XL M+S3, 4BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
Winter tires
R18
TiresWheels
BA: 255/55 R18 105 H M+SiBA: 8.0 J x 18 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/55 R18 105 H M+SiBA: 8.0 J x 18 H2
Wheel offset: 2.22 in (56.5 mm)
R19
TiresWheels
BA: 255/50 R19 107 H XL M+S i3BA: 8.0 J x 19 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/50 R19 107 H XL M+Si3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R19 103 W M+Si3BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
R20
TiresWheels
BA: 265/45 R20 108 V XL M+S i4BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
3Available as MOExtended tires.4Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
Wheel and tire combinations417
Wheels and tires
Z
Page 420 of 450

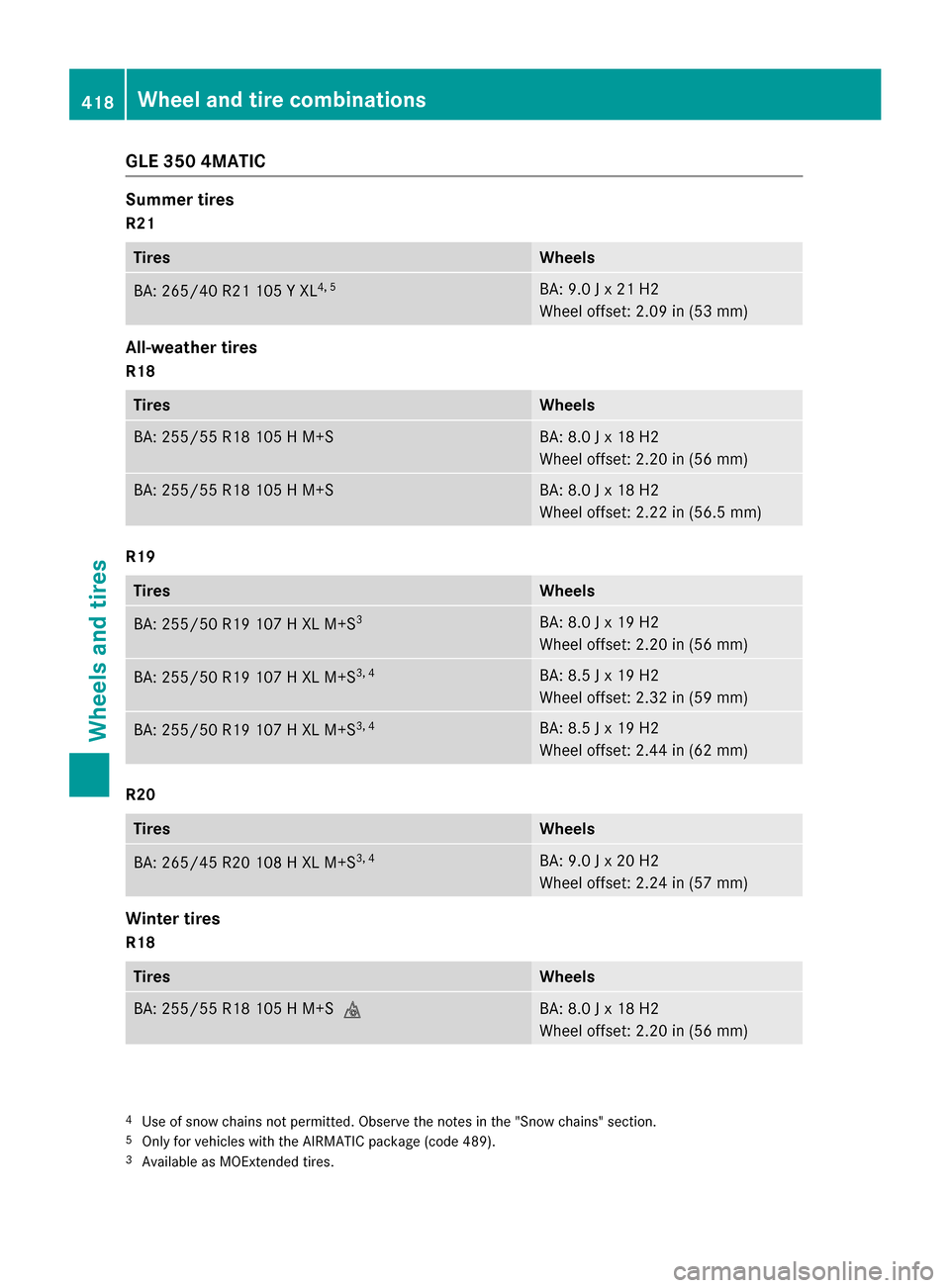

GLE 350 4MATIC
Summer tires
R21
TiresWheels
BA: 265/40 R21 105 Y XL4, 5BA: 9.0 J x 21 H2
Wheel offset: 2.09 in (53 mm)
All-weather tires
R18
TiresWheels
BA: 255/55 R18 105 H M+SBA: 8.0 J x 18 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/55 R18 105 H M+SBA: 8.0 J x 18 H2
Wheel offset: 2.22 in (56.5 mm)
R19
TiresWheels
BA: 255/50 R19 107 H XL M+S3BA: 8.0 J x 19 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/50 R19 107 H XL M+S3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R19 107 H XL M+S3, 4BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
R20
TiresWheels
BA: 265/45 R20 108 H XL M+S3, 4BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
Winter tires
R18
TiresWheels
BA: 255/55 R18 105 H M+SiBA: 8.0 J x 18 H2
Wheel offset: 2.20 in (56 mm)
4Use of snow chains not permitted. Observe the notes in the "Snow chains" section.5Only for vehicles with the AIRMATIC package (code 489).3Available as MOExtended tires.
418Wheel and tire combinations
Wheels and tires
