MERCEDES-BENZ GLE HYBRID 2017 Owners Manual

GLE PLUG-I N HYBRID Supplement
Order no . P16 6 0195 13 Par t no . 166 584 73 05 Edition A 2017
É166 58 47305yËÍ 1665847305

Publication details
Internet Further information about Mercedes-Benz vehi-
cles and about Daimler AG can be found on the
following websites:
http://www.mbusa.com (USA only)
http://www.mercedes-benz.ca (Canada only)
Editorial office You are welcome to forward any queries or sug-
gestions you may have regarding this Operator's
Manual to the technical documentation team at
the following address:
Customer Assistance Center
Mercedes-Benz USA, LLC
3 Mercedes Drive
Montvale, NJ 07645-0350 ©
Daimler AG: not to be reprinted, translated or
otherwise reproduced, in whole or in part, with-
out written permission from Daimler AG.
Vehicle manufacturer Daimler AG
Mercedesstraße 137
70327 Stuttgart
GermanySymbols Registered trademarks: R
Bluetooth ®
is a registered trademark of Blue-
tooth SIG Inc. R
DTS™ is a registered trademark of DTS, Inc. R
Dolby ®
and MLP™ are registered trademarks
of DOLBY Laboratories. R
BabySmart™, ESP ®
and PRE-SAFE ®
are reg-
istered trademarks of Daimler AG. R
HomeLink ®
is a registered trademark of John-
son Controls. R
iPod ®
and iTunes ®
are registered trademarks
of Apple Inc. R
Logic7 ®
is a registered trademark of Harman
International Industries. R
Microsoft ®
and Windows media ®
are regis-
tered trademarks of Microsoft Corporation. R
SIRIUS ®
is a registered trademark of Sirius
XM Radio Inc. R
HD Radio™ is a registered trademark of iBiq-
uity Digital Corporation. R
Gracenote ®
is a registered trademark of
Gracenote, Inc. R
ZAGAT Survey ®
and related brands are regis-
tered trademarks of Zagat Survey, LLC.
In this Operator's Manual you will find the fol-
lowing symbols:
G WARNING
Warning notes make you aware of dangers
which could pose a threat to your health or
life, or to the health and life of others.
H Environmental note
Environmental notes provide you with infor-
mation on environmentally aware actions or
disposal.
! Notes on material damage alert you to dan-
gers that could lead to damage to your vehi-
cle.
i Practical tips or further information that
could be helpful to you.
X This symbol indicates an instruction
that must be followed.
X Several of these symbols in succession
indicate an instruction with several
steps. ( Y
page) This symbol tells you where you can find
more information about a topic.
YY This symbol indicates a warning or an
instruction that is continued on the next
page.
Dis‐
play This text indicates a message on the
multifunction display/multimedia dis-
play.
As at 06.11.2015

Welcome to the world of Mercedes-Benz We urge you to read this Operator's Manual
carefully and familiarize yourself with the vehi-
cle before driving. For your own safety and a
longer vehicle life, follow the instructions and
warning notices in this Operator's Manual.
Ignoring them could result in damage to the
vehicle or personal injury to you or others.
Vehicle damage caused by failure to follow
instructions is not covered by the Mercedes-
Benz Limited Warranty.
The equipment or product designation of your
vehicle may vary depending on: R
Model R
Order R
Country specification R
Availability
Mercedes-Benz therefore reserves the right to
introduce changes in the following areas: R
Design R
Equipment R
Technical features
The equipment in your vehicle may therefore
differ from that shown in the descriptions and
illustrations.
The following are integral components of the
vehicle: R
Digital Operator's Manual R
Printed Operator's Manual R
Maintenance Booklet R
Equipment-dependent supplements
Keep these documents in the vehicle at all
times. If you sell the vehicle, always pass all
documents on to the new owner.
Your Operator's Manual:
Digital form inside the vehicle
The Digital Operator's Manual provides
comprehensive and specifically adapted
information on your vehicle's equipment
and multimedia system. It contains infor-
mative animations, individual language
settings and an intuitive search function.
Booklet inside the vehicle
In addition to this manual and the afore-
mentioned digital media, you also have the
option to obtain a comprehensive printed
version of the Supplement for your multi-
media system from your authorized
Mercedes-Benz Center. Digital form via the Internet
The Operator's Manual on the Internet pro-
vides easy access to all information
regarding your vehicle and multimedia sys-
tem. It also provides helpful animations,
interesting background information and a
wide array of search options.
Digital form as an App
Using the Mercedes-Benz Guides App, you
can view all the information on your vehicle
and multimedia system via mobile Internet
or download it independently of network
access. Available for smartphones or tab-
lets.
You can also use the Mercedes-Benz Guides
App:
Please note that the Mercedes-Benz Guides App
may not yet be available in your country.
Mercedes-Benz USA, LLC
Mercedes-Benz Canada, Inc.
A Daimler Company
1665847305
É1665847305yËÍ

Index ....................................................... 3
Introduction ........................................... 7
Protecting the environment .................... .7
Operator's Manual ................................... 7
Operating safety ...................................... 7

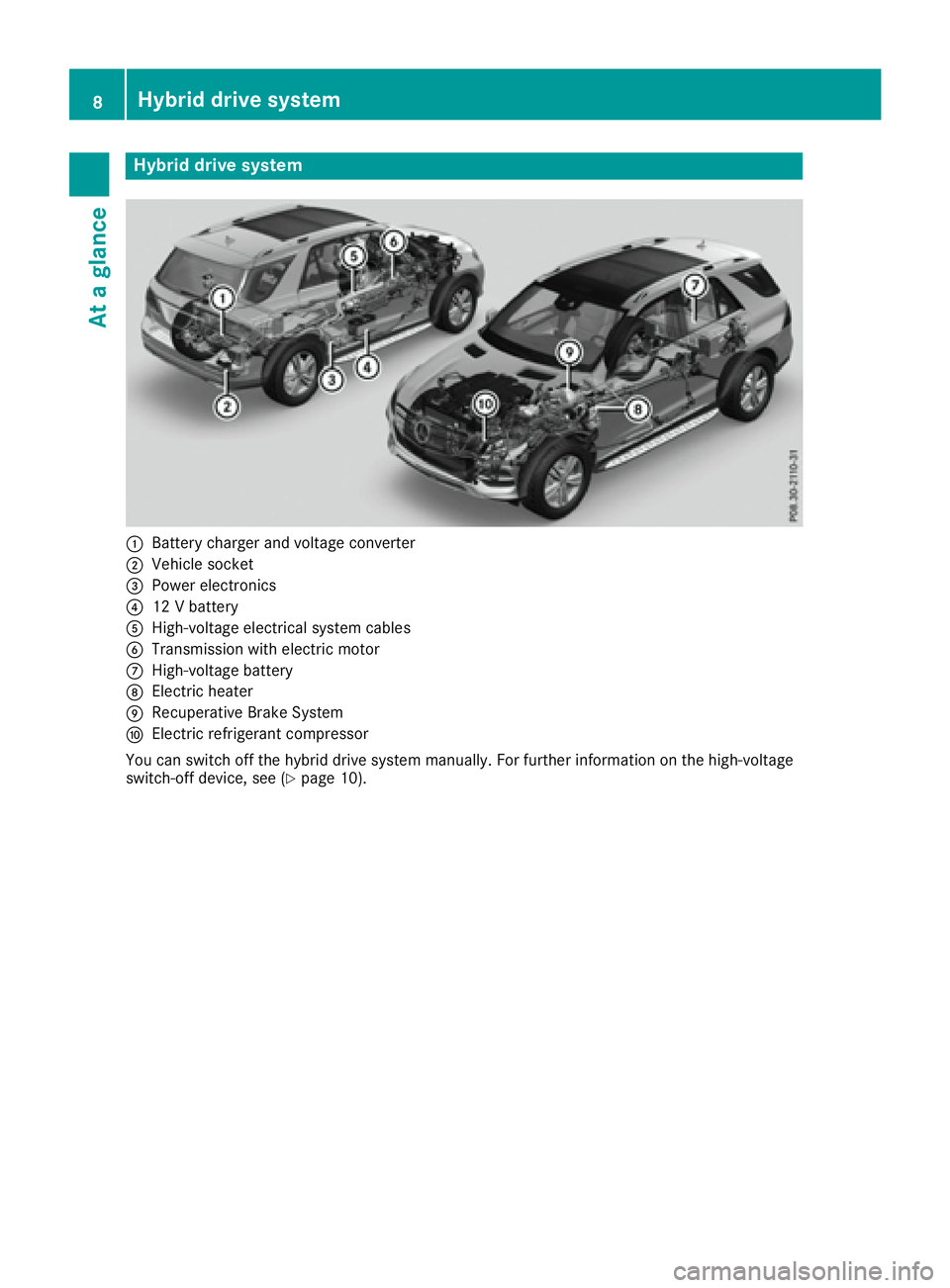

At a glance ............................................. 8
Hybrid drive system ................................. 8
Instrument cluster ................................... 9
Safety ................................................... 10
Hybrid drive system .............................. .1 0
Occupant safety .................................... 12
Climate control .................................... 13
Overview of climate control systems ..... 13
Operating the climate control sys-
tems ...................................................... 17
Driving and parking ............................ 20
Driving ................................................... 20
Driving tips ............................................ 26
Refueling ............................................... 27
Charging the high-voltage battery ......... .2 9
Parking .................................................. 37
On-board computer and displays ...... 38
Important safety notes .......................... 38
Displays and operation .......................... 38
Menus and submenus ........................... .3 9
Display messages .................................. 45
Warning and indicator lamps in the
instrument cluster ................................. 48
Multimedia system ............................. 50
Important safety notes .......................... 50
Vehicle menu ......................................... 50
Maintenance and care ........................ 51
Engine compartment ............................. 51 Breakdown assistance ....................... 52
Battery (vehicle) .................................... .5 2
Jump-starting ........................................ .5 3
Towing ................................................... 53
Technical data ..................................... 54
Filling capacities .................................... 54
Vehicle data .......................................... .5 42
Contents

A Accident
Automat ic measures after an acc i-
dent ................................................ .1 0
Activating/deactivating cooling
with air dehumidification .................. .1 7
Air-conditioning system
see Climat e control
Authorized Mercedes-Benz Center
see Qualified specialist workshop
B Battery (high-voltage)
see High-voltage battery
Battery (vehicle)
Dis play message .............................. 47
Im portant safety notes .................... 52
Jump starting .................................. .5 3
Brake pedal
Pedal resistance/pedal travel .......... 11
Brakes
RBS warning lamp ............................ 49
Recuperative Brake System ............. 11
Warning lamp ................................... 48
Breakdown
see Towing away
C
Charging
see Charging the high-voltage bat-
tery (important safety notes)
Charging cable
Connecting ...................................... 33
Controls ........................................... 32
Important safety notes .................... 31
Indicator lamp .................................. 33
Removing ......................................... 34
Storing ............................................. 31
Warming up ..................................... 31
Charging the high-voltage battery
(important safety notes) ..................... 29
Climate control
Automatic climate control (3-
zone) ................................................ 15
Cooling with air dehumidification ..... 17 Dual-zone automatic climate con-
trol ................................................... 13
General notes .................................. 13
Immediate pre-entry climate con-
trol ................................................... 19
Overview of systems ........................ 13
Pre-entry climate control at
departure time ................................. 18
Pre-entry climate control via key ..... 17
Rear control panel ........................... 15
Refrigerant filling capacity ............... 54
Switching residual heat on/off ........ 17
COMAND
Menu overview ................................. 50
Consumption statistics (on-board
computer) ............................................ 43
Coolant (engine)
Checking the level ........................... 51
Displaying the temperature (on-
board computer) .............................. 43
Filling capacity ................................. 54
Temperature gauge .......................... 39
Cooling
see Climate control
D
Data
see Technical data
Display
Condition of charge ......................... 40
see Display messages
Display message
Hybrid drive system ......................... 45
Display messages
Engine .............................................. 47
Vehicle ............................................. 48
Driving safety systems
Recuperative Brake System ............. 11
DYNAMIC SELECT controller
PLUG-IN HYBRID operation .............. 22
E
ECO start/stop function
PLUG-IN HYBRID operation .............. 23
Emergency
Automatic measures after an acci-
dent ................................................. 10 Index 3

Engine
Display message .............................. 47
Jump-starting .................................. .5 3
Engine oil
Filling capacity ................................ .5 4
Exhaustive discharging (high-volt-
age battery) ........................................ .5 2
FFiller cap
see Refueling
Fuel
Consumption statistics .................... 43
Displaying the current consump-
tion .................................................. 42
Displaying the range ........................ 42
Tank content/reserve fuel .............. .5 4
Fuel filler flap
Opening (PLUG-IN HYBRID vehi-
cles) ................................................ .2 7
Fuel level
Calling up the range (on-board
computer) ........................................ 42
Fuel tank
Capacity .......................................... .5 4
Problem (malfunction) ..................... 28
H
Heating
see Climate control
High-voltage battery
Battery care .................................... .3 0
Charging .......................................... 52
Charging (charging station) .............. 35
Charging (mains socket) .................. 31
Charging (wallbox) .......................... .3 4
Charging cable warming .................. 31
Con dit ion of charge display
(COMAND) ...................................... .5 0
Cruise range .................................... 30
Energy consumption ........................ 30
General notes .................................. 11
Method of operation ........................ 30
Out side temperatures ...................... 30
Overvoltage protection .................... 31
Pro blem s wit h the charging proc-
ess .................................................. .3 5 Terms of use .................................... 30
Vehicle fire ....................................... 11
Hybrid drive system
Automatic switch off ........................ 10
Danger of electric shock .................. 10
Display message .............................. 45
General notes ................................. .1 0
High-voltage battery ........................ 11
Imp ortant safety notes .................... 10
Manual switch off ............................ 10
Opening the hood ............................ 11
Warning lamp ................................... 49
HYBRID operation
Condition of charge of high-volt-
age battery ...................................... 50
Energy flow display .......................... 50
High-voltage battery (condition of
charge) ............................................ 50
Hybrid vehicles
Important safety notes .................... 10
I Instrument cluster
Overview ............................................ 9
J
Jump starting (engine) ........................ 53
M
Malfunction message
see Display messages
Maximum charge current
Setting (charging cable) ................... 32
Setting (on-board computer) ............ 43
Messages
see Display messages
Multifunction display
Function/notes ................................ 39
Permanent display ........................... 44
O
Occupant safety
Automatic measures after an acci-
dent ................................................. 10
Restraint system warning lamp ........ 124
Index

On-board computer
Display messages ........................... .4 5
HYBRID menu .................................. 43
Important safety notes .................... 38
Instrument cluster menu .................. 44
Menu overview ................................. 39
Settings menu .................................. 43
Trip menu ......................................... 40
Online access to the vehicle
Data protection ................................ 37
Functions ......................................... 37
General information ........................ .3 6
Internet ............................................ 37
Operating safety .................................... 7
Operator's Manual
Vehicle equipment ............................ .7
P PLUG-IN HYBRID operating
Electrical energy generated ............ .5 0
PLUG-IN HYBRID operation
Automatic engine start (ECO
start/stop function) ........................ .2 3
Automatic engine switch-off (ECO
start/stop function) ......................... 23
Charge level of the high-voltage
battery ............................................. 40
Charging the high-voltage battery .... 40
Displaying the total range and
electric range ................................... 43
Driving tips ...................................... 26
DYNAMIC SELECT controller ............ 22
ECO start/stop function .................. 23
Electric motor (power display) ......... 38
Energy flow display .......................... 40
Fuel consumption ............................ 50
Fuel consumption (COMAND) .......... 50
General notes .................................. 20
High-voltage battery (condition of
charge) ............................................ 40
Hybrid drive system overview ............ 8
HYBRID menu .................................. 43
Important safety notes .................... 20
Instrument cluster (power dis-
play) ................................................. 38
Noiseless start ................................. 22
Operating (on-board computer) ....... 38 Operating mode ............................... 21
Overrun mode .................................. 24
Parking ............................................ 37
Power display (electric motor) ......... 38
Problems ......................................... 25
Problems with SRS (supplemental
restraint system) .............................. 26
Problems with the combustion
engine .............................................. 25
Problems with the hybrid drive
system ............................................. 26
Problems with the Recuperative
Brake System ................................... 25
Pulling away ..................................... 22
READY display ................................. 22
Recuperative Brake System ............. 20
Route-based operating strategy ....... 24
Shifting manually ............................. 23
Starting ............................................ 22
When the vehicle is stationary ......... 26
Pre-entry cli mate control (via
SmartKe y)
Problems (malfunctions) .................. 18
Pre-entry climate control at time of
departure
General notes .................................. 18
Setting departure time ..................... 19
Pre-entry climate control via
SmartKey
General notes .................................. 17
Protection of the environment ............. 7
Q
QR code
Mercedes-Benz Guide App ................. 1
Qualified specialist workshop .............. 7
R
RBS (Recuperative Brake System)
Warning lamp ................................... 49
Recuperative Brake System
Driving safety systems ..................... 11
Important safety notes .................... 11
Refueling
Refueling process ............................ 27
Refueling process (PLUG-IN
HYBRID vehicles) ............................. 27 Index 5

Reserve (fuel tank)
see Fuel
Residual heat (climate control) .......... 17
Restraint system
Warning lamp (function) ................... 12
Roof load (maximum) .......................... 54
SSafety
Hybrid drive system ......................... 10
Safety notes
Hybrid vehicles ................................ 10
Setting the charge current (on-
board computer) .................................. 43
Setting the departure time (on-
board computer) .................................. 44
Specialist workshop .............................. 7
Supplement ............................................ 7
TTechnical data
Vehicle data ..................................... 54
Temperature
Coolant ............................................ 39
Coolant (on-board computer) ........... 43
Towing a trailer
Mounting dimensions ...................... 55
Towing away
Important safety guidelines ............. 53
Trip computer (on-board com-
puter) .................................................... 43
V
Vehicle
Display message .............................. 48
Equipment .......................................... 7
Parking for a long period .................. 52
Towing away .................................... 53
Vehicle data ..................................... 54
Vehicle dimensions ............................. 54
W
Warning
Stickers ........................................... 10 Warning and indicator lamps
Brakes ............................................. 48
Hybrid drive system ......................... 49
RBS (Recuperative Brake Sys-
tem) ................................................. 496
Index

Protecting the environment
H Environmental note
Have a defective high-voltage battery dis-
posed of in an environmentally-responsible
manner. Contact a qualified specialist work-
shop which has the necessary specialist
knowledge and tools to carry out the work
required. Mercedes-Benz recommends that
you use an authorized Mercedes-Benz Center
for this purpose.
Operator's Manual
Vehicle equipment This Supplement provides information on all the
important functions of your hybrid vehicle that
are either not described or differ from the
descriptions in the vehicle's Operator's Manual.
The information supplements or substitutes the
corresponding sections in the vehicle's Opera-
tor's Manual. Under no circumstances does the
supplement replace the Operator's Manual.
This Supplement describes all models, and
standard and optional equipment for your sys-
tem, as available at the time of going to print.
Country-specific differences are possible. Bear
in mind that your vehicle may not feature all
functions described here. This also applies to
safety-relevant systems and functions. The
equipment in your vehicle may therefore differ
from that shown in the descriptions and illus-
trations.
The original purchase contract documentation
for your vehicle contains a list of all the systems
in your vehicle.
Should you have any questions concerning
equipment and operation, please consult an
authorized Mercedes-Benz Center.
The Operator's Manual and Maintenance Book-
let are important documents and should be kept
in the vehicle.
Operating safety
Important safety notes
Hybrid vehicles have a combustion engine and
an electric motor. The voltage supply for oper- ating the vehicle electrically is provided by the
vehicle's high-voltage electrical system on the
hybrid drive system.
G DANGER
The vehicle's high-voltage electrical system is
under high voltage. If you modify components
in the vehicle's high-voltage electrical system
or touch damaged components, you may be
electrocuted. The components in the vehi-
cle's high-voltage electrical system may be
damaged in an accident, although the damage
is not visible. There is a risk of fatal injury.
Following an accident, do not touch any high-
voltage components and never modify the
vehicle's high-voltage electrical system. Have
the vehicle towed away after an accident and
the vehicle's high-voltage electrical system
checked by a qualified specialist workshop.
All components of the hybrid drive system are
marked with yellow warning stickers that warn
you of the danger of high voltage. The cables of
the vehicle's high-voltage electrical system are
orange in color.
Always have all work on the hybrid drive system
carried out at a qualified specialist workshop.
An authorized Mercedes-Benz Center is a quali-
fied specialist workshop.
Vehicles with an electric motor generate much
less driving noise than vehicles with internal
combustion engines. As a result, your vehicle
may not be heard by other road users in certain
situations. This can happen, for example, when
you are parking and your vehicle is not seen by
other road users. This requires you to adopt a
particularly anticipatory driving style, as it is
necessary to allow for the possibility that other
road users may behave erratically. Introduction 7
Z

Hybrid drive system
C
Battery charger and voltage converterD
Vehicle socket
