sensor MERCEDES-BENZ GLK-Class 2012 X204 Owner's Manual

Automatic transmission
emergency mode ............................... 140
B
Back support see Lumbar support
Backup lamp
Changing bulbs .............................. 113
Display message ............................ 190
Bag hook ............................................ 216
Ball coupling Installing ........................................ 161
Removing ....................................... 164
Storing ........................................... 164
BAS (Brake Assist System) ................. 62
Basic settings see Settings
Battery (SmartKey)
Checking .......................................... 72
Important safety notes ....................72
Replacing ......................................... 72
Battery (vehicle)
Charging ........................................ 260
Display message ............................ 193
Important safety notes ..................259
Jump starting ................................. 262
Belt
see Seat belts
Brake Assist System
see BAS (Brake Assist System)
Brake fluid
Display message ............................ 183
Notes ............................................. 306
Brake fluid level ................................ 242
Brake lamps Changing bulbs .............................. 113
Display message ............................ 189
Brakes
ABS .................................................. 62
BAS .................................................. 62
Brake fluid (notes) .........................306
Display message ............................ 180
Driving tips .................................... 146
Important safety notes ..................146
Maintenance .................................. 147
Parking brake ........................ 144, 148
Warning lamp ................................. 201
Breakdown
see Flat tire
see Towing away/tow-starting
Bulbs
see Changing bulbs
C
California Important notice for retail
customers and lessees ....................21
Calling up a malfunction
see Display messages
Capacities
see Technical data
Car
see Vehicle
Care
Carpets .......................................... 249
Car wash ........................................ 244
Display ........................................... 248
Exterior lights ................................ 247
Gear or selector lever ....................248
Matte finish ................................... 245
Notes ............................................. 243
Paint .............................................. 245
Plastic trim .................................... 248
Power washer ................................ 244
Rear view camera .......................... 247
Roof lining ...................................... 249
Seat belt ........................................ 249
Seat cover ..................................... 249
Sensors ......................................... 247
Steering wheel ............................... 248
Tail pipes ....................................... 247
Trim pieces .................................... 248
Washing by hand ........................... 244
Wheels ........................................... 245
Windows ........................................ 246
Wiper blades .................................. 246
Wooden trim .................................. 248
Cargo compartment cover ............... 216
Cargo compartment enlargement ... 214
Cargo compartment floor Opening/closing ............................ 219
Stowage well (under) .....................219
Index5

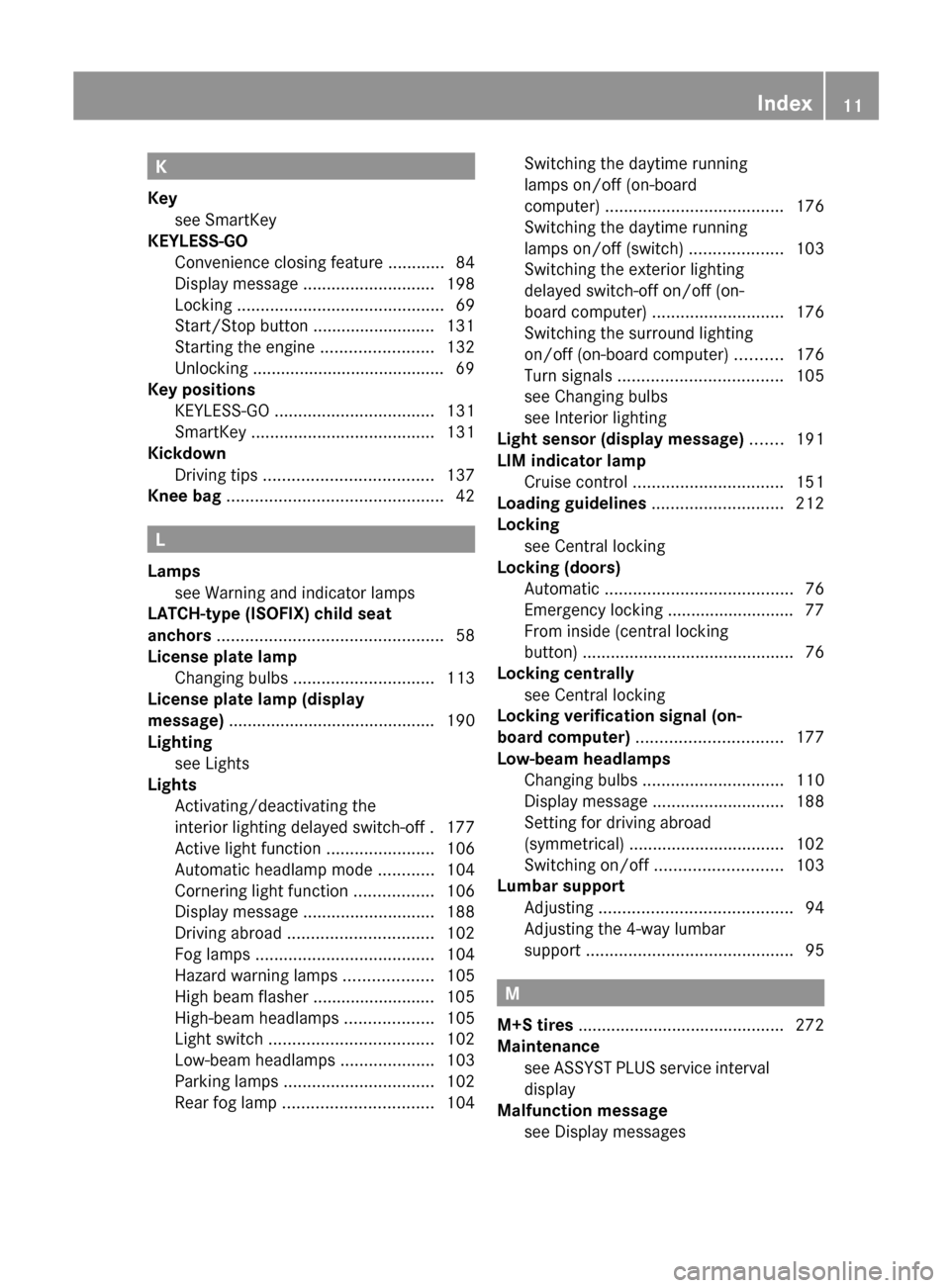

K
Key see SmartKey
KEYLESS-GO
Convenience closing feature ............84
Display message ............................ 198
Locking ............................................ 69
Start/Stop button .......................... 131
Starting the engine ........................132
Unlocking ......................................... 69
Key positions
KEYLESS-GO .................................. 131
SmartKey ....................................... 131
Kickdown
Driving tips .................................... 137
Knee bag .............................................. 42
L
Lamps see Warning and indicator lamps
LATCH-type (ISOFIX) child seat
anchors ................................................ 58
License plate lamp Changing bulbs .............................. 113
License plate lamp (display
message) ............................................ 190
Lighting see Lights
Lights
Activating/deactivating the
interior lighting delayed switch-off . 177
Active light function .......................106
Automatic headlamp mode ............104
Cornering light function .................106
Display message ............................ 188
Driving abroad ............................... 102
Fog lamps ...................................... 104
Hazard warning lamps ...................105
High beam flasher .......................... 105
High-beam headlamps ...................105
Light switch ................................... 102
Low-beam headlamps ....................103
Parking lamps ................................ 102
Rear fog lamp ................................ 104
Switching the daytime running
lamps on/off (on-board
computer) ...................................... 176
Switching the daytime running
lamps on/off (switch) ....................103
Switching the exterior lighting
delayed switch-off on/off (on-
board computer) ............................ 176
Switching the surround lighting
on/off (on-board computer) ..........176
Turn signals ................................... 105
see Changing bulbs
see Interior lighting
Light sensor (display message) ....... 191
LIM indicator lamp Cruise control ................................ 151
Loading guidelines ............................ 212
Locking see Central locking
Locking (doors)
Automatic ........................................ 76
Emergency locking ........................... 77
From inside (central locking
button) ............................................. 76
Locking centrally
see Central locking
Locking verification signal (on-
board computer) ............................... 177
Low-beam headlamps Changing bulbs .............................. 110
Display message ............................ 188
Setting for driving abroad
(symmetrical) ................................. 102
Switching on/off ........................... 103
Lumbar support
Adjusting ......................................... 94
Adjusting the 4-way lumbar
support ............................................ 95
M
M+S tires ............................................ 272
Maintenance see ASSYST PLUS service interval
display
Malfunction message
see Display messages
Index11

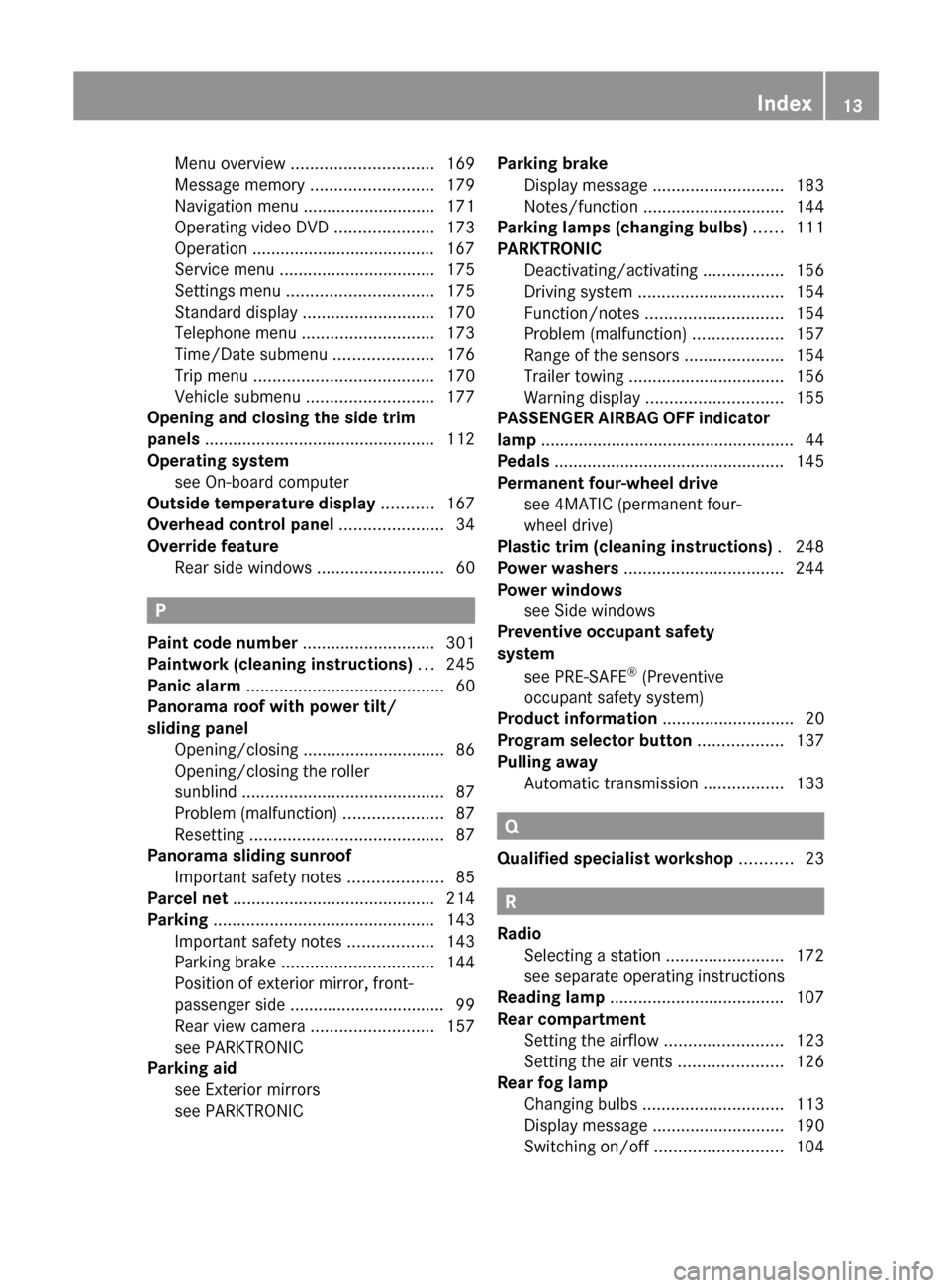

Menu overview .............................. 169
Message memory .......................... 179
Navigation menu ............................ 171
Operating video DVD .....................173
Operation ....................................... 167
Service menu ................................. 175
Settings menu ............................... 175
Standard display ............................ 170
Telephone menu ............................ 173
Time/Date submenu .....................176
Trip menu ...................................... 170
Vehicle submenu ........................... 177
Opening and closing the side trim
panels ................................................. 112
Operating system see On-board computer
Outside temperature display ........... 167
Overhead control panel ...................... 34
Override feature Rear side windows ...........................60
P
Paint code number ............................ 301
Paintwork (cleaning instructions) ... 245
Panic alarm .......................................... 60
Panorama roof with power tilt/
sliding panel Opening/closing .............................. 86
Opening/closing the roller
sunblind ........................................... 87
Problem (malfunction) .....................87
Resetting ......................................... 87
Panorama sliding sunroof
Important safety notes ....................85
Parcel net ........................................... 214
Parking ............................................... 143
Important safety notes ..................143
Parking brake ................................ 144
Position of exterior mirror, front-
passenger side ................................. 99
Rear view camera .......................... 157
see PARKTRONIC
Parking aid
see Exterior mirrors
see PARKTRONIC
Parking brake
Display message ............................ 183
Notes/function .............................. 144
Parking lamps (changing bulbs) ...... 111
PARKTRONIC Deactivating/activating .................156
Driving system ............................... 154
Function/notes ............................. 154
Problem (malfunction) ...................157
Range of the sensors .....................154
Trailer towing ................................. 156
Warning display ............................. 155
PASSENGER AIRBAG OFF indicator
lamp ...................................................... 44
Pedals ................................................. 145
Permanent four-wheel drive see 4MATIC (permanent four-
wheel drive)
Plastic trim (cleaning instructions) . 248
Power washers .................................. 244
Power windows see Side windows
Preventive occupant safety
system
see PRE-SAFE ®
(Preventive
occupant safety system)
Product information ............................ 20
Program selector button .................. 137
Pulling away Automatic transmission .................133
Q
Qualified specialist workshop ........... 23
R
Radio Selecting a station .........................172
see separate operating instructions
Reading lamp ..................................... 107
Rear compartment Setting the airflow .........................123
Setting the air vents ......................126
Rear fog lamp
Changing bulbs .............................. 113
Display message ............................ 190
Switching on/off ........................... 104
Index13

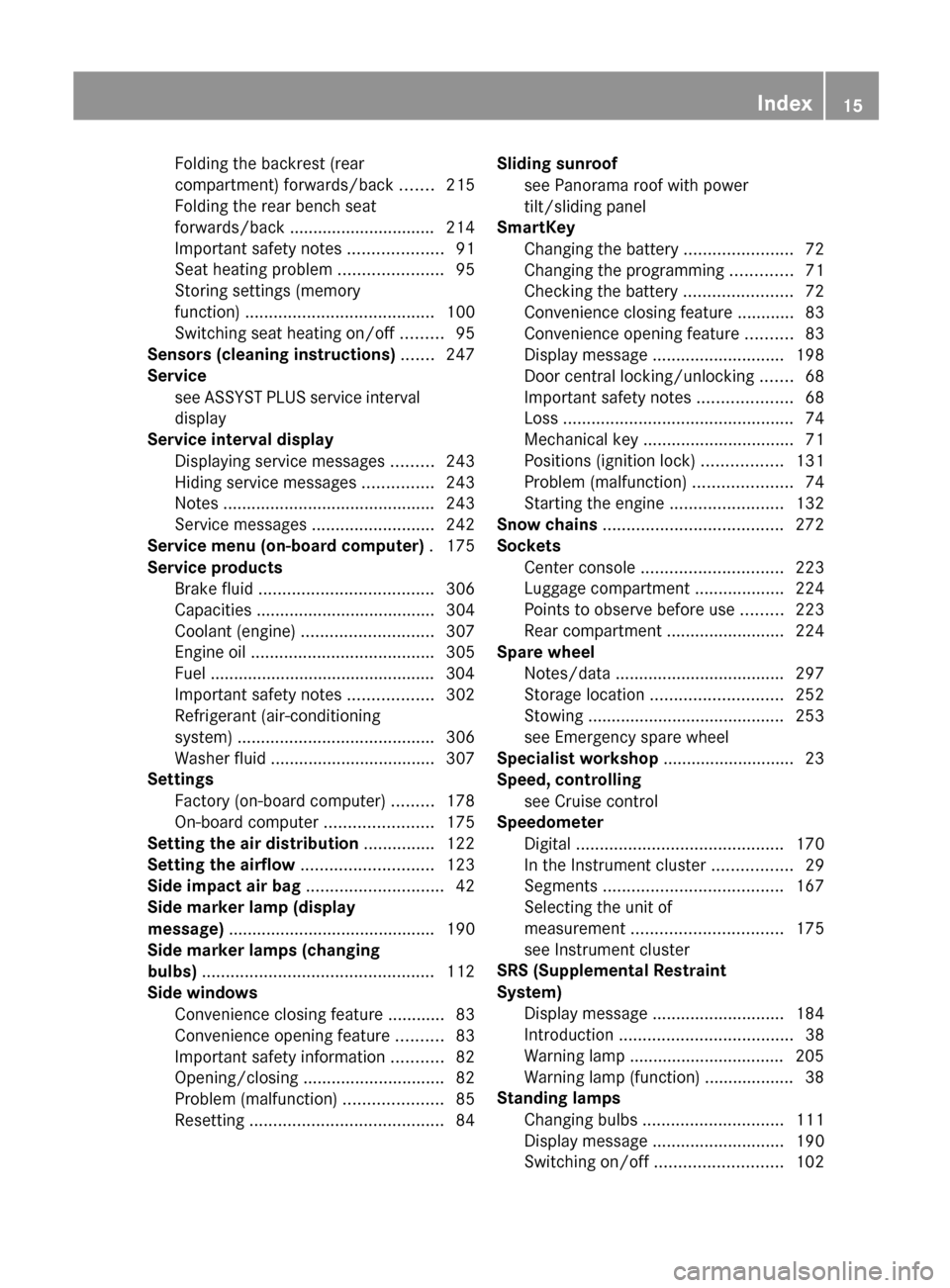

Folding the backrest (rear
compartment) forwards/back .......215
Folding the rear bench seat
forwards/back ............................... 214
Important safety notes ....................91
Seat heating problem ......................95
Storing settings (memory
function) ........................................ 100
Switching seat heating on/off .........95
Sensors (cleaning instructions) ....... 247
Service see ASSYST PLUS service interval
display
Service interval display
Displaying service messages .........243
Hiding service messages ...............243
Notes ............................................. 243
Service messages ..........................242
Service menu (on-board computer) . 175
Service products Brake fluid ..................................... 306
Capacities ...................................... 304
Coolant (engine) ............................ 307
Engine oil ....................................... 305
Fuel ................................................ 304
Important safety notes ..................302
Refrigerant (air-conditioning
system) .......................................... 306
Washer fluid ................................... 307
Settings
Factory (on-board computer) .........178
On-board computer .......................175
Setting the air distribution ............... 122
Setting the airflow ............................ 123
Side impact air bag ............................. 42
Side marker lamp (display
message) ............................................ 190
Side marker lamps (changing
bulbs) ................................................. 112
Side windows Convenience closing feature ............83
Convenience opening feature ..........83
Important safety information ...........82
Opening/closing .............................. 82
Problem (malfunction) .....................85
Resetting ......................................... 84Sliding sunroof
see Panorama roof with power
tilt/sliding panel
SmartKey
Changing the battery .......................72
Changing the programming .............71
Checking the battery .......................72
Convenience closing feature ............83
Convenience opening feature ..........83
Display message ............................ 198
Door central locking/unlocking .......68
Important safety notes ....................68
Loss ................................................. 74
Mechanical key ................................ 71
Positions (ignition lock) .................131
Problem (malfunction) .....................74
Starting the engine ........................132
Snow chains ...................................... 272
Sockets Center console .............................. 223
Luggage compartment ...................224
Points to observe before use .........223
Rear compartment .........................224
Spare wheel
Notes/data .................................... 297
Storage location ............................ 252
Stowing .......................................... 253
see Emergency spare wheel
Specialist workshop ............................ 23
Speed, controlling see Cruise control
Speedometer
Digital ............................................ 170
In the Instrument cluster .................29
Segments ...................................... 167
Selecting the unit of
measurement ................................ 175
see Instrument cluster
SRS (Supplemental Restraint
System) Display message ............................ 184
Introduction ..................................... 38
Warning lamp ................................. 205
Warning lamp (function) ................... 38
Standing lamps
Changing bulbs .............................. 111
Display message ............................ 190
Switching on/off ........................... 102Index15

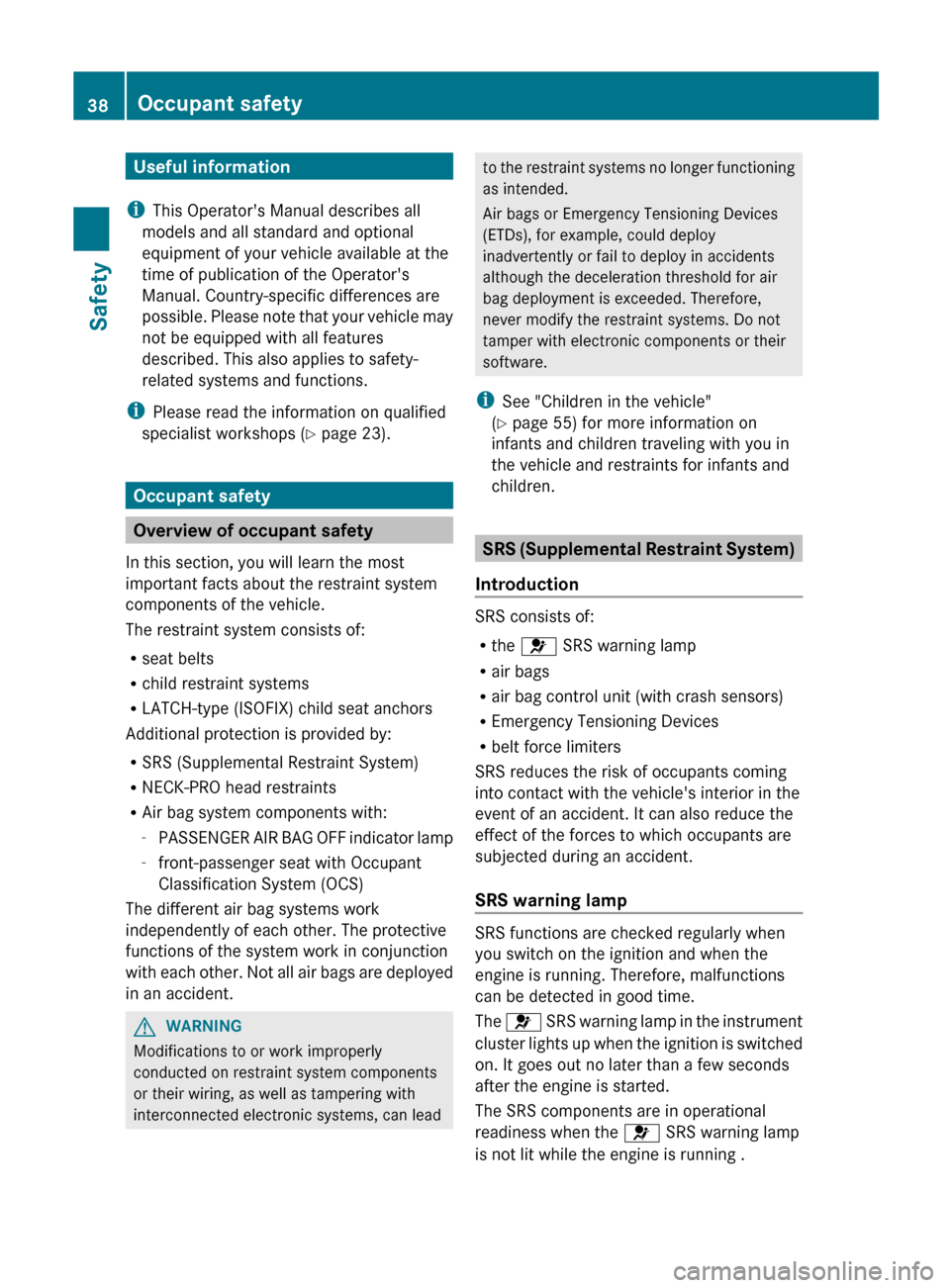

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Please read the information on qualified
specialist workshops ( Y page 23).
Occupant safety
Overview of occupant safety
In this section, you will learn the most
important facts about the restraint system
components of the vehicle.
The restraint system consists of:
R seat belts
R child restraint systems
R LATCH-type (ISOFIX) child seat anchors
Additional protection is provided by:
R SRS (Supplemental Restraint System)
R NECK-PRO head restraints
R Air bag system components with:
- PASSENGER AIR BAG OFF indicator lamp
- front-passenger seat with Occupant
Classification System (OCS)
The different air bag systems work
independently of each other. The protective
functions of the system work in conjunction
with each other. Not all air bags are deployed
in an accident.
GWARNING
Modifications to or work improperly
conducted on restraint system components
or their wiring, as well as tampering with
interconnected electronic systems, can lead
to the restraint systems no longer functioning
as intended.
Air bags or Emergency Tensioning Devices
(ETDs), for example, could deploy
inadvertently or fail to deploy in accidents
although the deceleration threshold for air
bag deployment is exceeded. Therefore,
never modify the restraint systems. Do not
tamper with electronic components or their
software.
i See "Children in the vehicle"
( Y page 55) for more information on
infants and children traveling with you in
the vehicle and restraints for infants and
children.
SRS (Supplemental Restraint System)
Introduction
SRS consists of:
R the 6 SRS warning lamp
R air bags
R air bag control unit (with crash sensors)
R Emergency Tensioning Devices
R belt force limiters
SRS reduces the risk of occupants coming
into contact with the vehicle's interior in the
event of an accident. It can also reduce the
effect of the forces to which occupants are
subjected during an accident.
SRS warning lamp
SRS functions are checked regularly when
you switch on the ignition and when the
engine is running. Therefore, malfunctions
can be detected in good time.
The 6 SRS warning lamp in the instrument
cluster lights up when the ignition is switched
on. It goes out no later than a few seconds
after the engine is started.
The SRS components are in operational
readiness when the 6 SRS warning lamp
is not lit while the engine is running .
38Occupant safetySafety

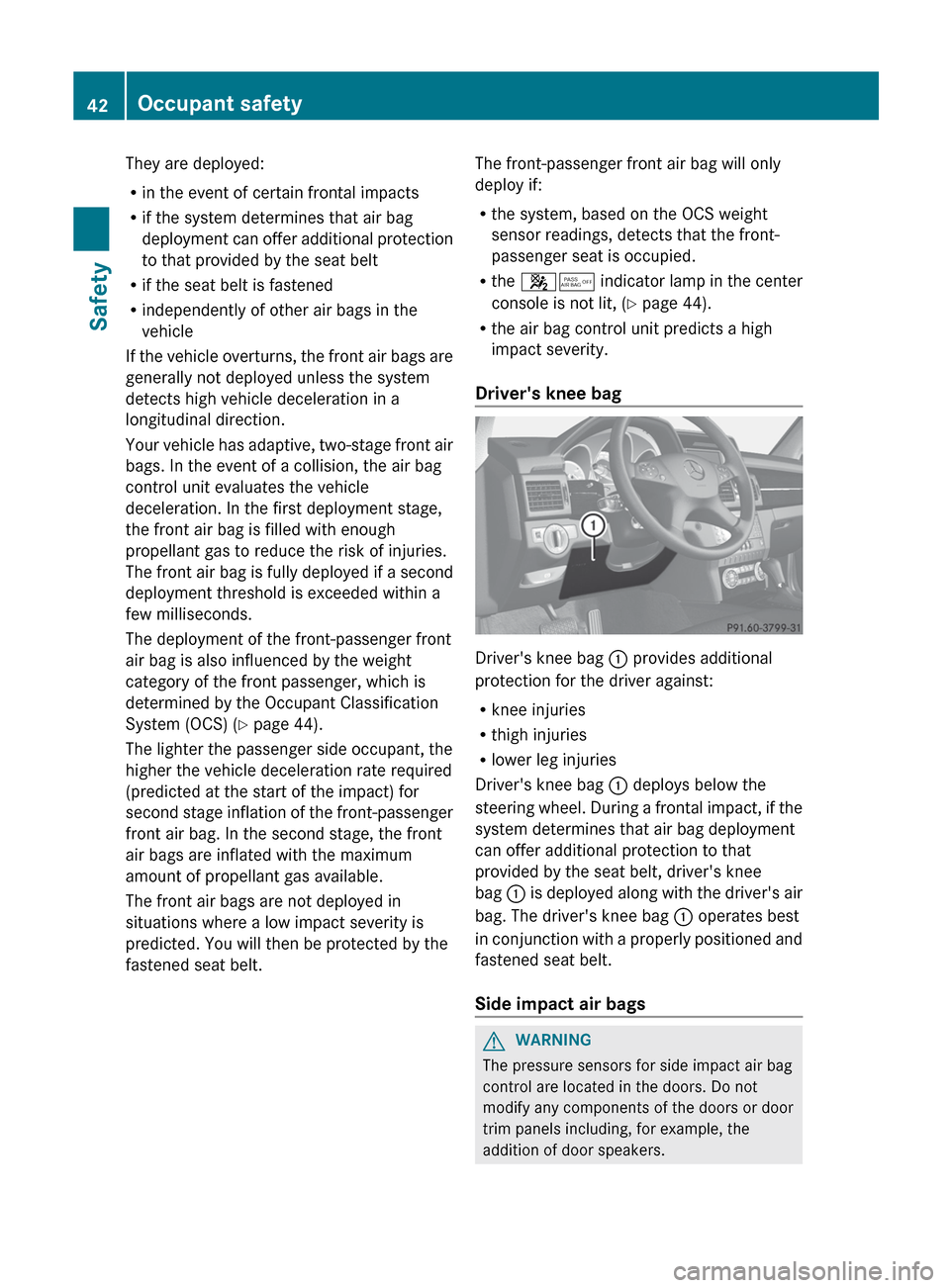

They are deployed:
R in the event of certain frontal impacts
R if the system determines that air bag
deployment can offer additional protection
to that provided by the seat belt
R if the seat belt is fastened
R independently of other air bags in the
vehicle
If the vehicle overturns, the front air bags are
generally not deployed unless the system
detects high vehicle deceleration in a
longitudinal direction.
Your vehicle has adaptive, two-stage front air
bags. In the event of a collision, the air bag
control unit evaluates the vehicle
deceleration. In the first deployment stage,
the front air bag is filled with enough
propellant gas to reduce the risk of injuries.
The front air bag is fully deployed if a second
deployment threshold is exceeded within a
few milliseconds.
The deployment of the front-passenger front
air bag is also influenced by the weight
category of the front passenger, which is
determined by the Occupant Classification
System (OCS) ( Y page 44).
The lighter the passenger side occupant, the
higher the vehicle deceleration rate required
(predicted at the start of the impact) for
second stage inflation of the front-passenger
front air bag. In the second stage, the front
air bags are inflated with the maximum
amount of propellant gas available.
The front air bags are not deployed in
situations where a low impact severity is
predicted. You will then be protected by the
fastened seat belt.The front-passenger front air bag will only
deploy if:
R the system, based on the OCS weight
sensor readings, detects that the front-
passenger seat is occupied.
R the 45 indicator lamp in the center
console is not lit, ( Y page 44).
R the air bag control unit predicts a high
impact severity.
Driver's knee bag
Driver's knee bag : provides additional
protection for the driver against:
R knee injuries
R thigh injuries
R lower leg injuries
Driver's knee bag : deploys below the
steering wheel. During a frontal impact, if the
system determines that air bag deployment
can offer additional protection to that
provided by the seat belt, driver's knee
bag : is deployed along with the driver's air
bag. The driver's knee bag : operates best
in conjunction with a properly positioned and
fastened seat belt.
Side impact air bags
GWARNING
The pressure sensors for side impact air bag
control are located in the doors. Do not
modify any components of the doors or door
trim panels including, for example, the
addition of door speakers.
42Occupant safetySafety

Pelvis air bags : deploy next to and below
the outer seat cushions. They are deployed:
R on the side on which an impact occurs
R at the start of an accident with a high rate
of lateral vehicle deceleration or
acceleration, e.g. in a side impact
R independently of seat belt use
R independently of the front air bags
R independently of the ETDs
The pelvis air bags are generally not deployed
if the vehicle overturns, unless the system
detects high vehicle deceleration or
acceleration in a lateral direction and
determines that they can offer additional
protection to that provided by the seat belt.
Pelvis air bags : will not deploy in side
impacts which do not exceed the system's
preset deployment thresholds for lateral
acceleration/deceleration. You will then be
protected by the fastened seat belt.
Vehicles with OCS (USA only): if the OCS
detects that the front-passenger seat is not
occupied and the front-passenger seat belt is
not fastened (the belt tongue is not engaged
in the seat belt buckle), the pelvis air bag on
the front-passenger side will not deploy. The
pelvis air bag on the front-passenger side will
deploy if the front-passenger seat belt is
fastened, regardless of whether the front-
passenger seat is occupied or not.
Window curtain air bags
The window curtain air bags enhance the level
of protection for the head, but not chest or
arms, of the vehicle occupants on the side of
the vehicle on which the impact occurs.
The window curtain air bags are integrated
into the side of the roof frame and deploy in
the area from the A-pillar to the C-pillar.
Window curtain air bags : are deployed:
R on the side on which an impact occurs
R at the start of an accident with a high rate
of lateral vehicle deceleration or
acceleration, e.g. in a side impact
R regardless of whether the front-passenger
seat is occupied
R independently of seat belt use
R if the vehicle overturns and the system
determines that window curtain air bag
deployment can offer additional protection
to that provided by the seat belt
R independently of the front air bags
Window curtain air bags : will not deploy in
impacts with deceleration rates which do not
exceed the system's preset deployment
thresholds for vehicle deceleration or
acceleration. You will then be protected by
the fastened seat belt.
Occupant Classification System
(OCS)
How the occupant classification
system works
The Occupant Classification System (OCS)
categorizes the occupant on the front-
passenger seat by means of a weight sensor.
44Occupant safetySafety

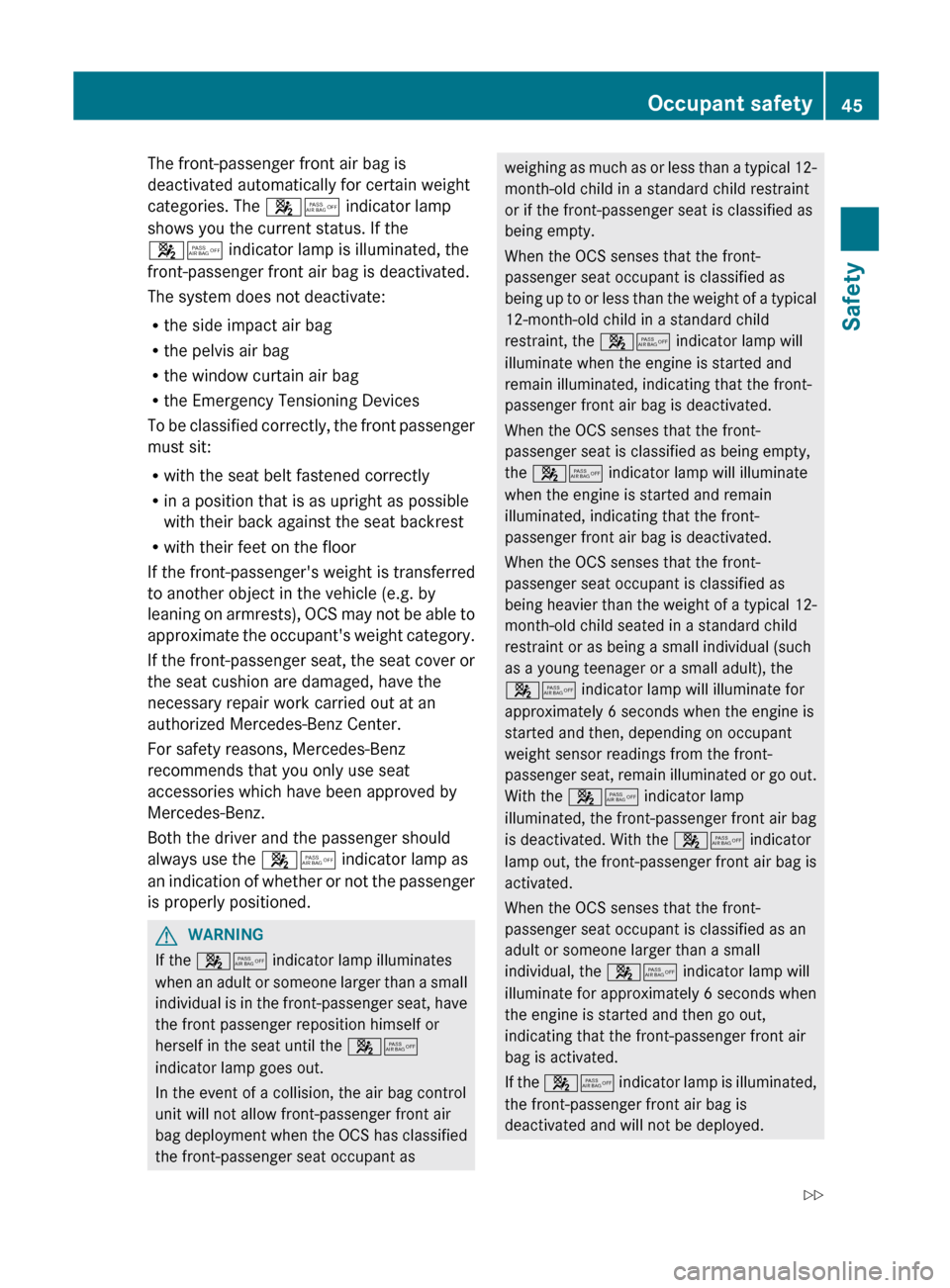

The front-passenger front air bag is
deactivated automatically for certain weight
categories. The 45 indicator lamp
shows you the current status. If the
45 indicator lamp is illuminated, the
front-passenger front air bag is deactivated.
The system does not deactivate:
R the side impact air bag
R the pelvis air bag
R the window curtain air bag
R the Emergency Tensioning Devices
To be classified correctly, the front passenger
must sit:
R with the seat belt fastened correctly
R in a position that is as upright as possible
with their back against the seat backrest
R with their feet on the floor
If the front-passenger's weight is transferred
to another object in the vehicle (e.g. by
leaning on armrests), OCS may not be able to
approximate the occupant's weight category.
If the front-passenger seat, the seat cover or
the seat cushion are damaged, have the
necessary repair work carried out at an
authorized Mercedes-Benz Center.
For safety reasons, Mercedes-Benz
recommends that you only use seat
accessories which have been approved by
Mercedes-Benz.
Both the driver and the passenger should
always use the 45 indicator lamp as
an indication of whether or not the passenger
is properly positioned.GWARNING
If the 45 indicator lamp illuminates
when an adult or someone larger than a small
individual is in the front-passenger seat, have
the front passenger reposition himself or
herself in the seat until the 45
indicator lamp goes out.
In the event of a collision, the air bag control
unit will not allow front-passenger front air
bag deployment when the OCS has classified
the front-passenger seat occupant as
weighing as much as or less than a typical 12-
month-old child in a standard child restraint
or if the front-passenger seat is classified as
being empty.
When the OCS senses that the front-
passenger seat occupant is classified as
being up to or less than the weight of a typical
12-month-old child in a standard child
restraint, the 45 indicator lamp will
illuminate when the engine is started and
remain illuminated, indicating that the front-
passenger front air bag is deactivated.
When the OCS senses that the front-
passenger seat is classified as being empty,
the 45 indicator lamp will illuminate
when the engine is started and remain
illuminated, indicating that the front-
passenger front air bag is deactivated.
When the OCS senses that the front-
passenger seat occupant is classified as
being heavier than the weight of a typical 12-
month-old child seated in a standard child
restraint or as being a small individual (such
as a young teenager or a small adult), the
45 indicator lamp will illuminate for
approximately 6 seconds when the engine is
started and then, depending on occupant
weight sensor readings from the front-
passenger seat, remain illuminated or go out.
With the 45 indicator lamp
illuminated, the front-passenger front air bag
is deactivated. With the 45 indicator
lamp out, the front-passenger front air bag is
activated.
When the OCS senses that the front-
passenger seat occupant is classified as an
adult or someone larger than a small
individual, the 45 indicator lamp will
illuminate for approximately 6 seconds when
the engine is started and then go out,
indicating that the front-passenger front air
bag is activated.
If the 45 indicator lamp is illuminated,
the front-passenger front air bag is
deactivated and will not be deployed.Occupant safety45SafetyZ

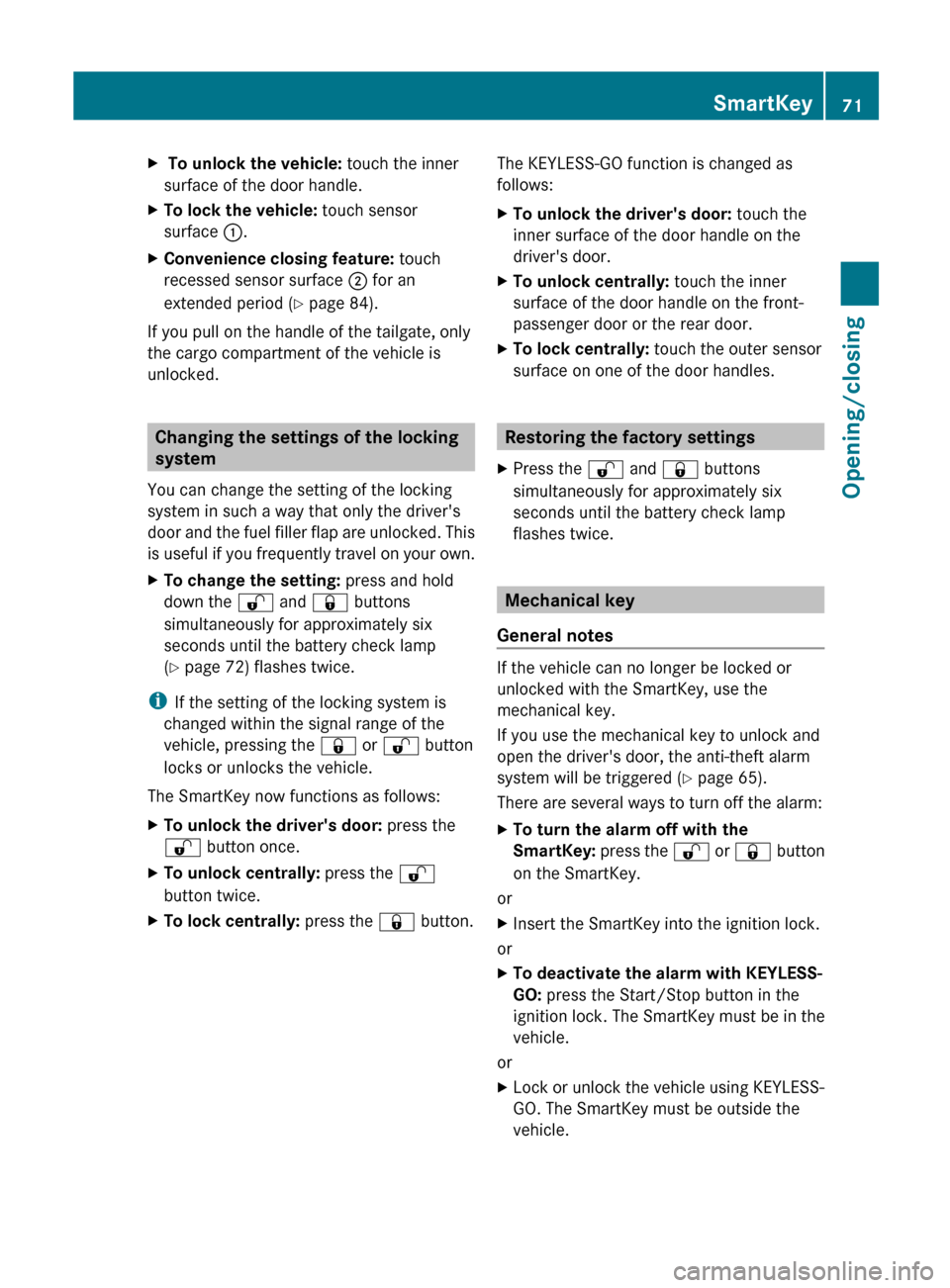

X To unlock the vehicle: touch the inner
surface of the door handle.XTo lock the vehicle: touch sensor
surface :.XConvenience closing feature: touch
recessed sensor surface ; for an
extended period ( Y page 84).
If you pull on the handle of the tailgate, only
the cargo compartment of the vehicle is
unlocked.
Changing the settings of the locking
system
You can change the setting of the locking
system in such a way that only the driver's
door and the fuel filler flap are unlocked. This
is useful if you frequently travel on your own.
XTo change the setting: press and hold
down the % and & buttons
simultaneously for approximately six
seconds until the battery check lamp
( Y page 72) flashes twice.
i
If the setting of the locking system is
changed within the signal range of the
vehicle, pressing the & or % button
locks or unlocks the vehicle.
The SmartKey now functions as follows:
XTo unlock the driver's door: press the
% button once.XTo unlock centrally: press the %
button twice.XTo lock centrally: press the & button.The KEYLESS-GO function is changed as
follows:XTo unlock the driver's door: touch the
inner surface of the door handle on the
driver's door.XTo unlock centrally: touch the inner
surface of the door handle on the front-
passenger door or the rear door.XTo lock centrally: touch the outer sensor
surface on one of the door handles.
Restoring the factory settings
XPress the % and & buttons
simultaneously for approximately six
seconds until the battery check lamp
flashes twice.
Mechanical key
General notes
If the vehicle can no longer be locked or
unlocked with the SmartKey, use the
mechanical key.
If you use the mechanical key to unlock and
open the driver's door, the anti-theft alarm
system will be triggered ( Y page 65).
There are several ways to turn off the alarm:
XTo turn the alarm off with the
SmartKey: press the % or & button
on the SmartKey.
or
XInsert the SmartKey into the ignition lock.
or
XTo deactivate the alarm with KEYLESS-
GO: press the Start/Stop button in the
ignition lock. The SmartKey must be in the
vehicle.
or
XLock or unlock the vehicle using KEYLESS-
GO. The SmartKey must be outside the
vehicle.SmartKey71Opening/closingZ

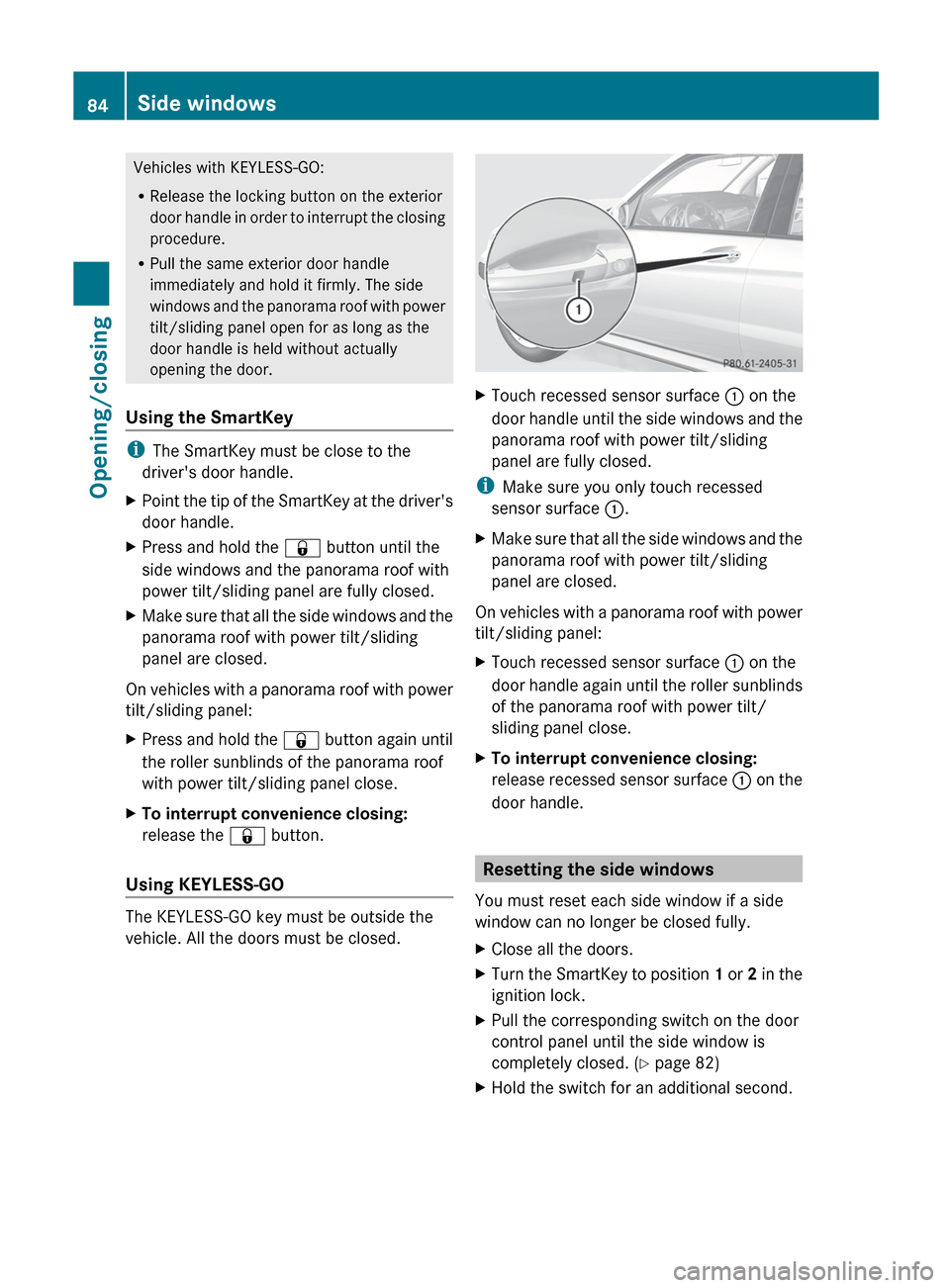

Vehicles with KEYLESS-GO:
R Release the locking button on the exterior
door handle in order to interrupt the closing
procedure.
R Pull the same exterior door handle
immediately and hold it firmly. The side
windows and the panorama roof with power
tilt/sliding panel open for as long as the
door handle is held without actually
opening the door.
Using the SmartKey
i The SmartKey must be close to the
driver's door handle.
XPoint the tip of the SmartKey at the driver's
door handle.XPress and hold the & button until the
side windows and the panorama roof with
power tilt/sliding panel are fully closed.XMake sure that all the side windows and the
panorama roof with power tilt/sliding
panel are closed.
On vehicles with a panorama roof with power
tilt/sliding panel:
XPress and hold the & button again until
the roller sunblinds of the panorama roof
with power tilt/sliding panel close.XTo interrupt convenience closing:
release the & button.
Using KEYLESS-GO
The KEYLESS-GO key must be outside the
vehicle. All the doors must be closed.
XTouch recessed sensor surface : on the
door handle until the side windows and the
panorama roof with power tilt/sliding
panel are fully closed.
i Make sure you only touch recessed
sensor surface :.
XMake sure that all the side windows and the
panorama roof with power tilt/sliding
panel are closed.
On vehicles with a panorama roof with power
tilt/sliding panel:
XTouch recessed sensor surface : on the
door handle again until the roller sunblinds
of the panorama roof with power tilt/
sliding panel close.XTo interrupt convenience closing:
release recessed sensor surface : on the
door handle.
Resetting the side windows
You must reset each side window if a side
window can no longer be closed fully.
XClose all the doors.XTurn the SmartKey to position 1 or 2 in the
ignition lock.XPull the corresponding switch on the door
control panel until the side window is
