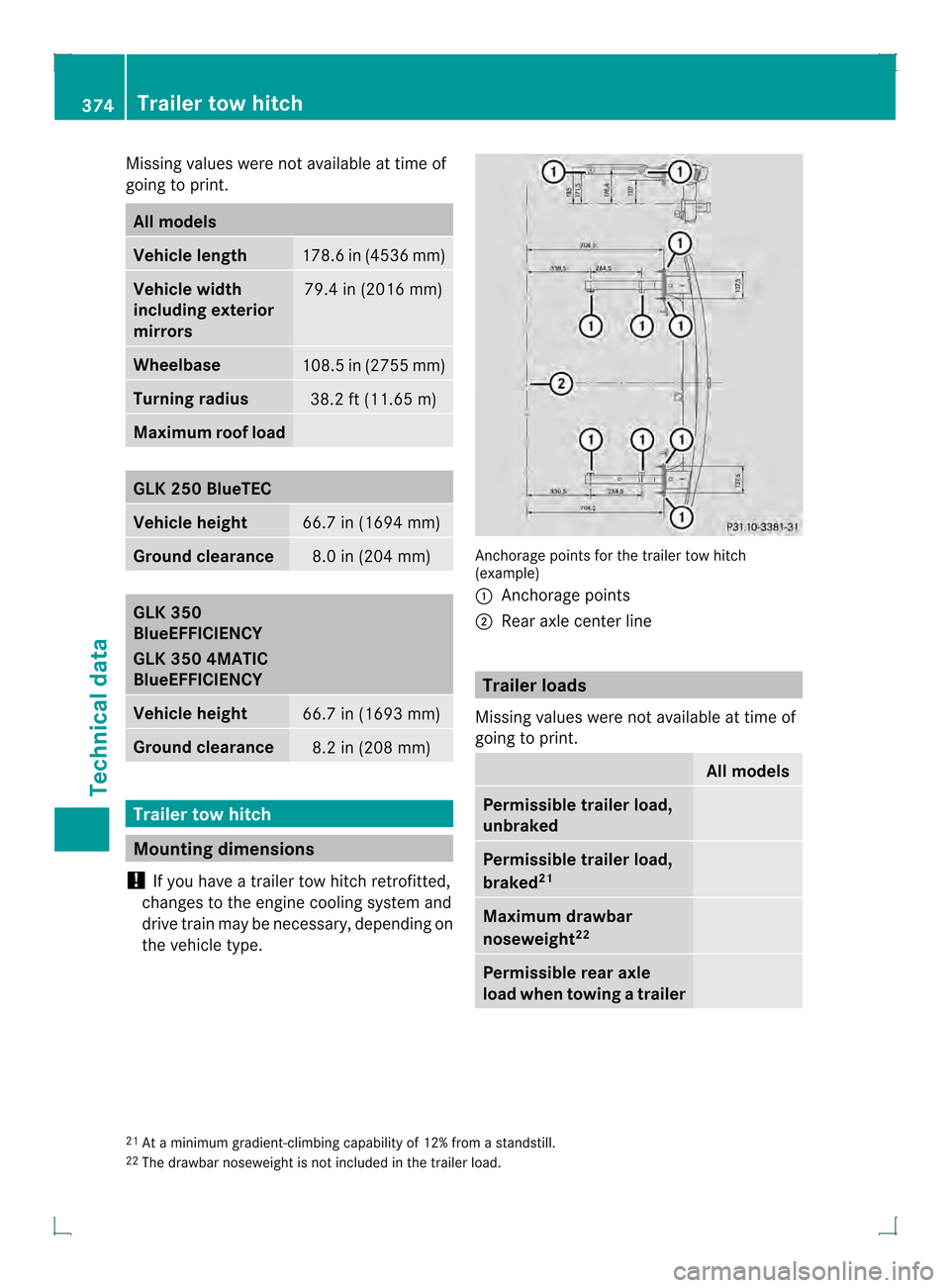

wheelbase MERCEDES-BENZ GLK-Class 2013 X204 Owner's Manual

Missing values were not available at time of
going to print.
All models
Vehicle length
178.6 in (4536 mm)
Vehicle width
including exterior
mirrors
79.4 in (2016 mm)
Wheelbase
108.5 in (2755 mm)
Turning radius
38.2 ft (11.65 m)
Maximum roof load
GLK 250 BlueTEC
Vehicle height
66.7 in (1694 mm)
Ground clearance
8.0 in (204 mm)
GLK 350
BlueEFFICIENCY
GLK 350 4MATIC
BlueEFFICIENCY
Vehicle height
66.7 in (1693 mm)
Ground clearance
8.2 in (208 mm)
Trailer tow hitch
Mounting dimensions
! If you have a trailer tow hitch retrofitted,
changes to the engine cooling system and
drive train may be necessary, depending on
the vehicle type. Anchorage points for the trailer tow hitch
(example)
0002
Anchorage points
0003 Rear axle center line Trailer loads
Missing values were not available at time of
going to print. All models
Permissible trailer load,
unbraked
Permissible trailer load,
braked
21 Maximum drawbar
noseweight
22 Permissible rear axle
load when towing
atrailer 21
At a minimum gradient-climbing capability of 12% fro mastandstill.
22 The drawbarn oseweight is not included in the trailer load.374
Trailer tow hitchTechnical data
