MERCEDES-BENZ GLS SUV 2016 Owners Manual

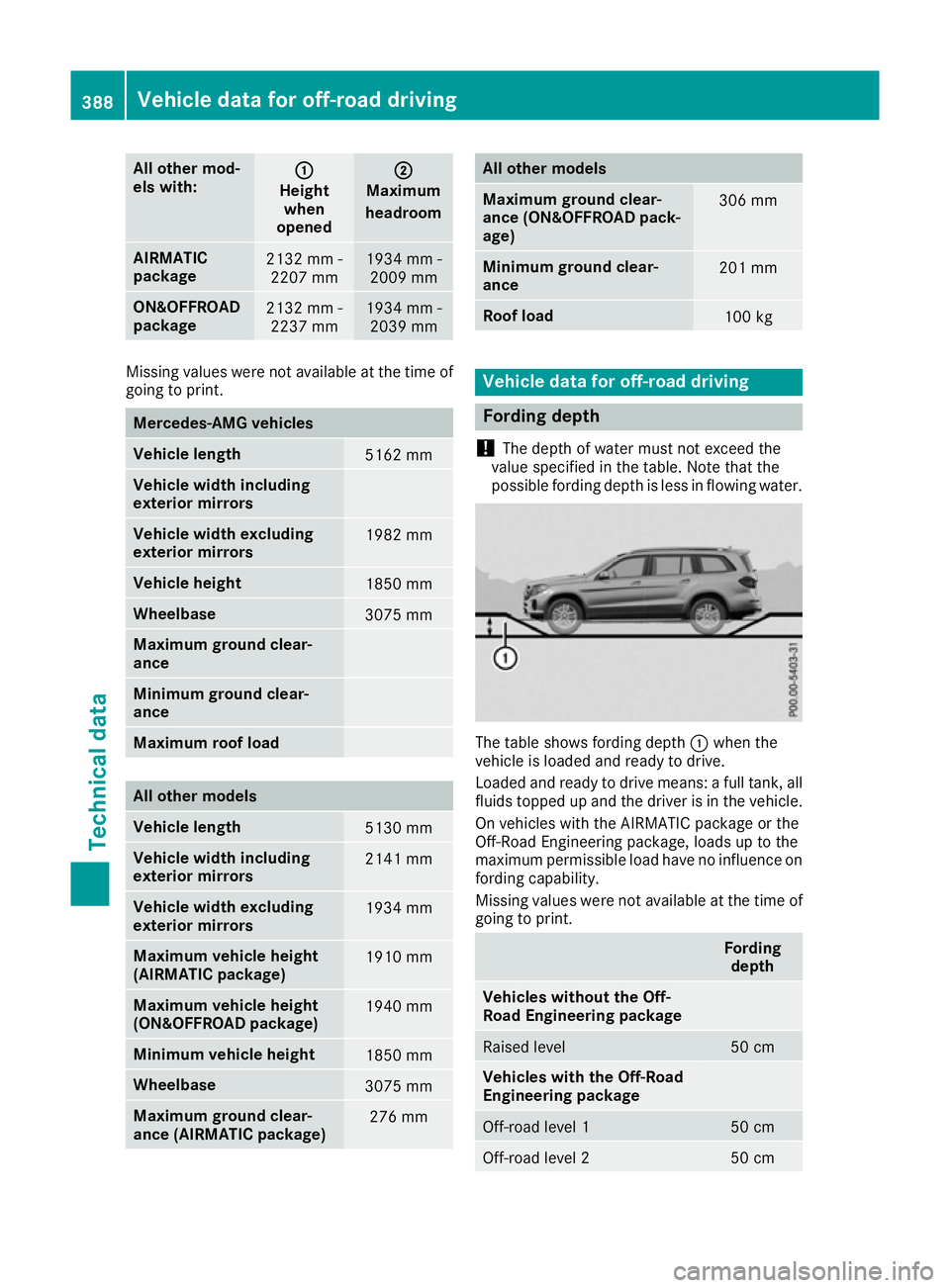

All other mod-
els with: :
:
Height when
opened ;
;
Maximum
headroom AIRMATIC
package
2132 mm -
2207 mm 1934 mm -
2009 mm ON&OFFROAD
package
2132 mm -
2237 mm 1934 mm -
2039 mm Missing values were not available at the time of
going to print. Mercedes-AMG vehicles
Vehicle length
5162 mm
Vehicle width including
exterior mirrors
Vehicle width excluding
exterior mirrors
1982 mm
Vehicle height
1850 mm
Wheelbase
3075 mm
Maximum ground clear-
ance
Minimum ground clear-
ance
Maximum roof load
All other models
Vehicle length
5130 mm
Vehicle width including
exterior mirrors
2141 mm
Vehicle width excluding
exterior mirrors
1934 mm
Maximum vehicle height
(AIRMATIC package)
1910 mm
Maximum vehicle height
(ON&OFFROAD package)
1940 mm
Minimum vehicle height
1850 mm
Wheelbase
3075 mm
Maximum ground clear-
ance (AIRMATIC package)
276 mm All other models
Maximum ground clear-
ance (ON&OFFROAD pack-
age)
306 mm
Minimum ground clear-
ance
201 mm
Roof load
100 kg
Vehicle data for off-road driving
Fording depth
! The depth of water must not exceed the
value specified in the table. Note that the
possible fording depth is less in flowing water. The table shows fording depth
:when the
vehicle is loaded and ready to drive.
Loaded and ready to drive means: a full tank, all fluids topped up and the driver is in the vehicle.
On vehicles with the AIRMATIC package or the
Off-Road Engineering package, loads up to the
maximum permissible load have no influence on fording capability.
Missing values were not available at the time of
going to print. Fording
depth Vehicles without the Off-
Road Engineering package
Raised level 50 cm
Vehicles with the Off-Road
Engineering package
Off-road level 1 50 cm
Off-road level 2 50 cm388
Vehicle data for off-road drivingTechnical data

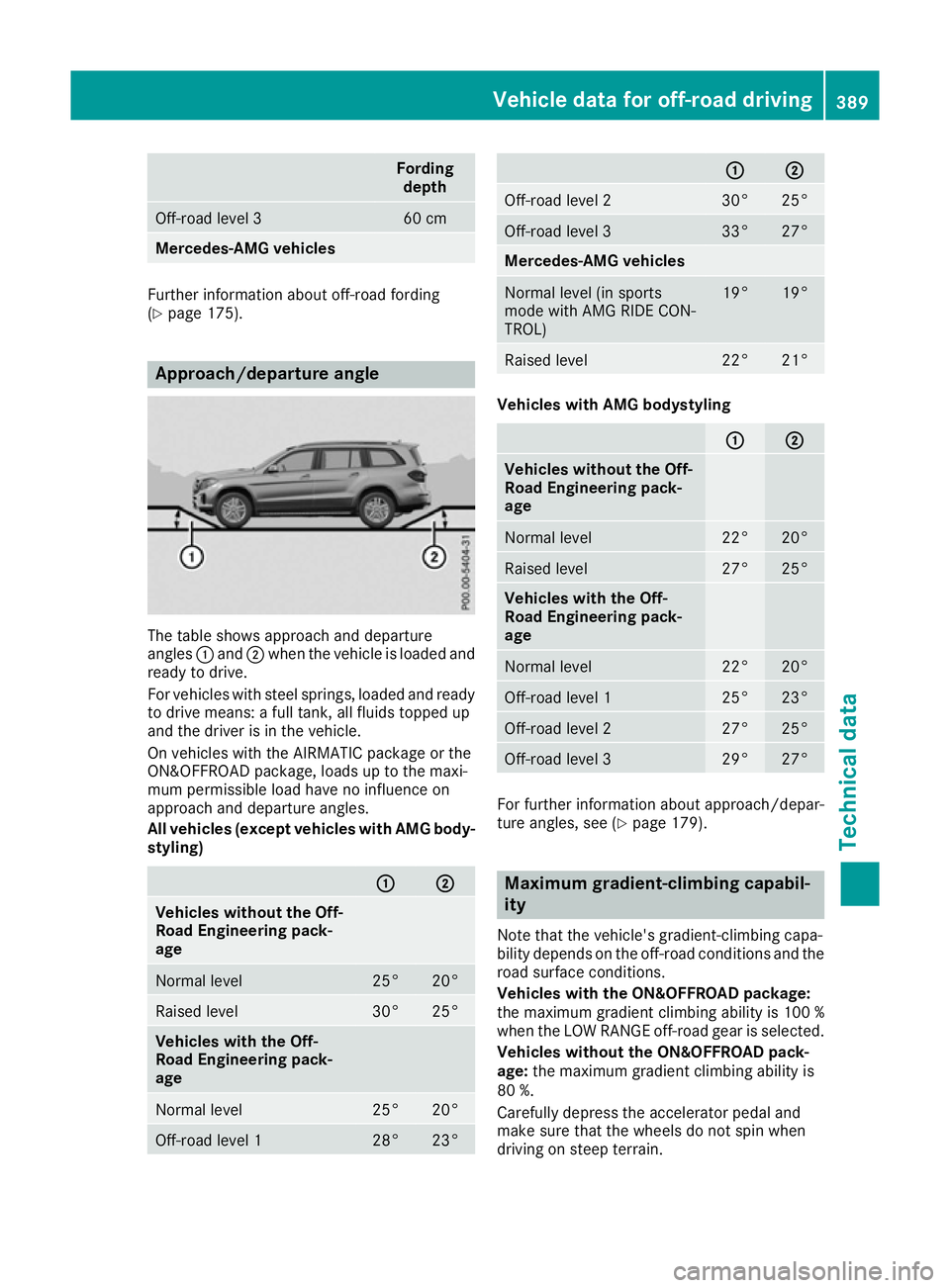

Fording
depth Off-road level 3 60 cm
Mercedes-AMG vehicles
Further information about off-road fording
(Y page 175). Approach/departure angle
The table shows approach and departure
angles :and ;when the vehicle is loaded and
ready to drive.
For vehicles with steel springs, loaded and ready
to drive means: a full tank, all fluids topped up
and the driver is in the vehicle.
On vehicles with the AIRMATIC package or the
ON&OFFROAD package, loads up to the maxi-
mum permissible load have no influence on
approach and departure angles.
All vehicles (except vehicles with AMG body- styling) : : ;
;
Vehicles without the Off-
Road Engineering pack-
age
Normal level 25° 20°
Raised level 30° 25°
Vehicles with the Off-
Road Engineering pack-
age
Normal level 25° 20°
Off-road level 1 28° 23° : : ;
;
Off-road level 2 30° 25°
Off-road level 3 33° 27°
Mercedes-AMG vehicles
Normal level (in sports
mode with AMG RIDE CON-
TROL) 19° 19°
Raised level 22° 21°
Vehicles with AMG bodystyling
: : ;
;
Vehicles without the Off-
Road Engineering pack-
age
Normal level 22° 20°
Raised level 27° 25°
Vehicles with the Off-
Road Engineering pack-
age
Normal level 22° 20°
Off-road level 1 25° 23°
Off-road level 2 27° 25°
Off-road level 3 29° 27°
For further information about approach/depar-
ture angles, see (Y
page 179). Maximum gradient-climbing capabil-
ity
Note that the vehicle's gradient-climbing capa-
bility depends on the off-road conditions and the road surface conditions.
Vehicles with the ON&OFFROAD package:
the maximum gradient climbing ability is 100 %
when the LOW RANGE off-road gear is selected.
Vehicles without the ON&OFFROAD pack-
age: the maximum gradient climbing ability is
80 %.
Carefully depress the accelerator pedal and
make sure that the wheels do not spin when
driving on steep terrain. Vehicle data for off-road driving
389Technical data Z

i
If the load on the front axle is reduced when
pulling away on a steep uphill slope, the front
wheels have a tendency to spin. 4ETS recog-
nises this and brakes the wheels accordingly. The rear wheel torque is increased and it is
easier to pull away.
For further information about maximum gradi-

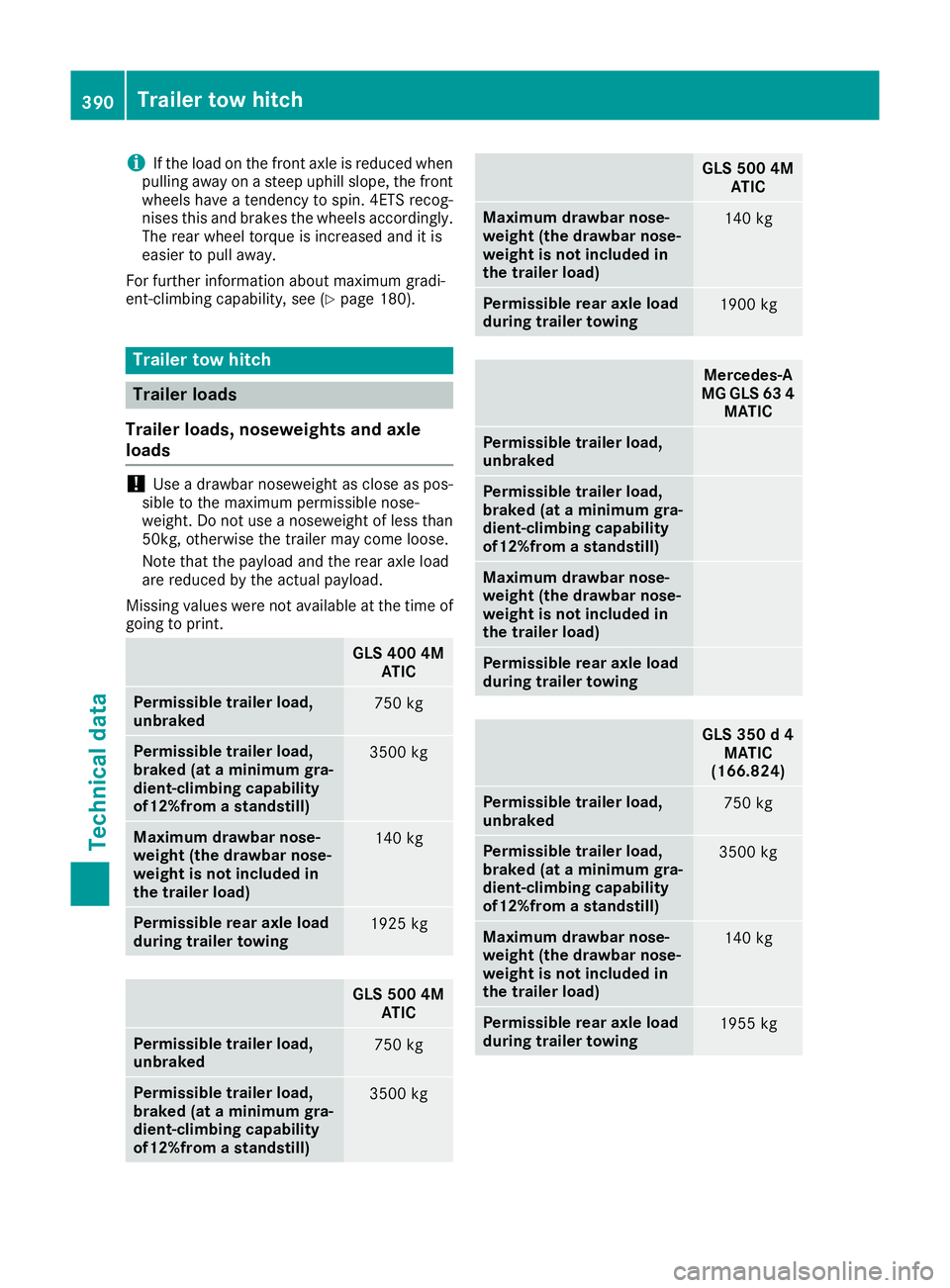

ent-climbing capability, see (Y page 180).Trailer tow hitch
Trailer loads
Trailer loads, noseweights and axle
loads !
Use a drawbar noseweight as close as pos-
sible to the maximum permissible nose-
weight. Do not use a noseweight of less than
50kg, otherwise the trailer may come loose.
Note that the payload and the rear axle load
are reduced by the actual payload.
Missing values were not available at the time of going to print. GLS 400 4M
ATIC Permissible trailer load,
unbraked
750 kg
Permissible trailer load,
braked (at a minimum gra-
dient-climbing capability
of12%from a standstill)
3500 kg
Maximum drawbar nose-
weight (the drawbar nose-
weight is not included in
the trailer load)
140 kg
Permissible rear axle load
during trailer towing
1925 kg
GLS 500 4M
ATIC Permissible trailer load,
unbraked
750 kg
Permissible trailer load,
braked (at a minimum gra-
dient-climbing capability
of12%from a standstill)
3500 kg GLS 500 4M
ATIC Maximum drawbar nose-
weight (the drawbar nose-
weight is not included in
the trailer load)
140 kg
Permissible rear axle load
during trailer towing
1900 kg
Mercedes‑A
MG GLS 63 4 MATIC Permissible trailer load,
unbraked
Permissible trailer load,
braked (at a minimum gra-
dient-climbing capability
of12%from a standstill)
Maximum drawbar nose-
weight (the drawbar nose-
weight is not included in
the trailer load)
Permissible rear axle load
during trailer towing
GLS 350 d 4
MATIC
(166.824) Permissible trailer load,
unbraked
750 kg
Permissible trailer load,
braked (at a minimum gra-
dient-climbing capability
of12%from a standstill)
3500 kg
Maximum drawbar nose-
weight (the drawbar nose-
weight is not included in
the trailer load)
140 kg
Permissible rear axle load
during trailer towing
1955 kg390
Trailer tow hitchTechnical data

GLS 350 d 4
MATIC
(166.823) Permissible trailer load,
unbraked
Permissible trailer load,
braked (at a minimum gra-
dient-climbing capability
of12%from a standstill)
Maximum drawbar nose-
weight (the drawbar nose-
weight is not included in
the trailer load)
Permissible rear axle load
during trailer towing
The actual drawbar load may not be higher than
the specified value. The value can be found on
the trailer tow hitch or trailer identification
plates. The lowest weight applies.
You can attach carrier systems, e.g. bicycle
racks or load-bearing implements, to the ball
coupling. The maximum payload of 75 kg applies
when using carrier systems on the ball coupling. Trailer tow hitch
391Technical data Z
