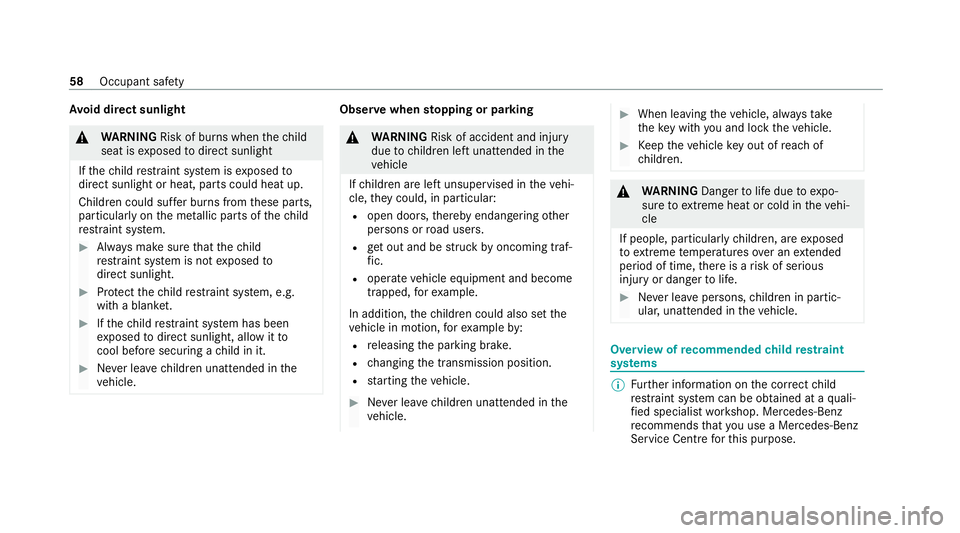

Av
oid direct sunlight &
WARNING Risk of bu rns when thech ild
seat is exposed todirect sunlight
If th ech ild restra int sy stem is exposed to
direct sunlight or heat, parts could heat up.
Children could suf fer burns from these parts,
particularly on the me tallic parts of thech ild
re stra int sy stem. #
Alw ays make sure that thech ild
re stra int sy stem is not exposed to
direct sunlight. #
Protect thech ild restra int sy stem, e.g.
with a blank et. #
Ifth ech ild restra int sy stem has been
ex posed todirect sunlight, allow it to
cool before secu ring a child in it. #
Never lea vechildren unat tended in the
ve hicle. Obser
vewhen stopping or parking &
WARNING Risk of accident and inju ry
due tochildren left unat tended in the
ve hicle
If ch ildren are left unsupervised in theve hi‐
cle, they could, in pa rticular:
R open doors, thereby endangering other
persons or road users.
R get out and be stru ck byoncoming traf‐
fi c.
R ope rate ve hicle equipment and become
trapped, forex ample.
In addition, thech ildren could also set the
ve hicle in motion, forex ample by:
R releasing the parking brake.
R changing the transmission position.
R starting theve hicle. #
Never lea vechildren unat tended in the
ve hicle. #
When leaving theve hicle, alw aysta ke
th eke y with you and lock theve hicle. #
Keep theve hicle key out of reach of
ch ildren. &
WARNING Dangertolife due toexpo‐
sure toextreme heat or cold in theve hi‐
cle
If people, particularly children, are exposed
to extreme temp eratures over an extended
pe riod of time, there is a risk of serious
injury or danger tolife. #
Never lea vepersons, children in partic‐
ular, unat tended in theve hicle. Overview of
recommended child restra int
sy stems %
Further information on the cor rect child
re stra int sy stem can be obtained at a quali‐
fi ed specialist workshop. Mercedes-Benz
re commends that you use a Mercedes-Benz
Service Centre forth is purpose. 58
Occupant saf ety

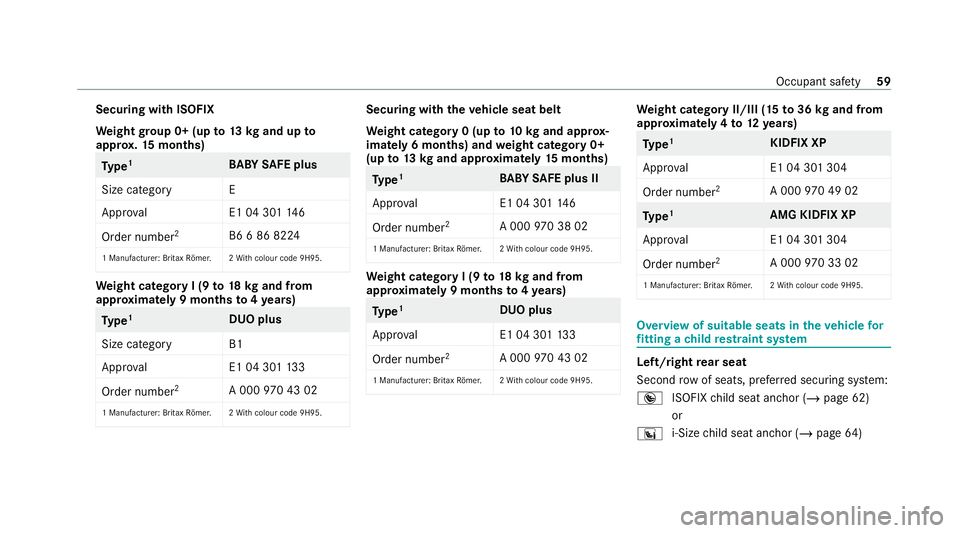

Securing with ISOFIX
We
ight group 0+ (up to13 kgand up to
appr ox.15 months) Ty
pe 1
BABY SAFE plus
Size categor yE
App rova lE 1 04 30114 6
Order number 2
B6 6 86 8224
1 Manufacturer: Britax Römer .2 With colour code 9H95. We
ight category I (9 to18 kgand from
appr oxima tely 9 months to4ye ars) Ty
pe 1
DUO plus
Size catego ry B1
Appr oval E1 04 30113 3
Order number 2
A 000970 43 02
1 Manu facturer: Britax Römer .2 With colour code 9H95. Securing with th
eve hicle seat belt
We ight category 0 (up to10 kgand appr ox‐
ima tely 6 months) and weight category 0+
(up to13 kgand appr oxima tely 15 months) Ty
pe 1
BABY SAFE plus II
App rova lE 1 04 30114 6
Order number 2
A 000970 38 02
1 Manu facturer: Britax Römer .2 With colour code 9H95. We
ight category I (9 to18 kgand from
appr oxima tely 9 months to4ye ars) Ty
pe 1
DUO plus
Appr oval E1 04 30113 3
Order number 2
A 000970 43 02
1 Manu facturer: Britax Römer .2 With colour code 9H95. We
ight category II/III (15 to36 kgand from
appr oxima tely 4to 12 years) Ty
pe 1
KIDFIX XP
Appr oval E1 04 301 304
Order number 2
A 000970 49 02 Ty
pe 1
AMG KIDFIX XP
Appr oval E1 04 301 304
Order number 2
A 000970 33 02
1 Manu facturer: Britax Römer .2 With colour code 9H95. Overview of suitable seats in
theve hicle for
fi tting a child restra int sy stem Left/right
rear seat
Second rowof seats, prefer red securing sy stem:
® ISOFIX child seat anchor (/ page 62)
or
° i-Sizechild seat anchor (/ page64) Occupant saf
ety59

¯

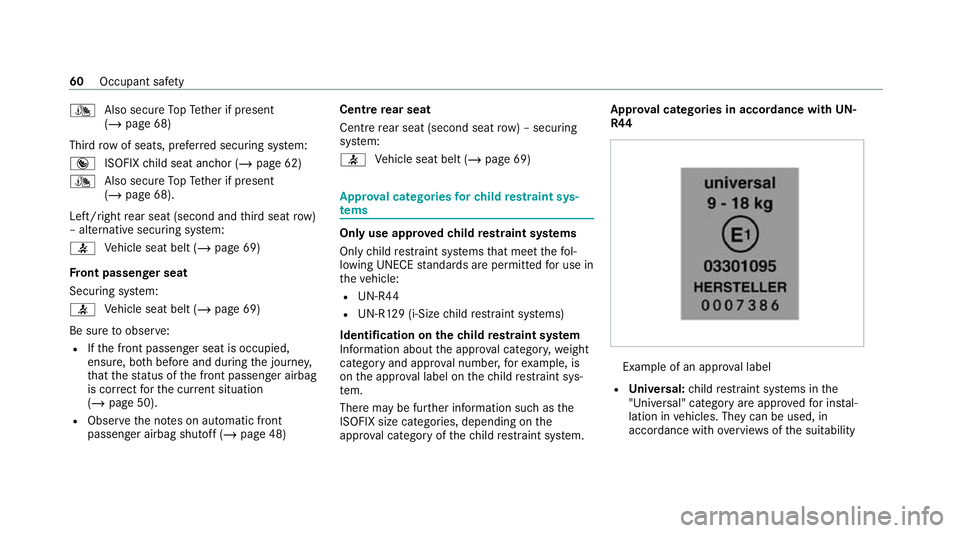

Also secure TopTe ther if present
(/ page 68)
Third rowof seats, prefer red securing sy stem:
® ISOFIX child seat anchor (/ page 62)
¯ Also secure TopTe ther if present
(/ page 68).
Left/right rear seat (second and third seat row)
– alternative securing sy stem:
7 Ve
hicle seat belt (/ page 69)
Fr ont passenger seat
Securing sy stem:
7 Ve
hicle seat belt (/ page 69)
Be sure toobser ve:
R Ifth e front passenger seat is occupied,
ensure, bo thbefore and during the journe y,
th at thest atus of the front passenger airbag
is cor rect forth e cur rent situation
(/ page 50).
R Obse rveth e no tes on automatic front
passenger airbag shutoff (/ page 48)Centre
rear seat
Centre rear seat (second seat row) – securing
sy stem:
7 Ve
hicle seat belt (/ page 69) Appr
oval catego ries forch ild restra int sys‐
te ms On
lyuse appr ovedch ild restra int sy stems
Only child restra int sy stems that meet thefo l‐
lowing UNECE standards are permit tedfo r use in
th eve hicle:
R UN-R44
R UN-R129 (i-Size child restra int sy stems)
Identification on thech ild restra int sy stem
In fo rm ation about the appr oval categor y,we ight
category and appr oval number, forex ample, is
on the appr oval label on thech ild restra int sys‐
te m.
There may be fur ther information such as the
ISOFIX size categories, depending on the
appr oval category of thech ild restra int sy stem. Appr
oval catego ries in accordance with UN-
R44 Example of an appr
oval label
R Universal: child restra int sy stems in the
"Universal" category are appr oved for ins tal‐
lation in vehicles. They can be used, in
accordance with overviews ofthe suitability 60
Occupant saf ety

of seats
for securing child restra int sy stems,
on seats labelled U,UF or IUF.
The identification IUF refers to ISOFIX child
re stra int sy stems in the "Universal" categor y.
These child restra int sy stems must also be
secured using TopTe ther or support points.
R Semi-Universal: child restra int sy stems in
th e "Semi-Universal" category may only be
used if theve hicle and vehicle seat are lis ted
in thech ild restra int sy stem manufacturer's
ve hicle model list.
R Vehicle-specific: child restra int sy stems in
th e "vehicle-specific" category may only be
used if theve hicle and vehicle seat are lis ted
in thech ild restra int sy stem manufacturer's
ve hicle model list. Appr
oval catego ries in accordance with UN-
R129 Example of an appr
oval label
R i‑Size: child restra int sy stems in the "i‑Size"
category are appr ovedfo r ins tallation in vehi‐
cles with i‑Size mounting brac kets. They can
be used, in accordance wi thove rviews ofthe suitability of seats
for securing child restra int
sy stems, on seats labelled i‑U.
The identification i‑U refers to i‑Size child
re stra int sy stems in the "Universal" categor y.
These child restra int sy stems must also be
secured using TopTe ther or support points.
Obser vethe suitability of vehicle seats
Depending on the appr oval categor y,there are
fo rw ard-facing and rear wa rd-facing child
re stra int sy stems. Their use can be restricted for
cer tain vehicle seats:
R Suitability of the seats for attaching ISOFIX
ch ild restra int sy stems (/ page 62)
R Suitability of seats for securing i‑Size child
re stra int sy stems (/ page64).
R Suit ability of seats for attaching belt-secu red
ch ild restra int sy stems (/ page 69) Occupant saf
ety61

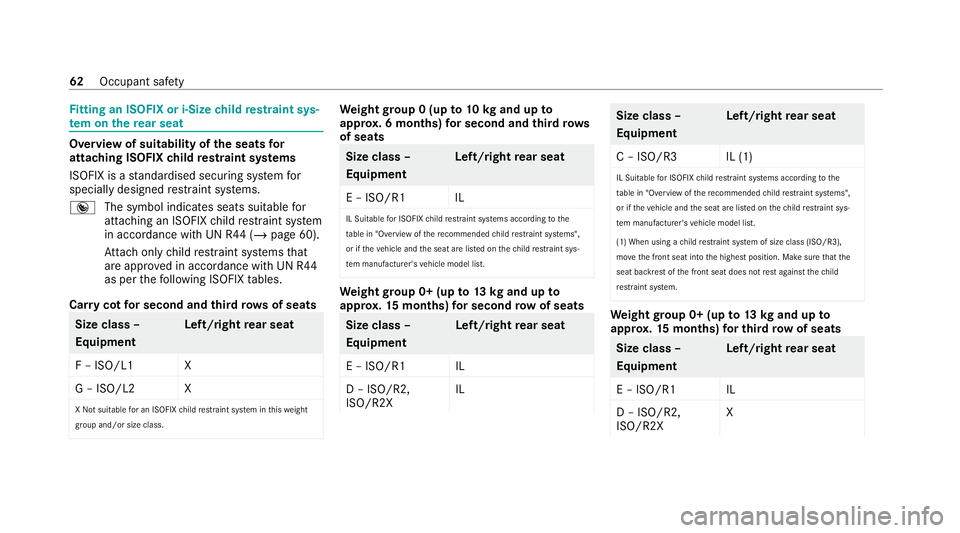

Fi
tting an ISOFIX or i-Size child restra int sys‐
te m on the rear seat Overview of suitability of
the seats for
attaching ISOFIX child restra int sy stems
ISOFIX is a standardised securing sy stem for
specially designed restra int sy stems.
® The symbol indicates seats suitable for
attaching an ISOFIX child restra int sy stem
in accordance with UN R44 (/ page 60).
At tach only child restra int sy stems that
are appr oved in accordance with UN R44
as per thefo llowing ISOFIX tables.
Car rycot for second and third rows of seats Size class –
Equipment
Left/right
rear seat
F – ISO/L1 X
G – ISO/L2 X
X Not sui table for an ISOFIX child restrai nt sy stem in this we ight
group and/or size class. We
ight group 0 (up to10 kgand up to
appr ox. 6 months) for second and third rows
of seats Size class –
Equipment
Left/right
rear seat
E – ISO/R1 IL
IL Suitable for ISOFIX child restra int sy stems according tothe
ta ble in "Overview of there commended child restra int sy stems",
or if theve hicle and the seat are lis ted on thech ild restrai nt sys‐
te m manufacturer's vehicle model list. We
ight group 0+ (up to13 kgand up to
appr ox.15 months) for second row of seats Size class –
Equipment
Left/right
rear seat
E – ISO/R1 IL
D – ISO/R2,
ISO/R2X IL Size class –
Equipment
Left
/right rear seat
C – ISO/R3 IL (1) IL Suitable for ISOFIX child restrai nt sy stems according tothe
ta ble in "Overview of there commended child restrai nt sy stems",
or if theve hicle and the seat are lis ted on thech ild restrai nt sys‐
te m manufacturer's vehicle model list.
(1) When using a child restra int sy stem of size class (ISO/R3),
mo vethe front seat into the highest position. Make sure that the
seat backrest of the front seat does not rest against thech ild
re strai nt sy stem. We
ight group 0+ (up to13 kgand up to
appr ox.15 months) for third row of seats Size class –
Equipment
Left/right
rear seat
E – ISO/R1 IL
D – ISO/R2,
ISO/R2X X62
Occupant saf ety

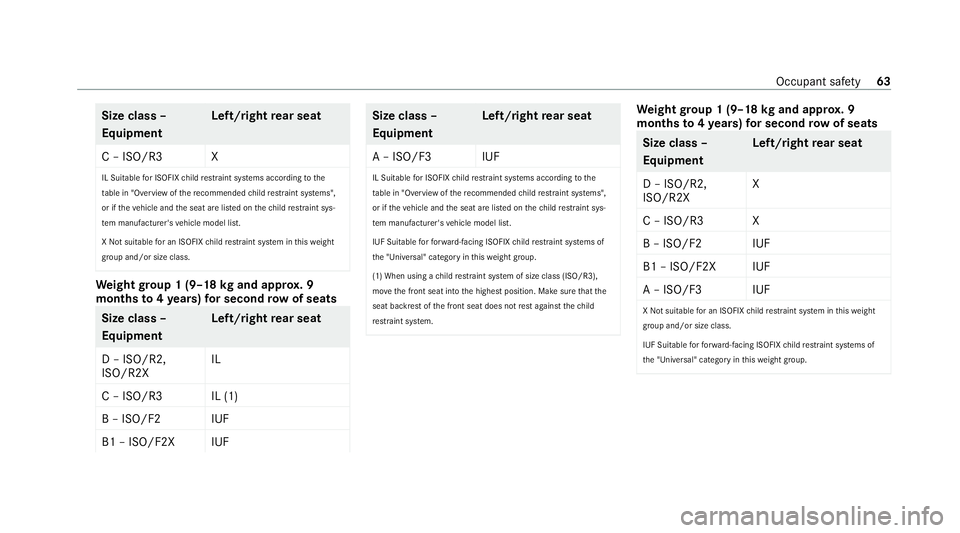

Size class –
Equipment
Left/right
rear seat
C – ISO/R3 X
IL Suitable for ISOFIX child restra int sy stems according tothe
ta ble in "Overview of there commended child restra int sy stems",
or if theve hicle and the seat are lis ted on thech ild restra int sys‐
te m manufacturer's vehicle model list.
X Not suitable for an ISOFIX child restrai nt sy stem in this we ight
group and/or size class. We
ight group 1 (9–18 kgand appr ox. 9
months to4ye ars) for second row of seats Size class –
Equipment
Left/right
rear seat
D – ISO/R2,
ISO/R2X IL
C – ISO/R3 IL (1)
B – ISO/F2 IUF
B1 – ISO/F2X IUF Size class –
Equipment
Left
/right rear seat
A – ISO/F3 IUF
IL Suitable for ISOFIX child restra int sy stems according tothe
ta ble in "Overview of there commended child restra int sy stems",
or if theve hicle and the seat are lis ted on thech ild restrai nt sys‐
te m manufacturer's vehicle model list.
IUF Suitable forfo rw ard-facing ISOFIX child restra int sy stems of
th e "Universal" category in this we ight group.
(1) When using a child restrai nt sy stem of size class (ISO/R3),
mo vethe front seat into the highest position. Make sure that the
seat backrest of the front seat does not rest against thech ild
re stra int sy stem. We
ight group 1 (9–18 kgand appr ox. 9
months to4ye ars) for second row of seats Size class –
Equipment
Left/right
rear seat
D – ISO/R2,
ISO/R2X X
C – ISO/R3 X
B – ISO/F2 IUF
B1 – ISO/F2X IUF
A – ISO/F3 IUF
X Not sui table for an ISOFIX child restra int sy stem in this we ight
group and/or size class.
IUF Suitable forfo rw ard-facing ISOFIX child restra int sy stems of
th e "Universal" category in this we ight group. Occupant saf
ety63

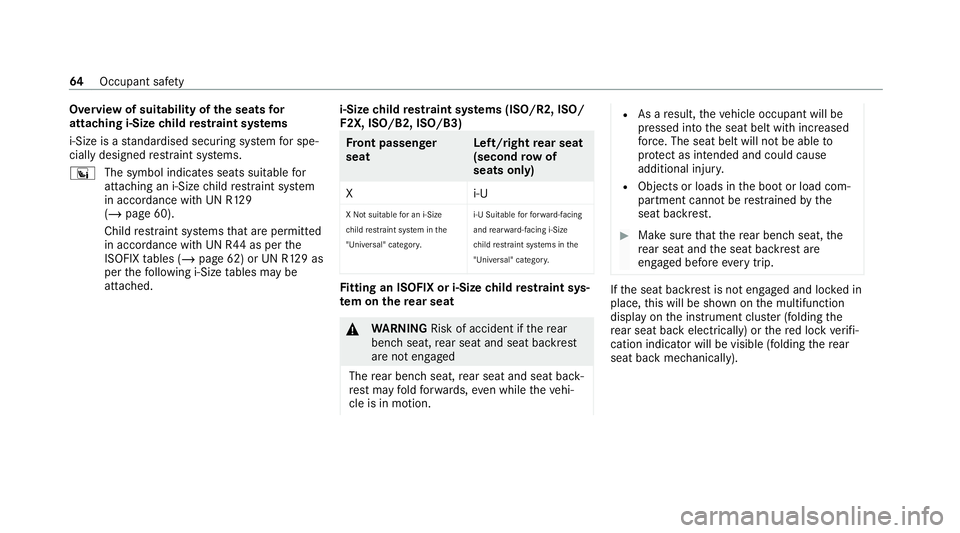

Overview of suitability of
the seats for
attaching i‑Size child restra int sy stems
i‑Size is a standardised securing sy stem for spe‐
cially designed restra int sy stems.
° The symbol indicates seats suitable for
attaching an i‑Size child restra int sy stem
in accordance with UN R129
(/ page 60).
Child restra int sy stems that are permit ted
in accordance with UN R44 as per the
ISOFIX tables (/ page 62) or UN R129 as
per thefo llowing i‑Size tables may be
attached. i‑Size
child restra int sy stems (ISO/R2, ISO/
F2X, ISO/B2, ISO/B3) Fr
ont passenger
seat Left/right
rear seat
(second row of
seats only)
Xi ‑U
X Not suitable for an i-Size
ch ild restrai nt sy stem in the
"Universal" categor y.i-U Suitable
forfo rw ard-facing
and rear wa rd-facing i-Size
ch ild restrai nt sy stems in the
"Universal" categor y. Fi
tting an ISOFIX or i‑Size child restra int sys‐
te m on the rear seat &
WARNING Risk of accident if there ar
ben chseat, rear seat and seat backrest
are not engaged
The rear ben chseat, rear seat and seat back‐
re st may fold forw ards, even while theve hi‐
cle is in motion. R
As a result, theve hicle occupant will be
pressed into the seat belt with increased
fo rc e. The seat belt will not be able to
pr otect as intended and could cause
additional injur y.
R Objects or loads in the boot or load com‐
partment cann otbe restra ined bythe
seat backrest. #
Make sure that there ar ben chseat, the
re ar seat and the seat backrest are
engaged before everytrip. If
th e seat backrest is not engaged and loc ked in
place, this will be shown on the multifunction
display on the instrument clus ter (folding the
re ar seat back electrically) or there d lock verifi‐
cation indicator will be visible (folding there ar
seat back mechanically). 64
Occupant saf ety

&
WARNING Risk of inju ryor death if the
permissible gross mass of thech ild and
ch ild restra int sy stem toget her is excee‐
ded.
To o much load may be placed on the ISOFIX
or i‑Size child restra int sy stems and thech ild
may not be restra ined cor rectly in theeve nt
of an accident, forex ample. #
Ifth ech ild and thech ild restra int sys‐
te m toget her weigh more than 33 kg,
only use an ISOFIX or i‑Size child
re stra int sy stem with which thech ild is
secured with theve hicle seat belt. #
Also secure thech ild restra int sy stem
with theTo pTe ther belt, if available. Alw
ays comply with the information about the
mass of thech ild restra int sy stem:
R inthe manufacturer's ins tallation and operat‐
ing instructions forth ech ild restra int sy stem
used
R on a label on thech ild restra int sy stem, if
present Re
gular lych eck that the permissible gross mass
of thech ild and child restra int sy stem is still
complied with.
When fitting a child restra int sy stem, obser ve
th efo llowing:
O Alw
ays obser vethe cor rect use of the seats
and consider their suitability for attaching a
ch ild restra int sy stem.
ISOFIX child seat securing sy stem
(/ page 62)
or
i‑Size child seat securing sy stem
(/ page 64)
O Alw
ays comply with the manufacturer's
ins tallation and operating instructions for
th ech ild restra int sy stem used.
O Make sure
that thech ild's feet do not touch
th e front seat. If necessar y,mo vethe front
seat slightly forw ards.
®When fitting an ISOFIX child restra int sys‐
te m, also obser vethefo llowing:
O When using a baby car seat in
weight
gr oup 0/0+ and a rear wa rd-facing child re
stra int sy stem in weight group I on a
re ar seat: adjustthe front seat so that the
seat does not touch thech ild restra int sys‐
te m.
O When using a
forw ard-facing child
re stra int sy stem in weight group 1:
re mo vethe head restra int from there spec‐
tive seat, if possible. In addition, the back‐
re st of thech ild restra int sy stem must lie as
fl at as possible against the backrest of the
ve hicle seat.
Af terth ech ild restra int sy stem has been
re mo ved, replace the head restra ints again
immediately and adjust them cor rectly.
O When using a
child restra int sy stem on
a seat on theth ird row of seats: adjust
th e front seat so that it does not touch the
ch ild restra int sy stem and mo vethe seat
backrest of the front seat into an upright
position if necessar y.
O If
th e head restra int of thech ild seat cannot
be fully extended when it is ins talled in the
ve hicle, this will result in restrictions on the Occupant saf
ety65

maximum size setting
forch ild restra int sys‐
te ms in weight category II or III.
Contact with thero of when the head
re stra int is fully extended and lo cked in
place will not result in any restrictions on
use.
O The
child restra int sy stem must not be put
under stra in between thero of and the seat
cushion and/or be fitted facing the wrong
direction. Where possible, adjust the seat
cushion inclination accordingly.
O The
child restra int sy stem must not be put
under stra in by the head restra int. Adjust
th e head restra ints as appropriate.
° When fitting an i‑Size child restra int sys‐
te m, also obser vethefo llowing:
O When using a
rear wa rd-facing child
re stra int sy stem: adjust the front seat so
th at it does not touch thech ild restra int sys‐
te m.
O When using a
forw ard-facing child
re stra int sy stem: remo vethe head
re stra int from there spective seat, if possi‐ ble. In addition,
the backrest of thech ild
re stra int sy stem must lie as flat as possible
against the backrest of theve hicle seat.
Af terth ech ild restra int sy stem has been
re mo ved, replace the head restra ints again
immediately and adjust them cor rectly. #
Before every journe y,make sure that the
ISOFIX child restra int sy stem or the i‑Size
ch ild restra int sy stem is engaged cor rectly in
bo th mounting brac kets in theve hicle.
* NO
TEDama getothe seat belt forthe
centre seat du ring ins tallation of the
ch ild restra int sy stem #
Make sure that the seat belt is not trap‐
ped. Ve

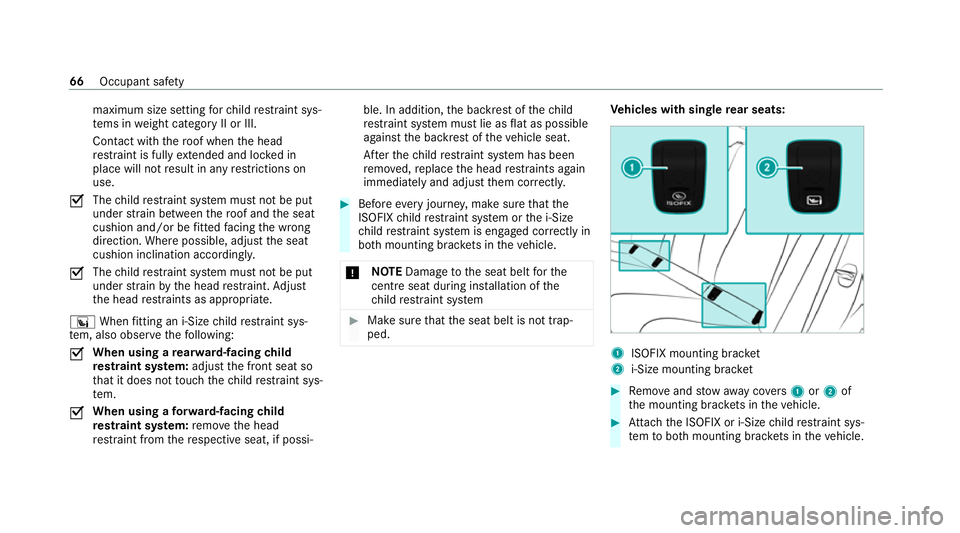

hicles with single rear seats: 1
ISOFIX mounting brac ket
2 i‑Size mounting brac ket #
Remo veand stow aw aycovers 1 or2 of
th e mounting brac kets in theve hicle. #
Attach the ISOFIX or i‑Size child restra int sys‐
te m to both mounting brac kets in theve hicle. 66
Occupant saf ety

#
Afterre moving thech ild restra int sy stem,
re attach co vers 1 or2.
Ve hicles with a rear ben chseat: #
Mercedes-Maybach vehicles with reclin‐
ing rear seats: before an ISOFIX or i-Size
ch ild restra int sy stem is ins talled, tilt the
backrest of there clining rear seat back
slightl y. #
Remo veuphol stered lining 1. #
Vehicles without reclining rear seats: fold
uphols tere d lining 1upwards. #
Turn the support on there ar side of uphol‐
st ered lining 1by90°.
Up hols tere d lining 1will remain folded
upwards. #
Attach the ISOFIX or i‑Size child restra int sys‐
te m to both mounting brac kets 2 inthe
ve hicle. #
Mercedes-Maybach vehicles with reclin‐
ing rear seats: return there clining rear seat
backrest toan upright position.
The reclining rear seat backrest must be in
con tact wi th thech ild restra int sy stem. Ve
hicles with a third row of seats: #
Attach the ISOFIX child restra int sy stem to
bo th ISOFIX mounting brac kets 1. Occupant sa
fety 67
