Rear compartment and cargo com-
partment lamps
You cannot change the following bulbs yourself:
Rin a Passenger Van, the bulbs in the trunk
lamp and those of the rear interior lights in the
grab handles
Rin a Cargo Van with an LED light strip in the
cargo compartment, the LED light strip
Have these bulbs or the LED light strip changed in a qualified specialist workshop only.
Information on changing the bulb of the trunk
lamp in the side trim panel of vehicles with a
cargo compartment stowage tray can be found
under "Additional interior and ambient lighting"
(
Ypage 99)
Rear interior and cargo compartment lamp in the
headliner or side trim panel
Bulb type: T10 6W Xenon
XSwitch off the interior lighting.
XPress in the spring catch of lamp lens :with
a suitable object, e.g. a screwdriver, and then pry off lamp lens :with lamp housing =.
XPress in spring catches ;and pull lamp
lens :off from lamp housing =.
XRemove bulb?from lamp housing =.
XInsert new bulb?.
XFor cargo compartment lamps with a button,
align lamp lens:so that its opening is above
the button of lamp housing =.
XPosition lamp lens:on lamp housing =and
engage.
XPosition lamp lens :with lamp housing =
on the left and engage.
Additional interior lighting and sur-
round lighting
The scope of the additional interior and ambient
lighting depends on your vehicle equipment. The
bulb change described here is valid for:
Rthe mirror lamp in the sun visor
Rthe ambient lamp at the bottom of the front
door
Rthe ambient lamp inside the tailgate
You can find information on changing the bulb of the signal and ambient lamp at the bottom of the
tailgate under “Signal and ambient lamp in the
tailgate" (
Ypage 100).
Type of lamp: W 5 W
XPress in the spring catch of lamp housing :
with a suitable object, e.g. a screwdriver, and
pry off lamp housing :.
XTurn socket;anti-clockwise and remove
from the lamp housing :.
XRemove bulb=from socket ;.
XPress new bulb =into socket ;.
XScrew socket ;clockwise into the lamp
housing :.
XPosition lamp housing :on the left-hand
side and engage.
Replacing bulbs: interior lighting and ambient lamps99
Lights and windshield wipers
Z

Signal and ambient light in the tail-
gate
Type of lamp: W 5 W
XPress in the spring catch of the lamp housing
at the side of crystal clear lamp lens;with a
suitable object, e.g. with a screwdriver, and
prise off the lamp housing.
XTurn socket =anti-clockwise and remove
from the lamp housing.
XRemove the bulb from socket =.
XPress the new bulb into socket =.
XScrew socket=clockwise into the lamp
housing.
XPosition the lamp housing to the side of red
lamp lens :and engage.
Replacing bulbs
Important safety notes
GWARNING
Bulbs, lamps and connectors can get very hot
when operating. If you change a bulb, you
could burn yourself on these components.
There is a risk of injury.
Allow these components to cool down before
changing a bulb.
!Make sure the bulbs are always securely
installed.
The bulbs and lamps are an essential compo-
nent of vehicle safety. You must therefore make
sure that these function correctly at all times.
Have the headlamp setting checked regularly.
RAlways switch off the ignition before replacing bulbs in the lighting system. This will prevent
a short circuit.
RWear gloves and eye protection when chang-
ing a bulb.
RDo not use a bulb that has been dropped or
that has scratches on its glass tube. The bulb
could may explode.
RA bulb could explode if:
-you touch it
-it is hot
-you drop it
-you scratch or score it
RMarks on the glass tube shorten the operating
life of a bulb. Do not touch the glass tube with
your bare hands. If necessary, clean the glass
tube when cold with alcohol or spirit. Then rub
off the glass tube with a clean, lint-free cloth.
RMake sure that bulbs are protected from
moisture when operating and that they do not
come into contact with liquids. Make sure
that seals are seated correctly and replace
damaged seals.
RCheck the contacts for signs of corrosion and
clean these if required.
ROnly operate bulbs in closed lamps which
have been designed for this purpose.
ROnly use spare bulbs of the same type, with
the prescribed voltage and the correct wat-
tage.
RIf the new bulb does not light up, consult a
qualified specialist workshop.
RHave lamps with LED bulbs repaired at a quali- fied specialist workshop only.
RHave the bulbs of the following lamps
replaced at a qualified specialist workshop
only:
-the additional brake lamps
-the license plate lighting
-Front fog lamps
-side marker lamp
Please also observe the notes on the interior
lights (
Ypage 98).
If you require assistance changing bulbs, con-
sult a qualified specialist workshop.
100Replacing bulbs
Lights and windshield wipers

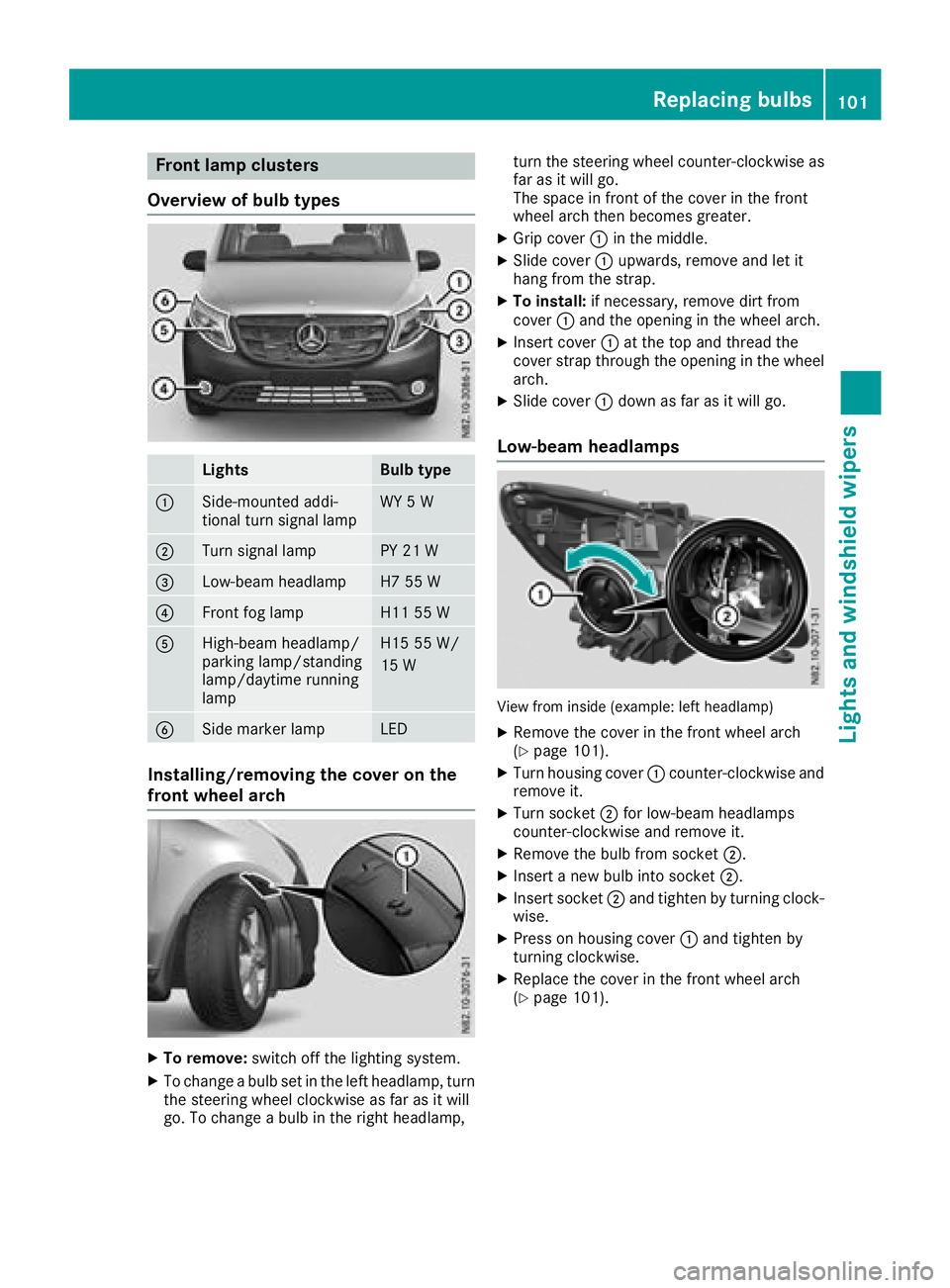

Front lamp clusters
Overview of bulb types
LightsBulb type
:Side-mounte daddi-
tional tur nsignal lampWY 5 W
;Turn signal lampPY 21 W
=Low-beam headlampH7 55 W
?Frontfog lampH1 155 W
AHigh-beam headlamp/
parking lamp/standin g
lamp/daytim erunnin g
lampH1 555 W/
15 W
BSidemarke rlampLE D
Installing/removing the cover on the
front wheel arch
XTo remove: switch off thelighting system.
XTo chang e abulb set in th elef theadlamp, tur n
th esteering whee lclockwise as far as it will
go. To chang e abulb in th eright headlamp, tur
nth esteering whee lcounter-clockwise as
far as it will go.
The spac ein fron tof th ecover in th efron t
whee larc hthen become sgreater.
XGrip cover :in th emiddle.
XSlide cover :upwards, remove and let it
han gfrom th estrap.
XTo install: if necessary, remove dirt from
cover :and th eopening in th ewhee larch.
XInser tcover :at th eto pand thread th e
cover strap throug hth eopening in th ewhee l
arch.
XSlide cover :down as far as it will go.
Low-beam headlamps
View from inside (example: lef theadlamp )
XRemove th ecover in th efron twhee larc h
(Ypage 101).
XTurn housing cover :counter-clockwise and
remove it .
XTurn socke t; for low-beam headlamps
counter-clockwise and remove it .
XRemove thebulb from socke t;.
XInser t anewbulb int osocke t;.
XInser tsocke t; and tighten by turnin gclock -
wise.
XPress on housing cover :and tighten by
turnin gclockwise.
XReplac eth ecover in th efron twhee larc h
(Ypage 101).
Replacing bulbs101
Lights and windshield wipers
Z

High-beam headlamps, parking lamps/
standing lamps and daytime running
lamps
View from inside (example: left headlamp)
XSwitch off the lighting system.
XOpen the hood.
XTurn housing cover:counter-clockwise and
remove it.
XPull out the bulb together with bulb holder ;.
XInsert the new bulb with bulb holder;and
engage it as far as it will go.
XPress on housing cover :and turn clockwise
to fasten.
XClose the hood.
Turn signal lamp
View from inside (example: left headlamp)
XSwitch off the lighting system.
XOpen the hood.
XTurn socket :anti-clockwise and remove.
XPull bulb out of socket :.
XInsert a new bulb into socket :.
XInsert socket:and turn it clockwise until it
engages.
XClose the hood.
Side-mounted additional turn signal
lamp
The additional turn signals are mounted on the
side of the vehicle's front fender.
XSwitch off the lighting system.
XSlide additional turn signal :forwards and
swing it out.
XPress the bulb to the rear.
XApply light pressure to the bulb, turning it anti- clockwise and remove it from the socket.
XPress the new bulb into the socket and screw
it in clockwise.
XAttach additional turn signal :at the front
and engage.
Replacing the rear lamp clusters
Overview of bulb types
102Replacing bulbs
Lights and windshield wipers

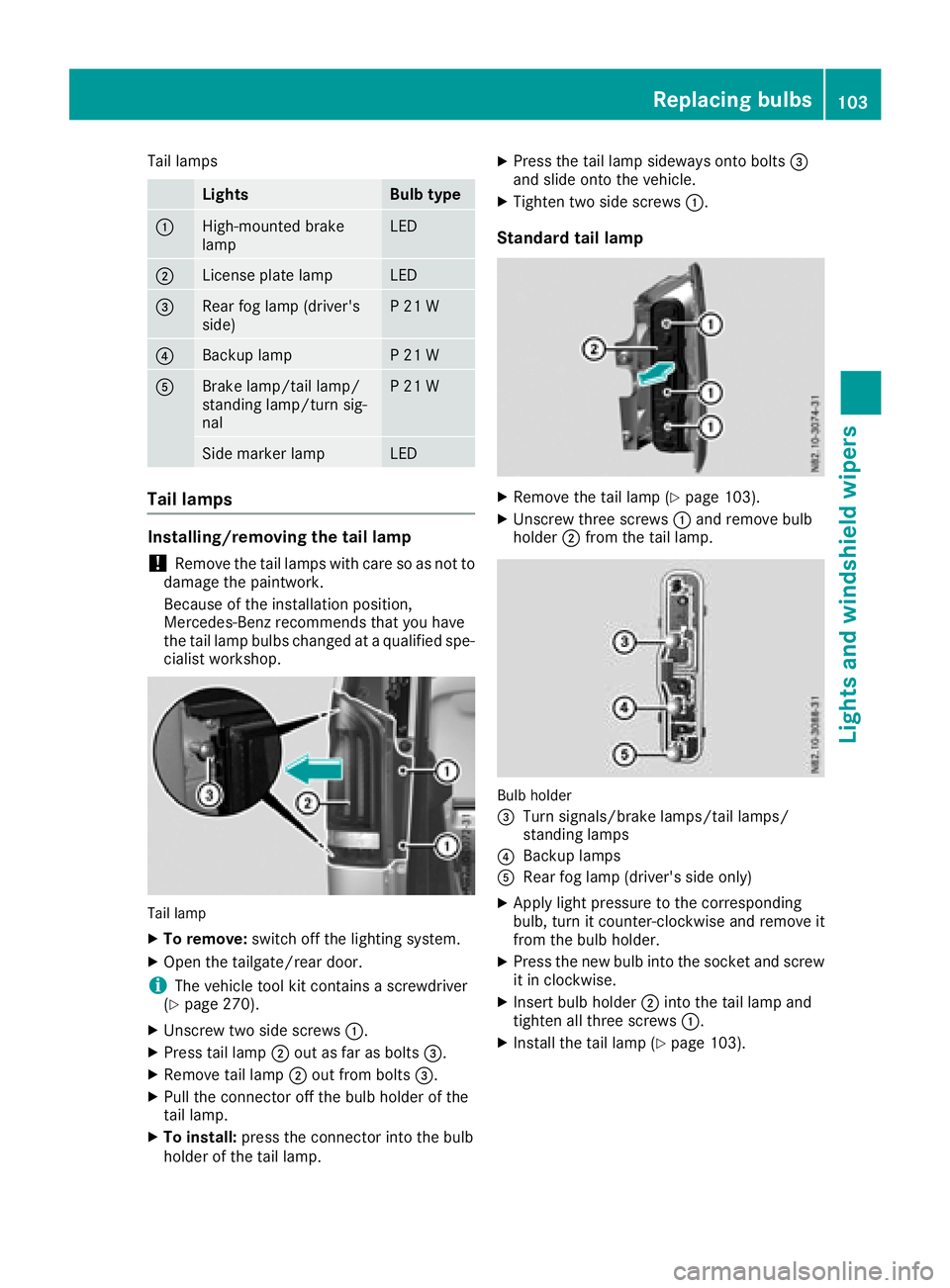

Tail lamps
LightsBulb type
:High-mounted brake
lampLED
;License plate lampLED
=Rear fog lamp (driver's
side)P 21 W
?Backup lampP 21 W
ABrake lamp/tail lamp/
standing lamp/turn sig-
nalP 21 W
Side marker lampLED
Tail lamps
Installing/removing the tail lamp
!Remove the tail lamps with care so as not to
damage the paintwork.
Because of the installation position,
Mercedes-Benz recommends that you have
the tail lamp bulbs changed at a qualified spe-
cialist workshop.
Tail lamp
XTo remove: switch off the lighting system.
XOpen the tailgate/rear door.
iThe vehicle tool kit contains a screwdriver
(Ypage 270).
XUnscrew two side screws :.
XPress tail lamp;out as far as bolts =.
XRemove tail lamp;out from bolts =.
XPull the connector off the bulb holder of the
tail lamp.
XTo install:press the connector into the bulb
holder of the tail lamp.
XPress the tail lamp sideways onto bolts =
and slide onto the vehicle.
XTighten two side screws :.
Standard tail lamp
XRemove the tail lamp (Ypage 103).
XUnscrew three screws:and remove bulb
holder ;from the tail lamp.
Bulb holder
=
Turn signals/brake lamps/tail lamps/
standing lamps
?Backup lamps
ARear fog lamp (driver's side only)
XApply light pressure to the corresponding
bulb, turn it counter-clockwise and remove it
from the bulb holder.
XPress the new bulb into the socket and screw
it in clockwise.
XInsert bulb holder ;into the tail lamp and
tighten all three screws :.
XInstall the tail lamp (Ypage 103).
Replacing bulbs103
Lights and windshield wipers
Z

Windshield wipers
Switching the windshield wiper
on/off
!
Do not operate the windshield wipers when
the windshield is dry, as this could damage
the wiper blades. Moreover, dust that has col-
lected on the windshield can scratch the glass
if wiping takes place when the windshield is
dry.
If it is necessary to switch on the windshield
wipers in dry weather conditions, always use
washer fluid when operating the windshield
wipers.
!If the windshield wipers leave smears on the
windshield after the vehicle has been washed
in an automatic car wash, wax or other resi-
dues may be the reason for this. Clean the
windshield using washer fluid after washing
the vehicle in an automatic car wash.
!Intermittent wiping with rain sensor: due to
optical influences and the windshield becom-
ing dirty in dry weather conditions, the wind-
shield wipers may be activated inadvertently.
This could then damage the windshield wiper
blades or scratch the windshield.
For this reason, you should always switch off
the windshield wipers in dry weather.
1$ Windshield wipers off
2ÄIntermittent wipe, low (rain sensor set
to low sensitivity)
3Å Intermittent wipe, high (rain sensor
set to high sensitivity)
4° Continuous wipe, slow
5¯Continuous wipe, fast
Bî1st pressure point – single wipe; 2nd
pressure point – wipe with washer fluid
XTurn the key to position 1or 2in the ignition
lock.
XTurn the íwiper switch to the corre-
sponding position.
In the ÄorÅ positions, the appropriate
wiping frequency is set automatically according
to the intensity of the rain. In the Åposition,
the rain sensor is more sensitive to precipitation
than in the Äposition, causing the wind-
shield wipers to wipe more frequently.
The windshield will no longer be wiped properly
if the wiper blades are worn. This may prevent
you from observing the traffic conditions. Infor-
mation on replacing the wiper blades can be
found under "Replacing wiper blades"
(
Ypage 105).
Switching the rear window wiper on/
off
1b To wipe with washer fluid
2°Intermittent wipe
3$Rear window wiper off
4bTo wipe with washer fluid
XTurn the key to position 1or 2in the ignition
lock.
XMove the èswitch to the corresponding
position.
If the rear window wiper is activated, the è
symbol is shown in the status area of the dis-
play.
104Windshield wipers
Lights and windshield wipers

TheStatus Overviewin the Assist.menu
then also shows the èsymbol for vehicles
with steering wheel buttons (
Ypage 184).
XTo wipe with washer fluid: press theè
switch beyond the current position as far as it
will go to 1or press and hold 4.
When you release the èswitch, the rear
window wiper continues to wipe for about
another five seconds. The rear window wiper
then wipes according to the original position
2 or3.
The rear window wiper switches on automati-
cally if you engage reverse gear and the wind-
shield wipers are on.
If the vehicle is stationary and you open the tail-
gate or rear door, the rear window wiper will
stop automatically. The rear window wiper will
only resume wiping again when the tailgate and
rear door are closed and you pull away again.
The rear window will no longer be wiped properly if the wiper blade is worn. This may prevent you
from observing the traffic conditions. Informa-
tion on replacing the wiper blade can be found
under "Replacing wiper blades" (
Ypage 105).
Replacing the wiper blades
Important safety notes
GWARNING
If the windshield wipers begin to move while
you are changing the wiper blades, you could be trapped by the wiper arm. There is a risk of
injury.
Always switch off the windshield wipers and
ignition before changing the wiper blades.
!Never open the hood/tailgate or rear doors
if a windshield wiper arm has been folded
away from the windshield/rear window.
Never fold a windshield wiper arm without a
wiper blade back onto the windshield/rear
window.
Hold the windshield wiper arm firmly when
you change the wiper blade. If you release the
windshield wiper arm without a wiper blade
and it falls onto the windshield/rear window,
the windshield/rear window may be damaged
by the force of the impact. Mercedes-Benz recommends that you have
the wiper blades changed at a qualified spe-
cialist workshop.
!Only hold the wiper blade by the wiper arm.
You could otherwise damage the wiper rub-
ber.
Wiper blades are wear parts. The windshield will
no longer be wiped properly if the wiper blades
are worn. This may prevent you from observing
the traffic conditions.
Please observe the service indicator after
changing the wiper blades of the windshield
wiper.
Service indicator
Replacement wiper blades for the windshield
wiper have a service indicator on the tip of the
wiper blade.
Depending on the amount of use, the service
indicator will change color from black to yellow.
Change the wiper blade if:
Rthe wiper blade is damaged
Rthe service indicator has turned yellow
In order to activate the service indicator, you
have to remove the protective film
(
Ypage 105).
Windshield wipers
XFold out wiper arm away from the windshield.
XHold the wiper arm and turn the wiper blade in
the direction of arrow :away from the wiper
arm as far as it will go.
XSlide catch ;upwards in the direction of the
arrow until you can feel and hear it engage in
the changing position.
Windshield wipers105
Lights and windshield wipers
Z

XRemove wiper blade=from wiper arm by
pullin git in th edirection of th earrow.
XInser tne wwiper blade =intoth ewiper arm
in th edirection of th earrow.
Pleas etak eth ediffering lengths of th etwo
wiper blade sint oaccount:
RDriver's side -lon gwiper blade
RFront-passenger side -short wiper blade
XSlide catch ;downwards in th edirection of
th earrow until you can fee land hear it
engage .
XFold thewiper arm bac konto th ewindshield.
XRemove protective film ?from th eservic e
indicator on th etip of th ewiper blades.
Rear window wiper
Tailgate
XFold wiper arm :away from th erear window
until you hear it engage .
XHold wiper arm:and pull wiper blade ;in
th edirection of th earrow away from th ewiper
arm .
XPlac ene wwiper blade ;onto wiper arm :.
XHold wiper arm:and push wiper blade ;in
th eopposit edirection to th earrow until it
engages.
XMak esur ethat wiper blade ;is in th ecor-
rec tposition .
XFold wiper arm :bac konto th erear window.
106Windshield wipers
Lights and windshield wipers

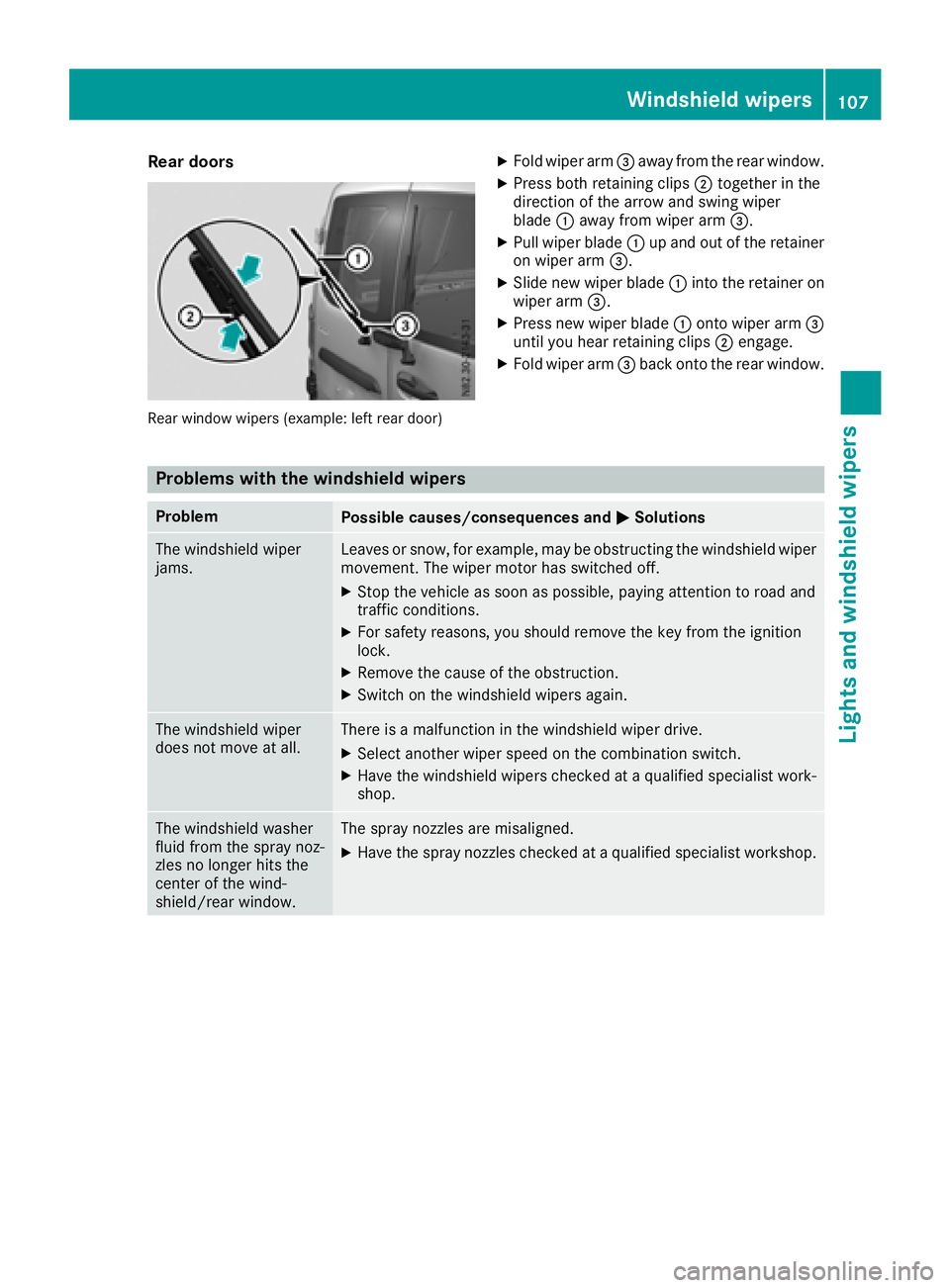

Rear doors
Rear window wipers (example: left rear door)
XFold wiper arm=away from the rear window.
XPress both retaining clips ;together in the
direction of the arrow and swing wiper
blade :away from wiper arm =.
XPull wiper blade:up and out of the retainer
on wiper arm =.
XSlide new wiper blade :into the retainer on
wiper arm =.
XPress new wiper blade :onto wiper arm =
until you hear retaining clips ;engage.
XFold wiper arm =back onto the rear window.
Problems with the windshield wipers
ProblemPossible causes/consequences and MSolutions
The windshield wiper
jams.Leaves or snow, for example, may be obstructing the windshield wiper
movement. The wiper motor has switched off.
XStop the vehicle as soon as possible, paying attention to road and
traffic conditions.
XFor safety reasons, you should remove the key from the ignition
lock.
XRemove the cause of the obstruction.
XSwitch on the windshield wipers again.
The windshield wiper
does not move at all.There is a malfunction in the windshield wiper drive.
XSelect another wiper speed on the combination switch.
XHave the windshield wipers checked at a qualified specialist work-
shop.
The windshield washer
fluid from the spray noz-
zles no longer hits the
center of the wind-
shield/rear window.The spray nozzles are misaligned.
XHave the spray nozzles checked at a qualified specialist workshop.
Windshield wipers107
Lights and windshield wipers
Z

Useful information
This Operator's Manual describes all models as
well as standard and optional equipment of your
vehicle that were available at the time of going
to print. Country-specific variations are possi-
ble. Note that your vehicle may not be equipped
with all of the described functions. This also
applies to systems and functions relevant to
safety.
Read the information on qualified specialist
workshops (
Ypage 31).
Overview of climate control systems
Important safety notes
Observe the recommended settings on the fol-
lowing pages. Otherwise, the windows could fog
up.
To prevent the windows from fogging up:
Ronly switch off climate control briefly
Ronly switch on air-recirculation mode briefly
Rfor vehicles with air-conditioning system or
dual-zone automatic climate control, switch
on the "Cooling with air dehumidification"
function
Rfor vehicles with dual-zone automatic climate
control, switch on the windshield defrosting
function briefly, if requiredClimate control regulates the temperature and
the humidity in the vehicle interior and filters
undesirable substances from the air.
Climate control is only operational when the
engine is running. The system only functions
optimally when the side windows are closed.
Ventilate the vehicle for a brief period during
warm weather. In order to cool the vehicle more
rapidly, switch climate control to air-recircula-
tion mode briefly. This will speed up the cooling
process and the desired interior temperature
will be reached more quickly.
The integrated filter can filter out most particles
of dust and completely filters out pollen. In vehi-
cles with dual-zone automatic climate control,
gaseous pollutants and odors will also be
reduced. A clogged filter reduces the airflow into
the vehicle interior. For this reason, you should
always observe the interval for replacing the fil- ter, which is specified in the Maintenance Book-
let. As the interval between changes depends on
environmental conditions, e.g. heavy air pollu-
tion, the interval may be shorter than stated in
the Maintenance Booklet.
108Overview of climate control systems
Climate control
