MERCEDES-BENZ ML SUV 2008 Owner's Manual

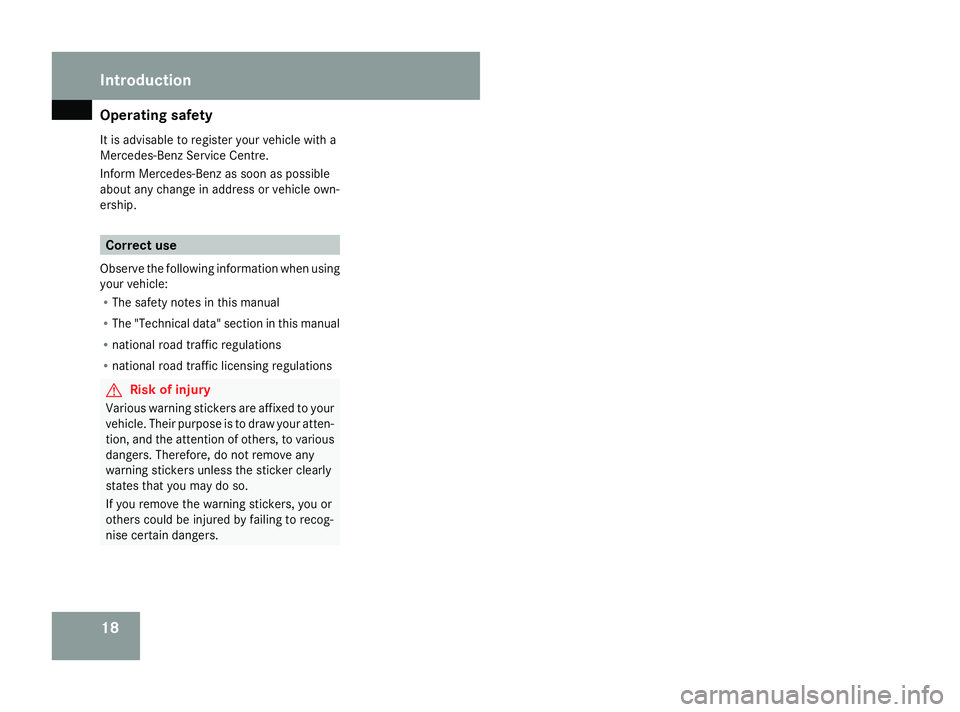

Operating safety
18
It is advisable to register your vehicle with a
Mercedes-Benz Service Centre.
Inform Mercedes-Benz as soon as possible
about any change in address or vehicle own-
ership. Correct use
Observe the following information when using
your vehicle:
R The safety notes in this manual
R The "Technical data" section in this manual
R national road traffic regulations
R national road traffic licensing regulations G
Risk of injury
Various warning stickers are affixed to your
vehicle. Their purpose is to draw your atten-
tion, and the attention of others, to various
dangers. Therefore, do not remove any
warning stickers unless the sticker clearly
states that you may do so.
If you remove the warning stickers, you or
others could be injured by failing to recog-
nise certain dangers. Introduction
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 18Dateiname: 6515_4293_02_buchblock.pdf; preflight

19

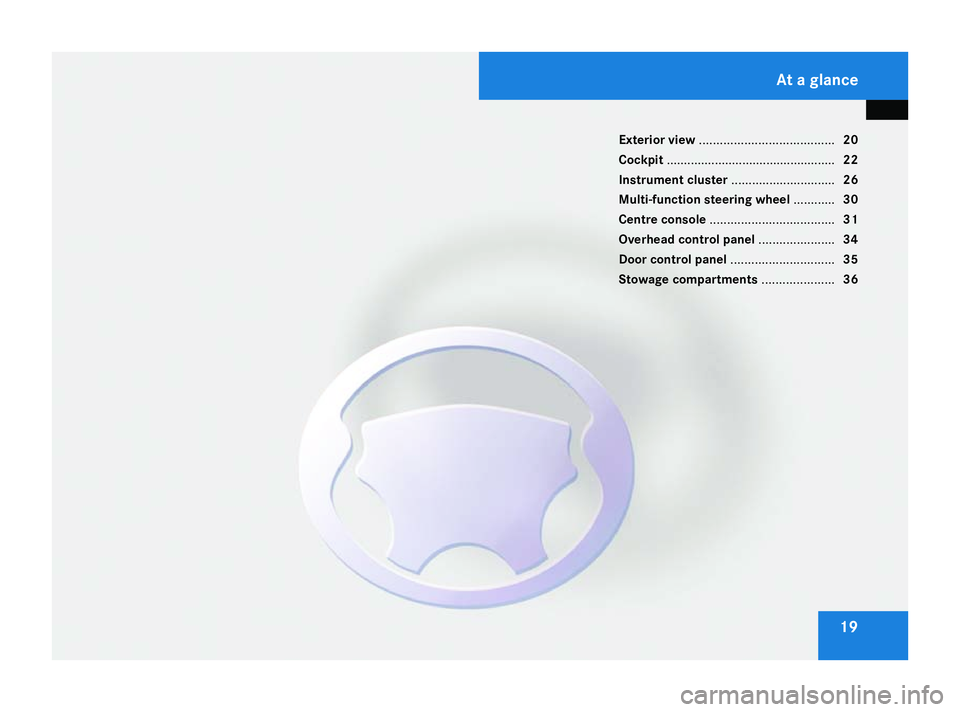

Exterior view
....................................... 20
Cockpit ................................................. 22
Instrument cluster ..............................26
Multi-function steering wheel ............30
Centre console .................................... 31
Overhead control panel ......................34
Door control panel .............................. 35
Stowage compartments .....................36 At a glance
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 19 Dateiname: 6515_4293_02_buchblock.pdf; preflight

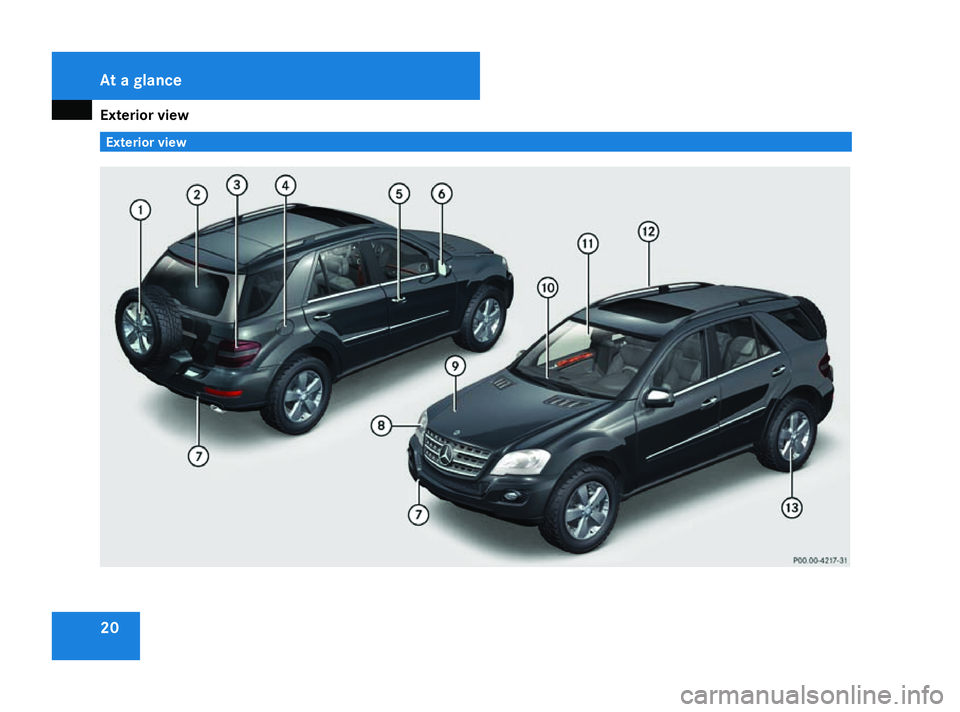

Exterior view
20 Exterior viewAt a glance
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 20Dateiname: 6515_4293_02_buchblock.pdf; preflight

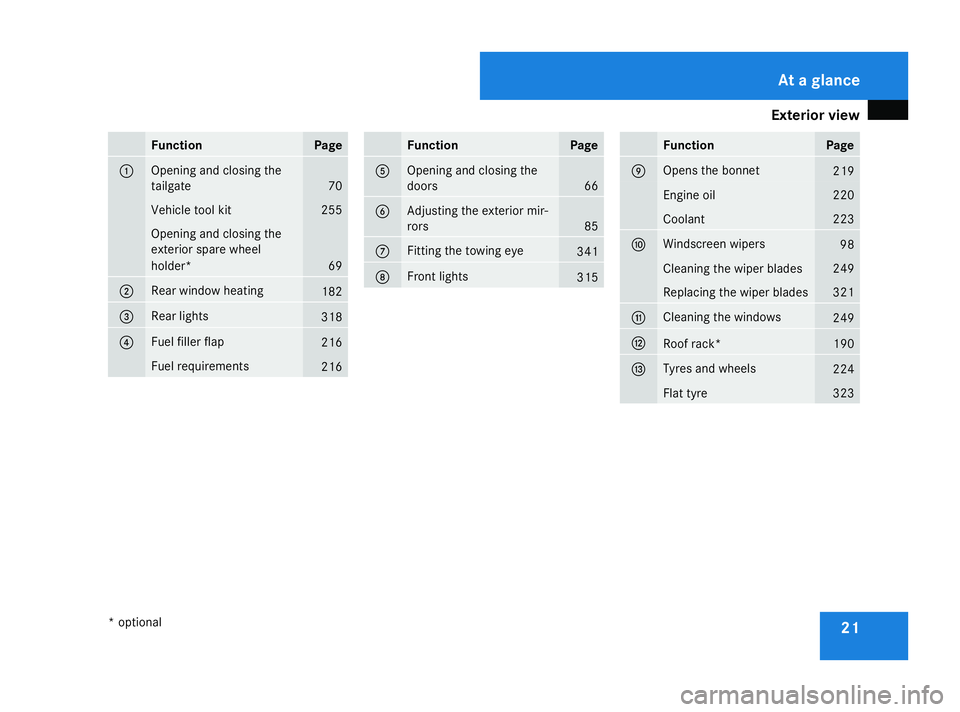

Exterior view
21Function Page
1 Opening and closing the
tailgate 70
Vehicle tool kit 255
Opening and closing the
exterior spare wheel
holder* 69
2 Rear window heating
182
3 Rear lights
318
4 Fuel filler flap
216
Fuel requirements
216 Function Page
5 Opening and closing the
doors 66
6 Adjusting the exterior mir-
rors
85
7 Fitting the towing eye
341
8 Front lights
315 Function Page
9 Opens the bonnet
219
Engine oil 220
Coolant 223
a Windscreen wipers
98
Cleaning the wiper blades 249
Replacing the wiper blades 321
b Cleaning the windows
249
c
Roof rack* 190
d Tyres and wheels
224
Flat tyre 323At a glance
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 21Dateiname: 6515_4293_02_buchblock.pdf; preflight

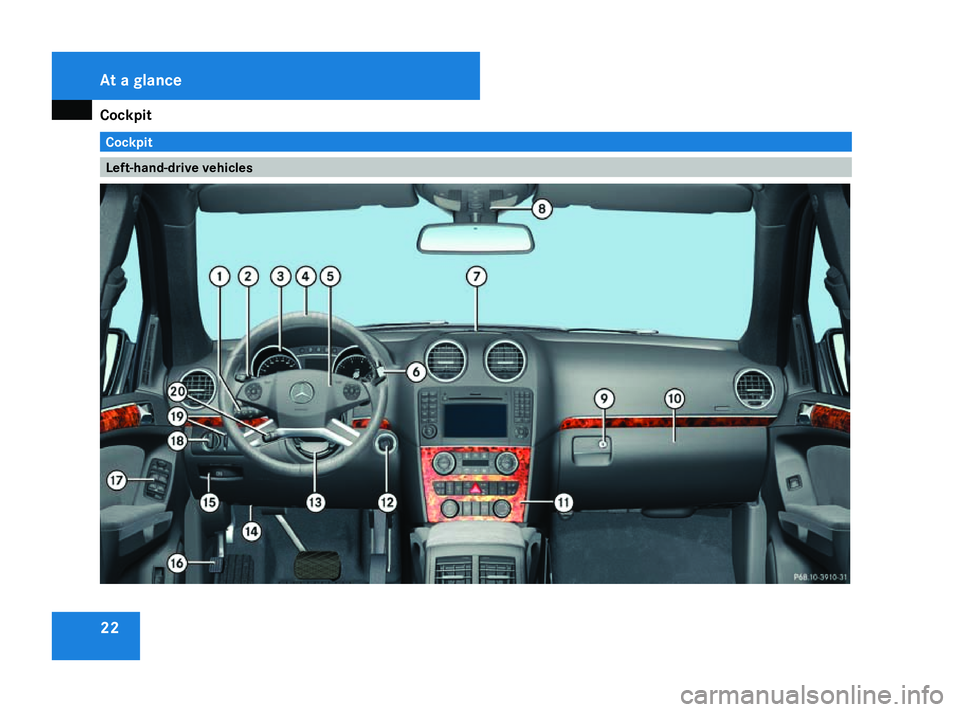

Cockpit
22 Cockpit
Left-hand-drive vehiclesAt a glance
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 22Dateiname: 6515_4293_02_buchblock.pdf; preflight

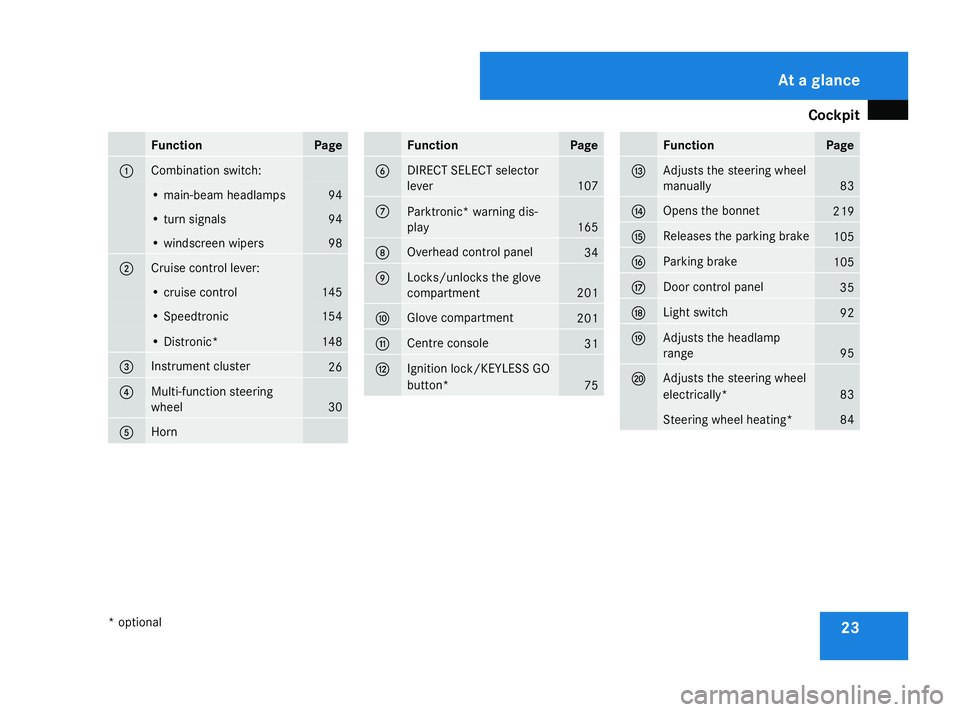

Cockpit
23Function Page
1 Combination switch:
• main-beam headlamps 94
• turn signals 94
• windscreen wipers 98
2 Cruise control lever:
• cruise control 145
• Speedtronic 154
• Distronic* 148
3 Instrument cluster
26
4 Multi-function steering
wheel
30
5 Horn Function Page
6 DIRECT SELECT selector
lever
107
7
Parktronic* warning dis-
play
165
8 Overhead control panel
34
9 Locks/unlocks the glove
compartment 201
a Glove compartment
201
b Centre console
31
c Ignition lock/KEYLESS GO
button*
75 Function Page
d Adjusts the steering wheel
manually
83
e Opens the bonnet
219
f Releases the parking brake
105
g Parking brake
105
h Door control panel
35
j Light switch
92
k Adjusts the headlamp
range
95
l Adjusts the steering wheel
electrically*
83
Steering wheel heating* 84At a glance
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 23Dateiname: 6515_4293_02_buchblock.pdf; preflight

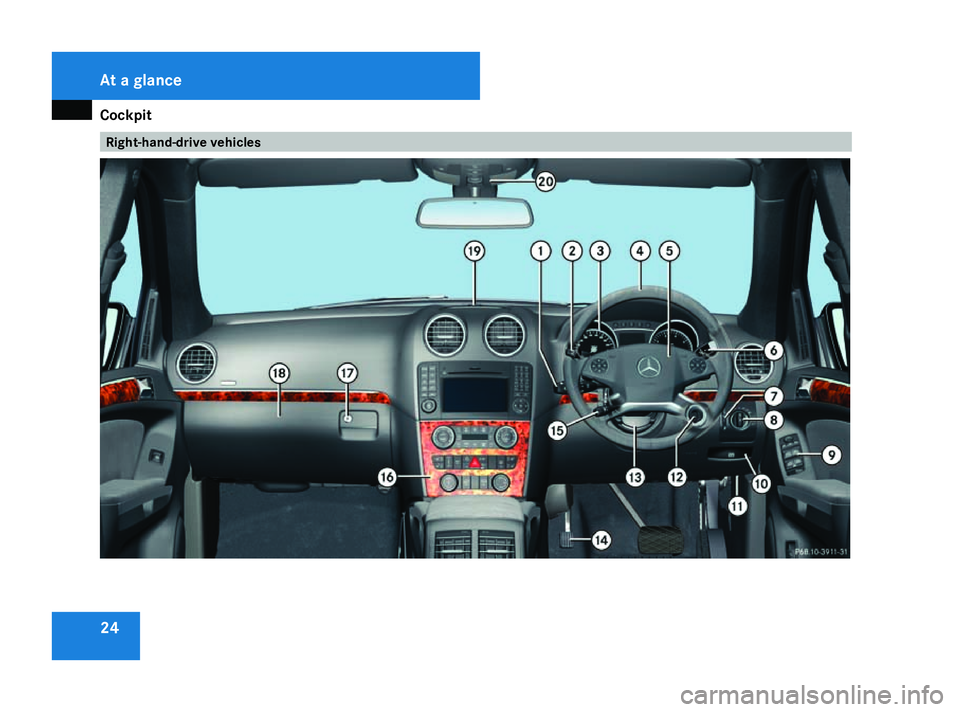

Cockpit
24 Right-hand-drive vehiclesAt a glance
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 24Dateiname: 6515_4293_02_buchblock.pdf; preflight

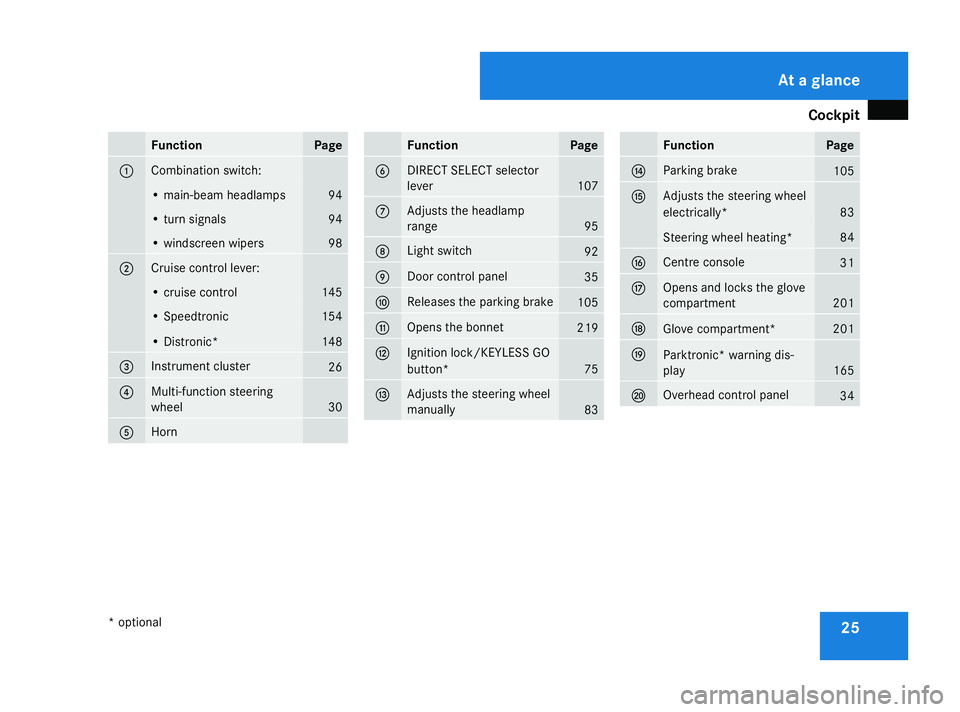

Cockpit
25Function Page
1 Combination switch:
• main-beam headlamps 94
• turn signals 94
• windscreen wipers 98
2 Cruise control lever:
• cruise control 145
• Speedtronic 154
• Distronic* 148
3 Instrument cluster
26
4 Multi-function steering
wheel
30
5 Horn Function Page
6 DIRECT SELECT selector
lever
107
7 Adjusts the headlamp
range
95
8 Light switch
92
9 Door control panel
35
a Releases the parking brake
105
b Opens the bonnet
219
c Ignition lock/KEYLESS GO
button*
75
d Adjusts the steering wheel
manually
83 Function Page
e Parking brake
105
f Adjusts the steering wheel
electrically*
83
Steering wheel heating* 84
g Centre console
31
h Opens and locks the glove
compartment
201
j
Glove compartment* 201
k
Parktronic* warning dis-
play
165
l Overhead control panel
34At a glance
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 25Dateiname: 6515_4293_02_buchblock.pdf; preflight

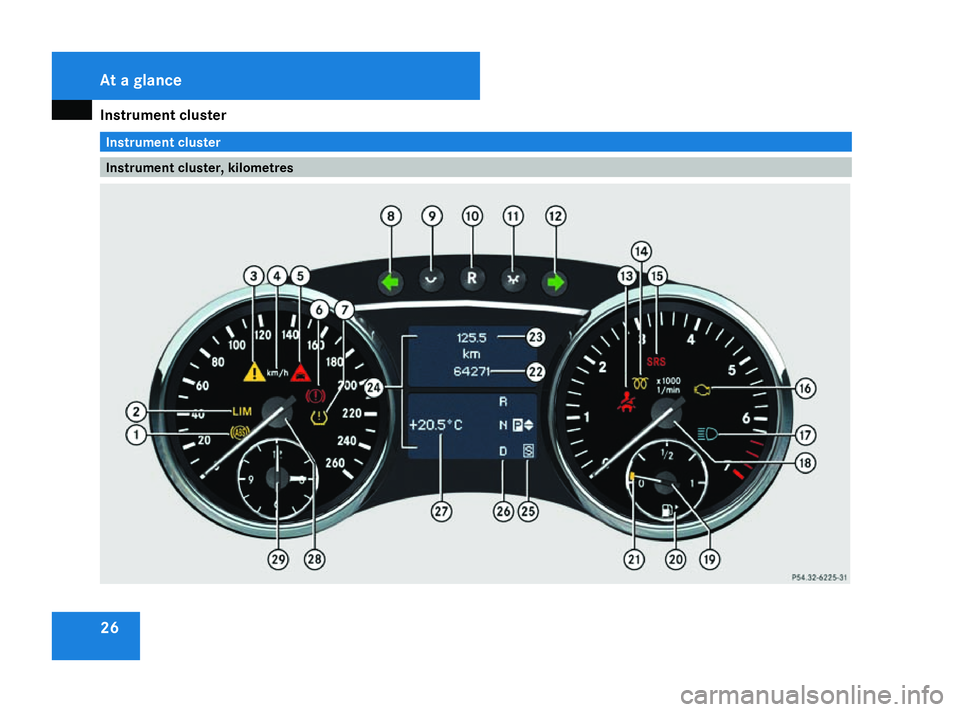

Instrument cluster
26 Instrument cluster
Instrument cluster, kilometresAt a glance
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 26Dateiname: 6515_4293_02_buchblock.pdf; preflight

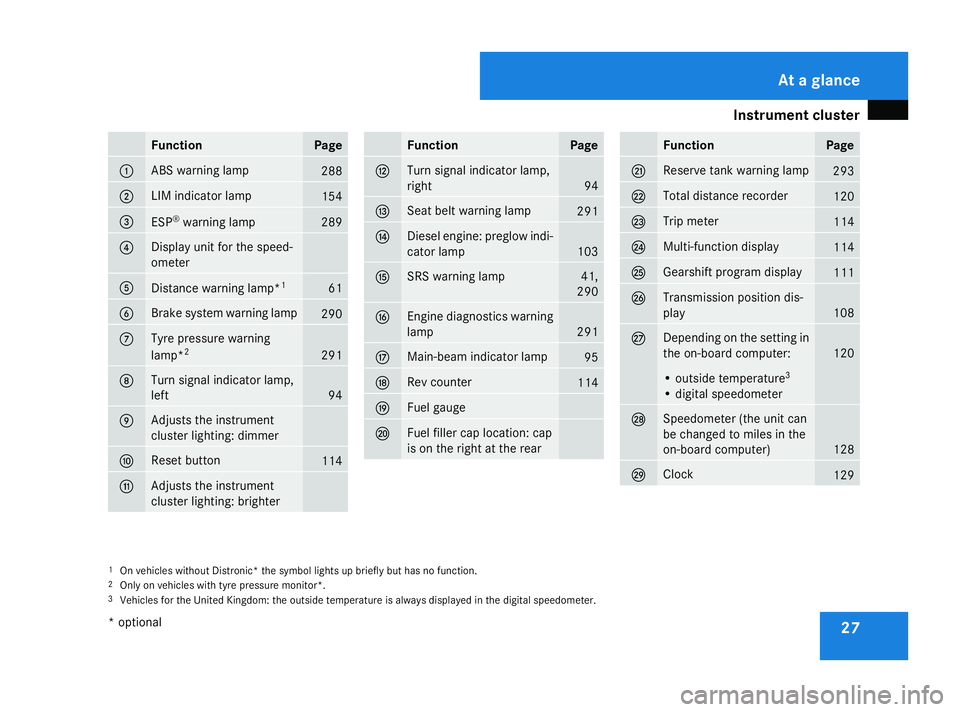

Instrument cluster
27Function Page
1 ABS warning lamp
288
2 LIM indicator lamp
154
3
ESP
®
warning lamp 289
4 Display unit for the speed-
ometer
5
Distance warning lamp*
1 61
6 Brake system warning lamp
290
7 Tyre pressure warning
lamp*
2 291
8 Turn signal indicator lamp,
left
94
9 Adjusts the instrument
cluster lighting: dimmer
a Reset button
114
b Adjusts the instrument
cluster lighting: brighter Function Page
c Turn signal indicator lamp,
right
94
d Seat belt warning lamp
291
e Diesel engine: preglow indi-
cator lamp
103
f SRS warning lamp 41,
290 g Engine diagnostics warning
lamp
291
h Main-beam indicator lamp
95
j Rev counter
114
k Fuel gauge
l Fuel filler cap location: cap
is on the right at the rear Function Page
m Reserve tank warning lamp
293
n Total distance recorder
120
o Trip meter
114
p Multi-function display
114
q Gearshift program display
111
r Transmission position dis-
play
108
s Depending on the setting in
the on-board computer:
120
• outside temperature
3
• digital speedometer t Speedometer (the unit can
be changed to miles in the
on-board computer)
128
u Clock
129
1
On vehicles without Distronic* the symbol lights up briefly but has no function.
2 Only on vehicles with tyre pressure monitor*.
3 Vehicles for the United Kingdom: the outside temperature is always displayed in the digital speedometer. At a glance
