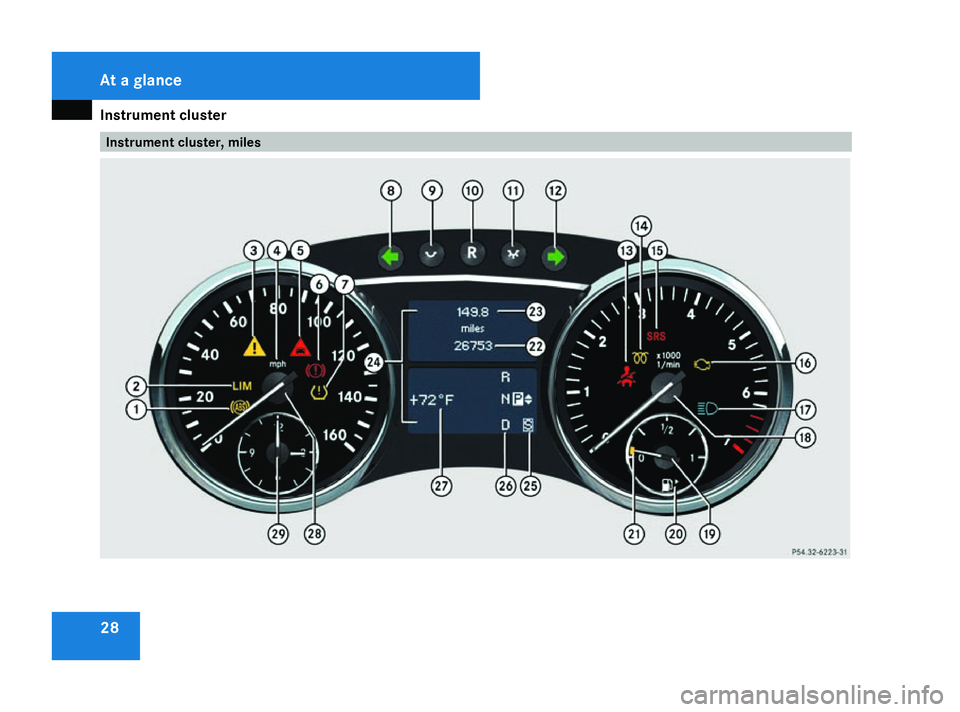

Instrument cluster
28 Instrument cluster, milesAt a glance
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 28Dateiname: 6515_4293_02_buchblock.pdf; preflight

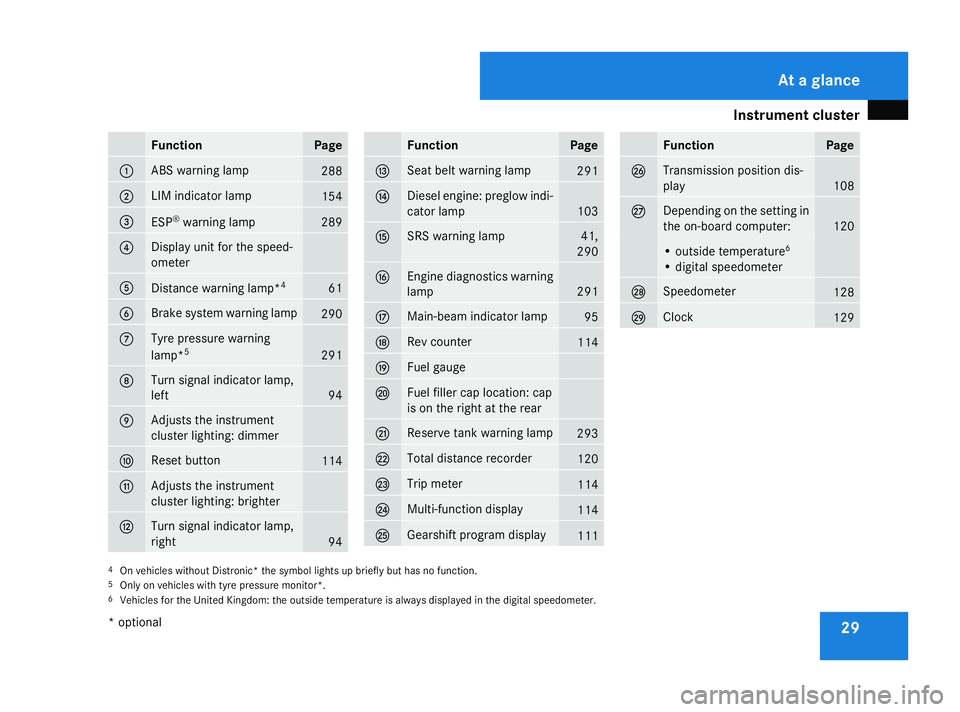

Instrument cluster
29Function Page
1 ABS warning lamp
288
2 LIM indicator lamp
154
3
ESP
®
warning lamp 289
4 Display unit for the speed-
ometer
5
Distance warning lamp*
4 61
6 Brake system warning lamp
290
7 Tyre pressure warning
lamp*
5 291
8 Turn signal indicator lamp,
left
94
9 Adjusts the instrument
cluster lighting: dimmer
a Reset button
114
b Adjusts the instrument
cluster lighting: brighter
c Turn signal indicator lamp,
right
94 Function Page
d Seat belt warning lamp
291
e Diesel engine: preglow indi-
cator lamp
103
f SRS warning lamp 41,
290 g Engine diagnostics warning
lamp
291
h Main-beam indicator lamp
95
j Rev counter
114
k Fuel gauge
l Fuel filler cap location: cap
is on the right at the rear
m Reserve tank warning lamp
293
n Total distance recorder
120
o Trip meter
114
p Multi-function display
114
q Gearshift program display
111 Function Page
r Transmission position dis-
play
108
s Depending on the setting in
the on-board computer:
120
• outside temperature
6
• digital speedometer t Speedometer
128
u Clock
129
4
On vehicles without Distronic* the symbol lights up briefly but has no function.
5 Only on vehicles with tyre pressure monitor*.
6 Vehicles for the United Kingdom: the outside temperature is always displayed in the digital speedometer. At a glance
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 29Dateiname: 6515_4293_02_buchblock.pdf; preflight

Multi-function steering wheel

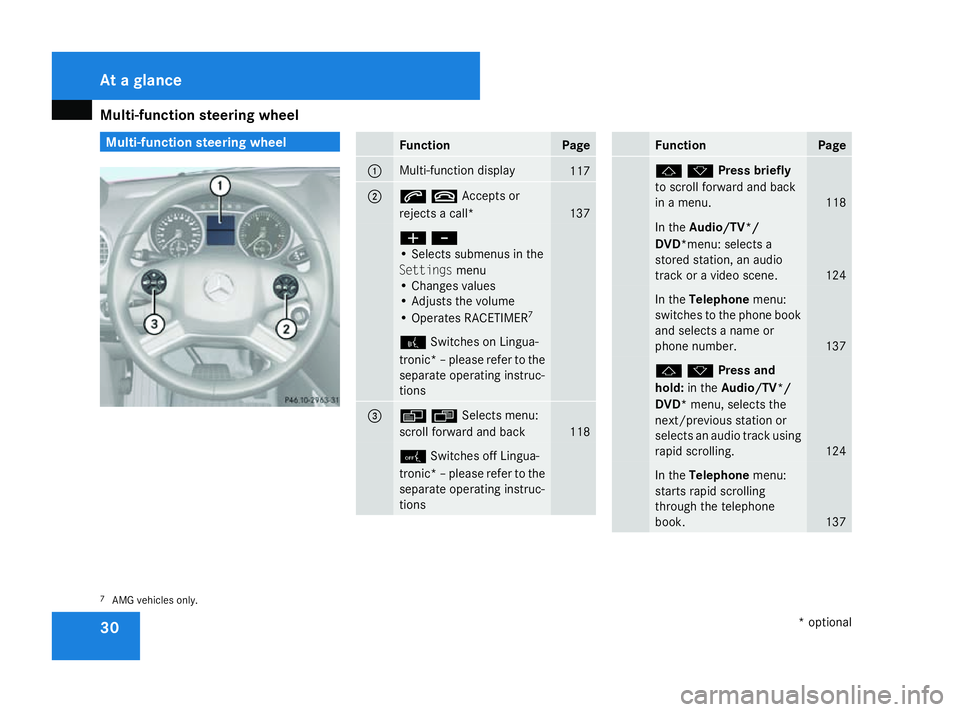

30 Multi-function steering wheel
Function Page
1 Multi-function display
117
2 stAccepts or
rejects a call*
137
æ
-
• Selects submenus in the
Settings menu
• Changes values
• Adjusts the volume
• Operates RACETIMER 7 !
Switches on Lingua-
tronic* – please refer to the
separate operating instruc-
tions 3 èÿSelects menu:
scroll forward and back
118
0
Switches off Lingua-
tronic* – please refer to the
separate operating instruc-
tions Function Page
jkPress briefly
to scroll forward and back
in a menu.
118
In the
Audio/TV*/
DVD*menu: selects a
stored station, an audio
track or a video scene. 124
In the
Telephone menu:
switches to the phone book
and selects a name or
phone number. 137
jkPress and
hold:
in the Audio/TV*/
DVD* menu, selects the
next/previous station or
selects an audio track using
rapid scrolling. 124
In the
Telephone menu:
starts rapid scrolling
through the telephone
book. 137
7 AMG vehicles only. At a glance
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 30Dateiname: 6515_4293_02_buchblock.pdf; preflight

Centre console
31Centre console

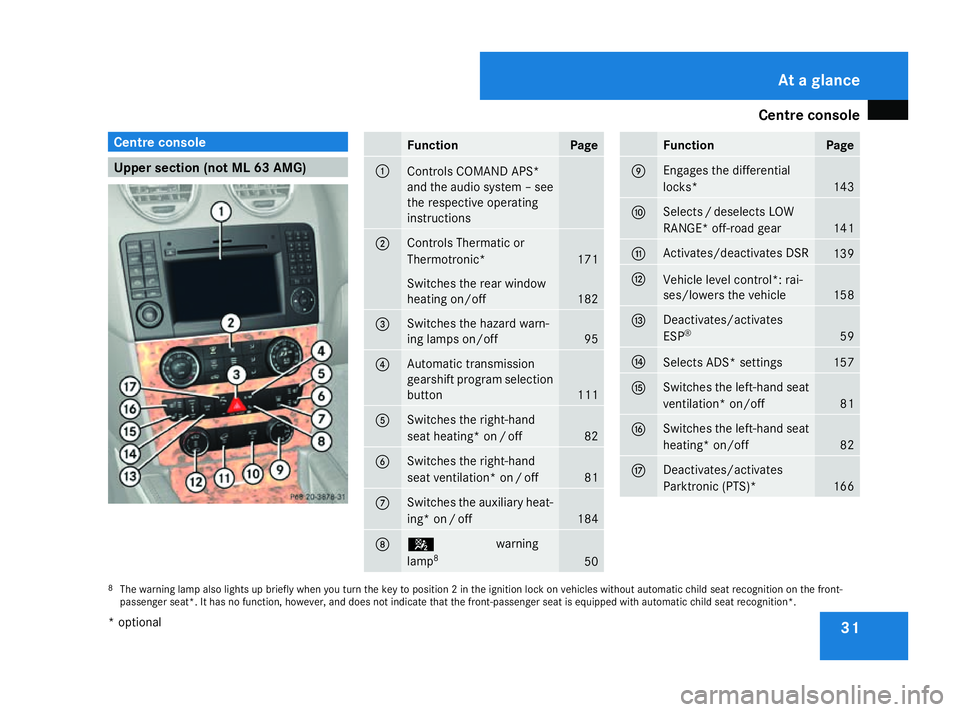

Upper section (not ML 63 AMG) Function Page
1
Controls COMAND APS*
and the audio system – see
the respective operating
instructions
2 Controls Thermatic or
Thermotronic*
171
Switches the rear window
heating on/off
182
3 Switches the hazard warn-
ing lamps on/off
95
4 Automatic transmission
gearshift program selection
button
111
5 Switches the right-hand
seat heating* on
/off 82
6 Switches the right-hand
seat ventilation* on
/off 81
7 Switches the auxiliary heat-
ing* on
/off 184
8 59
warning
lamp 8 50 Function Page
9 Engages the differential
locks*
143
a Selects
/deselects LOW
RANGE* off-road gear 141
b Activates/deactivates DSR
139
c
Vehicle level control*: rai-
ses/lowers the vehicle
158
d Deactivates/activates
ESP
® 59
e
Selects ADS* settings 157
f Switches the left-hand seat
ventilation* on/off
81
g Switches the left-hand seat
heating* on/off
82
h Deactivates/activates
Parktronic (PTS)*
166
8
The warning lamp also lights up briefly when you turn the key to position 2 in the ignition lock on vehicles without automatic child seat recognition on the front-
passenger seat*. It has no function, however, and does not indicate that the front-passenger seat is equipped with automatic child seat recognition*. At a glance
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 31Dateiname: 6515_4293_02_buchblock.pdf; preflight

Centre console

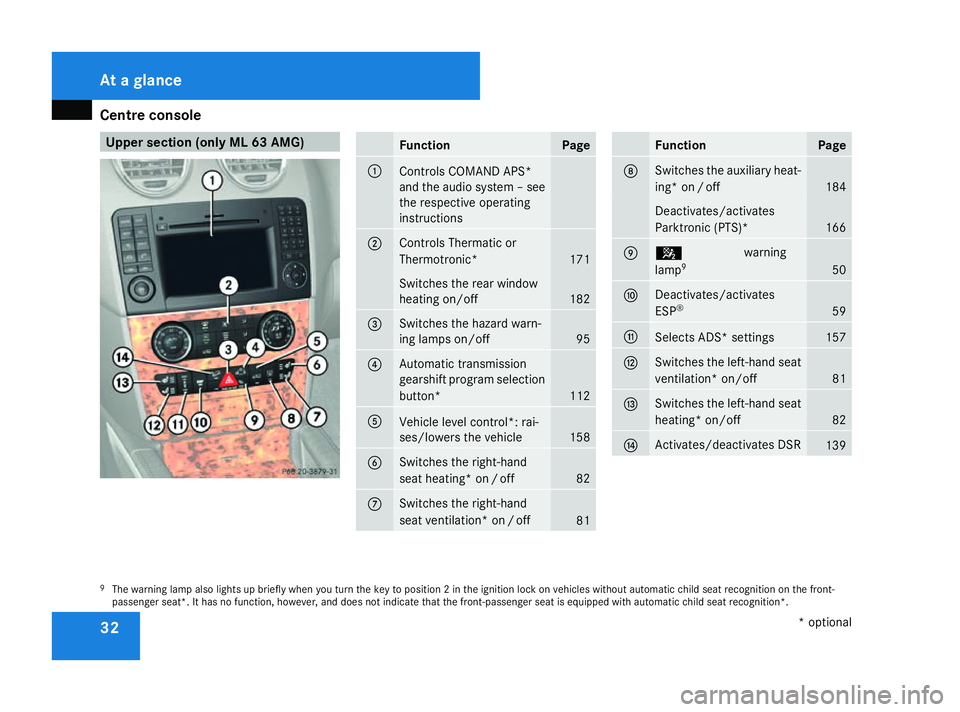

32 Upper section (only ML 63 AMG)
Function Page
1
Controls COMAND APS*
and the audio system – see
the respective operating
instructions
2 Controls Thermatic or
Thermotronic*
171
Switches the rear window
heating on/off
182
3 Switches the hazard warn-
ing lamps on/off
95
4 Automatic transmission
gearshift program selection
button*
112
5
Vehicle level control*: rai-
ses/lowers the vehicle
158
6 Switches the right-hand
seat heating* on
/off 82
7 Switches the right-hand
seat ventilation* on
/off 81 Function Page
8 Switches the auxiliary heat-
ing* on
/off 184
Deactivates/activates
Parktronic (PTS)*
166
9 59
warning
lamp 9 50
a Deactivates/activates
ESP
® 59
b
Selects ADS* settings 157
c Switches the left-hand seat
ventilation* on/off
81
d Switches the left-hand seat
heating* on/off
82
e Activates/deactivates DSR
139
9
The warning lamp also lights up briefly when you turn the key to position 2 in the ignition lock on vehicles without automatic child seat recognition on the front-
passenger seat*. It has no function, however, and does not indicate that the front-passenger seat is equipped with automatic child seat recognition*. At a glance
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 32Dateiname: 6515_4293_02_buchblock.pdf; preflight

Centre console

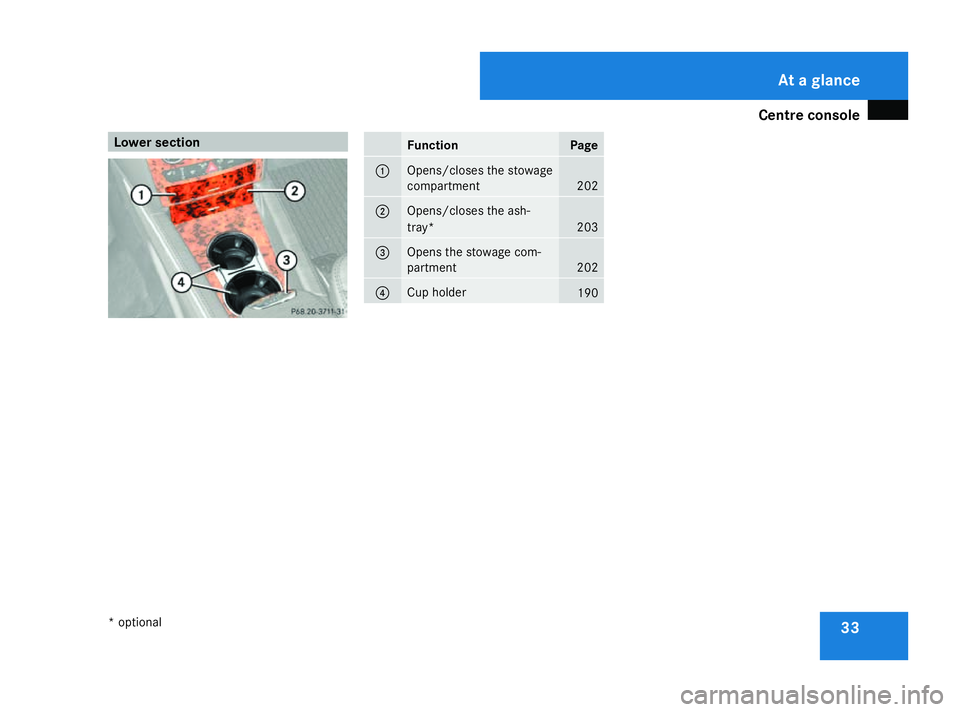

33Lower section
Function Page
1 Opens/closes the stowage
compartment
202
2 Opens/closes the ash-
tray*
203
3 Opens the stowage com-
partment
202
4 Cup holder
190 At a glance
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 33Dateiname: 6515_4293_02_buchblock.pdf; preflight

Overhead control panel

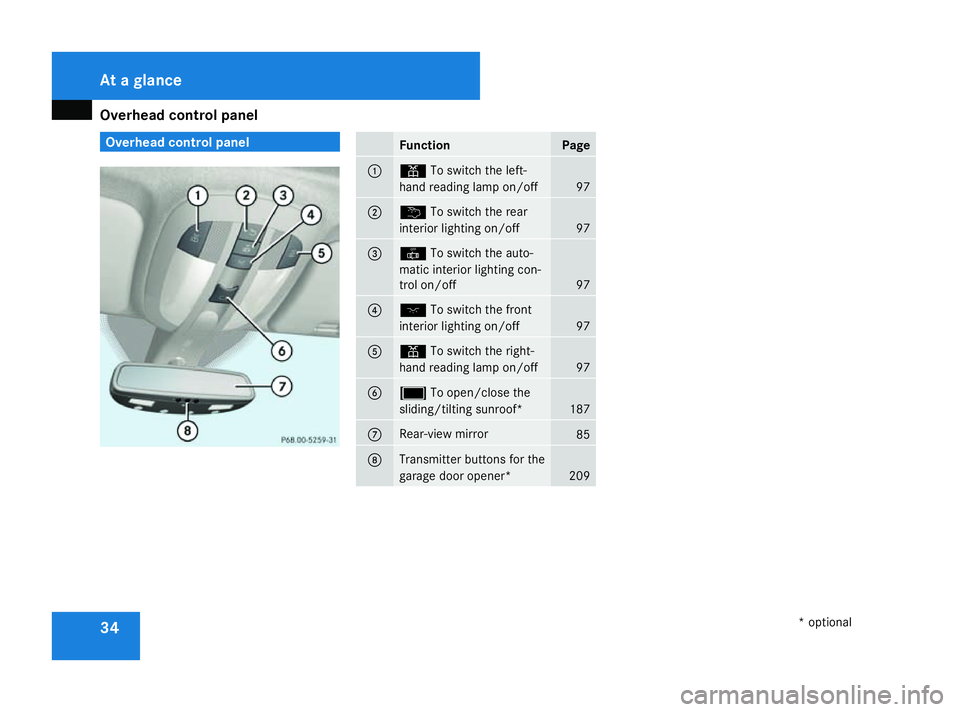

34 Overhead control panel
Function Page
1 X
To switch the left-
hand reading lamp on/off 97
2 ¦
To switch the rear
interior lighting on/off 97
3 ¥
To switch the auto-
matic interior lighting con-
trol on/off 97
4 ð
To switch the front
interior lighting on/off 97
5 X
To switch the right-
hand reading lamp on/off 97
6
a
To open/close the
sliding/tilting sunroof* 187
7 Rear-view mirror
85
8 Transmitter buttons for the
garage door opener*
209At a glance
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 34Dateiname: 6515_4293_02_buchblock.pdf; preflight

Door cont

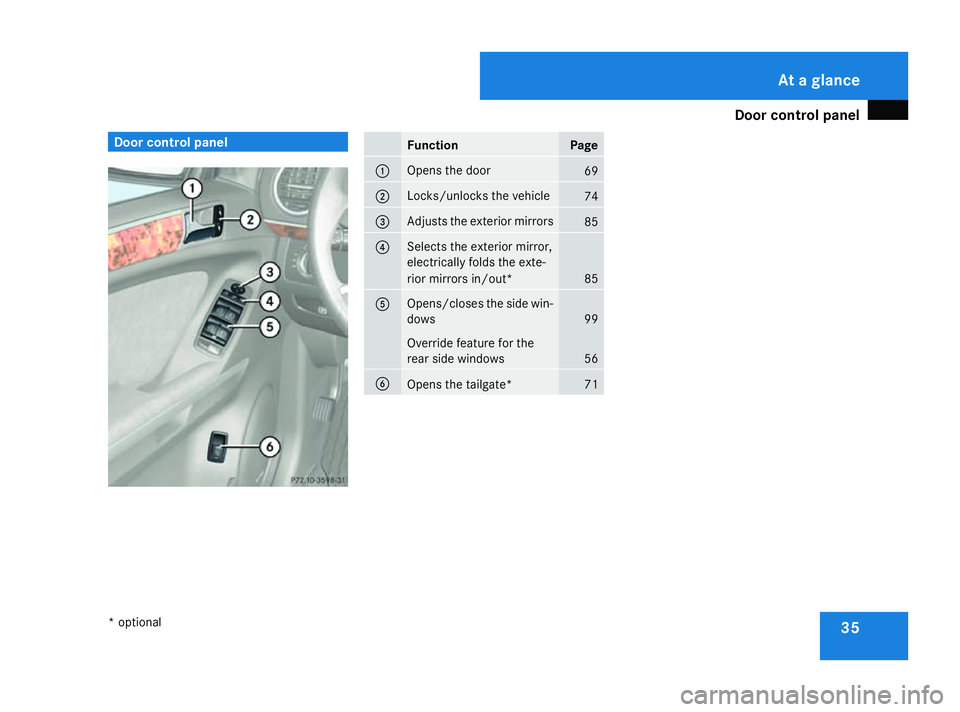

rol panel 35Door control panel
Function Page
1 Opens the door
69
2 Locks/unlocks the vehicle
74
3 Adjusts the exterior mirrors
85
4 Selects the exterior mirror,
electrically folds the exte-
rior mirrors in/out*
85
5 Opens/closes the side win-
dows
99
Override feature for the
rear side windows
56
6
Opens the tailgate* 71 At a glance
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 35Dateiname: 6515_4293_02_buchblock.pdf; preflight

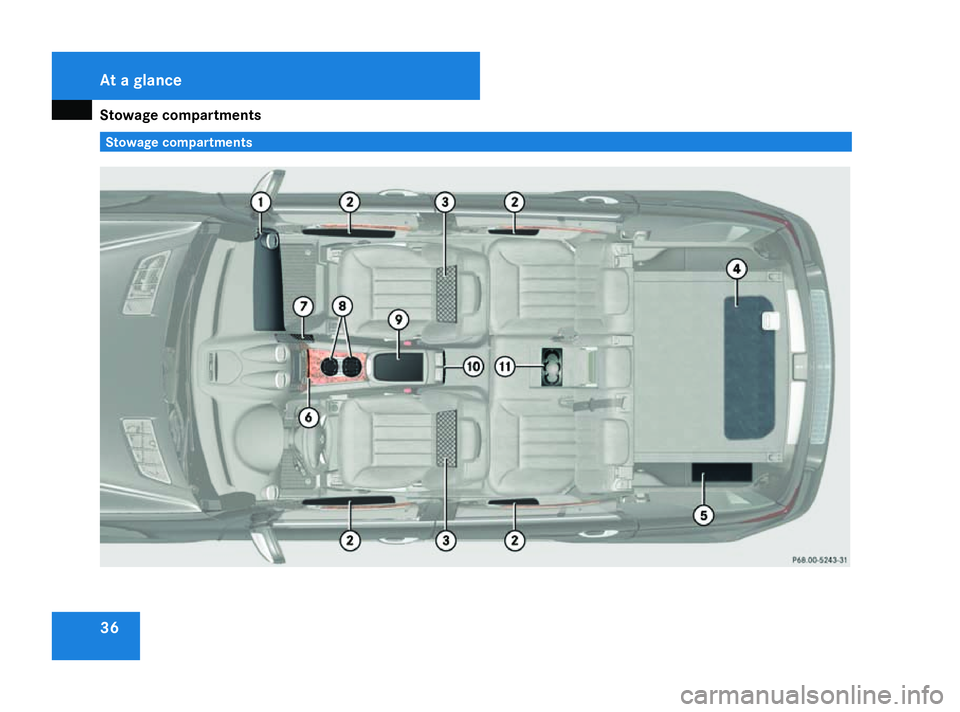

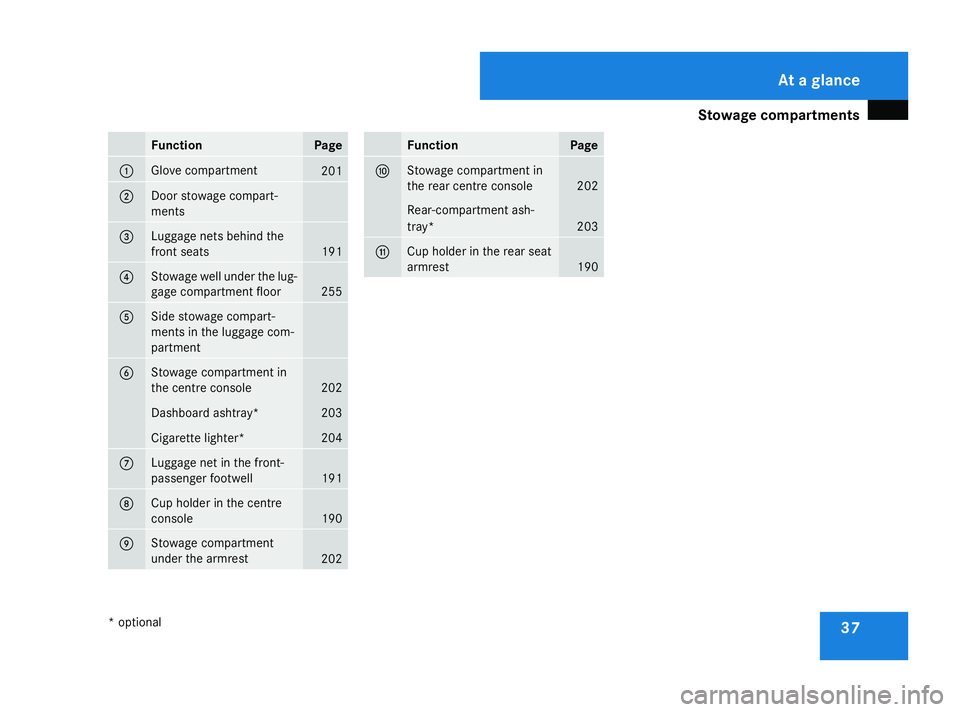

Stowage compartments
36 Stowage compartmentsAt a glance
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 36Dateiname: 6515_4293_02_buchblock.pdf; preflight

Stowage compartments
37Function Page
1 Glove compartment
201
2 Door stowage compart-
ments
3 Luggage nets behind the
front seats
191
4 Stowage well under the lug-
gage compartment floor
255
5 Side stowage compart-
ments in the luggage com-
partment
6 Stowage compartment in
the centre console
202
Dashboard ashtray* 203
Cigarette lighter* 204
7 Luggage net in the front-
passenger footwell
191
8 Cup holder in the centre
console
190
9 Stowage compartment
under the armrest
202 Function Page
a Stowage compartment in
the rear centre console
202
Rear-compartment ash-
tray*
203
b Cup holder in the rear seat
armrest
190 At a glance
