MERCEDES-BENZ ML320CDI 2007 W163 Comand Manual

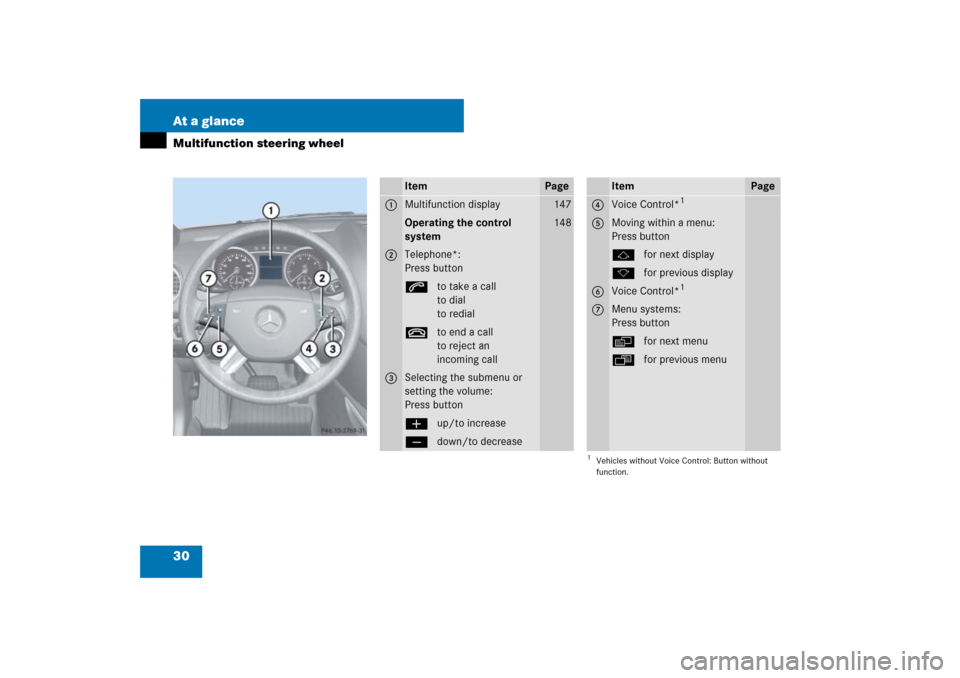

30 At a glanceMultifunction steering wheel
Item
Page
1
Multifunction display
147
Operating the control
system
148
2
Telephone*:
Press buttonsto take a call
to dial
to redialtto end a call
to reject an
incoming call
3
Selecting the submenu or
setting the volume:
Press buttonæup/to increaseçdown/to decrease
Item
Page
4
Voice Control*
1
5
Moving within a menu:
Press buttonjfor next displaykfor previous display
6
Voice Control*
1
7
Menu systems:
Press buttonèfor next menuÿfor previous menu
1Vehicles without Voice Control: Button without
function.

31 At a glance
Center console
Center console
Upper part
Item
Page
1
COMAND system, see sepa-
rate operating instructions
2
Climate control
206
3-zone automatic climate
control*
220
Rear window defroster
205
3
Seat heating*,
front passenger side
131
4
Seat ventilation*,
front passenger side
132
5
Parktronic system*
deactivation switch
274
6
Vehicle level control
switch*
271
7
Front passenger front air
bag off indicator lamp
89,
426
Item
Page
8
Storage compartment*
296
9
Alarm system indicator
lamp
104
a
Electronic Stability Program
(ESP
®) switch
100
b
Adaptive damping system
(ADS)* switch
269
c
Seat ventilation*,
driver’s side
132
d
Seat heating*, driver’s side
131
e
Switch for Downhill Speed
Regulation (DSR)
265
f
Hazard warning flasher
142
g
Switch for Off-road driving
program
ML 63 AMG:
Program mode selector
switch for automatic trans-
mission
268
195

32 At a glanceCenter consoleLower part
Item
Page
1
Storage compartment
296


Power outlet
302


Ashtray with cigarette
lighter*
300
2
Cup holder
299
3
Armrest storage tray
release
296
4
Armrest storage compart-
ment release
296
5
Card, ticket holder
(removable)
299

33 At a glance
Overhead control panel
Overhead control panel
Item
Page
1
Left reading lamp switch
142
2
Rear interior lighting switch
142
3
Automatic interior lighting
switch
142
4
Front interior lighting switch
142
5
Right reading lamp switch
142
6
Front right interior lamp
142
7
Tilt/sliding sunroof* switch
241
8
Tele Aid* (emergency call
system) button
311
9
Interior rear view mirror
200
a
Front right reading lamp
142
Item
Page
b
Front left reading lamp
142
c
Garage door opener*
316
d
Vehicles without
telephone* installed:
Hands-free microphone for
Tele Aid* (emergency call
system)
308
e
Vehicles with telephone*
installed:
Hands-free microphone for
Tele Aid* (emergency call
system) and telephone*
308
f
Front left interior lamp
142

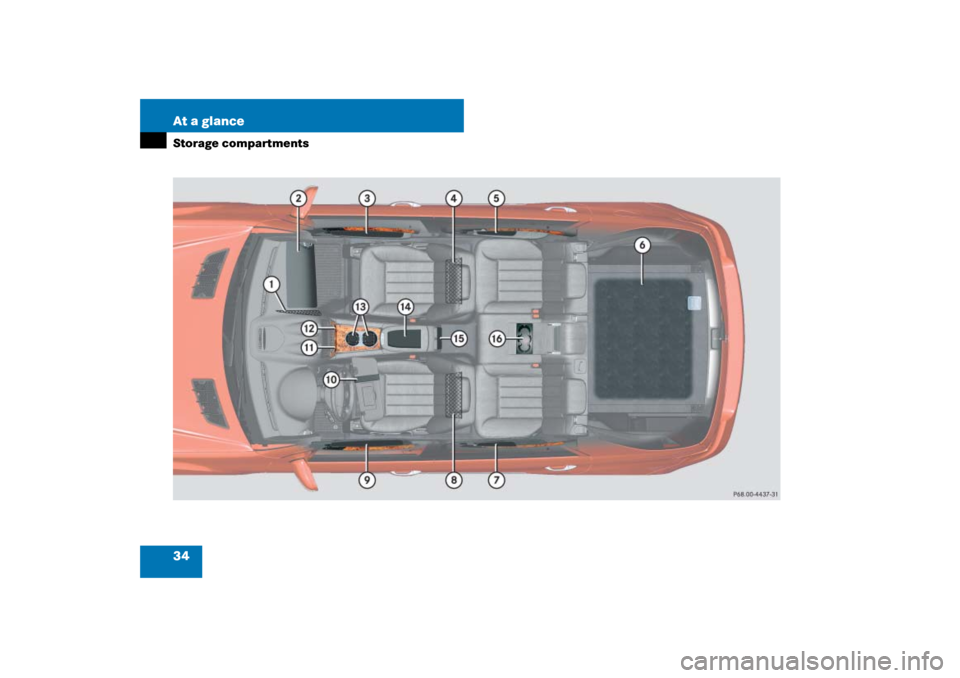

34 At a glanceStorage compartments

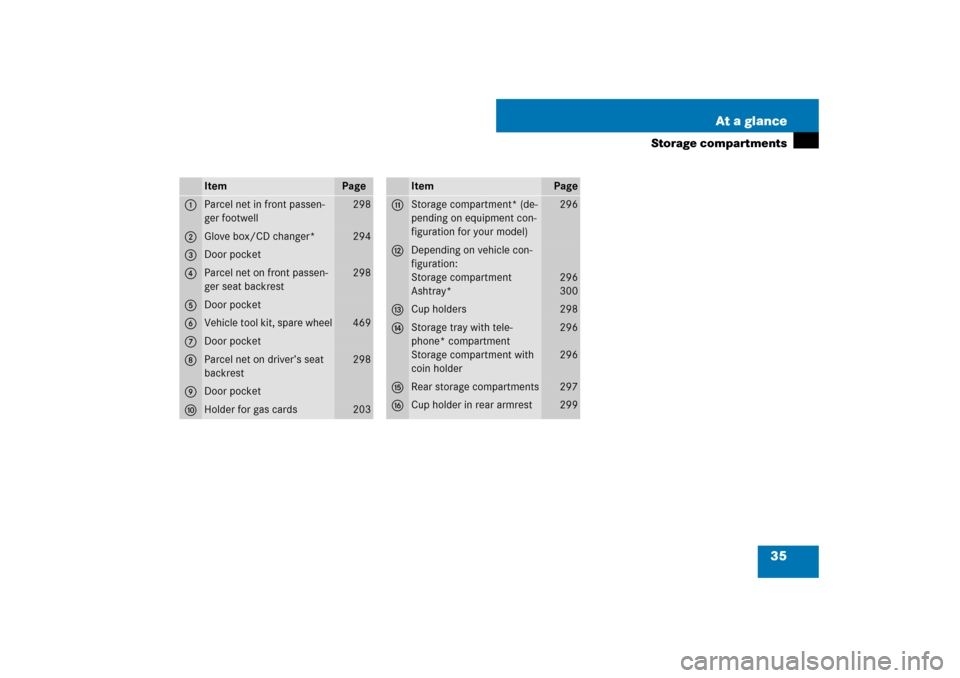

35 At a glance
Storage compartments
Item
Page
1
Parcel net in front passen-
ger footwell
298
2
Glove box/CD changer*
294
3
Door pocket
4
Parcel net on front passen-
ger seat backrest
298
5
Door pocket
6
Vehicle tool kit, spare wheel
469
7
Door pocket
8
Parcel net on driver’s seat
backrest
298
9
Door pocket
a
Holder for gas cards
203
Item
Page
b
Storage compartment* (de-
pending on equipment con-
figuration for your model)
296
c
Depending on vehicle con-
figuration:
Storage compartment
Ashtray*
296
300
d
Cup holders
298
e
Storage tray with tele-
phone* compartment
Storage compartment with
coin holder
296
296
f
Rear storage compartments
297
g
Cup holder in rear armrest
299

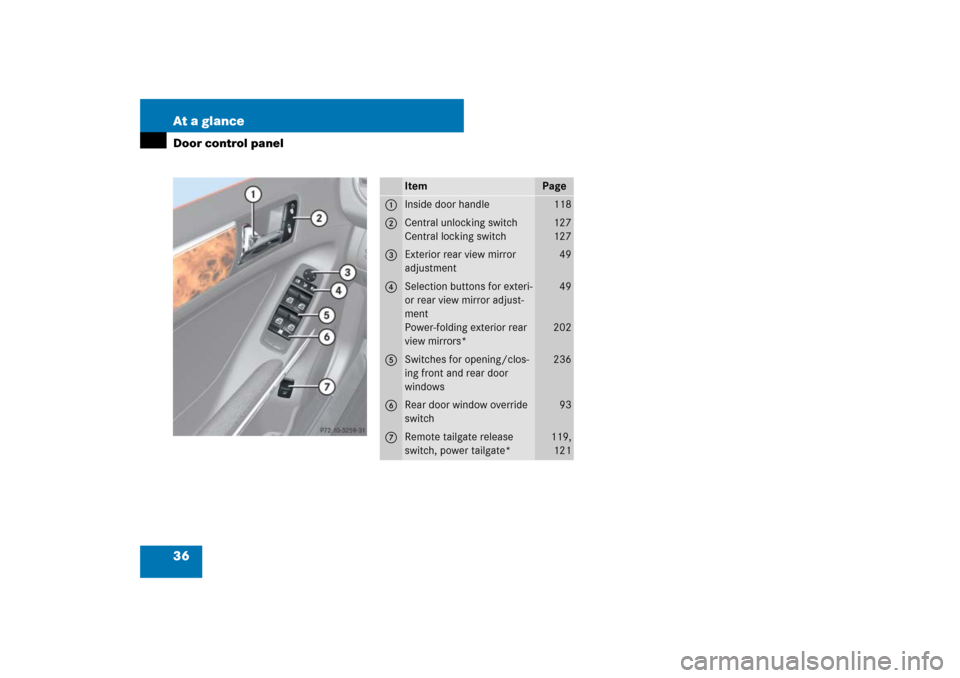

36 At a glanceDoor control panel
Item
Page
1
Inside door handle
118
2
Central unlocking switch
Central locking switch
127
127
3
Exterior rear view mirror
adjustment
49
4
Selection buttons for exteri-
or rear view mirror adjust-
ment
Power-folding exterior rear
view mirrors*
49
202
5
Switches for opening/clos-
ing front and rear door
windows
236
6
Rear door window override
switch
93
7
Remote tailgate release
switch, power tailgate*
119,
121

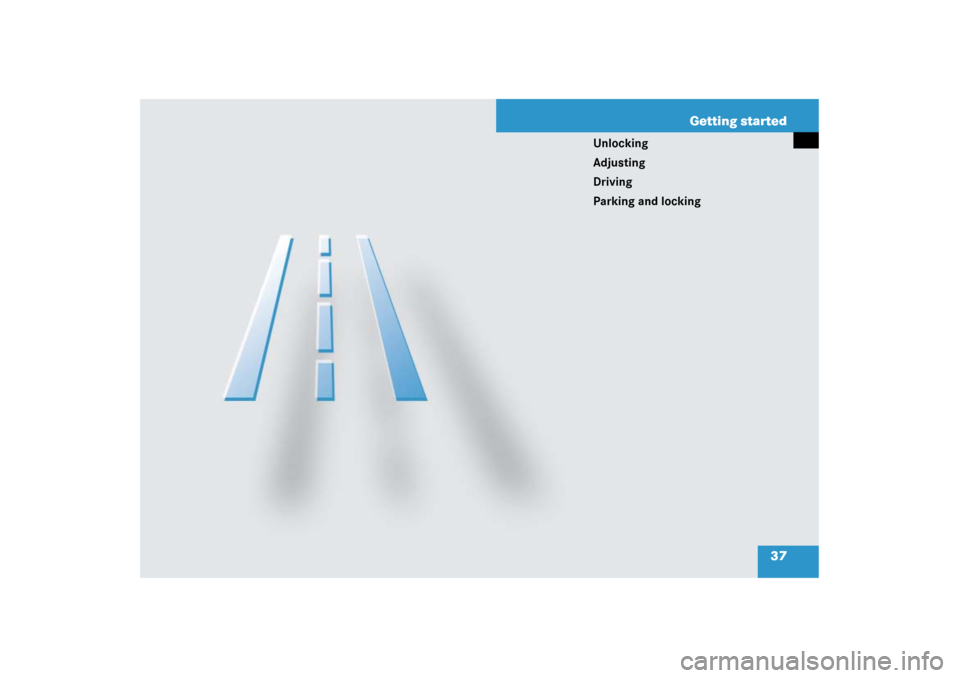

37 Getting started
Unlocking
Adjusting
Driving
Parking and locking

38 Getting startedThe “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page
references are located at the end of each
segment.Unlocking

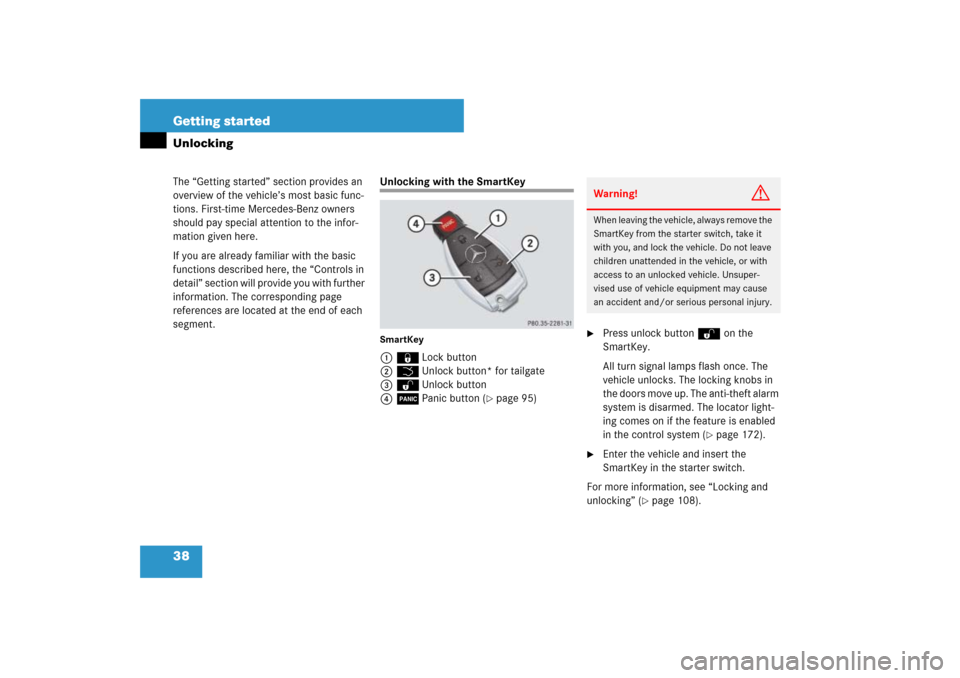

Unlocking with the SmartKeySmartKey1‹Lock button
2ŠUnlock button* for tailgate
3ŒUnlock button
4ÂPanic button (
page 95)

Press unlock buttonΠon the
SmartKey.
All turn signal lamps flash once. The
vehicle unlocks. The locking knobs in
the doors move up. The anti-theft alarm
system is disarmed. The locator light-
ing comes on if the feature is enabled
in the control system (
page 172).

Enter the vehicle and insert the
SmartKey in the starter switch.
For more information, see “Locking and
unlocking” (
page 108).
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.

39 Getting started
Unlocking
Unlocking with KEYLESS-GO*
With the KEYLESS-GO function, you can
lock or unlock the vehicle without using
the remote control buttons on the
SmartKey and start the engine without in-
serting the SmartKey into the starter
switch.

Grasp an outside door handle or the
tailgate handle.
All turn signal lamps flash once. The ve-
hicle unlocks. The locking knobs in the
doors move up. The anti-theft alarm
system is disarmed. The locator light-
ing comes on if the feature is enabled
in the control system (
page 172).

Enter the vehicle.
For more information, see “SmartKey with
KEYLESS-GO*” (
page 112).
Starter switch positions
i
To unlock the vehicle, the SmartKey with
KEYLESS-GO must be outside the vehicle, no
further than approximately 3 feet (1 meter) away
from the respective door.Warning!
G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO* with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
i
If the vehicle has been parked for more than
72 hours, you must pull an outside door handle
in order to activate the KEYLESS-GO function.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
