40 Getting startedUnlockingSmartKeyStarter switch0For removing SmartKey
1Power supply for some electrical con-
sumers, such as seat adjustment
2Ignition (power supply for all electrical
consumers) and driving position
All lamps (except high beam headlamp
indicator lamp and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary. If
a lamp in the instrument cluster re-mains on after starting the engine or
comes on while driving, refer to “Lamps
in instrument cluster” (
page 414).
3Starting position
i
When you switch on the ignition, the indica-
tor and warning lamps (except high beam head-
lamp indicator lamp and turn signal indicator
lamps unless activated) in the instrument cluster
come on. The indicator and warning lamps (ex-
cept high beam headlamp indicator lamp and
turn signal indicator lamps if activated) will go
out when the engine is running. This indicates
that the respective systems are operational.
i
When the SmartKey is removed from the
starter switch and the automatic transmission is
in a position other thanP, the automatic trans-
mission automatically shifts toP.
!
If the SmartKey cannot be turned in the
starter switch, the battery may not be sufficient-
ly charged.


Check the battery and charge it if necessary
(page 507).


Get a jump start (
page 515).
To prevent accelerated battery discharge or a
completely discharged battery, always remove
the SmartKey from the starter switch when the
engine is not in operation.

41 Getting started
Unlocking

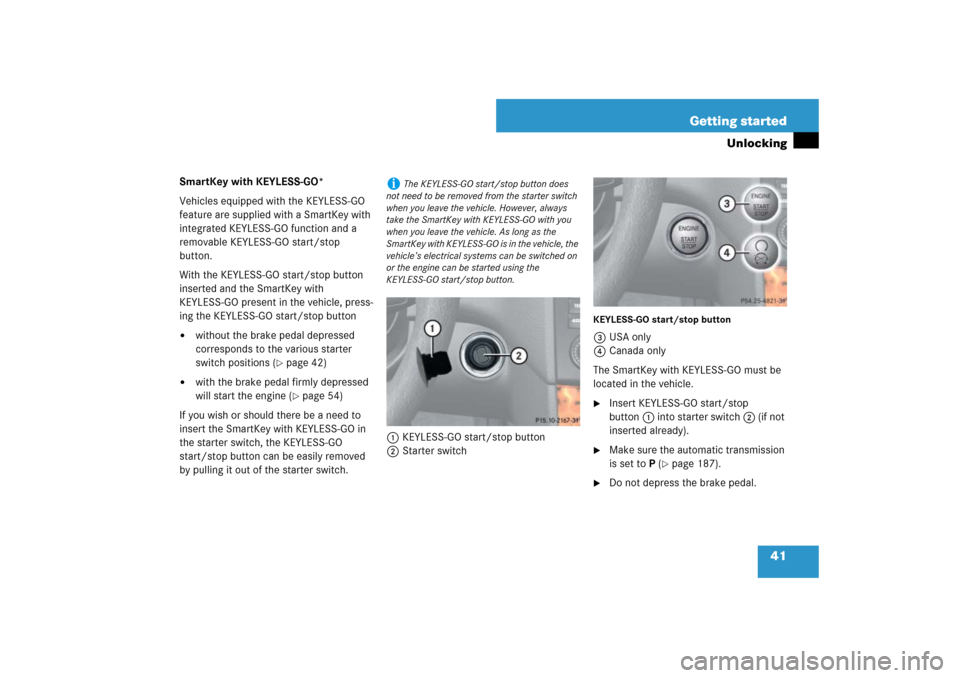

SmartKey with KEYLESS-GO*
Vehicles equipped with the KEYLESS-GO
feature are supplied with a SmartKey with
integrated KEYLESS-GO function and a
removable KEYLESS-GO start/stop
button.
With the KEYLESS-GO start/stop button
inserted and the SmartKey with
KEYLESS-GO present in the vehicle, press-
ing the KEYLESS-GO start/stop button

without the brake pedal depressed
corresponds to the various starter
switch positions (
page 42)


with the brake pedal firmly depressed
will start the engine (
page 54)
If you wish or should there be a need to
insert the SmartKey with KEYLESS-GO in
the starter switch, the KEYLESS-GO
start/stop button can be easily removed
by pulling it out of the starter switch.1KEYLESS-GO start/stop button
2Starter switch
KEYLESS-GO start/stop button3USA only
4Canada only
The SmartKey with KEYLESS-GO must be
located in the vehicle.
Insert KEYLESS-GO start/stop
button1 into starter switch2 (if not
inserted already).

Make sure the automatic transmission
is set toP (
page 187).

Do not depress the brake pedal.
i
The KEYLESS-GO start/stop button does
not need to be removed from the starter switch
when you leave the vehicle. However, always
take the SmartKey with KEYLESS-GO with you
when you leave the vehicle. As long as the
SmartKey with KEYLESS-GO is in the vehicle, the
vehicle’s electrical systems can be switched on
or the engine can be started using the
KEYLESS-GO start/stop button.

42 Getting startedUnlockingPosition 0
Before you press the KEYLESS-GO
start/stop button, the vehicle’s on-board
electronics have status0 (as with
SmartKey removed).
Position 1
Press the KEYLESS-GO start/stop
button once.
This supplies power for some electrical
consumers, such as seat adjustment.Ignition (or Position 2)

Press the KEYLESS-GO start/stop
button twice.
This supplies power for all electrical
consumers.
All lamps (except high beam headlamp
indicator lamp and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary. If
a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, refer to “Lamps
in instrument cluster” (
page 414).For information on starting the engine
using the KEYLESS-GO start/stop button,
see “Starting with KEYLESS-GO*”
(
page 55).
For more information on KEYLESS-GO, see
“SmartKey with KEYLESS-GO*”
(page 112).
i
If you now press the KEYLESS-GO
start/stop button


once more, the ignition (position
2) is
switched on


twice more, the power supply is again
switched off
i
If you now press the KEYLESS-GO
start/stop button once more, the power supply
is again switched off.
i
When you switch on the ignition, the
indicator and warning lamps (except high beam
headlamp indicator lamp and turn signal indica-
tor lamps unless activated) in the instrument
cluster come on. The indicator and warning
lamps (except high beam headlamp indicator
lamp and turn signal indicator lamps if activated)
should go out when the engine is running. This
indicates that the respective systems are
operational.

43 Getting started
Adjusting
Adjusting

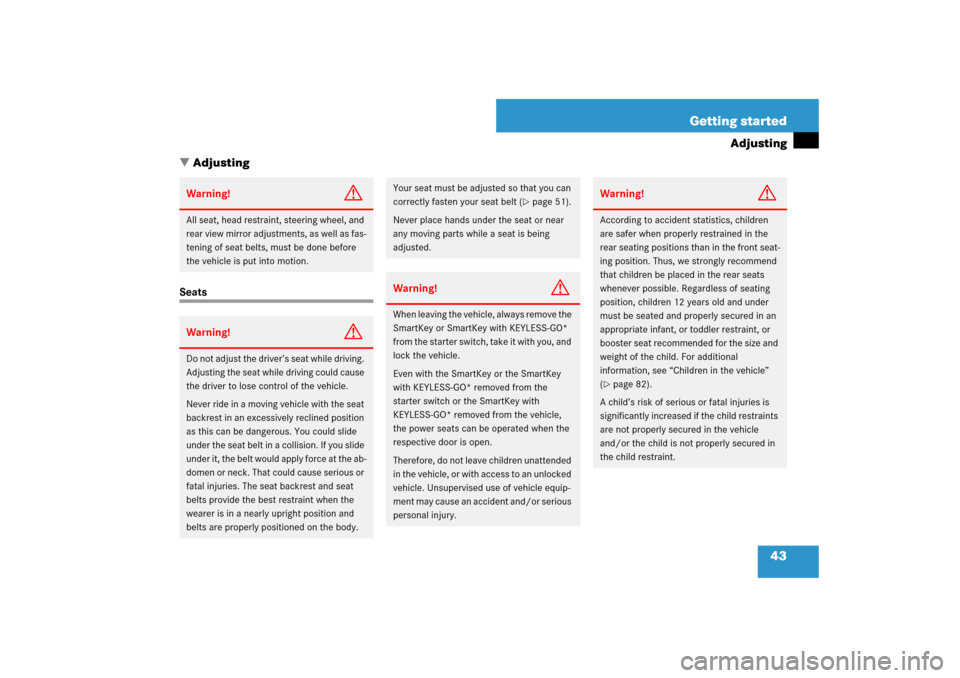

SeatsWarning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
fatal injuries. The seat backrest and seat
belts provide the best restraint when the
wearer is in a nearly upright position and
belts are properly positioned on the body.
Your seat must be adjusted so that you can
correctly fasten your seat belt (
page 51).
Never place hands under the seat or near
any moving parts while a seat is being
adjusted.

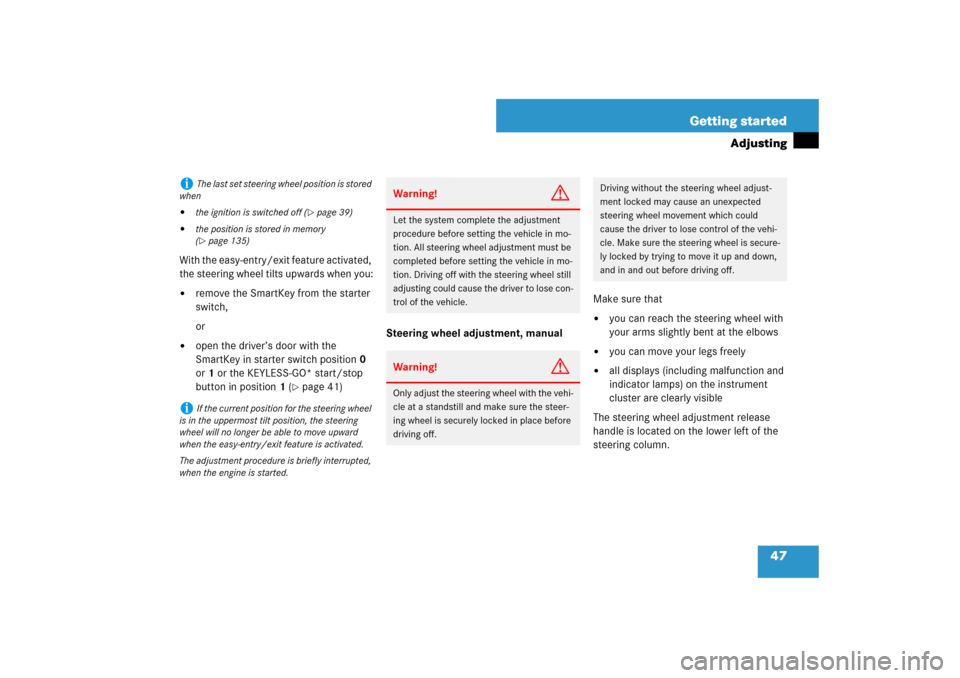

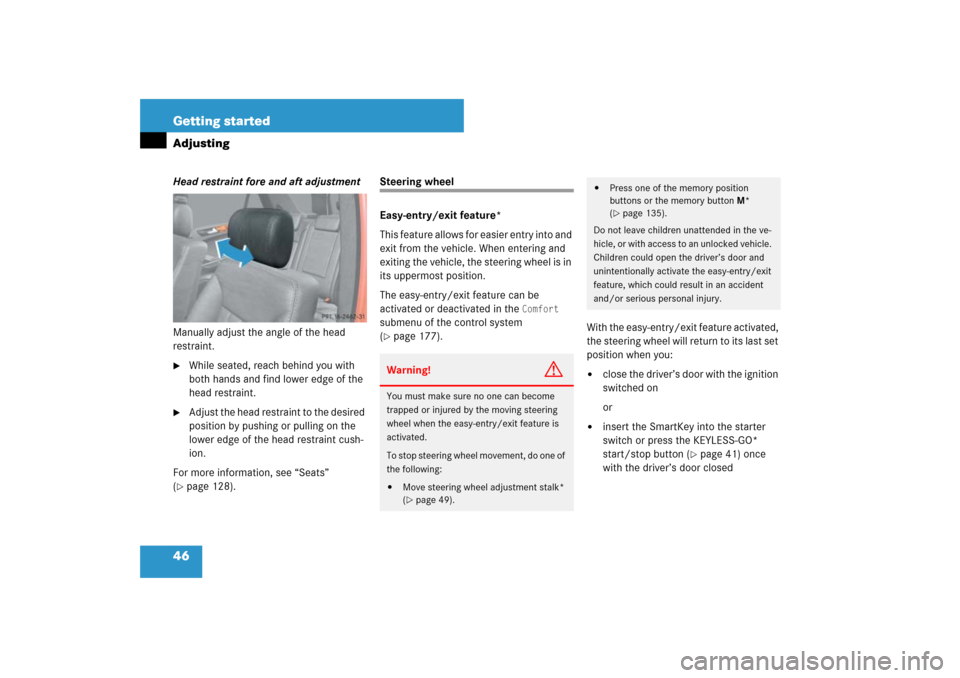

Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle.
Even with the SmartKey or the SmartKey
with KEYLESS-GO* removed from the
starter switch or the SmartKey with
KEYLESS-GO* removed from the vehicle,
the power seats can be operated when the
respective door is open.
Therefore, do not leave children unattended
i n t h e v e h i c l e , o r w i t h a c c e s s t o a n u n l o c k e d
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant, or toddler restraint, or
booster seat recommended for the size and
weight of the child. For additional
information, see “Children in the vehicle”
(page 82).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle
and/or the child is not properly secured in
the child restraint.

44 Getting startedAdjustingSeat adjustment
The seat adjustment switch is located on
the entry side of each front seat base.
1 Head restraint height (vehicles with
memory function)*
2Seat cushion tilt
3Seat height
4Backrest tilt
5Seat fore and aft adjustment

Switch on the ignition (
page 40).
or
Vehicles with memory function*:

Open the respective door.
The seat can be adjusted with the
respective door opened.
orVehicles without memory function*:

The seat can be adjusted within
3 minutes after either front door has
been opened.
Seat fore and aft adjustment

Press the switch forward or backward
in direction of arrow5.
Adjust the seat to a comfortable seat-
ing position that still allows you to
reach the accelerator/brake pedal
safely. The position should be as far to
the rear as possible, consistent with
ability to properly operate controls.
Seat height

Press the switch up or down in
direction of arrow3.
!
When moving the seat, make sure there are
no items in the footwell or behind the seat.
Otherwise you could damage the seat.
!
When the rear seats are folded forward, e.g.
for cargo compartment expansion (
page 284),
the front seats may not be moved to the rear-
most position. Otherwise you could damage the
front and rear seats.
!
When adjusting the seat backrest tilt and
head restraint height, make sure the sun visor is
folded up (
page 203). If the head restraint is in
the uppermost position, it could hit and damage
the sun visor.
i
The memory function* (
page 134) lets
you store the settings for the seat positions
together with the settings for the steering wheel
column and the exterior rear view mirrors.

45 Getting started
Adjusting
Seat cushion tilt
Press the switch up or down in
direction of arrow2 until your upper
legs are lightly supported.
Seat backrest tilt

Press the switch forward or backward
in direction of arrow4 until your arms
are slightly angled when holding the
steering wheel.
Head restraint height
Vehicles with memory function*:

Press switch1 (
page 44) up or
down in direction of arrow.Vehicles without memory function*:

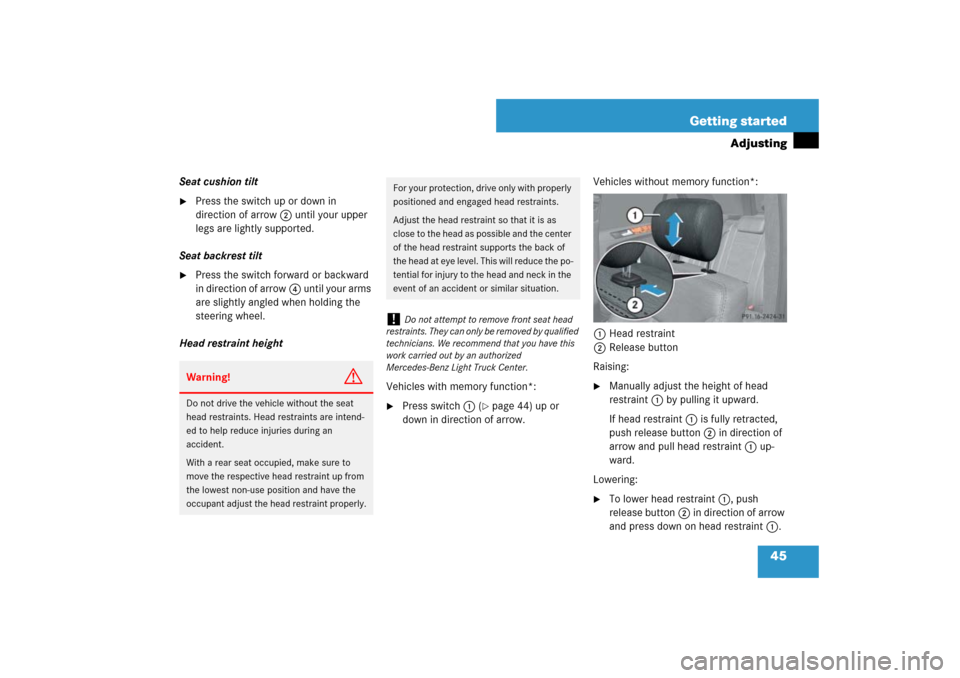

1Head restraint
2Release button
Raising:

Manually adjust the height of head
restraint1 by pulling it upward.
If head restraint1 is fully retracted,
push release button2 in direction of
arrow and pull head restraint1 up-
ward.
Lowering:

To lower head restraint1, push
release button2 in direction of arrow
and press down on head restraint1.
Warning!
G
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an
accident.
With a rear seat occupied, make sure to
move the respective head restraint up from
the lowest non-use position and have the
occupant adjust the head restraint properly.
For your protection, drive only with properly
positioned and engaged head restraints.
Adjust the head restraint so that it is as
close to the head as possible and the center
of the head restraint supports the back of
the head at eye level. This will reduce the po-
tential for injury to the head and neck in the
event of an accident or similar situation.!
Do not attempt to remove front seat head
restraints. They can only be removed by qualified
technicians. We recommend that you have this
work carried out by an authorized
Mercedes-Benz Light Truck Center.

46 Getting startedAdjustingHead restraint fore and aft adjustment
Manually adjust the angle of the head
restraint.
While seated, reach behind you with
both hands and find lower edge of the
head restraint.

Adjust the head restraint to the desired
position by pushing or pulling on the
lower edge of the head restraint cush-
ion.
For more information, see “Seats”
(
page 128).
Steering wheel
Easy-entry/exit feature*
This feature allows for easier entry into and
exit from the vehicle. When entering and
exiting the vehicle, the steering wheel is in
its uppermost position.
The easy-entry/exit feature can be
activated or deactivated in the
Comfort

submenu of the control system
(
page 177).With the easy-entry/exit feature activated,
the steering wheel will return to its last set
position when you:


close the driver’s door with the ignition
switched on
or


insert the SmartKey into the starter
switch or press the KEYLESS-GO*
start/stop button (
page 41) once
with the driver’s door closed
Warning!
G
You must make sure no one can become
trapped or injured by the moving steering
wheel when the easy-entry/exit feature is
activated.
To stop steering wheel movement, do one of
the following:

Move steering wheel adjustment stalk*
(page 49).


Press one of the memory position
buttons or the memory buttonM*
(page 135).
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.

47 Getting started
Adjusting
With the easy-entry/exit feature activated,
the steering wheel tilts upwards when you:

remove the SmartKey from the starter
switch,
or


open the driver’s door with the
SmartKey in starter switch position0
or1 or the KEYLESS-GO* start/stop
button in position1 (
page 41)Steering wheel adjustment, manualMake sure that


you can reach the steering wheel with
your arms slightly bent at the elbows


you can move your legs freely


all displays (including malfunction and
indicator lamps) on the instrument
cluster are clearly visible
The steering wheel adjustment release
handle is located on the lower left of the
steering column.
i
The last set steering wheel position is stored
when


the ignition is switched off (
page 39)


the position is stored in memory
(page 135)
i
If the current position for the steering wheel
is in the uppermost tilt position, the steering
wheel will no longer be able to move upward
when the easy-entry/exit feature is activated.
The adjustment procedure is briefly interrupted,
when the engine is started.
Warning!
G
Let the system complete the adjustment
procedure before setting the vehicle in mo-
tion. All steering wheel adjustment must be
completed before setting the vehicle in mo-
tion. Driving off with the steering wheel still
adjusting could cause the driver to lose con-
trol of the vehicle.Warning!
G
Only adjust the steering wheel with the vehi-
cle at a standstill and make sure the steer-
ing wheel is securely locked in place before
driving off.
Driving without the steering wheel adjust-
ment locked may cause an unexpected
steering wheel movement which could
cause the driver to lose control of the vehi-
cle. Make sure the steering wheel is secure-
ly locked by trying to move it up and down,
and in and out before driving off.

48 Getting startedAdjusting1Release handle
To unlock the steering column, pull
release handle1 out to its stop limit.

Move steering wheel to the desired
position.

Push release handle1 back to its
original position to relock the steering
column.
The steering column is locked into po-
sition again.

Make sure the steering column is
securely locked by trying to move the
steering wheel up and down as well as
in and out before driving off.Steering wheel adjustment, electrical*
Make sure that


you can reach the steering wheel with
your arms slightly bent at the elbows


you can move your legs freely


all displays (including malfunction and
indicator lamps) on the instrument
cluster are clearly visible

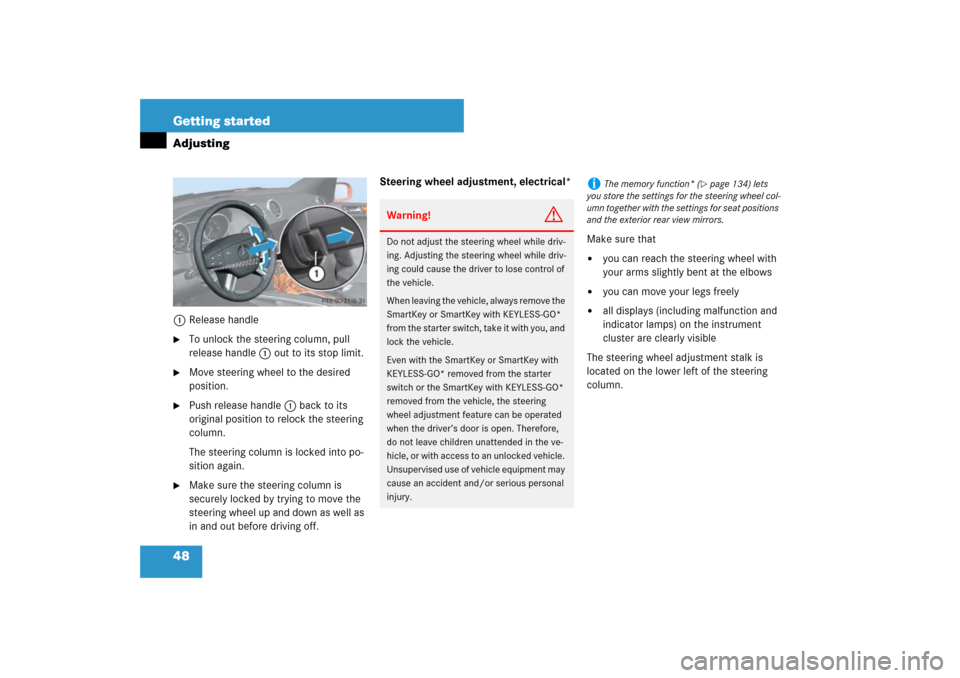

The steering wheel adjustment stalk is
located on the lower left of the steering
column.
Warning!
G
Do not adjust the steering wheel while driv-
ing. Adjusting the steering wheel while driv-
ing could cause the driver to lose control of
the vehicle.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle.
Even with the SmartKey or SmartKey with
KEYLESS-GO* removed from the starter
switch or the SmartKey with KEYLESS-GO*
removed from the vehicle, the steering
wheel adjustment feature can be operated
when the driver’s door is open. Therefore,
do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Unsupervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
i
The memory function* (
page 134) lets
you store the settings for the steering wheel col-
umn together with the settings for seat positions
and the exterior rear view mirrors.

49 Getting started
Adjusting

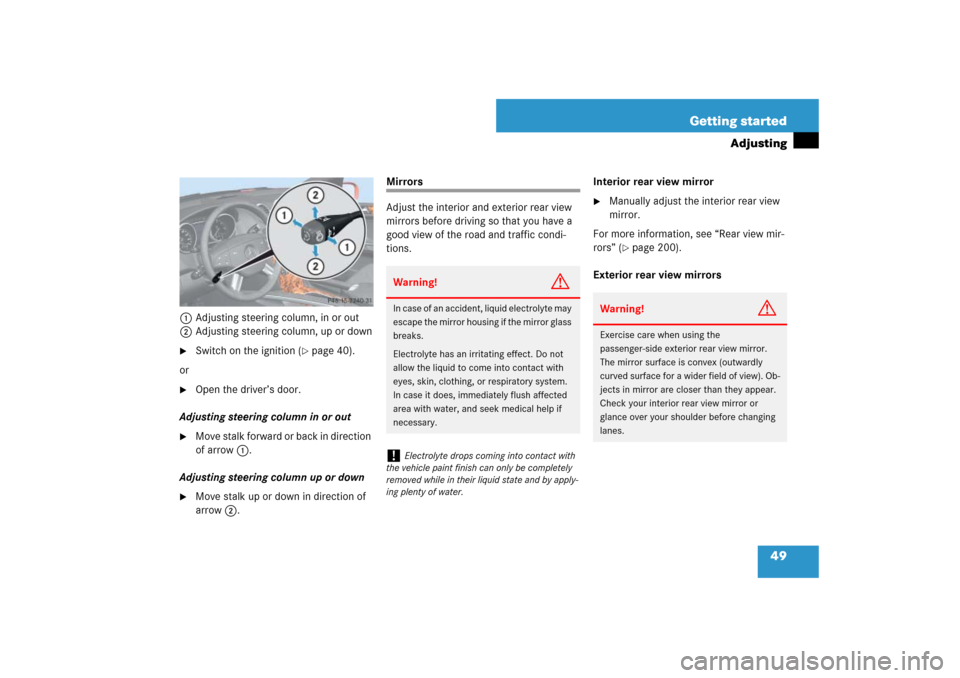

1Adjusting steering column, in or out
2Adjusting steering column, up or down
Switch on the ignition (
page 40).
or

Open the driver’s door.
Adjusting steering column in or out

Move stalk forward or back in direction
of arrow1.
Adjusting steering column up or down

Move stalk up or down in direction of
arrow2.
Mirrors
Adjust the interior and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions.Interior rear view mirror

Manually adjust the interior rear view
mirror.
For more information, see “Rear view mir-
rors” (
page 200).
Exterior rear view mirrors
Warning!
G
In case of an accident, liquid electrolyte may
escape the mirror housing if the mirror glass
breaks.
Electrolyte has an irritating effect. Do not
allow the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.!
Electrolyte drops coming into contact with
the vehicle paint finish can only be completely
removed while in their liquid state and by apply-
ing plenty of water.
Warning!
G
Exercise care when using the
passenger-side exterior rear view mirror.
The mirror surface is convex (outwardly
curved surface for a wider field of view). Ob-
jects in mirror are closer than they appear.
Check your interior rear view mirror or
glance over your shoulder before changing
lanes.
